DAF CF65, CF75, CF85 Series . Manual - part 1064

©

 200424

2-5

General

HYDRAULIC LIFTING GEAR

ΧΦ65/75/85 series

8

9

1.

Nut

2.

Spacer ring

3.

O-ring

4.

Coil

5.

O-ring

6.

4/2 valve

7.

O-ring

8.

O-ring

9.

O-ring

10.

O-ring

11.

Allen screw

12.

O-ring

13.

Coil

14.

O-ring

15.

2/2 valve

16.

O-ring

17.

O-ring

18.

Plastic ring

19.

Clamping strap

20.

O-ring

21.

Cap

22.

Gasket ring

23.

Reservoir

24.

Engine

25.

O-ring

26.

Coupling disc

27.

Valve block

28.

Non-return valve

29.

Plug

30.

Sealing ring

31.

Allen screw

32.

Pump

33.

Sealing ring

34.

Bolt

35.

Return pipe

36.

Clutch

37.

O-ring

38.

O-ring

39.

O-ring

40.

Pressure switch

41.

O-ring

42.

O-ring

43.

Pressure relief valve

44.

Clutch

45.

Return pipe

46.

O-ring

47. Clutch
48. Hose

clamp

49. O-ring
50. Filter
51. Hose

clamp

52. Supply

pipe

53. Hose

clamp

54. Inlet

pipe

HYDRAULIC LIFTING GEAR

2-6

©

 200424

General

9

ΧΦ65/75/85 series

8

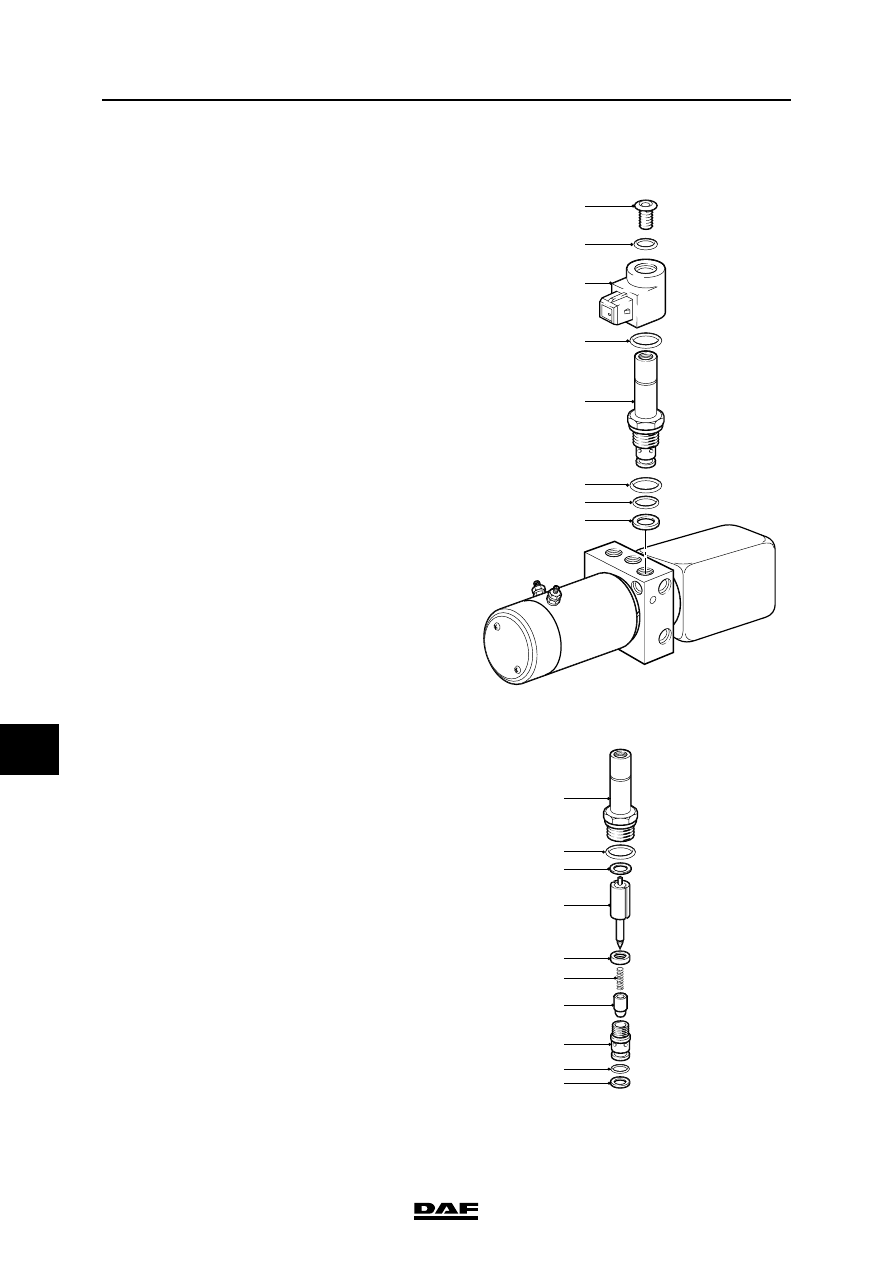

2.4 OVERVIEW DRAWING, 2/2 SOLENOID VALVE

1

2

3

4

5

6
7
8

A8 00 251

1.

Allen screw

2.

O-ring

3.

Coil

4.

O-ring

5.

Valve casing (2/2 valve)

6.

O-ring

7.

O-ring

8.

Plastic ring

10

9

8

7

5

4

3

2

1

6

A8 00 254

1.

Valve casing (2/2 valve)

2.

O-ring

3.

Adjusting ring(s)

4.

Magnet core

5.

Bush

6.

Spring

7.

Valve

8.

Holder

9.

O-ring

10. Plastic

ring

©

 200424

2-7

General

HYDRAULIC LIFTING GEAR

ΧΦ65/75/85 series

8

9

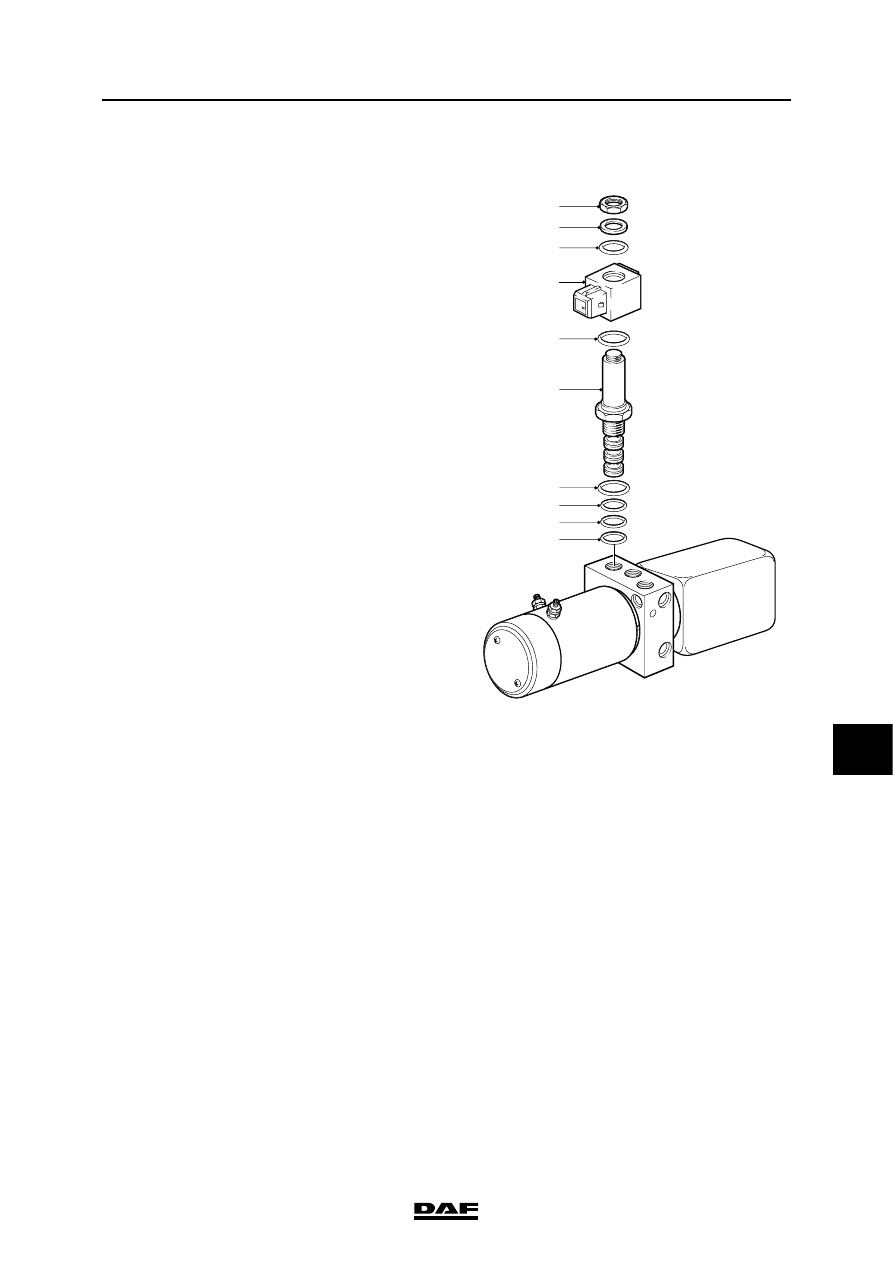

2.5 OVERVIEW DRAWING, 4/2 SOLENOID VALVE

1
2
3

5

6

7
8
9

10

4

A8 00 252

1.

Nut

2.

Spacer ring

3.

O-ring

4.

Coil

5.

O-ring

6.

4/2 valve

7.

O-ring

8.

O-ring

9.

O-ring

10.

O-ring

HYDRAULIC LIFTING GEAR

2-8

©

 200424

General

9

ΧΦ65/75/85 series

8

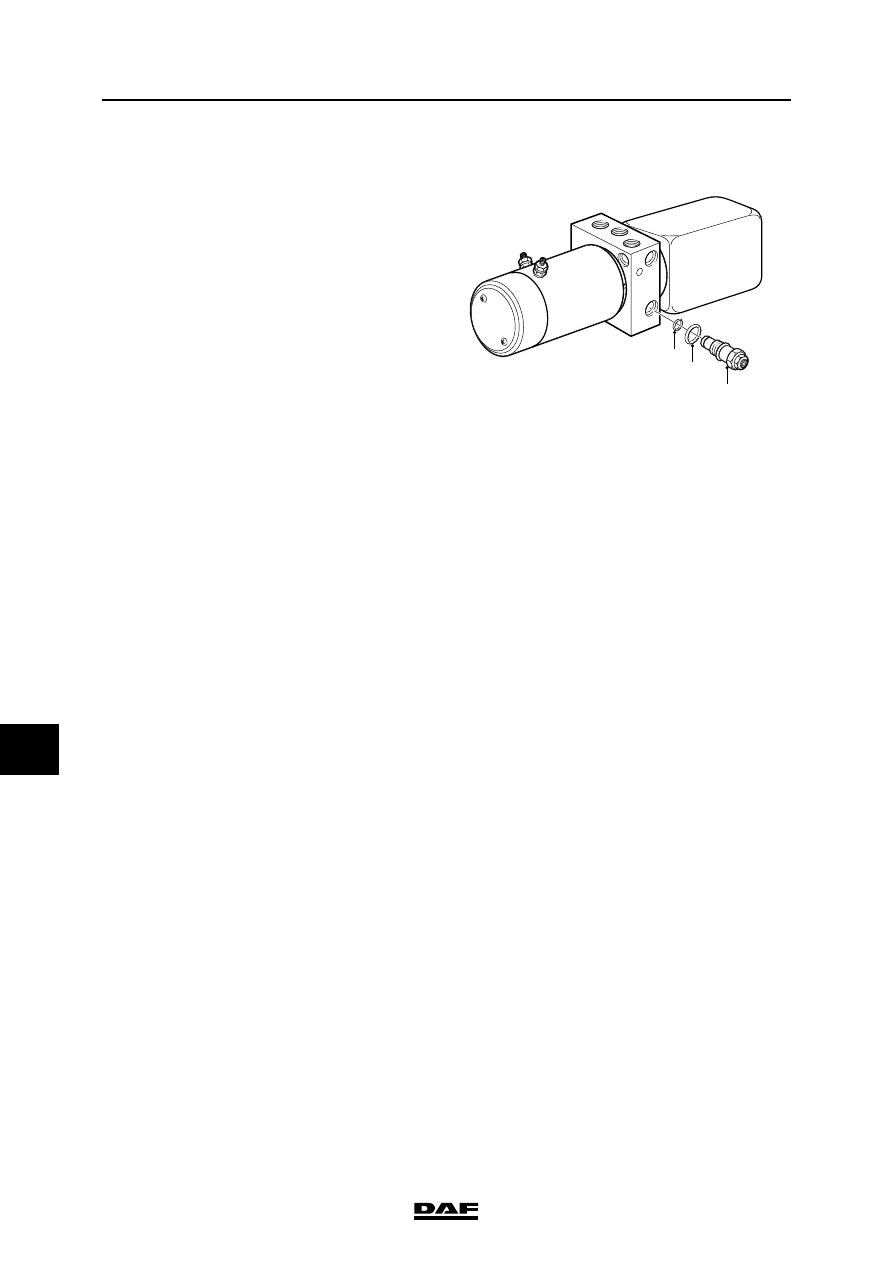

2.6 OVERVIEW DRAWING, PRESSURE RELIEF VALVE

1

2

3

A8 00 276

1.

O-ring

2.

O-ring

3.

Pressure relief valve
