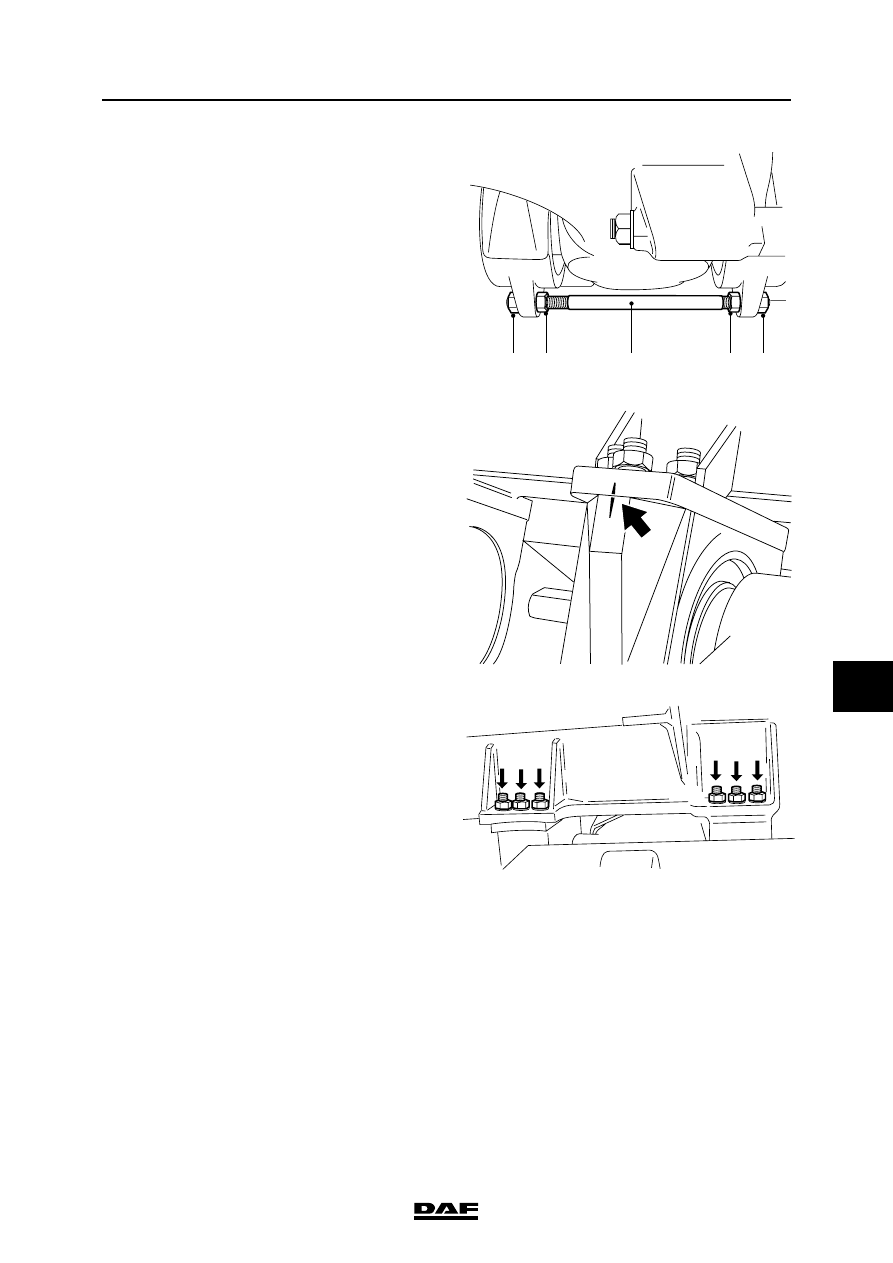

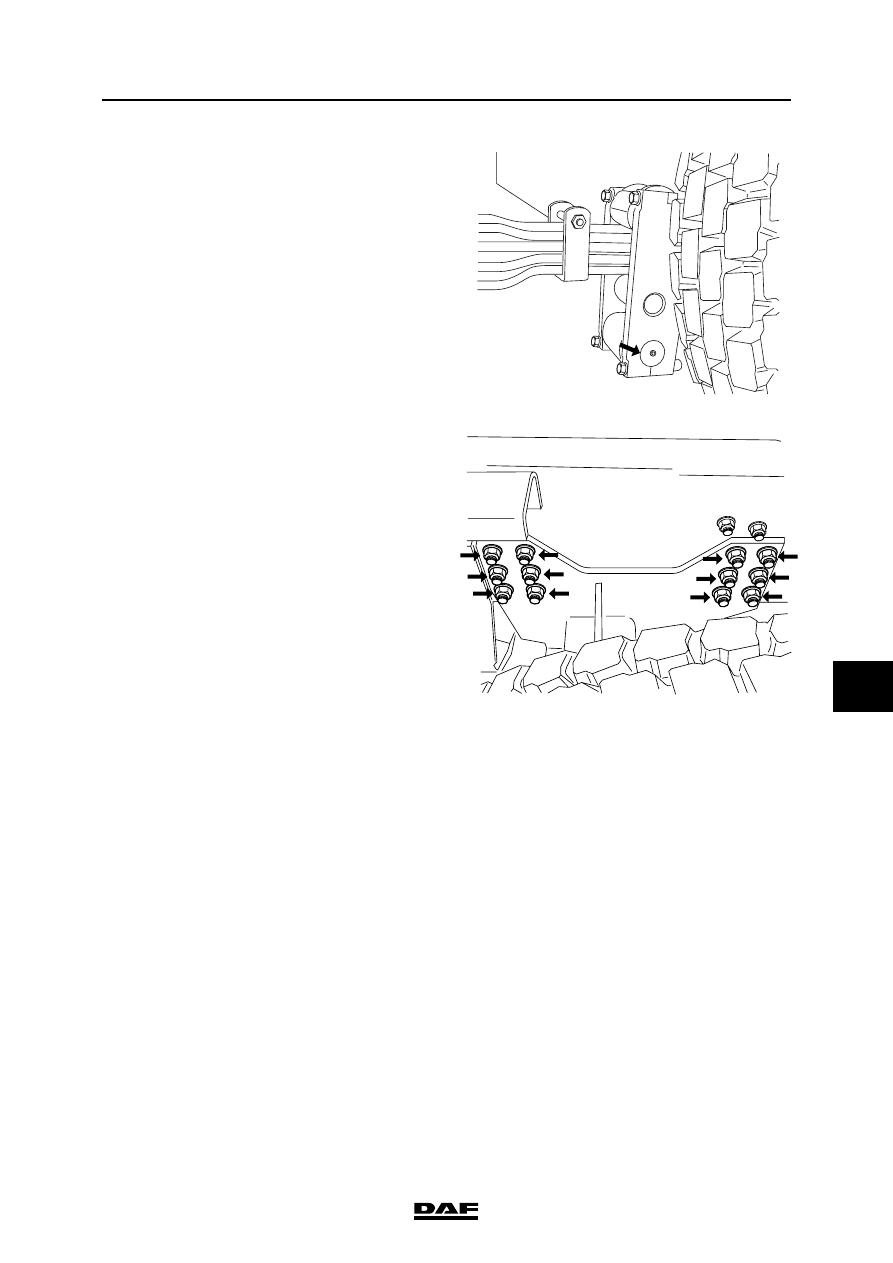

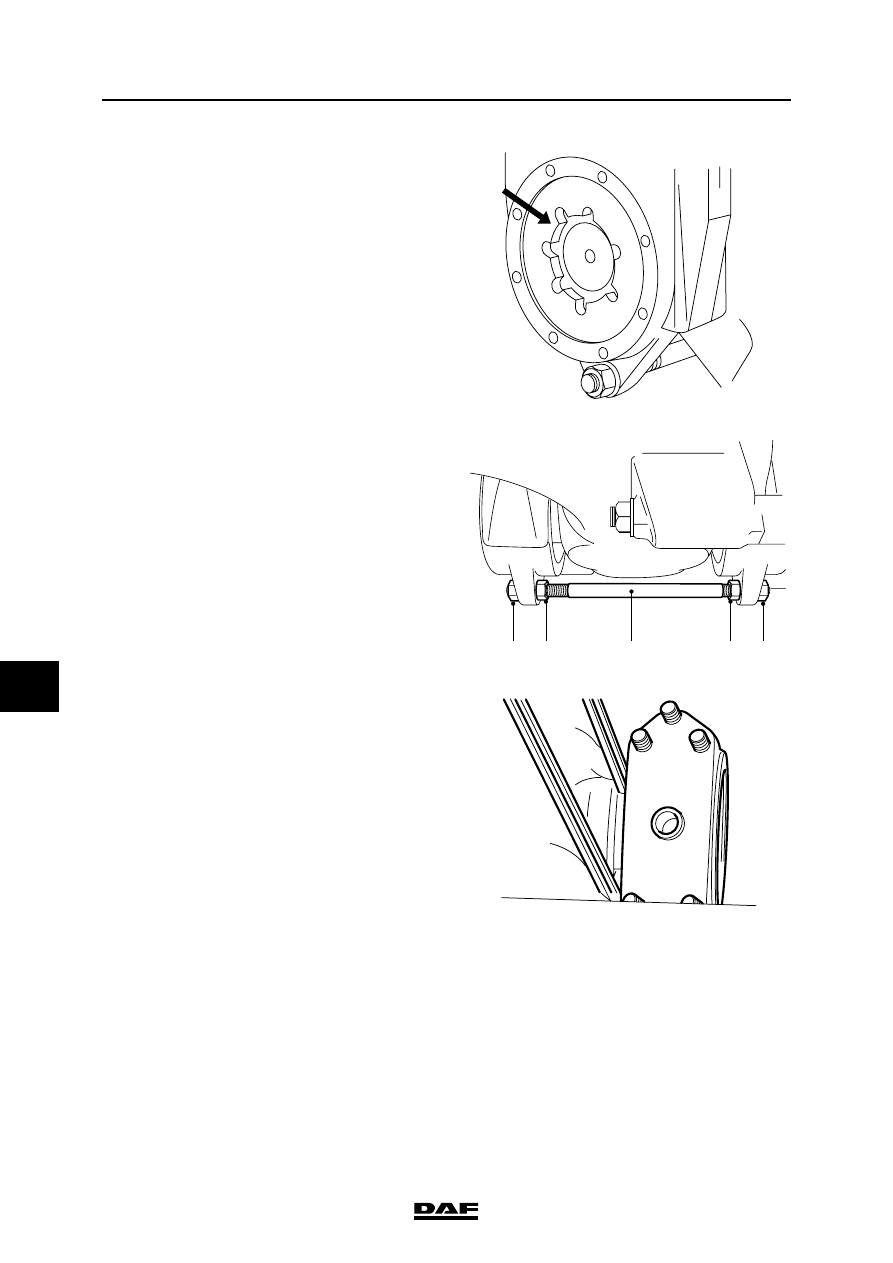

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

5.

Attach the shackles to the yokes.

6.

Lower the chassis.

7.

Fit the attachment bolts with the bolt heads

on the inside of the chassis. Tighten the

bolts.

8.

Fit the brake pipes and cabling.

9.

Tighten the shock absorbers at the top.

10. Put the wheels back on.

11. Check the brake pipe connections for leaks.

12. Lubricate the shackle pins.

A8 00 409

A8 00 408

TRAILING AXLES

2-10

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

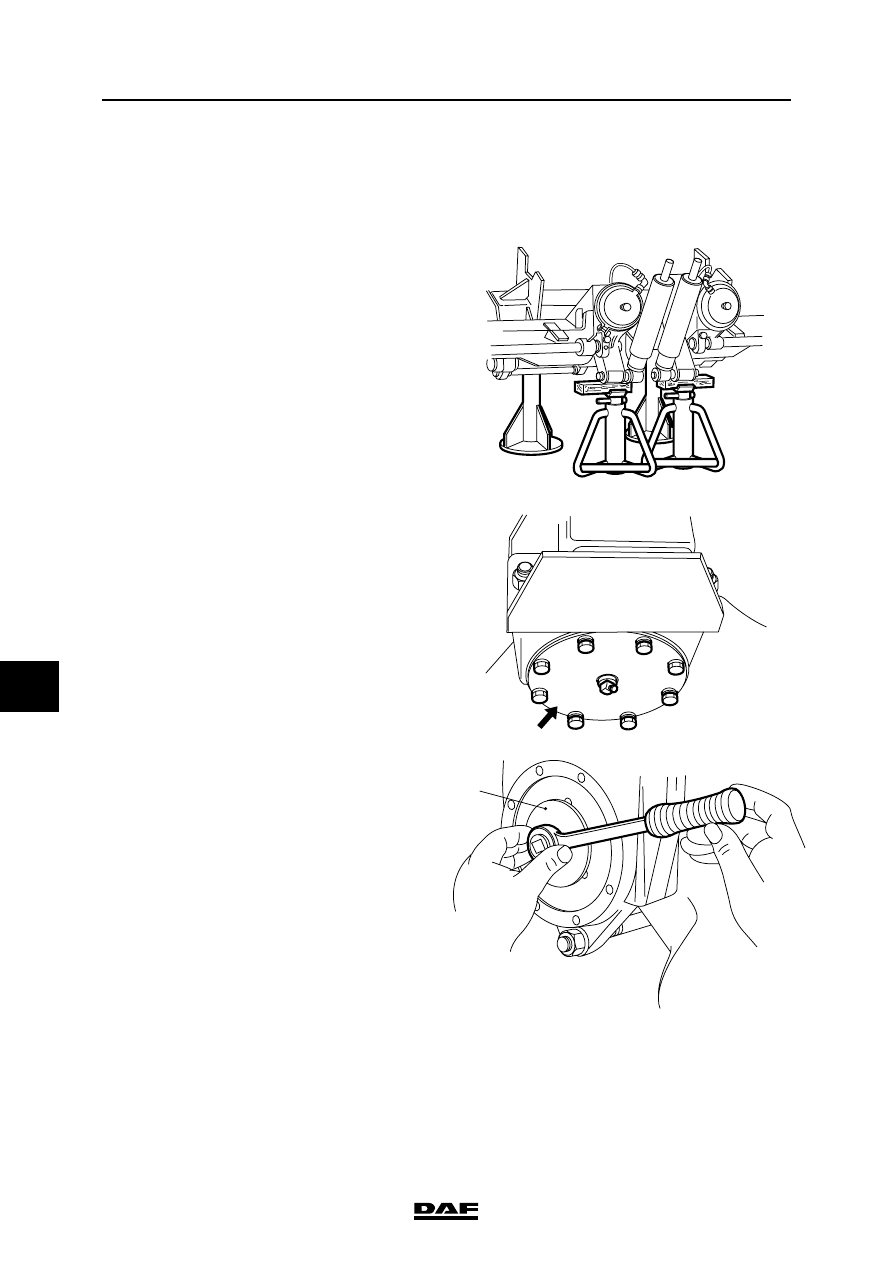

2.4 REMOVAL AND INSTALLATION, TRAILING-AXLE YOKE

Removing the trailing-axle yoke
1.

Remove the trailing axle.

2.

Support the trailing-axle yokes at the front

and back in a safe way, so that they are

horizontal.

3.

Remove the outer cover. Remove the

grease.

4.

Slacken the adjusting nut a couple of turns

using the special tool (DAF no. 1453122).

A8 00 424

A8 00 416

A8 00 414

A

©

 200424

2-11

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

5.

Loosen the nuts (1, 2, 4 and 5) of the push/

pull rod (3).

6.

Mark the bearing blocks in relation to the

bearing support.

7.

Remove the attachment nuts from the

bearing block. Remove the bearing support

from the bearing blocks.

1

2

3

4

5

A8 00 407

A800210

A8 00 410

TRAILING AXLES

2-12

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

8.

Remove the adjusting nut from the bearing

block.

9.

Remove the outer nut (1) of the push/pull

rod (3).

10. Use two band irons to remove the outer

bearing block from the axle journal.

The bearing cage of the roller bearing will

remain on the axle journal and at the same

time retain the oil seal.

A8 00 420

1

2

3

4

5

A8 00 407

A800214
