Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

2. REMOVAL AND INSTALLATION

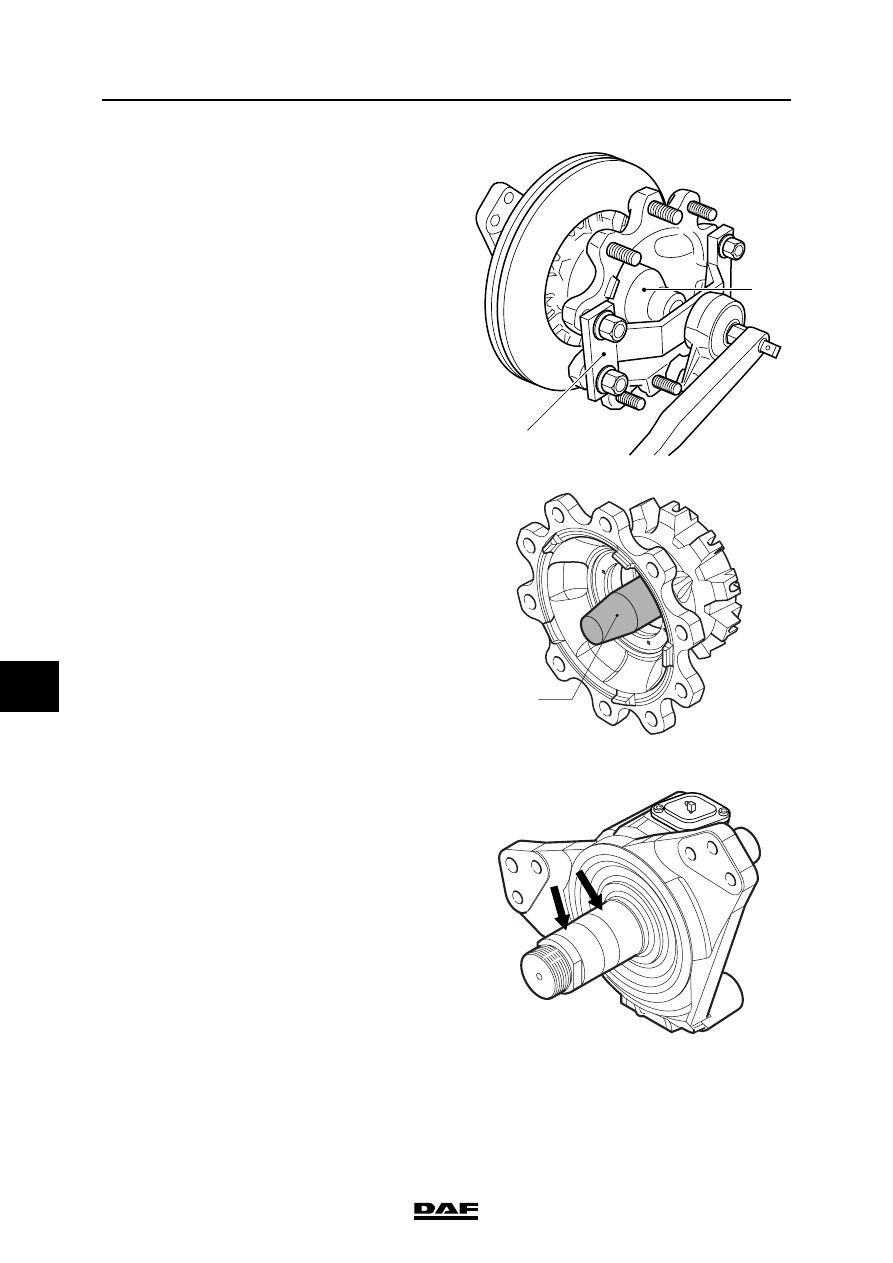

2.1 REMOVAL AND INSTALLATION, WHEEL HUB UNIT (09N075 TRAILING

AXLE)

Removing the wheel hub unit (09N075 trailing
axle)
1.

Lift the trailing axle and support it properly.

2.

Remove the wheel.

3.

Remove the brake calliper.

4.

Remove the hub cap (2).

6

5

2

1

4

3

7

9

8

A8 00 404

TRAILING AXLES

2-2

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

5.

Remove the hub nut (4) using the special tool

set (DAF no. 1329496).

Fit the socket wrench (A) to the hub nut. Fit

the socket wrench guide (B) to the wheel hub

unit using four wheel studs. Loosen the nut

using a torque amplifier.

6.

Remove the thrust washer (5).

7.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

8.

Remove the wheel hub unit (6) using a lifting

device. Take care that the wheel hub unit

does not rest on the guide bush (A) as the

latter is not strong enough to take the weight

of the wheel hub unit.

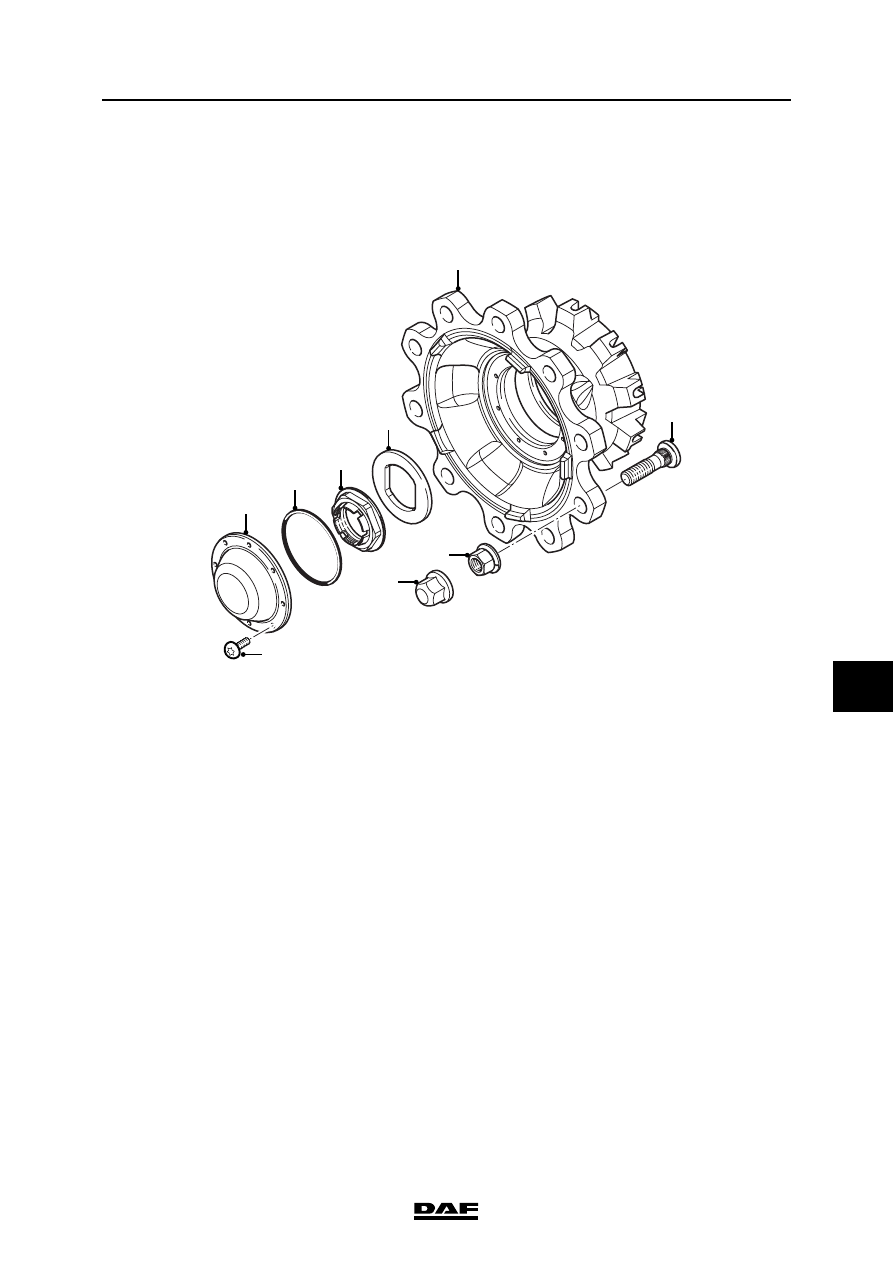

Installing the wheel hub unit
1.

Check the axle journal thread carefully for

damage.

You must never fit a wheel hub unit

on an axle journal with a damaged

thread.

2.

Apply a thin and even layer of the prescribed

lubricant to the entire circumference of the

axle journal, see "Technical data".

Note:

Do not overlubricate the axle journal. While

fitting the wheel hub unit, the excess grease

will collect at the backside of the wheel hub.

When the vehicle is used in daily operation,

this can leak out so that the seal wrongly

appears to be leaking.

A

B

S7 00 641

S7 00 580

A

}

S7 00 547

©

 200424

2-3

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

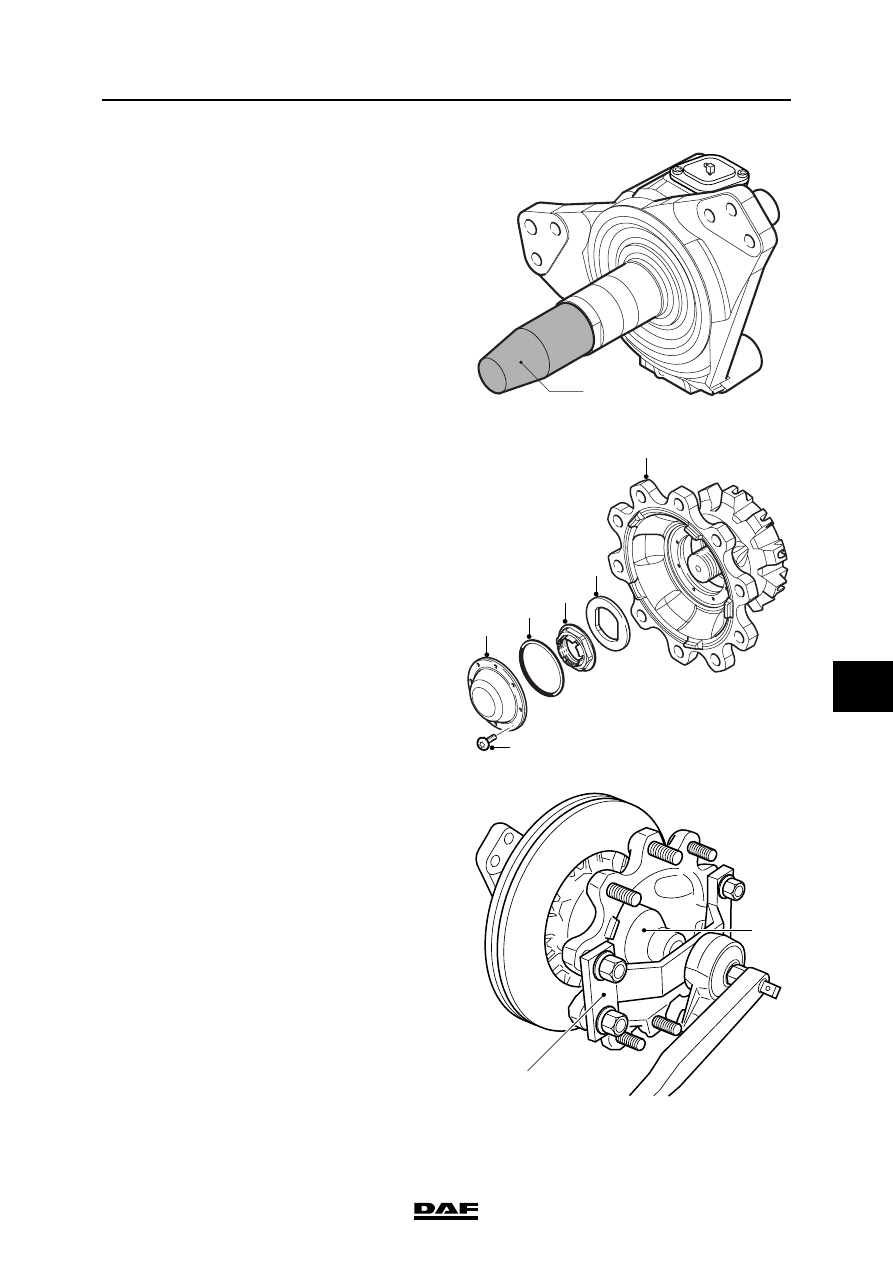

3.

Install the guide sleeve (A), which is part of

the special tool set (DAF no. 1329496), on

the axle journal.

4.

Position the wheel hub unit (6) precisely in

front of the axle journal using a lifting device.

Slide the wheel hub unit (6) onto the axle

journal without twisting it. Take care that the

wheel hub unit does not rest on the guide

bush (A) as the latter is not strong enough to

take the weight of the wheel hub unit.

5.

Fit the thrust washer (5).

6.

Replace the hub nut (4). Apply a few drops of

oil to the abutting surface of the hub nut. Fit

the hub nut.

7.

Fit the hub nut (4) using the special tool set

(DAF no. 1329496).

Fit the socket wrench (A) to the hub nut. Fit

the socket wrench guide (B) to the wheel hub

unit using four nuts. Tighten the hub nut (4)

in the specified manner using a torque

amplifier, see "Technical data".

8.

Fit a new O-ring (3) to the hub cap (2).

9.

Fit the brake calliper.

10. Fit the wheel.

A

S7 00 561

6

5

2

1

4

3

S7 00 581

A

B

S7 00 641

TRAILING AXLES

2-4

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

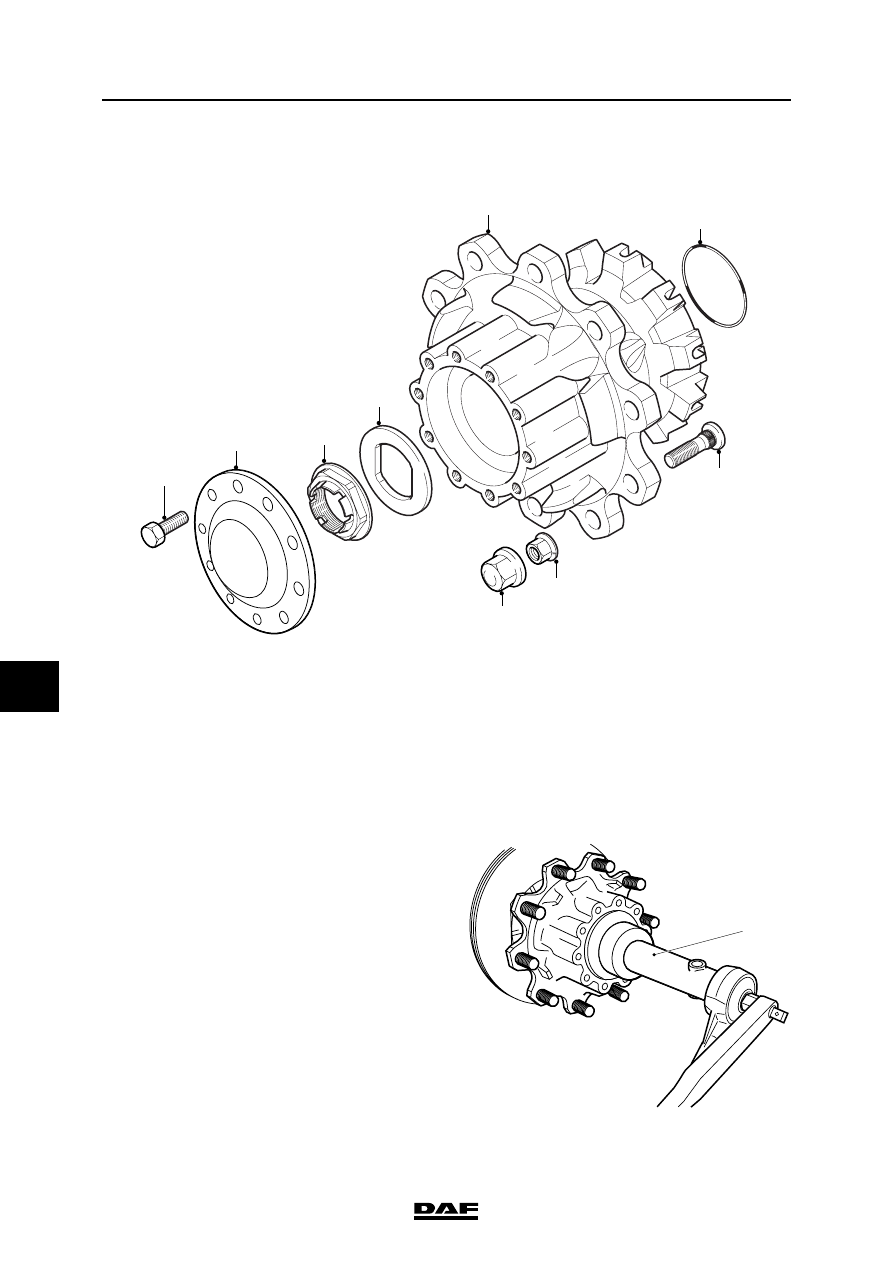

2.2 REMOVAL AND INSTALLATION, WHEEL HUB (09N220 TRAILING AXLE)

Removing the wheel hub (09N220 trailing
axle)
1.

Remove the attachment bolts (1) from the

hub cap (2) and remove the cap.

2.

Lift the trailing axle and support it properly.

3.

Remove the wheel.

4.

Remove the brake calliper.

5.

Remove the hub nut (3) using the hub nut

wrench (A), which is part of the special tool

set (DAF no. 1329496). Loosen the hub nut

(3), using a torque amplifier to do so.

6.

Remove the thrust washer (4).

3

2

1

4

5

6

7

8

9

A8 00 403

A

A8 00 405
