DAF CF65, CF75, CF85 Series . Manual - part 1057

©

 200424

1-3

General

TRAILING AXLES

ΧΦ65/75/85 series

8

8

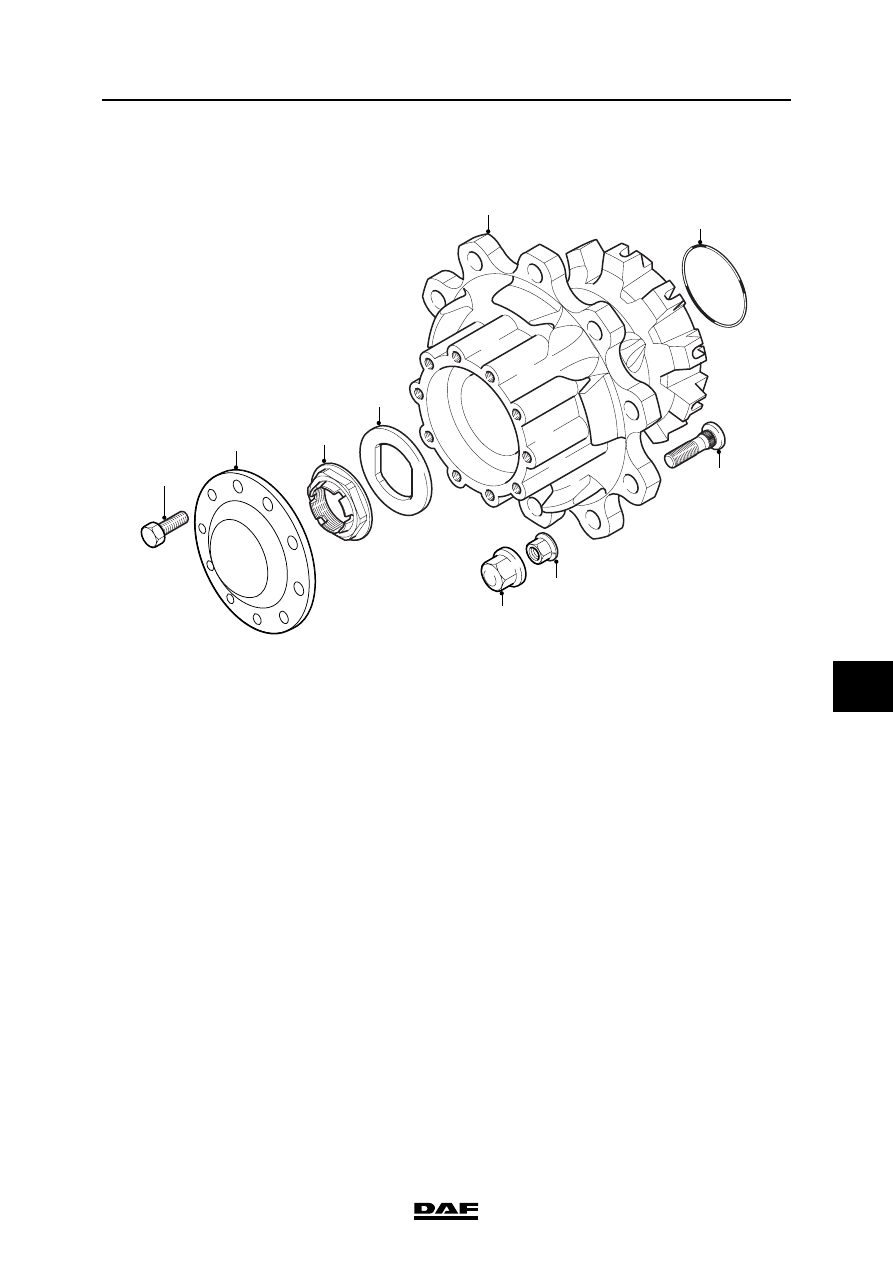

1.3 OVERVIEW DRAWING, 09N220 TRAILING AXLE HUB

3

2

1

4

5

6

7

8

9

A8 00 403

1.

Attachment bolt

2.

Hub cap

3.

Hub nut

4.

Thrust washer

5.

Wheel hub unit

6.

O-ring

7.

Wheel stud

8.

Wheel nut

9.

Wheel nut cap

TRAILING AXLES

1-4

©

 200424

General

8

ΧΦ65/75/85 series

8

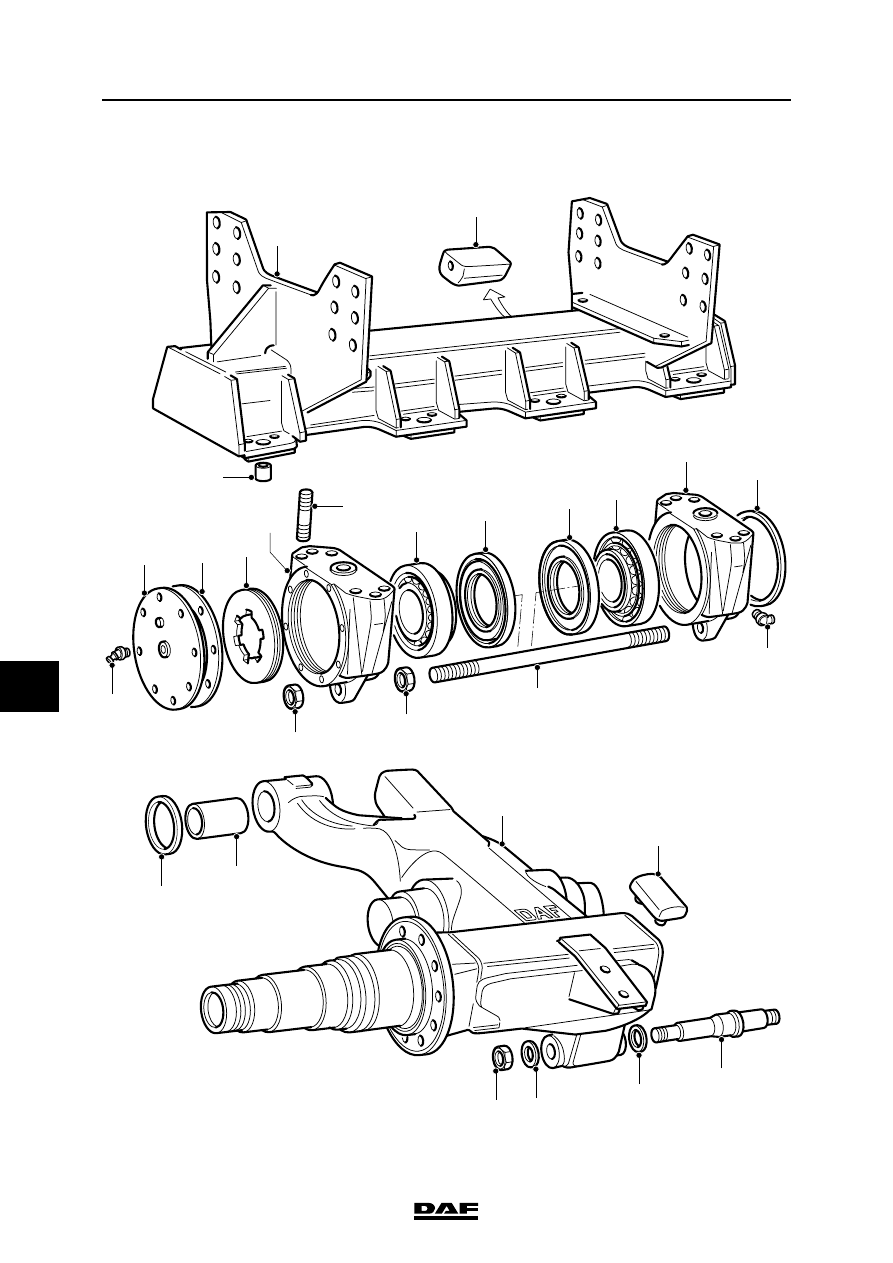

1.4 OVERVIEW DRAWING, TRAILING-AXLE YOKE ATTACHMENT

A8 00 402

18

19

15

8

11

14

12

1

2

11

7

8

10

3

6

5

23

22

21

16

4

9

9

13

4

17

20

©

 200424

1-5

General

TRAILING AXLES

ΧΦ65/75/85 series

8

8

1.

Bearing support

2.

Stop block

3.

Bush

4.

Lubricating nipple

5.

Trailing-axle yoke cover

6.

Flange seal

7.

Adjusting nut

8.

Bearing block

9.

Nut

10.

Stud bolt

11.

Taper roller bearing

12.

Oil seal

13.

Pull-rod/push-rod

14.

Oil seal

15.

Sealing plate

16.

Bearing-bush rings

17.

Bearing bush

18.

Trailing-axle yoke

19.

Stop block

20.

Nut

21.

Sealing ring

22.

Sealing ring

23.

Pin

TRAILING AXLES

1-6

©

 200424

General

8

ΧΦ65/75/85 series

8
