4-1

Draining and filling

TANDEM REAR AXLE 1355T

ΧΦ65/75/85 series

8

7

4. DRAINING AND FILLING

4.1 DRAINING AND FILLING, HUB

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the hub
1.

Position the vehicle on a level surface.

2.

Position the wheels in such a way that the oil

drain/filler plug (A) is on the underside.

3.

Remove the oil level check plug (B) and oil

drain/filler plug (A).

4.

Drain the oil and let the oil leak out of the

hub.

}

B

A

A8 00 363

TANDEM REAR AXLE 1355T

4-2

©

 200424

Draining and filling

7

ΧΦ65/75/85 series

8

Filling the hub
1.

Position the wheels in such a way that the oil

drain/filler plug (A) is at the top.

2.

Fill the hub with the specified quantity of oil.

See "Technical data".

3.

Check the oil level after approximately

5 minutes. See "Inspection and adjustment".

4.

Fit the plugs using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

A

A8 00 364

©

 200424

4-3

Draining and filling

TANDEM REAR AXLE 1355T

ΧΦ65/75/85 series

8

7

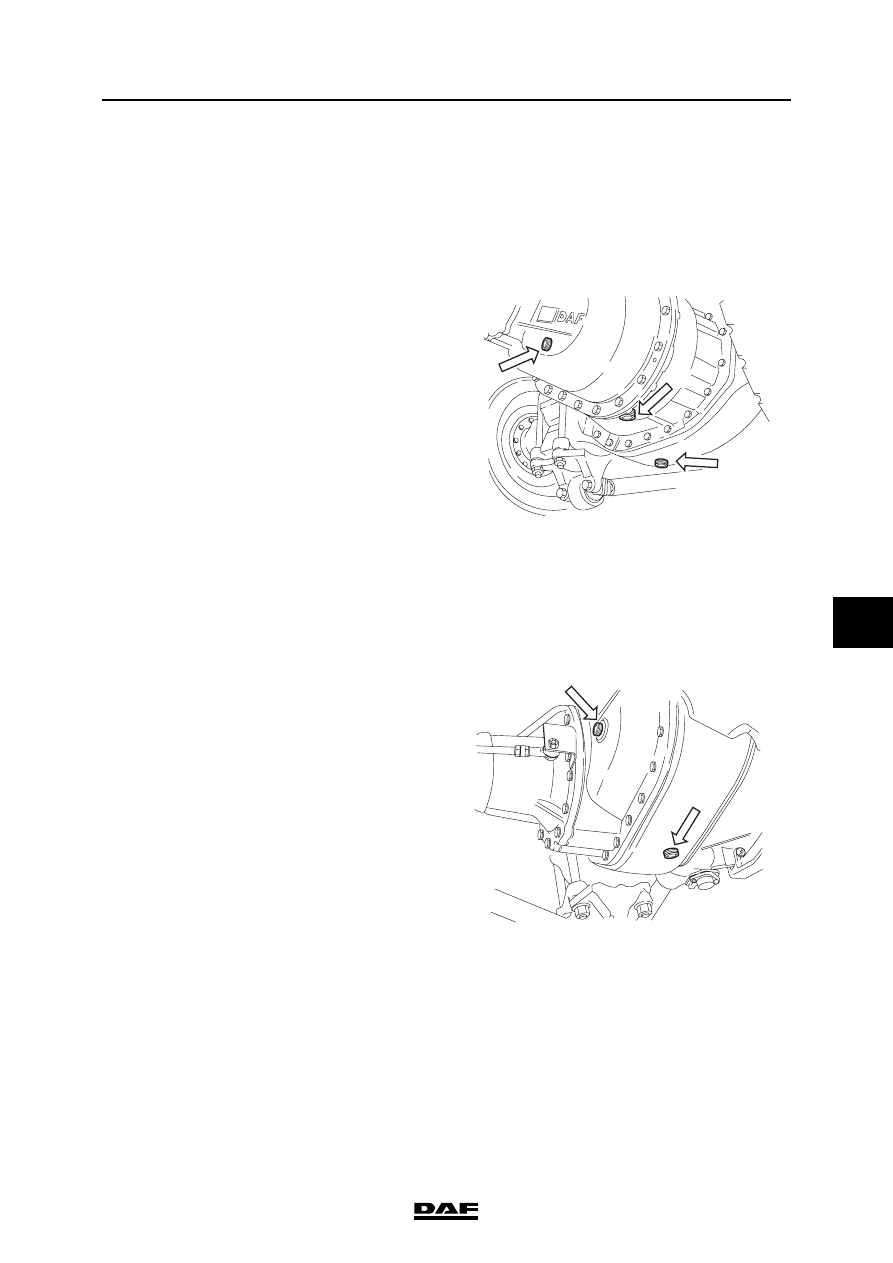

4.2 DRAINING AND FILLING THE DIFFERENTIAL

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the differential, first axle
1.

Position the vehicle on a level surface.

2.

Remove the drain plugs (B) and drain the oil.

Let all the oil leak out of the differential.

3.

Fit the plugs using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential, first axle
1.

Remove the level check/filler plug (A) and fill

the differential with the specified quantity of

oil. See "Technical data".

2.

Check the oil level after approximately

5 minutes. See "Inspection and adjustment".

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Draining the differential, second axle
1.

Position the vehicle on a level surface.

2.

Remove the drain plug (B) and drain the oil.

Let all the oil leak out of the differential.

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential, second axle
1.

Remove the level check/filler plug (A) and fill

the differential with the specified quantity of

oil. See "Technical data".

2.

Check the oil level after approximately

5 minutes. See "Inspection and adjustment".

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

}

B

B

A

M8049

B

A

M8050
