Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

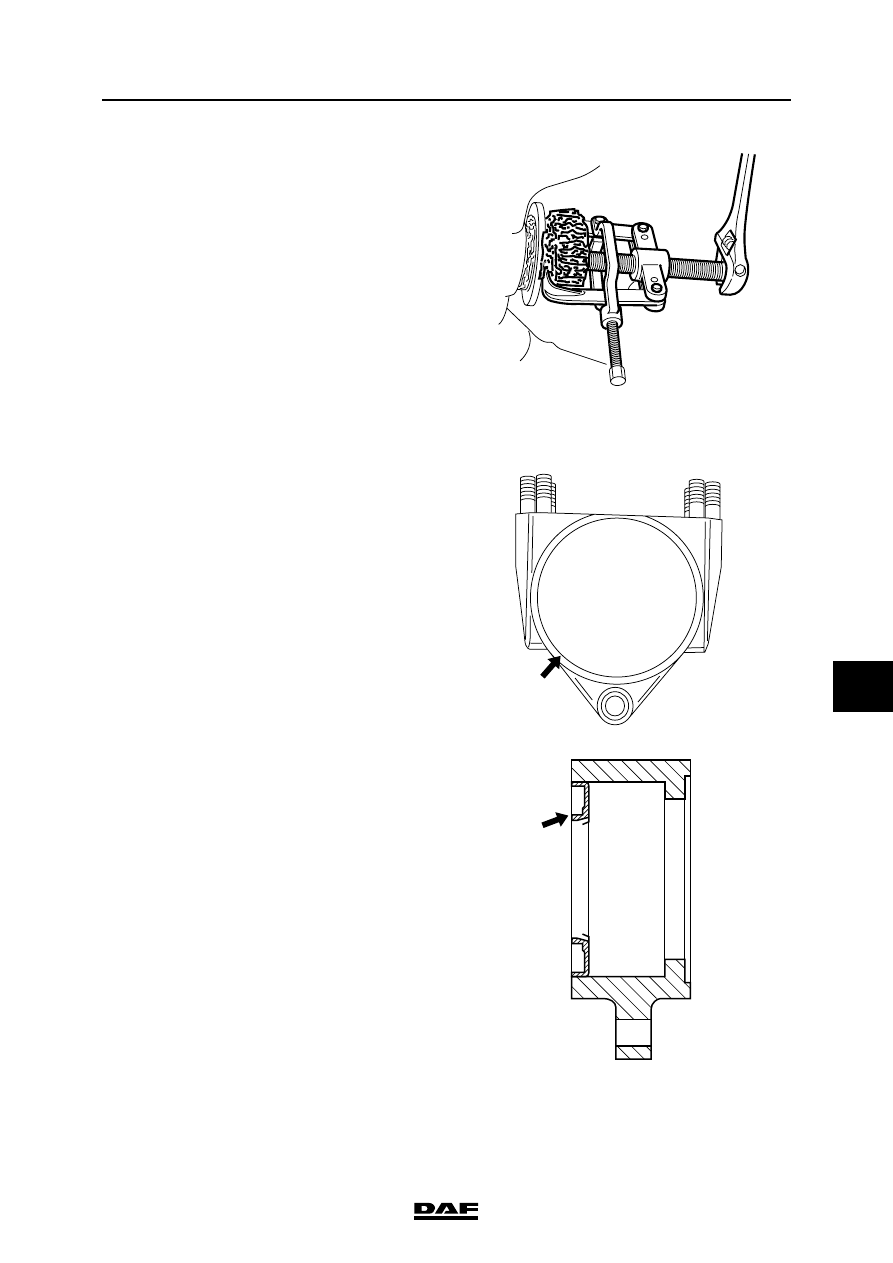

11. Remove the bearing cage from the axle

journal. Remove the oil seal from the axle

journal.

12. Similarly remove the inner bearing block with

bearing and oil seal from the axle journal.

13. Tap the sealing plate off the inner bearing

from inside the bearing block, if the outer

race of the roller bearing must be removed.

Installing the trailing-axle yoke
1.

Clean the axle journals and bearing blocks.

2.

Clean and check all bearings for wear and

damage.

3.

Apply new grease to the bearings.

4.

Fit the bearing in the inner bearing block.

5.

Fit the seals at the indicated positions in the

bearing blocks.

6.

Lightly grease the axle journals.

A8 00 417

A8 00 418

A8 00 423

TRAILING AXLES

2-14

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

7.

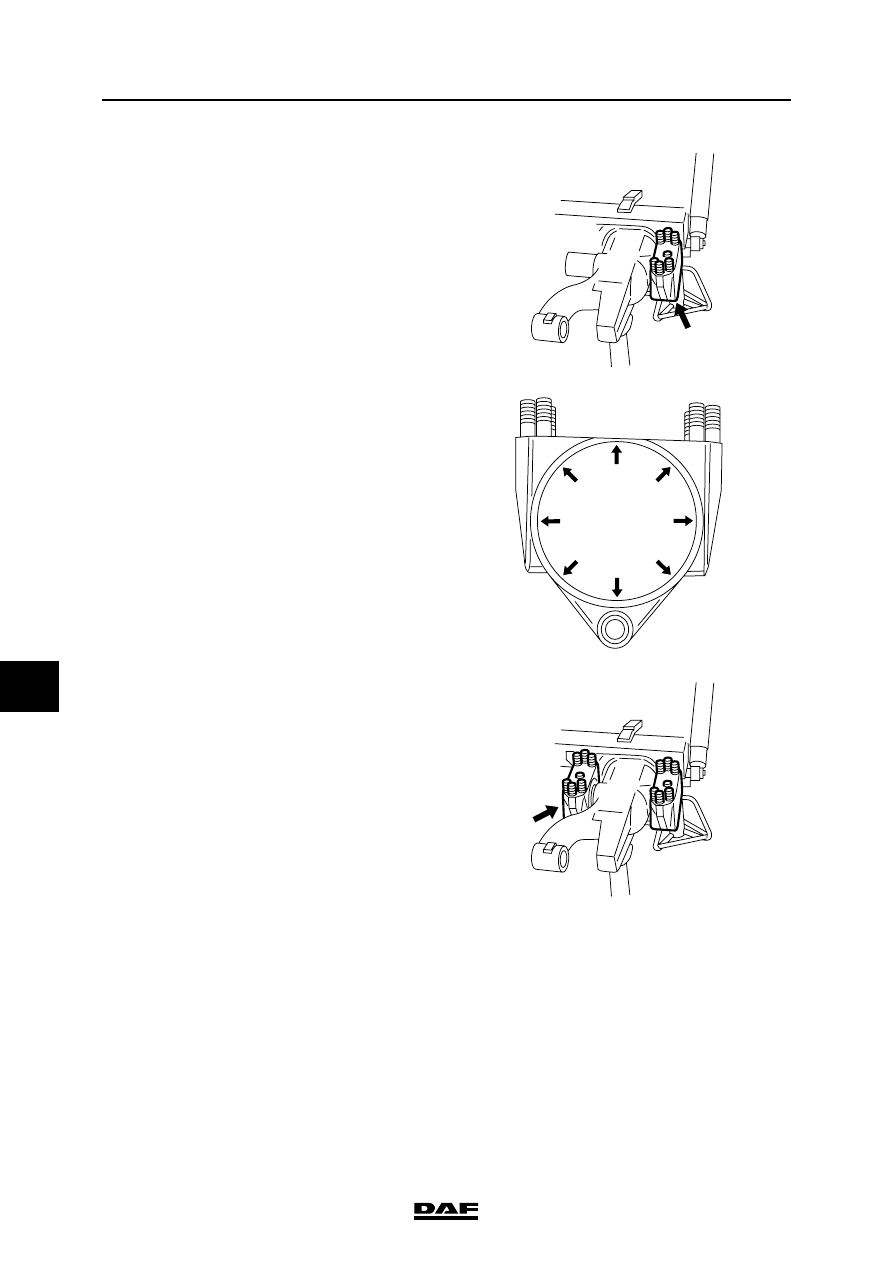

Fit the inner bearing block to the axle journal.

8.

Fit the sealing plate and lock it by tapping the

centring edge inward in eight places.

9.

Fit the outer bearing block to the axle journal.

Make sure that the push/pull rod is inserted

through the eye of the bearing block.

10. Fit the bearing in the outer bearing block.

11. Screw the adjusting nut several turns into the

bearing block.

A8 00 422

A8 00 419

A8 00 421

©

 200424

2-15

Removal and installation

TRAILING AXLES

ΧΦ65/75/85 series

8

8

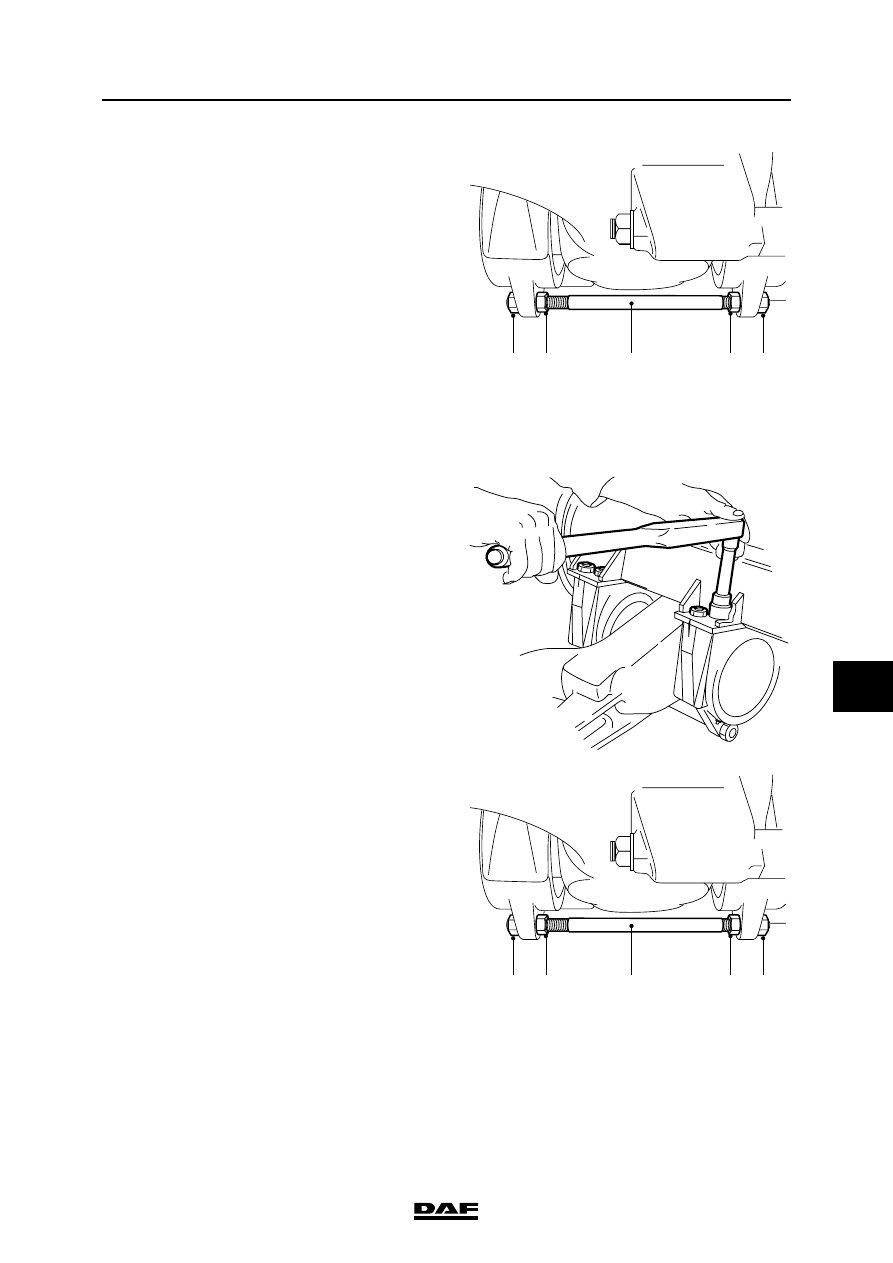

12. Turn the outer nut (1) of the push/pull rod

onto the push/pull rod.

13. Clean the contact surfaces of the bearing

blocks and bearing support. Check that all

adjusting bushes are present.

14. Fit the bearing blocks into their original

positions on the bearing support.

Evenly tighten the attachment nuts to the

specified torque.

15. Turn the inner nuts (2) and (4) of the push/

pull rod (3) against the bearing block.

16. Tighten the outer nuts (1) and (5) of the push/

pull rod (3) to the specified torque, see

"Technical data".

1

2

3

4

5

A8 00 407

A800219

1

2

3

4

5

A8 00 407

TRAILING AXLES

2-16

©

 200424

Removal and installation

8

ΧΦ65/75/85 series

8

17. Tighten the adjusting nut to the specified

torque using the special tool (A)

(DAF no. 1453122), see "Technical data"'.

18. Loosen the adjusting nut. Re-tighten the

adjusting nut to the specified torque. See

"Technical data".

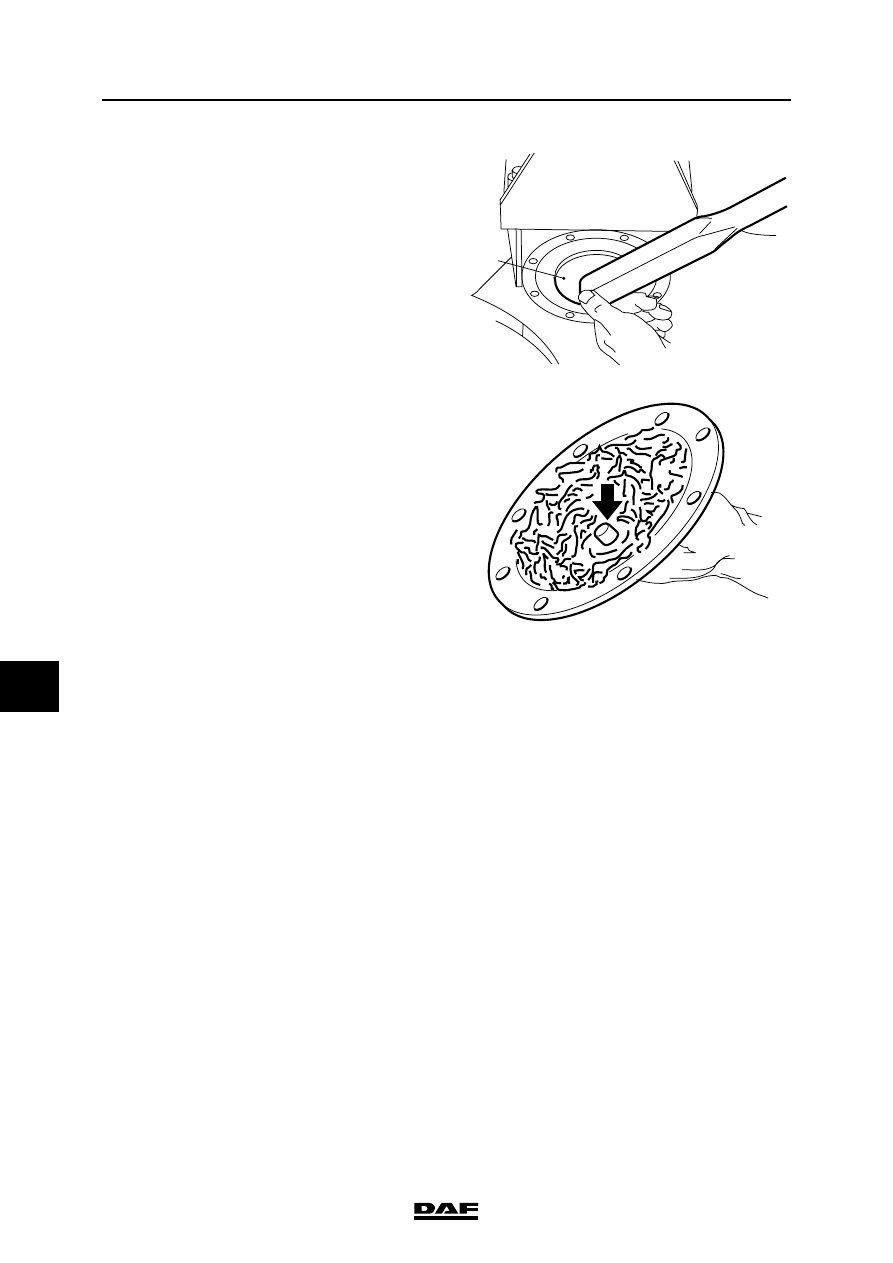

19. Fit a new gasket to the cover and fit the

cover. The lock cam on the inside of the

cover must fall into a recess in the adjusting

nut. If it does not, turn the adjusting nut to the

smallest angle (loosen or tighten) until the

lock cam falls into a recess.

20. Fit the cover attachment bolts.

21. Lubricate the bearing blocks until a collar of

grease is visible at the seals.

A8 00 415

A

A800221
