2-1

Inspection and adjustment

TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

2. INSPECTION AND ADJUSTMENT

2.1 INSPECTION AND ADJUSTMENT, WHEEL BEARING PLAY

Checking the wheel bearing play
1.

Jack up the rear axle and support the axle on

stands.

2.

Drain the hub oil. See "Draining and filling".

3.

Remove the axle shafts. See "Removal and

installation".

4.

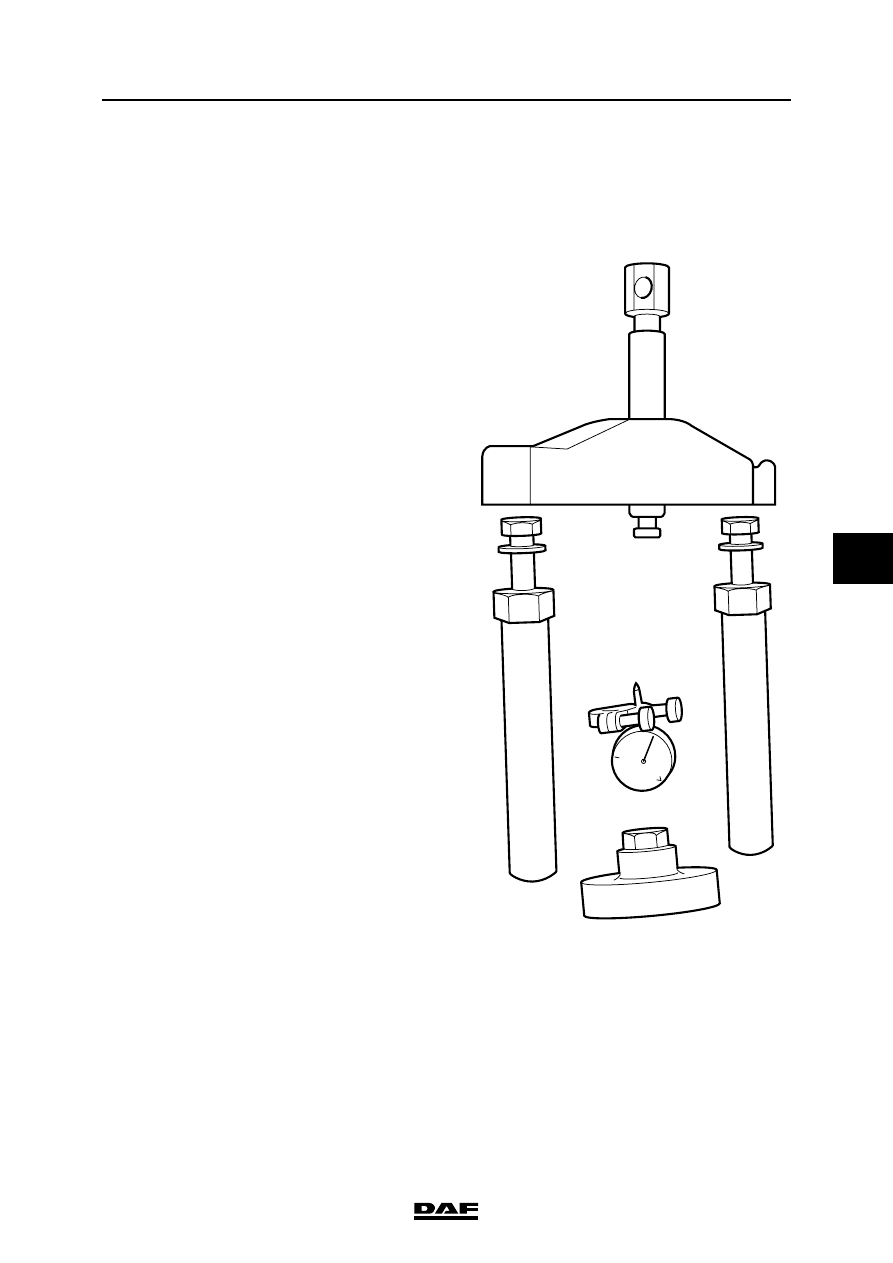

Use the special tool (DAF no. 0535595) for

checking the wheel bearing play.

5.

Remove two opposite wheel nuts.

W807008

TANDEM REAR AXLE 1132T

2-2

©

 200424

Inspection and adjustment

6

ΧΦ65/75/85 series

8

6.

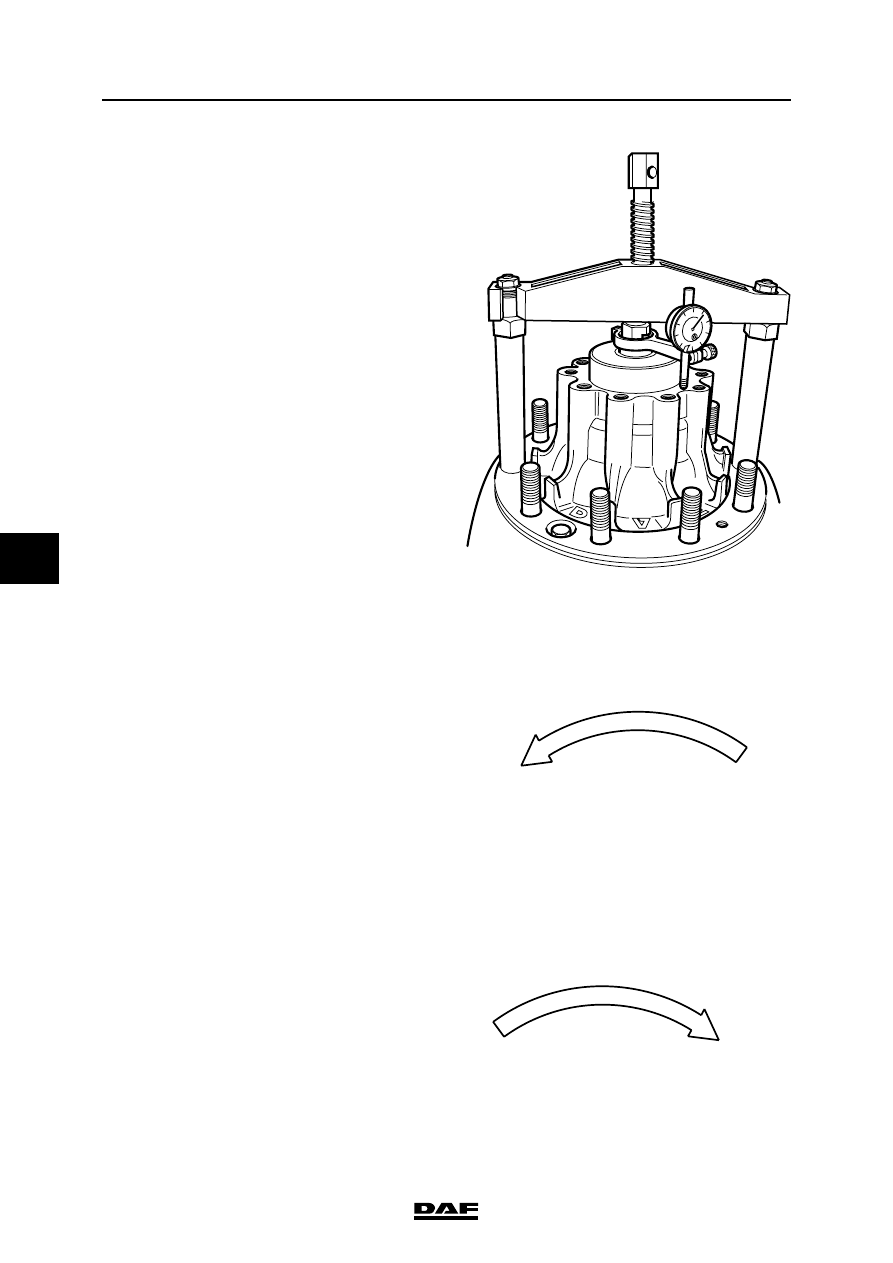

Fit the extensions of the special tool to the

now vacant wheel studs.

7.

Always clean the measuring surface

thoroughly and tighten the central nut on the

shaft journal.

8.

Place the dial gauge holder on the central

nut. Place the dial gauge so that the stylus

abuts the hub.

9.

Screw the spindle into the bridge and fit it to

the extensions so that the end of the spindle

fits into the recess of the central nut. Tighten

the bridge with the nuts.

10. Press the hub firmly on to the axle journal by

screwing the spindle anti-clockwise, to a

tightening torque of 40 Nm.

11. Withdraw the hub by screwing the spindle

clockwise, to a tightening torque of 40 Nm.

A800149

40Nm

M8130

40Nm

M8131

©

 200424

2-3

Inspection and adjustment

TANDEM REAR AXLE 1132T

ΧΦ65/75/85 series

8

6

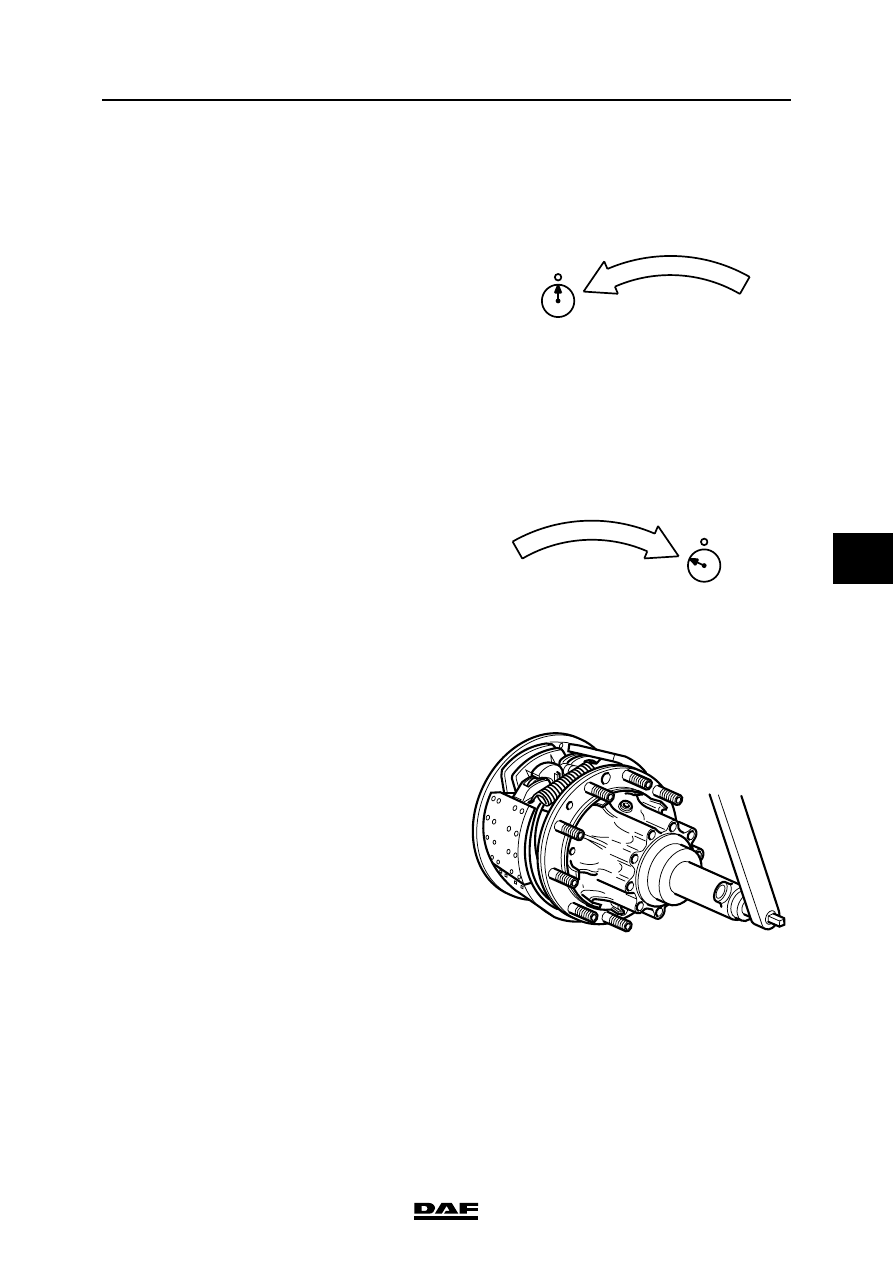

12. Press the hub firmly on to the axle journal by

screwing the spindle anti-clockwise, to a

tightening torque of 15 Nm.

Set the dial gauge to "0".

13. Withdraw the hub by screwing the spindle

clockwise, to a tightening torque of 15 Nm.

The value on the dial gauge should equal

that in the technical data. See "Technical

data".

14. Readjust the wheel bearing play if a

deviating value is measured.

Adjusting the wheel bearing play
1.

Tighten the hub nut using special tool

(DAF no. 0694894) to a torque of 100 Nm,

while turning the hub.

2.

Turn the hub nut anti-clockwise 45

 and 60

until the dowel pin of the axle nut falls into the

holes of the circlip. This way the prescribed

wheel bearing play is achieved.

3.

Fit the circlip and the lock nut. Tighten the

hub nut to the specified torque using the

special tool (DAF no. 0694894), see

"Technical data"'.

15Nm

M8132

15Nm

M8133

A800148

TANDEM REAR AXLE 1132T

2-4

©

 200424

Inspection and adjustment

6

ΧΦ65/75/85 series

8

2.2 CHECKING THE HUB OIL LEVELS

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

1.

Position the vehicle on a level surface.

2.

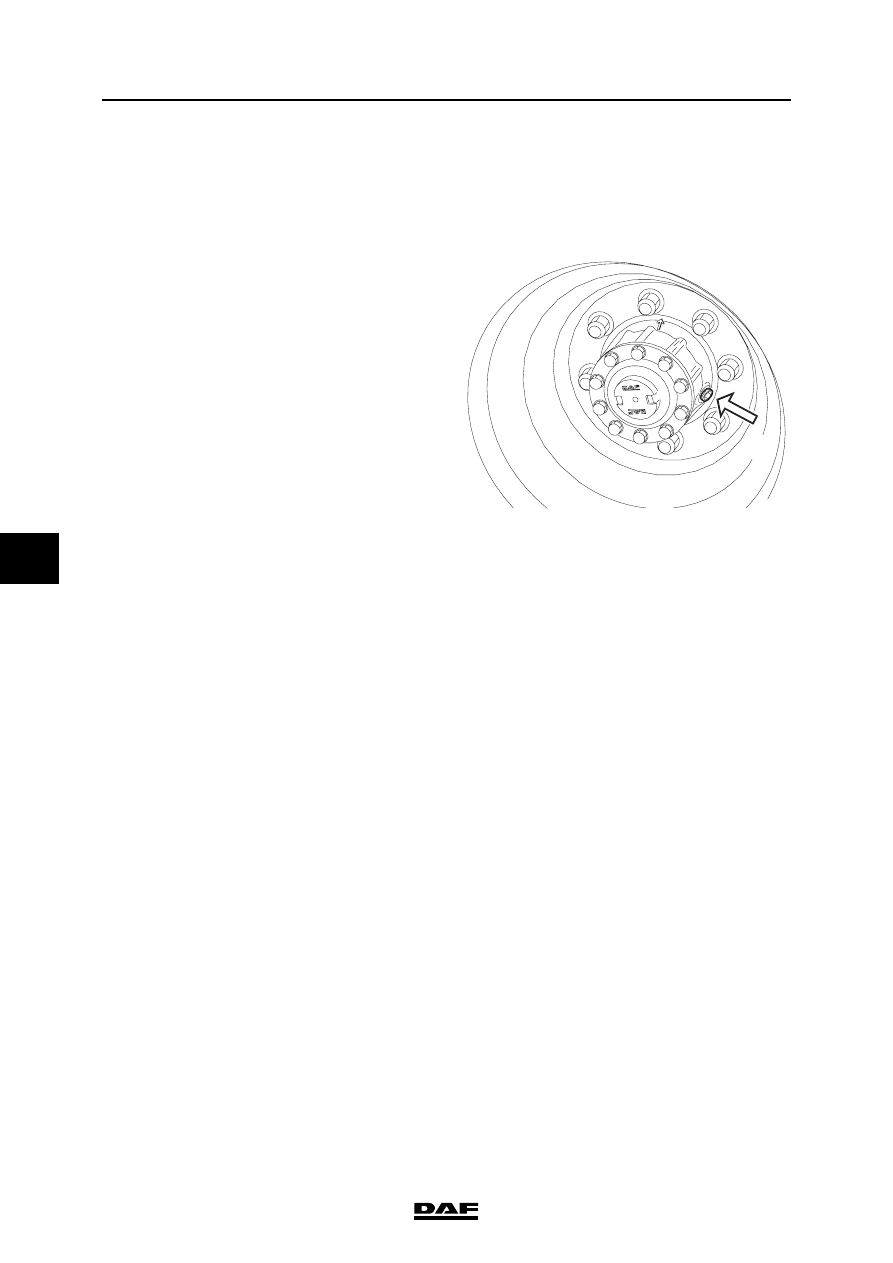

Position the wheels so that the arrow on the

hub is pointing upwards.

3.

Remove the oil-level check/filler plug (A).

The oil level should reach the level check/

filler opening.

4.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

}

M8009

A
