DAF CF65, CF75, CF85 Series . Manual - part 1018





©

 200424

3-7

Removal and installation

SINGLE REAR AXLE 1132

ΧΦ65/75/85 series

8

2

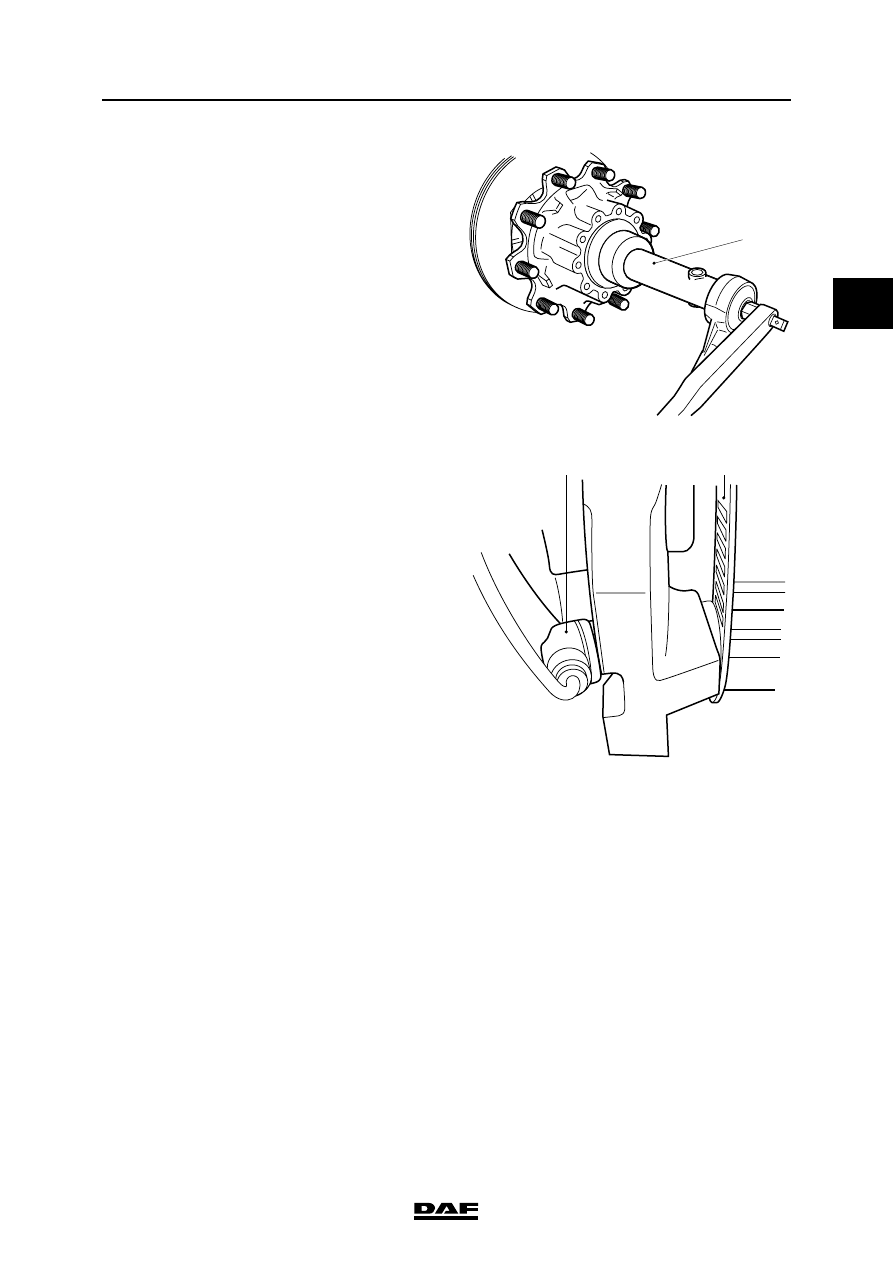

10. Tighten the hub nut (1) using the hub nut

wrench (A), which is part of the special tool

set (DAF no. 1329496).

Tighten the hub nut (1) in the specified

manner using a torque amplifier, see

"Technical data".

11. Press the wheel speed sensor (1) up against

the sensor ring (2).

While the vehicle is being driven, the air gap

between the sensor and the sensor ring is

adjusted automatically.

12. Fit the axle shaft.

13. Fit the brake calliper.

14. Put the wheels back on.

A

A8 00 405

1

2

A8 00 342

SINGLE REAR AXLE 1132

3-8

©

 200424

Removal and installation

2

ΧΦ65/75/85 series

8

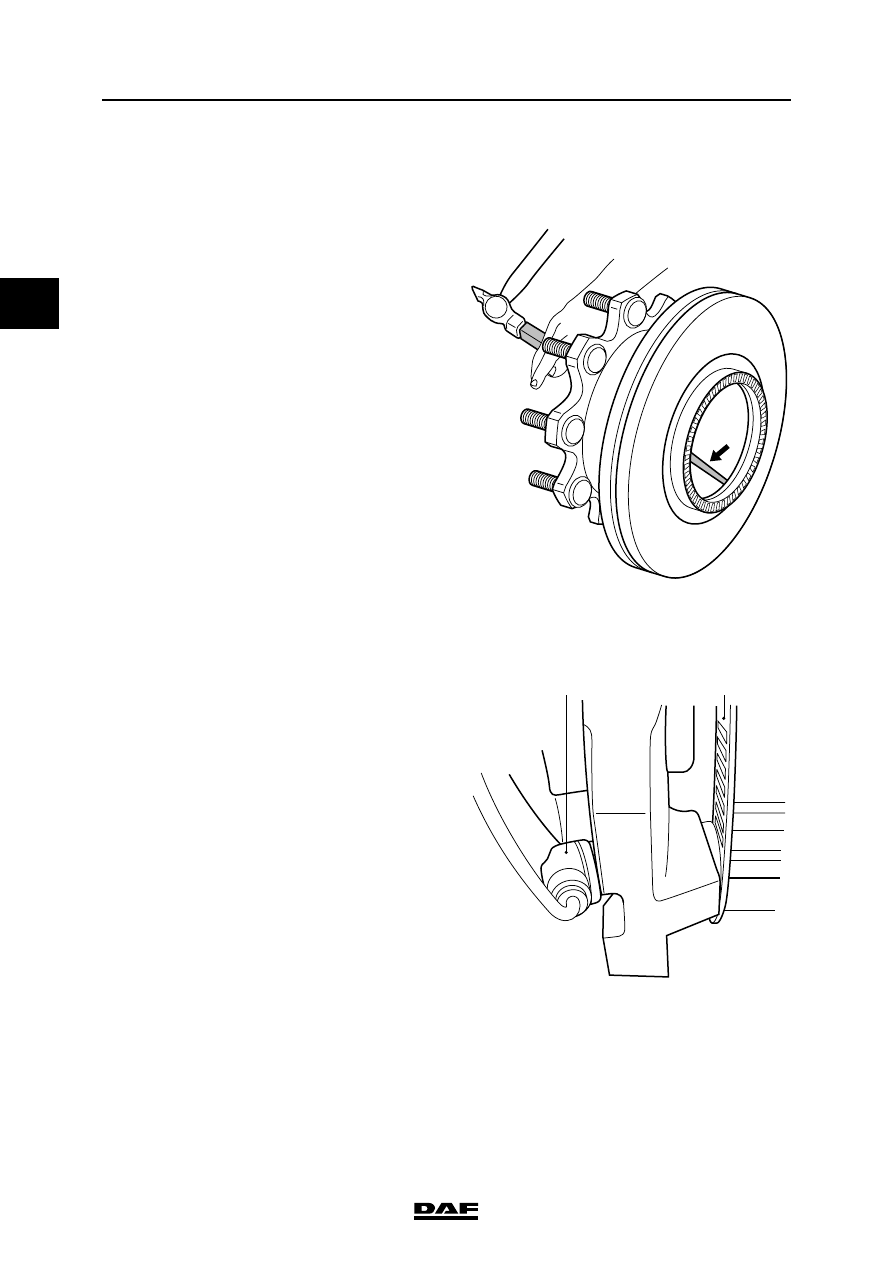

3.4 REMOVAL AND INSTALLATION, WHEEL SPEED SENSOR RING

Removing the wheel speed sensor ring
1.

Remove the wheel hub unit from the axle

journal.

2.

Use a driving tool to carefully tap the sensor

ring from the inside from the wheel hub unit.

Make sure that the wheel hub unit is not

damaged in the process.

Once removed, a sensor ring should

not be re-installed.

Installing the wheel speed sensor ring
1.

Check the mating surfaces of sensor ring

and wheel hub unit for damage.

2.

Check the new sensor ring carefully for

possible damages in transit.

3.

Use a flat plate and a press to fit the sensor

ring to the wheel hub unit.

Press the sensor ring evenly on the wheel

hub unit until it fully abuts.

4.

Install the wheel hub unit on the axle journal.

5.

Press the wheel speed sensor (1) up against

the sensor ring (2).

While the vehicle is being driven, the air gap

between the sensor and the sensor ring is

adjusted automatically.

A8 00 359

}

1

2

A8 00 342

©

 200424

3-9

Removal and installation

SINGLE REAR AXLE 1132

ΧΦ65/75/85 series

8

2

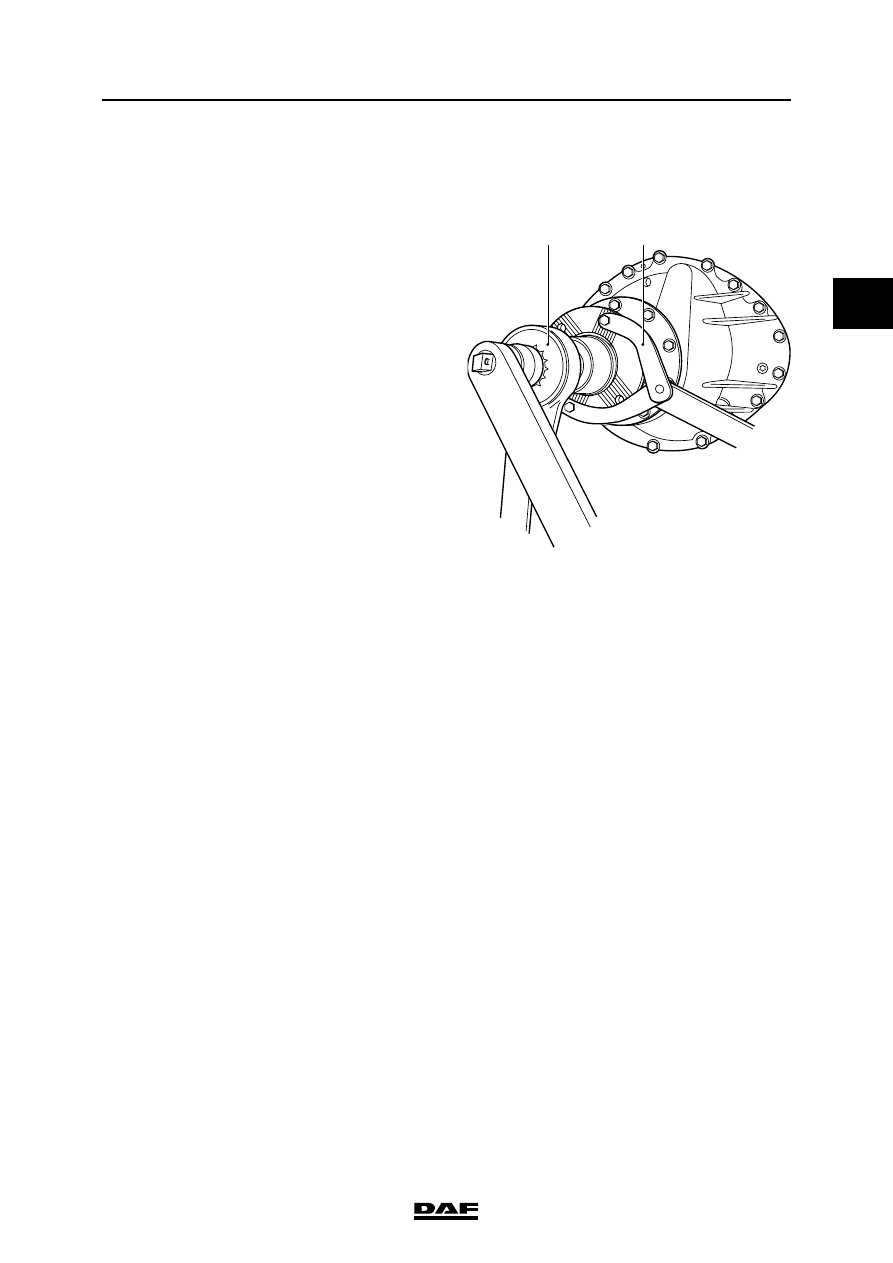

3.5 REMOVAL AND INSTALLATION, DRIVE FLANGE

Removing the drive flange
1.

Remove the prop shaft from the drive flange.

2.

Fit the special tool (B) (DAF no. 0484977) on

the drive flange to prevent the flange from

rotating. Remove the drive-flange nut using a

torque amplifier (A).

3.

Remove the drive flange. If necessary, use a

puller.

Installing the drive flange
1.

Before installation check the drive flange

along the oil-seal running surface for

grooves and/or sharp edges. If required,

replace the drive flange.

2.

Fit the drive flange.

3.

Apply a small amount of grease to the first

turn of the drive-flange nut.

4.

Apply locking compound to the screw thread.

See "Technical data".

5.

Fit the special tool (B) (DAF no. 0484977) on

the drive flange to prevent the flange from

rotating. Fit the drive-flange nut. Use a

torque amplifier (A) to tighten the drive-

flange nut to the specified tightening torque,

see "Technical data".

6.

Fit the prop shaft to the drive flange.

A

B

A8 00 357

SINGLE REAR AXLE 1132

3-10

©

 200424

Removal and installation

2

ΧΦ65/75/85 series

8

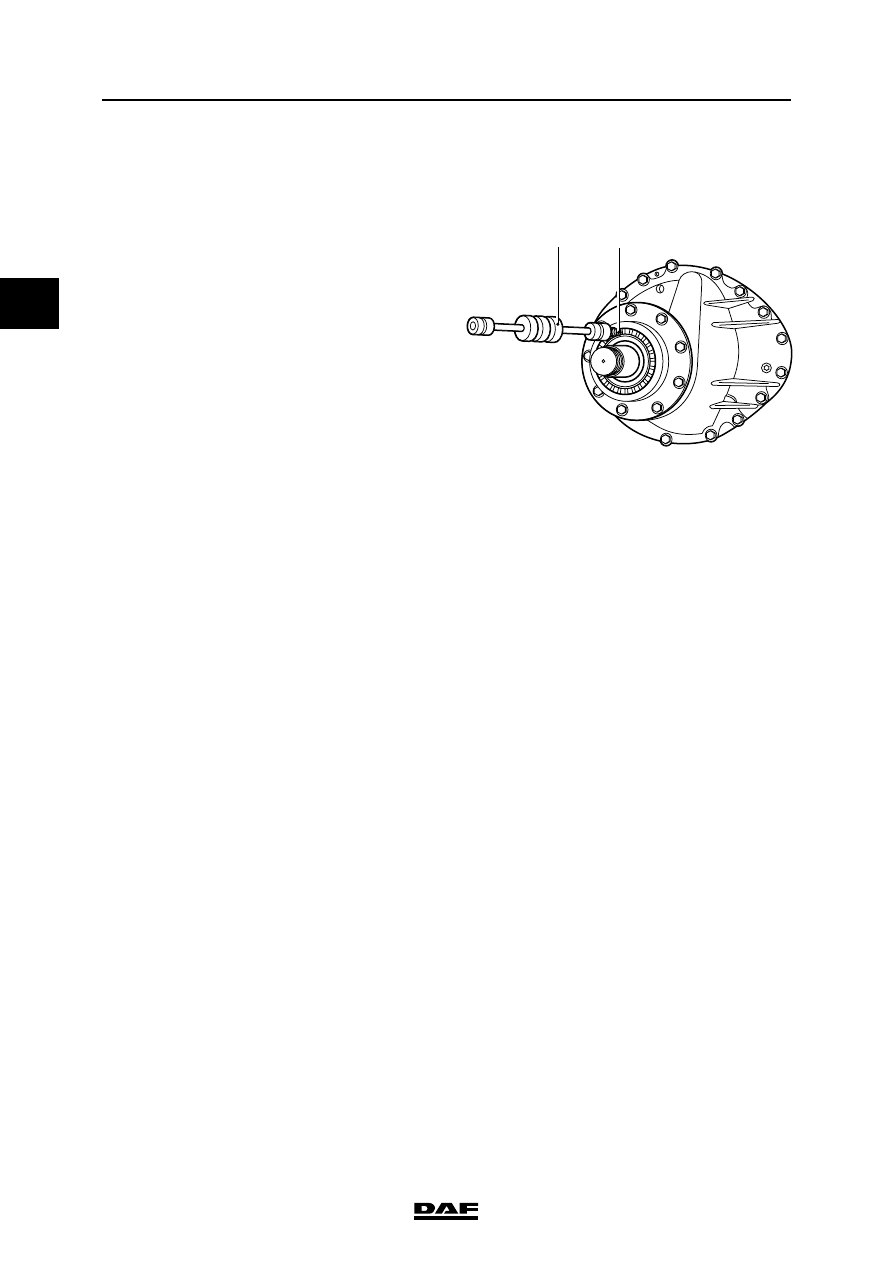

3.6 REMOVAL AND INSTALLATION, PINION OIL SEAL

Removing the pinion oil seal
1.

Remove the drive flange.

2.

Drill two holes into the seal and screw the

special tool (B) (DAF no. 0484899) into the

seal. Pull the oil seal from the pinion housing

using the special tool (A)

(DAF no. 0694928).

Installing the pinion oil seal
1.

Use the special tool (DAF no. 1240452) to fit

the seal so that the inscription "outside" is

pointed outwards.

2.

Fit the drive flange.

A

B

A8 00 360
