Inspection and adjustment

SINGLE REAR AXLE 1132

ΧΦ65/75/85 series

8

2

2. INSPECTION AND ADJUSTMENT

2.1 CHECKING THE DIFFERENTIAL OIL LEVEL

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

1.

Position the vehicle on a level surface.

2.

Lower the trailing axle, if present, on a leaf-

sprung version.

3.

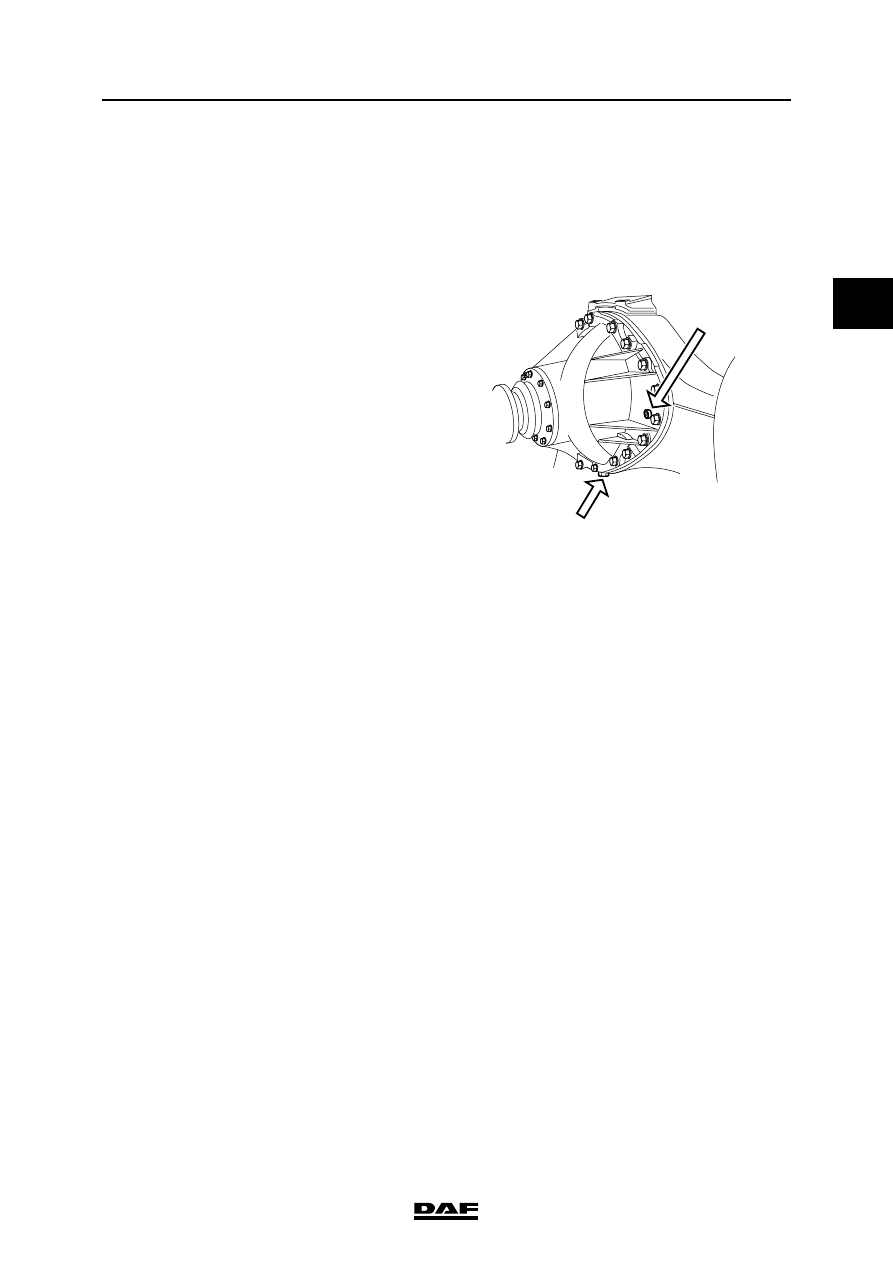

Remove the oil-level check/filler plug (A).

The oil level should reach the level check/

filler opening.

4.

Fit the plug using the special tool

(DAF no. 1329493) and tighten the plug to

the specified tightening torque. See

"Technical data".

}

M8013

A

B

SINGLE REAR AXLE 1132

2-2

©

 200424

Inspection and adjustment

2

ΧΦ65/75/85 series

8

2.2 CHECKING THE OPERATION OF THE DIFFERENTIAL LOCK

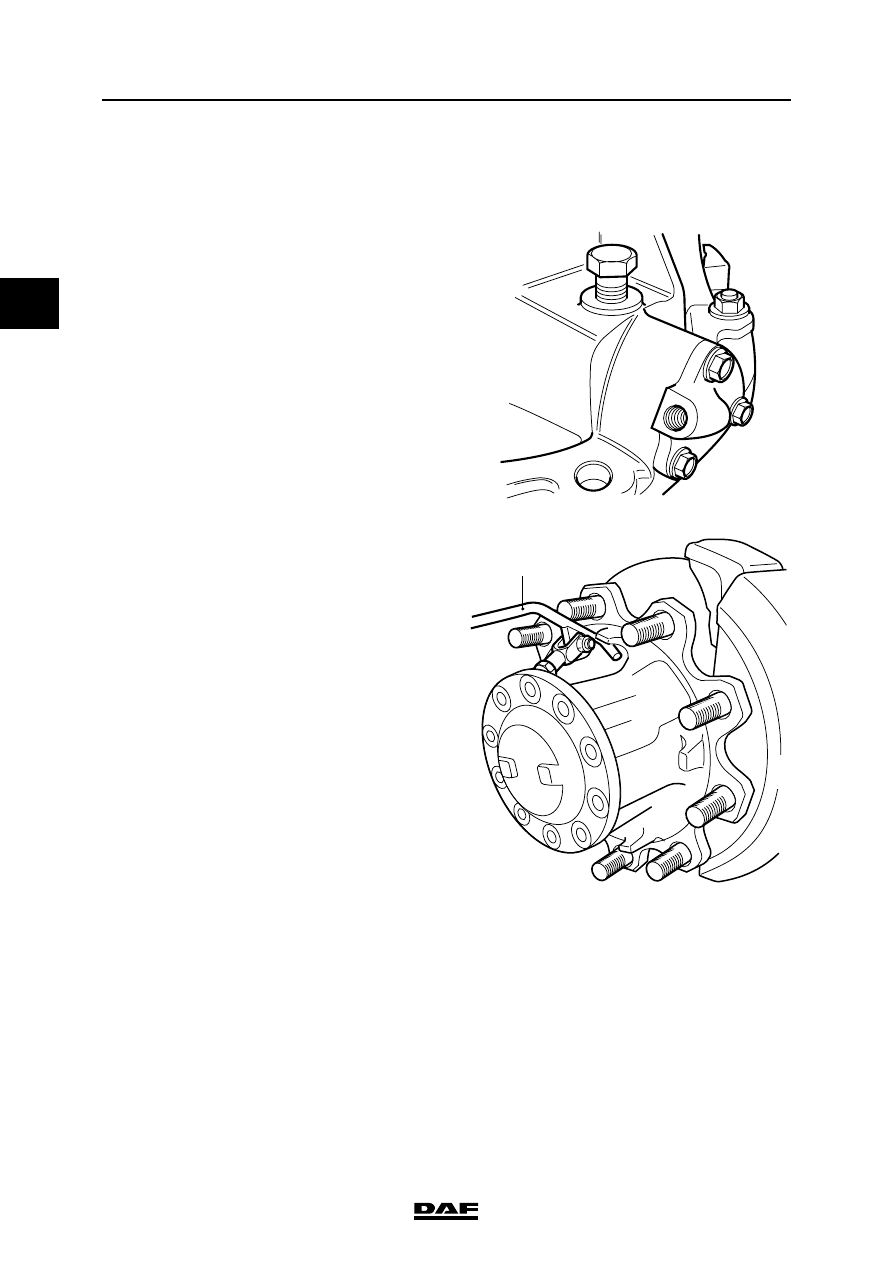

1.

Jack up the rear axle and support the axle on

stands.

2.

Bring the air system to operating pressure.

3.

Engage the differential lock. The warning

lamp should now come on.

4.

Check that there is a "rigid" connection

between the driven wheels.

5.

Disengage the differential lock. The warning

lamp should not light up and the "rigid"

connection between the driven wheels

should be broken.

2.3 CHECKING THE WHEEL SPEED SENSOR RING

1.

Remove the wheel hub unit.

2.

Check the sensor ring (2) for deposits.

Special attention should be paid to deposits

between the teeth of the sensor ring.

Clean the sensor ring if necessary.

3.

Check the sensor ring (2) for damage. Even

the slightest damage can cause a failure.

If necessary replace the sensor ring.

4.

If possible, the sensor ring (2) should be

checked for the maximum admissible axial

end play. See "Technical data".

5.

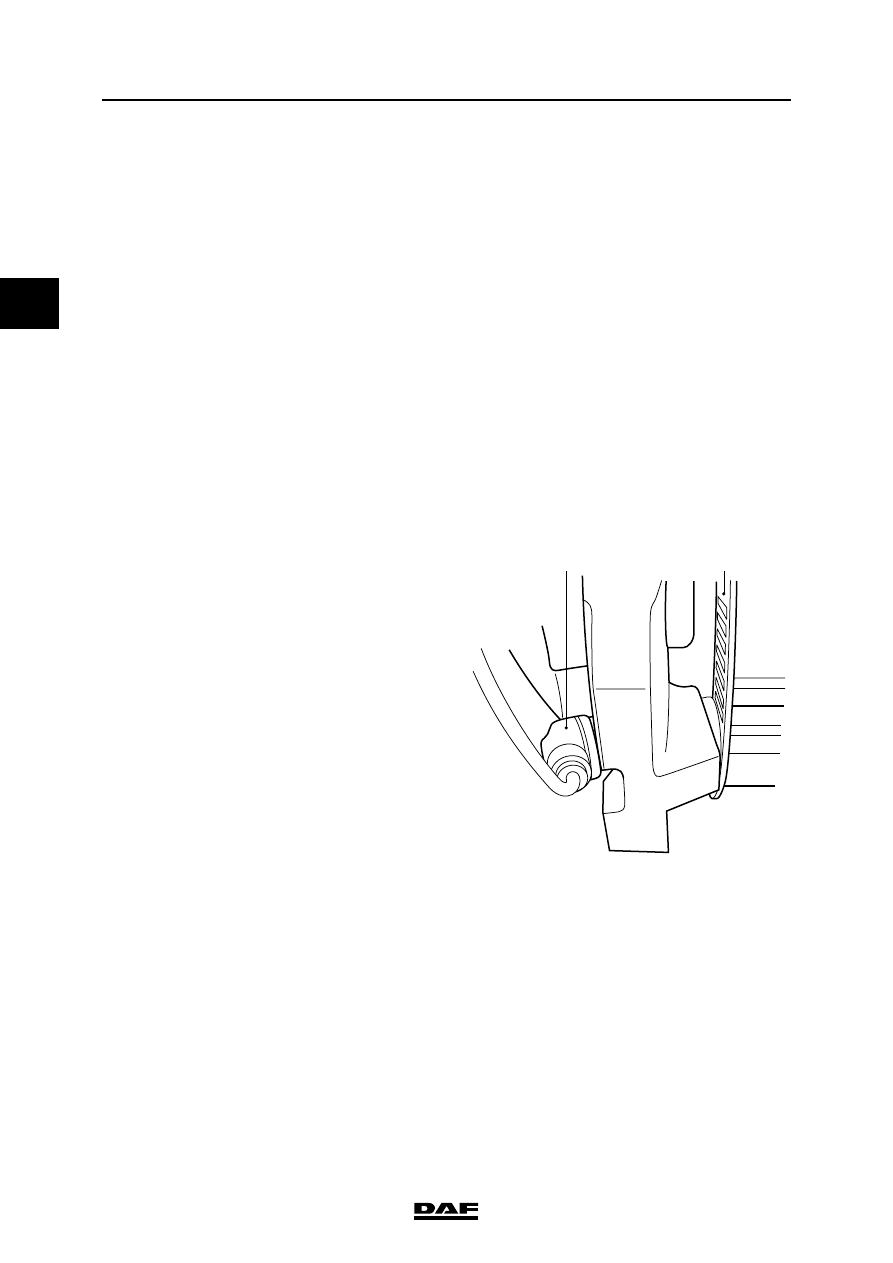

Check the sensor (1) for freedom of

movement.

If necessary, clean the sensor (1) and apply

new grease.

1

2

A8 00 342

©

 200424

3-1

Removal and installation

SINGLE REAR AXLE 1132

ΧΦ65/75/85 series

8

2

3. REMOVAL AND INSTALLATION

3.1 REMOVAL AND INSTALLATION, ENTIRE REAR AXLE

Removing the entire rear axle
1.

Block the front wheels using chocks.

2.

Slacken the central bolt of the spring-brake

cylinder as much as possible.

3.

Apply the parking brake.

4.

Remove the air pipes and wiring.

5.

Remove the prop shaft from the drive flange.

6.

Loosen the shock absorbers on the bottom.

7.

Support the vehicle securely with stands

under the chassis side members.

8.

Remove the axle suspension/guide. Take

precautionary measures to make sure that

the axle does not tilt during removal of the

axle suspension/guide.

9.

If possible, the entire rear axle with wheels

should be rolled from under the vehicle.

Installing the entire rear axle
1.

Install the entire rear axle with wheels under

the vehicle.

2.

Fit the axle suspension/guide.

3.

Fit the shock absorbers.

4.

Fit the prop shaft to the drive flange.

5.

Connect the electrical wiring and fit the air

pipes.

6.

Tighten the central bolt of the spring-brake

cylinder.

SINGLE REAR AXLE 1132

3-2

©

 200424

Removal and installation

2

ΧΦ65/75/85 series

8

3.2 REMOVAL AND INSTALLATION, AXLE SHAFTS

Removing axle shafts
1.

Jack up the rear axle and support the axle on

stands.

2.

Engage the differential lock. Check whether

the axle is blocked. Replace the switch by

the special tool (DAF no. 1329447), see (A).

This is to prevent the sliding sleeve from

falling into the differential when removing the

axle shaft.

3.

Remove the axle-shaft attachment bolts.

4.

Remove the axle shaft using special tool

(DAF no. 0694980), if required, see (B).

When the axle shaft comes loose, a small

amount of oil may leak out. Collect this oil.

A

A800139

B

A8 00 351
