DAF XF105. Manual - part 87

1

©

 200528

1-9

System description

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

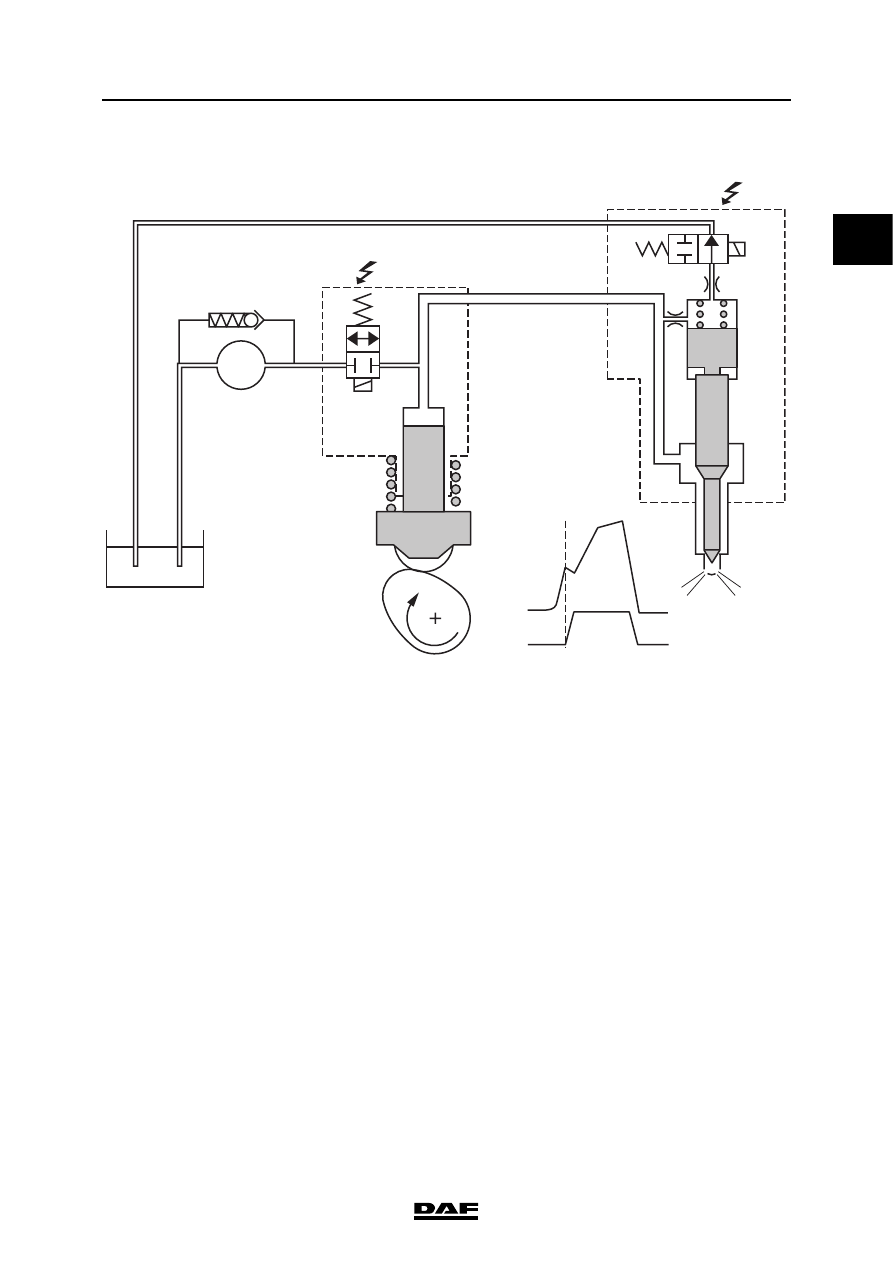

Start of injection
When the injector (2) is also activated, the

injector valve (2a) releases the path to the return

(7). The pressure above the injector plunger (2d)

is now slowly released via a throttle (2b). Now the

pressure under the injector needle (2e) is able to

lift the injector needle. Fuel is now injected.

The fuel pressure (x) now experiences a small dip

because fuel is being injected, but the pressure

immediately rises again. The needle is now

lifted (y).

Start of injection

1

2

c

b

b

d

e

a

X

Y

3

P

5

6

4

7

i400797

a

1

DMCI ENGINE MANAGEMENT SYSTEM

1-10

©

 200528

System description

XF105 series

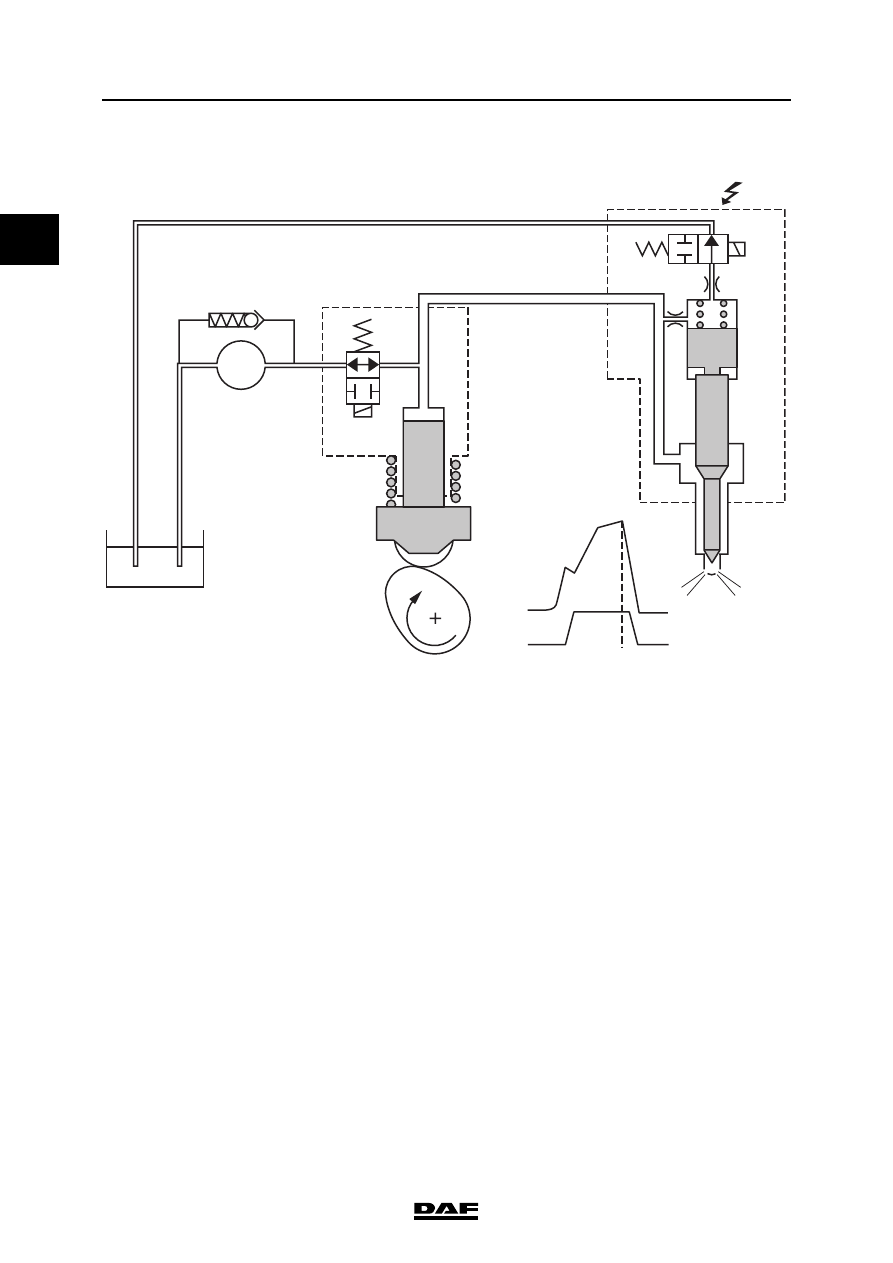

Pressure reduction
To ensure that the injector needle (2e) closes

quickly enough, the fuel pressure in the injector is

first reduced. The pump unit (1) is no longer

activated and, as a result, the pump unit valve

(1a) re-opens the supply and the pressure in the

fuel injection pipe drops. Injection still continues.

The fuel pressure (x) now decreases. The injector

needle is still lifted to its maximum extent (y).

Pressure reduction

1

2

c

b

b

d

e

a

X

Y

3

P

5

6

4

7

i400798

a

1

©

 200528

1-11

System description

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

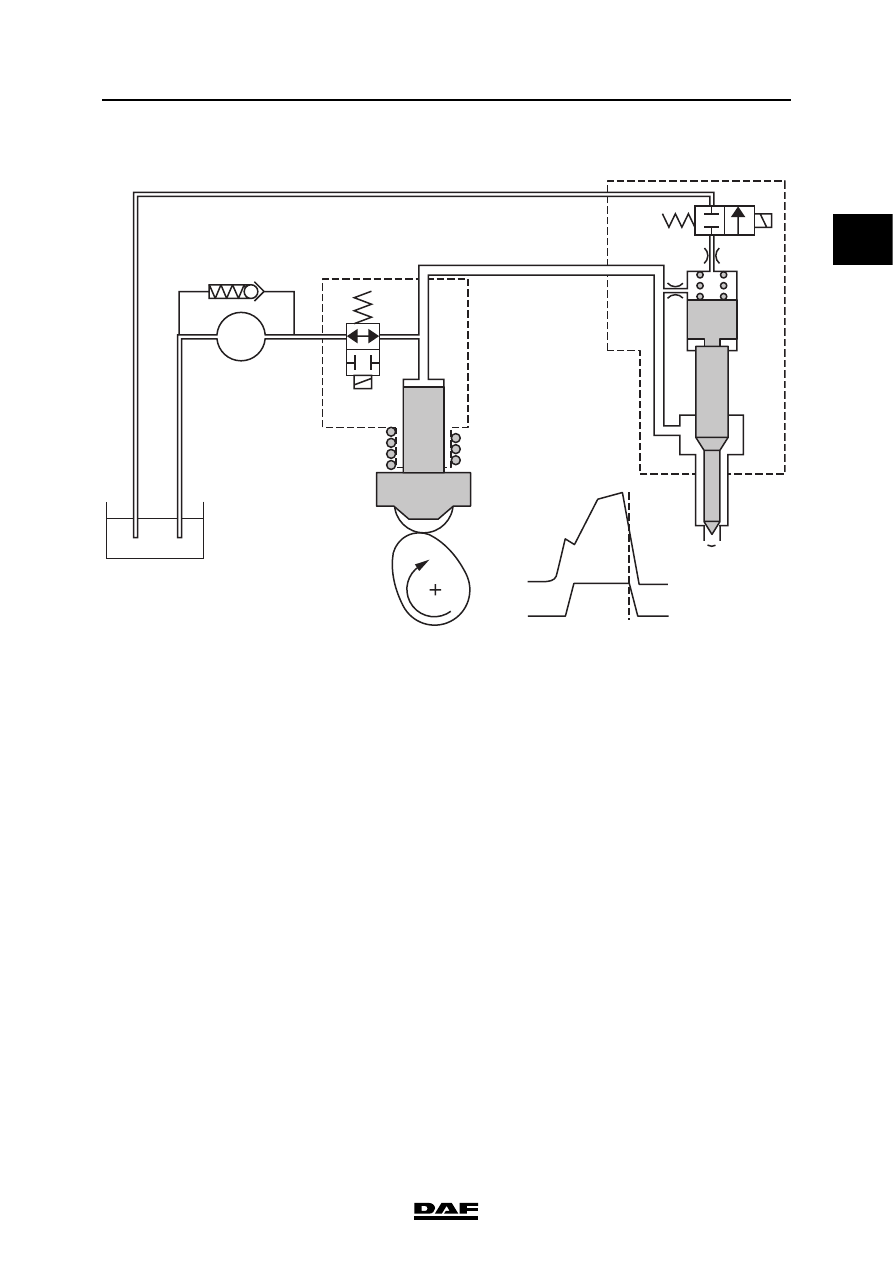

End of injection
The injector valve (2a) is now no longer

energised. In the meantime, the fuel pressure in

the injector has decreased and the injector

needle (2e) is closed by the spring above the

injector plunger (2d).

The fuel pressure (x) now decreases even

further. The injector needle is about to close (y).

End of injection

1

2

c

b

b

d

e

a

X

Y

3

P

5

6

4

7

i400799

a

1

DMCI ENGINE MANAGEMENT SYSTEM

1-12

©

 200528

System description

XF105 series

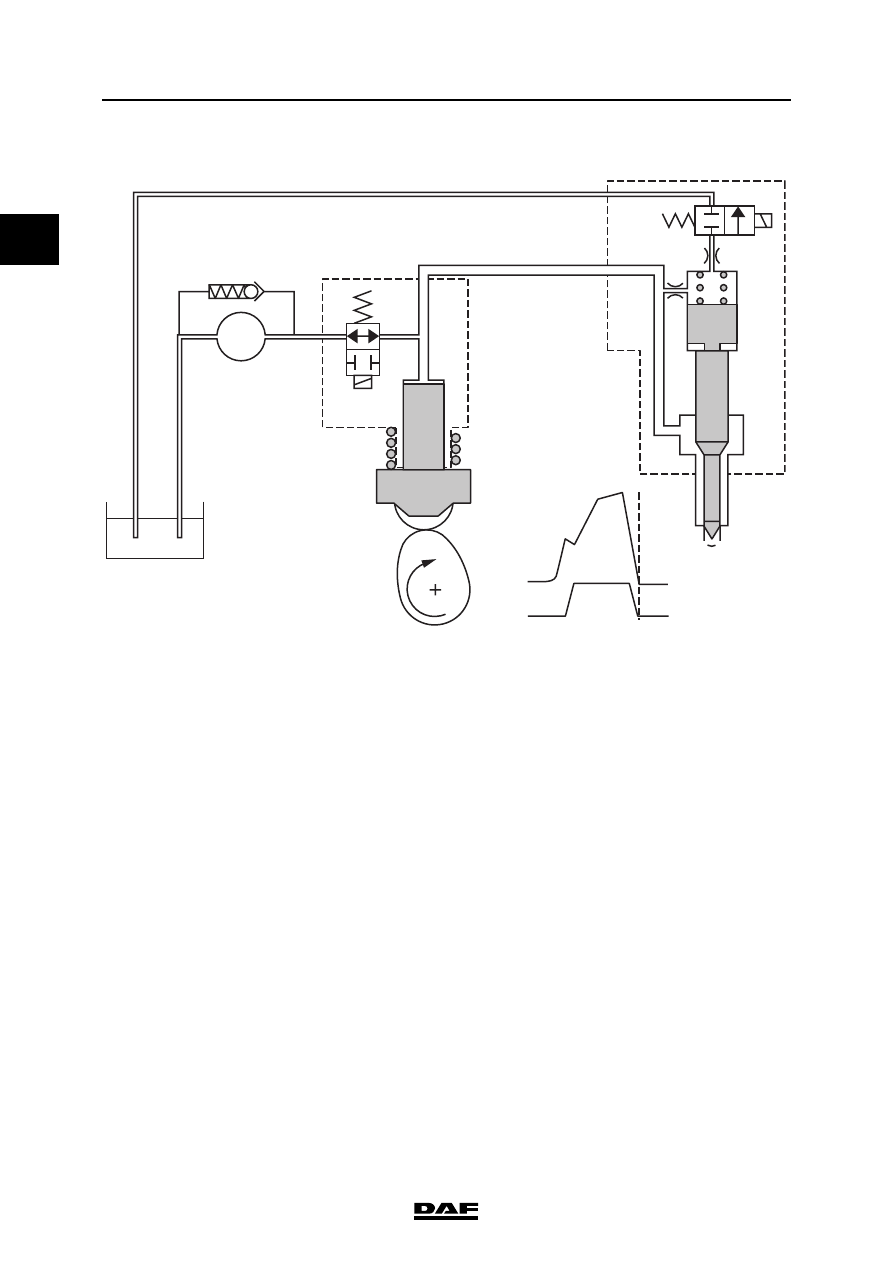

Closed
The fuel pressure has now dropped as much as

possible and the injector needle (2e) is pushed

down by the spring above the plunger (d).

The fuel pressure (x) is now at its minimum level.

The injector needle has closed (y).

Closed

1

2

c

b

b

d

e

a

X

Y

3

P

5

6

4

7

i400800

a
