System description

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

1. SYSTEM DESCRIPTION

1.1 INTRODUCTION

The design, functions and controls of the "DMCI"

engine management system are described in this

systems manual.

"DMCI" stands for DAF Multi Controlled Injection.

Fuel injection is controlled by an electronically

controlled pump unit and an electronically

controlled injector.

The pump unit is responsible for the fuel supply to

the injector. Injection timing is determined by the

injector. Injection quantity is determined by the

pump unit and injector in combination.

Of course, the DMCI electronic unit requires

various sensors to control these two components

correctly in order to determine the injection timing

and the correct quantity of fuel to be injected.

1

DMCI ENGINE MANAGEMENT SYSTEM

1-2

©

 200528

System description

XF105 series

1.2 ELECTRICAL SYSTEM

The electronic unit is the central control device of

the DMCI engine management system. The

functions can be split into engine functions and

vehicle functions.

Note:

Functions may be optional or may depend on the

vehicle configuration.

Engine functions:

-

system status

-

CAN  controls

-

pre-glowing and after-glowing

-

control of fuel supply

-

cylinder detection and synchronisation

-

fuel injection when starting

-

injection timing control

-

idling control

-

turbocharger pressure control

-

smoke limitation

-

full-load limiting and engine protection

functions

-

engine brake control

-

fan clutch control

Vehicle functions:

-

Cruise control

-

downhill speed control

-

vehicle speed limiting prescribed by law

-

variable vehicle speed limiting

-

vehicle speed limiting for special applications

-

engine speed control

-

CAN  controls

1

©

 200528

1-3

System description

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

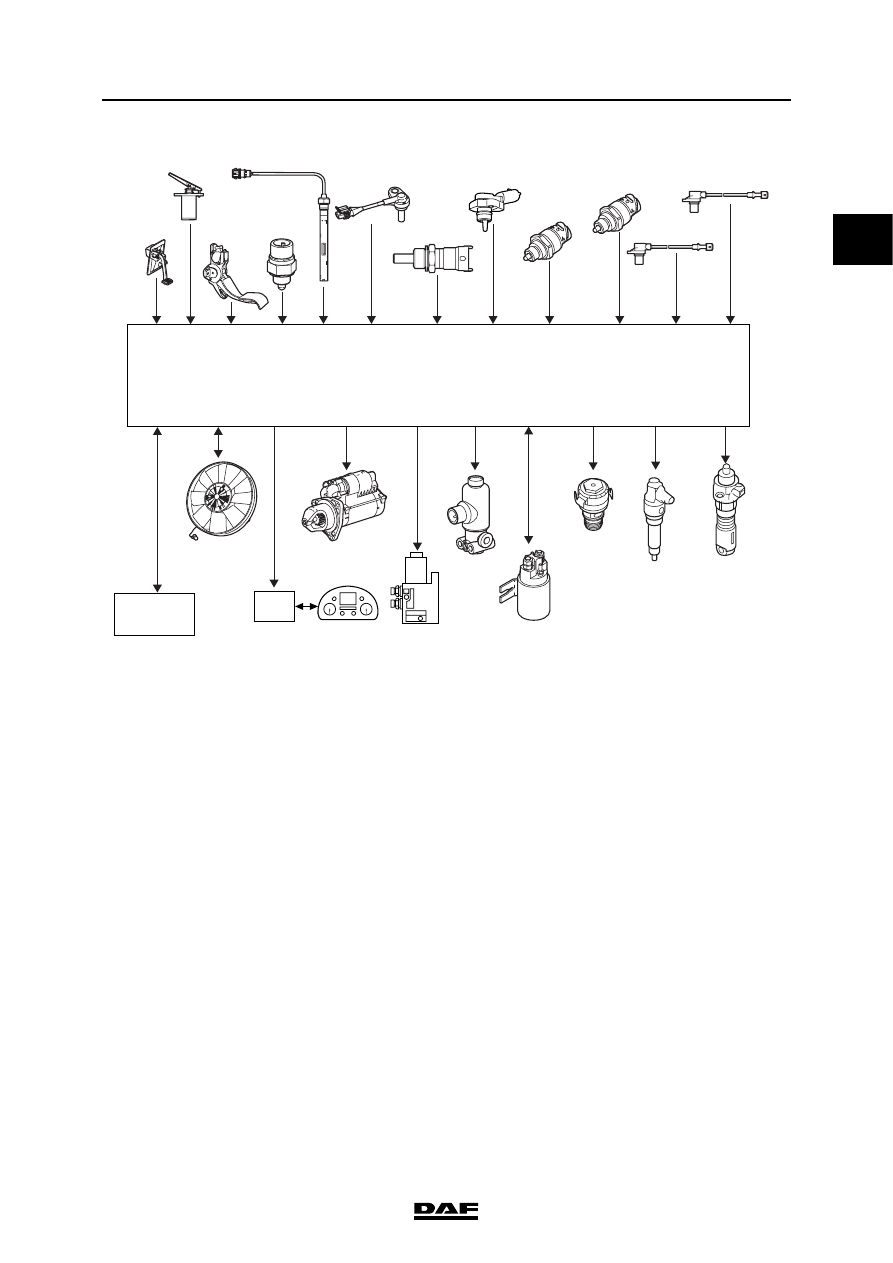

The DMCI electronic unit needs different input

signals to control engine and vehicle functions

and various components are activated by output

signals.

Input signals
The most important input signals are:

-

clutch proximity switch (E575)

-

service brake (G469)

-

accelerator pedal sensor (F672)

-

neutral position switch (F593/F599)

-

oil level sensor (F673)

-

2

nd

 coolant temperature sensor (F743)

-

coolant temperature sensor (F566)

-

air inlet boost pressure and temperature

sensor (F649)

-

engine oil pressure and temperature sensor

(F744)

-

fuel pressure and temperature sensor (F713)

-

crankshaft sensor (F552)

-

camshaft sensor (F558)

-

electronically controlled fan clutch (B335)

-

glow relay (G014)

i400991

E575

B335

D310

D899

B368

B192

B010

G014

B411/
B412/
B413/
B414/
B415/
B416/

B421/
B422/
B423/
B424/
B425/
B426/

B131/
B132/
B133/
B134/
B135/
B136/

F672

E593/
E599

F552

F566

F649

F743

F673

G469

F744

F713

F558

D965

CAN

network

VIC

1

DMCI ENGINE MANAGEMENT SYSTEM

1-4

©

 200528

System description

XF105 series

Output signals
After processing of the input signals, output

signals control the following components:

-

electronically controlled fan clutch (B335)

-

red warning VIC-2 (D310)

-

waste gate valve (B368)

-

starter motor (B010)

-

exhaust brake valve (B192)

-

DEB solenoid valves (B411 to B416)

-

glow relay (G014)

-

pump units (B131 to B136)

-

injectors (B421 to B426)

The DMCI communicates with the various other

electronic systems in the vehicle via the CAN

network.

DAVIE XD is used to diagnose faults on the

DMCI.
