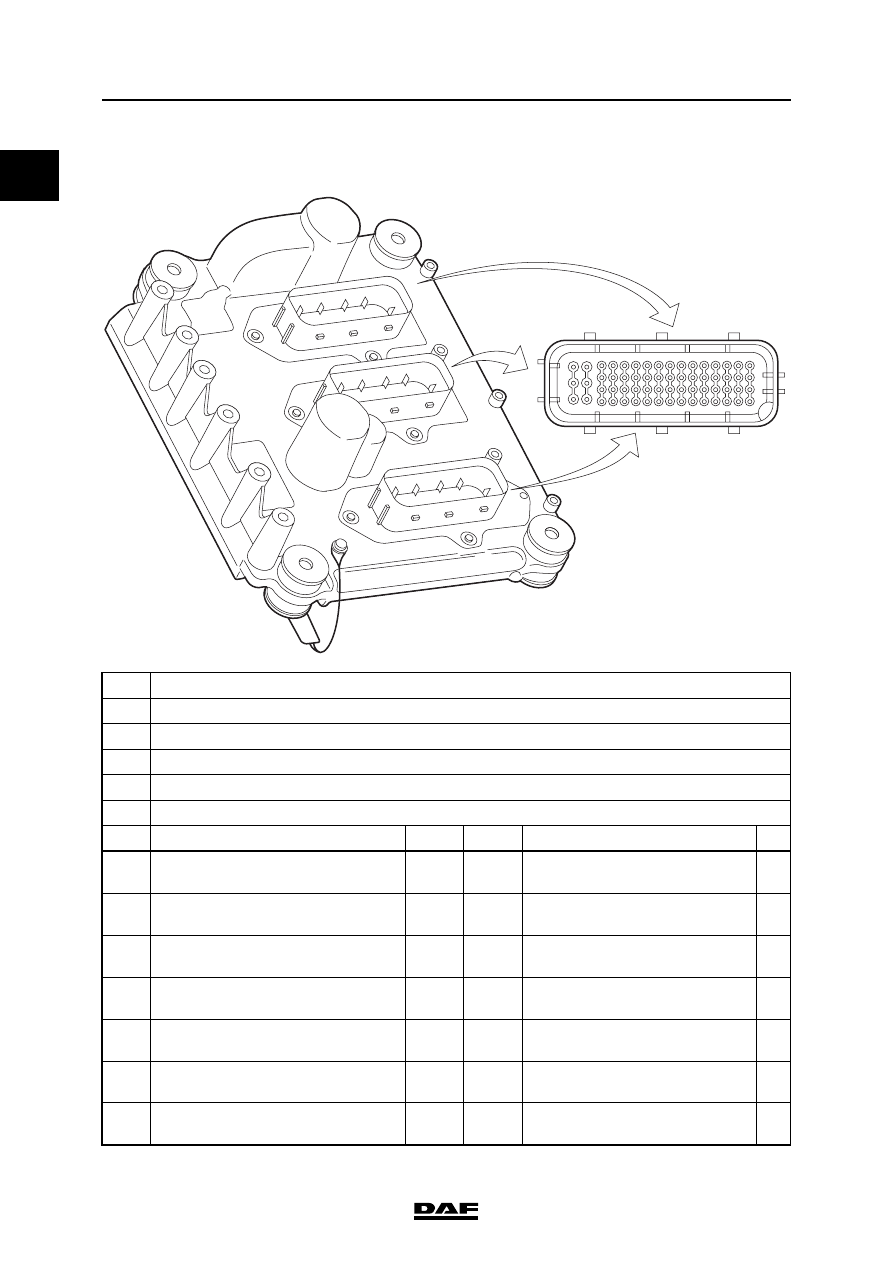

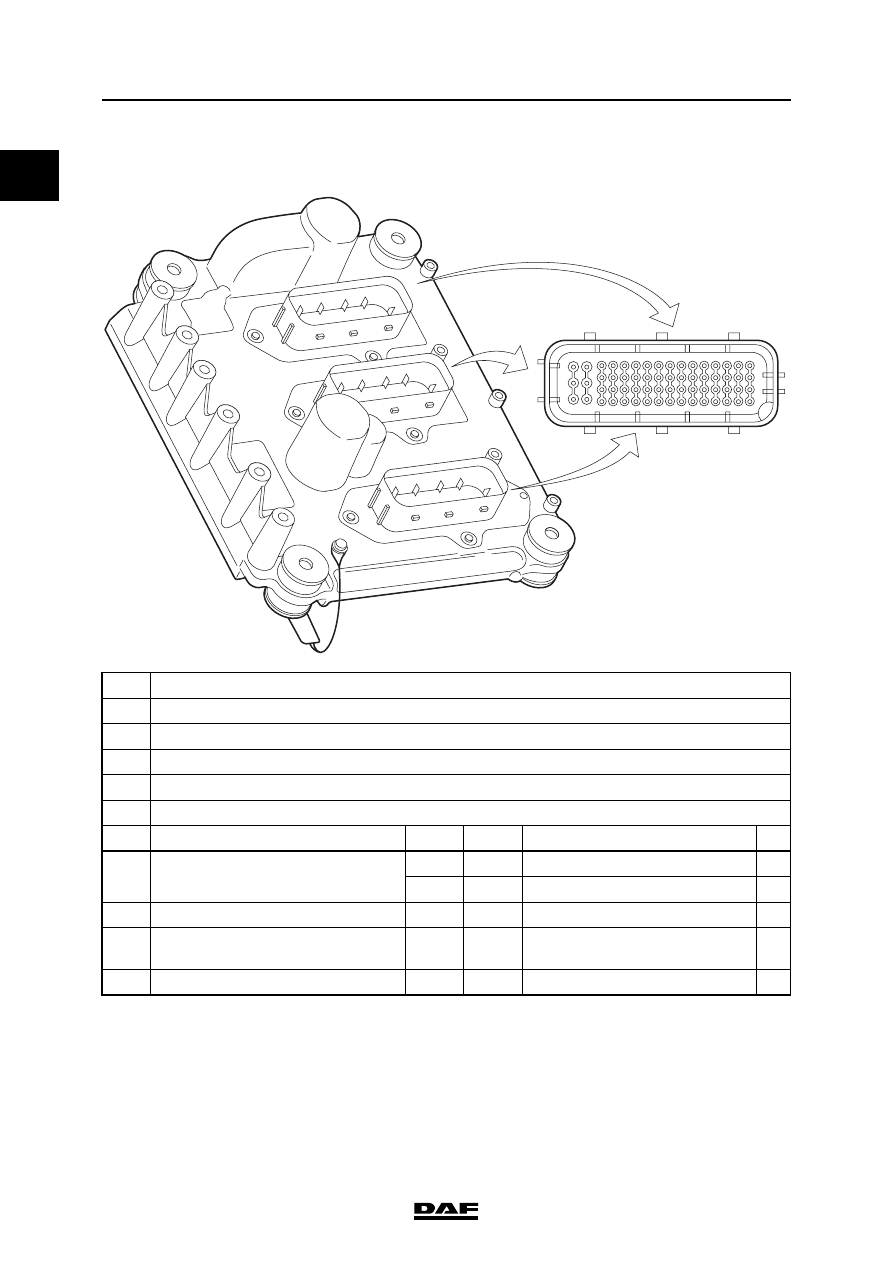

0 © 200528 1-37 DMCI engine management system TECHNICAL DATA XF105 series (1) Check the resistance by measuring on the connection points of the pump unit. A16 Output signal low pump unit cylinder 6 (B136) - V DC See scope example X A19 Output signal high pump unit cylinder 6 (B136) - V DC See scope example X A20 Output signal low pump unit cylinder 2 (B132) - V DC See scope example X A23 Output signal low pump unit cylinder 4 (B134) - V DC See scope example X A24 Output signal high pump unit cylinder 4 (B134) - V DC See scope example X A B C D E F U (V) 60 40 20 0 i400845 Pick-up voltage approx. 50 V Withstand voltage approx. 24 V Solenoid valve resistance value -40 C 1.1 20 C 1.6 120 C 2.4 |
