SHOCK ABSORBERS

General

1-2

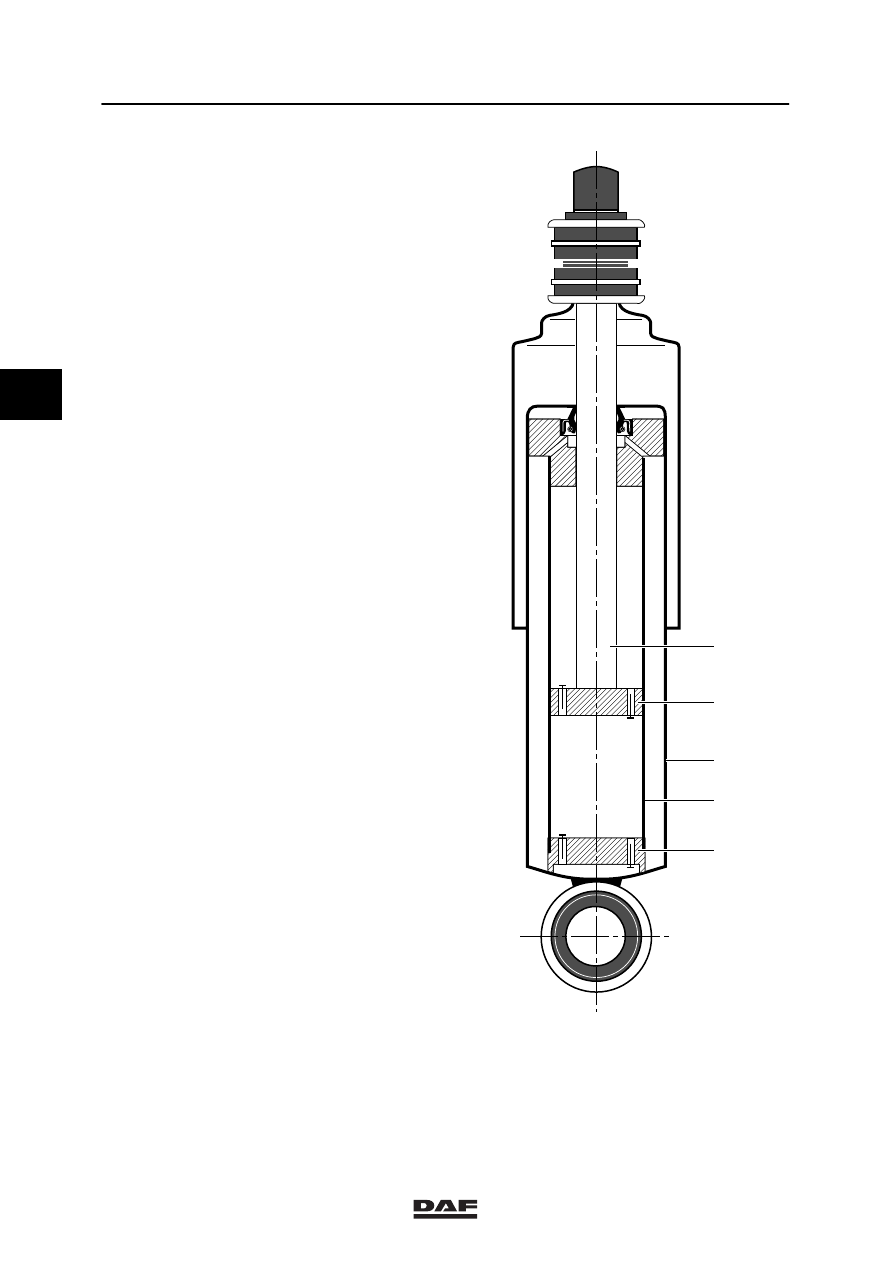

Double acting shock absorbers
The operation of the shock absorber is as
follows:
the bump stroke moves the cylinder (1) down in
relation to the operating cylinder (2).
Subsequently, oil flows from the bottom
chamber of the piston (1) through the piston
holes and valves to the top chamber where the
volume increases. The oil pressure is equal on
either side of the piston (1).

To compensate for the volume taken up by
piston rod (3) in the upper chamber, oil flows
from under piston (1), via the bottom valve (4),
to reservoir tube (5).
The resistance the oil meets during this
movement, damps the bump stroke of the shock
absorber.
The rebound stroke moves the cylinder (1) up in
relation to the operating cylinder (2).
Subsequently, pressure is exerted on the oil in
the upper chamber of the piston (1) causing the
oil to flow to the bottom chamber under
piston (1).
The resistance the oil meets during this
movement, damps the bump stroke of the shock
absorber.
To compensate for the volume taken up by the
piston rod (3) in the upper chamber, oil flows via
bottom valve (4) from the reservoir tube (5) to
the bottom chamber under the piston (1).

3

1

5

2

4

W9 02 001

ǹ 9701

3

9

Removal and installation

SHOCK ABSORBERS

2-1

2. REMOVAL AND INSTALLATION

2.1 REMOVAL AND INSTALLATION OF SHOCK ABSORBERS

Removal of shock absorbers
1.

Remove the attachment nuts and/or bolts.

2.

Mark the exact positions and location of the
mounting rubbers.

3.

Remove the shock absorber from under the
vehicle.

Shock-absorber installation
1.

Check the shock-absorber mountings for
hair-line cracks.

2.

If the old rubbers are to be re-used, check
them for hair-line cracks and ageing. Install
the rubbers in the original locations and
positions.

3.

When replacing the rubbers, use only the
specified types.

4.

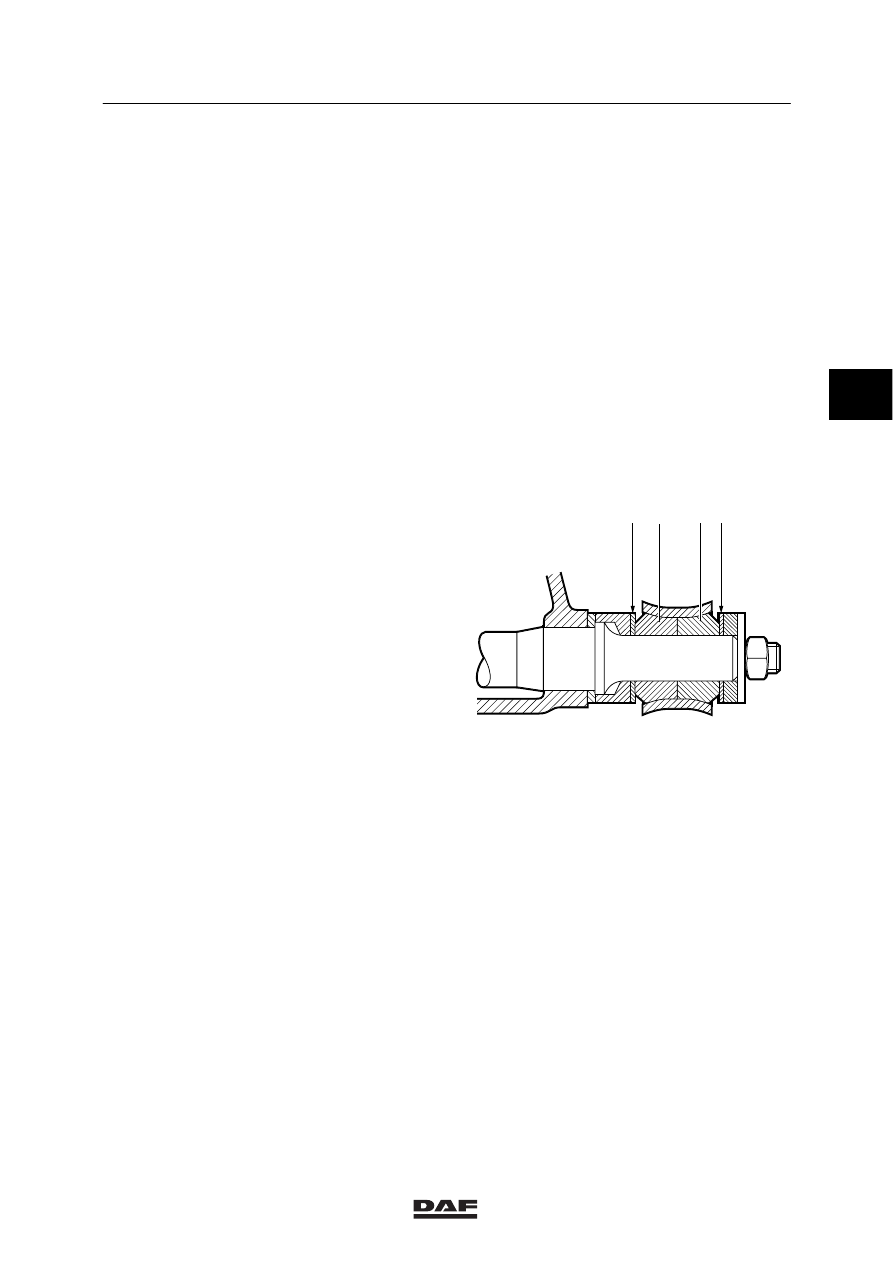

When installing the shock absorbers on a
leaf-sprung trailing axle, bearing rings (1)
have to be used with the treated
(blackened) side facing away from the
shock absorber rubbers (2).

5.

Replace the self-locking nuts and tighten
the attachment bolts.

1

2

2

1

C9 00 164

3

ǹ 9701

9

SHOCK ABSORBERS

Removal and installation

2-2

3

ǹ 9701

9
