Citroen C5 Dag (2010 year). Instruction

III

C O M F O R T

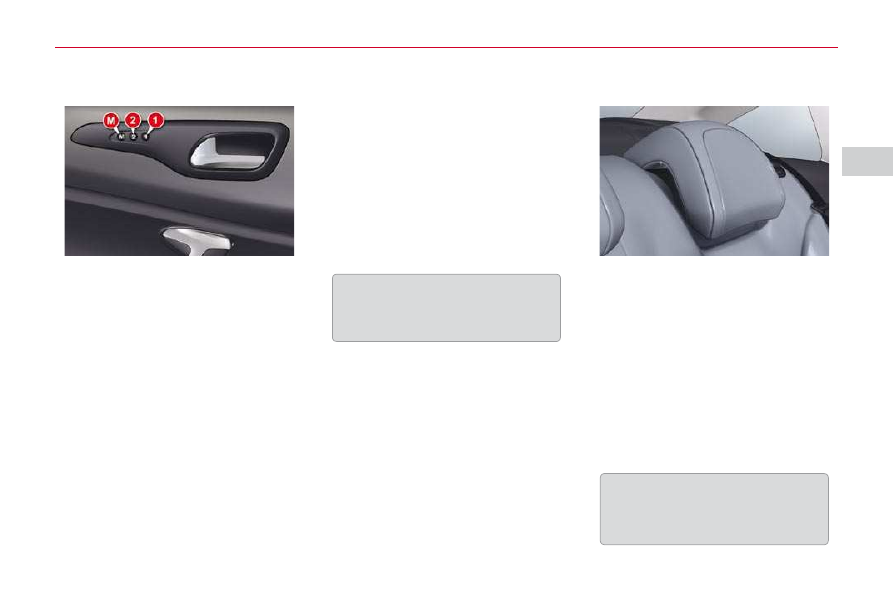

Storing driving positions

System which takes into account the
settings of the driver's seat and air
conditioning. It enables you to store
up to two positions using the buttons
on the side of the driver's seat.

Storing a position

  Using buttons M/1/2
      Switch on the ignition.
     Adjust your seat.
     Press  button   M ,  then  press  but-

ton 1 or 2 within four seconds.

An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the
previous position.

Recalling a stored position

Ignition on or engine running


Brieﬂ y press button 1 or 2 to re-

call the corresponding position.

An audible signal is heard indicating
the end of the adjustment.
When  the  ignition  is  on,  after  a  few
consecutive  position  recalls,  the
function will be deactivated until the
engine  is  started,  to  prevent  dis-
charging of the battery.

For your safety, avoid storing a
driving position while driving.

REAR HEAD RESTRAINTS

The rear head restraints can be re-
moved and have two positions:
-

high, position for use,

low, storage position.

To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To reﬁ t it, engage the head restraint

rods in the holes taking care to re-
main in line with the seat back.

Never drive with the head restraints
removed, they must be in place
and correctly adjusted.

III

C O M F O R T

REAR SEATS

Bench seat, the left-hand (2/3) or
right-hand (1/3) section of which
can be folded to adapt the boot load
space.

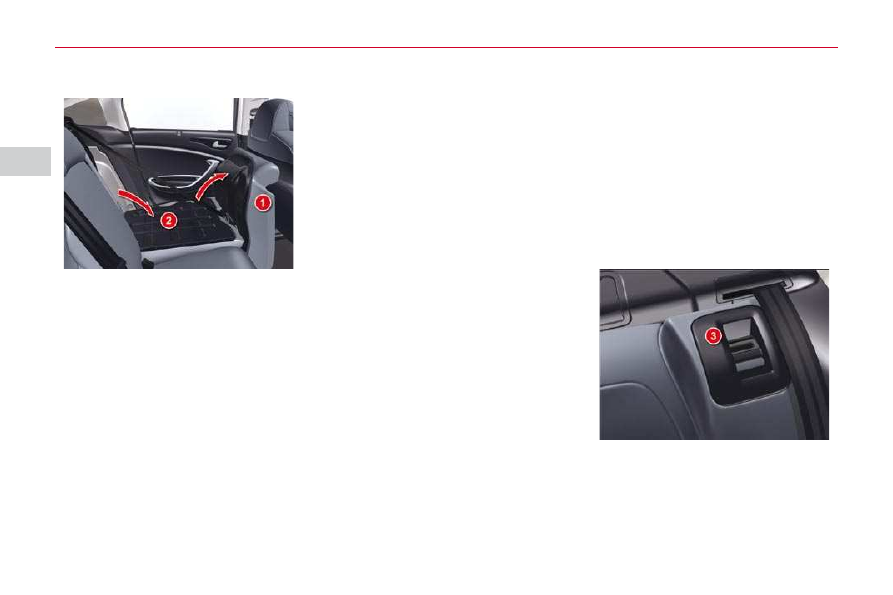

Removing the seat cushion

 Move the corresponding front

seat forwards if necessary.

 Raise the front of the seat cushion 1 .
 Tilt the seat cushion 1 fully

against the front seat.

 Remove the seat cushion 1 from

its ﬁ xings by pulling upwards.

Refitting the seat cushion

 Position the seat cushion 1 verti-

cally in its ﬁ xings.

 Fold down the seat cushion 1 .
 Press on the seat cushion to se-

cure it.

Folding the seat

In  order  to  fold  a  rear  seat  without
any  risk  of  damage,  always  start
with  the  seat  cushion,   never  with
the seat back:
      move  the  corresponding  front

seat forwards if necessary,

 raise the front of the seat cushion 1 ,
 tilt the seat cushion 1 fully against

the front seat,

 check that the seat belt is posi-

tioned correctly on the side of
the seat back,

 lower or remove the head re-

straints if necessary,

 pull the control 3 forwards to re-

lease the seat back 2 ,

     tilt the seat back  2 .
The seat cushion  1  can be removed
to increase the loading volume.

Returning the seat back to its
original position

When returning the rear seat to its
original position:
 put the seat back 2 in the upright

position and secure it,

 fold the seat cushion 1 ,


reﬁ t the head restraints or put

them back in place.

When returning the rear seat to its
original position, take care not to trap
the seat belts and ensure that their
buckles are positioned correctly.

The  red  indicator  on  the  control   3
should  no  longer  be  visible;  if  it  is,
push the seat fully back.

III

C O M F O R T

MIRRORS

Door mirrors

Each ﬁ tted with an adjustable mirror

glasses providing the lateral rear-
ward vision necessary for overtaking
or parking. They can also be folded.

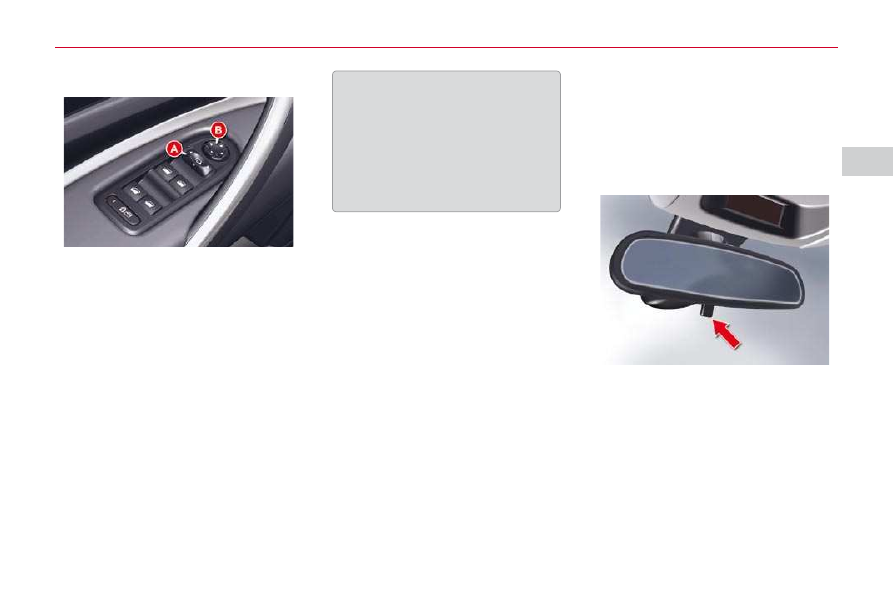

Adjustment
With the ignition on:
 move control A to the right or to

the left to select the correspond-
ing mirror,

 move control B in all four direc-

tions to adjust,

 return control A to the central po-

sition.

Demisting/defrosting  of  the  door
mirrors  is  associated  with  that  of
the rear screen.

Folding
 from outside; lock the vehicle

using the remote control or the
key.

 from inside; with the ignition on,

pull control A rearwards.

If  the  mirrors  are  folded  using
control   A ,  they  will  not  unfold  when
the  vehicle  is  unlocked.  Control   A
must be pulled again.

Unfolding
 from outside; unlock the vehicle

using the remote control or the
key.

 from inside; with the ignition on,

pull control A rearwards.

If  the  position  is  changed  manually,
a long press on control  A  re-engages
the mirror.
The folding and unfolding of the exte-
rior mirrors using the remote control
can  be  deactivated  by  a  CITROËN
dealer.

The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

Manual day/night model

Adjustment
 Adjust the mirror so that the

glass is directed correctly in the
"day" position.

Day/night position
 Pull the lever to change to the

"night" anti-dazzle position.

 Push the lever to change to the

normal "day" position.

As  a  safety  precaution,  the  mirrors
must  be  adjusted  to  reduce  the
"blind spot".

III

C O M F O R T

MIRRORS

Door mirrors

Each ﬁ tted with an adjustable mirror

glasses providing the lateral rear-
ward vision necessary for overtaking
or parking. They can also be folded.

Adjustment
With the ignition on:
 move control A to the right or to

the left to select the correspond-
ing mirror,

 move control B in all four direc-

tions to adjust,

 return control A to the central po-

sition.

Demisting/defrosting  of  the  door
mirrors  is  associated  with  that  of
the rear screen.

Folding
 from outside; lock the vehicle

using the remote control or the
key.

 from inside; with the ignition on,

pull control A rearwards.

If  the  mirrors  are  folded  using
control   A ,  they  will  not  unfold  when
the  vehicle  is  unlocked.  Control   A
must be pulled again.

Unfolding
 from outside; unlock the vehicle

using the remote control or the
key.

 from inside; with the ignition on,

pull control A rearwards.

The objects observed are, in real-
ity, closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

Manual day/night model

Adjustment
 Adjust the mirror so that the

glass is directed correctly in the
"day" position.

Day/night position
 Pull the lever to change to the

"night" anti-dazzle position.

 Push the lever to change to the

normal "day" position.

As  a  safety  precaution,  the  mirrors
must  be  adjusted  to  reduce  the
"blind spot".

III

C O M F O R T

As  a  safety  precaution,  these  op-
erations  must  only  be  carried  out
while the vehicle is stationary.

STEERING WHEEL ADJUSTMENT

The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.

Adjustment

 First, adjust the driver's seat to

the most suitable position.

 When stationary , pull the lever A

to unlock the steering wheel ad-
justment.

 Adjust for height and reach.
 Push the lever to lock the steer-

ing wheel adjustment.

After locking, if you press ﬁ rmly on

the steering wheel, a slight click may
be heard.

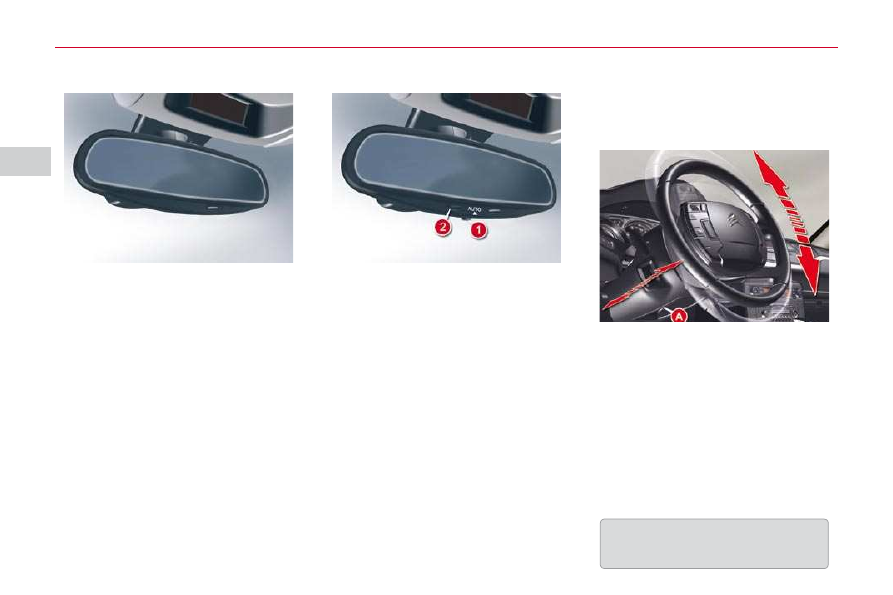

Automatic day/night model

  In  order  to  guarantee  optimum  vis-
ibility  during  your  manoeuvres,  the
mirror  lightens  automatically  when
reverse gear is engaged.

By  means  of  a  sensor,  which  mea-
sures  the  light  from  the  rear  of  the
vehicle,  this  system  automatically
and progressively changes between
the day and night uses.
It  has  an  anti-dazzle  system  which
darkens the mirror glass: this reduc-
es  any  driver  discomfort  caused  by
the light beam of following vehicles,
the sun...

In vehicles ﬁ tted with electrochrome

exterior rear view mirrors, the system
has an on/off button and an associ-
ated warning lamp.

On
 With the ignition on, press on

button 1 .

The warning lamp 2 comes on and
the mirror is in automatic mode.

  Off
      Press on button  1 .
The  warning  lamp   2   goes  out  and

the mirror remains in its lightest deﬁ -

nition.

III

C O M F O R T

As  a  safety  precaution,  these  op-
erations  must  only  be  carried  out
while the vehicle is stationary.

STEERING WHEEL ADJUSTMENT

The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.

Adjustment

 First, adjust the driver's seat to

the most suitable position.

 When stationary , pull the lever A

to unlock the steering wheel ad-
justment.

 Adjust for height and reach.
 Push the lever to lock the steer-

ing wheel adjustment.

After locking, if you press ﬁ rmly on

the steering wheel, a slight click may
be heard.

Automatic day/night model

  In  order  to  guarantee  optimum  vis-
ibility  during  your  manoeuvres,  the
mirror  lightens  automatically  when
reverse gear is engaged.

In vehicles ﬁ tted with electrochrome

exterior rear view mirrors, the system
has an on/off button and an associ-
ated warning lamp.

On
 With the ignition on, press on

button 1 .

The warning lamp 2 comes on and
the mirror is in automatic mode.

  Off
      Press on button  1 .
The  warning  lamp   2   goes  out  and

the mirror remains in its lightest deﬁ -

nition.

A C C E S S

REMOTE CONTROL KEY

System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used
to  locate  and  start  the  vehicle  and
provide  guide-me-home  lighting,  as
well  as  providing  protection  against
theft.

Unlocking the vehicle

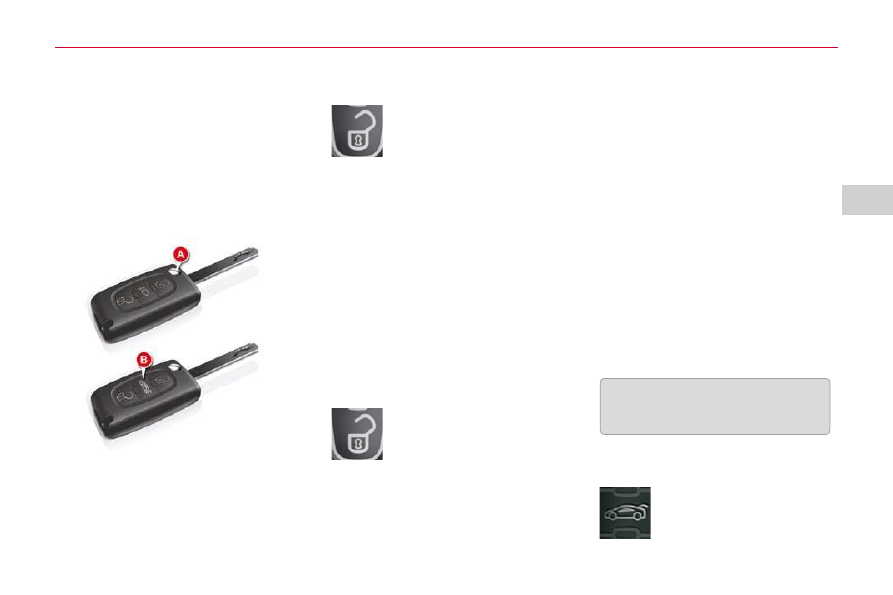

Complete unlocking using the
remote control

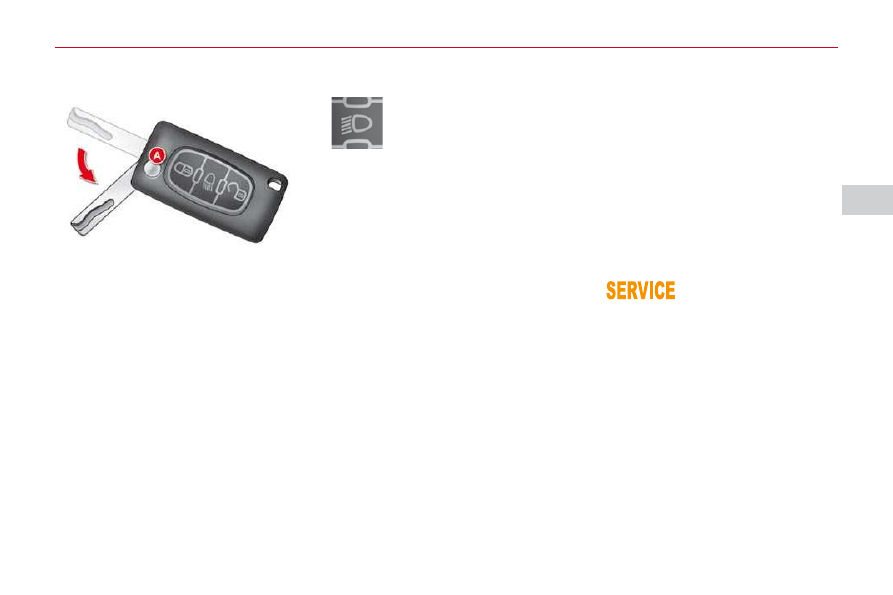

Unfolding the key
 First press button A to unfold the

key.

 Press the open padlock

to unlock the vehicle.

Complete unlocking using the key
 Turn the key to the left in the

driver's door lock to unlock the
vehicle.

Unlocking is conﬁ rmed by rapid

ﬂ ashing of the direction indicators

for  approximately  two  seconds  and
lighting  of  the  courtesy  lamp  (if  the
function is activated).
According  to  version,  the  door  mir-
rors unfold at the same time.

Selective unlocking using the
remote control

 Press the open pad-

lock once to unlock the
driver's door only.

 Press the open padlock again to

unlock the other doors and the
boot.

According to version, the exterior
mirrors unfold at the same time as

the ﬁ rst unlocking action.

The complete or selective unlocking
parameter is set via the instrument

panel screen conﬁ guration menu (see

"Instruments and controls" section).

Complete unlocking is activated by
default.

Selective unlocking is not possible
using the key.

Each unlocking is conﬁ rmed by

rapid ﬂ ashing of the direction indica-

tors for approximately two seconds
and by switching on of the courtesy
lamp.

Electric boot opening

 Press button B to open

the boot.

A C C E S S

Normal locking using the key
 Turn the key to the right in the

driver's door lock to lock the ve-
hicle completely.

Locking is conﬁ rmed by ﬁ xed light-

ing  of  the  direction  indicators  for
approximately  two  seconds  and  by
switching off of the courtesy lamp.
According  to  version,  the  exterior
mirrors fold at the same time.

If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When  the  vehicle  is  locked,  if  it  is
unlocked inadvertently, it will relock
automatically  after  thirty  seconds
unless a door is opened.
When  stationary  with  the  engine

off, locking is conﬁ rmed by ﬂ ashing

of  the  interior  locking  control  indi-
cator lamp.
The  folding  and  unfolding  of  the
exterior  mirrors  using  the  remote
control  can  be  deactivated  by  a
CITROËN dealer.

Deadlocking using the
remote control

 Press the closed pad-

lock  to  lock  the  vehicle
completely or press the
closed padlock for more
than  two  seconds  to
close  the  windows  and
sunroof automatically in
addition to locking.

 Press the closed padlock again

within ﬁ ve seconds to deadlock

the vehicle.

Locking the vehicle

Normal locking using the remote
control

 Press the closed pad-

lock to lock the vehicle
completely.

 Press the closed padlock for

more than two seconds to close
the windows and sunroof auto-
matically in addition to locking.

Deadlocking using the key

 Turn the key to the right in the

driver's  door  lock  to  lock  the
vehicle  completely  and  hold  it
in  this  position  for  more  than
two seconds  to  close  the  win-
dows  automatically  in  addition
to locking.

 Turn the key to the right again

within ﬁ ve seconds to deadlock

the vehicle.

Deadlocking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.

Deadlocking renders the exterior
and interior door controls inoperative.
It also deactivates the manual cen-
tral control button.
When stationary with the engine

off, locking is conﬁ rmed by ﬂ ashing

of the indicator lamp on the interior
locking control.
If one of the doors or the boot is open
or has not been closed correctly, the
central locking will not work.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

A C C E S S

 First press button A to fold the

key.

Locating your vehicle

 Press the closed padlock to lo-

cate your locked vehicle in a car
park.

This is indicated by switching on

of the interior lighting and ﬂ ashing

of the direction indicators for a few
seconds.
The vehicle remains locked.

Guide-me-home lighting

Anti-theft protection

  Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition  is  switched  on,  this  code
must  be  recognised  in  order  for
starting to be possible.
This  electronic  engine  immobiliser
locks  the  engine  management  sys-
tem a few minutes after the ignition
is switched off and prevents starting
of  the  engine  by  anyone  who  does
not have the key.

In the event of a mal-
function,  you  are  in-
formed  by  lighting  of
this  warning  lamp,  an

audible  signal  and  a  message  on
the multifunction screen.
In  this  case,  your  vehicle  does  not
start; contact a CITROËN dealer as
soon as possible.

Folding the key

A  press  on  button   B   oper-
ates  the  guide-me-home
lighting  (lighting  of  the
sidelamps,  dipped  beams
and number plate lamps).

A  second  press  before  the  end  of
the  timing  cancels  the  guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.

A C C E S S

STOPPING

Do not ﬂ ick the accelerator at

the  moment  of  switching  off  the
ignition.  This  could  cause  serious
damage to the turbocharger(s).

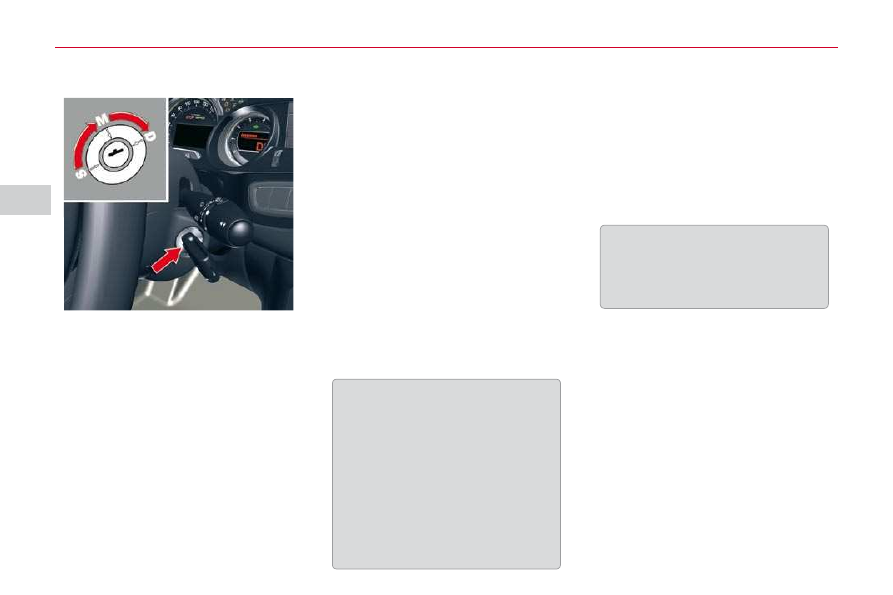

IGNITION SWITCH

1. "S": Steering lock

To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.

2. "M": Drive position

Depending  on  the  version  of  your
vehicle,  the  orange  and  red  warn-
ing  lamps  should  also  come  on  for
a short time.

3. "D": Starter

Release the key as soon the engine
has started.
If the ﬁ rst attempt fails, switch off the

ignition. Wait ten seconds then oper-
ate the starter again.

Steering lock

  1. "  S":  After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position  S .
  2.  "M":   Ignition  switched  on,  the
steering  is  unlocked  (by  turning  the
key to position  M , move the steering
wheel gently if necessary).
  3. "D":  Starter position.
Never  turn  the  key  to  this  position
when the engine is running.

Do not run the engine in an enclosed

space or where there is insufﬁ cient

ventilation.
It  is  essential  always  to  drive  with
the engine running in order to retain
braking and steering assistance.
Never  remove  the  ignition  key
before  the  vehicle  has  come  to  a
complete stop.
Avoid  attaching  a  heavy  object  to
the  key  which  would  weigh  down
on its shaft in the switch and could
cause a malfunction.

Vehicles equipped with
a turbocharger

Never  stop  the  engine  without  having
allowed  it  to  run  for  a  few  seconds  at
idle,  this  being  the  time  required  for
the  turbocharger  to  return  to  a  normal
speed.

A C C E S S

Malfunction

Following  disconnection  of  the  ve-
hicle battery, replacement of the re-
mote  control  battery  or  in  the  event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
      First of all, use the key in the lock

to unlock or lock your vehicle.

     Then, reinitialise the remote control.
If  the  problem  persists,  contact  a
CITROËN  dealer  as  soon  as  pos-
sible.

  Reinitialisation
      Switch off the ignition.
     Turn the key to position  2 (  Drive  ) .
     Press the closed padlock imme-

diately for a few seconds, until
the operation requested is trig-
gered.

 Switch off the ignition and re-

move the key from the ignition
switch.

The remote control is fully opera-
tional again.

Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.

If the battery is ﬂ at, you

are informed by lighting
of this warning lamp,
an audible signal and a

message on the multifunction screen.

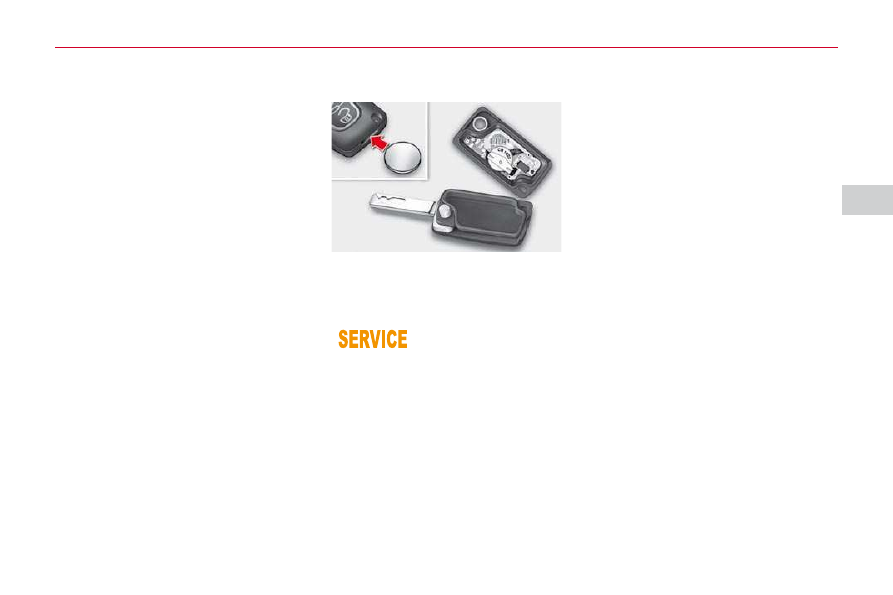

 Unclip the casing using a coin at

the notch.



Slide the ﬂ at battery out of its lo-

cation.

 Slide the new battery into its loca-

tion observing the original direction.

 Clip the casing.
 Reinitialise the remote control.

Changing the battery

A C C E S S

Lost keys

Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your

personal identiﬁ cation documents.
The CITROËN dealer will be able to re-
trieve the key code and the transponder
code required to order a replacement
key.

Remote control

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility  that  it  may  unlock  the  ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of  your  remote  control  out  of  range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing  and  the  remote  control  would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when  the  ignition  is  switched  off,
except for reinitialisation.

Locking the vehicle

Driving with the doors locked may
make access to the passenger com-
partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the

electronic engine immobiliser sys-
tem; this could cause malfunctions.

When purchasing
a second-hand vehicle

Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.

Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.

Take them to an approved collec-
tion point.

A C C E S S

 First press button A to fold the

key.

Locating your vehicle

 Press the closed padlock to lo-

cate your locked vehicle in a car
park.

This is indicated by switching on

of the interior lighting and ﬂ ashing

of the direction indicators for a few
seconds.
The vehicle remains locked.

Guide-me-home lighting

Anti-theft protection

In the event of a mal-
function,  you  are  in-
formed  by  lighting  of
this  warning  lamp,  an

audible  signal  and  a  message  on
the multifunction screen.
In  this  case,  your  vehicle  does  not
start; contact a CITROËN dealer as
soon as possible.

Folding the key

A  press  on  button   B   oper-
ates  the  guide-me-home
lighting  (lighting  of  the
sidelamps,  dipped  beams
and number plate lamps).

A  second  press  before  the  end  of
the  timing  cancels  the  guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.

A C C E S S

STOPPING

Do not ﬂ ick the accelerator at

the  moment  of  switching  off  the
ignition.  This  could  cause  serious
damage to the turbocharger(s).

IGNITION SWITCH

1. "S": Steering lock

To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.

2. "M": Drive position

Depending  on  the  version  of  your
vehicle,  the  orange  and  red  warn-
ing  lamps  should  also  come  on  for
a short time.

3. "D": Starter

Release the key as soon the engine
has started.
If the ﬁ rst attempt fails, switch off the

ignition. Wait ten seconds then oper-
ate the starter again.

Steering lock

Do not run the engine in an enclosed

space or where there is insufﬁ cient

Vehicles equipped with
a turbocharger

Never  stop  the  engine  without  having
allowed  it  to  run  for  a  few  seconds  at
idle,  this  being  the  time  required  for
the  turbocharger  to  return  to  a  normal
speed.

A C C E S S

ALARM *

System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring.

Exterior perimeter

The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...

Interior volumetric

The system checks for any variation in
the volume in the passenger compart-
ment.
The alarm is triggered if anyone breaks
a window, enters the passenger com-
partment or moves inside the vehicle.

Tilt

The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked.

Locking the vehicle with full
alarm system

Activation
 Switch off the ignition and get out

of the vehicle.

 Press the locking button on the

remote control.

The monitoring system is active: the

indicator lamp on the button ﬂ ashes

once per second.
After  the  locking  button  on  the  re-
mote control is pressed, the exterior
perimeter  monitoring  is  activated
after  a  delay  of  5  seconds  and  the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If  an  opening  (door,  boot...)  is  not
closed fully, the vehicle is not locked
but  the  exterior  perimeter  monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring.

Deactivation
 Press the unlocking button on

the remote control.

The alarm system is deactivated: the in-
dicator lamp on the button switches off.

Locking the vehicle with
exterior perimeter monitoring
only

Deactivate  the  interior  volumetric
and  anti-tilt  monitoring  to  avoid  un-
wanted  triggering  of  the  alarm  in
certain cases such as:
   -

leaving a pet in the vehicle,

leaving a window partially open,

washing your vehicle,

changing a wheel,

having your vehicle towed,

transport by sea.

  Self-protection function
The  system  checks  for  the
putting  out  of  service  of  its
components.

The alarm is triggered if the battery,
the central control or the siren wiring
are put out of service or damaged.

For all work on the alarm system,
contact a CITROËN dealer.

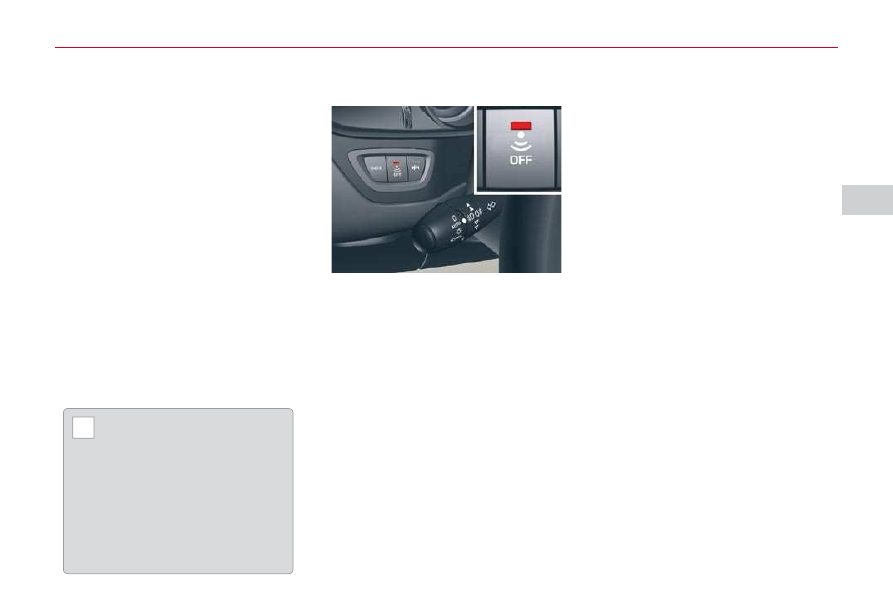

  Deactivation of the interior
volumetric and anti-tilt
monitoring

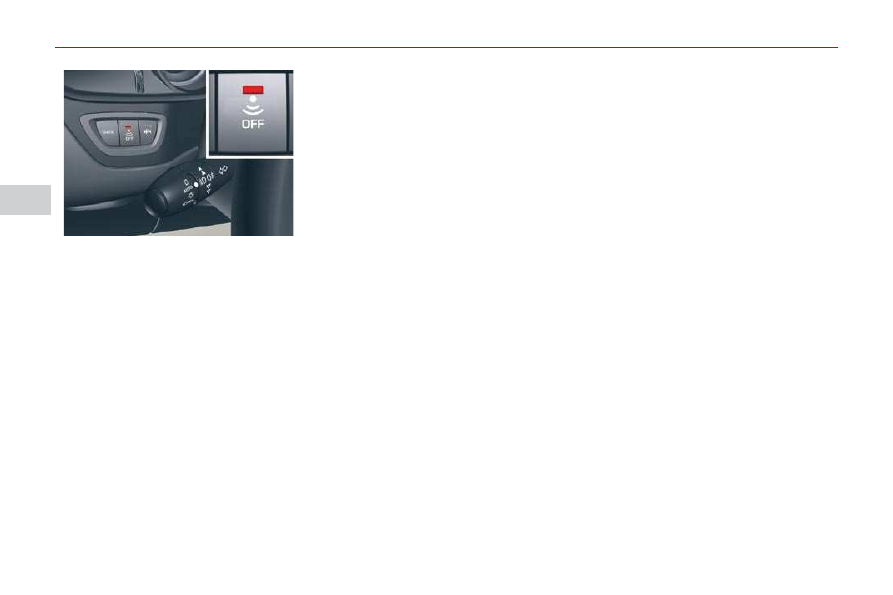

      Switch off the ignition.
     Within  ten  seconds,  press  the

button until the indicator lamp is
lit continuously.

 Get out of the vehicle.
 Press the locking button on the

remote control immediately.

The exterior perimeter monitoring alone
is activated: the indicator lamp on the

button ﬂ ashes once per second.
To  be  effective,  this  deactivation
must  be  carried  out  each  time  the
ignition is switched off.

A C C E S S

Reactivation of the interior
volumetric and anti-tilt
monitoring
 Press the unlocking button on the

remote control to deactivate the
exterior perimeter monitoring.

 Press the locking button on the

remote control to activate all the
monitoring functions.

The indicator lamp on the button

again ﬂ ashes once per second.

Triggering of the alarm

This is indicated by sounding of the

siren and ﬂ ashing of the direction in-

dicators for thirty seconds.
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using

the remote control, rapid ﬂ ashing

of the indicator lamp on the button
informs you that the alarm was trig-
gered during your absence. When

the ignition is switched on, this ﬂ ash-

ing stops immediately.

Failure of the remote control

To deactivate the monitoring func-
tions:

 Unlock the vehicle using the key

in the driver's door lock.

 Open the door; the alarm is trig-

gered.

 Switch on the ignition; the alarm

stops. The indicator lamp on the
button switches off.

Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using

the key in the driver's door lock.

Malfunction

When the ignition is switched on,

ﬁ xed lighting of the indicator lamp on

the button indicates a malfunction of
the system.
Have it checked by a CITROËN
dealer.

* According to country.

Automatic activation *

2 minutes after the last door or the
boot is closed, the system is activat-
ed automatically.
 To avoid triggering the alarm on

entering the vehicle, ﬁ rst press

the unlocking button on the re-
mote control.

Citroen C5 Dag (2010 year). Instruction - part 5
