ELECTRIC WINDOWS

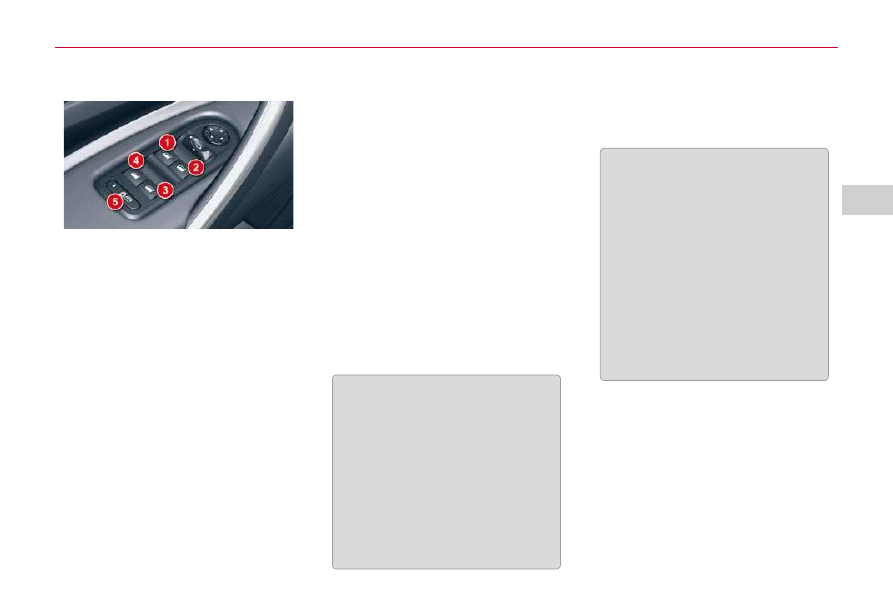

1. Driver's electric window control.
2. Passenger's electric window

control.

3. Rear right electric window

control.

4. Rear left electric window control.
5. Deactivation of the rear electric

window and door controls.

One-touch electric windows

There are two options:
-

manual mode

 Press or pull the control gently.

The window stops when the
control is released.

automatic mode



Press or pull the control ﬁ rmly.

The window opens or closes
fully when the control is re-
leased.

 Pressing the control again

stops the movement of the
window.

The  electric  window  controls  re-
main operational for approximately
45 seconds  after  the  ignition  is
switched  off  or  until  the  vehicle  is
locked after a door is opened.
If  one  of  the  passenger  windows
cannot  be  operated  from  the  driv-
er's door control pad, carry out the
operation  from  the  control  pad  of
the  passenger  door  concerned,
and vice versa.

  Safety anti-pinch
When  the  window  rises  and  meets
an  obstacle,  it  stops  and  partially
lowers again.

If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:
 press and hold the control until

the window opens fully,

 then pull the control immediate-

ly and hold it until the window
closes,

 continue to hold the control for

approximately one second after
the window has closed.

  The  safety  anti-pinch  function
is  not  operational  during  these
operations.

A C C E S S

  Reinitialisation
If  a  window  does  not  rise  automati-
cally,  its  operation  must  be  reini-
tialised:
      pull  the  control  until  the  window

stops,

 release the control and pull it

again until the window closes
fully,

 continue to hold the control for

approximately one second after
the window has closed,

 press the control to lower the

window automatically to the low
position,

 when the window has reached

the  low  position,  press  the  con-
trol  again  for  approximately
one second.

  The  safety  anti-pinch  function  is
not  operational  during  these  op-
erations.

Deactivation of the rear
electric window and door
controls

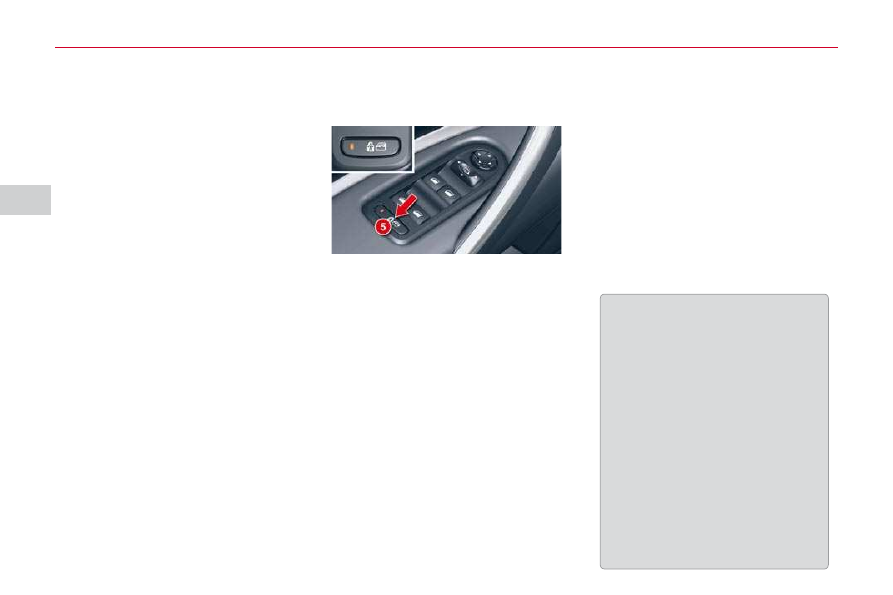

 For the safety of your children,

press control 5 to deactivate the
rear electric window controls re-
gardless of their position.

Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated.

Always  remove  the  key  from  the
ignition  when  leaving  the  vehicle,
even for a short time.
If an obstacle is encountered during
operation  of  the  electric  windows,
you must reverse the movement of
the  window.  To  do  this,  press  the
control concerned.
When the driver operates the controls
for the passengers' electric windows,
he must ensure that no one is prevent-
ing correct closing of the windows.
The  driver  must  ensure  that  the
passengers  use  the  electric  win-
dows correctly.
Be aware of children when operat-
ing the windows.

A message on the instrument panel
screen informs you of the activation/
deactivation of the control.

This  control  also  deactivates  the
interior  controls  for  the  rear  doors
(refer to the section "Child safety - §
Electric child lock").
Any  other  status  of  the  indicator
lamp  indicates  a  malfunction  of  the
electric  child  lock.  Have  it  checked
by a CITROËN dealer.

A C C E S S

DOORS

Opening

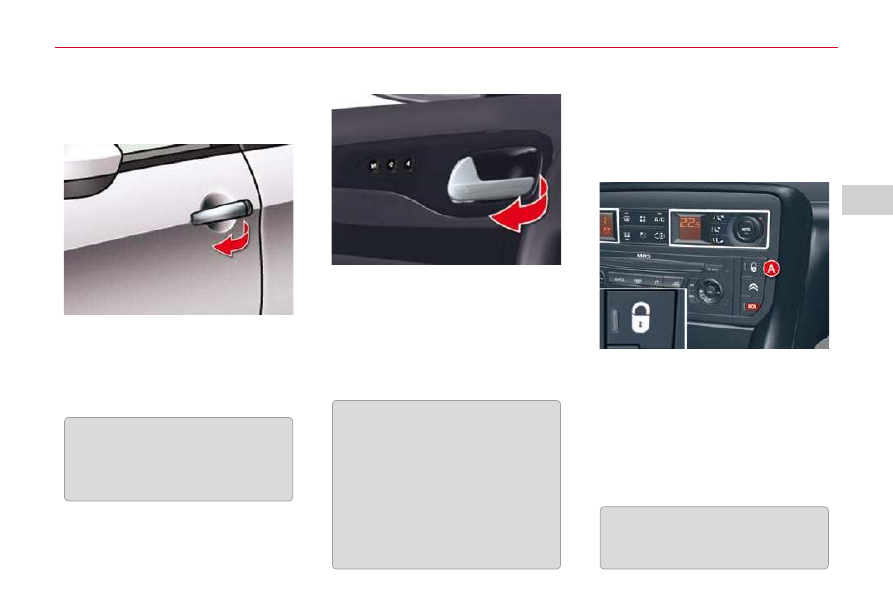

From outside

When the selective unlocking is acti-

vated, the ﬁ rst press of the remote

control unlocking button permits
unlocking of the driver's door only.

 Pull the front door control to open

the door; this unlocks the vehicle
completely.

 Pull the rear door control to open

the door; this unlocks only the
door opened.

With the selective unlocking acti-
vated:
-

the driver's door control unlocks
the driver's door only,

the other door controls unlock
the other doors and the boot.

The interior door controls do not
operate when the vehicle is dead-
locked.

Manual centralised control

System which provides full manual
locking or unlocking of the doors
and boot from the inside.

Locking

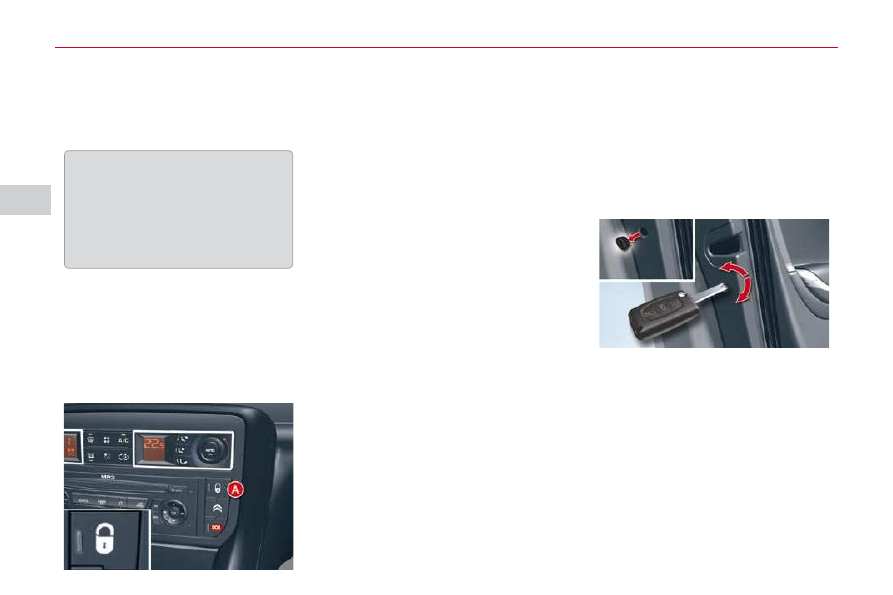

 Press button A to lock the vehicle.
The red indicator lamp on the button

comes on. It ﬂ ashes when the doors

are locked while stationary with the
engine off.

If one of the doors is open, the cen-
tral locking from the inside does not
take place.

 After unlocking the vehicle com-

pletely using the remote control
or the key, pull the door handle.

From inside

A C C E S S

Unlocking
 Press button A again to unlock

the vehicle.

The red indicator lamp on the button
switches off.

If the vehicle is locked or dead-
locked from the outside, the red in-

dicator lamp ﬂ ashes and button A

is inactive.
 In this case, use the remote

control or the key to unlock the
vehicle.

Automatic central locking

System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this
function.

  Locking
When  the  speed  exceeds  6  mph
(10  km/h),  the  doors  and  the  boot
lock automatically.
If one of the doors is open, the auto-
matic  central  locking  does  not  take
place.
If  the  boot  is  open,  the  automatic
central locking of the doors is active.

Unlocking
 Above 6 mph (10 km/h), press

button A to unlock the doors and
the boot temporarily.

Activation
 Press button A for more than

two seconds.

A conﬁ rmation message appears on

the instrument panel screen, accom-
panied by an audible signal.

Deactivation
 Press button A again for more

than two seconds.

A conﬁ rmation message appears on

the instrument panel screen, accom-
panied by an audible signal.

Emergency control

To lock or unlock the doors manu-
ally in the event of a malfunction of
the central locking system or battery
failure.

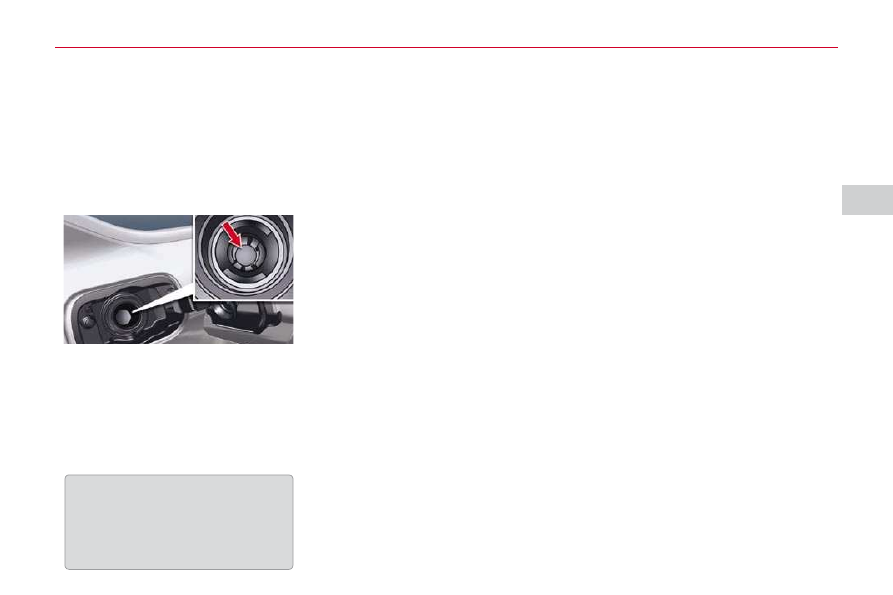

Locking the driver's door
 Insert the key in the lock, then

turn it to the rear.

Unlocking the driver's door
 Insert the key in the lock, then

turn it to the front.

Locking the front and rear
passenger doors

 On the rear doors, check that the

child lock is not activated.

 Remove the black cap, located

on the edge of the door, using
the key.

 Insert the key in the socket with-

out forcing it, then without turn-
ing it, move the latch sideways
towards the inside of the door



Remove the key and reﬁ t the

cap.

Unlocking the front and rear
passenger doors
 Pull the interior door opening

control.

A C C E S S

BOOT (SALOON)

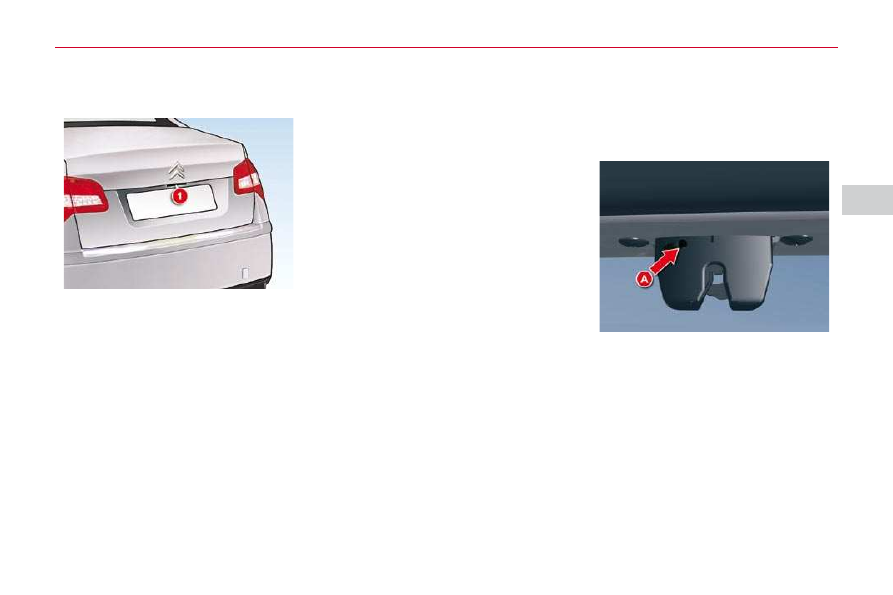

 Press upwards on lever 1 and lift

up the boot lid.

With the vehicle stationary, this is
carried out using:
-

The remote control.

The key in a door lock.

The interior central locking/un-
locking control.

The  boot  automatically  locks  when
the  vehicle  is  moving  at  a  speed  of
over 6 mph (10 km/h), even if auto-
matic central locking is deactivated.
It is unlocked when a door is opened
or when the central locking button is
pressed  (speed  lower  than  6  mph
(10 km/h)).

Opening

Locking/unlocking

Emergency boot release

System for mechanical unlocking of
the boot in the event of a battery or
central locking malfunction.

Unlocking
 Fold back the rear seats to gain

access to the lock from inside
the boot.

 Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

 Push the white part, located in-

side the lock, to the left to unlock
the boot.

A C C E S S

Electric opening

BOOT (TOURER)

Manual opening

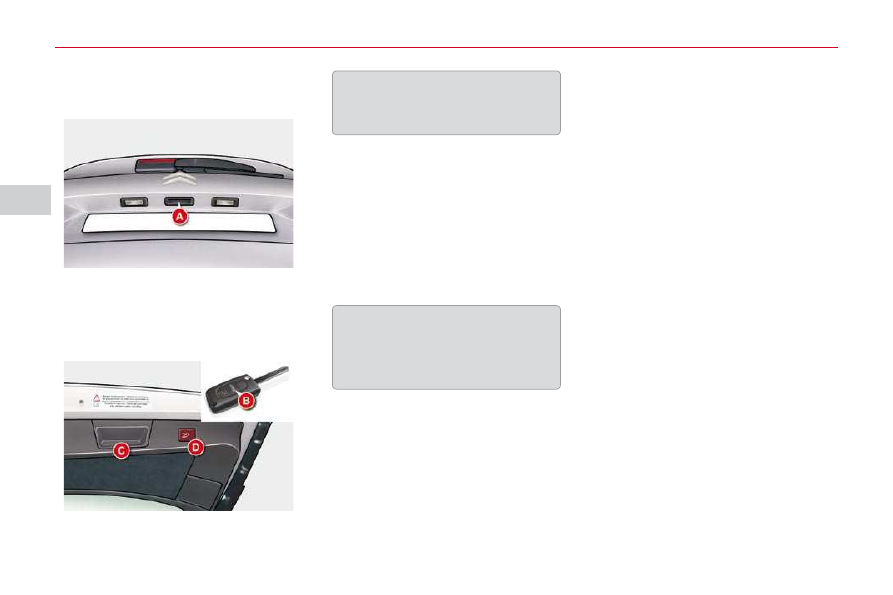

 Press upwards on lever A and lift

up the tailgate.

 Press upwards on lever A , or

press button B of the remote
control.

Do not attempt to help the opening
of the tailgate manually after press-
ing the control A .

Manual closing

 Lower the tailgate using the inte-

rior handle C .

Electric closing

 Press the push-button D to close

the tailgate.

Do  not  interrupt  the  closing  of  the
tailgate; if any obstacle prevents it
closing, the operation will stop and
the  tailgate  will  automatically  rise
by a few centimetres.

Locking/unlocking

With the vehicle stationary, this is
carried out using:
-

The remote control.

The key in a door lock.

The interior central locking/un-
locking control.

Interrupting the opening/
closing of the tailgate

When the tailgate is being opened or
closed  electrically,  you  can  interrupt
its movement at any point by press-
ing  push-button   D ,  the  control   A   or
button  B .
You can then open or close the tail-
gate  electrically  or  manually,  if  nec-
essary  moving  it  in  the  opposite
direction to release it.

The  boot  automatically  locks  when
the  vehicle  is  moving  at  a  speed  of
over 6 mph (10 km/h), even if auto-
matic central locking is deactivated.
It is unlocked when a door is opened
or  when  the  central  locking  button
is  pressed  (at  a  speed  of  less  than
6 mph (10 km/h)).

Memorisation of an
intermediate position

You can store an opening angle for
the tailgate:
 Manually or automatically move

the tailgate to the required posi-
tion.

 Make a long press on push-but-

ton D . The system emits a short
audible beep.

 Release the push-button D .

A C C E S S

Cancelling the memorisation

With the tailgate in the intermediate
position, you can cancel the stored
position:
 Make a long press on push-

button D . The system emits a
long audible beep.

 Release the push-button D . The

tailgate will return to the fully
open position at the next use.

Electrical protection of the
motor

If  the  tailgate  is  repeatedly  opened
and closed in quick succession, the
motor can start to overheat and then
cut  out,  preventing  opening  and
closing of the tailgate.
Allow the motor to cool down for ten
minutes  without  opening  or  closing
the tailgate.
Closing in manual back-up mode re-
mains possible.

  To  avoid  risk  of  injury,  make  sure
that no one is in the vicinity of the
boot while opening and closing.
If  the  tailgate  is  carrying  extra
weight  (snow,  bicycle  carrier,  etc.)
there  is  a  risk  of  it  closing  under
this  load.  Support  the  tailgate  or

ﬁ rst unload the bicycle carrier or

clear the snow.
When using an automatic car wash,
don’t  forget  to  lock  the  vehicle  so
as  to  avoid  any  risk  of  motorised
opening of the tailgate.

A C C E S S

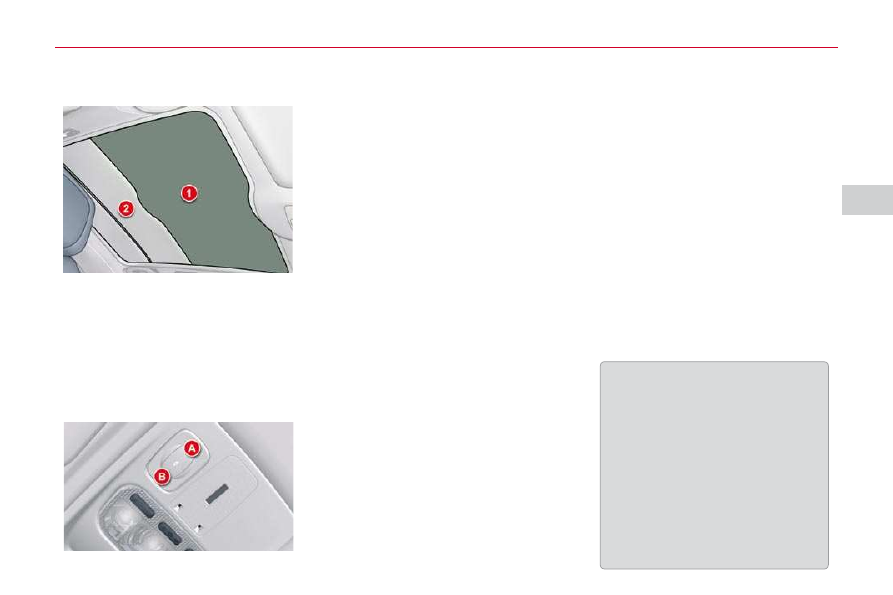

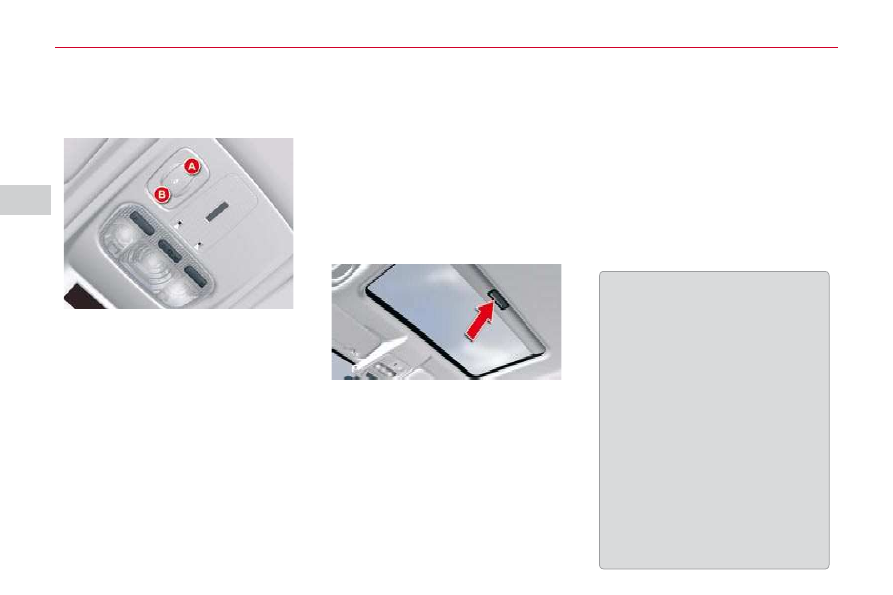

PANORAMIC SUNROOF
(SALOON)

Sunroof closed
-

Press B

to ﬁ rst notch: tilting.

Press B to second notch: auto-
matic complete tilting.

Press A

to ﬁ rst notch: sliding to-

wards rear.

Press A to second notch: auto-
matic total sliding towards rear.

Sunroof open
-

Press B

to ﬁ rst notch: closure.

Press B to second notch: auto-
matic total closure.

  Always  remove  the  ignition  key
when  leaving  the  vehicle,  even  if
for a short time .
In  the  event  of  anything  being
caught by the sunroof closing, you
must reverse the roof movement.
Do this by reversing the position   of
the control switch .
When  the  driver  is  operating  the
sunroof,  they  must  always  make
sure  that  the  passengers  are  not
preventing it from closing properly.
The  driver  must  ensure  that  pas-
sengers  use  the  sunroof  control
correctly.
Pay  special  attention  to  where    chil-
dren are when operating the sunroof.
The  ﬁ tting  of  a  sunroof  as    an  ac-

cessory is prohibited

Operation

Tilted sunroof
-

Press A

to ﬁ rst notch: closure.

Press A to second notch: auto-
matic total closure.

Your sun roof is ﬁ tted with a manually-

operated blind.

Anti-pinch

An  anti-pinch  device  stops  the  sun
roof from closing, whether sliding or
tilting.  If  it  meets  an  obstacle,  it  re-
opens.

Reinitialisation

  After  a  battery  disconnection  or  if
there  has  been  a  malfunction,  you
have  to  re-initialise  the  anti-pinch
function.
      move control  B  until the roof is in

the complete tilting position,

 keep control B pressed down for

a minimum of 1 second.

During these operations, the anti-
pinch function does not operate .

A C C E S S

PANORAMIC SUNROOF
(TOURER)

This  comprises  a  tinted  glass  pan-
oramic area  1  to improve brightness
and  vision  in  the  passenger  com-
partment.
It is ﬁ tted with an electric blind  2  to

help maintain a comfortable temper-
ature and reduce noise.

Opening

      Press control  A .
Pressing to the  1st notch  allows you
to open the blind step by step.
Pressing  to  the   2nd  notch   allows
you to fully open the blind.
The  blind  stops  in  the  closest  pre-

deﬁ ned position (11 positions) as

soon as you release the control.

Closing

 Press control B .
Press to the

ﬁ rst notch to close the

blind step by step.
Press to the  second notch  to close
the blind completely.
The  blind  stops  at  the  nearest  pre-
set  position  (11  positions)  as  soon
as you release the control.

After  a  battery  disconnection,  or  if
there  has  been  a  malfunction,  you
have  to  re-initialise  the  anti-pinch
function:
      press control  B  to the 2nd notch

(fully closed),

 wait until the blind is fully

closed,

     press control  B  for at least 3 seconds.
If the blind opens randomly during a
closing  operation,  and  straight  after
the blind stops:
      Press  control   B   until  the  blind

closes fully.

During these operations, the anti-
pinch function does not operate.

  In  the  event  of  anything  being
caught  when  the  blind  is  moving,
you  must  reverse  the  movement
of  the  blind. To  do  so,  reverse  the
position of the control.
When  the  driver  is  operating  the
blind, he or she must always make
sure  that  the  passengers  are  not
preventing it from closing properly.
The  driver  must  ensure  that  pas-
sengers use the blind correctly.
Pay particular attention to children
when operating the blind .

Anti-pinch

If the blind meets an obstacle whilst
closing,  it  stops  and  opens  partially
again.
You  must  re-initialise  the  anti-pinch
function  within  5  seconds  of  the
blind stopping:
      press  control   B   until  the  blind  is

fully closed (closing in steps of a
few centimetres).

SEQUENTIAL ELECTRIC
BLIND

A C C E S S

Capacity of the tank: approximately
71 litres.

Low fuel level

When the minimum level
in the tank is reached, this
warning lamp comes on
in the instrument panel,

accompanied by an audible warning
and a message on the multifunction

screen. When it ﬁ rst comes on, there

remains around 5 litres of fuel in the
tank.
You must refuel to avoid running out
of fuel.

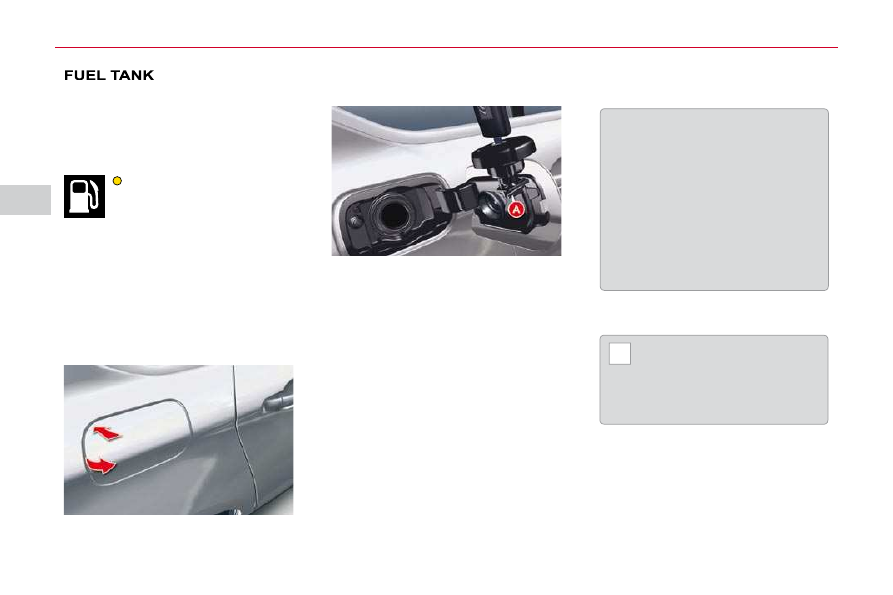

 Press at the top left corner, then

pull open from the left.

 turn the key a quarter turn to lock

and unlock the ﬁ ller cap,

 when refuelling, place the cap on

hook A ,



ﬁ ll the tank, but do not persist

after the third cut-off ; this could
cause your vehicle to malfunction.

  While you are refuelling, the engine
must  be  stopped  and  the  ignition
switched off.
  For  a  petrol  engine  with  a  cata-
lytic  converter,  unleaded  fuel  is
compulsory.

Opening the fuel flap

Additions of fuel must be of at least
5 litres to be taken into account by
the fuel gauge.
The ﬁ ller neck is narrower to ensure

that only unleaded petrol nozzles
can be put in.
Opening the ﬁ ller cap may create

a  noise  of  an  inrush  of  air.  This
vacuum,  which  is  entirely  normal,
is caused by the sealing of the fuel
system.

Refuelling

        With Stop & Start, never re-
fuel with the system in STOP
mode;  you  must  switch  off
the ignition with the key.

A C C E S S

Quality of the fuel used for
petrol engines

  The  petrol  engines  are  perfectly
compatible  with  E10  type  petrol
biofuels  (containing  10 %  ethanol),
conforming  to  European  standards
EN 228 and EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this
type  of  fuel  (BioFlex  vehicles).  The
quality  of  the  ethanol  must  comply
with European standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing
up to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

  The  Diesel  engines  are  perfectly
compatible with biofuels which con-
form to current and future European
standards  (Diesel  fuel  which  com-
plies  with  standard  EN  590  mixed
with  a  biofuel  which  complies  with
standard EN 14214) available at the
pumps  (containing  up  to  7 %  Fatty
Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain  Diesel  engines;  however,  this
use  is  subject  to  strict  application
of  the  special  servicing  conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or di-
luted, domestic fuel...) is strictly pro-
hibited (risk of damage to the engine
and fuel system).

MISFUEL PREVENTION

Mechanical device which prevents

ﬁ lling the tank of a Diesel vehicle

with petrol. It avoids the risk of
engine damage that can result from

ﬁ lling with the wrong fuel.

Located in the ﬁ ller neck, the misfuel

prevention device appears when the

ﬁ ller cap is removed.

Operation

When a petrol ﬁ ller nozzle is intro-

duced into the fuel ﬁ ller neck of your

Diesel vehicle, it comes into contact

with the ﬂ ap. The system remains

closed and prevents ﬁ lling.
Do not persist but introduce a

Diesel type ﬁ ller nozzle.

It is still possible to use a fuel can

to ﬁ ll the reservoir.

In order to ensure a good ﬂ ow of

fuel, do not place the nozzle of the

fuel can in direct contact with the ﬂ ap

of the misfuel prevention device.

V I S I B I L I T Y

EXTERIOR LIGHTING
CONTROLS

Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.

Main lighting

The various front and rear lamps of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
-

sidelamps, to be seen,

dipped beam headlamps to see
without dazzling other drivers,

main beam headlamps to see
clearly when the road is clear.

Additional lighting

Other lamps are ﬁ tted to fulﬁ l the

requirements of particular driving
conditions:
-

a rear foglamp to be seen from a
distance,

front foglamps for even better
forward vision,

directional headlamps for im-
proved visibility when cornering,

daytime running lamps to be
seen during the day.

Programming

Various automatic lighting control
modes are also available depending
on options:
-

guide-me-home lighting,

automatic illumination of head-
lamps,

directional lighting.

Manual controls

Lamps off.

Automatic

illumination

headlamps.

Sidelamps only.

Dipped headlamps or
main beam headlamps.

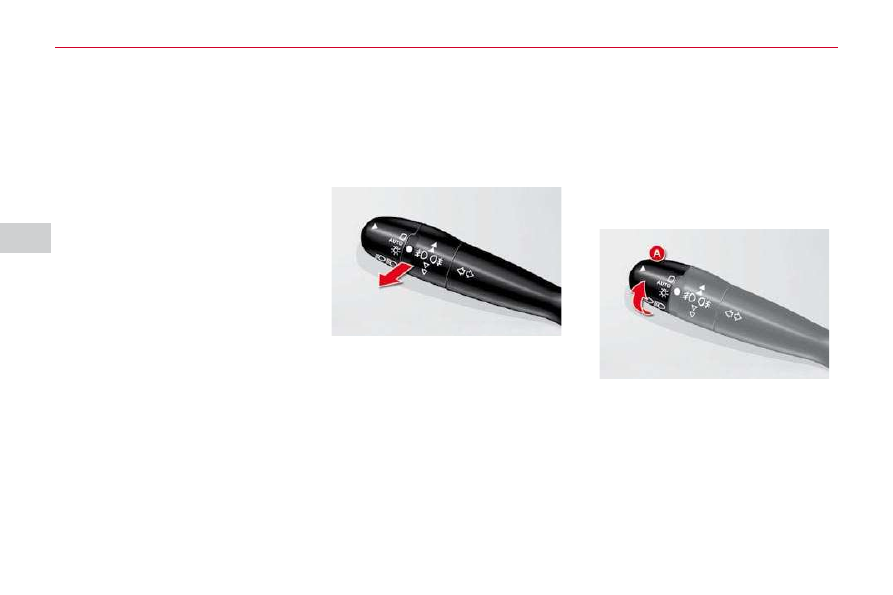

B. Stalk for switching headlamps:

pull to switch the lighting between
dipped headlamps/main beam
headlamps.

In the lamps off and sidelamps
modes, the driver can switch on the
main beam headlamps temporarily

("headlamp ﬂ ash") by maintaining a

pull on the stalk.

Displays

Lighting of the corresponding indi-
cator lamp on the instrument panel

conﬁ rms the switching on of the

lighting selected.

The  lighting  commands  are  issued
directly  by  the  driver  by  means  of
the ring  A  and the stalk  B .

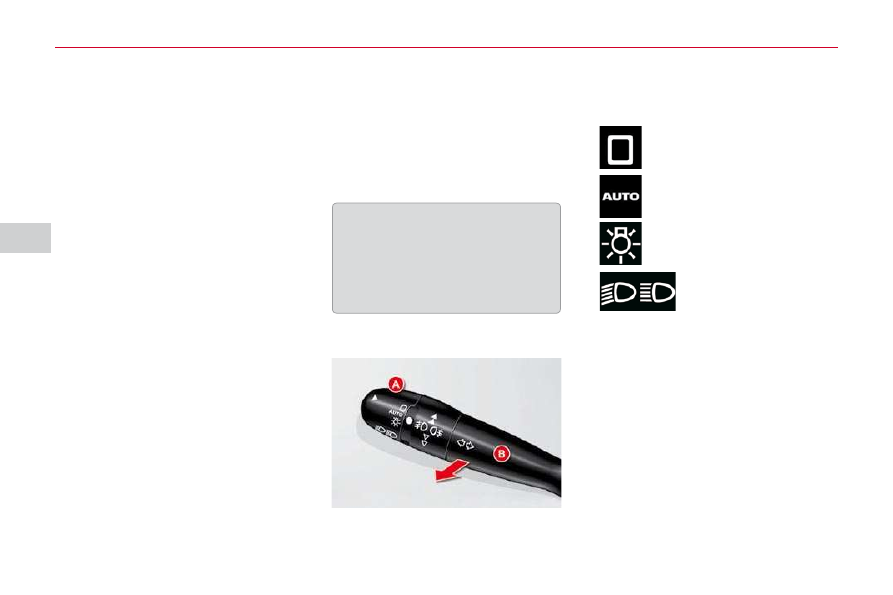

A. Main lighting mode selection ring:

turn it to position the symbol re-
quired facing the mark.

In some weather conditions (e.g.

low temperature or humidity), the

presence  of  misting  on  the  inter-
nal  surface  of  the  glass  of  the
headlamps and rear lamps is nor-
mal; it disappears after the lamps
have been on for a few minutes.

V I S I B I L I T Y

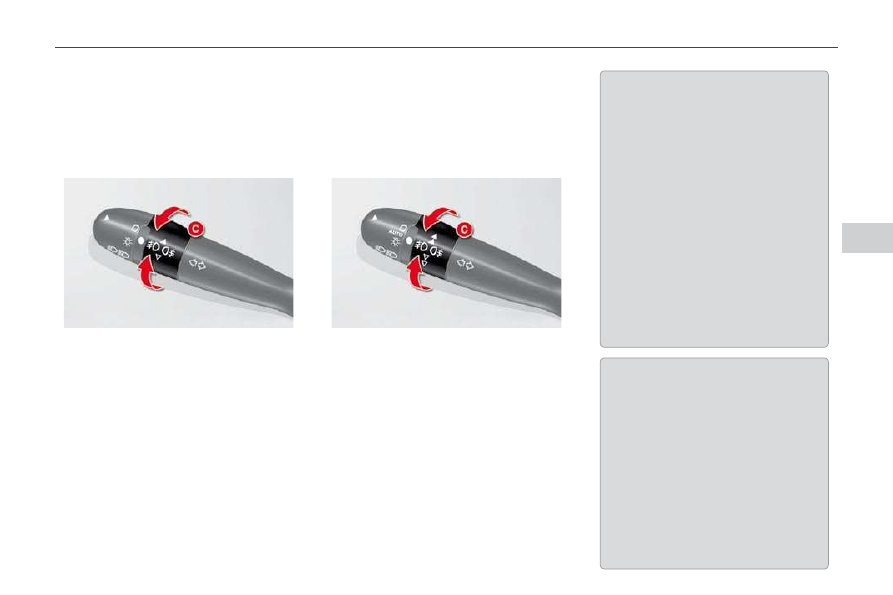

C. Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.

1 st turn forwards: rear foglamps on.

1 st turn rearwards: rear foglamps off.

1 st turn forwards: front foglamps on.

2 nd turn forwards: rear foglamps on.

1 st turn rearwards: rear foglamps off.

2 nd turn rearwards: front foglamps
off.

Model with rear foglamps
only

Model with front and rear
foglamps

      In good or rainy weather, both day
and  night,  the  front  foglamps  and
the rear foglamps are prohibited. In
these situations, the power of their
beams  may  dazzle  other  drivers.
They should only be used in fog or
snow.
In  these  weather  conditions,  it  is
your responsibility to switch on the
foglamps  and  dipped  headlamps
manually as the brightness sensor

may detect sufﬁ cient light.
Do  not  forget  to  switch  off  the  front
foglamps  and  the  rear  foglamps
when they are no longer necessary.

  Lamps on buzzer
The triggering of an audible signal
when a front door is opened warns
the  driver  that  he  has  forgotten  to
switch off his vehicle's lamps, with
the ignition off and in manual lamps
mode.
In this case, switching off the lamps
stops the audible signal.
With  the  ignition  off,  if  the  dipped
headlamps  remain  on,  they  will
switch  off  automatically  after  thirty
minutes  to  prevent  discharging  of
the battery.

V I S I B I L I T Y

* According to country.

Daytime-running lamps

System  which  switches  on  special
lamps  at  the  front,  to  make  the  ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
   -

The function is activated * in the
"Main Menu" of the instrument
panel screen.

The lighting control is at position 0
or AUTO .

All the headlamps are off.

You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen.

Manual guide-me-home
lighting

Temporarily  keeping  the  dipped
beam  headlamps  on  after  the  vehi-
cle's  ignition  has  been  switched  off
makes the driver's exit easier when
the light is poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting
stalk.



A further "headlamp ﬂ ash" switches

the function off.

Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

Automatic illumination of headlamps

The sidelamps and dipped beam
headlamps are switched on automati-
cally, without any action on the part of
the driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns to a

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

Activation
 Turn ring A to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.

Deactivation
 Turn ring A to a position other

than   "AUTO" .  Deactivation  is
accompanied  by  a  message  on
the instrument panel screen.

V I S I B I L I T Y

  Linked with the automatic
"Guide-me-home" lighting
Link  with  the  automatic  illumination
of  headlamps  provides  the  "guide-
me-home" lighting with the following
additional options:
   -

selection of the duration of light-
ing for 15, 30 or 60 seconds in
the vehicle parameters on the

instrument panel screen conﬁ gu-

ration menu,

automatic  activation  of  "guide-
me-home"  lighting  when  auto-
matic  illumination  of  headlamps
is in operation.

  Operating fault
In  the  event  of  a  malfunction  of  the
brightness  sensor,  the  lamps  come
on  and  a  message  appears  on  the
instrument  panel  screen,  accompa-
nied by an audible signal.
Consult a CITROËN dealer.

In fog or snow, the brightness

sensor may detect sufﬁ cient light.

Therefore, the lamps will not come
on automatically.
Do  not  cover  the  brightness  sen-
sor, linked with the rain sensor and
located  in  the  centre  of  the  wind-
screen behind the rear view mirror;
the  associated  functions  would  no
longer operate.

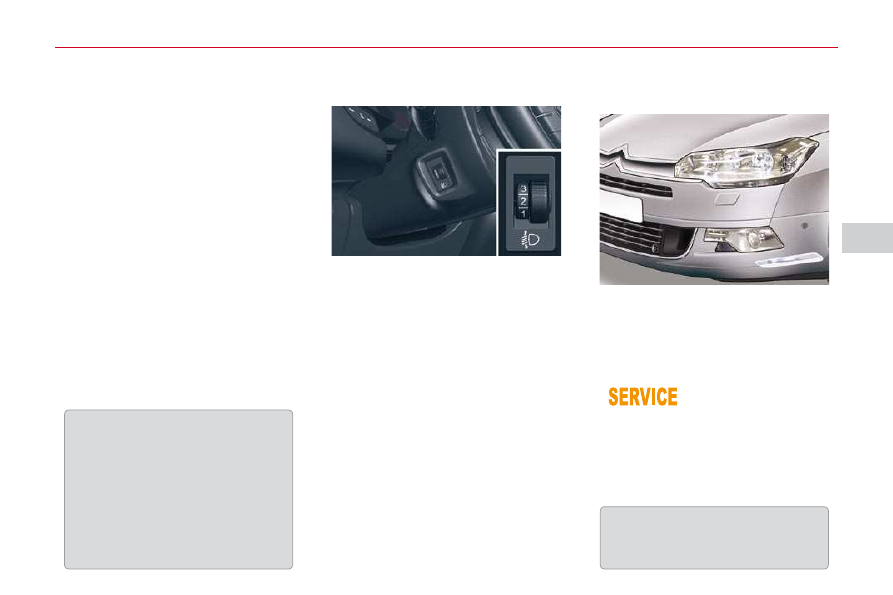

MANUAL HEADLAMP
ADJUSTMENT

To  avoid  dazzling  other  road  users,
the height of the halogen bulb head-
lamps  must  be  adjusted  according
to the load in the vehicle.
  0.   1 or 2 people in the front seats.
  -.   3 people.
  1.   5 people.
  -.   Intermediate setting.
  2.   5 people + maximum authorised

loads.

-. Intermediate setting.
3. Driver + maximum authorised

loads.

Initial setting is position "0".

AUTOMATIC ADJUSTMENT
OF DIRECTIONAL
HEADLAMPS

Do not touch the xenon bulbs.
Consult a CITROËN dealer.

If a malfunction occurs,
this warning lamp is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the instru-
ment panel screen.

The system then places your headlamps
in the lowest position.

To avoid causing a nuisance to other
road users, this system corrects the
height of the xenon headlamp beams
automatically and when stationary,
depending on the load in the vehicle.

V I S I B I L I T Y

* According to country.

Daytime-running lamps

System  which  switches  on  special
lamps  at  the  front,  to  make  the  ve-
hicle more visible by day.
They light up automatically and perma-
nently, when the engine is running, if:
   -

The function is activated * in the
"Main Menu" of the instrument
panel screen.

The lighting control is at position 0
or AUTO .

All the headlamps are off.

You can deactivate * this function
using the "Main Menu" of the instru-
ment panel screen.

Manual guide-me-home
lighting

Temporarily  keeping  the  dipped
beam  headlamps  on  after  the  vehi-
cle's  ignition  has  been  switched  off
makes the driver's exit easier when
the light is poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting
stalk.



A further "headlamp ﬂ ash" switches

the function off.

Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

Automatic illumination of headlamps

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

Activation
 Turn ring A to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a message
on the instrument panel screen.

Deactivation
 Turn ring A to a position other

than   "AUTO" .  Deactivation  is
accompanied  by  a  message  on
the instrument panel screen.

Citroen C5 Dag (2010 year). Instruction - part 6
