Citroen C5 Dag (2010 year). Instruction

M O N I T O R I N G

Warning and indicator lamps

Visual indicators which inform the driver of the occurrence of a fault (warn-

ing lamp) or of the operation of a system (operation or deactivation indicator

lamp).

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed,

associated with

another warning

lamp.

It is associated with a

punctured tyre or the engine

coolant temperature.

Stop as soon as it is safe to do so.

Park, switch off the ignition and call a

CITROËN dealer.

Service

temporarily.

A minor fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen, such as, for example:

- the closing of the doors, boot, rear

screen or bonnet,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission ﬁ lter

(Diesel).

For any other faults, contact a CITROËN

dealer.

ﬁ xed.

A major fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen and contact a

CITROËN dealer.

When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.

When the engine is started, these warning lamps should switch off.

If they remain on, before moving off, consult the information on the warning

lamp concerned.

Associated warnings
The switching on, ﬁ xed or ﬂ ashing, of certain warning lamps may be accompa-

nied by an audible signal and a message on the screen.

Warning lamps
When the engine is running or the ve-

hicle is being driven, the switching on

of one of the following warning lamps

indicates a fault which requires ac-

tion on the part of the driver.
The switching on of a warning lamp is

always accompanied by the display-

ing of an additional message, to as-

sist you in identifying the anomaly.

If you encounter any problems, do not

hesitate to contact a CITROËN dealer.

M O N I T O R I N G

Braking

ﬁ xed, associated

with the STOP

warning lamp.

The braking system ﬂ uid level

is too low.

You must stop as soon as it is safe to do
so.
Top up with brake ﬂ uid recommended by

CITROËN.

If the problem persists, have the system

checked by a CITROËN dealer.

ﬁ xed, associated

with the STOP and

ABS warning lamp.

The electronic brake force

distribution (EBFD) system

has a fault.

You must stop as soon as it is safe to do
so.
Have it checked by a CITROËN dealer.

Warning lamp

is on

Cause

Action/Observations

Anti-lock

Braking

System

(ABS)

ﬁ xed.

The anti-lock braking system

has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and

contact a CITROËN dealer without delay.

Electric

parking brake

ﬂ ashing.

The electric parking brake is

not applied automatically.

You must stop as soon as it is safe to do so.
Park on level ground, switch off the ignition

and contact a CITROËN dealer.

Electric

parking brake

fault

ﬁ xed.

The electric parking brake is

faulty.

Contact a CITROËN dealer without delay.
The parking brake can be released

manually .
For more information on the electric

parking brake, refer to the "Driving"

section.

Deactivation of

the automatic

functions of

the electric

parking brake

ﬁ xed.

The "automatic application"

(on switching off the engine)

and "automatic release"

functions are deactivated or

faulty.

Activate the function (according to country)

via the vehicle conﬁ guration menu or contact

a CITROËN dealer.

M O N I T O R I N G

Dynamic

stability

control

(ESP/ASR)

ﬂ ashing.

The ESP/ASR regulation is active.

The system optimises traction and

improves the directional stability of

the vehicle.

ﬁ xed, accompanied

by an audible

signal and a

message on the

instrument panel

screen.

Unless it has been deactivated with

the indicator lamp on the button on,

the ESP/ASR system is faulty.

Have it checked by a CITROËN

dealer.

Engine

autodiagnosis

system

ﬁ xed.

The emission control system has a

fault.

This lamp should switch off when
the engine is started.
If it does not switch off, contact a

CITROËN dealer urgently.

ﬂ ashing.

The engine management system

has a fault.

Risk of destruction of the catalytic

convertor.
Have it checked by a CITROËN dealer.

Warning lamp

is on

Cause

Action/Observations

Brake pad

wear

ﬁ xed,

accompanied by

an audible signal

and a message on

the multifunction

screen.

The brake pads are at an advanced
state of wear.

Have the brake pads replaced by a

CITROËN dealer.

M O N I T O R I N G

Warning lamp

is on

Cause

Action/Observations

Low fuel

level

ﬁ xed.

When it ﬁ rst comes on there

remains approximately
5 litres of fuel in the tank.

You must refuel as soon as possible to
avoid running out of fuel.
This warning lamp wil come on every time

the ignition is switched on, until a sufﬁ cient

addition of fuel is made.
Fuel tank capacity: 71 litres.

Never continue to drive until you run out

of fuel, this could damage the emission

control and injection systems.

Maximum

coolant

temperature

ﬁ xed red.

The temperature of the

cooling system is too high.

Stop as soon as it is safe to do so.

Wait until the engine has cooled down

before topping up the level, if necessary.

If the problem persists, contact a

CITROËN dealer.

Battery

charge

ﬁ xed.

The battery charging circuit

has a fault (dirty or loose

terminals, slack or cut

alternator belt, ...).

The warning lamp should go off when the
engine is started.
If it does not switch off, contact a CITROËN

dealer.

Seat belt not

fastened/

unfastened

ﬁ xed.

The driver and/or the front/

rear passenger has not
fastened or has unfastened
their seat belt.

Pull the strap then insert the tongue in the
buckle.

Seat belts

not fastened/

unfastened

ﬁ xed, associated

with the seat belt

not fastened/

unfastened

warning lampl.

The illuminated dots represent the not

fastened/unfastened passengers.

They come on:

- ﬁ xed for 30 about seconds on starting the

vehicle,

- ﬁ xed from 0 to 12 mph (0 to 20 km/h) when

driving,

- ﬂ ashing above 12 mph (20 km/h), accompanied

by an audible signal for about 120 seconds.

M O N I T O R I N G

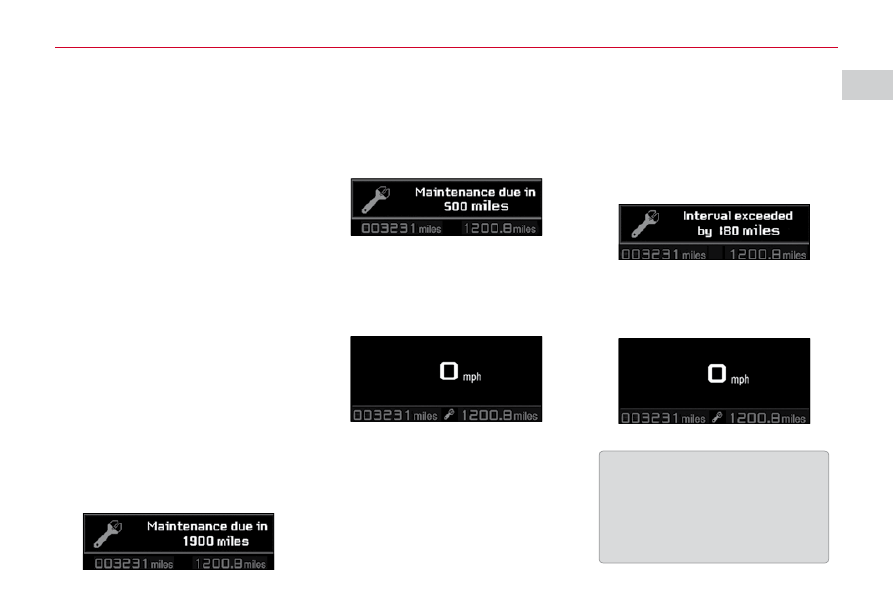

Service indicator

This information is displayed for a

few seconds when the ignition is
switched on. It informs the driver

when the next service is due, in ac-

cordance with the manufacturer's

servicing schedule.
The point at which the service is due
is calculated from the last indicator

zero reset. It is determined by two

parameters:
- the distance travelled,

- the time elapsed since the last

service.

More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no

service information appears on the
instrument panel central screen.

Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 7 seconds after the ignition is

switched on, the spanner symbolis-

ing the service operations comes on.
The instrument panel central screen

indicates the distance remaining be-

fore the next service is due.
Example:

1 700 miles remain be-

fore the next service is due.
For 7 seconds after the ignition is switched

on, the central screen indicates:

Less than 600 miles (1 000 km)
remain before the next service is due
Example:

500 miles remain before

the next service is due.
For 7 seconds after the ignition is

switched on, the central screen in-

dicates:

Service overdue
For 7 seconds after the ignition is

switched on,

the spanner ﬂ ashes

to indicate that the service must be
carried out as soon as possible.
Example:

the service is overdue by

300 miles.
For 7 seconds after the ignition is switched

on, the central screen indicates:

  The  spanner  remains  on   in  the
screen  to  indicate  that  a  service
must be carried out soon.

The distance remaining may be

weighted by the time factor, de-

pending on the driver's driving

habits.
Therefore, the spanner may also

come on if you have exceeded the

two year service interval.

The spanner remains on in the
screen to indicate that a service
should have been carried out.

M O N I T O R I N G

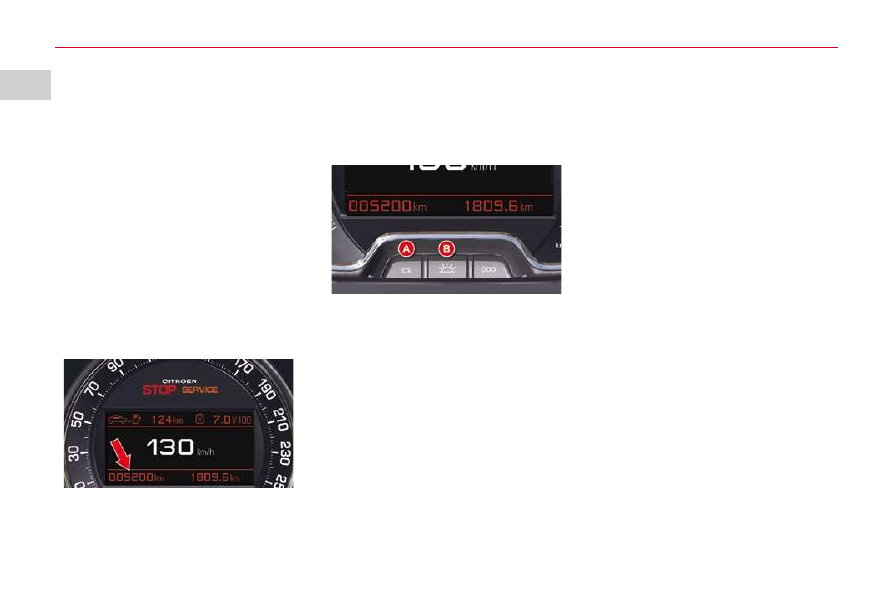

Service indicator zero reset

After each service, the service indi-

cator must be reset to zero.

The procedure for resetting to zero

is as follows:


switch off the ignition,

 press and hold the trip distance

recorder zero reset button,



switch on the ignition; the dis-

tance recorder display begins a

countdown,



when the display indicates "=0" ,

release the button; the spanner
disappears.

Following this operation, if you wish

to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into ac-

count.

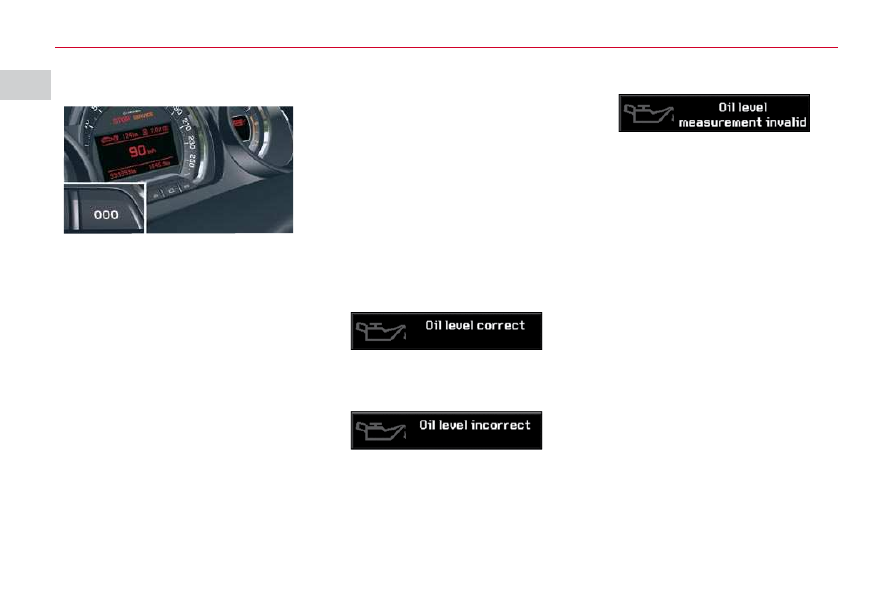

Engine oil level indicator

System which informs the driver

whether the engine oil level is cor-

rect or not.
This information is indicated for a
few seconds when the ignition is

switched on, after the service infor-

mation.
The level read will only be correct if

the vehicle is on level ground and
the engine has been off for more

than 15 minutes.

Oil level correct

Oil level low

This is indicated by displaying of the

message "Oil level incorrect".

If the low oil level is conﬁ rmed by a

check using the dipstick, it is essen-

tial that the level is topped up to pre-

vent damage to the engine.

Oil level gauge fault

This is indicated by displaying of the

message "Oil level measurement in-

valid". Consult a CITROËN dealer.

M O N I T O R I N G

Service indicator zero reset

After each service, the service indi-

cator must be reset to zero.

The procedure for resetting to zero

is as follows:


switch off the ignition,

 press and hold the trip distance

recorder zero reset button,



switch on the ignition; the dis-

tance recorder display begins a

countdown,



when the display indicates "=0" ,

release the button; the spanner
disappears.

Following this operation, if you wish

to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into ac-

count.

Engine oil level indicator

System which informs the driver

whether the engine oil level is cor-

rect or not.
This information is indicated for a
few seconds when the ignition is

switched on, after the service infor-

mation.
The level read will only be correct if

the vehicle is on level ground and
the engine has been off for more

than 15 minutes.

Oil level correct

Oil level low

This is indicated by displaying of the

message "Oil level incorrect".

If the low oil level is conﬁ rmed by a

check using the dipstick, it is essen-

tial that the level is topped up to pre-

vent damage to the engine.

Oil level gauge fault

This is indicated by displaying of the

message "Oil level measurement in-

valid". Consult a CITROËN dealer.

M O N I T O R I N G

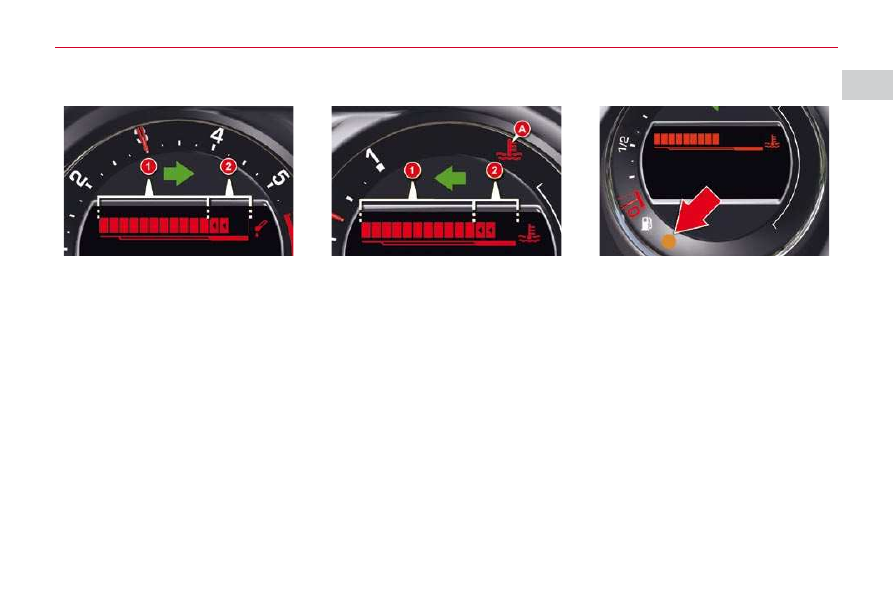

Engine oil temperature gauge

Under normal operating conditions,

the bars should be within section 1 .
In severe operating conditions, the

bars may extend into section 2 .

In this event, slow down, and if neces-

sary, stop the engine and check the

levels (see corresponding chapter).

Coolant temperature
indicator

Under normal operating conditions,

the bars should be within section 1 .
In severe operating conditions, the

bars may extend into section 2 , the

engine coolant temperature warning
lamp A and the STOP warning lamp

will light up, stop immediately .

Switch off the ignition. The cooling

fan may continue to operate for a
certain time .
Consult a CITROËN dealer.
If the SERVICE warning lamp lights

up, check the levels (see correspond-

ing chapter).

On horizontal ground, the lighting of

the fuel low warning lamp warns you

that you are at the reserve level.

A message alert is displayed on the

instrument panel.

Fuel gauge indicator

M O N I T O R I N G

Total distance recorder

System which measures the total

distance travelled by the vehicle

during its life.
The total and trip distances are dis-

played for thirty seconds when the

ignition is switched off, when the

driver's door is opened and when

the vehicle is locked or unlocked.

Trip distance recorder

System which measures a distance

travelled during a day or other pe-

riod since it was reset to zero by the

driver.



With the ignition on, press the

button until zeros appear.

Lighting rheostat

System for manual adjustment of

the brightness of the instruments

and controls in relation to the exte-

rior brightness.

Operation
 Press button A to decrease the

brightness of the instruments
and controls.

 Press button B to increase the

brightness of the instruments
and controls.

Deactivation
When the lighting is off, or in day

mode on vehicles ﬁ tted with daytime

running lamps, pressing the buttons

does not have any effect.

M U L T I F U N C T I O N S C R E E N S

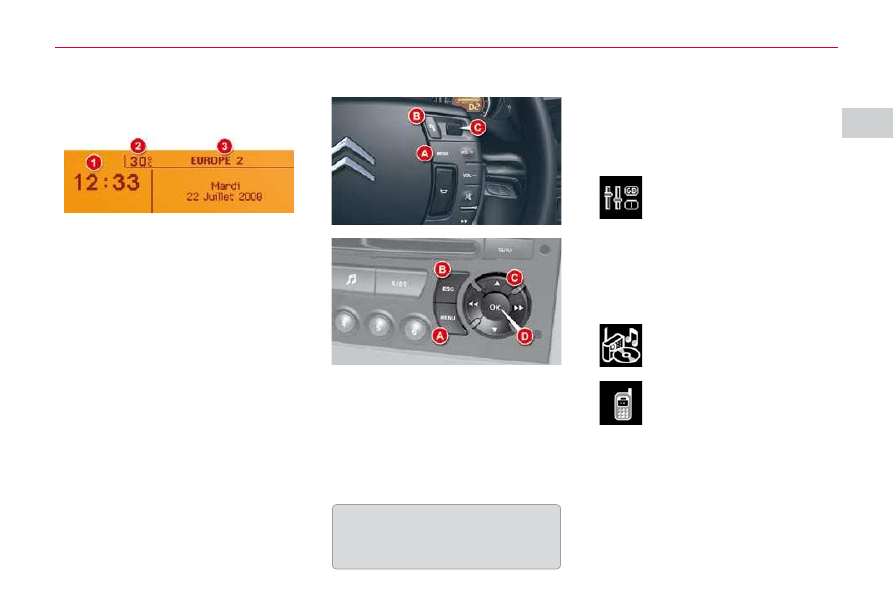

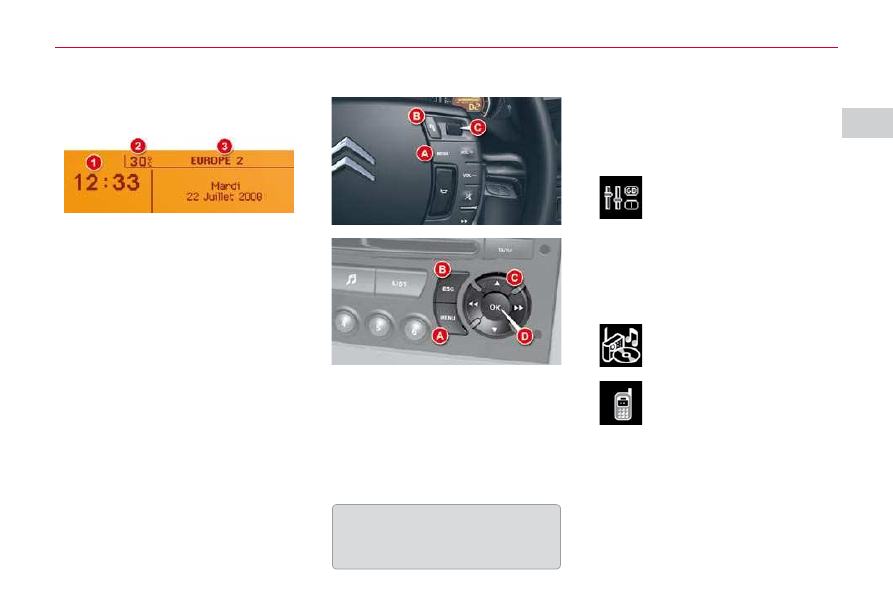

MONOCHROME SCREEN C

Main Menu

Press  on  the  button   A   to  view  the
Main  Menu  of  the  multifunction
screen. This menu gives you access
to the following functions:

Presentation

Radio-CD

(see "Audio and Telematics"
chapter)

Bluetooth

system

(see "Audio and Telematics"
chapter)

Controls

   1.   Time
  2.   Ambient temperature
  3.   Date and display zone
When  the  outside  temperature  is
between  +3 °C  and  -3 °C,  the  tem-

perature display ﬂ ashes (ice risk).
The ambient temperature displayed
may be greater than the actual tem-

perature, if the vehicle is parked in

bright sunlight.

It is recommended that the driver
should not operate the controls
while the vehicle is in motion.

Personalisation -
Configuration

This permits activation/deactivation of the:
-

brightness and contrast of the
multifunction screen,

date and time,

units of the outside temperature
displayed.

A. Access to the "Main Menu"
B. Cancellation of the operation or

return to the previous display

C. Scrolling in the screen menus

Conﬁ rmation at the steering

wheel

Conﬁ rmation on the audio equip-

ment control panel

M U L T I F U N C T I O N S C R E E N S

Adjusting the brightness and
contrast

 Press on A .
 Use C to select the "Brightness -

video adjustment" menu. Conﬁ rm

with a press on C on the steering
wheel or D

on the audio equip-

ment.



Select the conﬁ guration of the

screen using C

. Conﬁ rm with a

press on C on the steering wheel
or D

on the audio equipment.

 Select the brightness setting.

Conﬁ rm with a press on C on the

steering wheel or D on the audio

equipment.

 Select the inverse or normal dis-

play mode using  C  then validate
with a press on  C  on the steering
wheel  or   D

on the audio equip-

ment.  To  adjust  the  brightness
select  "+"  or  "-"  and  save  your
setting with a press on  C .



Conﬁ rm with "OK" on the

screen.

Adjusting the date and the
time

 Press on A .
 Use C to select the "Date and

time adjustment" menu, then

conﬁ rm your choice with a press

on C on the steering wheel or D

on the audio equipment.



Select the screen conﬁ guration

using C

. Conﬁ rm with a press on

C on the steering wheel or D on

the audio equipment.

 Select the date and the time set-

tings, using B

. Conﬁ rm with a

press on C on the steering wheel
or D

on the audio equipment.

 Press C to select the values you

wish to modify. Conﬁ rm your

choice with a press on C on the
steering wheel or D on the audio

equipment.



Conﬁ rm with "OK" on the

screen.

Choosing the units

 Press on A .
 Use C to select the "Choice of

units" menu, then conﬁ rm your

choice with a press on C on the
steering wheel or D on the audio

equipment.

 Using C , select the unit then val-

idate with a press on C on the
steering wheel or D on the audio

equipment.



Conﬁ rm with "OK" on the

screen.

Selection of the type of
information displayed (Mode)

Successive presses on the end of

the wiper stalk or on the MODE but-

ton on the audio equipment permit

selection  of  the  type  of  informa-
tion  presented  on  the  multifunction
screen (date or radio, CD, MP3 CD,
CD changer).

M U L T I F U N C T I O N S C R E E N S

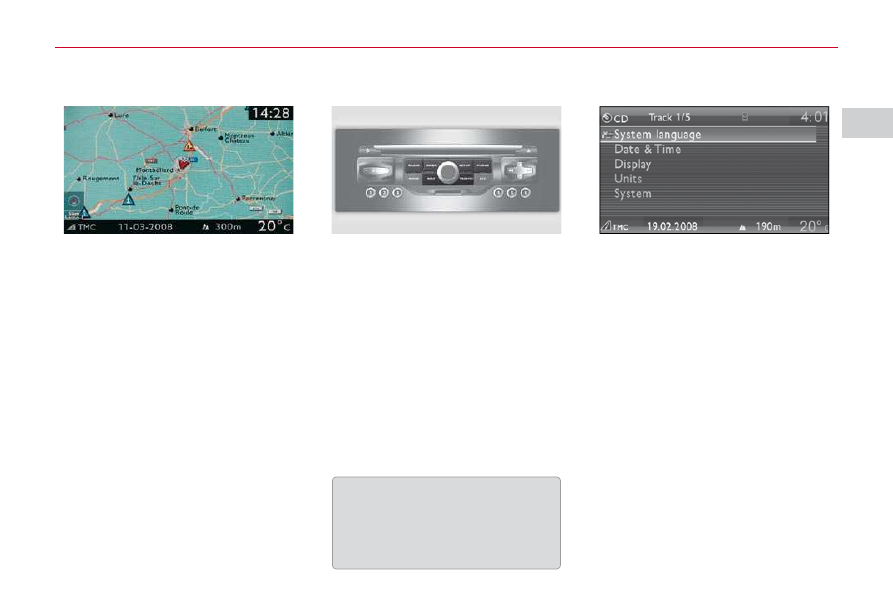

16/9 COLOUR SCREEN
(WITH MY WAY )

Displays on the screen

It displays the following information
automatically and directly:
-

time,

date,

altitude,

ambient temperature (the value

displayed ﬂ ashes if there is a risk

of ice),

audio functions,

satellite navigation system infor-
mation.

Controls

From the MyWay control panel, to
select one of the applications:
 press the dedicated "RADIO" ,

"MUSIC" ,   "NAV" ,   "TRAFFIC" ,
"SETUP"   or   "PHONE"   button
for  access  to  the  corresponding
menu,

 turn the dial to move the selec-

tion,



press the dial to conﬁ rm the se-

lection,

or
 press the "ESC" button to aban-

don the current operation and re-
turn to the previous display.

* According to country.

For more information on these
applications, refer to the "Audio

Equipment" section or to the spe-

ciﬁ c user guide given to you with

the other owner's documents.

"SETUP" menu

 Press the "SETUP" button to

gain access to the "SETUP"
menu. This allows you to select
from the following functions:

   -   "System language",
  -   "Date & time",
  -   "Display",
  -   "Units",
  -   "System".

  System language
This  menu  allows  you  to  select
the  language  used  by  the  dis-
play:  Deutsch,  English,  Espanol,
Français,

Italiano,

Nederlands,

Polski, Portugues, Türkçe * .

M U L T I F U N C T I O N S C R E E N S

  Display
This  menu  allows  you  to  set  the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).

Units
This menu allows you to select the
units for temperature (°C or °F) and

distance (miles or kilometres).

System
This menu allows you to restore the

factory conﬁ guration, display the

software version and activate scroll-
ing text.

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must be only done when sta-
tionary.

  Date & time
This menu allows you to set the date
and time, the format of the date and
the format of the time.
To set the date and time:
      Press the  "SETUP"  control.
     Turn the dial to select  "DATE &

TIME" .



Press the dial to conﬁ rm.

 Turn the dial to select "SET

DATE & TIME" .



Press the dial to conﬁ rm.



Turn the dial to select a ﬁ eld:

-  C  for the day,
-  D  for the month,
-  E  for the year,
-  F  for the time.



Press the dial to conﬁ rm.

 Turn the dial or use the alphanu-

meric keypad to select the digits

which form the date and time.



Press the dial to conﬁ rm each

ﬁ eld.

 Turn the dial to select "DATE

FORMAT" .



Choose the format required and

press the dial to conﬁ rm.

 Turn the dial to select "TIME

FORMAT" .



Choose the format required and

press the dial to conﬁ rm.

M U L T I F U N C T I O N S C R E E N S

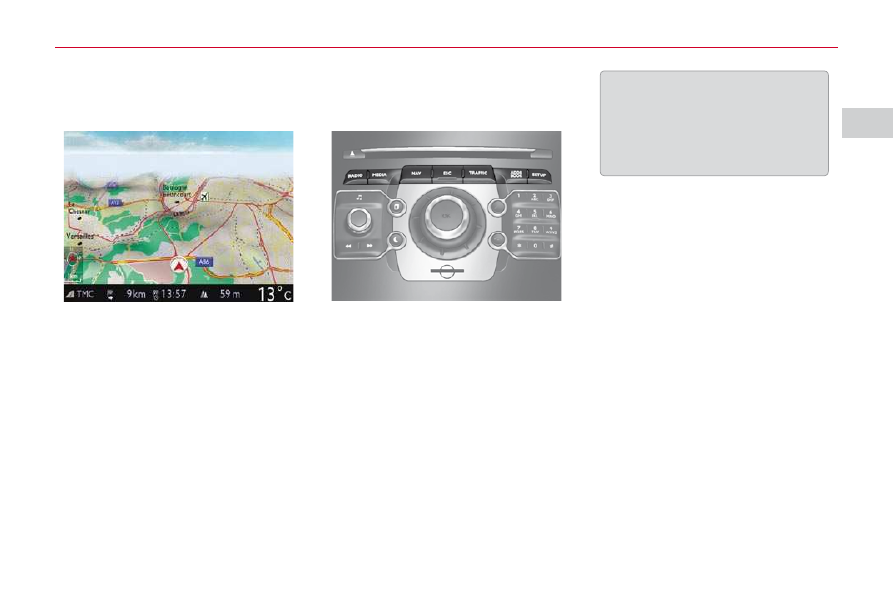

16/9 HIGH DEFINITION
COLOUR SCREEN (WITH
NAVIDRIVE 3D)

Displays on the screen

It displays the following information
automatically and directly:
-

time,

date,

altitude,

ambient temperature (the value

displayed ﬂ ashes if there is a risk

of ice),

audio functions,

- telephone and address book in-

formation,

satellite navigation system infor-
mation.

Controls

From the NaviDrive 3D control pan-
el, to select one of the applications:
 press the dedicated "RADIO" ,

"MEDIA" ,   "NAV" ,   "TRAFFIC" ,
"ADDR  BOOK"   or   "SETUP"
button  for  access  to  the  corre-
sponding menu,

 turn the dial to move the selec-

tion,



press the dial to conﬁ rm the se-

lection,

or
 press the "ESC" button to aban-

don the current operation and re-
turn to the previous display.

For more information on these
applications, refer to the "Audio

Equipment" section or to the spe-

ciﬁ c user guide given to you with

the other owner's documents.

M U L T I F U N C T I O N S C R E E N S

* According to country.

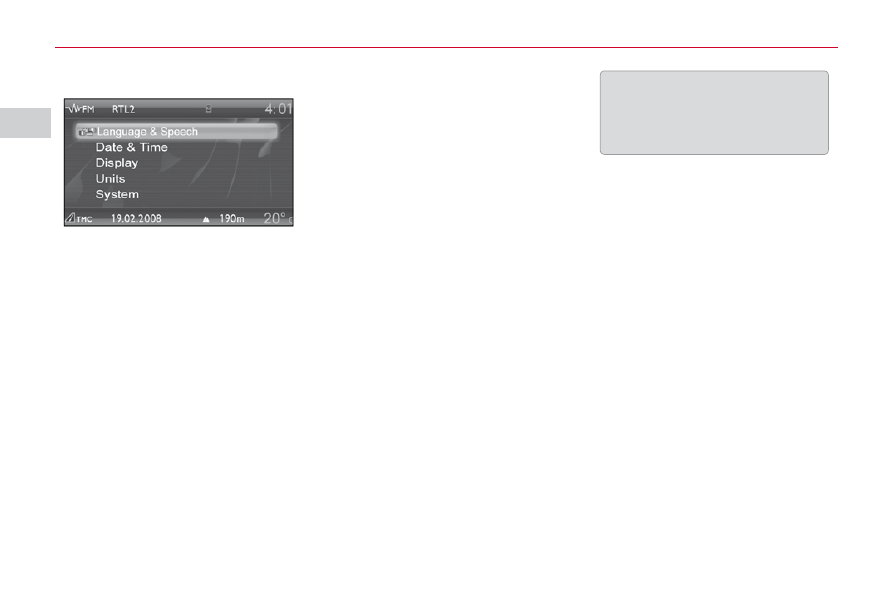

"SETUP" menu

 Press the "SETUP" button to gain

access to the "SETUP" menu.
This allows you to select from
the following functions:

   -   "Languages and Speech",
  -   "Date & Time",
  -   "Display",
  -   "Units",
  -   "System".

Language & Speech
This menu allows you to:
-

select the language used by
the display (Deutsch, English,
Espanol,

Français,

Italiano,

Nederlands, Polski, Portugues,

Türkçe * ),

select the voice recognition pa-
rameters

(activation/deactiva-

tion, advice on use, personal
voice programming, etc.),

set the volume of the voice syn-
thesiser.

Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the

"Audio Equipment" section or to the

speciﬁ c user guide given to you with

the other owner's documents).

  Display
This  menu  allows  you  to  set  the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).

  Units
This  menu  allows  you  to  select  the
units:  temperature  (°C  or  °F)  and

distance (km or miles).

System
This menu allows you to restore the

factory conﬁ guration, display the

software version and activate scroll-
ing text.

For safety reasons, conﬁ guration

of the multifunction screen by the
driver must only be done when
stationary.

III

C O M F O R T

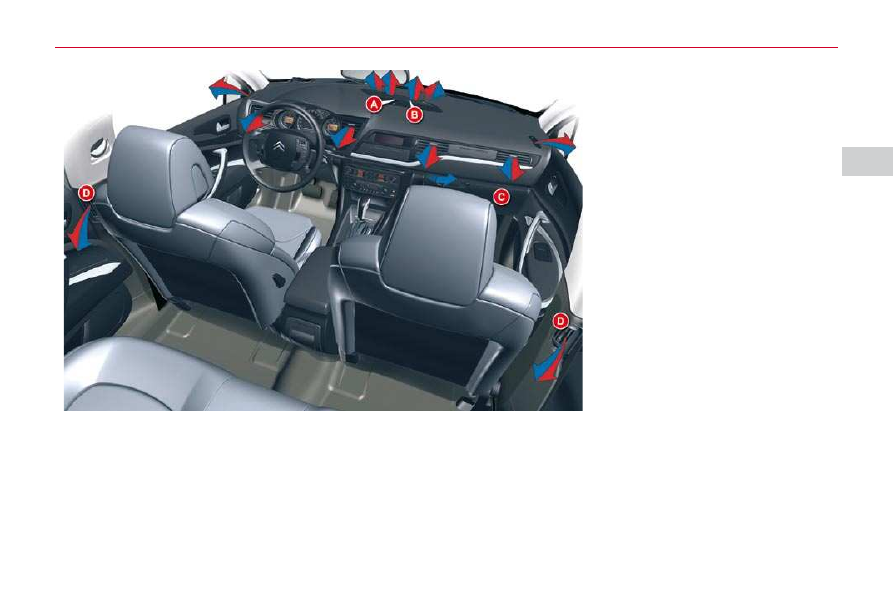

VENTILATION

A. Sunshine sensor.

B. Soft air diffusion grille.

The soft air diffusion grille locat-
ed in the centre of the dashboard
provides optimum distribution of
the air for the front seats.

This  system  eliminates  unpleas-
ant air currents while maintaining
an  optimum  temperature  in  the
passenger compartment.

To open the soft air diffusion
grille, turn the wheel upwards.

To close the soft air diffusion
grille, turn the wheel fully down-
wards.

In very hot weather, to obtain
more satisfactory central and
side ventilation, it is advisable to
close the diffused air grille.

C. Cooled glove box.

D. Rear passenger vents.

Citroen C5 Dag (2010 year). Instruction - part 3
