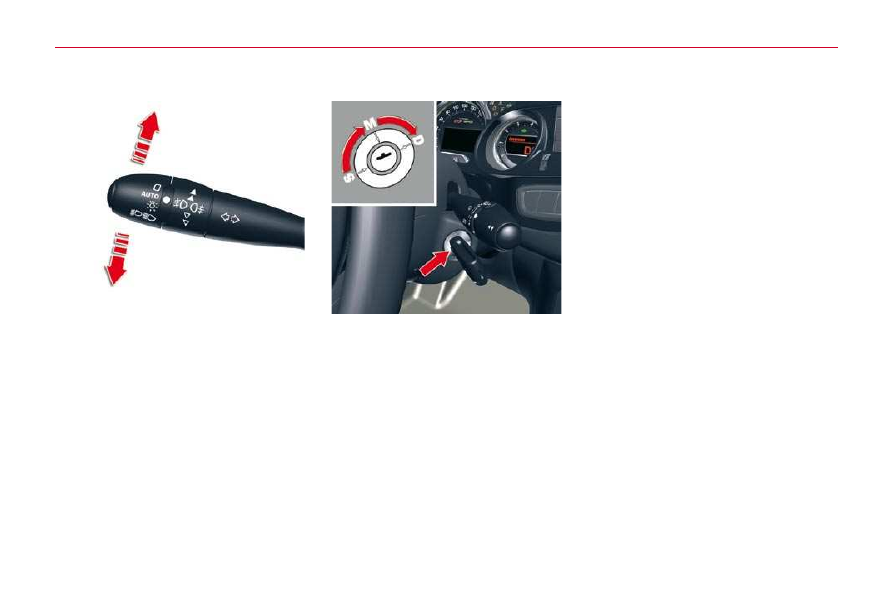

Move the stalk brieﬂ y upwards or

downwards, without going beyond

the point of resistance; the direction

indicators will ﬂ ash 3 times.

Direction indicators -

"Motorway" function

D R I V I N G

 113

Ignition switch

S: Steering lock

To release the steering, turn the

wheel slightly while turning the key,

but without forcing.

M: Ignition on

D: Starter

Release the key as soon as the

engine starts. Do not operate the

starter when the engine is running.

 70

Positions

P: Park.

R: Reverse gear.

N: Neutral.

D: Automatic mode.

M: Sequential mode.

The automatic gearbox offers:
-

Operation in auto-active mode ,

with

automatic adaptation to your

style of driving as well as to the road

proﬁ le ( Position D ).

Operation in sequential mode

, with

manual gear changing ( Position M ).

Operation in automatic SPORT mode

(Position D) and press button A

Operation in automatic SNOW mode

(Position D) and press button B

For safety:

Automatic gearbox

 143

The gear lever can only be disen-

gaged from position P if you are

pressing the brake pedal.

When a door is opened, an audible

signal sounds if the gear lever is not
in position P

Before leaving the vehicle, make

absolutely certain that position P is

selected.

D R I V I N G

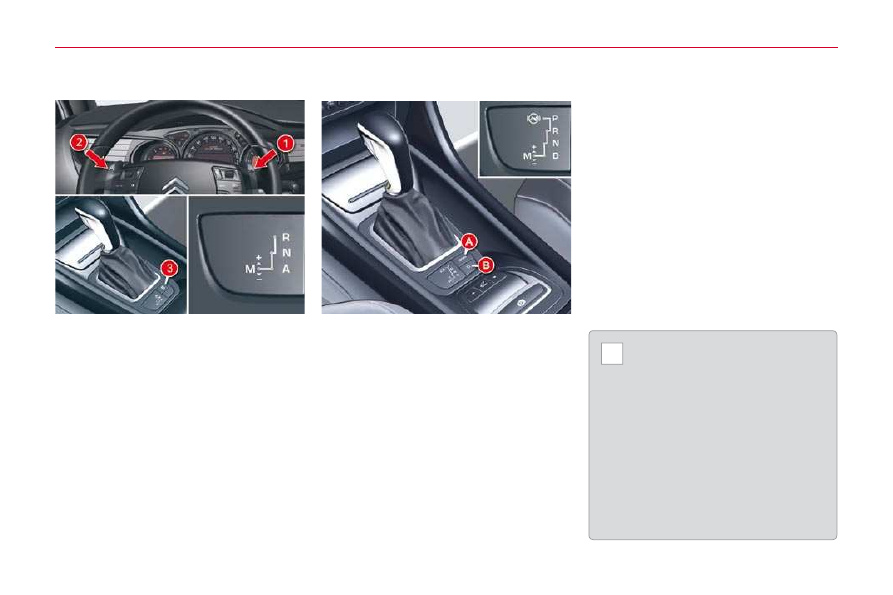

  R  Reverse
  N  Neutral
  A  Automated mode
  M  Manual mode
Using paddles  1   "+"  and  2   "-"

- changing gear in manual mode,

- temporary manual control in auto-

mated mode.

6-speed electronic gearbox

system

SPORT programme

 With the gear lever at A and the

engine running, press button 3 .

 136-139

D R I V I N G

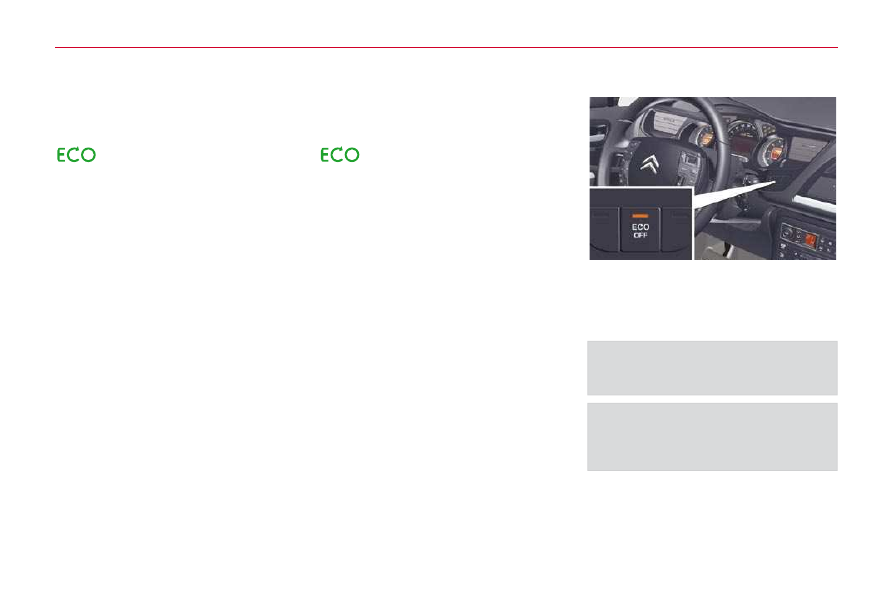

Stop & Start

Engine going into STOP mode

The

"ECO"

warning

lamp

comes on in the instrument

panel and the engine is put into

standby:

with the 6-speed electronic gear-

box system : at speeds below 4 mph

(6 km/h), press the brake pedal or

put the gear lever in position N

Engine going into START mode

You can deactivate the system at

any time by pressing the "ECO OFF"

switch; the warning lamp in the button

comes on.

The system is reactivated automati-

cally every time the engine is started

using the key.

Before refuelling or doing anything

under the bonnet, you must switch off

the ignition using the key.

The "ECO" warning lamp goes

off and the engine restarts:

with the gear lever in position A or
M

, release the brake pedal,

or with the gear lever in position N

and the brake pedal released, se-

lect position A or M ,

- or select reverse.

In certain circumstances, STOP mode

may not be available; the "ECO" warn-

ing lamp ﬂ ashes for a few seconds then

goes off.

In certain circumstances, START

mode may be invoked automatically;

the "ECO"

warning lamp ﬂ ashes for a

few seconds, then goes off.

 140

 141

Deactivation/Reactivation

 141

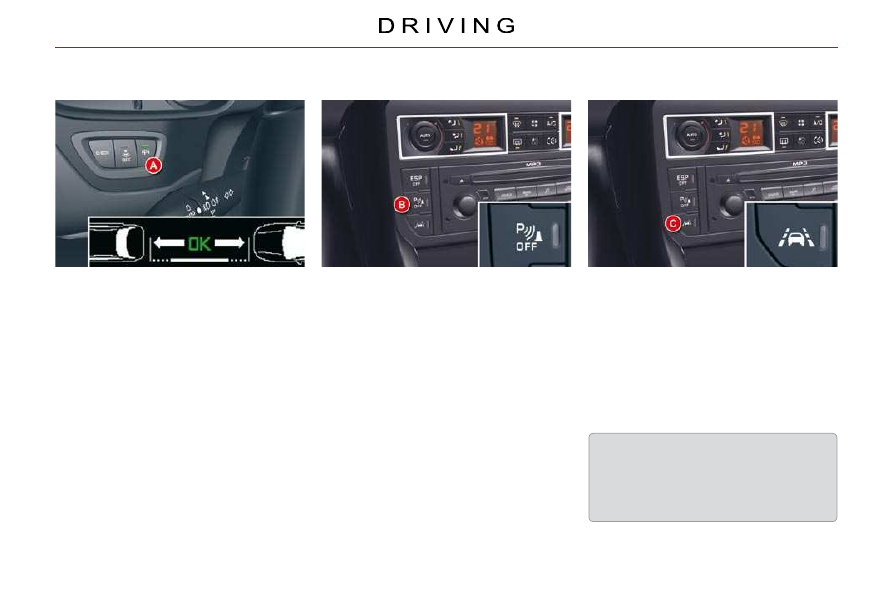

You can activate/deactivate the parking

sensors by pressing button B

. When

the parking sensors are deactivated, the

warning lamp on button B

comes on.

Parking sensors (visual and
audible)

Parking space sensor

You can select the "Parking space sen-

sor" by pressing button A

, direction indi-

cator activated on the side of the space

to be measured, with a speed lower

than 6 mph (10 km/h) and at a distance

of less than 1.5 m from the space.

Fixed illumination of the warning lamp

indicates that this function is selected.

 154

 156

Use of this system is recommended on

motorways and dual carriageways, and

operates only at speeds above 50 mph

(80 km/h).
Pressing button C

activates the func-

tion, the warning lamp in the button

comes on.

Lane departure warning system

The system does not alert you if one

of your direction indicators is operating

and for approximately 20 seconds after

the direction indicator has stopped.

 153

M O N I T O R I N G

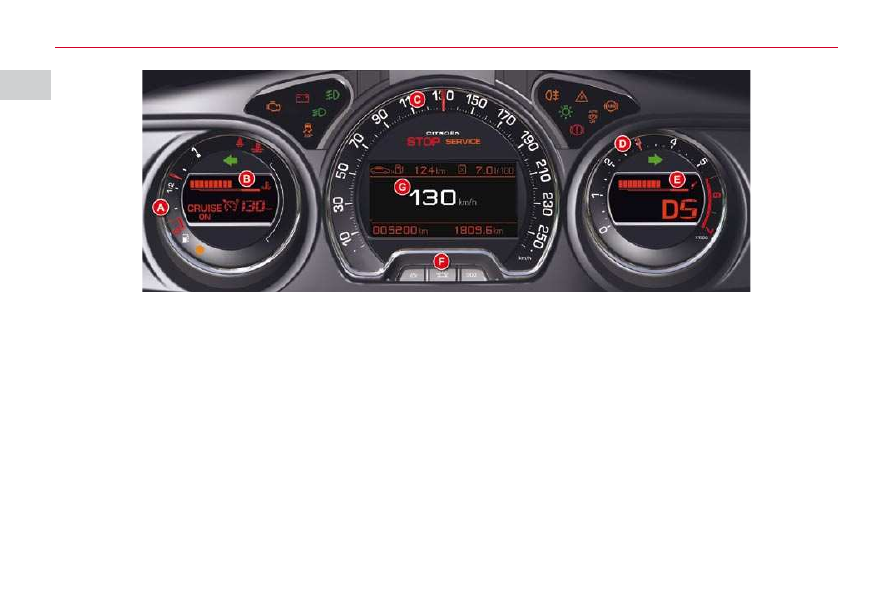

INSTRUMENT PANELS - PETROL AND DIESEL - MANUAL AND AUTOMATIC GEARBOX

Panel grouping together the dials and vehicle operation indicator and warning lamps.

A. Fuel gauge
B. Indicator:

Coolant temperature
Cruise control/Speed limiter

information

Speedometer

D. Rev counter

E. Indicator:

Engine oil temperature
Gear selector position and

gear engaged (Automatic
gearbox)

Controls:

Lighting rheostat
Resetting to zero of trip mile-

age computer and mainte-

nance indicator

G. Instrument panel screen indicating:

Depending on the page

selected with the left-hand

control knob on the steering
wheel:

   -   Digital speed repeater
  -   Trip computer
  -   Navigation  (guidance)  infor-

mation

  -   Display of message alerts
  -   Engine oil level check
  -   Service indicator
      Permanently:
   -   Trip mileage recorder
  -   Total mileage recorder

M O N I T O R I N G

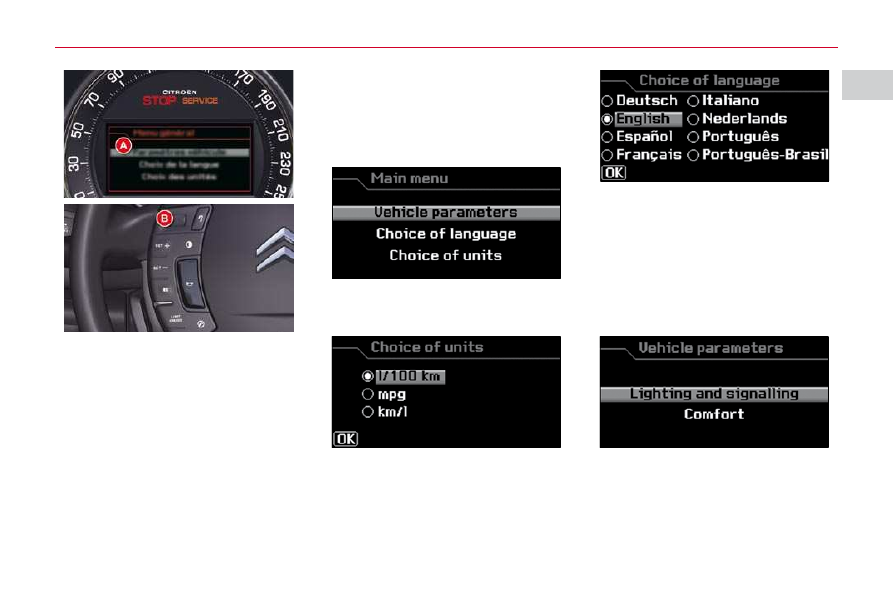

"Choice of language" menu

This allows you to choose the display

and voice recognition language.

"Choice of units" menu

This allows you to choose metric or

imperial units.

The main menu allows you to pro-

gramme certain vehicle and instru-

ment panel screen functions:

Main menu

The instrument screen A is located in
the centre of the instrument panel.
- With the vehicle stationary, you

can access the main menu of

the screen by quickly pressing

on the left-hand thumb wheel B

on the steering wheel.

- Whilst driving, the message

"Action

impossible

whilst

driving"

is displayed on the in-

strument panel if you try to open

the main menu.

"Vehicle parameters" menu

This allows you to access the pa-

rameters relating to:
- The vehicle lighting.

- The comfort levels in the vehicle.

M O N I T O R I N G

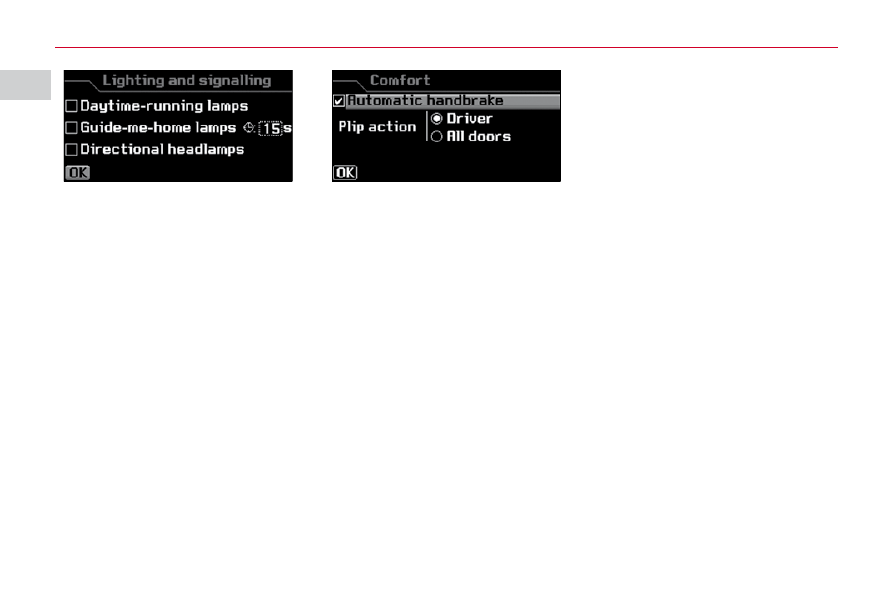

"Lighting" menu
Once you have selected this menu,

you can:


Activate/deactivate the lighting

of the daytime running lamps * .



Activate/deactivate the guide-

me-home lighting and adjust its

duration.



Activate/deactivate the dual-

function Xenon directional head-

lamps.

"Comfort" menu
Once you have selected this menu,

you can:


Activate/deactivate the driver's

welcome lighting function.



Select unlocking of all the doors

or just the driver's door.



Activate/deactivate

automatic

operation of the electric parking
brake.

* Depending on country.

M O N I T O R I N G

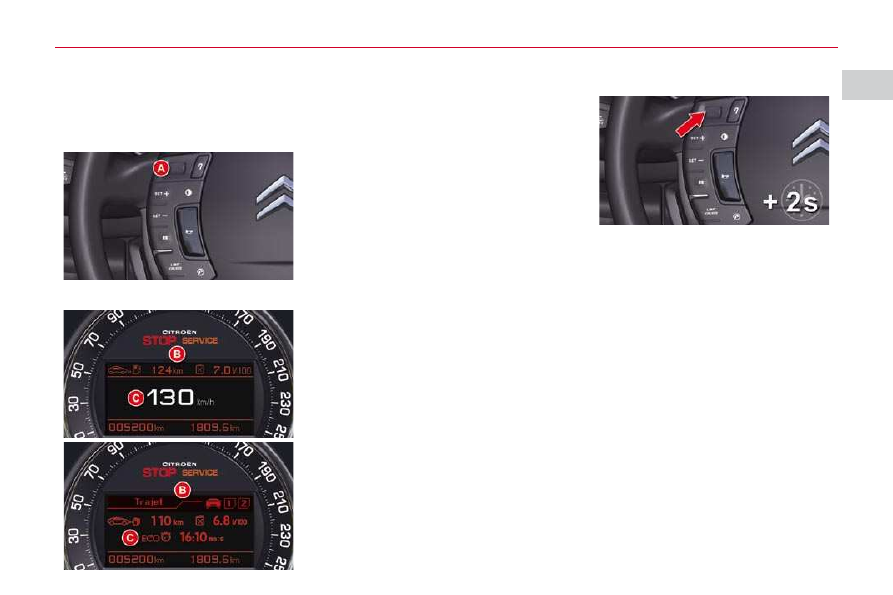

TRIP COMPUTER

System which provides current in-

formation concerning your journey

(range, consumption, etc.)

Information displays

Trip zero reset

The trip computer is displayed on

the instrument panel screen.


Turn the left-hand thumb wheel

on the steering wheel to dis-

play the various trip computer

tabs in succession:

- the current information tab

is displayed in zone B of the

instrument panel, with:

the range,
the current fuel consump-

tion,

the digital speed reading or

the Stop & Start time counter.

- the trip "1" tab is displayed

in zone C of the instrument

panel, with:

the distance travelled,
the average fuel consump-

tion,

      the average speed,
  for the ﬁ rst trip.
  -   the trip  "2"  tab is displayed

in zone C of the instrument

panel, with:

the distance travelled,
the average fuel consump-

tion,

the average speed,
for the second trip.



When the trip required is dis-

played, press the left-hand thumb

wheel on the steering wheel for
more than two seconds.

Trips "1" and "2" are independent
but their use is identical.
For example, trip "1" can be used for

daily ﬁ gures and trip "2" for monthly

ﬁ gures.

M O N I T O R I N G

A few definitions…

Range
(miles or km)

Current fuel consumption
(mpg or l/100 km or km/l)

Average fuel
consumption
(mpg or l/100 km or km/l)

Average speed
(mph or km/h)

Distance travelled
(miles or km)

This indicates the distance which

can still be travelled with the fuel re-

maining in the tank in relation to the
average fuel consumption over the
last few miles (kilometres) travelled.

This value may vary following a

change in the style of driving or

the relief, resulting in a signiﬁ cant

change in the current fuel con-

sumption.

When the range falls below 20 miles

(30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel,

the range is recalculated and is dis-

played when it exceeds 60 miles

(100 km).

If dashes are displayed continu-

ously while driving in place of the

digits, contact a CITROËN dealer.

This function is only displayed from

20 mph (30 km/h).

This is the average fuel consump-

tion during the last few seconds.

This is the average fuel consump-

tion since the last trip computer zero

reset.

This is the average speed calculat-

ed since the last trip computer zero

reset (ignition on).

This indicates the distance travelled

since the last trip computer zero reset.

Stop & Start time
counter
(minutes/seconds or hours/

minutes)

If your vehicle is ﬁ tted with Stop &

Start, a time counter calculates the

time spent in STOP mode during a

journey.

It resets to zero every time the igni-

tion is switched on with the key.

M O N I T O R I N G

Return to the main instrument
panel screen display

Successive rotations of the left-hand

thumb wheel on the steering wheel

allow you to return to the main instru-

ment panel screen display (vehicle

speed), via the navigation informa-

tion screen, then the screen display-

ing only the total mileage and the trip

mileage (bottom of screen).

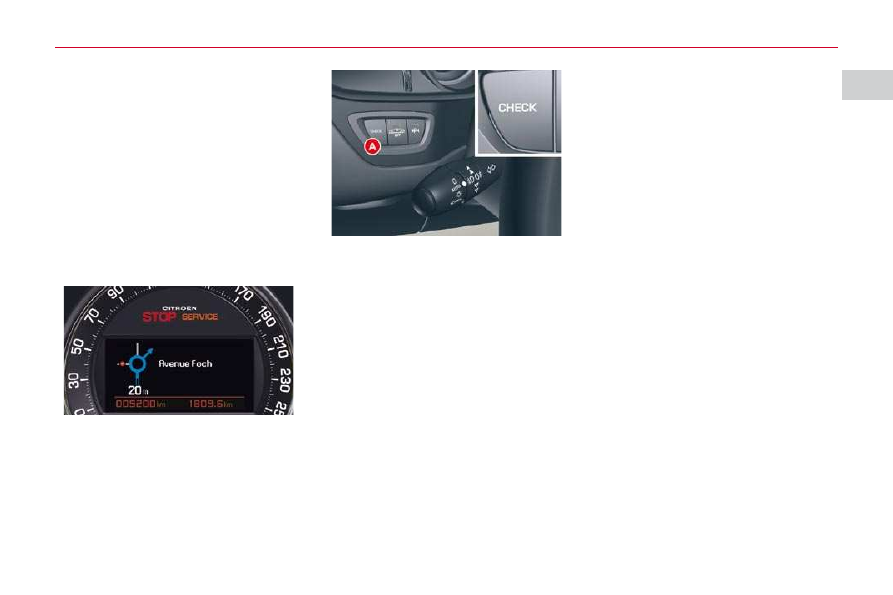

Display of navigation
information on instrument
panel screen

You can display navigation informa-

tion on the instrument panel screen

by rotating the left-hand thumb

wheel on the steering wheel.

Log of alerts

This function allows you to display

the log of alerts.
 Press on button A .
The following messages appear

consecutively on the instrument

panel screen:
- Tyre pressure check.

- Service indicator reminder.

- Display of message alerts.

- Oil level check.

M O N I T O R I N G

Return to the main instrument
panel screen display

Successive rotations of the left-hand

thumb wheel on the steering wheel

allow you to return to the main instru-

ment panel screen display (vehicle

speed), via the navigation informa-

tion screen, then the screen display-

ing only the total mileage and the trip

mileage (bottom of screen).

Display of navigation
information on instrument
panel screen

You can display navigation informa-

tion on the instrument panel screen

by rotating the left-hand thumb

wheel on the steering wheel.

Log of alerts

This function allows you to display

the log of alerts.
 Press on button A .
The following messages appear

consecutively on the instrument

panel screen:
- Tyre pressure check.

- Service indicator reminder.

- Display of message alerts.

- Oil level check.

M O N I T O R I N G

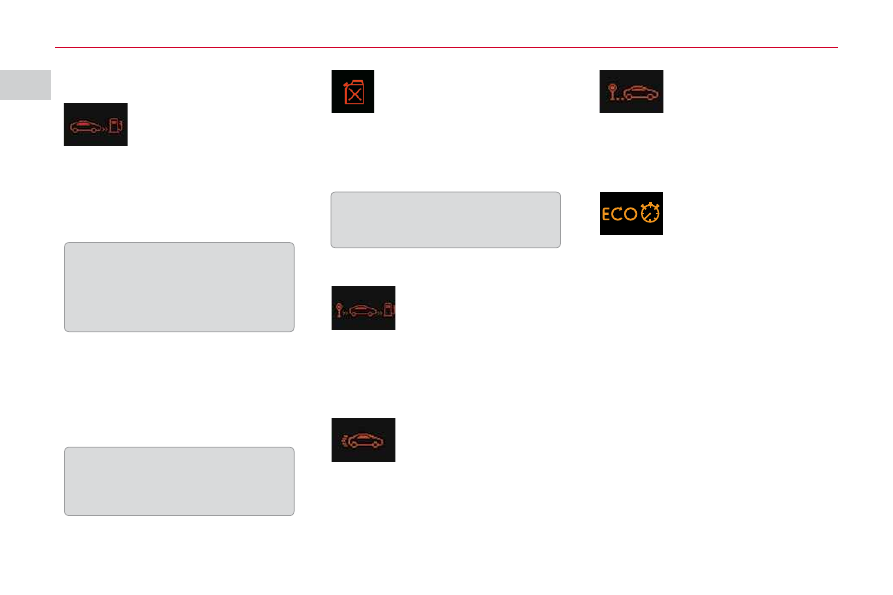

Warning and indicator lamps

Visual indicators which inform the driver of the occurrence of a fault (warn-

ing lamp) or of the operation of a system (operation or deactivation indicator

lamp).

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed,

associated with

another warning

lamp.

It is associated with a

punctured tyre or the engine

coolant temperature.

Stop as soon as it is safe to do so.

Park, switch off the ignition and call a

CITROËN dealer.

Service

temporarily.

A minor fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen, such as, for example:

- the closing of the doors, boot, rear

screen or bonnet,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission ﬁ lter

(Diesel).

For any other faults, contact a CITROËN

dealer.

ﬁ xed.

A major fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen and contact a

CITROËN dealer.

When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.

When the engine is started, these warning lamps should switch off.

If they remain on, before moving off, consult the information on the warning

lamp concerned.

Associated warnings
The switching on, ﬁ xed or ﬂ ashing, of certain warning lamps may be accompa-

nied by an audible signal and a message on the screen.

Warning lamps
When the engine is running or the ve-

hicle is being driven, the switching on

of one of the following warning lamps

indicates a fault which requires ac-

tion on the part of the driver.
The switching on of a warning lamp is

always accompanied by the display-

ing of an additional message, to as-

sist you in identifying the anomaly.

If you encounter any problems, do not

hesitate to contact a CITROËN dealer.

M O N I T O R I N G

Front

foglamps

ﬁ xed.

The front foglamps are switched on.

Turn the ring on the stalk rearwards
twice to switch off the front foglamps.

Rear

foglamps

ﬁ xed.

The rear foglamps are switched on.

Turn the ring on the stalk rearwards
to switch off the rear foglamps.

Operation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has come into operation.

It may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Left-hand

direction
indicato r

ﬂ ashing with

buzzer.

The lighting stalk is pushed down.

Right-hand

direction
indicator

ﬂ ashing with

buzzer.

The lighting stalk is pushed up.

Sidelamps

ﬁ xed.

The lighting stalk is in the "Sidelamps"

position.

Dipped beam

headlamps

ﬁ xed.

The lighting stalk is in the "Dipped

beam headlamps" position.

Main beam

headlamps

ﬁ xed.

The lighting stalk is pulled towards

you.

Pull the stalk to return to dipped
beam headlamps.

Hazard

warning

lamps

ﬂ ashing with

audible signal.

The hazard warning lamps switch,

located on the dashboard, has been

operated.

The left-hand and right-hand direction

indicators and their associated

indicator lamps ﬂ ash simultaneously.

M O N I T O R I N G

Warning lamp

is on

Cause

Action/Observations

Diesel engine

pre-heating

ﬁ xed.

The ignition switch is at the
2nd position (ignition on).

Wait until the warning lamp has

switched off before starting.
The duration for which the warning lamp is

on is determined by the climatic conditions.

Parking

brake

ﬁ xed.

The parking brake is applied or not

properly released.

Release the parking brake to switch

off the warning lamp, keeping your

foot on the brake pedal.
Observe the safety recommendations.
For further information on the

parking brake, refer to the "Driving"

section.

ﬂ ashing.

The parking brake is not fully applied

or is released.

Passenger's

airbag

system

ﬁ xed.

The control switch, located in the

glove box, is in the " ON " position.

The passenger's front airbag is

activated.
In this case, do not install a rear-

facing child seat.

Turn the control switch to the " OFF "

position to deactivate the front

passenger's airbag.

In this case you can install a rear-

facing child seat.
The passenger's airbag system is

automatically put into service on

starting the vehicle (" ON " position).

Stop & Start

ﬁ xed.

The Stop & Start system has put the

engine in STOP mode at a vehicle

stop (trafﬁ c lights, trafﬁ c jam, or

other...).

The warning lamp goes off and the

engine restarts automatically in

START mode, as soon as you want

to move off.

ﬂ ashes for a few

seconds, then

goes off.

STOP mode is temporarily

unavailable.
or
START mode is invoked

automatically.

Refer to "Driving - § Stop & Start" for

special cases with STOP mode and

START mode.

M O N I T O R I N G

Warning and indicator lamps

Visual indicators which inform the driver of the occurrence of a fault (warn-

ing lamp) or of the operation of a system (operation or deactivation indicator

lamp).

Warning lamp

is on

Cause

Action/Observations

STOP

ﬁ xed,

associated with

another warning

lamp.

It is associated with a

punctured tyre or the engine

coolant temperature.

Stop as soon as it is safe to do so.

Park, switch off the ignition and call a

CITROËN dealer.

Service

temporarily.

A minor fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen, such as, for example:

- the closing of the doors, boot, rear

screen or bonnet,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission ﬁ lter

(Diesel).

For any other faults, contact a CITROËN

dealer.

ﬁ xed.

A major fault has occurred

for which there is no speciﬁ c

warning lamp.

Identify the fault by reading the message

shown on the screen and contact a

CITROËN dealer.

When the ignition is switched on
Certain warning lamps come on for a few seconds when the ignition is switched on.

When the engine is started, these warning lamps should switch off.

If they remain on, before moving off, consult the information on the warning

lamp concerned.

Associated warnings
The switching on, ﬁ xed or ﬂ ashing, of certain warning lamps may be accompa-

nied by an audible signal and a message on the screen.

Warning lamps
When the engine is running or the ve-

hicle is being driven, the switching on

of one of the following warning lamps

indicates a fault which requires ac-

tion on the part of the driver.
The switching on of a warning lamp is

always accompanied by the display-

ing of an additional message, to as-

sist you in identifying the anomaly.

If you encounter any problems, do not

hesitate to contact a CITROËN dealer.

M O N I T O R I N G

Deactivation indicator lamps
If one of the following indicator lamps comes on, this conﬁ rms that the corresponding system has been switched off intentionally.

This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp

is on

Cause

Action/Observations

Passenger's

airbag

system

ﬁ xed.

The control, located in the

glove box, is set to the OFF

position.
The passenger's front airbag

is deactivated.
In this case you can install a

"rear facing" child seat.

Set the control to the ON position to

activate the passenger's front airbag. In

this case, do not ﬁ t a child seat in the

rear-facing position.

The passenger's airbag system is put into

service automatically when the vehicle is

started ( ON position).

ESP/ASR

ﬁ xed.

The button, located in the

middle of the dashboard, is

pressed. Its indicator lamp is
on.
The ESP/ASR is deactivated.

ESP: electronic stability

programme.
ASR: anti-skid regulation.

Press the button to activate the ESP/ASR.

Its indicator lamp switches off.
The ESP/ASR system is activated

automatically when the vehicle is started.

If deactivated, the system is reactivated

automatically from approximately 30 mph

(50 km/h).

Citroen C5 Dag (2010 year). Instruction - part 2
