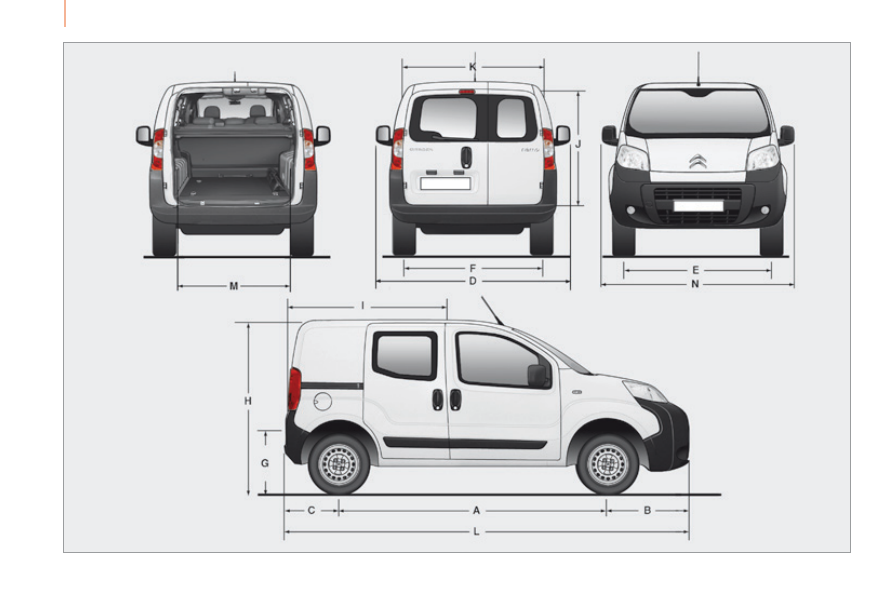

Dimensions

TECHNICAL

DIMENSIONS

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:

Light van (in mm)

L2 (Worksite Pack)

Overall length

3 864

3 881

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

760

777

Rear overhang

591

overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 469

1 464

Width of rear track

1 465

Height of load sill

527

544

Length of interior floor

1 523

Maximum interior load height

1 205

Maximum interior width (10 cm from the floor)

1 473

Interior width between wheel arches

1 046

Volume (m

)

2.5

176

Dimensions

177

Dimensions

TECHNICAL

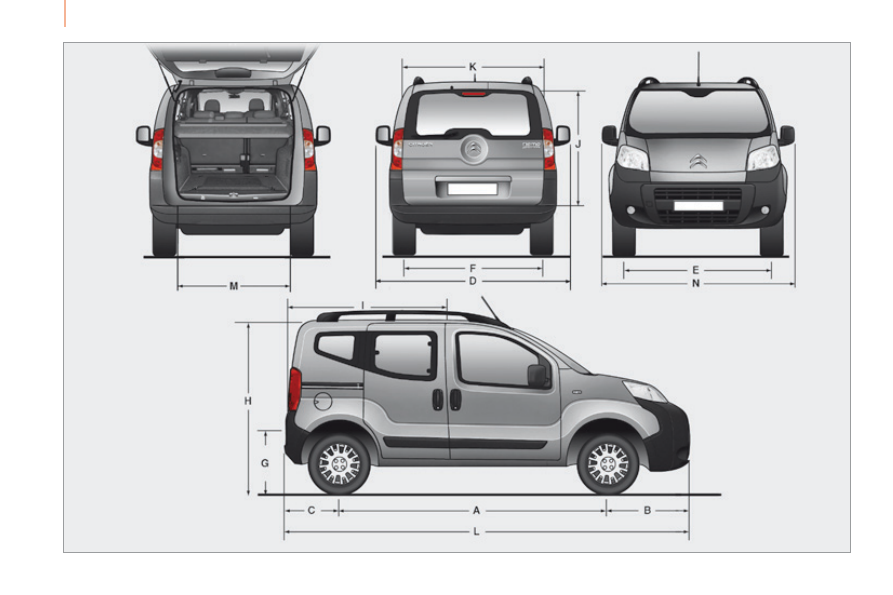

Combi (in mm)

Standard

Raised

Overall length

3 959

3 970

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

855

866

Rear overhang

591

overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 464

Width of rear track

1 465

Height of load sill

527

544

Length of interior floor (rear bench seat in place)

743

Length of interior floor (rear bench seat fully folded)

1 130

Maximum interior load height (under rear shelf)

592

Maximum interior width (10 cm from the floor)

1 473

Interior width between wheel arches

1 046

178

Dimensions

179

Dimensions

TECHNICAL

Combi (in mm)

Standard

Raised

Overall length

3 959

3 970

Overall height

1 721

1 742

Height with roof bars

1 794

1 803

Wheelbase

2 513

Front overhang

855

866

Rear overhang

591

overall width

2 019

Width (with mirrors folded)

1 816

Width of front track

1 464

Width of rear track

1 465

Height of load sill

527

544

Length of interior floor (rear bench seat in place)

743

Length of interior floor (rear bench seat fully folded)

1 130

Maximum interior load height (under rear shelf)

592

Maximum interior width (10 cm from the floor)

1 473

Interior width between wheel arches

1 046

180

Engines

DIESEL ENGINES

1.4 litre HDi 70 hp

1.3 litre HDi 75 hp

Gearboxes

Manual

Electronic

Gears

EU standard maximum power (kW)*

Cubic capacity (cc)

1399

1 248

Bore x stroke (mm)

73.7 x 82

69.6 x 82

Max power engine speed (rpm)

4 000

3 750

EU standard max torque (nm)

160

190

Max torque engine speed (rpm)

2 750

1 750

Fuel

diesel

Catalytic converter

Yes

Particle emissions filter (PEF)

Yes

Stop & Start

Yes

Engine oil capacity with filter replacement (litres)

3.8

3.0

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

181

Engines

TECHNICAL

PETROL ENGINE

1.4 litre 75 hp

Gearbox

Manual

Gears

EU standard maximum power (kW)*

Cubic capacity (cc)

1 360

Bore x stroke (mm)

75 x 77

Max power engine speed (rpm)

5 200

EU standard max torque (nm)

118

Max torque engine speed (rpm)

2 600

Fuel

Unleaded petrol

Stop & Start

Engine oil capacity with filter replacement (litres)

3.0

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

182

Weights

WEIGHTS AND TOWED LOADS

The maximum weights and towed loads

for your vehicle are given are given in the

registration document, as well as in sales
brochures.
These values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section).

The kerb weight is equal to the unladen

weight + driver (75 kg).

The gross train weight and towed load values
indicated apply up to a maximum altitude
of 1 000 metres; the towed load mentioned

must be reduced by 10 % for every additional

1 000 metres.

High ambient temperatures may result
in a reduction in the performance of

the vehicle to protect the engine; when the

ambient temperature is higher than 37 °C, limit

the towed weight.

Towing with a lightly loaded vehicle can

adversely affect roadholding.

Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is

reduced (comply with the legislation in force in
your country).

For information on the maximum trailer weight
for your vehicle, contact a CITRoËn dealer or
a qualified workshop.

The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).

GVW:

gross vehicle weight, the maximum

authorised vehicle weight.
GTW:

gross train weight, the maximum

authorised weight of vehicle plus trailer.

In all countries, it is essential to comply with
the local legislation on towed loads.

183

Identification markings

TECHNICAL

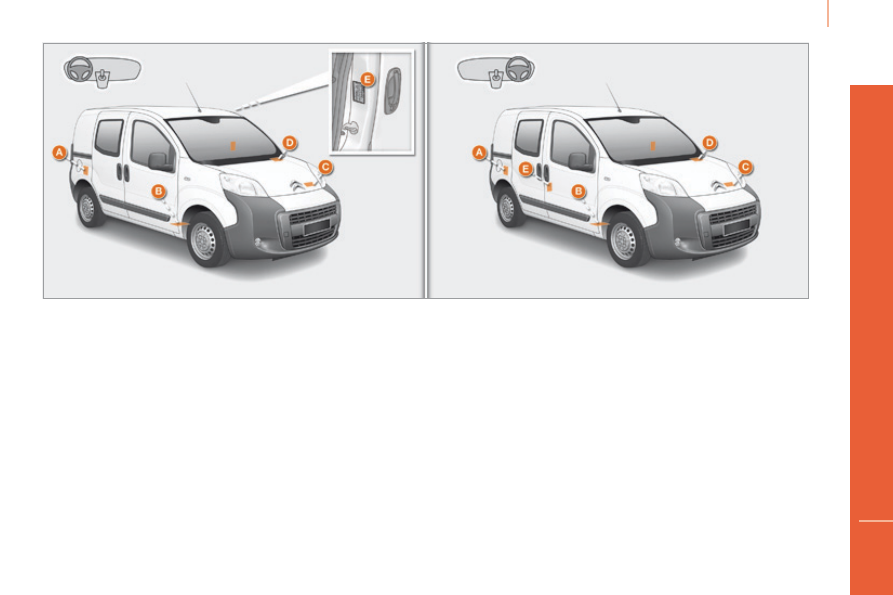

IDENTIFICATION MARKINGS

A. Manufacturer's plate

B. Serial number on the body

C. Paint code

D. Serial number on the dashboard

E. Tyre pressures

1. VF Type serial number.
2.

Gross vehicle weight (GVW).

Gross train weight (GTW).

Maximum weight on front axle.

Maximum weight on rear axle.

05-14

This handbook describes all of the equipment

available in the whole range.

Reproduction or translation of all or part of this
document is prohibited without written authorisation
from automobiles CITRoËn.

Your vehicle will be fitted with some of this

equipment described in this document, depending

on its trim level, version and the specification for the
country in which it is sold.

The descriptions and illustrations are given without

any obligation. Automobiles CITROËN reserves

the right to modify the technical specifications,

equipment and accessories without having to update

this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer.
In addition, there are labels present in your vehicle
to warn you of the need for certain precautions to

take for your safety; don't remove them, they will be

useful again for a new owner.

automobiles CITRoËn declares, by application of

the provisions of the European regulation (Directive

2000/53) relating to End of Life Vehicles, that it

achieves the objectives set by this regulation and
that recycled materials are used in the manufacture
of the products that it sells.

Printed in the EU
