Citroen C4 Picasso Dag (2009 year). Instruction - part 9

F I T T I N G S

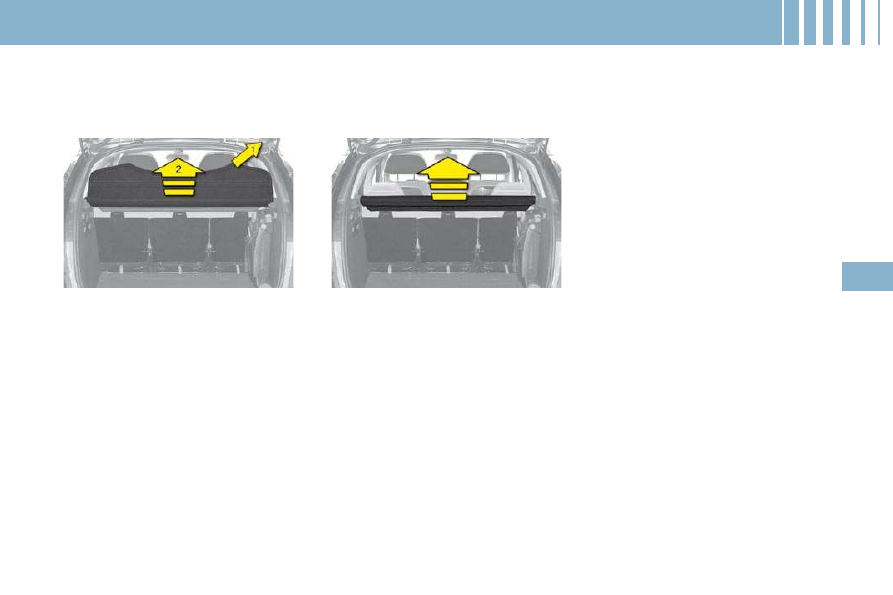

LUGGAGE COVER
(C4 PICASSO)

This is in two parts.

Rear shelf

  Removal
      Unhook the cords.
     Push  upwards,  then  lift  on  each

side of the luggage cover.

Front shelf

  Removal
      First remove the rear shelf.
     Push  upwards,  then  lift  on  each

side.

Fitting
 Move the luggage cover to its

slots and push ﬁ rmly down.

 So that the luggage cover will

rise  with  the  tailgate,  take  the
cords  and  attach  them  on  the
tailgate.

Reﬁ tting


Direct the ﬂ ap downwards.

 Offer the luggage cover to its

mountings and push ﬁ rmly

down.

100

F I T T I N G S

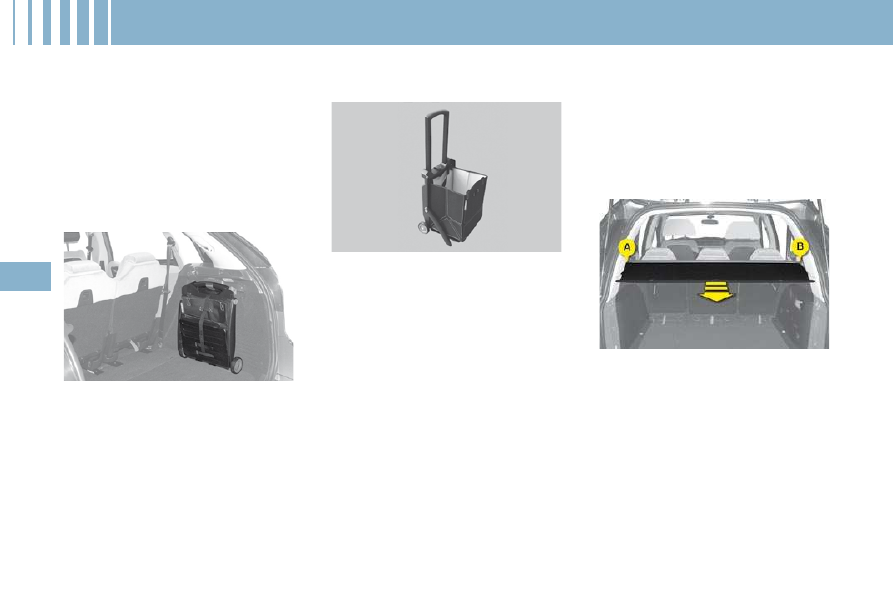

MODUBOX (C4 PICASSO)

Equipment  for  use  both  inside  the
vehicle  and  away  from  the  vehicle.
It  is  composed  of  a  shopping  trol-

ley and a ﬂ exible bag (isotherm on

some  versions)  which  can  be  used
independently of each other depen-
ding  on  your  needs  (by  detaching
the  fastenings  on  each  side  at  the
top and bottom).

To use

 Unhook the red strap to free the

Modubox.

 Unhook the black strap then

press  on  the  round  buttons
on  either  side  of  the  Modubox
simultaneously to deploy it.

Use of the Modubox outside
the vehicle

Stowage inside the vehicle

 Perform

the

operations

reverse to fold and stow inside
the vehicle.

 If you have used your Modubox

away from the vehicle, take care
to  reposition  it  correctly  in  the
housings  provided  for  this  pur-
pose.

BAG HOOK

LUGGAGE COVER BLIND
(GRAND C4 PICASSO)

Position 1

5-seat conﬁ guration; installed be-

hind the second-row seats, with the
third-row seats folded away.

 Press on the recess on the left

hand side of the Modubox to
raise (or lower) the handle.

Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.

Installing the roller
 Position the left-hand end of the

blind roller in notch A .

 Compress the right-hand end of

the roller and place it in notch B .

 Unroll the blind until it reaches

the boot pillars.

 Insert the guides of the blind into

the rails on the pillars.

Removing the roller
 Carry out these operations in

reverse order.

100

F I T T I N G S

MODUBOX (C4 PICASSO)

Equipment  for  use  both  inside  the
vehicle  and  away  from  the  vehicle.
It  is  composed  of  a  shopping  trol-

ley and a ﬂ exible bag (isotherm on

some  versions)  which  can  be  used
independently of each other depen-
ding  on  your  needs  (by  detaching
the  fastenings  on  each  side  at  the
top and bottom).

To use

 Unhook the red strap to free the

Modubox.

 Unhook the black strap then

press  on  the  round  buttons
on  either  side  of  the  Modubox
simultaneously to deploy it.

Use of the Modubox outside
the vehicle

Stowage inside the vehicle

 Perform

the

operations

reverse to fold and stow inside
the vehicle.

 If you have used your Modubox

away from the vehicle, take care
to  reposition  it  correctly  in  the
housings  provided  for  this  pur-
pose.

BAG HOOK

LUGGAGE COVER BLIND
(GRAND C4 PICASSO)

Position 1

5-seat conﬁ guration; installed be-

hind the second-row seats, with the
third-row seats folded away.

 Press on the recess on the left

hand side of the Modubox to
raise (or lower) the handle.

Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.

Installing the roller
 Position the left-hand end of the

blind roller in notch A .

 Compress the right-hand end of

the roller and place it in notch B .

 Unroll the blind until it reaches

the boot pillars.

 Insert the guides of the blind into

the rails on the pillars.

Removing the roller
 Carry out these operations in

reverse order.

101

F I T T I N G S

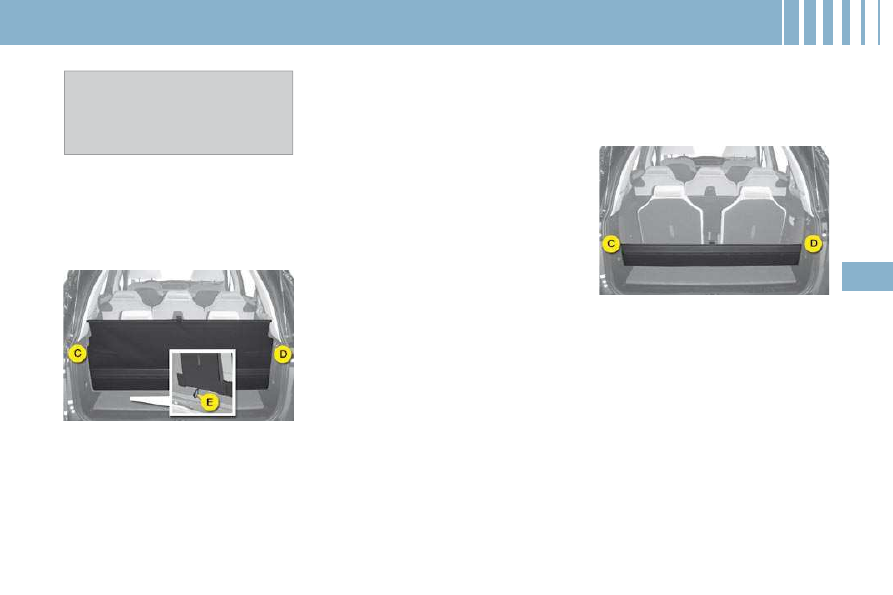

The roller has a moving ﬂ ap to

avoid interference with the second-
row passengers when the seats
are in the "reclined" position.

 Engage the lug on the left of the

roller in notch C .

 Pass the right-hand side above

the third-row armrest.

 Engage the lug in notch D .
 Pull the seat belt(s) so that they

will deploy without locking.

 Unroll the blind and engage the

guides into the rails on the pillars.

 Lock the seat(s) in position.

Installing the roller
 Roll up the blind, then remove

the roller from its initial position.

 Position the roller, with the blind

pull bar uppermost, ﬂ ap down-

ward.

 Fold the concertina boards.

Removing the roller


Push the ﬂ ap towards the seat

backrest.

 Lift the concertina board by grab-

bing it at the side, then position it
vertically.

 Unlock the seat by pulling the

strap E .

 Push the backrest towards the front.
 Proceed in reverse order to in-

stalling.

Position 3

7-seat conﬁ guration; stowed behind

the third row seats when these are
folded away.

  Installing the roller
      Fold the concertina boards.
     Position the roller, with the blind

pull bar uppermost, ﬂ ap down-

ward.

 Engage the lug on the left of the

roller in notch C .

 Pass the right-hand side above

the third-row armrest.

 Engage the lug in notch D .

Removing the roller
 Proceed in reverse order to in-

stalling.

Position 2

7-seat conﬁ guration; installed be-

hind the third-row seats when these
are folded away. This position con-
ceals objects stowed in the boot
from outside view.

The  blind  can  only  be  stored  when
the seats are folded away.
You  can  position  the  concertina
board  vertically  to  lodge  a  bulkier
object in the boot well.

102

F I T T I N G S

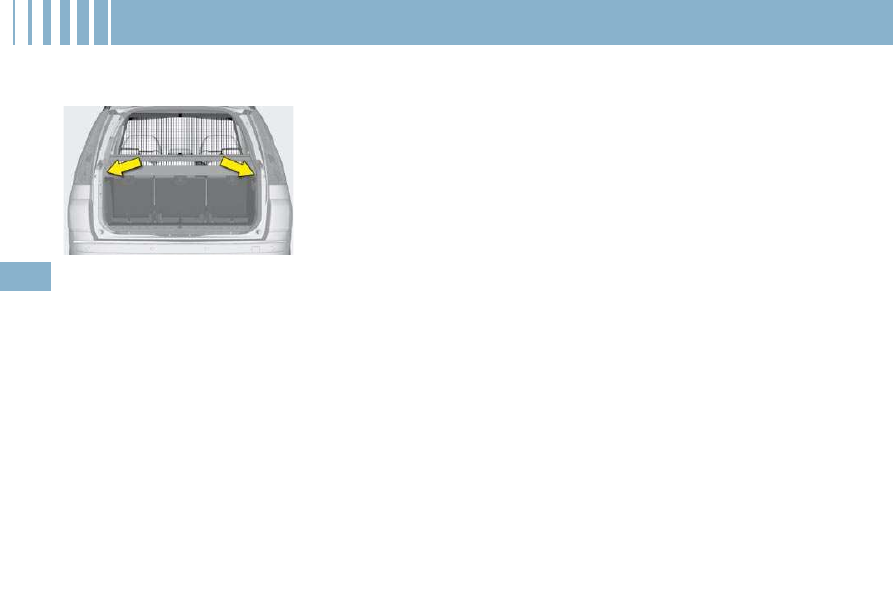

HIGH CARGO NET
(GRAND C4 PICASSO)

  This  enables  you  to  maximise  the
vehicle’s loadspace.
It  retains  objects,  preventing  them
from sliding towards the front of the
passenger compartment.
  You insert it under the roller of the
luggage-cover  blind,  securing  it
on the third-row side mouldings.

Position 1

5-seat conﬁ guration; installed behind

the second row.

Installing the roller
 Remove the protective covers

located under the blind roller
notches.

 Position the roller under that of

the luggage-cover blind.



Raise the ﬂ ap on the blind, posi-

tioning it on top of the blind.

 Deploy the net, passing it be-

tween the rollers and the seats.

 Pull the net upwards.
 Anchor it to the roof by means of

the ﬁ xing points (after you have

removed their covers).

Removing the roller
 Perform these operations in

reverse order.

Position 2

2-seat conﬁ guration; installed behind

the ﬁ rst row.

Removing the roller
 Carry out these operations in

reverse order.

Installing the roller
 With the second-row seats folded

away, remove the covers of the

Isoﬁ x anchoring points located on

the seat backrests.



Secure the roller on the Isoﬁ x

anchoring points.

 Deploy the net and pull it upwards.
 Anchor it to the roof by means of

the ﬁ xing points (after you have

removed their covers).

103

F I T T I N G S

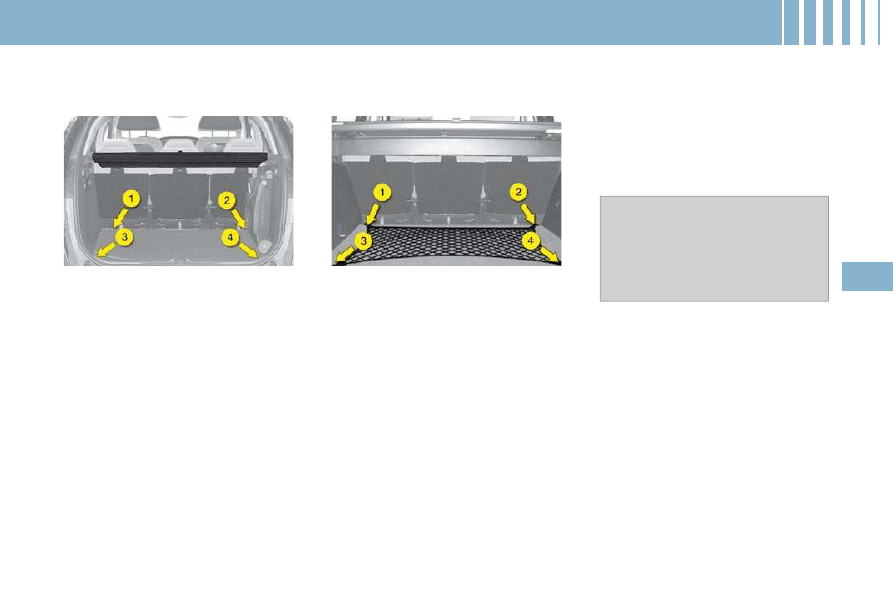

LUGGAGE ANCHORING
RINGS (C4 PICASSO)

  There  are  4  anchoring  rings  in  the
boot  to  enable  you  to  secure  your
luggage:
   -

1, 2, 3 and 4

on the boot ﬂ oor.

LUGGAGE ANCHORING
RINGS (GRAND C4 PICASSO)

  There  are  4  anchoring  rings  in  the
boot  to  enable  you  to  secure  your
luggage:
   -

1, 2, 3 and 4

on the boot ﬂ oor.

For reasons of safety in the event of
sudden braking, it is recommended
that you place heavy objects on

the ﬂ oor as close as possible to

the backrests of the second-row
seats.

LUGGAGE RETAINING NET
(GRAND C4 PICASSO)

Attached to the luggage anchoring
rings, it allows objects to be held on

the boot ﬂ oor.

104

F I T T I N G S

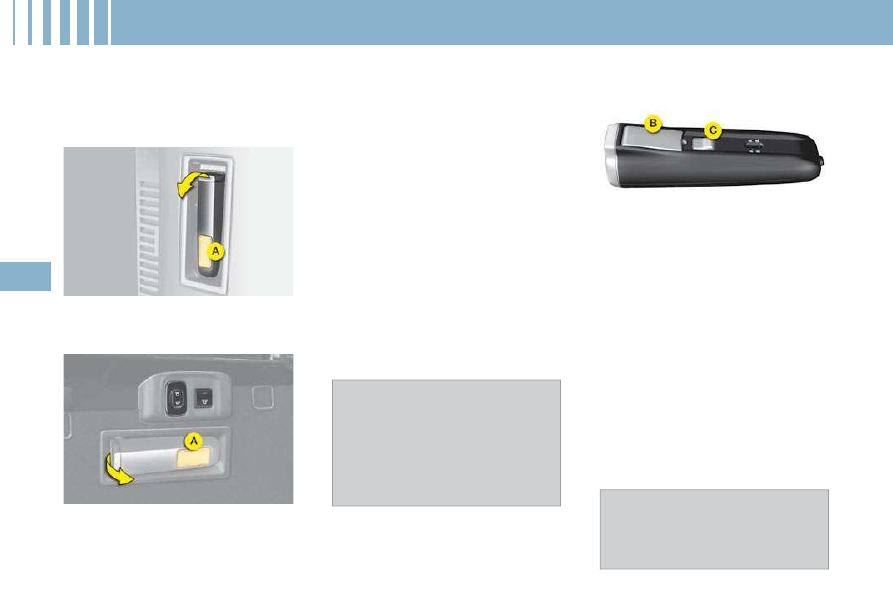

TORCH

This is a removable lamp, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.

Grand C4 Picasso

C4 Picasso

  Boot lighting
The boot lamp  A  comes on automat-
ically  when  the  boot  is  opened  and
switches off automatically when the
boot is closed.
Various  lighting  durations  are  avail-
able:
   -

ignition off, approximately ten minutes,

in energy economy mode, approxi-
mately thirty seconds,

engine running, no limit.

Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

 Extract the torch from its location

pulling it upwards, as indicated
by the arrow.

 Press the switch B , located on

the back, to switch the torch on
or off.

 Unfold the support C , located on

the  back,  to  set  down  and  raise
the  torch;  for  example,  when
changing a wheel.

Storing the torch
 Put the torch back in place in its

location starting with the lower
part.

If you have forgotten to switch off
the torch, this switches it off auto-
matically.

Observe the polarities when ﬁ tting

the batteries.
Never  replace  the  rechargeable
batteries  with  normal  single-use
batteries.
For  replacement  of  the  batteries,
see  the  "Practical  information  -
§ Changing a bulb" section.

It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

Using the torch

105

VII

C H I L D S A F E T Y

* The rules for transporting children

are speciﬁ c to each country. Refer

to the current legislation in your

country.

GENERAL POINTS RELATING
TO CHILD SEATS

Although one of CITROËN's main

criteria when designing your vehi-

cle, the safety of your children also

depends on you.

For maximum safety, please follow

these precautions:
- in accordance with European

regulations,   all  children  under
the age of 12 or less than one
and  a  half  metres  tall  must
travel  in  approved  child  seats
suited to their weight , on seats

ﬁ tted with a seat belt or ISOFIX

mountings * ,

- statistically, the safest seats in

your  vehicle  for  the  transpor-
tation  of  children  are  the  rear
seats,

- a child weighing less than 9 kg

must travel in the "rearwards-
facing" position both in the
front and in the rear.

CITROËN recommends

that chil-

dren should travel in the rear seats

of your vehicle:

- "rearwards-facing" up to the

age of 2,

- "forwards-facing" over the

age of 2.

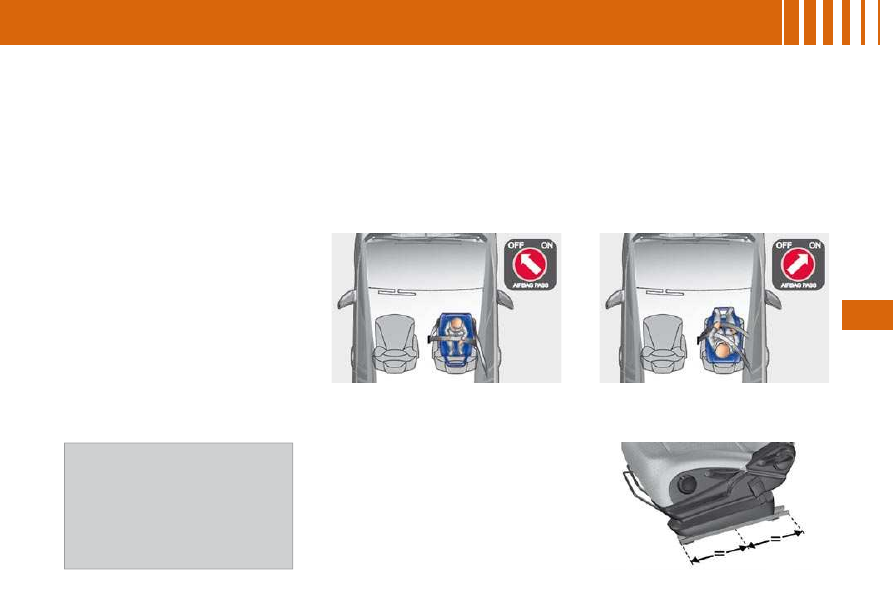

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

"Rearwards-facing"
When a "rearwards-facing" child

seat is installed on the front pas-
senger seat , it is essential that the

passenger airbag is deactivated.

Otherwise, the child would risk

being seriously injured or killed if

the airbag were to inﬂ ate.

"Forwards-facing"
When a "forwards-facing" child seat

is installed on the front passenger
seat

, adjust the vehicle's seat to the

intermediate longitudinal position

with the seat back upright and leave

the passenger airbag activated.

Intermediate longitudinal

position

106

VII

C H I L D S A F E T Y

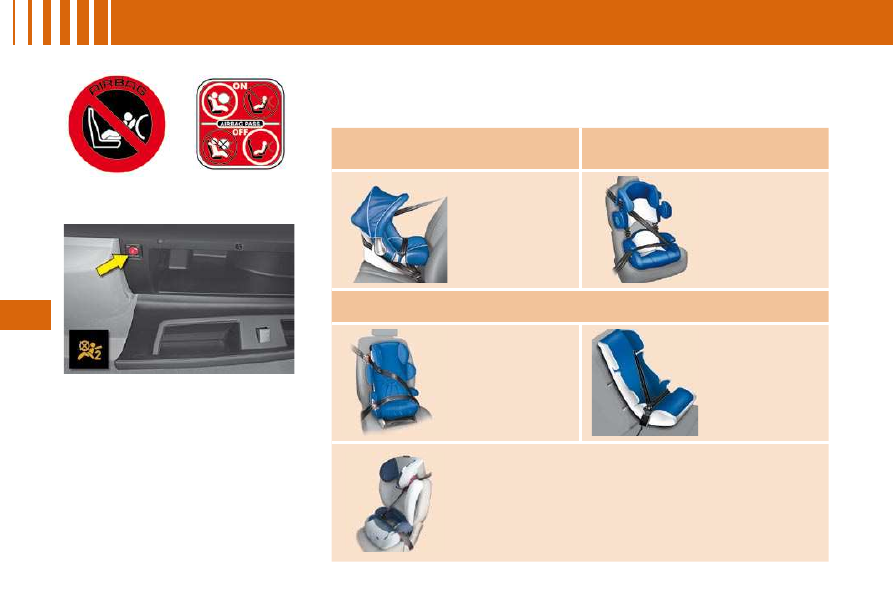

Passenger air bag OFF

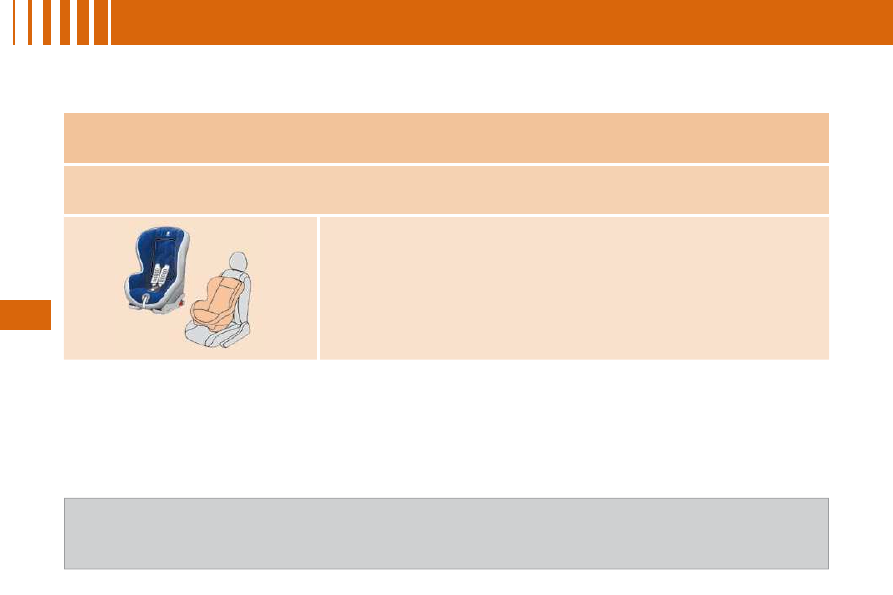

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are

secured using a three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion

is compulsory for

the transportation

of young children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg),

the booster is used on

its own.

"RÖMER KIDFIX"

Can be ﬁ tted to the vehicle's ISOFIX anchorages.

The child is restrained by the seat belt.

106

VII

C H I L D S A F E T Y

Passenger air bag OFF

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are

secured using a three point seat belt:

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion

is compulsory for

the transportation

of young children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg),

the booster is used on

its own.

"RÖMER KIDFIX"

Can be ﬁ tted to the vehicle's ISOFIX anchorages.

The child is restrained by the seat belt.

107

VII

C H I L D S A F E T Y

* Applies only to the CITROËN Grand C4 Picasso.

LOCATION OF CHILD SEATS SECURED BY MEANS OF THE VEHICLE SEAT BELT

In conformity with European law, this table tells you to what extent each of the seat positions in your vehicle may take a

child seat that is secured by means of the vehicle seat belt and approved as Universal (a), according to the weight of the

child and the position in the vehicle.

(a) Universal child seat: child seat which can be installed in all vehicles by means of the seat belt.

(b) Group 0: from birth to 10 kg. Shell seats and "car cots" cannot be installed on the front passenger seat.

seat position suitable for the installation (in conjunction with the vehicle seat belt) of a universal rearwards-facing and/or

forwards-facing child seat.

For seats in groups 1, 2 and 3, check that the child seat is correctly secured on the backrest of the vehicle seat. If necessary,

remove and stow the head restraint.

Seat position

Weight groups established by legislation

< 10 kg and < 13 kg

(groups 0 (b) and 0+)

9 – 18 kg

(group 1)

15 – 25 kg

(group 2)

22 – 36 kg

(group 3)

1 st row

Front passenger

(c)

2 nd row

Lateral

Central

3 rd row *

Lateral

108

VII

C H I L D S A F E T Y

According to country and current

local legislation.

ADVICE ON CHILD SEATS

Installing a booster seat
The chest part of the seat belt must

be positioned on the child's shoul-

der without touching the neck.
Ensure that the lap part of the

seat belt passes correctly over the

child's thighs.

CITROËN recommends the use of

a booster seat which has a back,

ﬁ tted with a seat belt guide at

shoulder level.

As a safety precaution, do not

leave:

- one or more children alone and

unsupervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children

inside the vehicle.

To prevent accidental opening of the

doors, use the "Child lock".

Take care not to open the rear win-

dows by more than one third.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

The incorrect installation of a child

seat in a vehicle compromises the

child's protection in the event of an

accident.
When installing a child seat using the

seat belt, check that the seat belt is

tightened correctly on the child seat

and that it secures the child seat

ﬁ rmly on the seat of your vehicle.

Remember to fasten the seat belts

or the child seat harnesses keeping
the slack

in relation to the child's

body to a minimum, even for short

journeys.

For optimum installation of the

"forwards-facing" child seat, ensure

that the back of the child seat is in

contact with the back of the vehicle's

seat and that the head restraint does

not cause any discomfort.

If the head restraint has to be re-

moved, ensure that it is stored or

attached securely to prevent it from

being thrown around the vehicle in

the event of sharp braking.

Children under the age of 10 must

not travel in the "forwards-facing"

position on the front passenger seat,

unless the rear seats are already oc-

cupied by other children, cannot be

used or are absent.

Deactivate the passenger airbag *

when a "rearwards-facing" child

seat is installed on the front seat.

Otherwise, the child would risk be-

ing seriously injured or killed if the

airbag were to inﬂ ate.

109

VII

C H I L D S A F E T Y

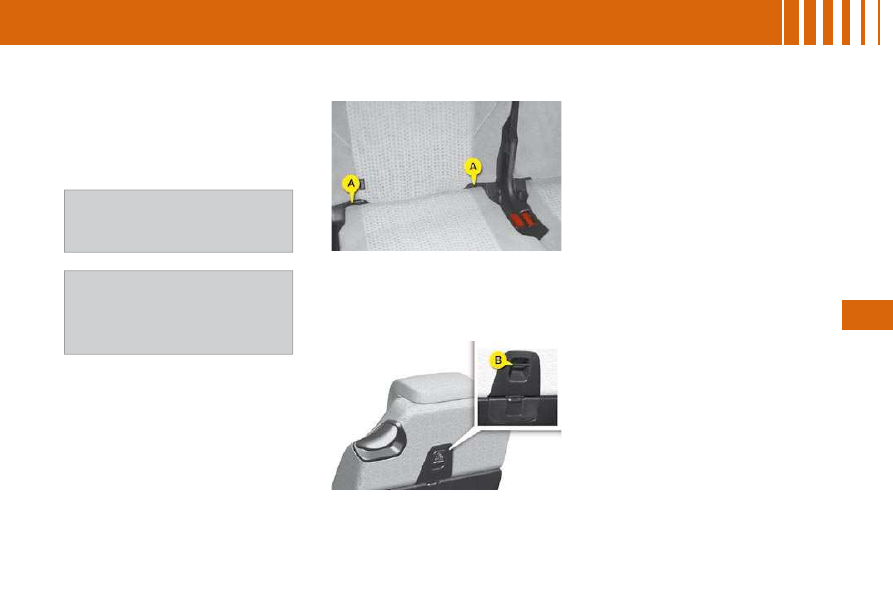

"ISOFIX" MOUNTINGS

Your vehicle has been approved in

accordance with the new ISOFIX
regulation

The three second row seats are ﬁ tted

with regulation ISOFIX mountings.

These are three rings for each seat:

- two rings A , located between the

vehicle seat back and cushion,

indicated by a label,

- a ring B , used to ﬁ x the upper

strap, referred to as the TOP
TETHER

, indicated by a label

on a cover at the top of the seat

back.

This ISOFIX mounting system

gua-rantees you fast, reliable and

safe ﬁ tting of the child seat in your

vehicle.

The incorrect installation of a child

seat in a vehicle compromises the

child's protection in the event of an

accident.

For information regarding the

ISOFIX child seats which can be

installed in your vehicle, consult

the summary table for the location

of the ISOFIX child seats.

The ISOFIX child seats

are ﬁ tted

with two locks which are secured

easily on the two rings A .

Some also have an upper strap

which is attached to the ring B

To attach this strap, remove the

vehicle seat's head restraint and the

cover at the top of the seat back.

Then ﬁ x the hook on the ring B and

tighten the upper strap.

110

VII

C H I L D S A F E T Y

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

This child seat can also be used on seats which are not ﬁ tted with ISOFIX mountings. In this case, it must be attached

to the vehicle seat using the three point seat belt.

Follow the instructions for ﬁ tting the child seat given in the seat manufacturer's installation guide.

RÖMER Duo Plus ISOFIX

(size category B1 )

Group 1: from 9 to 18 kg

Installed in the forwards-facing position.

Fitted with an upper strap to be secured on the upper ring B ,

referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

111

VII

C H I L D S A F E T Y

* The ISOFIX shell is secured to the bottom rings on an ISOFIX position, occupying 2 rear seat positions.

** To install ISOFIX child seats type B1 , remove the head restraints from the seats.

TABLE SUMMARISING THE INSTALLATION OF ISOFIX CHILD SEATS

In compliance with European legislation (ECE 16), this table indicates which of the ISOFIX child seats can be installed in

seat positions in your vehicle that are equipped with ISOFIX anchoring points.

For ISOFIX universal and semi-universal child seats, the ISOFIX size class, deﬁ ned by a letter from A to G , is shown on

the child seat to the right of the ISOFIX logo.

IUF :

seat position suitable for installation of an I SOFIX U niversal " F orwards-facing" seat attached using the top belt.

IL-SU :

seat position suitable for installation of an I SOFIX S emi- U niversal seat: ISOFIX "rearwards-facing" child seats

equipped with a top belt and ISOFIX "shell" child seats with a top belt.

Do not install ISOFIX child seats equipped with a bar.

Child weight/age given as a guide

Less than 10 kg

(group 0)

Up to approx.

6 months

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to approx.

1 year old

9 to 18 kg (group 1)

From 1 to 3 years approx.

Type of ISOFIX child seat

Shell seat *

" Rearwards -

facing"

" Rearwards -

facing"

" Forwards -facing"

ISOFIX size classes

B1 **

ISOFIX rear lateral seats

IL-SU

IUF

ISOFIX central rear seat

IL-SU

IUF

112

VII

C H I L D S A F E T Y

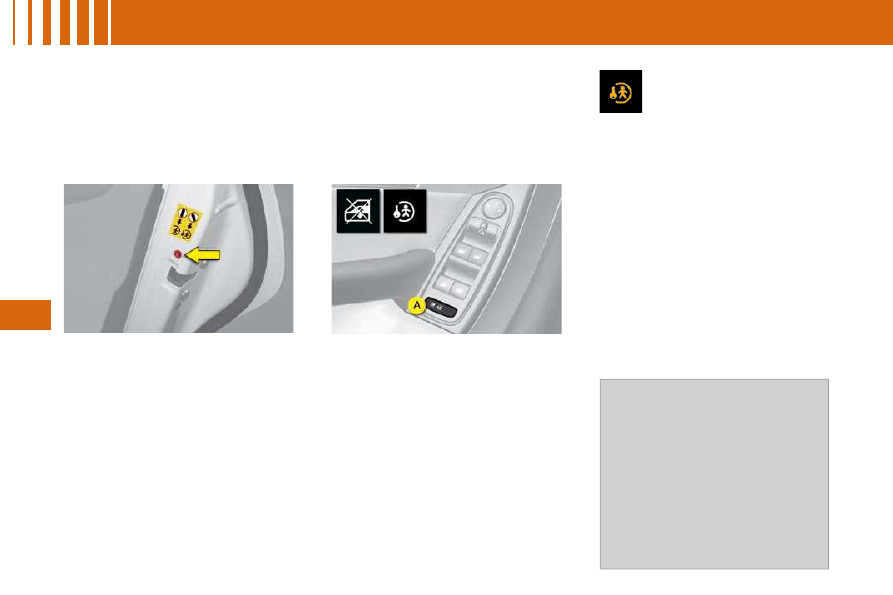

MANUAL CHILD LOCK

Locking
 Turn the red control one eighth

of a turn to the left using the igni-

tion key.

Unlocking
 Turn the red control one eighth

of a turn to the right using the

ignition key.

ELECTRIC CHILD LOCK

Mechanical system to prevent ope-

ning of the rear door using its interior

control.
The control is located on the edge of

each rear door.

Remote control system to prevent

opening of the rear doors using their
interior controls and use of the rear

electric windows.

Activation


Press the button A .

The indicator lamp A on the button

comes on, accompanied by a mes-

sage on the multifunction screen.

This indicator lamp remains on until

the child lock is deactivated.

Deactivation


Press the button A again.

The indicator lamp A on the button

switches off, accompanied by a mes-

sage on the multifunction screen.

This indicator lamp remains off until

the child lock is activated.

This system is independent and in

no circumstances does it take the

place of the central locking control.

Check the status of the child lock

each time you switch on the ignition.

Always remove the key from the

ignition when leaving the vehicle,

even for a short time.

In the event of a serious impact,

the electric child lock is deactivated

automatically to permit the exit of

the rear passengers.

This warning lamp comes

on temporarily on the instru-

ment panel when the child

lock is activated.

It also comes on when the ignition

is switched on, then switches off

approximately ten seconds after the

engine is started.

The control A is located on the driver's

door, with the electric window controls.

Any other status of the indicator

lamp indicates a malfunction of the

electric child lock. Have it checked

by a CITROËN dealer.

Content .. 7 8 9 10 ..
