V I S I B I L I T Y

* According to country.

Daytime-running lamps *

System which switches on the ve-
hicle's dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.

The  lighting  of  the  instruments  and
controls  (instrument  panel,  multi-
function  screen,  air  conditioning

control panel, ...) is independent of

this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.

Manual guide-me-home
lighting

The  temporary  lighting  of  dipped
headlamps  after  the  vehicle's  igni-
tion  has  been  switched  off  makes
the driver's exit easier when the light
is poor.

Switching on


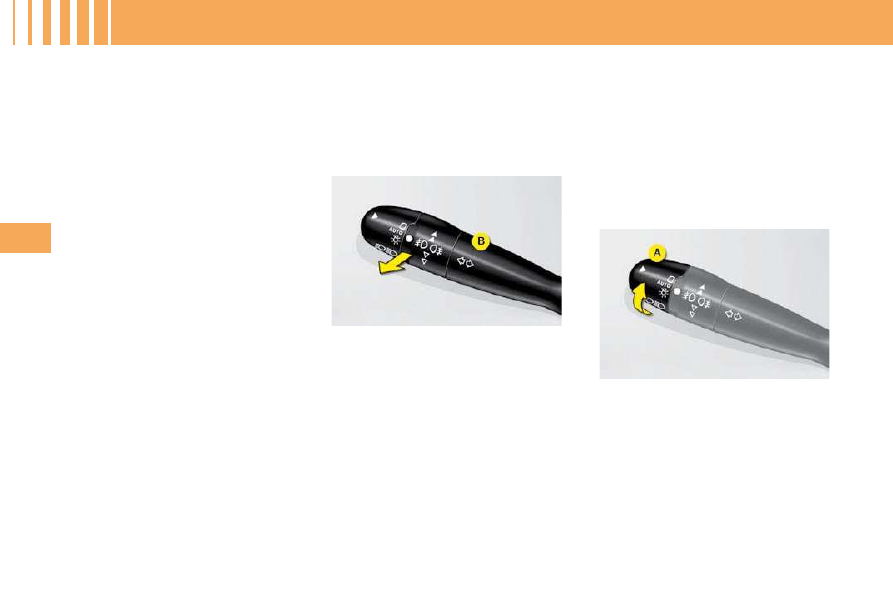

With the ignition off, "ﬂ ash" the

headlamps using the lighting
stalk B .



A second "headlamp ﬂ ash"

switches the function off again.

Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

The  manual  guide-me-home  light-
ing is also available by pressing the
lighting  button  on  the  remote  con-
trol  (refer  to  the  section  "Access  -

§ Remote control key").

Automatic lighting

The  sidelamps  and  dipped  head-
lamps are switched on automatically,
without any action on the part of the
driver,  when  a  low  level  of  external
light is detected or in certain cases of
activation of the windscreen wipers.
As  soon  as  the  brightness  returns

to a sufﬁ cient level or after the wind-

screen wipers are switched off, the
lamps are switched off automatically.

Activation

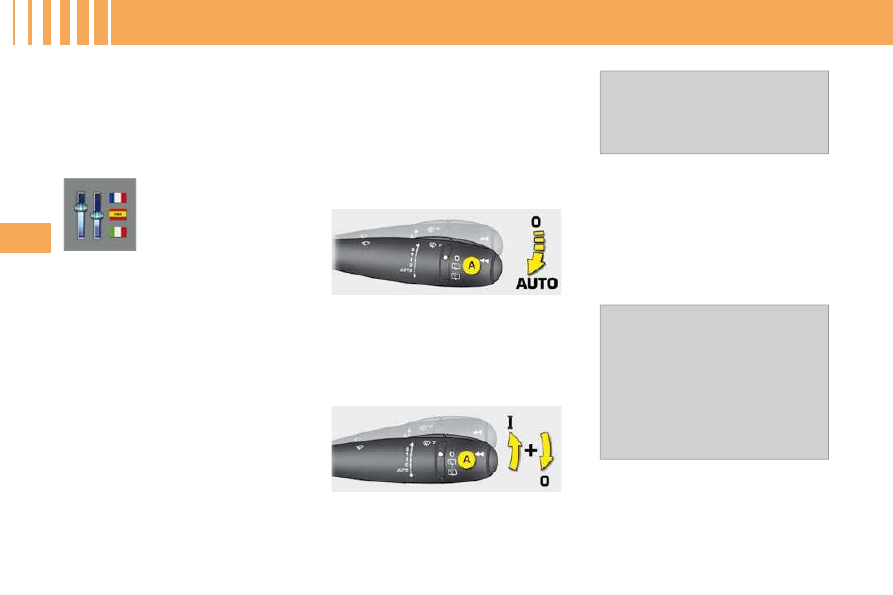

 Turn ring A to the "AUTO" posi-

tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.

Deactivation
 Turn ring A to a position other

than   "AUTO" .  Deactivation  is
accompanied  by  a  message  on
the multifunction screen.

In countries in which it is imposed by
regulations:
-

by default, this function is acti-
vated,

the sidelamps and the number
plate lamps are also switched on.

V I S I B I L I T Y

  Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing  provides  the  "guide-me-home"
lighting  with  the  following  additional
options:
   -

selection  of  the  lighting  duration
to  15,  30  or  60  seconds  in  the
vehicle  parameters  on  the  mul-

tifunction screen conﬁ guration

menu (in the case of the mono-
chrome screen A, the duration is

ﬁ xed),

automatic  activation  of  "guide-
me-home"  lighting  when  auto-
matic lighting is in operation.

Operating fault
In the event of a malfunction of the
brightness sensor, the lamps comes
on, a message appears on the multi-
function screen, accompanied by an
audible signal.
Consult a CITROËN dealer.

In fog or snow, the brightness

sensor may detect sufﬁ cient light.

Therefore,  the  lighting  will  not
come on automatically.
Do  not  cover  the  brightness  sen-
sor, linked with the rain sensor and
located  in  the  centre  of  the  wind-
screen  behind  the  interior  mirror;
the  associated  functions  would  no
longer be controlled.

EXTERIOR SIDE SPOTLAMPS

These illuminate:
-

the zones facing the driver’s and
passenger’s doors,

the zones forward of the door
mirrors and rearward of the front
doors.

Switching on

The side spotlamps come on:
-

when you unlock the vehicle or
press on the lighting button on
the remote control,

when you remove the key from
the ignition,

when you open a door,

when you use the remote control.

Switching off

They are timed to go out automati-
cally.

THE HEADLAMPS

To  avoid  dazzling  other  road  users,
the height of the halogen bulb head-
lamps  must  be  adjusted  according
to the load in the vehicle. To do this,

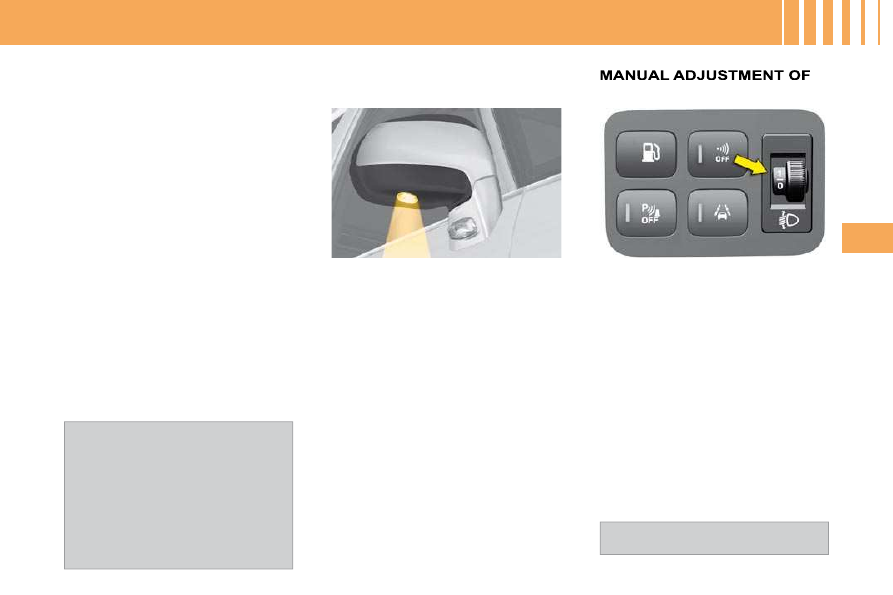

turn  the  control,  located  below  the
fascia to the left of the driver, to the
appropriate position:
  0.    1 or 2 people in the front seats.
  -.   3 people.
  1.   4 to 7 people.
  -.   Intermediate setting.
  2.    4 to 7 people + maximum autho-

rised loads.

-. Intermediate setting.
3. Driver + maximum authorised

loads.

Initial setting is position "0" .

V I S I B I L I T Y

AUTOMATIC ADJUSTMENT
OF THE DIRECTIONAL
HEADLAMPS

In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.

  If a malfunction occurs, this
warning  lamp  is  displayed
on  the  instrument  panel,
accompanied by an audible
signal  and  a  message  on
the multifunction screen.

The system then places your headlamps in
the lowest position.

Do not touch the xenon bulbs.
Consult a CITROËN dealer.

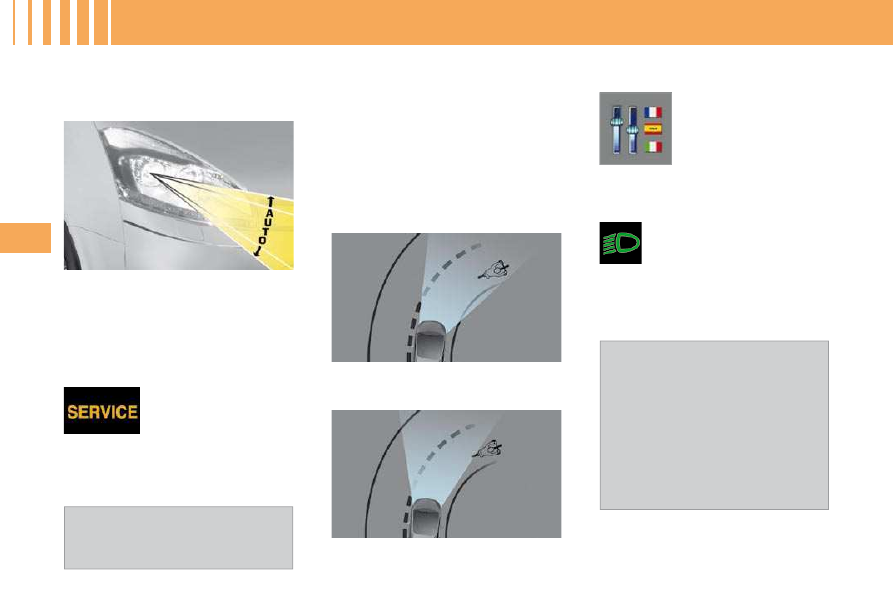

DIRECTIONAL LIGHTING

When  the  dipped  or  main  beam
headlamps are on, this function ena-
bles the  light beam  to follow  the  di-
rection of the road.
The  use  of  this  function,  coupled
with  the  xenon  headlamps  only,
considerably improves the quality of
your lighting when cornering.

with directional lighting

without directional lighting

Programming

The function is activat-
ed or deactivated via
the multifunction screen

conﬁ guration menu.

Operating fault

If a malfunction occurs, this

warning lamp ﬂ ashes on the

instrument panel, accompa-
nied by a message on the
multifunction screen.

Consult a CITROËN dealer.

When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
On vehicles ﬁ tted with daytime run-

ning lights, the function is activated if
the lighting stalk is in the  "AUTO"  or
"Dipped/main  beam  headlamps"
position. In position  "0" , the function
is not activated.

V I S I B I L I T Y

* According to country.

Daytime-running lamps *

System which switches on the ve-
hicle's dipped headlamps automati-
cally on starting.
This safety system makes the vehi-
cle more visible to other road users
during the day.

The  lighting  of  the  instruments  and
controls  (instrument  panel,  multi-
function  screen,  air  conditioning

control panel, ...) is independent of

this function. It is provided by the
automatic lighting mode or when the
lamps are switched on manually.

Manual guide-me-home
lighting

The  temporary  lighting  of  dipped
headlamps  after  the  vehicle's  igni-
tion  has  been  switched  off  makes
the driver's exit easier when the light
is poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting
stalk B .



A second "headlamp ﬂ ash"

switches the function off again.

Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

The  manual  guide-me-home  light-
ing is also available by pressing the
lighting  button  on  the  remote  con-
trol  (refer  to  the  section  "Access  -

§ Remote control key").

Automatic lighting

to a sufﬁ cient level or after the wind-

screen wipers are switched off, the
lamps are switched off automatically.

Activation
 Turn ring A to the "AUTO" posi-

tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.

Deactivation
 Turn ring A to a position other

than   "AUTO" .  Deactivation  is
accompanied  by  a  message  on
the multifunction screen.

In countries in which it is imposed by
regulations:
-

by default, this function is acti-
vated,

the sidelamps and the number
plate lamps are also switched on.

V I S I B I L I T Y

  Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing  provides  the  "guide-me-home"
lighting  with  the  following  additional
options:
   -

selection  of  the  lighting  duration
to  15,  30  or  60  seconds  in  the
vehicle  parameters  on  the  mul-

tifunction screen conﬁ guration

menu (in the case of the mono-
chrome screen A, the duration is

ﬁ xed),

automatic  activation  of  "guide-
me-home"  lighting  when  auto-
matic lighting is in operation.

In fog or snow, the brightness

sensor may detect sufﬁ cient light.

EXTERIOR SIDE SPOTLAMPS

These illuminate:
-

the zones facing the driver’s and
passenger’s doors,

the zones forward of the door
mirrors and rearward of the front
doors.

Switching on

The side spotlamps come on:
-

when you unlock the vehicle or
press on the lighting button on
the remote control,

when you remove the key from
the ignition,

when you open a door,

when you use the remote control.

Switching off

They are timed to go out automati-
cally.

THE HEADLAMPS

rised loads.

-. Intermediate setting.
3. Driver + maximum authorised

loads.

Initial setting is position "0" .

V I S I B I L I T Y

  Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing  provides  the  "guide-me-home"
lighting  with  the  following  additional
options:
   -

selection  of  the  lighting  duration
to  15,  30  or  60  seconds  in  the
vehicle  parameters  on  the  mul-

tifunction screen conﬁ guration

menu (in the case of the mono-
chrome screen A, the duration is

ﬁ xed),

automatic  activation  of  "guide-
me-home"  lighting  when  auto-
matic lighting is in operation.

In fog or snow, the brightness

sensor may detect sufﬁ cient light.

EXTERIOR SIDE SPOTLAMPS

These illuminate:
-

the zones facing the driver’s and
passenger’s doors,

the zones forward of the door
mirrors and rearward of the front
doors.

Switching on

The side spotlamps come on:
-

when you unlock the vehicle or
press on the lighting button on
the remote control,

when you remove the key from
the ignition,

when you open a door,

when you use the remote control.

Switching off

They are timed to go out automati-
cally.

THE HEADLAMPS

rised loads.

-. Intermediate setting.
3. Driver + maximum authorised

loads.

Initial setting is position "0" .

V I S I B I L I T Y

AUTOMATIC ADJUSTMENT
OF THE DIRECTIONAL
HEADLAMPS

In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.

  If a malfunction occurs, this
warning  lamp  is  displayed
on  the  instrument  panel,
accompanied by an audible
signal  and  a  message  on
the multifunction screen.

The system then places your headlamps in
the lowest position.

Do not touch the xenon bulbs.
Consult a CITROËN dealer.

DIRECTIONAL LIGHTING

with directional lighting

without directional lighting

Programming

The function is activat-
ed or deactivated via
the multifunction screen

conﬁ guration menu.

Operating fault

If a malfunction occurs, this

warning lamp ﬂ ashes on the

instrument panel, accompa-
nied by a message on the
multifunction screen.

Consult a CITROËN dealer.

ning lights, the function is activated if
the lighting stalk is in the  "AUTO"  or
"Dipped/main  beam  headlamps"
position. In position  "0" , the function
is not activated.

V I S I B I L I T Y

AUTOMATIC ADJUSTMENT
OF THE DIRECTIONAL
HEADLAMPS

In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.

  If a malfunction occurs, this
warning  lamp  is  displayed
on  the  instrument  panel,
accompanied by an audible
signal  and  a  message  on
the multifunction screen.

The system then places your headlamps in
the lowest position.

Do not touch the xenon bulbs.
Consult a CITROËN dealer.

DIRECTIONAL LIGHTING

with directional lighting

without directional lighting

Programming

The function is activat-
ed or deactivated via
the multifunction screen

conﬁ guration menu.

Operating fault

If a malfunction occurs, this

warning lamp ﬂ ashes on the

instrument panel, accompa-
nied by a message on the
multifunction screen.

Consult a CITROËN dealer.

ning lights, the function is activated if
the lighting stalk is in the  "AUTO"  or
"Dipped/main  beam  headlamps"
position. In position  "0" , the function
is not activated.

V I S I B I L I T Y

WIPER CONTROLS

System  for  selection  and  control  of
the  various  front  and  rear  wiping
modes for the elimination of rain and
cleaning.
The  vehicle's  front  and  rear  wipers
are designed to improve the driver's
visibility  progressively  according  to
the climatic conditions.

Programming

Various automatic wiper control
modes are also available according
to the following options:
-

automatic wiping for the wind-
screen wipers,

rear wiping on engaging reverse
gear.

Manual controls

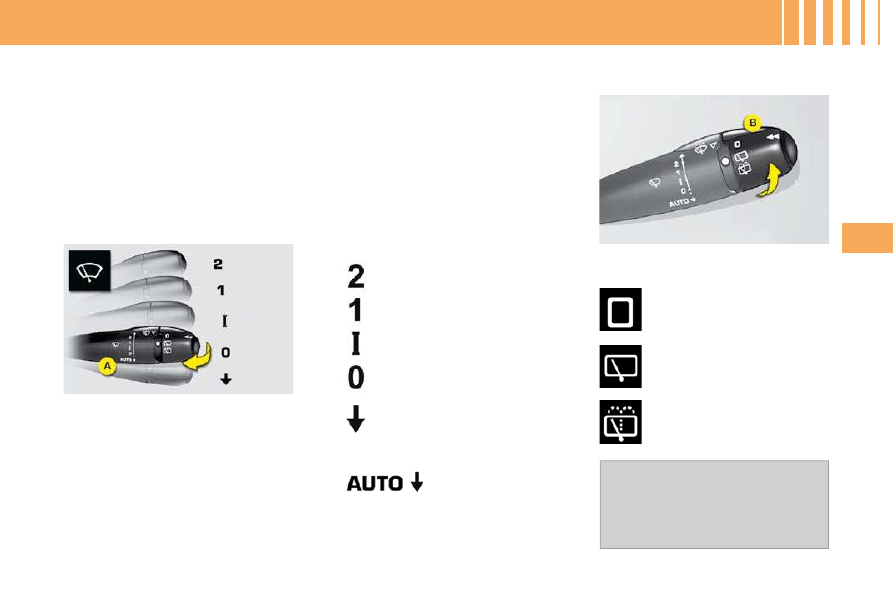

The wiper commands are issued di-
rectly by the driver by means of the
stalk A and the ring B .

Rear wiper

B. rear wiper selection ring:

park,

intermittent wipe,

wash-wipe (set duration).

fast (heavy rain),

normal (moderate rain),

intermittent (proportional to

the speed of the vehicle),

automatic,

then

single wipe (see

next page).

park,

single wipe (press down-

wards),

Windscreen wipers
A. wiping speed selection stalk:

If a signiﬁ cant accumulation of snow

or  ice  is  present,  or  when  using  a
tailgate  bicycle  carrier,  deactivate
the  automatic  rear  wiper  via  the

multifunction screen conﬁ guration

menu.

V I S I B I L I T Y

  Reverse gear
When  reverse  gear  is  engaged,  the
rear  wiper  will  come  into  operation  if
the windscreen wipers are operating.

Programming

The function is activat-
ed or deactivated via
the multifunction screen

conﬁ guration menu.
This function is activat-
ed by default.

Windscreen and headlamp
wash

 Pull the windscreen wiper stalk

towards you. The windscreen
wash

then

the

windscreen

wipers operate for a ﬁ xed period.

  If  the  dipped  headlamps  are  on,
the  headlamp  washers  operate  at
the same time.

Automatic windscreen wiping

The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected

(sensor behind the interior mirror),

adapting their speed to the intensity
of the rainfall.

This  is  controlled  manually  by  the
driver  by  pushing  stalk   A   to  the
"AUTO"  position.
It is accompanied by a message on
the multifunction screen.

The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk A downwards.

  Operating fault
If  an  automatic  wiping  malfunction
occurs, the wipers will operate in in-
termittent mode.
Have  it  checked  by  a  CITROËN
dealer.

Do not cover the rain sensor, linked
with  the  brightness  sensor  and
located  in  the  centre  of  the  wind-
screen behind the interior mirror.
Switch  off  the  automatic  wip-
ing  when  using  an  automatic  car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of  ice  before  activating  the  auto-
matic wiping.

Activation

Switching off

This  is  controlled  manually  by  the
driver  by  moving  stalk   A   upwards
and returning it to position  "0" .
It is accompanied by a message on
the multifunction screen.

V I S I B I L I T Y

Special position of
the windscreen wipers

In  the  minute  following  switching  off
of the ignition, any action on the stalk
positions  the  wipers  in  the  centre  of
the windscreen.
This  action  enables  you  to  position
the  wiper  blades  for  winter  parking,
cleaning or replacement.
To  park  the  wipers  after  this  has
been  done,  switch  on  the  ignition
and operate the stalk.

For optimum and lasting wiping of

the "ﬂ at-blade" wiper blades, it is

advisable to:
-

handle them with care,

clean them regularly using
soapy water,

change them approximately
every 6 months,

avoid using them to retain card-
board on the windscreen.

COURTESY LAMPS

Selection and control of the various
passenger compartment lamps.

1. Front courtesy lamp
2. Map reading lamps

Front courtesy lamp

In this position, the courtesy
lamp comes on gradually:

Permanently off.

Permanent lighting.

In permanent lighting mode, differ-
ent lighting times are available:
-

with the ignition off, approxi-
mately ten minutes,

in energy economy mode, ap-
proximately thirty seconds,

with the engine running, unlimited.

when the vehicle is unlocked,

when a door or the boot is
opened,

when the key is removed from
the ignition,

when the remote control locking
button is activated, in order to lo-
cate your vehicle.

It switches off gradually:
-

when the vehicle is locked,

when the ignition is switched on,

30 seconds after the last door is
closed.

Map reading lamps

 With the ignition on, press the

corresponding switch.

Glass panoramic roof
courtesy lamps

These courtesy lamps have two op-
erating modes:
-

automatic lighting when a door is
opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,

permanent lighting.

Opening the boot switches on the
third row courtesy lamp and the boot
lamps.

V I S I B I L I T Y

  Reverse gear
When  reverse  gear  is  engaged,  the
rear  wiper  will  come  into  operation  if
the windscreen wipers are operating.

Programming

The function is activat-
ed or deactivated via
the multifunction screen

conﬁ guration menu.
This function is activat-
ed by default.

Windscreen and headlamp
wash

 Pull the windscreen wiper stalk

towards you. The windscreen
wash

then

the

windscreen

wipers operate for a ﬁ xed period.

  If  the  dipped  headlamps  are  on,
the  headlamp  washers  operate  at
the same time.

Automatic windscreen wiping

The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected

(sensor behind the interior mirror),

adapting their speed to the intensity
of the rainfall.

This  is  controlled  manually  by  the
driver  by  pushing  stalk   A   to  the
"AUTO"  position.
It is accompanied by a message on
the multifunction screen.

The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk A downwards.

  Operating fault
If  an  automatic  wiping  malfunction
occurs, the wipers will operate in in-
termittent mode.
Have  it  checked  by  a  CITROËN
dealer.

Activation

Switching off

This  is  controlled  manually  by  the
driver  by  moving  stalk   A   upwards
and returning it to position  "0" .
It is accompanied by a message on
the multifunction screen.

V I S I B I L I T Y

Special position of
the windscreen wipers

For optimum and lasting wiping of

the "ﬂ at-blade" wiper blades, it is

advisable to:
-

handle them with care,

clean them regularly using
soapy water,

change them approximately
every 6 months,

avoid using them to retain card-
board on the windscreen.

COURTESY LAMPS

Selection and control of the various
passenger compartment lamps.

1. Front courtesy lamp
2. Map reading lamps

Front courtesy lamp

In this position, the courtesy
lamp comes on gradually:

Permanently off.

Permanent lighting.

In permanent lighting mode, differ-
ent lighting times are available:
-

with the ignition off, approxi-
mately ten minutes,

in energy economy mode, ap-
proximately thirty seconds,

with the engine running, unlimited.

when the vehicle is unlocked,

when a door or the boot is
opened,

when the key is removed from
the ignition,

when the remote control locking
button is activated, in order to lo-
cate your vehicle.

It switches off gradually:
-

when the vehicle is locked,

when the ignition is switched on,

30 seconds after the last door is
closed.

Map reading lamps

 With the ignition on, press the

corresponding switch.

Glass panoramic roof
courtesy lamps

These courtesy lamps have two op-
erating modes:
-

automatic lighting when a door is
opened or when the front cour-
tesy lamp is in the "permanent
lighting" position,

permanent lighting.

Opening the boot switches on the
third row courtesy lamp and the boot
lamps.

V I S I B I L I T Y

AMBIANCE LIGHTING PACK

Ambiance lighting

You can adjust the lighting by pressing
on the control  A .
This  activates  the  light  sources
which are located as follows:
   -

on the sides of the front and rear
doors,

on the front and rear interior door
handles,

on the dashboard,

at the roof.

Operation

The control A :
-

activates/deactivates the ambiance
lighting,

selects the lighting intensity.

The adjustment is memorised.

To increase the lighting intensity:
 Press a few times on the right

of the control A to obtain your
brightness preference.

To decrease the lighting intensity:
 Press a few times on the left

of the control A to obtain your
brightness preference.

Courtesy lighting

The  automatic  courtesy  lighting
consists  of  the  footwell  lamps,  the
interior  lamps  and  the  ambiance
light sources.

Front door pockets with
automatic lighting

The lighting for the door pockets
comes on automatically when you
place a hand inside one of the com-
partments.
It goes off after a few seconds when
you take your hand away.

Reading lamps on front seat
backrests

There  are  spotlamps  incorporated
in  the  backrests  of  the  front  seats,
behind  the  rear  tables.  They  are
only  accessible  when  the  table  is
lowered.

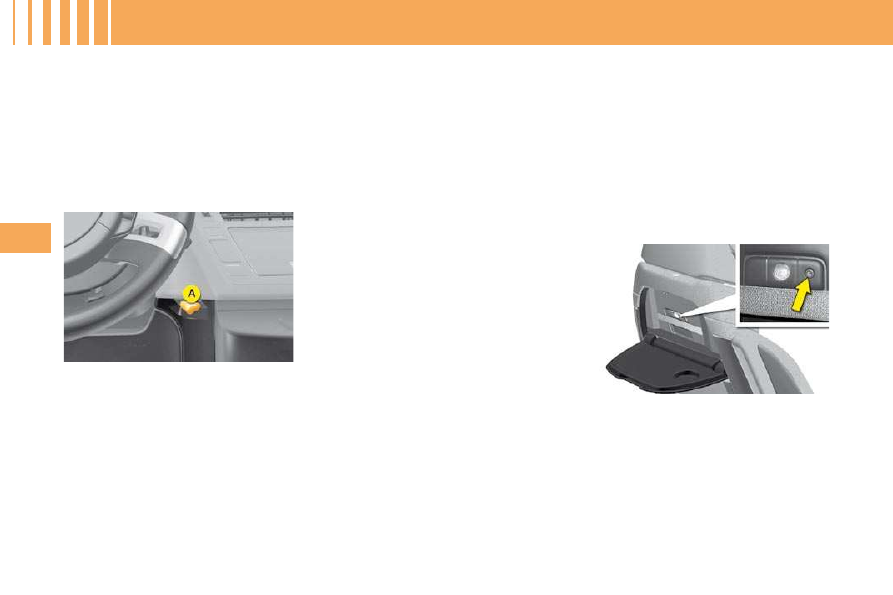

      Press  the  "On/Off"  button  to

switch the reading lamp on or off.

System providing warm and convivial
lighting which casts a gentle orange-
tinted light.
This lighting is available at night or
in conditions of poor daylight.

F I T T I N G S

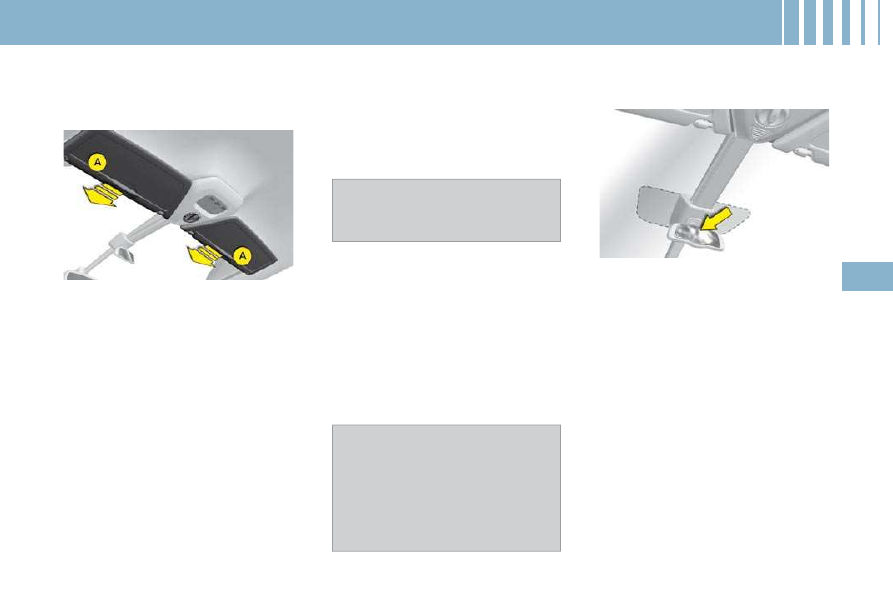

SLIDING SUN VISOR

Sliding blinds

Visor rails

The blinds are extended on the sun
visor rails.
Fold the visor downwards, to protect
against dazzle to the face.
If  dazzle  is  coming  from  the  side
windows,  detach  the  visor  from  its
housing  above  the  centre  of  the
windscreen and pivot it to the side.

Do not attach or suspend heavy
objects on the slide rail of the sun
blind.

TOLL CARD/CAR PARK
TICKET WINDOWS

Facility for afﬁ xing toll cards and/or

car park tickets.
These windows are located on each
side of the base of the child moni-
toring mirror.
They are two non-reﬂ ective areas of

the athermic windscreen.

CHILD MONITORING
MIRROR

The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists

of a reﬂ ective layer, which also

blocks certain radio-electric signals
(toll card payments, etc.).

  A  child  monitoring  mirror  is  installed
above  the  interior  rear  view  mir-
ror.  This  allows  you  to  monitor  the
vehicle’s  rear  passengers,  or  it  can
facilitate  conversation  between  the
front and rear passengers without the
need to move the rear view mirror.
It  can  be  folded  away  to  eliminate
dazzle.

Sliding  blinds  are  provided  for  your
protection  against  bright  sunlight.
They can be adjusted manually.
      Slide the blind on the visor to the

desired position by pushing the
area A .

The visors are ﬁ tted with a locking sys-

tem on their central housing when the
blind is rolled up. To remove the visor
from its central housing or reposition it,
it must be in a vertical position.

F I T T I N G S

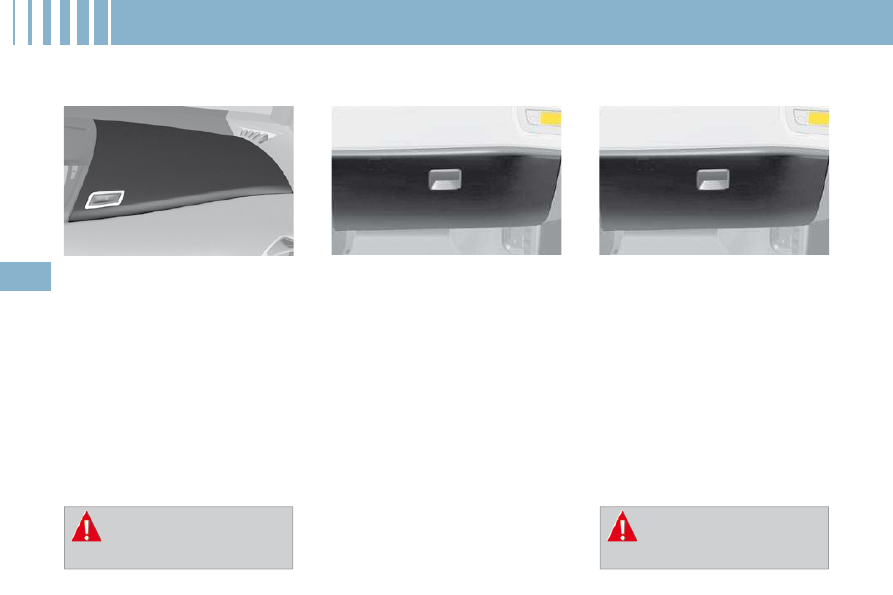

UPPER STORAGE AREA

  There  are  large  storage  compart-
ments  at  the  top  of  the  dashboard,
one on the driver's side and one on
the passenger's side.
      To open, press the button at the

bottom corner.

 To close, lower the lid fully until it

clicks.

ILLUMINATED GLOVE BOX

This has areas for storing a bottle of
water, the vehicle's handbook pack,
etc.
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...
 To open the glove box, raise the

handle and lower the lid.

The lamp comes on automatically
when the lid is opened.

REFRIGERATED GLOVEBOX

  It may be refrigerated, depending on
your vehicle’s equipment, by a ven-
tilation  duct  that  can  be  closed  off
manually.
It  is  directly  linked  to  the  vehicle’s  air
conditioning  system,  being  supplied
with  fresh  air  whatever  the  require-
ments of the passenger compartment.
The  refrigeration  of  your  glovebox
only  operates  when  the  engine  is
running and the air conditioning is on.

For reasons of safety, the
glovebox

should

remain

closed when the vehicle is

moving.

For reasons of safety, the
upper

storage

compart-

ments should be kept closed
when the vehicle is moving.

Citroen C4 Picasso Dag (2009 year). Instruction - part 7
