Citroen C4 Picasso Dag (2009 year). Instruction

F I T T I N G S

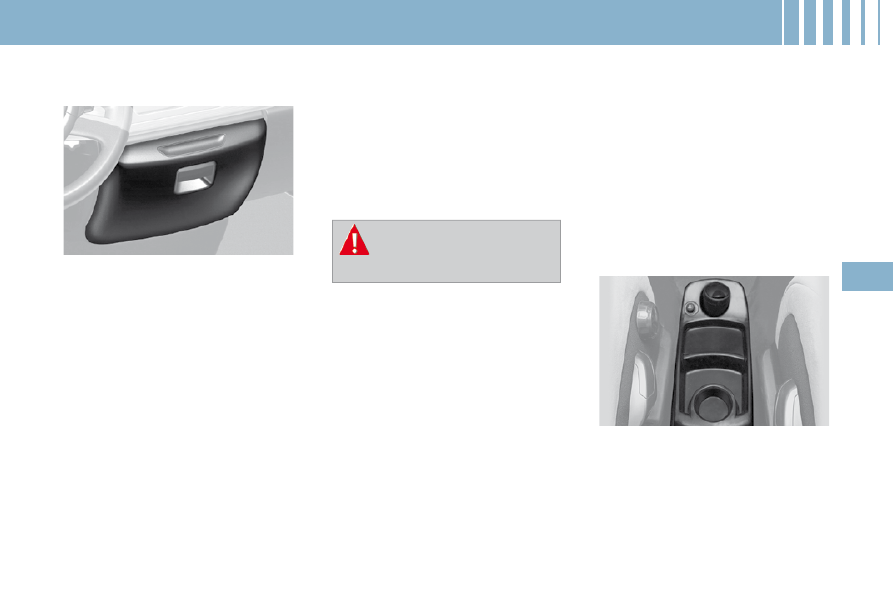

REFRIGERATED STORAGE

CENTRE CONSOLE

The centre console contains:
-

two cup-holders,

two storage compartments,

either a 12 V accessories socket
(Maximum power: 120 W); this is
operational when the ignition is
on.

There may be an additional 12 V
accessories socket in the boot,

or a USB port.

For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.

SMOKER'S KIT

  This  kit  consists  of  a  lighter  and  a
removable ashtray.
These  are  located  on  the  centre
console. The removable ashtray can
be stored in a can holder.
      To use the lighter, press it in and

wait a few seconds until it pops
out automatically.

  Vehicles with an  electronic gearbox
or  an   automatic  gearbox   possess
an  additional  refrigerated  storage
compartment,  situated  at  the  centre
of the dashboard.
      To  open,  pull  the  handle  and

lower the lid.

The  refrigerated  storage  has  auto-
matic lighting.
It  can  accommodate  for  example
a  1.5  litre  bottle  and  two  0.5  litre
bottles.
Two cup-holders are available when
the lid is open.

The refrigerated storage has a venti-
lation duct. It is directly linked to the
vehicle’s  air  conditioning  system,
and  is  supplied  with  fresh  air  what-
ever  the  requirements  of  the  pas-
senger compartment.
The refrigeration of this storage area
only operates when the engine is run-
ning and the air conditioning is on.

F I T T I N G S

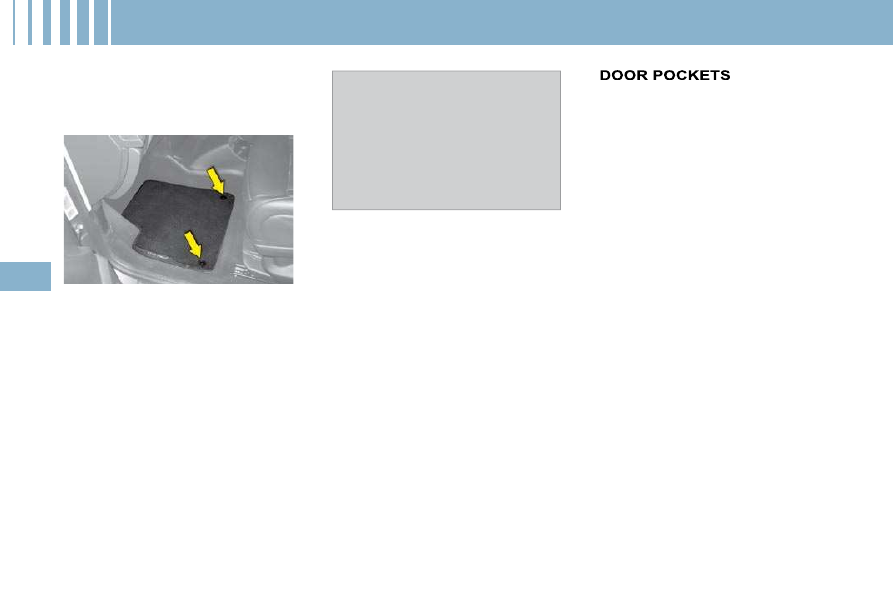

MATS

Removable component which pro-
tects the carpet against exterior dirt.

Fitting

When ﬁ tting the mat for the ﬁ rst time,

on the driver's side, use only the ﬁ x-

ings provided in the wallet attached.
The other mats are simply placed on
the carpet.

Removal

To remove the mat on the driver's side:
 move the seat as far back as possible,


unclip the ﬁ xings,

 remove the mat.

Refitting

To reﬁ t the mat on the driver's side:
 position the mat correctly,


reﬁ t the ﬁ xings by pressing,

 check that the mat is secured

correctly.

To avoid any risk of jamming of the
pedals:
-

only use mats which are suited

to the ﬁ xings already present in

the vehicle; it is imperative that
these are used,

- never ﬁ t one mat on top of an-

other.

Front door

The  front  door  pockets  can  hold  ob-
jects equivalent in volume to a 1.5 litre
bottle.
They  may  have  their  own  lighting,
coming  on  automatically  when  your
hand approaches.
This  lighting  goes  out  automatically
after  a  few  moments  when  your
hand is taken away.

Rear door

The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.

USB BOX

  This  connection  box,  consisting  of
a  JACK  socket  and  a  USB  port,  is
located on the centre console.
It  permits  the  connection  of  portable
equipment,  such  as  a  digital  audio
player of the iPod

or USB stick type.

It reads the audio ﬁ le formats which

are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
You can manage these ﬁ les using

the  steering  wheel  controls  or  the
audio  equipment  control  panel  and
display  them  on  the  multifunction
screen.

When it is in use, the portable equip-
ment charges automatically.

  For  further  details  concerning  the
use  of  this  equipment,  refer  to  the
"Audio and Telematics" section.

F I T T I N G S

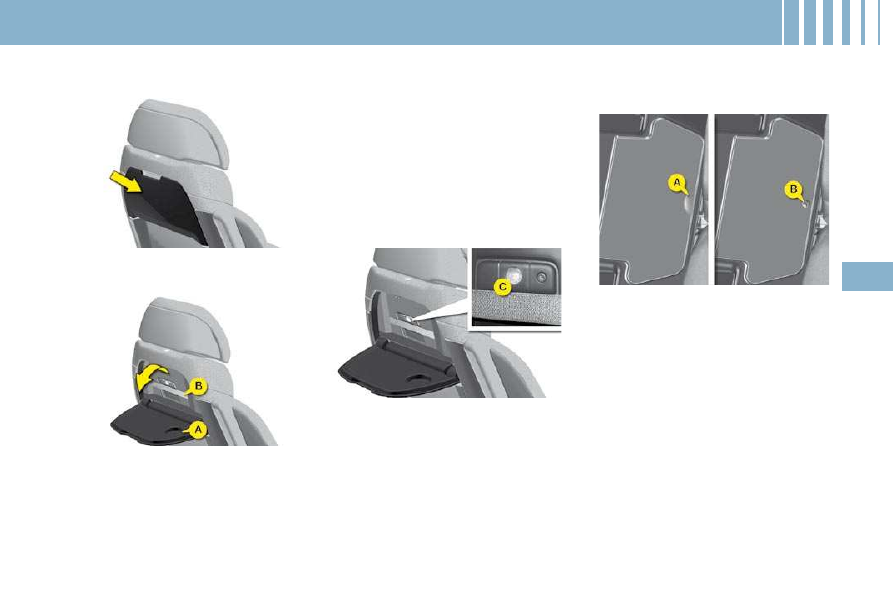

AIRCRAFT-STYLE REAR
TABLES

Rear table stowed

Rear table opened

The backrests of the front seats are

ﬁ tted with aircraft-style tables. These

incorporate  a  can-holder   A   and  a
retaining  strap   B ,  for  the  placing  of
objects.

 Pull the table downwards to open.
 To restow the table, raise it until

the latch locks.

For safety reasons, these collapse
downwards if excessive pressure is
exerted.

Reading lamps  C  may be incorporated
in  the  front  seat  backrests,  behind
the tables. These light the surface of
the tables without disturbing the other
passengers.
They  are  accessible  only  while  the
table is down.
   

Press on the "on/off" button to

turn the lamp on or off.

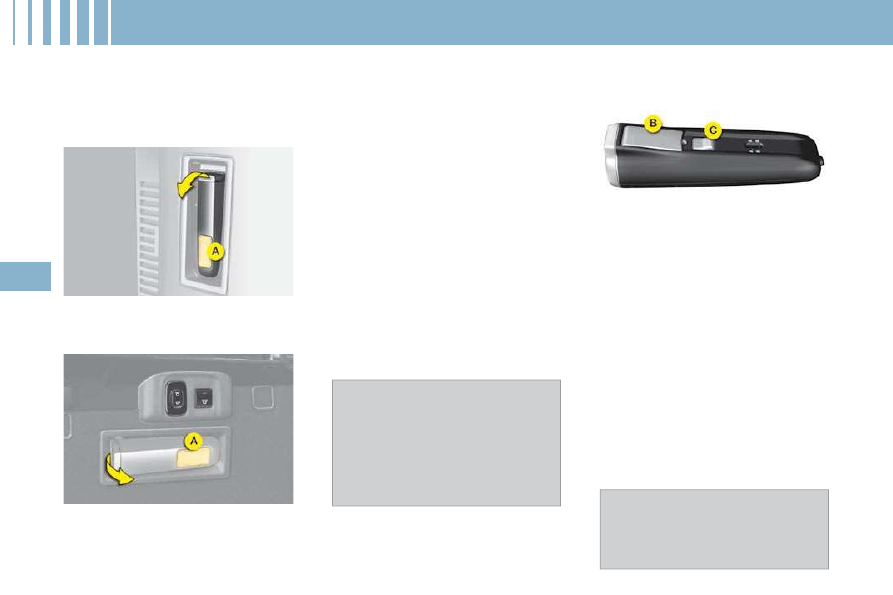

STORAGE UNDER THE
SECOND ROW FOOTWELL

Depending on the conﬁ guration, the

vehicle has one or two storage com-
partments under the footwell, locat-

ed between the seats of the ﬁ rst and

second rows. They can be accessed

via clipped ﬂ aps with a handle  A .
The  compartment  on  the  left-hand
side  may  contain  the  temporary
puncture  repair  kit  and  the  tool  kit
may  be  stored  in  the  compartment
on  the  right-hand  side.  In  this  case

the ﬂ ap is secured by means of a

screw  B . To gain access to the com-
partment,  turn  the  screw  a  quarter
turn anticlockwise using a coin.
On  vehicles  ﬁ tted  with  pneumatic

suspension, the left-hand ﬂ ap is

locked.

Individual reading lamps

F I T T I N G S

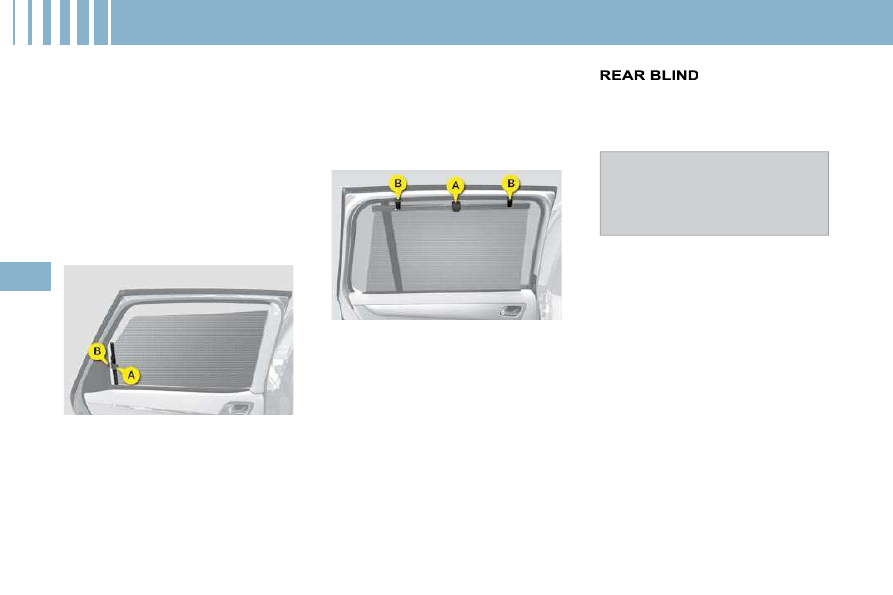

SIDE BLINDS
(C4 PICASSO)

Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.

 Pull on the tab A and anchor the

blind on the hook B .

SIDE BLINDS
(GRAND C4 PICASSO)

Fitted on the 2nd and 3rd row rear
windows, these protect young children
from the sun's rays.

Second row

 Pull on the tab A and anchor the

blind on the hooks B .

Third-row

The blinds are incorporated in the
third-row trim panels.
 Pull on the tab and anchor the

blind on the hooks.

(GRAND C4 PICASSO)

 Pull on the tab and anchor the

blind on the hooks.

  Do  not  attach  or  suspend  heavy
objects  in  the  environs  of  the  sun
visors (blind housings and hooks...).

THIRD ROW STORAGE

  Third-row  passengers  may  have
storage  pockets  in  the  side  panel
and  each  of  them  will  have  a  cup-
holder (7 seater model).

F I T T I N G S

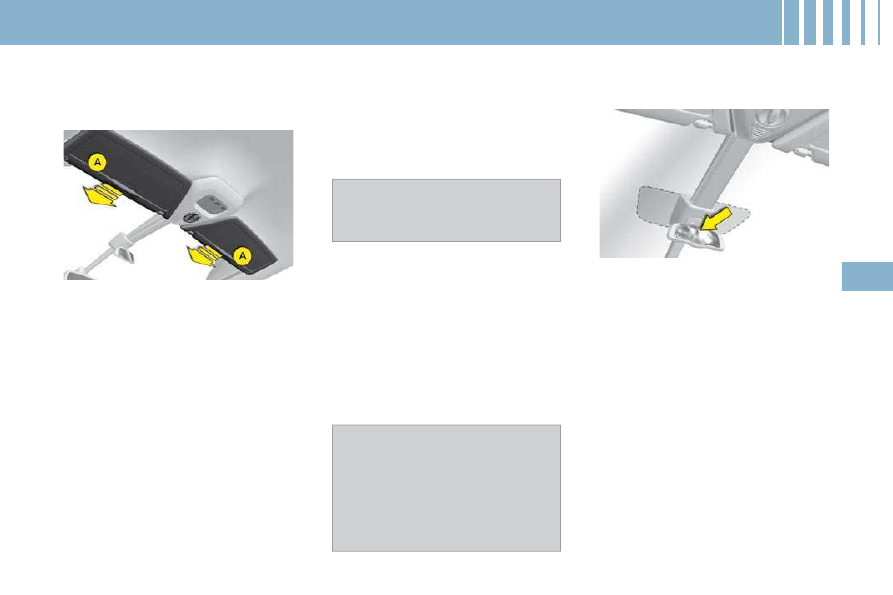

SLIDING SUN VISOR

Sliding blinds

Visor rails

The blinds are extended on the sun
visor rails.
Fold the visor downwards, to protect
against dazzle to the face.
If  dazzle  is  coming  from  the  side
windows,  detach  the  visor  from  its
housing  above  the  centre  of  the
windscreen and pivot it to the side.

Do not attach or suspend heavy
objects on the slide rail of the sun
blind.

TOLL CARD/CAR PARK
TICKET WINDOWS

Facility for afﬁ xing toll cards and/or

car park tickets.
These windows are located on each
side of the base of the child moni-
toring mirror.
They are two non-reﬂ ective areas of

the athermic windscreen.

CHILD MONITORING
MIRROR

The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists

of a reﬂ ective layer, which also

blocks certain radio-electric signals
(toll card payments, etc.).

  A  child  monitoring  mirror  is  installed
above  the  interior  rear  view  mir-
ror.  This  allows  you  to  monitor  the
vehicle’s  rear  passengers,  or  it  can
facilitate  conversation  between  the
front and rear passengers without the
need to move the rear view mirror.
It  can  be  folded  away  to  eliminate
dazzle.

Sliding  blinds  are  provided  for  your
protection  against  bright  sunlight.
They can be adjusted manually.
      Slide the blind on the visor to the

desired position by pushing the
area A .

The visors are ﬁ tted with a locking sys-

tem on their central housing when the
blind is rolled up. To remove the visor
from its central housing or reposition it,
it must be in a vertical position.

F I T T I N G S

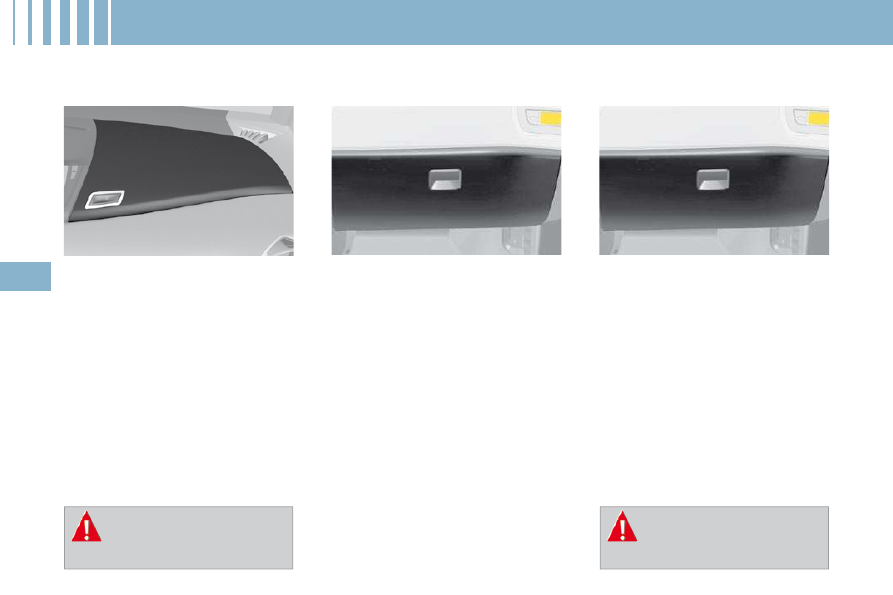

UPPER STORAGE AREA

  There  are  large  storage  compart-
ments  at  the  top  of  the  dashboard,
one on the driver's side and one on
the passenger's side.
      To open, press the button at the

bottom corner.

 To close, lower the lid fully until it

clicks.

ILLUMINATED GLOVE BOX

This has areas for storing a bottle of
water, the vehicle's handbook pack,
etc.
Its lid has areas for storing a pen, a
pair of spectacles, tokens, cards, a
can, fragrance cartridges...
 To open the glove box, raise the

handle and lower the lid.

The lamp comes on automatically
when the lid is opened.

REFRIGERATED GLOVEBOX

  It may be refrigerated, depending on
your vehicle’s equipment, by a ven-
tilation  duct  that  can  be  closed  off
manually.
It  is  directly  linked  to  the  vehicle’s  air
conditioning  system,  being  supplied
with  fresh  air  whatever  the  require-
ments of the passenger compartment.
The  refrigeration  of  your  glovebox
only  operates  when  the  engine  is
running and the air conditioning is on.

For reasons of safety, the
glovebox

should

remain

closed when the vehicle is

moving.

For reasons of safety, the
upper

storage

compart-

ments should be kept closed
when the vehicle is moving.

F I T T I N G S

REFRIGERATED STORAGE

CENTRE CONSOLE

The centre console contains:
-

two cup-holders,

two storage compartments,

either a 12 V accessories socket
(Maximum power: 120 W); this is
operational when the ignition is
on.

There may be an additional 12 V
accessories socket in the boot,

or a USB port.

For reasons of safety, the
refrigerated storage compart-
ment should be kept closed
when the vehicle is moving.

SMOKER'S KIT

wait a few seconds until it pops
out automatically.

lower the lid.

The  refrigerated  storage  has  auto-
matic lighting.
It  can  accommodate  for  example
a  1.5  litre  bottle  and  two  0.5  litre
bottles.
Two cup-holders are available when
the lid is open.

F I T T I N G S

MATS

Removable component which pro-
tects the carpet against exterior dirt.

Fitting

When ﬁ tting the mat for the ﬁ rst time,

on the driver's side, use only the ﬁ x-

ings provided in the wallet attached.
The other mats are simply placed on
the carpet.

Removal

To remove the mat on the driver's side:
 move the seat as far back as possible,


unclip the ﬁ xings,

 remove the mat.

Refitting

To reﬁ t the mat on the driver's side:
 position the mat correctly,


reﬁ t the ﬁ xings by pressing,

 check that the mat is secured

correctly.

To avoid any risk of jamming of the
pedals:
-

only use mats which are suited

to the ﬁ xings already present in

the vehicle; it is imperative that
these are used,

- never ﬁ t one mat on top of an-

other.

Front door

Rear door

The rear door pockets can hold objects
equivalent in volume to a 0.5 litre bottle.

USB BOX

or USB stick type.

It reads the audio ﬁ le formats which

are transmitted to your audio equip-
ment and played via the vehicle's
speakers.
You can manage these ﬁ les using

the  steering  wheel  controls  or  the
audio  equipment  control  panel  and
display  them  on  the  multifunction
screen.

When it is in use, the portable equip-
ment charges automatically.

  For  further  details  concerning  the
use  of  this  equipment,  refer  to  the
"Audio and Telematics" section.

F I T T I N G S

AIRCRAFT-STYLE REAR
TABLES

Rear table stowed

Rear table opened

The backrests of the front seats are

ﬁ tted with aircraft-style tables. These

incorporate  a  can-holder   A   and  a
retaining  strap   B ,  for  the  placing  of
objects.

 Pull the table downwards to open.
 To restow the table, raise it until

the latch locks.

For safety reasons, these collapse
downwards if excessive pressure is
exerted.

Press on the "on/off" button to

turn the lamp on or off.

STORAGE UNDER THE
SECOND ROW FOOTWELL

Depending on the conﬁ guration, the

vehicle has one or two storage com-
partments under the footwell, locat-

ed between the seats of the ﬁ rst and

second rows. They can be accessed

the ﬂ ap is secured by means of a

screw  B . To gain access to the com-
partment,  turn  the  screw  a  quarter
turn anticlockwise using a coin.
On  vehicles  ﬁ tted  with  pneumatic

suspension, the left-hand ﬂ ap is

locked.

Individual reading lamps

F I T T I N G S

SIDE BLINDS
(C4 PICASSO)

Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.

 Pull on the tab A and anchor the

blind on the hook B .

SIDE BLINDS
(GRAND C4 PICASSO)

Fitted on the 2nd and 3rd row rear
windows, these protect young children
from the sun's rays.

Second row

 Pull on the tab A and anchor the

blind on the hooks B .

Third-row

The blinds are incorporated in the
third-row trim panels.
 Pull on the tab and anchor the

blind on the hooks.

(GRAND C4 PICASSO)

 Pull on the tab and anchor the

blind on the hooks.

  Do  not  attach  or  suspend  heavy
objects  in  the  environs  of  the  sun
visors (blind housings and hooks...).

THIRD ROW STORAGE

  Third-row  passengers  may  have
storage  pockets  in  the  side  panel
and  each  of  them  will  have  a  cup-
holder (7 seater model).

F I T T I N G S

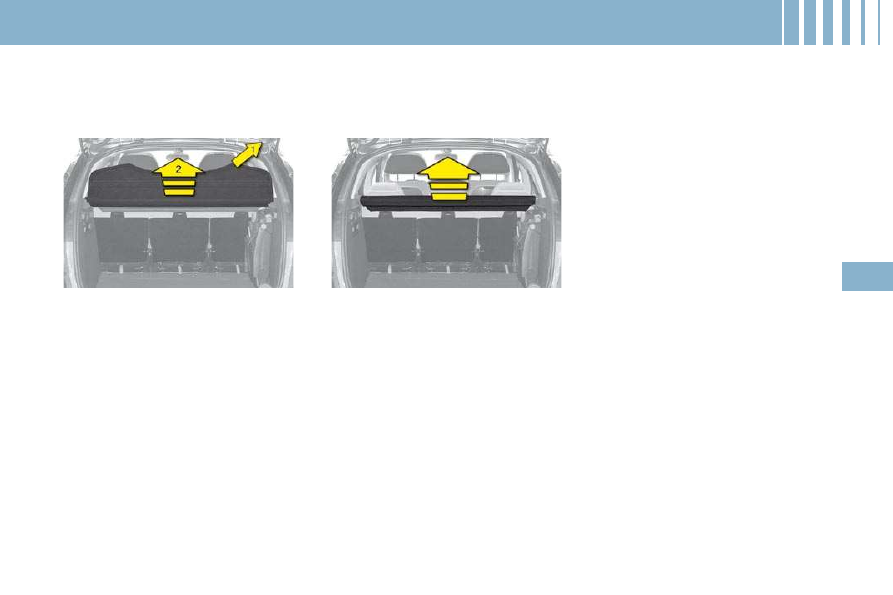

LUGGAGE COVER
(C4 PICASSO)

This is in two parts.

Rear shelf

  Removal
      Unhook the cords.
     Push  upwards,  then  lift  on  each

side of the luggage cover.

Front shelf

  Removal
      First remove the rear shelf.
     Push  upwards,  then  lift  on  each

side.

Fitting
 Move the luggage cover to its

slots and push ﬁ rmly down.

 So that the luggage cover will

rise  with  the  tailgate,  take  the
cords  and  attach  them  on  the
tailgate.

Reﬁ tting


Direct the ﬂ ap downwards.

 Offer the luggage cover to its

mountings and push ﬁ rmly

down.

100

F I T T I N G S

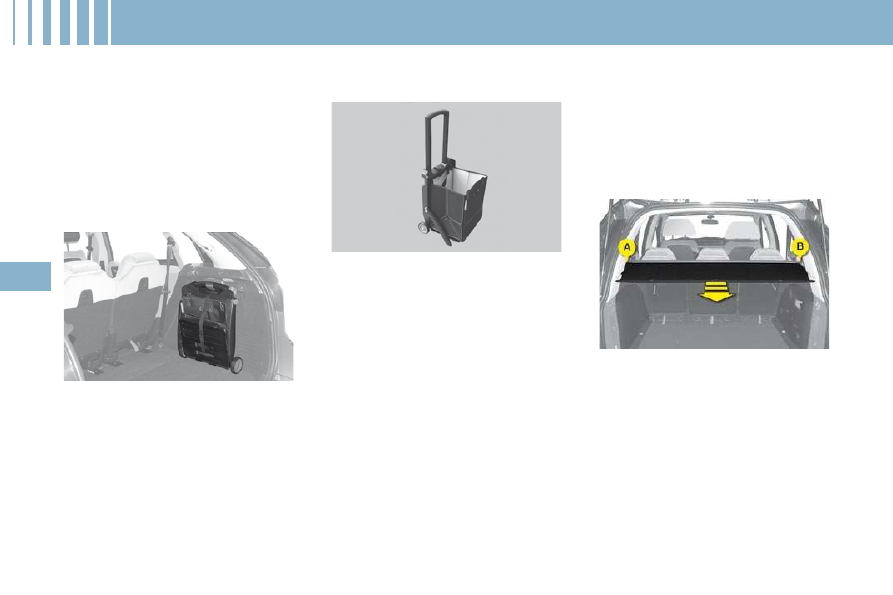

MODUBOX (C4 PICASSO)

Equipment  for  use  both  inside  the
vehicle  and  away  from  the  vehicle.
It  is  composed  of  a  shopping  trol-

ley and a ﬂ exible bag (isotherm on

some  versions)  which  can  be  used
independently of each other depen-
ding  on  your  needs  (by  detaching
the  fastenings  on  each  side  at  the
top and bottom).

To use

 Unhook the red strap to free the

Modubox.

 Unhook the black strap then

press  on  the  round  buttons
on  either  side  of  the  Modubox
simultaneously to deploy it.

Use of the Modubox outside
the vehicle

Stowage inside the vehicle

 Perform

the

operations

reverse to fold and stow inside
the vehicle.

 If you have used your Modubox

away from the vehicle, take care
to  reposition  it  correctly  in  the
housings  provided  for  this  pur-
pose.

BAG HOOK

LUGGAGE COVER BLIND
(GRAND C4 PICASSO)

Position 1

5-seat conﬁ guration; installed be-

hind the second-row seats, with the
third-row seats folded away.

 Press on the recess on the left

hand side of the Modubox to
raise (or lower) the handle.

Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.

Installing the roller
 Position the left-hand end of the

blind roller in notch A .

 Compress the right-hand end of

the roller and place it in notch B .

 Unroll the blind until it reaches

the boot pillars.

 Insert the guides of the blind into

the rails on the pillars.

Removing the roller
 Carry out these operations in

reverse order.

101

F I T T I N G S

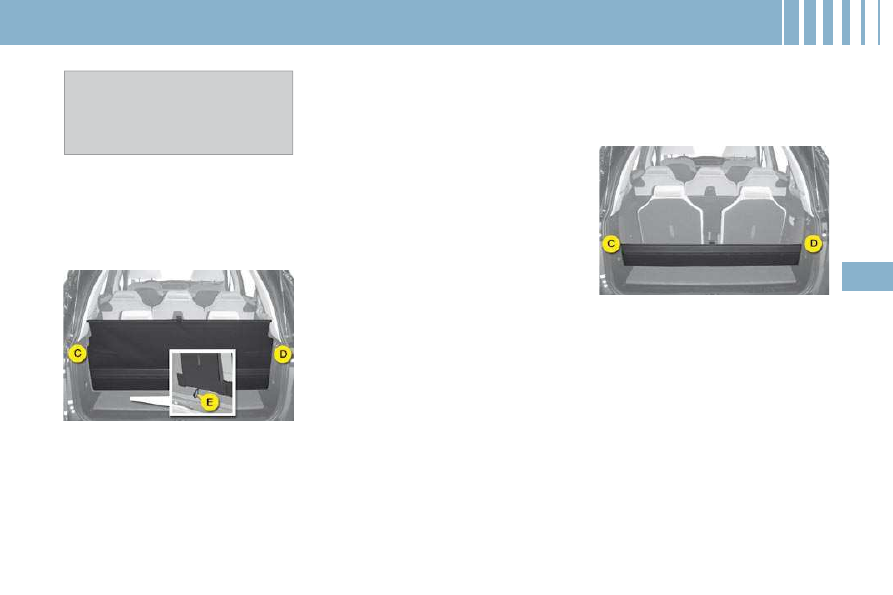

The roller has a moving ﬂ ap to

avoid interference with the second-
row passengers when the seats
are in the "reclined" position.

 Engage the lug on the left of the

roller in notch C .

 Pass the right-hand side above

the third-row armrest.

 Engage the lug in notch D .
 Pull the seat belt(s) so that they

will deploy without locking.

 Unroll the blind and engage the

guides into the rails on the pillars.

 Lock the seat(s) in position.

Installing the roller
 Roll up the blind, then remove

the roller from its initial position.

 Position the roller, with the blind

pull bar uppermost, ﬂ ap down-

ward.

 Fold the concertina boards.

Removing the roller


Push the ﬂ ap towards the seat

backrest.

 Lift the concertina board by grab-

bing it at the side, then position it
vertically.

 Unlock the seat by pulling the

strap E .

 Push the backrest towards the front.
 Proceed in reverse order to in-

stalling.

Position 3

7-seat conﬁ guration; stowed behind

the third row seats when these are
folded away.

  Installing the roller
      Fold the concertina boards.
     Position the roller, with the blind

pull bar uppermost, ﬂ ap down-

ward.

 Engage the lug on the left of the

roller in notch C .

 Pass the right-hand side above

the third-row armrest.

 Engage the lug in notch D .

Removing the roller
 Proceed in reverse order to in-

stalling.

Position 2

7-seat conﬁ guration; installed be-

hind the third-row seats when these
are folded away. This position con-
ceals objects stowed in the boot
from outside view.

The  blind  can  only  be  stored  when
the seats are folded away.
You  can  position  the  concertina
board  vertically  to  lodge  a  bulkier
object in the boot well.

102

F I T T I N G S

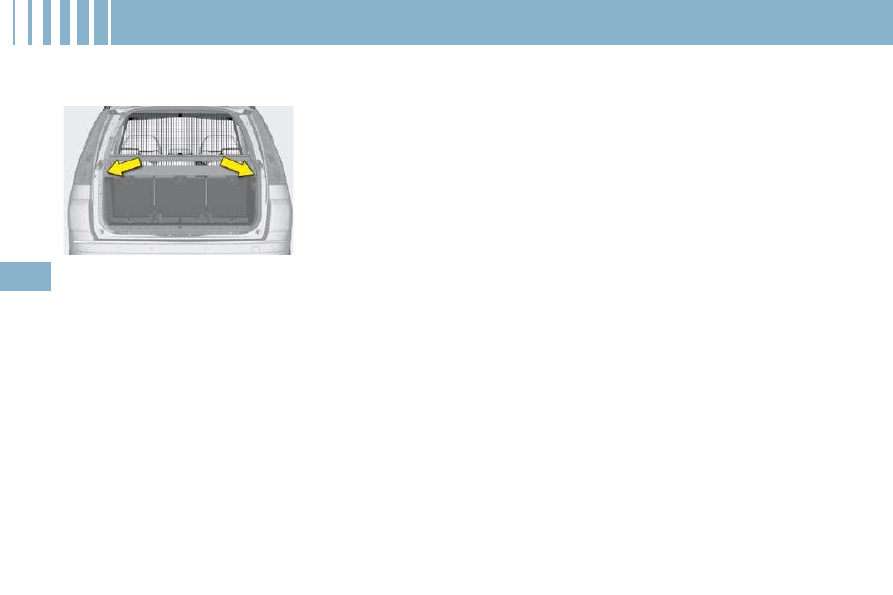

HIGH CARGO NET
(GRAND C4 PICASSO)

  This  enables  you  to  maximise  the
vehicle’s loadspace.
It  retains  objects,  preventing  them
from sliding towards the front of the
passenger compartment.
  You insert it under the roller of the
luggage-cover  blind,  securing  it
on the third-row side mouldings.

Position 1

5-seat conﬁ guration; installed behind

the second row.

Installing the roller
 Remove the protective covers

located under the blind roller
notches.

 Position the roller under that of

the luggage-cover blind.



Raise the ﬂ ap on the blind, posi-

tioning it on top of the blind.

 Deploy the net, passing it be-

tween the rollers and the seats.

 Pull the net upwards.
 Anchor it to the roof by means of

the ﬁ xing points (after you have

removed their covers).

Removing the roller
 Perform these operations in

reverse order.

Position 2

2-seat conﬁ guration; installed behind

the ﬁ rst row.

Removing the roller
 Carry out these operations in

reverse order.

Installing the roller
 With the second-row seats folded

away, remove the covers of the

Isoﬁ x anchoring points located on

the seat backrests.



Secure the roller on the Isoﬁ x

anchoring points.

 Deploy the net and pull it upwards.
 Anchor it to the roof by means of

the ﬁ xing points (after you have

removed their covers).

103

F I T T I N G S

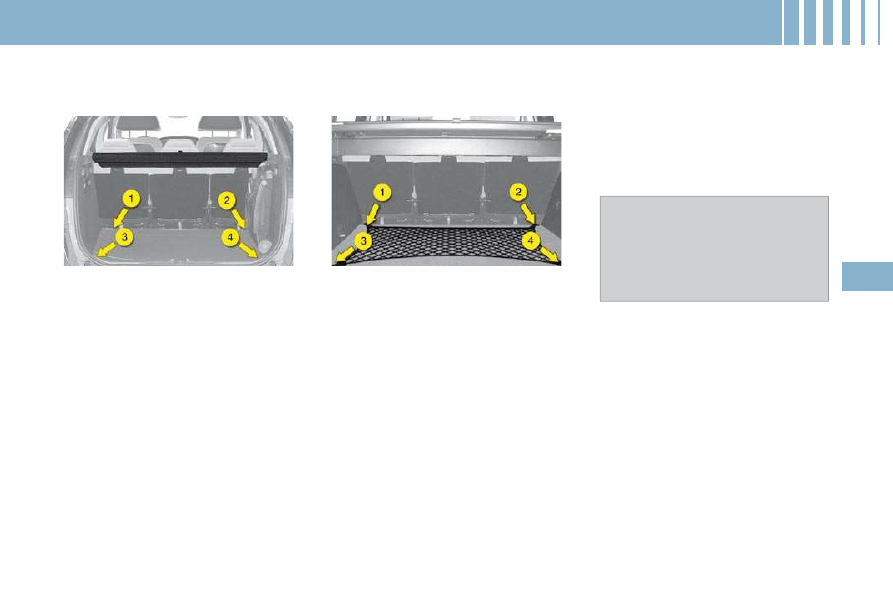

LUGGAGE ANCHORING
RINGS (C4 PICASSO)

  There  are  4  anchoring  rings  in  the
boot  to  enable  you  to  secure  your
luggage:
   -

1, 2, 3 and 4

on the boot ﬂ oor.

LUGGAGE ANCHORING
RINGS (GRAND C4 PICASSO)

  There  are  4  anchoring  rings  in  the
boot  to  enable  you  to  secure  your
luggage:
   -

1, 2, 3 and 4

on the boot ﬂ oor.

For reasons of safety in the event of
sudden braking, it is recommended
that you place heavy objects on

the ﬂ oor as close as possible to

the backrests of the second-row
seats.

LUGGAGE RETAINING NET
(GRAND C4 PICASSO)

Attached to the luggage anchoring
rings, it allows objects to be held on

the boot ﬂ oor.

104

F I T T I N G S

TORCH

This is a removable lamp, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.

Grand C4 Picasso

C4 Picasso

  Boot lighting
The boot lamp  A  comes on automat-
ically  when  the  boot  is  opened  and
switches off automatically when the
boot is closed.
Various  lighting  durations  are  avail-
able:
   -

ignition off, approximately ten minutes,

in energy economy mode, approxi-
mately thirty seconds,

engine running, no limit.

Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.

 Extract the torch from its location

pulling it upwards, as indicated
by the arrow.

 Press the switch B , located on

the back, to switch the torch on
or off.

 Unfold the support C , located on

the  back,  to  set  down  and  raise
the  torch;  for  example,  when
changing a wheel.

Storing the torch
 Put the torch back in place in its

location starting with the lower
part.

If you have forgotten to switch off
the torch, this switches it off auto-
matically.

Observe the polarities when ﬁ tting

the batteries.
Never  replace  the  rechargeable
batteries  with  normal  single-use
batteries.
For  replacement  of  the  batteries,
see  the  "Practical  information  -
§ Changing a bulb" section.

It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

Using the torch
