C O M F O R T

REAR HEAD RESTRAINTS

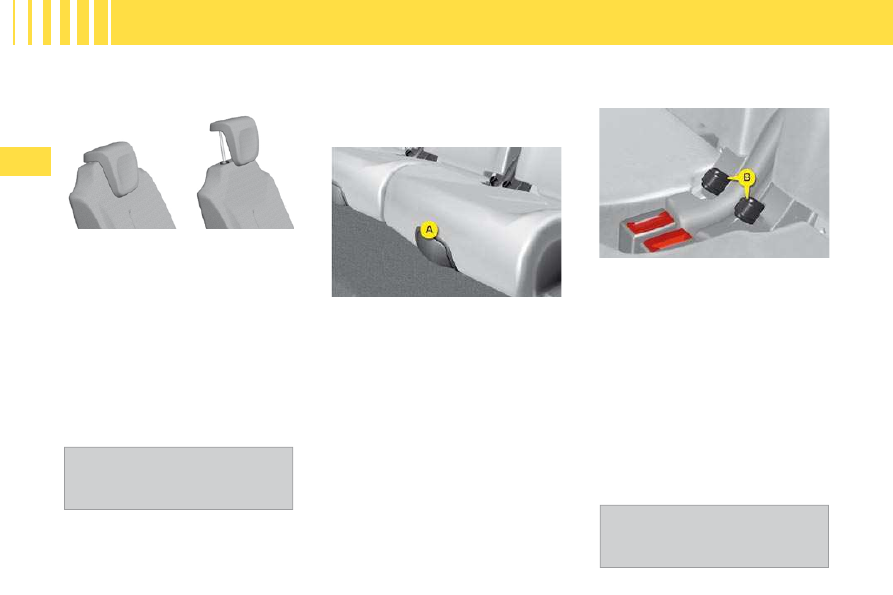

The rear head restraints can be
removed and have two positions:
-

high, position for use,

low, storage position.

To  raise  a  head  restraint,  pull  it
upwards.
To  lower  it,  press  the  lug  then  the
head restraint.
To  remove  it,  place  it  in  the  high
position,  push  the  lug  and  pull  it
upwards.
To  reﬁ t  it,  engage  the  head  restraint

rods in the holes taking care to remain
in the centreline of the seat back.

SECOND ROW SEATS

Forwards-backwards adjustment

Lift the control A , located at the front
of the seat, then adjust the seat into
the position desired.

"Comfort" position

The  3  second-row  seats  are  inde-
pendent  of  each  other  and  all  the
same  width.  They  all  can  have  a
"comfort" position.

Placing a seat in the "comfort"
position

 Pull on the control B and guide

the seat rearwards.

The backrest reclines and the seat
base pivots slightly.

Returning the seat to the initial
position

 Pull on the control B and allow

the seat to come forwards.

Always supervise any movements
of seats by children.

Never drive with the head restraints
removed, they must be in place
and correctly adjusted.

III

C O M F O R T

REAR HEAD RESTRAINTS

The rear head restraints can be
removed and have two positions:
-

high, position for use,

low, storage position.

rods in the holes taking care to remain
in the centreline of the seat back.

SECOND ROW SEATS

Forwards-backwards adjustment

Lift the control A , located at the front
of the seat, then adjust the seat into
the position desired.

"Comfort" position

The  3  second-row  seats  are  inde-
pendent  of  each  other  and  all  the
same  width.  They  all  can  have  a
"comfort" position.

Placing a seat in the "comfort"
position

 Pull on the control B and guide

the seat rearwards.

The backrest reclines and the seat
base pivots slightly.

Returning the seat to the initial
position

 Pull on the control B and allow

the seat to come forwards.

Always supervise any movements
of seats by children.

Never drive with the head restraints
removed, they must be in place
and correctly adjusted.

III

C O M F O R T

SECOND ROW SEATS
(C4 PICASSO)

Folding the seat

Each seat can be folded onto the

ﬂ oor to enable you to modify your

vehicle’s interior space.


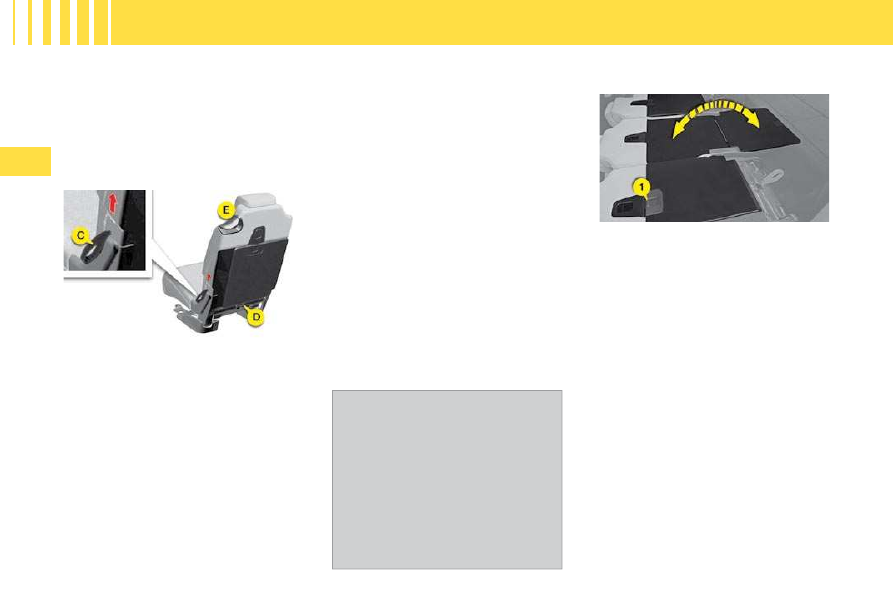

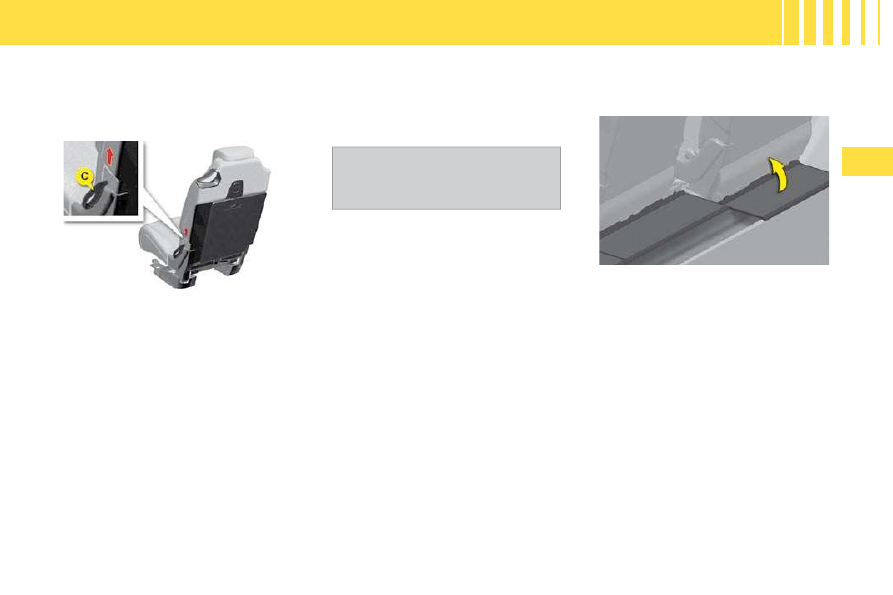

Pull ﬁ rmly upwards on strap C ,

as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.

 Push the backrest slightly for-

wards so that the backrest pivots,
folding onto the seat base. The
assembly then lowers onto the

ﬂ oor.

Repositioning seat

 Raise the backrests and push

them rearwards so that they lock
in position.

Always supervise any movements
of seats by children.

Panels behind the second
row seats

Panels  below  the  second  row  seats
provide the bottom of the boot space
with rigidity. They automatically follow
the  seat  movements  (e.g.  forwards-
backwards adjustment, folding).
A  storage  area  is  available  under-
neath the panels.

III

C O M F O R T

SECOND ROW SEATS
(GRAND C4 PICASSO)

Each seat can be folded onto the

ﬂ oor to form a ﬂ at surface, thus en-

abling you to modify your vehicle’s
interior space.

Folding the seat

From the outside



Pull ﬁ rmly upwards on strap C ,

as indicated by the red arrow, to
unlock the seat; keep pulling un-
til the seat is fully folded.

 Push the backrest slightly for-

wards,  so  that  the  backrest
pivots,  folding  onto  the  seat
base.  The  assembly  will  then

lower onto the ﬂ oor.

From the boot
(when loading, for example)

You can fold the second-row seat(s)

from the boot, having ﬁ rst folded the

third-row seats.
 Pull on the strap D to unlock the

chosen seat, push the backrest
gently forwards.

To  prevent  any  damage  to  the
mechanism,  the  strap   D   unclips
under  excessive  force.  Simply
reclip  it  to  render  the  system
operational.

Repositioning the seat

 Return the second-row seat bas-

es to their initial position and lock
them in that position.

 Raise the backrests and push

them rearwards so that they lock
in position.

Before moving the third-row seats,
return the second-row rigid panels to
their initial position and lock them.
Emergency exit: should the ﬁ rst

system  fail  (strap   C ),  the  strap   D
can  be  used  by  third-row  passen-
gers to facilitate their exit.
  Always supervise any movements
of seats by children.

Rigid panel

Each second-row seat backrest has
a rigid panel attached.
This panel enables you:
-

to have a continuous load sur-
face in the boot, whatever the
positions of the seats,

to avoid having objects sliding
under the second-row seats.

Unlocking/Locking the rigid panel

 Slide the latch 1 on the plate

downwards, to unlock.

 Return the panel to the upright

position, then slide the latch 1
upwards, to lock.

Before deploying the rigid panels,
check that the second-row seats are
in the fully back position.
5-seater conﬁ gurations do not have

these rigid panels.

III

C O M F O R T

"Cinema seat" position

This position allows you to free up

space between the ﬁ rst row and the

second row.
Pull the control E under the seat.
This position is only possible with
the outer seats.

Access to the third row seats

The third-row seats can be accessed
via the outer second-row seats.
 Pull the control E . The seat un-

locks and the seat base comes
up against the backrest.

 Hold the control E in the raised

position,  pushing  forwards.  The
whole  seat  slides  towards  the
front seat.

Space  becomes  free  behind  the
seat,  the  third-row  passengers  can
get to their seats.

Exit from the third row seats

 Hold the control E in the raised

position. The seat unlocks and
the seat base comes up against
the backrest.

 Push the seat backrest, still holding

the control E in the raised position.

If the table on the back of the ﬁ rst-

row seat is down, close it to enable
this operation.

Repositioning the seat, from
the outside, with the door
open

If there are passengers seated in
the third row:
 manually return the assembly as

far as possible rearwards; the
seat does not return as far as
the maximum rearwards position
so as to retain leg space for the
third-row passengers,

 fold the seat base.

III

C O M F O R T

THIRD ROW SEATS
(GRAND C4 PICASSO)

Concertina boards

Two  rigid  concertina  boards,  which
cannot  be  separated  from  the  ve-
hicle,  cover  the  2  third-row  seats,
when  these  are  in  the  folded
position.

Folding the concertina boards

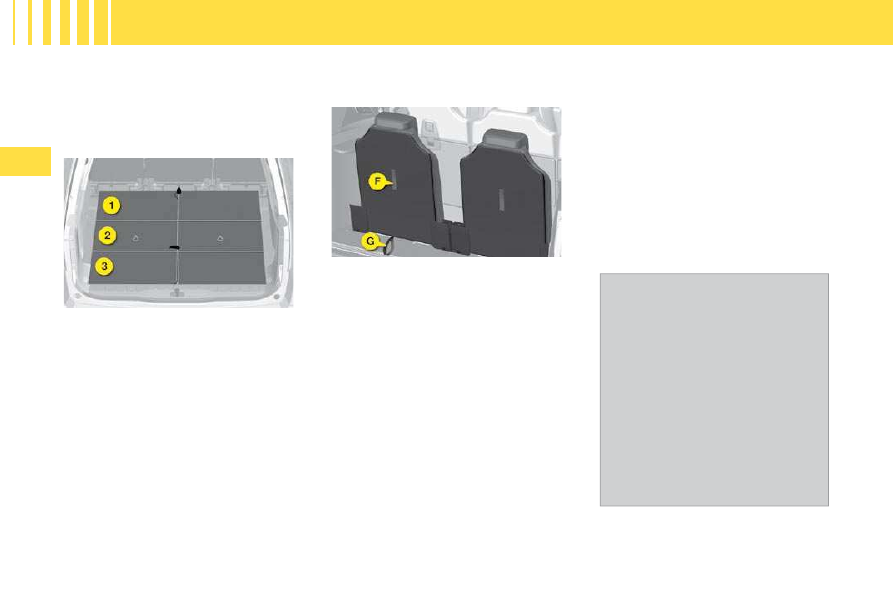

Pull on the control, the 3 sections of
the board will fold like a concertina.
When  the  third-row  seats  are  up-
right,  these  concertina  boards  can
be left either:
   -   ﬂ at behind the seats,
  -

in the vertical position,

thereby leaving a storage area
available.

Unfolding the seat

 Return the second-row rigid

panels to their initial position and
lock them.

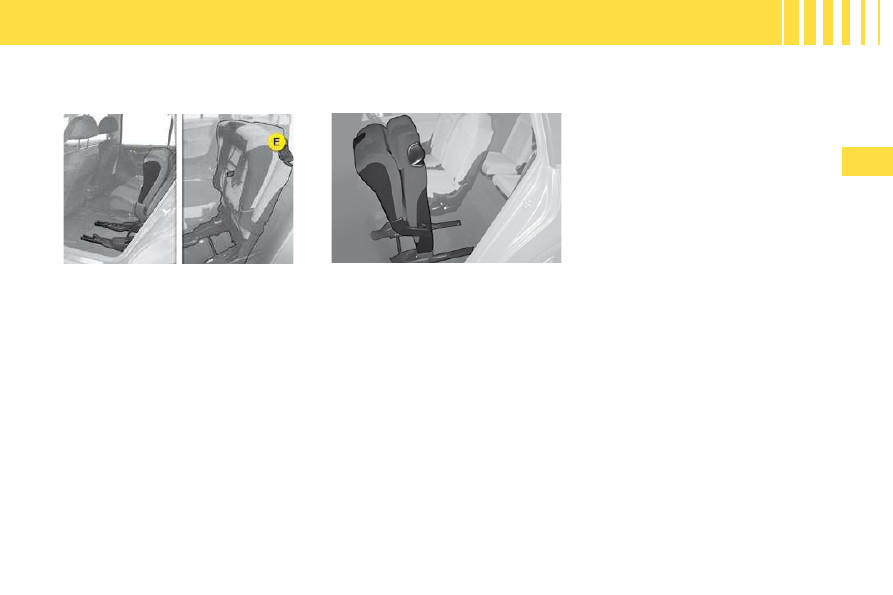

 Having folded your concertina

board,  pull  on  the  control   F   lo-
cated  behind  the  seat  backrest.
The  backrest  pivots  rearwards,
pulling the seat base with it. The
seat locks in the open position.

Repositioning the seat

 Return the second-row rigid

panels to their initial position and
lock them.

 Lower the head restraints.
 Correctly position the concertina

board vertically behind the seat.

Before moving the third-row seats,
return the rigid plates of the second-
row seats to the upright position and
lock them.
Do not try to fold a third-row seat

that has not ﬁ rst had the backrest

fully locked in place.
Do  not  leave  objects  either  on  or
underneath  the  seat  bases  of  the
third-row seats when you are fold-
ing them.
Do not leave your hand on the con-
trol  G  as you fold the seats, as you

risk trapping your ﬁ ngers.

 Pull on the control G , located at

the bottom of the seat backrest.
The seat unlocks.

 Next push the backrest gently

forwards.  The  backrest  pivots,
folding  onto  the  seat  base.  The
seat  base  then  folds  into  the
stowage  area  provided  for  that
purpose.

 Reposition the concertina boards

over the folded seats.

C O M F O R T

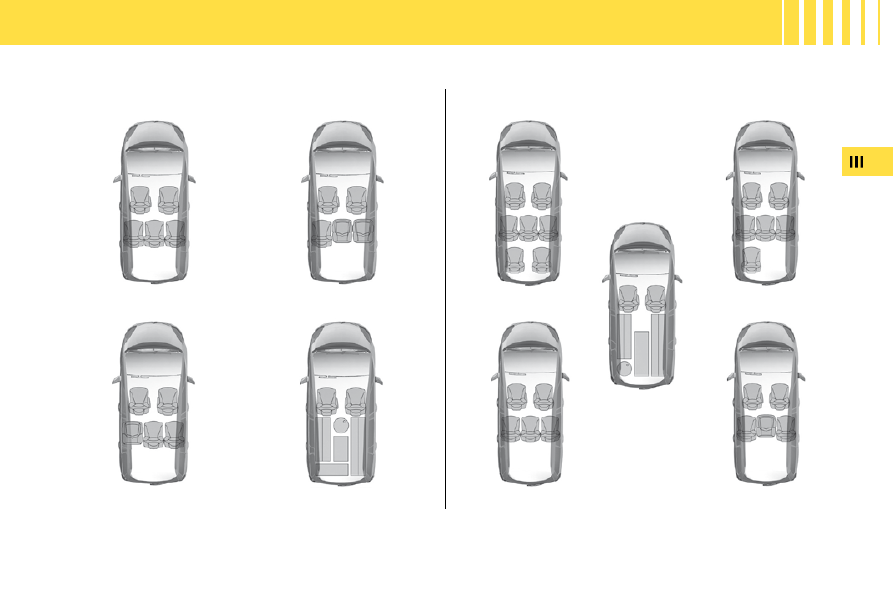

SEAT MODULARITY AND VARIOUS CONFIGURATIONS

Examples of seat configurations C4 Picasso

5 seats

4 seats

3 seats

Maximum

loadspace

Examples of seat configurations Grand C4 Picasso

7 seats

6 seats

5 seats

4 seats

Maximum loadspace

For easy modiﬁ cation of your interior vehicle space, all the rear seats can be individually folded: onto the second-row ﬂ oor,

and under the third-row ﬂ oor (in the case of the Grand C4 Picasso). You can then have a load ﬂ oor that is continuous up

to the front seat backrests.

III

C O M F O R T

MIRRORS

Exterior mirrors

Each mirror is adjustable to provide
the rear view needed for overtaking
or parking. They can also be folded

for parking in conﬁ ned spaces.

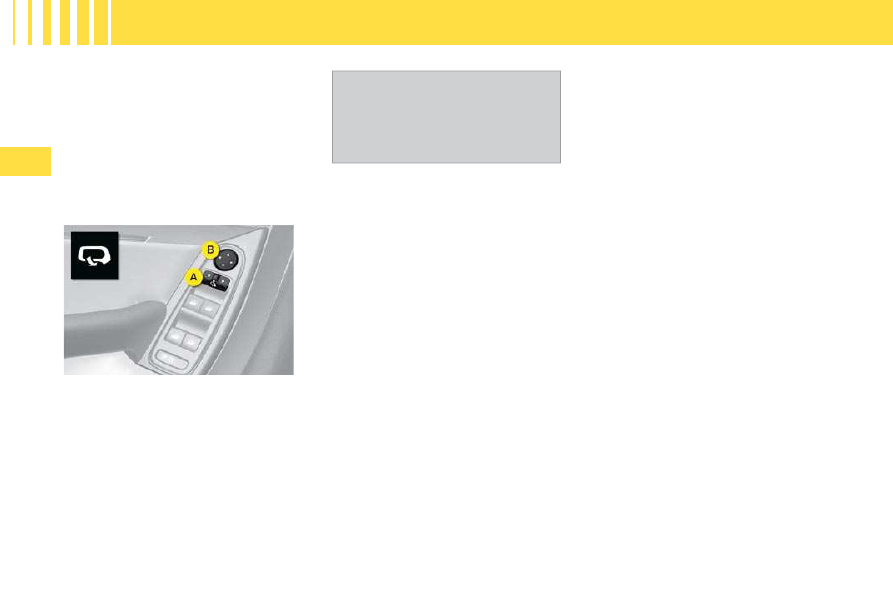

Adjustment
With the ignition on:
 move control A to the right or to

the left to select the correspond-
ing mirror,

 move control B in one of four

directions to adjust,

 return control A to the central

position.

The objects observed are, in reality,
closer than they appear.
Take  this  into  account  in  order  to
correctly  judge  the  distance  of
vehicles approaching from behind.

Folding
 From outside: lock the vehicle

using the remote control or the
key.

 From inside: with the ignition on,

pull control A rearwards.

If  the  mirrors  are  folded  using  con-
trol  A , they will not unfold when the
vehicle  is  unlocked.  Pull  again  on
control  A .

Unfolding
 From outside: unlock the vehicle

using the remote control or the
key.

 From inside: with the ignition on,

pull control A rearwards.

The folding and unfolding of the exte-
rior mirrors using the remote control
can be deactivated by a CITROËN
dealer.

       Automatic tilting in reverse gear
System which provides a view of the
ground  during  parking  manoeuvres
in reverse gear.

Programming
 With the engine running, engage

reverse gear.

 Select and adjust the left-hand

and right-hand mirrors in suc-
cession.

The adjustment is stored immedi-
ately.

Switching off
 Exit reverse gear and wait ten

seconds.

or
 Return control A to the central

position.

The mirror glass returns to its initial
position.
The mirror glass also returns to its
initial position:
-

if the speed exceeds 6 mph (10 km/h),

if the engine is switched off.

Switching on
 With the engine running, engage

reverse gear.

 Move control A to the right or to

the left to select the correspond-
ing mirror.

The glass of the mirror selected tilts
downwards, in accordance with its
programming.

The  demisting/defrosting  of  the  ex-
terior  mirrors  is  linked  to that  of the
rear screen.

III

C O M F O R T

Interior mirror

Adjustable mirror providing a central
rearward view.

Manual model

The mirror is ﬁ tted with a night-time

anti-dazzle device.

Adjustment
 Adjust the mirror so that the

glass is directed correctly in the
"day" position.

Day/night position
 Pull the lever to change to the

"night" anti-dazzle position.

 Push the lever to change to the

normal "day" position.

In order to prevent dazzle, the inte-
rior  mirror  glass  darkens  automati-
cally in relation to the intensity of the
light from the rear.
It lightens when the light (light beam
of  following  vehicles,  sun...)  de-
creases,  so  guaranteeing  optimum
visibility.

  In  order  to  guarantee  optimum  visi-
bility  during  your  manoeuvres,  the
mirror  lightens  automatically  when
reverse gear is engaged.

STEERING WHEEL ADJUSTMENT

The height and reach of the steering
wheel can be adjusted to adapt the
driving position to the size of the driver.

Adjustment

 First, adjust the driver's seat to

the most suitable position.

 When stationary , pull the control

to unlock the steering wheel.

 Adjust the height and reach.
 Push the control to lock the

steering wheel.

After locking, if you press ﬁ rmly on

the steering wheel, a slight click may
be heard.

As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".

Automatic day/night model

System which automatically and
progressively changes between the
day and night uses.

As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.

A C C E S S

REMOTE CONTROL KEY

System

which

permits

central

unlocking  or  locking  of  the  vehicle
using the lock or remotely. It is also
used  to  locate  the  vehicle,  activate
the  guide-me-home  lighting  and
start the engine, as well as providing
protection against theft.

Unlocking the vehicle

Complete unlocking using the
remote control

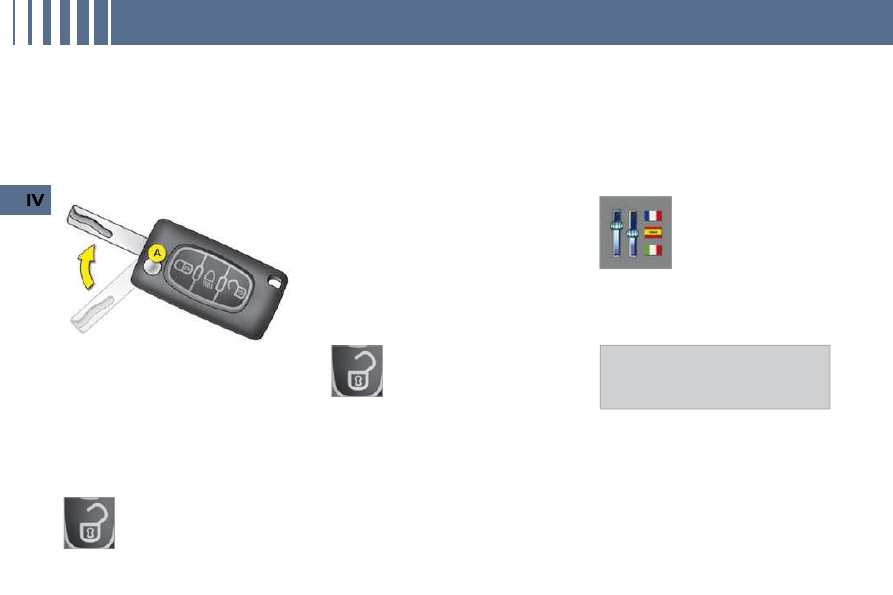

Unfolding the key
 First press button A to unfold the

key.

 Press the open padlock

to unlock the vehicle.

Complete unlocking using the key
 Turn the key to the left in the

driver's door lock to unlock the
vehicle.

Unlocking is conﬁ rmed by rapid

ﬂ ashing of the direction indicators

for approximately two seconds.
According  to  version,  the  exterior
mirrors unfold at the same time.
This also triggers the timed switching
on of the welcome lighting, courtesy
lamps  and  exterior  side  spotlamps
for approximately thirty seconds.

Selective unlocking using the
remote control

 Press the open pad-

lock once to unlock the
driver's door only.

 Press the open pad-

lock  again  to  unlock
the  other  doors  and
the boot.

According to version, the exterior
mirrors unfold at the same time as

the ﬁ rst unlocking action.
It also triggers the timed switching on
of the welcome lighting, the courtesy
lights and the exterior side spotlamps
for approximately thirty seconds.

The complete or selec-
tive unlocking parameter
is set via the multifunc-

tion screen conﬁ guration

menu.

Complete unlocking is activated by
default.

Each unlocking is conﬁ rmed by rapid

ﬂ ashing of the direction indicators for

approximately two seconds.

Selective unlocking is not available
using the key.

A C C E S S

Normal locking using the key
 Turn the key to the right in the

driver's door lock to lock the ve-
hicle completely.

Locking is conﬁ rmed by ﬁ xed light-

ing of the direction indicators for ap-
proximately two seconds.
According  to  version,  the  exterior
mirrors fold at the same time.
It  also  triggers  the  timed  switching
on  of  the  exterior  side  spotlamps
and  the  guide-me-home  lighting,  if
this is activated.

If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
To  permit  the  transportation  of
bulky  objects,  the  vehicle  can  be
locked  from  the  inside,  using  the
centralised  control  on  the  dash-
board,  even  if  the  tailgate  or  rear
screen is open.
When  the  vehicle  is  locked,  if  it  is
unlocked inadvertently, it will relock
automatically  after  thirty  seconds
unless a door is opened.
When  closing  the  windows  and/or
glass  panoramic  roof  shutter  us-
ing  the  remote  control,  you  must
ensure  that  no  one  prevents  them
from closing correctly.
The  folding  and  unfolding  of  the
exterior  mirrors  using  the  remote
control  can  be  deactivated  by  a
CITROËN dealer.

Deadlocking using the remote
control

 Press the closed pad-

lock  to  lock  the  vehicle
completely  or  press  the
closed padlock for more
than  two  seconds  to
close  the  windows  and
the

glass

panoramic

roof blind automatically
in addition to locking.

 Press the closed padlock again

within ﬁ ve seconds to deadlock

the vehicle.

Locking the vehicle

Normal locking using the remote
control

 Press the closed pad-

lock to lock the vehicle
completely.

 Press the closed padlock for

more than two seconds to close
the windows and the glass pano-
ramic roof blind automatically in
addition to locking.

A C C E S S

Deadlocking using the key

 Turn the key to the right in the

driver's  door  lock  to  lock  the  ve-
hicle completely and hold it in this
position  for  more  than  two  sec-
onds  to  close  the  windows  auto-
matically in addition to locking.

 Turn the key to the right again

within ﬁ ve seconds to deadlock

the vehicle.

Deadlocking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.
According  to  version,  the  exterior
mirrors fold at the same time.
This  also  triggers  the  timed  switch-
ing on of the exterior side spotlamps
and  guide-me-home  lighting,  if  this
is activated.

Deadlocking renders the exterior and
interior door controls inoperative.
It  also  deactivates  the  manual
central control button.
Therefore,  never  leave  anyone
inside  the  vehicle  when  it  is
deadlocked.

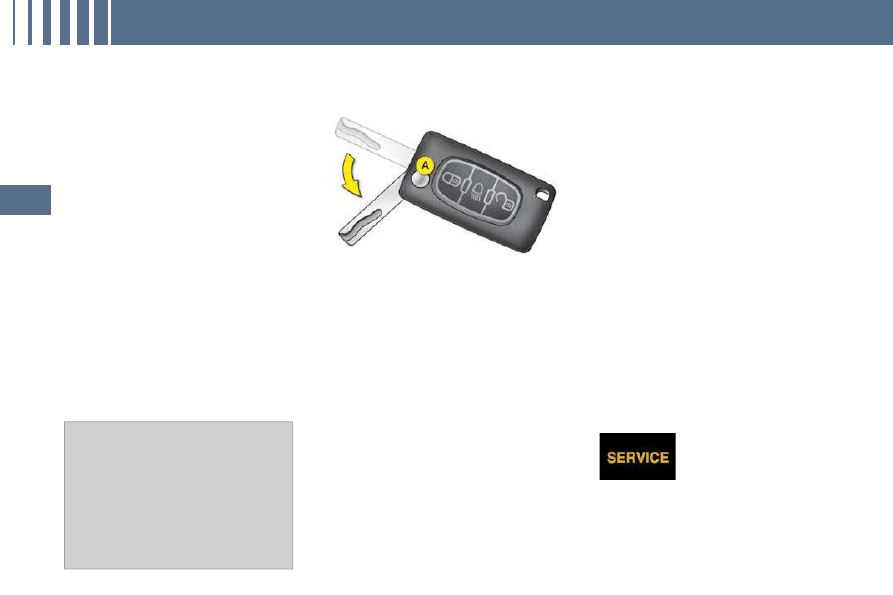

 First press button A to fold the

key.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the
courtesy lamps and exterior side

spotlamps and ﬂ ashing of the direc-

tion indicators for a few seconds.

Guide-me-home lighting

A press on button B operates the
guide-me-home

lighting

(lighting

of  the  sidelamps,  dipped  beams,
number  plate  lamps  and  exterior
side spotlamps (located underneath
the exterior rear view mirrors)).
A  second  press  before  the  end  of
the  timing  cancels  the  guide-me-
home lighting.

Anti-theft protection

  Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition  is  switched  on,  this  code
must  be  recognised  in  order  for
starting to be possible.
This  electronic  engine  immobiliser
locks  the  engine  management  sys-
tem a few minutes after the ignition
is switched off and prevents starting
of  the  engine  by  anyone  who  does
not have the key.

In  the  event  of  a  mal-
function,  you  are  in-
formed  by  lighting  of
this  warning  lamp,  an
audible

signal

and

a  message  on  the  multifunction
screen.
In  this  case,  your  vehicle  does  not
start; contact a CITROËN dealer as
soon as possible.

Folding the key

A C C E S S

STARTING

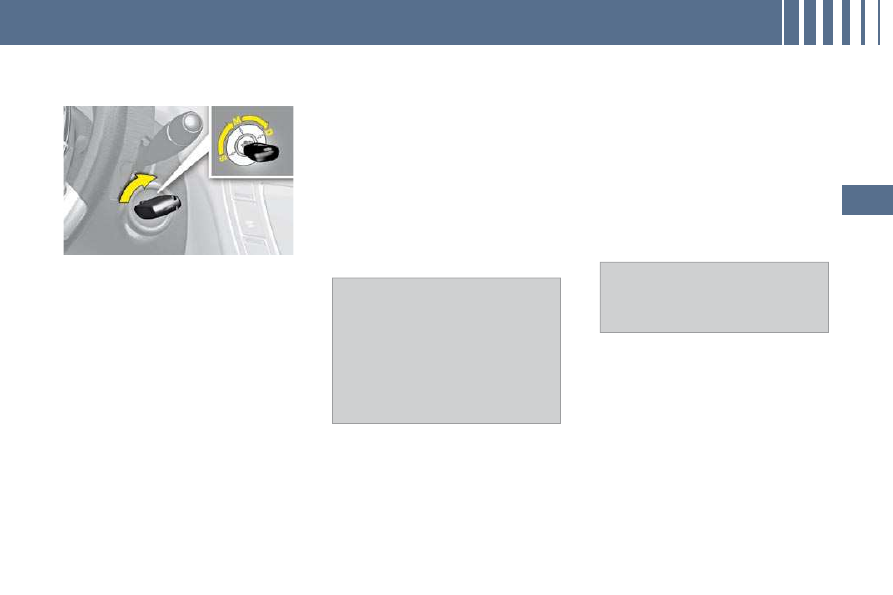

1. "S": Steering lock

To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.

2. "M": Drive position

Depending  on  the  version  of  your
vehicle,  the  orange  and  red  warning
lamps should also come on for a short
time.

3. "D": Starter

Release the key as soon the engine
has started.
If the ﬁ rst attempt fails, switch off the

ignition. Wait ten seconds then operate
the starter again.

Steering lock

1. " S": After removing the key, turn

the steering wheel to lock the
steering. The key can only be re-
moved in position S .

2. "M": Ignition switched on, the

steering  is  unlocked  (by  turning
the  key  to  position   M ,  move  the
steering  wheel  gently  if  neces-
sary).

3. "D": Starter position.

Key left in position "M" buzzer

If you forget to remove the key from
the  ignition,  the  ignition  is  switched
off automatically after one hour.
To  switch  the  ignition  back  on,  turn
the  key  to  position   S   then  back  to
position  M .

Do not run the engine in an en-
closed space or where there is

insufﬁ cient ventilation  .
  It is essential always to keep the
engine running in order to retain
braking  and  steering    power    as-
sistance .
  Never  remove  the  ignition  key
before the vehicle has come to a
complete stop.

STOPPING

Vehicles equipped with a
turbocharger

Never stop the engine without having
allowed  it  to  run  for  a  few  seconds
at  idle,  this  being  the  time  required
for  the  turbocharger  to  return  to  a
normal speed.
Flicking  the  accelerator  at  the  mo-
ment  of  switching  off  the  ignition
could cause serious damage.

  A heavy object (key fob...), attached
to  the  key  and  weighing  down  on
its shaft in the ignition switch, could
cause a malfunction.

Never turn the key to this position
when the engine is running.

A C C E S S

Remote control problem

Following  disconnection  of  the  ve-
hicle battery, replacement of the re-
mote  control  battery  or  in  the  event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
      First of all, use the key in the lock

to unlock or lock your vehicle.

 Then, reinitialise the remote con-

trol.

If the problem persists, contact a
CITROËN dealer as soon as pos-
sible.

  Reinitialisation
      Switch off the ignition.
     Turn  the  key  to  position   2

(Ignition on) .

 Press the closed padlock imme-

diately for a few seconds.

 Switch off the ignition and re-

move the key from the ignition
switch.

The remote control is fully opera-
tional again.

Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.

If the remote control bat-

tery is ﬂ at, you are in-

formed by lighting of this
warning lamp, an audible
signal and a message on
the multifunction screen.

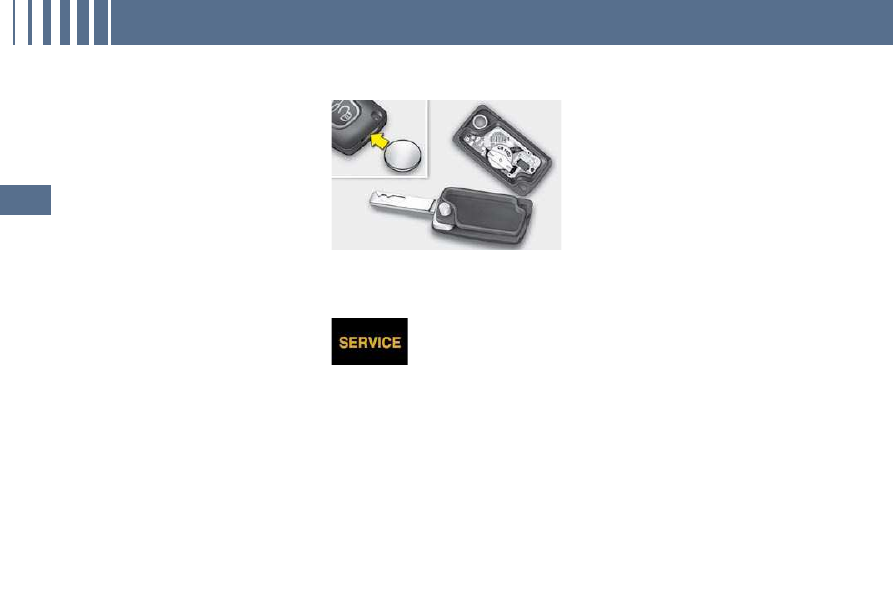

 Unclip the casing using a coin at

the notch.



Slide the ﬂ at battery out of its lo-

cation.

 Slide the new battery into its lo-

cation observing the original di-
rection.

 Clip the casing together.
 Reinitialise the remote control.

Changing the battery

A C C E S S

Lost keys

Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your

personal identiﬁ cation documents.
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.

Remote control

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of  your  remote  control  out  of  range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing  and  the  remote  control  would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.

Locking the vehicle

Driving with the doors locked may
make access to the passenger com-
partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the

electronic engine immobiliser sys-
tem; this could cause malfunctions.

When purchasing a second-
hand vehicle

Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.

Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.

Take them to an approved collection
point.

A C C E S S

Deadlocking using the key

 Turn the key to the right in the

driver's  door  lock  to  lock  the  ve-
hicle completely and hold it in this
position  for  more  than  two  sec-
onds  to  close  the  windows  auto-
matically in addition to locking.

 Turn the key to the right again

within ﬁ ve seconds to deadlock

the vehicle.

Deadlocking is conﬁ rmed by ﬁ xed

 First press button A to fold the

key.

Locating your vehicle

 Press the closed padlock to locate

your locked vehicle in a car park.

This is indicated by lighting of the
courtesy lamps and exterior side

spotlamps and ﬂ ashing of the direc-

tion indicators for a few seconds.

Guide-me-home lighting

A press on button B operates the
guide-me-home

lighting

(lighting

Anti-theft protection

In  the  event  of  a  mal-
function,  you  are  in-
formed  by  lighting  of
this  warning  lamp,  an
audible

signal

and

a  message  on  the  multifunction
screen.
In  this  case,  your  vehicle  does  not
start; contact a CITROËN dealer as
soon as possible.

Folding the key

Citroen C4 Picasso Dag (2009 year). Instruction - part 5
