I N S T R U M E N T S a n d C O N T R O L S

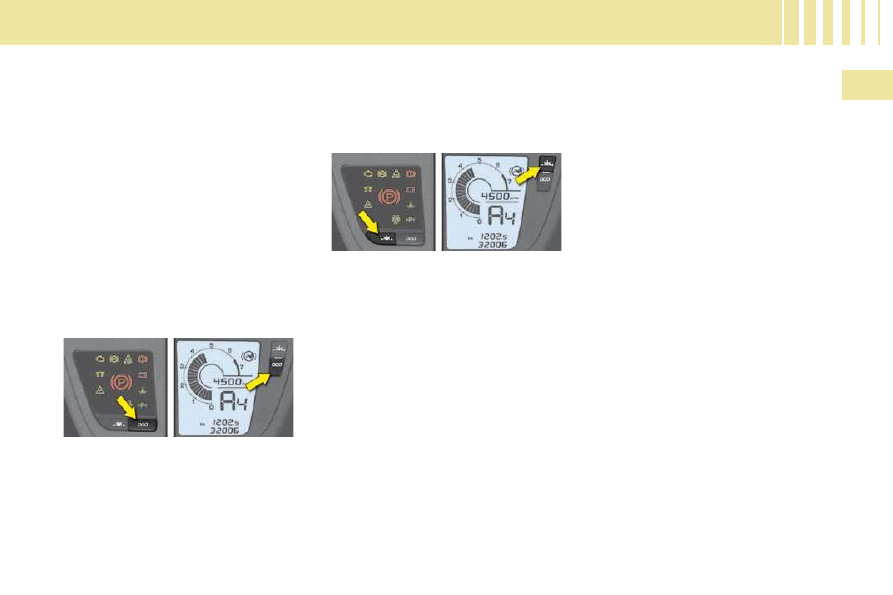

Total distance recorder

System  which  measures  the  total
distance  travelled  by  the  vehicle
during its life.
The total and trip distances are dis-
played  for  thirty  seconds  when  the
ignition  is  switched  off,  when  the
driver's  door  is  opened  and  when
the vehicle is locked or unlocked.

Trip distance recorder

System which measures a distance
travelled during a day or other pe-
riod since it was reset to zero by the
driver.

 With the ignition on, press the

button until zeros appear.

Lighting rheostat

System for manual adjustment of
the brightness of the instruments
and controls in relation to the exterior
brightness.

Activation
When the vehicle lighting is on:
 press the button to change the

brightness of the instruments
and controls,

 when the lighting reaches the

minimum  setting,  release  the
button,  then  press  again  to  in-
crease it,

or
 when the lighting reaches the

maximum setting, release the but-
ton, then press again to reduce it,

 when the lighting reaches the

level of brightness required, re-
lease the button.

Deactivation
When the vehicle lighting is off, or

in day mode on vehicles ﬁ tted with

daytime running lamps, pressing the
button does not have any effect.

M U L T I F U N C T I O N S C R E E N S

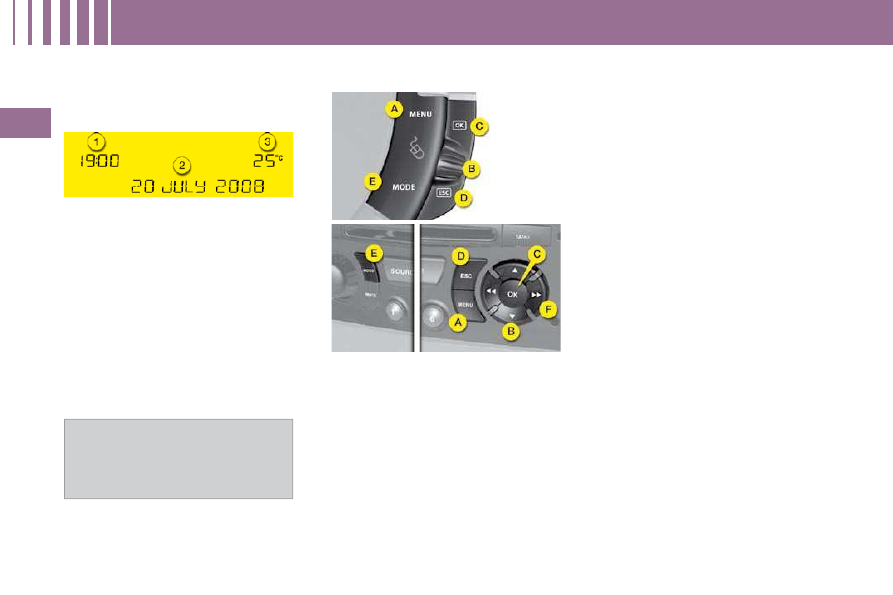

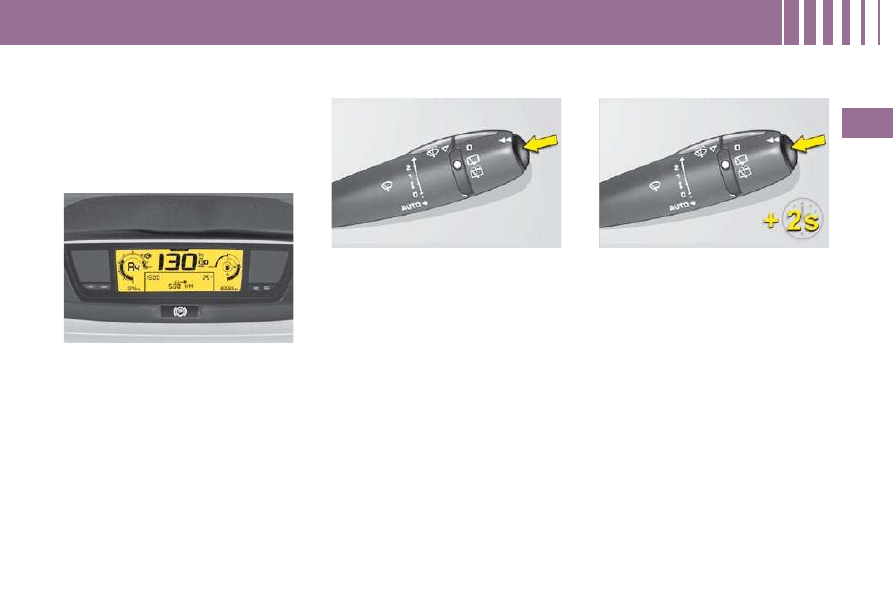

MULTIFUNCTION SCREEN A

Presentation

   1.   Time
  2.   Date and display zone
  3.   Ambient temperature
When  the  ambient  temperature  is
between  +3 °C  and  -3 °C,  the  tem-

perature display ﬂ ashes (ice risk).
The ambient temperature displayed

may be greater than the actual tem-

perature, if the vehicle is parked in

bright sunlight.

The display of certain types of in-

formation is sometimes by scrolling

and sometimes by alternation.

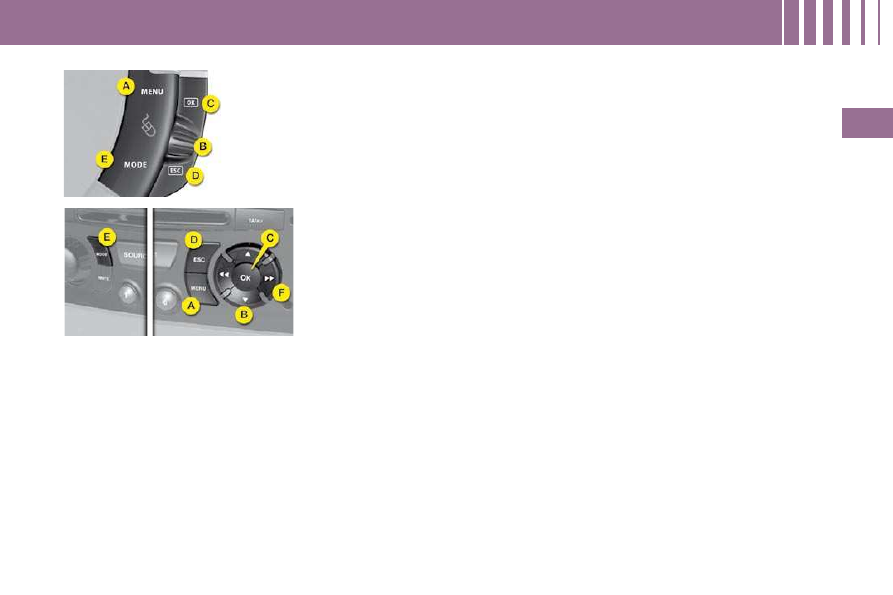

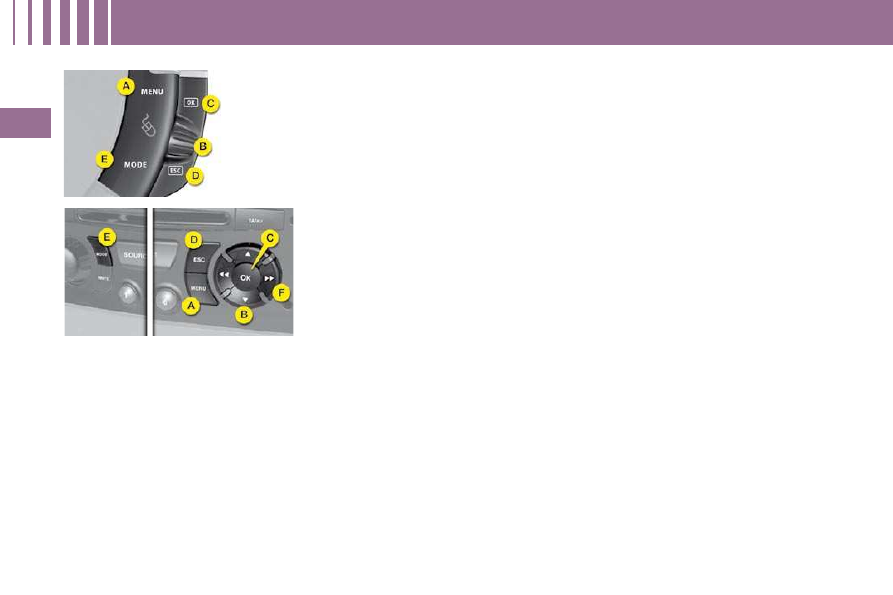

Access to the "Main Menu"

Scrolling in the screen menus

Selection and conﬁ rmation in the

menus of the function chosen or

the value modiﬁ ed

Cancellation of the operation or

return to the previous display

Selection of the type of information

to be displayed in zone 2

(date,

radio-CD and trip recorder)

B or F.

Within the menus, choice

of activation/deactivation of

functions and selection of

adjustments

By pressing on the button A , then
using button B

, you have access to

the following functions:

Radio-CD (see "Audio")

Vehicle conﬁ guration , to acti-

vate/deactivate:

   -   operation of the rear wiper,
  -   automatic guide-me-home lighting,

- electric parking brake auto-

matic functions (application/

release)*,

- door selectivity,
- lighting of daytime running

lamps (depending on country).

Options , for display of alert mes-

sages

Display adjustments , for adjusting

the date and time on the screens

Languages , for choosing the

screen language

Units , giving you access to the

choice of units of temperature

and units of fuel consumption

Controls

Main Menu

It is recommended that the driver

should not manipulate the controls

while the vehicle is in motion.

* According to country

M U L T I F U N C T I O N S C R E E N S

Displaying the log of alerts

 Press on A

 Use B

to select the submenu for

options. Conﬁ rm with two presses

on C

You can cancel the start of the dis-

play by pressing button E to abandon
and validating by pressing C

Alerts signalled previously but not

resolved, will scroll in the display for

recall.

To clear the displaying of an alert,

press D

Adjusting the date and the

time

 Press on A

 Use B

to select the submenu for

display adjustments, then con-

ﬁ rm by pressing C .

 Press B

to select what you want

to modify: year, month, day, hour,

minutes, mode of display.



Make your adjustment by press-

ing F

. You can continue your ad-

justments by selecting a different

element by presses on B

. When

you have ﬁ nished your adjust-

ments, press C

Configuring the vehicle

functions

 Press on A

 Use B

to select the sub-menu for

personalisation conﬁ guration of

your vehicle, then conﬁ rm your

choice with a press on C .



Select the function to be conﬁ g-

ured by pressing B

 The system tells you whether

the function status is active or in-

active. Modify this status with a

press on F

 Validate with a press on C

Choosing the language

 Press on A

 Use B

to select the submenu for

languages. Conﬁ rm your choice

with a press on C

 With presses on F

, select the

language of your choice, then

validate with a press on C

Choosing the units

 Press on A

 Press B

to select the sub-menu

for Units. Conﬁ rm your choice

with a press on C

 Press B

to select the type of unit

you wish to modify (Temperature

or Fuel Consumption).

 With presses on F

, select the

unit of your choice, then validate

with a press on C

This choice concerns all the infor-

mation (Consumption-Speed) ap-

pearing on the screens.

M U L T I F U N C T I O N S C R E E N S

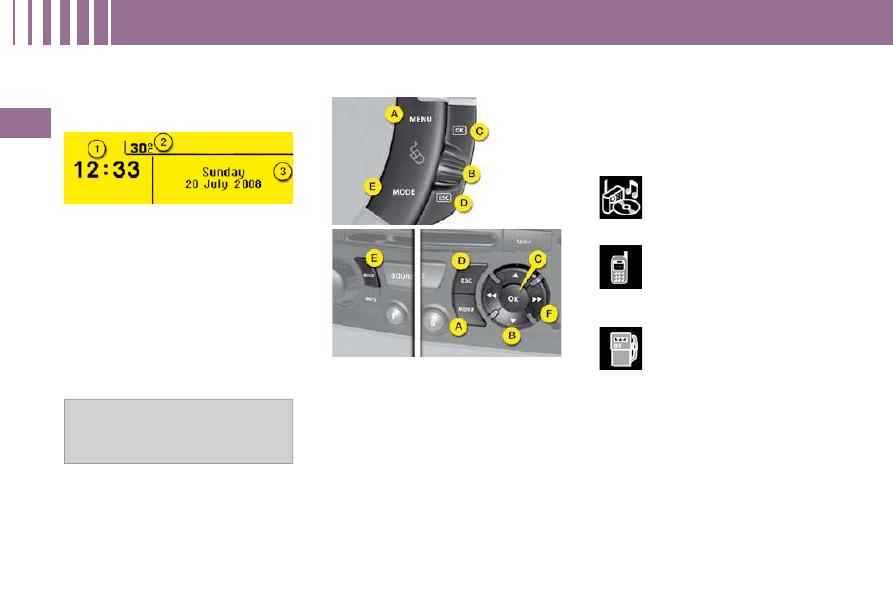

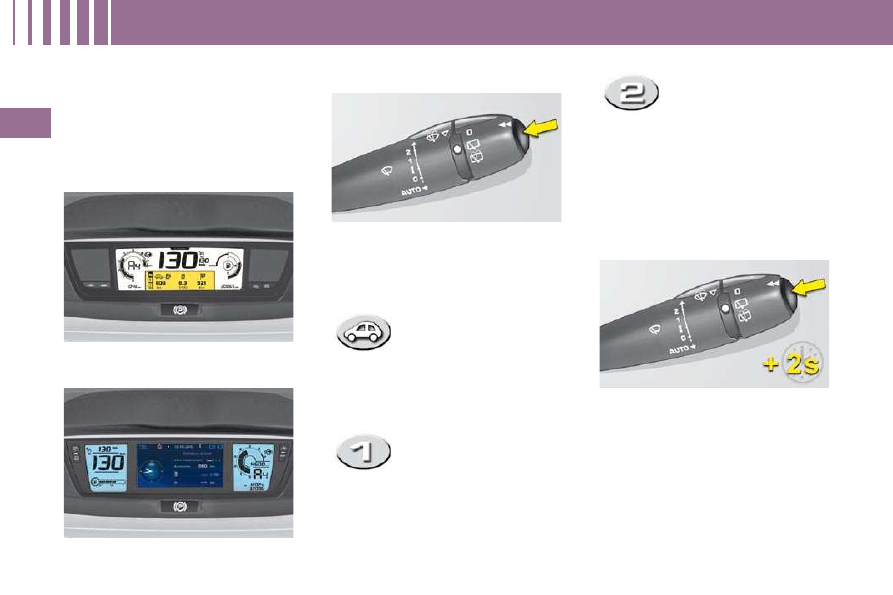

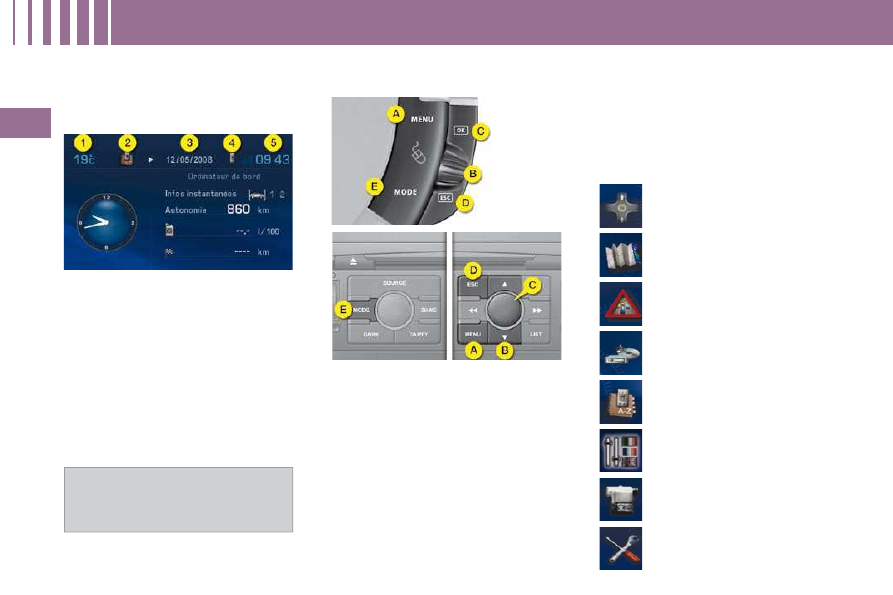

MULTIFUNCTION SCREEN C

Main Menu

Presentation

Radio-CD

(see "Audio and

Telematics")

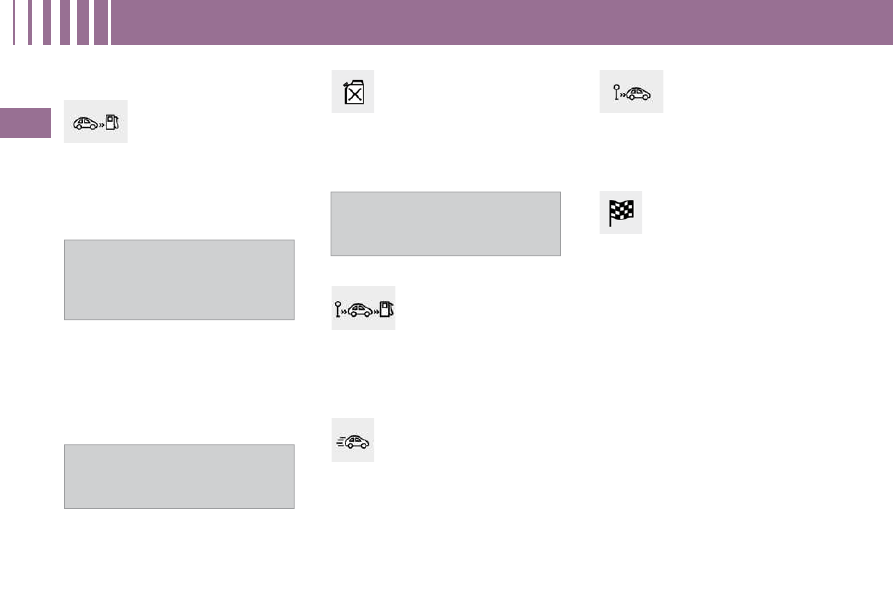

Trip computer

This permits:

Bluetooth

hands-free kit

(see "Audio" and

Telematics)

Controls

   1.   Time
  2.   Ambient temperature
  3.   Date and display zone
When the ambient temperature is be-
tween +3 °C and -3 °C, the tempera-

ture display ﬂ ashes (risk of ice).
The ambient temperature displayed

may be greater than the actual tem-

perature, if the vehicle is parked in

bright sunlight.

It is recommended that the driver

should not manipulate the controls

while the vehicle is in motion.

Access to the "Main Menu"

Scrolling in the screen menus

Selection and conﬁ rmation in the

menus of the function chosen or

the value modiﬁ ed

Cancellation of the operation or

return to the previous display

Selection of the type of informa-

tion to be displayed permanently

(date, radio-CD, trip computer)

on the right of the screen

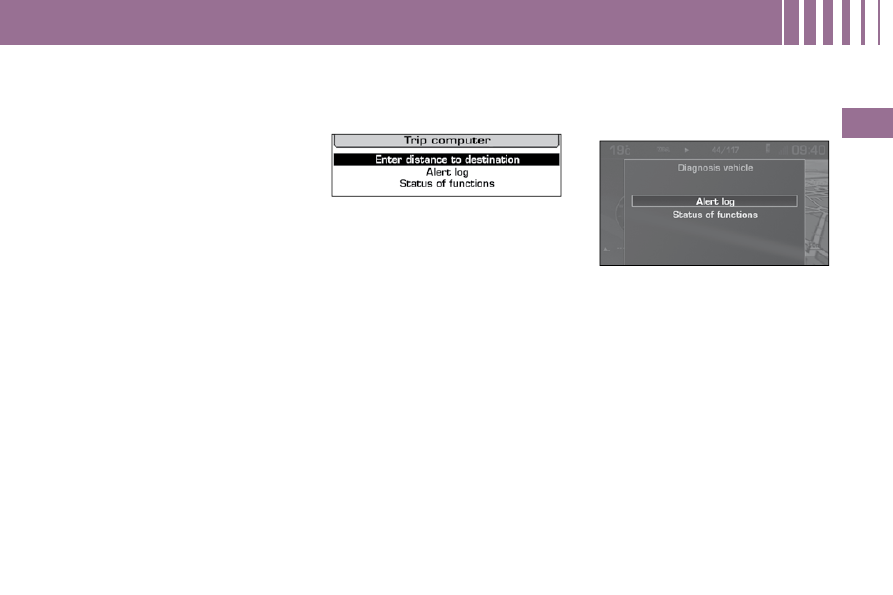

Press on the button A to view the

"Main Menu" of the multifunction

screen. This menu gives you access

to the following functions:

- entering the distance to your

destination,

- access to the log of alerts (recall

of alerts signalled previously),

- access to the status of functions,

such as the activation/deactiva-

tion of automatic headlamps,

automatic windscreen wipers,

ESP...

M U L T I F U N C T I O N S C R E E N S

Personalisation -

Configuration

This permits activation/deactivation

of certain functions which may be

present or not depending on the trim

level of your vehicle:
-

operation of the rear wiper,

- automatic guide-me-home lighting,

- directional headlamps,

- electric parking brake automatic

functions (application/release) (de-

pending on destination country)

- door selectivity,
-

lighting of daytime-running lamps

(depending on country),

- rear parking assistance,

and setting of the:
-

brightness intensity, time, date
and units,

- screen language.

Activating/deactivating

rear screen wipe when you

engage reverse gear

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Then select "Deﬁ ne vehicle pa-

rameters". Conﬁ rm your choice

with a press on C

 Using B

, select "Parking assist-

ance". Conﬁ rm your choice with

a press on C

 Then by pressing C

, select/

deselect "Activation of rear wiper

in reverse gear" to activate/de-

activate this.



Conﬁ rm with "OK" on the screen.

Activating/deactivating

automatic guide-me-home

lighting

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Then select "Deﬁ ne vehicle pa-

rameters". Conﬁ rm your choice

with a press on C

 Using B

, select "Lighting and

signalling". Conﬁ rm your choice

with a press on C

 Then by pressing C

, select/dese-

lect "Guide-me-home headlamps"

to activate/deactivate this. After

activation, choose its duration:

press on C , then use B

to select

the duration and then press on C



Conﬁ rm with "OK" on the screen.

Activating/deactivating

Xenon dual-function

directional headlamps

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Then select "Deﬁ ne vehicle pa-

rameters". Conﬁ rm your choice

with a press on C

 Using B

, select "Driving assist-

ance". Conﬁ rm your choice with

a press on C

 Then by pressing C

, select/dese-

lect "Directional headlamps" to

activate/deactivate them.



Conﬁ rm with "OK" on the screen.

M U L T I F U N C T I O N S C R E E N S

Activating/deactivating

electric parking brake

automatic functions

(application/release) *

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Then select "Deﬁ ne vehicle pa-

rameters". Conﬁ rm your choice

with a press on C

Activating/deactivating door

selectivity

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Then select "Deﬁ ne vehicle pa-

rameters". Conﬁ rm your choice

with a press on C

 Using B

, select "Access to the ve-

hicle". Conﬁ rm your choice with a

press on C

 Then by pressing C

, select the

level of vehicle access desired.



Conﬁ rm with "OK" on the screen.

Adjusting the date and time

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Select "Display conﬁ guration" us-

ing B

. Conﬁ rm with a press on C .



Select "Date and the time adjust-

ment" using B . Conﬁ rm with a

press on C

 Press B

to select the values you

wish to modify. Conﬁ rm your

choice with a press on C .



Make your adjustments by press-

ing B

, conﬁ rming each adjust-

ment choice by pressing C .



Conﬁ rm with "OK" on the screen.

 Using B

, select "Driving assist-

ance". Conﬁ rm your choice with

a press on C

 Then by pressing C

, select/

deselect "Automatic handbrake"

to activate/deactivate the electric

parking brake automatic func-

tions (application/release).



Conﬁ rm with "OK" on the screen.

* Depending on country.

M U L T I F U N C T I O N S C R E E N S

Choosing the units

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Select "Display conﬁ guration" us-

ing B

. Conﬁ rm with a press on C .



Then select "Choice of units".

Conﬁ rm your choice with a press

on C

Choosing the language

 Press on A

 Use B

to select "Personalisation-

Conﬁ guration", then conﬁ rm your

choice with a press on C .



Select "Choice of language" us-

ing B

. Conﬁ rm with a press on C .

 Using B

, select the language

and validate your choice with a

press on C



Conﬁ rm with "OK" on the screen.

 Using B

, select the unit you wish

to modify (Temperature or Fuel

consumption), then conﬁ rm by

pressing C



Conﬁ rm with "OK" on the screen.

This choice affects all the information

(Fuel consumption - Speed) appear-

ing on the screens.

M U L T I F U N C T I O N S C R E E N S

NAVIDRIVE MULTIFUNCTION
COLOUR SCREEN

Presentation

1. Ambient temperature
2.

Directory

  3.   Date
  4.   Telephone
  5.   Time
When the ambient temperature is be-
tween +3 °C and -3 °C, the tempera-

ture display ﬂ ashes (risk of ice).
The ambient temperature displayed

may be greater than the actual tem-

perature, if the vehicle is parked in

bright sunlight.

It is recommended that the driver

should not operate the controls

while the vehicle is in motion.

Controls

Main Menu

Trafﬁ c Information

Navigation/Guidance

Map

Audio Functions

Telematics

Conﬁ guration,
for adjusting various parame-

ters (date, time, units)

Video

Vehicle Diagnostics

Access to the "Main Menu"

Scrolling in the screen menus

Selection and conﬁ rmation in the

menus of the function chosen or

the value modiﬁ ed

Cancellation of the operation or

return to the previous display

Selection of the type of informa-

tion to be displayed permanently

(date, radio-CD, trip computer)

on the right of the screen

Press on the button A to view the

"Main Menu" of the multifunction

screen.

This menu gives you access to the

following functions (see "NaviDrive

Instructions"):

M U L T I F U N C T I O N S C R E E N S

TRIP COMPUTER

System which provides current infor-

mation concerning the trip travelled

(range, fuel consumption...).

Monochrome screen A

Data displays



Press the control for more than

two seconds to reset to zero the

distance travelled, the average

fuel consumption and the aver-

age speed.

Zero reset

The trip computer provides the fol-

lowing information:

   -   range,
  -   current fuel consumption,
  -   distance travelled,
  -   average fuel consumption,
  -   average speed.

 The next press then returns you

to the normal display.



Press the button, located at the

end of the wiper

stalk , to display

the various items of trip compu-

ter data in succession.

M U L T I F U N C T I O N S C R E E N S

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, consumption, …).

Monochrome screen C

NaviDrive colour screen

Display of information

Trip zero reset



Press the button, located at the

end of the wiper

stalk , to display

the various trip computer infor-

mation groups in succession:

- the current information

group with:

       range,
      current consumption,
      distance remaining

to be travelled,

- the trip "1"

group with:

       distance travelled,
      average consumption,
      average speed,

for the ﬁ rst trip.

- the trip "2"

group with:

the distance

travelled,

the average

consumption,

the average speed,

for the second trip.

 When the trip required is dis-

played, press the control for

more than two seconds.

The trips "1" and "2" are independent

but their use is identical.
Trip "1" permits, for example, daily

calculations, and trip "2" monthly

calculations.

M U L T I F U N C T I O N S C R E E N S

"Trip computer" menu

System which provides general in-

formation concerning the status of

certain equipment with which your

vehicle is equipped, such as the alert

log, the status of the functions...

Alert log

This summarises the active warning

messages, displaying them in suc-

cession on the multifunction screen.

Status of functions

This summarises the active or inac-

tive status of systems present on the

vehicle.

Enter distance to destination
This enables you to enter an ap-

proximate value for the distance to

the ﬁ nal destination.

Monochrome screen C

"Vehicle Diagnostics" menu

 Press the "MENU" button to gain

access to the general menu.

 Turn the dial and press it to

select the

"Vehicle Diagnostics"

menu.

 On the

"Vehicle Diagnostics"

menu, select one of the following

applications:

- "Alert log",
- "Status of functions".

 Press the "MENU" button to gain

access to the general menu.

 Press the arrows, then the "OK"

button to select the

"Trip com-

puter" menu.

 On the

"Trip computer" menu,

select one of the following appli-

cations:

   -   "Alert log",
  -   "Status of functions",
  -   "Enter distance to destination".

NaviDrive colour screen

M U L T I F U N C T I O N S C R E E N S

A few definitions…

Range

(miles or km)

This ﬁ gure may vary following a

change in the style of driving or

the relief, resulting in a signiﬁ cant

change in the current consumption.

When the range falls below 20 miles

(30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel,

the range is recalculated and is dis-

played when it exceeds 60 miles

(100 km).

If dashes are displayed continu-

ously while driving in place of the

digits, contact a CITROËN dealer.

This indicates the distance which

can still be travelled with the fuel re-

maining in the tank in relation to the

average consumption over the last

few miles (kilometres) travelled.

Current fuel consumption

(mpg or l/100 km or km/l)

Average fuel

consumption

(mpg or l/100 km or km/l)

This is the average fuel consump-

tion since the last trip computer zero

reset.

Distance travelled

(miles or km)

This indicates the distance travelled

since the last trip computer zero reset.

Average speed

(mph or km/h)

This is the average speed calculated

since the last trip computer zero re-

set (ignition on).

Distance remaining to

destination
(km or miles)

This is the distance remaining to be

travelled to the ﬁ nal destination. It

is either calculated instantly by the

navigation system, if guidance is ac-

tivated, or entered by the user.

If the distance is not entered, dashes

are displayed in place of the digits.

This function is only displayed from

20 mph (30 km/h).

This is the average fuel consump-

tion during the last few seconds.

III

C O M F O R T

RECOMMENDED SETTINGS FOR THE VENTILATION, HEATING
AND AIR CONDITIONING

Air inlet

Check that the exterior grille for the
air  inlet,  at  the  bottom  of  the  wind-
screen,  is  clean  and  free  of  dead
leaves, snow, etc.

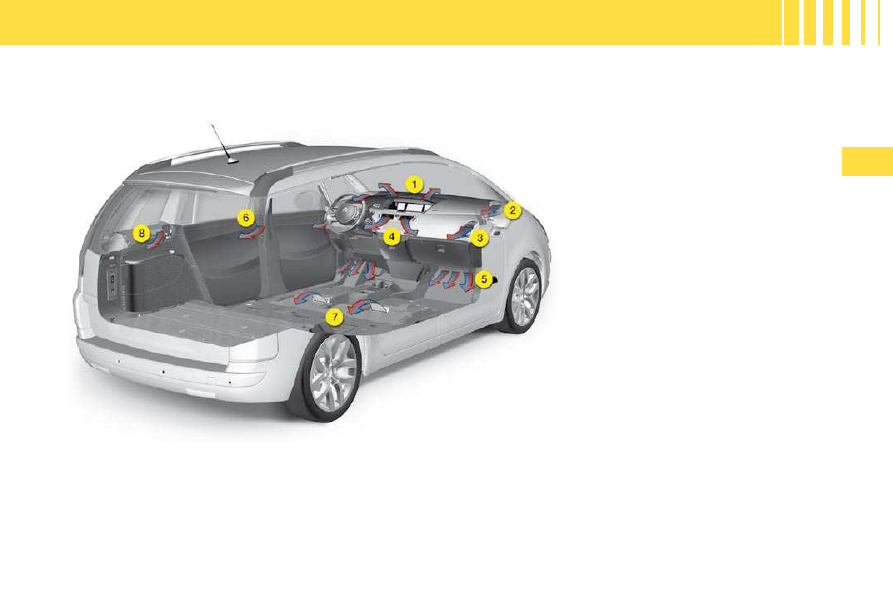

Air distribution

1. Windscreen demisting/defrosting

vents.

2. Front side windows demisting/

defrosting vents.

3. Adjustable and closing side air

vents.

4. Adjustable and closing central

air vents.

5. Front occupant footwell air out-

lets.

6. Adjustable and closing 2nd row

side air vents, with air ﬂ ow and

temperature adjustment.

7. Rear passenger footwell air out-

lets.

8. Adjustable and closing 3rd row

side air vents.

The side air vents 8 apply only to the
7-seater versions.

III

C O M F O R T

Air conditioning

To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water  arising  from  condensation
in  the  air  conditioning  drains  away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To  keep  the  air  conditioning  com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless  of  the  season,  the  air
conditioning  is  useful,  since  it  re-
moves humidity and condensation.
To  be  effective,  the  air  conditioning
should  only  be  used  with  the  win-
dows closed.
If  after  a  lengthy  stop  in  bright  sun-
light the interior temperature is exces-
sive, air the passenger compartment
by  opening  the  windows  for  a  few
moments, then close them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.

Dust filter/Odour filter
(active carbon)

There is a ﬁ lter for excluding odours

and dust.
This ﬁ lter has to be changed in ac-

cordance with the vehicle's servic-
ing schedule (see "Maintenance and
Warranty Guide").

Air circulation

Air vents on the ﬂ oor underneath the

front  seats  provide  enhanced  heat-
ing  for  the  rear  seat  positions;  take
care not to obstruct them.

Air vents

The air vents to the face have grilles
and thumbwheels to adjust the air

ﬂ ow and direction (up-down, right-

left).

The  automatic  regulation  of  the  air
conditioning,  inside  the  cabin,  uses
a  number  of  sensors  (sunlight  sen-
sor,  outside  temperature  sensor...)
that relieve you of the need to make
frequent  adjustments  outside  the
displayed temperature.

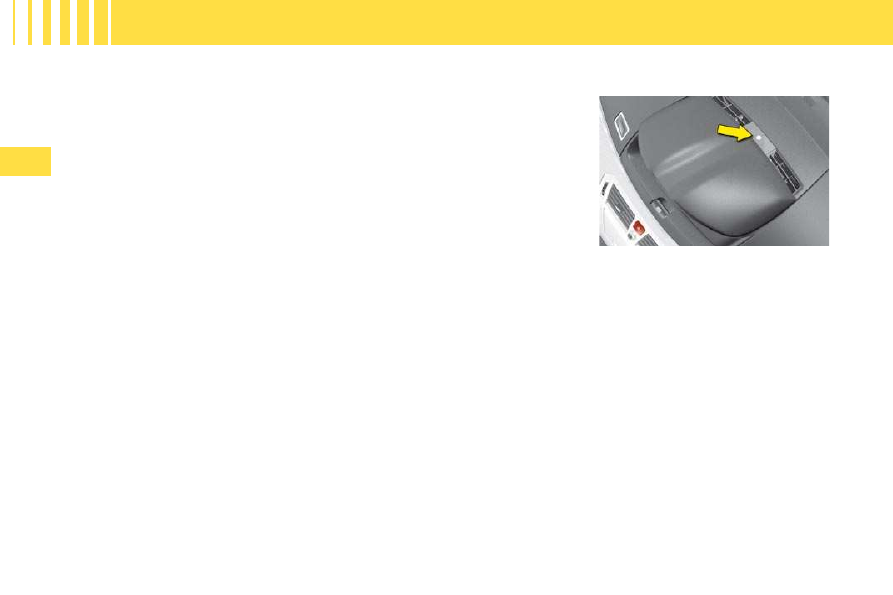

Be  careful  not  to  obstruct  the  sun-
light  sensor,  located  on  the  dash-
board behind the instrument panel.

Sensors

III

C O M F O R T

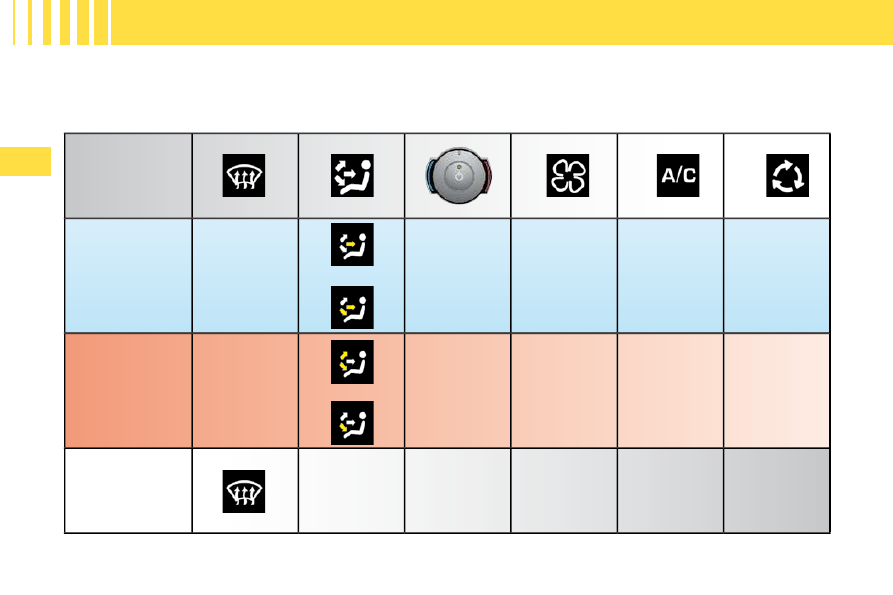

RECOMMENDED INTERIOR SETTINGS

Heating/Manual air conditioning

To make the best use of the system, we recommend:

Automatic air conditioning

With automatic air conditioning, you are recommended to choose AUTO operation.

Action

To have

Cold

Max. cold to

start with,

then personal

adjustments

Max. to start

with, then

personal

adjustments

ON to start

with,

then OFF

Hot

Max. hot to

start with,

then personal

adjustments

Max. to start

with, then

personal

adjustments

ON to start

with,

then OFF

Demisting

Defrosting

Max. hot

OFF

III

C O M F O R T

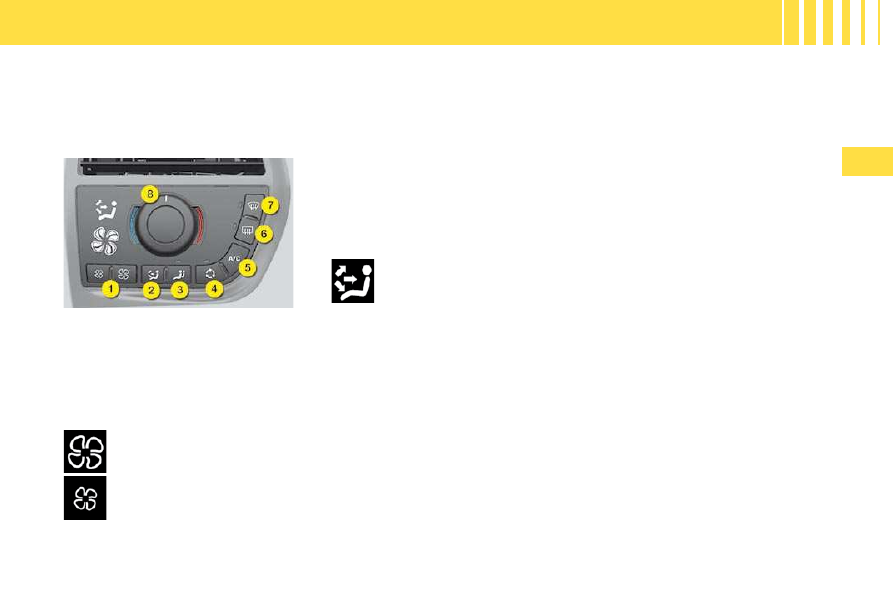

MANUAL AIR CONDITIONING

A. DRIVER’S CONTROL

PANEL

1. Adjustment of the air

blower speed

The air blower adjustment only op-
erates when the engine is running.
To adjust the air ﬂ ow, press on but-

ton 1 :

to increase the ﬂ ow of air,

to decrease the ﬂ ow of air.

The level of air ﬂ ow is shown by the pro-

gressive lighting of the warning lamps
depicting the ventilator blades 1 .

By reducing the ﬂ ow to minimum,

you  deactivate  the  air  conditioning
system (OFF).
To  achieve  an  agreeable  level  of
comfort  in  the  passenger  compart-
ment, you should not leave this con-
trol too long in the OFF position.

2. Adjustment of the air

distribution

 Press on button 2 to make the

display scroll through the differ-
ent types of air distribution.

The  air  distribution  chosen
is  shown  by  the  lighting  of
the  corresponding  warning
lamps on the display 2.

3. Mode of adjustment

of temperature for the
passenger

 Press on button 3 to have inde-

pendent passenger control of
cabin air temperature. The warn-
ing lamp goes out.

While the passenger is adjusting tem-
perature, the warning lamp lights up.

4. Air recirculation

This control is for isolating disagree-
able odours or fumes coming from
outside.
 Press on button 4 , to exclude

entry of outside air. The warning
lamp lights up.

This should be cancelled as soon
as possible to permit renewal of
cabin air and to prevent misting
forming on the windows.

 Press again on button 4 , to de-

activate air recirculation.

5. Air conditioning

The air conditioning can only oper-
ate when the engine is running. The

air blower control (adjusting the ﬂ ow

of air) has to be activated in order for
air conditioning to be obtained.
 Press on button 5 . The warning

lamp lights up.

To  be  effective,   the  air  condi-
tioning should be operated  only
with the windows closed.

If  your  vehicle  is  not  equipped  with
air  conditioning,  you  will  have  the
same  control  panel  but  without  the
A/C  button.

Content .. 1 2 3 4 ..
