Citroen C4 Picasso Dag (2009 year). Instruction - part 2

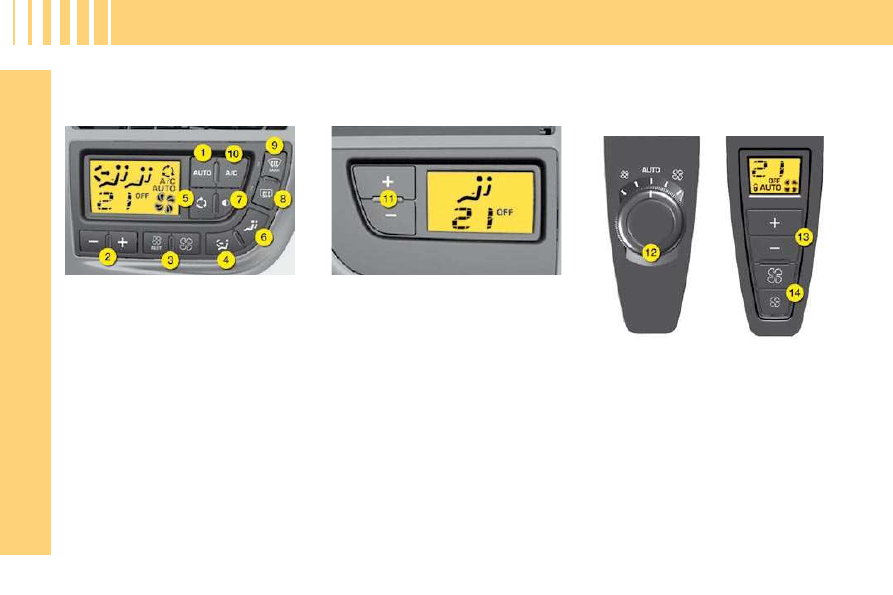

Driver's and front passenger's control panel

Automatic air conditioning

Rear passengers' control panel

V E N T I L A T I O N

1. Automatic comfort regulation.
2. Adjustment and display of driver's

temperature.

3. Adjustment of air blower speed.

Maintaining of ventilation with the
engine switched off (REST).

4. Adjustment and display of air distri-

bution.

5. Air recirculation.
6. Mode of adjustment for rear pas-

sengers.

7. Panel and buttons display mode

(black panel).

8. Demisting/defrosting of rear screen

and rear view mirrors.

9. Rapid demisting/defrosting of wind-

screen and windows.

10. Air conditioning.
11. Adjustment and display of front pas-

senger's temperature.

 49, 54

12. Adjustment of air blower speed.

 52

13. Temperature adjustment (no warm

air distribution).

14. Adjustment of air blower speed.

 53

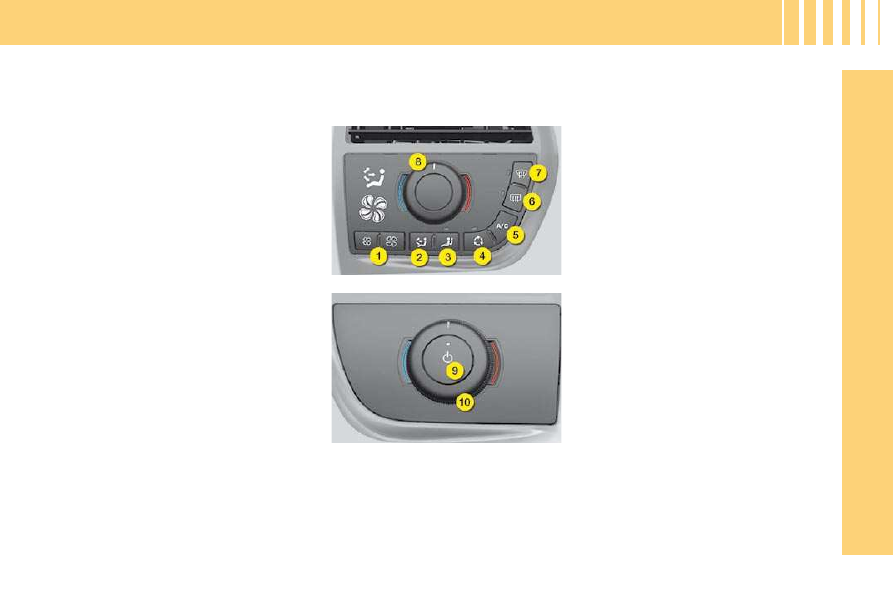

Heating and manual air conditioning

Passenger's control panel

Driver's control panel

V E N T I L A T I O N

1. Adjustment and display of air blower

speed.

2. Adjustment and display of air distri-

bution.

3. Mode of adjustment of passenger's

temperature.

4. Air recirculation.

5. Air conditioning (not available in

heating version).

6. Demisting/defrosting of rear screen

and rear view mirrors.

7. Demisting/defrosting of windscreen

and windows.

8. Adjustment of blown air temperature.

 47, 54

9. Adjustment of passenger's tempera-

ture on/off.

10. Adjustment of passenger's tempera-

ture.

 48

Seat belts not fastened/
unfastened warning lamp

This warning lamp informs you
if  the  driver’s  or  front  passen-
ger’s  seat  belt  is  not  fastened
(depending  on  model),  and  if
the front passenger’s (depend-
ing  on  model)  or  the  second-
row passengers’ seat belts are
unfastened. The lit up positions

represent those whose seat belts are
not fastened/unfastened.

You can use electrical central locking or
unlocking by pressing on button  A .
If  one  of  the  doors  is  open  or  is  not
closed properly, central locking will not
work.

Tyre under-inflation detection

This function warns you if a tyre is de-

ﬂ ated or punctured.
This system does not absolve the driver
of the need to regularly check the tyre
pressures.

The  service  warning  lamp
lights up, and a vehicle outline
is displayed, accompanied by
a  message  and  an  audible
signal.

Under-inﬂ ation warning

The STOP warning lamp lights
up, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.

Puncture

 30

 114

Anti-intrusion security

Once  the  function  has  been  activated,
when  starting  the  engine,  the  system
automatically locks the doors once you
reach approximately 6 mph (10 km/h).
This  function  can  be  deactivated
by  pressing  button   A   for  more  than
two seconds.

 78

M O N I T O R I N G

Locking from inside

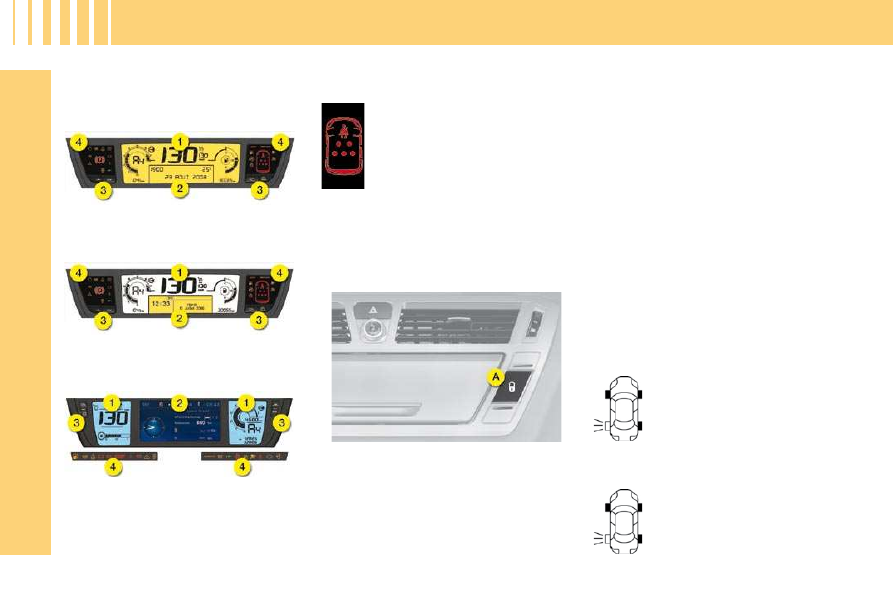

Instrument panel

with multifunction screen A

 24

with multifunction screen C

 25

with NaviDrive multifunction screen

 26

   1.   Instrument panel.
  2.   Multifunction screen.
  3.   Control buttons.
  4.   Warning lamps display zone.

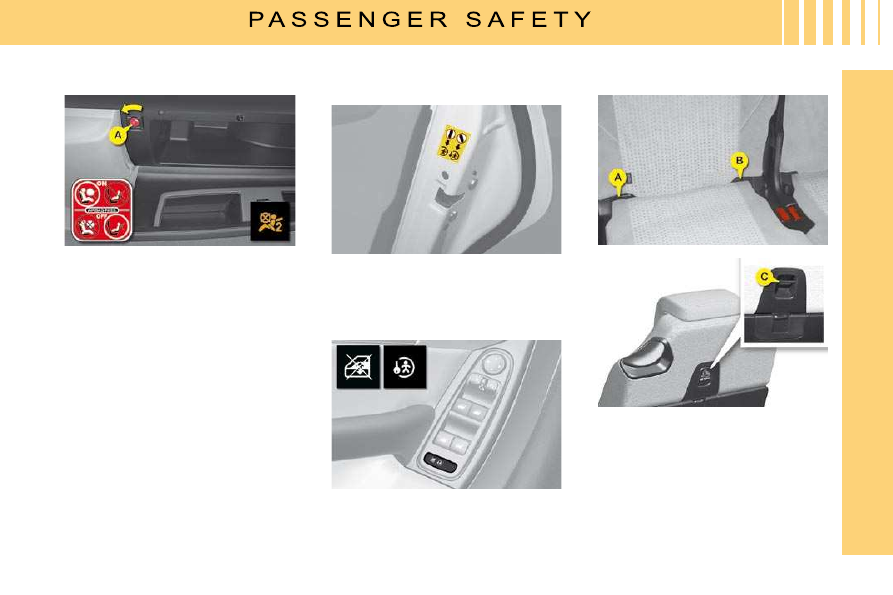

Deactivation of front passenger
airbag

Child lock

The 3 second-row rear seats of your

vehicle are ﬁ tted with regulation ISOFIX

anchoring points, with 3 rings for each
seat position A B C.
This ﬁ xing system is designed for children

weighing up to 18 kg.

Electric control

 122

 112

 109

Front airbags

Manual control

   1.   Insert key in lock  A .
  2.   Select  "OFF"  position.
  3.   Remove key.

The rear doors are locked by operating
the lever (aperture at an angle).

Pressing the button prohibits operation
of the electric windows from the rear
of the vehicle and opening of the rear
doors.

ISOFIX fixing system

I N S T R U M E N T S a n d C O N T R O L S

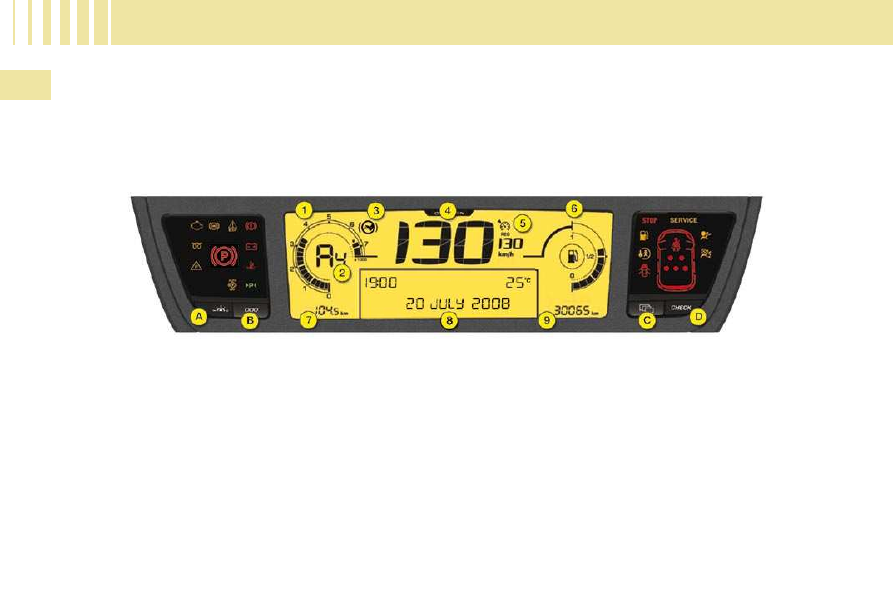

MONOCHROME INSTRUMENT PANEL

MULTIFUNCTION SCREEN A

The instrument panel groups all the driving and comfort information at the centre of the dashboard.

1. Rev counter
2. Electronic gearbox or automatic

gearbox selector position and
gear

3. Electronic gearbox or automatic

gearbox "Foot on brake" warning
lamp

4. Speedometer
5. Cruise control or speed limiter

setting

6. Fuel gauge

  7.   Trip mileage recorder
  8.   Multifunction screen A
  9.   Total mileage recorder

In this zone, the following infor-
mation appears in succession
when the ignition is switched on:

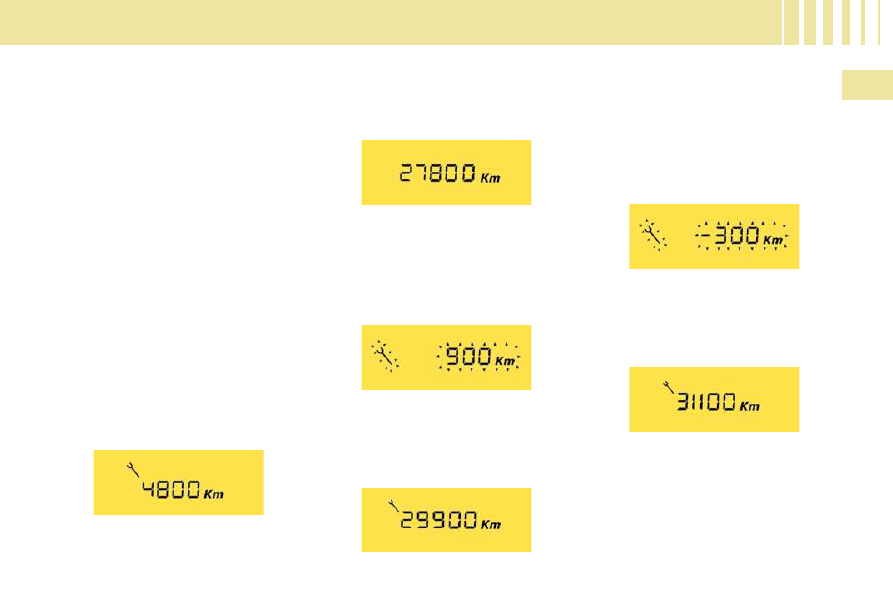

   -   service indicator,

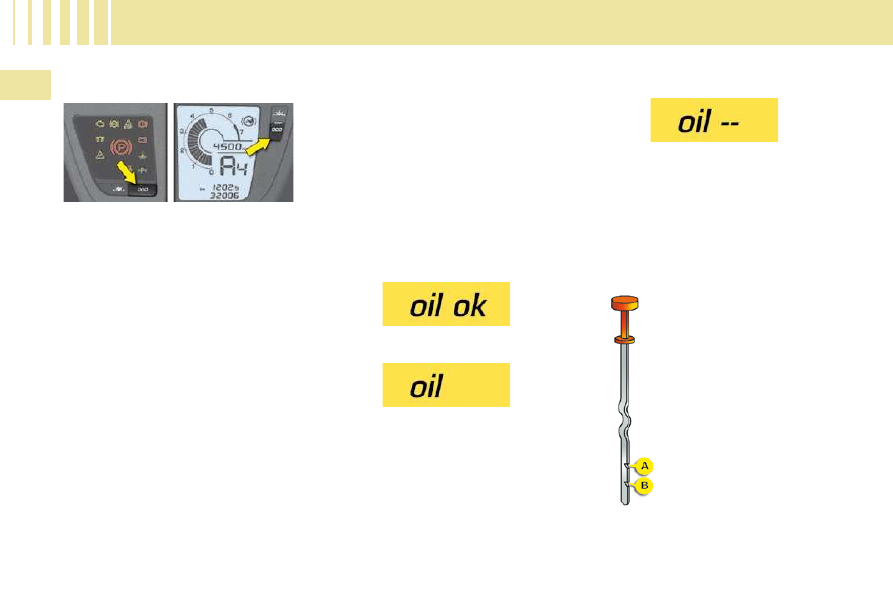

  -   engine oil level indicator,
  -   total mileage recorder.

A. Lighting rheostat (available day

and night)

B. Trip mileage recorder reset
C. Personalisation of the instrument

panel (display of desired informa-
tion)

D. CHECK (list of alerts)

Central display

Control buttons

I N S T R U M E N T S a n d C O N T R O L S

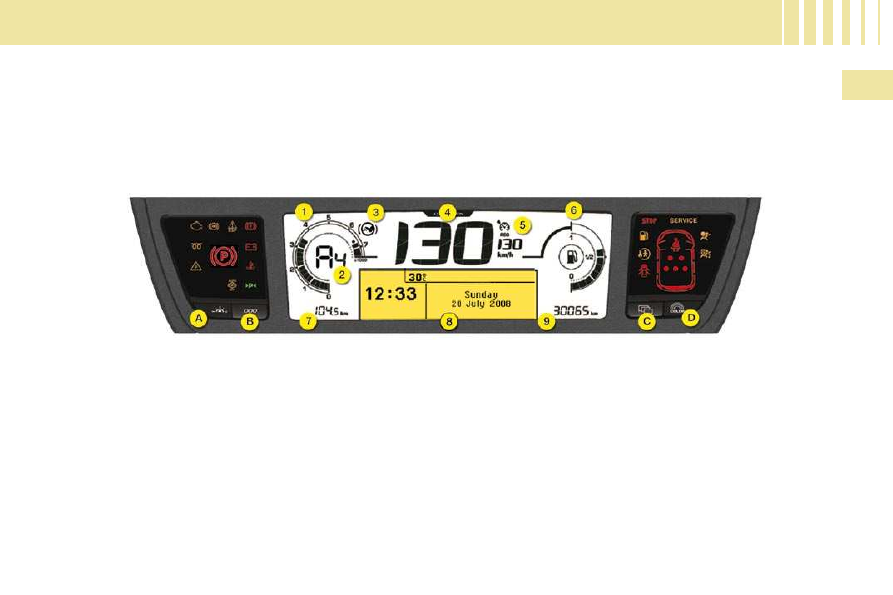

TWO - TONE INSTRUMENT PANEL

MULTIFUNCTION SCREEN C

The instrument panel groups all the driving and comfort information at the centre of the dashboard.

1. Rev counter
2. Electronic gearbox or automatic

gearbox selector position and
gear

3. Electronic gearbox or automatic

gearbox "Foot on brake" warning
lamp

4. Speedometer
5. Cruise control or speed limiter

setting

6. Fuel gauge

  7.   Trip mileage recorder
  8.   Multifunction screen C
  9.   Total mileage recorder

In this zone, the following infor-
mation appears in succession
when the ignition is switched on:

   -   service indicator,
  -   engine oil level indicator,
  -   total mileage recorder.

A. Lighting rheostat (available day

and night)

B. Trip mileage recorder reset
C. Personalisation of the instrument

panel (display of desired informa-
tion)

D. COLOUR (choice of background

colour ranging from white to blue)

Central display

Control buttons

I N S T R U M E N T S a n d C O N T R O L S

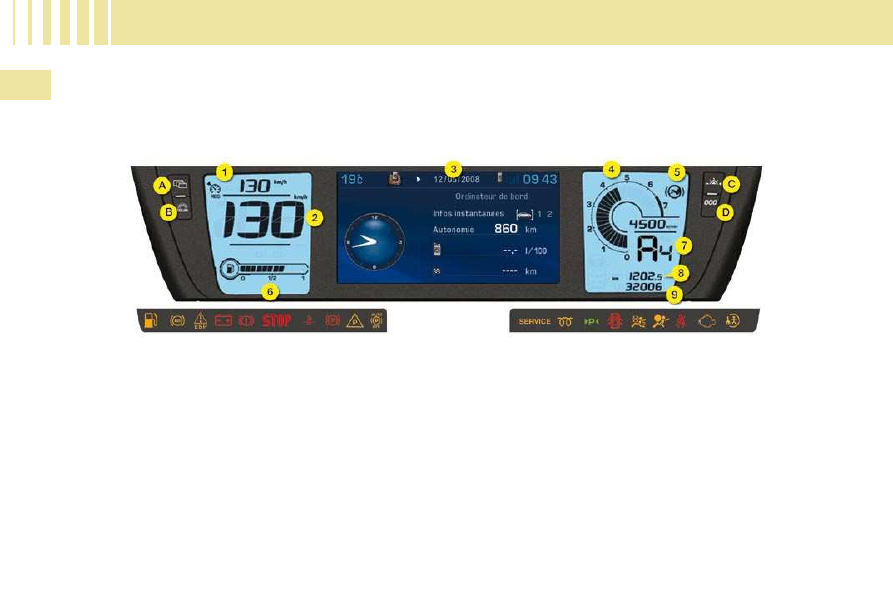

NAVIDRIVE INSTRUMENT PANEL

NAVIDRIVE MULTIFUNCTION SCREEN

The instrument panel groups all the driving and comfort information at the centre of the dashboard.

1. Cruise control or speed limiter

setting

2. Speeometer
3. NaviDrive multifunction screen

(see "NaviDrive instructions")

4. Rev counter
5. Electronic gearbox or automatic

gearbox "Foot on brake" warning
lamp

6. Fuel gauge
7. Electronic gearbox or automatic

gearbox selector position

8. Trip mileage recorder
9. Total mileage recorder

In this zone, the following infor-
mation appears in succession
when the ignition is switched on:

   -   service indicator,
  -   engine oil level indicator,
  -   total mileage recorder.

A. Personalisation of the instru-

ment panel (display of desired
information)

B. COLOUR (choice of background

colour ranging from white to
blue)

C. Lighting rheostat (available day

and night)

D. Trip mileage recorder reset

Central display

Control buttons

I N S T R U M E N T S a n d C O N T R O L S

Indicator and warning lamps

  When the ignition is switched on
The  warning  lamps  come  on  for  a
few seconds when the vehicle's igni-
tion is switched on.
When  the  engine  is  started,  these
warning lamps should switch off.
If they remain on, before moving off,
consult  information  on  the  warning
lamp concerned.

  Associated warnings
The switching on of certain warning
lamps  may  be  accompanied  by  an
audible  signal  and  a  message  on
the multifunction screen.
The  warning  lamps  may  come  on

continuously or ﬂ ash.
Certain  warning  lamps  may  come
on  in  two  different  modes.  Only  by
relating  the  type  of  lighting  to  the
operation  of  the  vehicle  can  it  be
ascertained  whether  the  situation
is normal or whether a fault has oc-
curred.

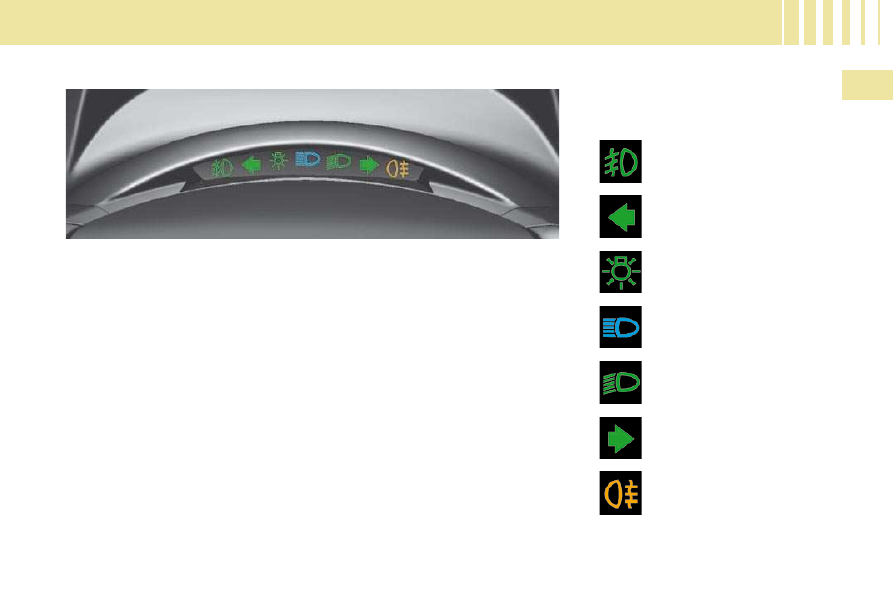

Operation indicator lamps
If one of the following indicator

lamps comes on, this conﬁ rms that

the corresponding system has come
into operation.

Front fog lamps.

Left-hand direction
indicator.

Sidelamps.

Main beam headlamps.

Dipped headlamps.

Right-hand direction
indicator.

Rear fog lamp.

Visual indicators informing the driver
that a system is in operation (opera-
tion or deactivation indicator lamps)
or of the occurrence of a fault (warn-
ing lamp).

I N S T R U M E N T S a n d C O N T R O L S

"Foot on brake"

The ﬂ ashing of this warning

lamp on the display informs
you that you need to press
the brake pedal in order

to  be  able  to  start  the  engine  on  a
vehicle with the (6-speed) Electronic
Gearbox System, or to quit position  P
in the case of an automatic gearbox.
This  warning  lamp  comes  on  if  you
attempt to release the electric parking
brake  without  pressing  the  brake
pedal.
In the case of the Electronic Gearbox

System, this warning lamp ﬂ ashes

to indicate overheating of the clutch
if you excessively use the accelera-
tor  to  hold  the  vehicle  on  an  uphill
slope.  Use  the  brake  pedal  or  the
electric parking brake.

Parking space available

This warning lamp comes
on when the parking space
function is selected.
It ﬂ ashes while the space is

being measured.

Electric child lock

If lit, the child lock is activated.
This warning lamp is displayed
a few seconds after the func-
tion is activated.

Deactivation warning lamps
If one of the following warning lamps

comes on, this conﬁ rms that the

corresponding system has been
switched off intentionally.

Dynamic stability control
(ESP/ASR) deactivation

The ESP/ASR system is put
into service automatically
when the vehicle is started.

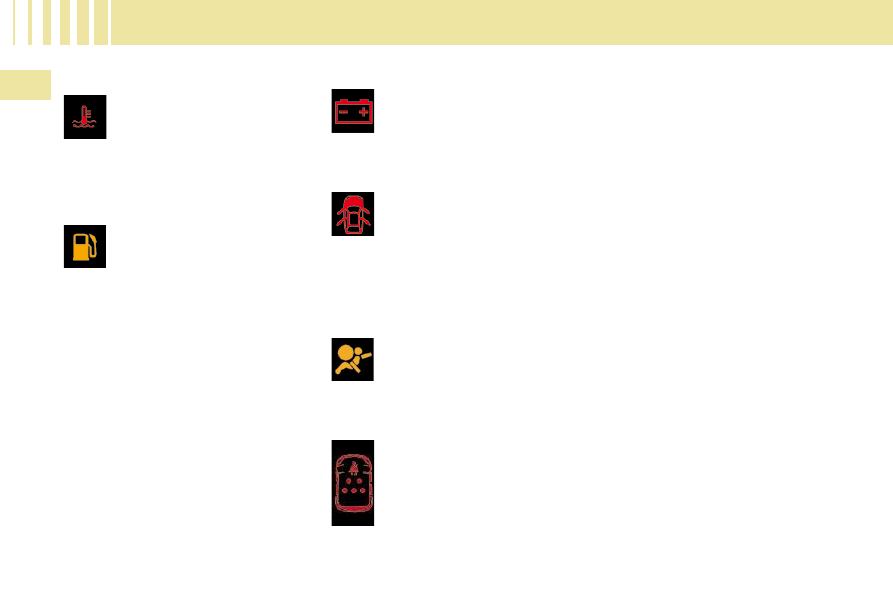

Warning lamps

Diesel engine pre-heating

Wait until this has gone out before
operating the starter.

A speciﬁ c button, located on the

dashboard, permits deactivation of

the system. This is conﬁ rmed by

continuous  lighting  of  this  warning
lamp  and  of  the  indicator  lamp  on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.

When the engine is running or the ve-
hicle is moving, the lighting of one of
the following warning lamps indicates
the occurrence of a fault requiring in-
tervention on the part of the driver.

Any fault resulting in the display-
ing of a warning lamp must be in-
vestigated  further  by  reading  the
associated message on the multi-
function screen.
Should  you  encounter  any  prob-
lems, do not hesitate to contact a
CITROËN dealer.

Passenger's air bag system
deactivation

The passenger's air bag sys-
tem is put into service auto-
matically when the vehicle is
started.

A speciﬁ c control, located in the glo-

ve box, permits deactivation of the

system. This is conﬁ rmed by conti-

nuous  lighting  of  this  warning  lamp
on  the  instrument  panel  or  a  mes-
sage on the NaviDrive multifunction
screen.

I N S T R U M E N T S a n d C O N T R O L S

"Foot on brake"

The ﬂ ashing of this warning

lamp on the display informs
you that you need to press
the brake pedal in order

System, this warning lamp ﬂ ashes

to indicate overheating of the clutch
if you excessively use the accelera-
tor  to  hold  the  vehicle  on  an  uphill
slope.  Use  the  brake  pedal  or  the
electric parking brake.

Parking space available

This warning lamp comes
on when the parking space
function is selected.
It ﬂ ashes while the space is

being measured.

Electric child lock

If lit, the child lock is activated.
This warning lamp is displayed
a few seconds after the func-
tion is activated.

Deactivation warning lamps
If one of the following warning lamps

comes on, this conﬁ rms that the

corresponding system has been
switched off intentionally.

Dynamic stability control
(ESP/ASR) deactivation

The ESP/ASR system is put
into service automatically
when the vehicle is started.

Warning lamps

Diesel engine pre-heating

Wait until this has gone out before
operating the starter.

A speciﬁ c button, located on the

dashboard, permits deactivation of

the system. This is conﬁ rmed by

continuous  lighting  of  this  warning
lamp  and  of  the  indicator  lamp  on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.

When the engine is running or the ve-
hicle is moving, the lighting of one of
the following warning lamps indicates
the occurrence of a fault requiring in-
tervention on the part of the driver.

Passenger's air bag system
deactivation

The passenger's air bag sys-
tem is put into service auto-
matically when the vehicle is
started.

A speciﬁ c control, located in the glo-

ve box, permits deactivation of the

system. This is conﬁ rmed by conti-

nuous  lighting  of  this  warning  lamp
on  the  instrument  panel  or  a  mes-
sage on the NaviDrive multifunction
screen.

I N S T R U M E N T S a n d C O N T R O L S

"Foot on brake"

The ﬂ ashing of this warning

lamp on the display informs
you that you need to press
the brake pedal in order

System, this warning lamp ﬂ ashes

to indicate overheating of the clutch
if you excessively use the accelera-
tor  to  hold  the  vehicle  on  an  uphill
slope.  Use  the  brake  pedal  or  the
electric parking brake.

Parking space available

This warning lamp comes
on when the parking space
function is selected.
It ﬂ ashes while the space is

being measured.

Electric child lock

If lit, the child lock is activated.
This warning lamp is displayed
a few seconds after the func-
tion is activated.

Deactivation warning lamps
If one of the following warning lamps

comes on, this conﬁ rms that the

corresponding system has been
switched off intentionally.

Dynamic stability control
(ESP/ASR) deactivation

The ESP/ASR system is put
into service automatically
when the vehicle is started.

Warning lamps

Diesel engine pre-heating

Wait until this has gone out before
operating the starter.

A speciﬁ c button, located on the

dashboard, permits deactivation of

the system. This is conﬁ rmed by

continuous  lighting  of  this  warning
lamp  and  of  the  indicator  lamp  on
the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.

When the engine is running or the ve-
hicle is moving, the lighting of one of
the following warning lamps indicates
the occurrence of a fault requiring in-
tervention on the part of the driver.

Passenger's air bag system
deactivation

The passenger's air bag sys-
tem is put into service auto-
matically when the vehicle is
started.

A speciﬁ c control, located in the glo-

ve box, permits deactivation of the

system. This is conﬁ rmed by conti-

nuous  lighting  of  this  warning  lamp
on  the  instrument  panel  or  a  mes-
sage on the NaviDrive multifunction
screen.

I N S T R U M E N T S a n d C O N T R O L S

Lighting is associated
with the display of an-
other warning lamp :

Service

If  this  comes  on,  it  in-
dicates the occurrence
of  a  problem  in  one
of  the  systems  which

does not have a speciﬁ c warning

lamp.
In order to identify it, consult the mes-
sage on the multifunction screen.
The warning lamp only comes on
temporarily in the case of the follow-
ing minor faults:
-

incorrect closing of the doors,
boot, rear screen and bonnet,

- ﬂ at remote control battery,
-

incorrect tyre pressure,

the end of saturation of the parti-

cle emission ﬁ lter (Diesel).

In the case of major faults, the warning
lamp remains on until the operating

fault is rectiﬁ ed, contact a CITROËN

dealer as soon as possible.

Braking

If this comes on, it indicates
the occurrence of a fault in
one of the braking systems:

- signiﬁ cant drop in the level in the

circuit,

electronic brake force distribution
(EBFD) faulty (simultaneous light-
ing of the ABS warning lamp),

stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.

Application/Release of the
automatic electric parking brake

If this warning lamp comes

on permanently, it is conﬁ rm-

ing that the parking brake is
applied.

If it ﬂ ashes, it is indicating an ap-

plication  or  release  fault.  Contact
a  CITROËN  dealer  urgently  (see
section  "Driving  -  §  Electric  parking
brake").

Automatic electric parking brake
fault

This  warning  lamp  comes
on if there is a malfunction in
the  automatic  electric  park-
ing brake.

Deactivation of the automatic
functions of the automatic
electric parking brake

This comes on if the "auto-
matic application" and "auto-
matic

release"

functions

when  you  switch  off  the
engine  are  deactivated *   or
faulty.

Dynamic stability control
(ESP/ASR)

The ESP/ASR system is put

into service automatically

when the vehicle is started.
Unless the system has been

deactivated, if this warning lamp

and the indicator lamp on the button

come on continuously, this indicates

the occurrence of a fault in the ESP/

ASR system or in the hill start assist

system.

Engine autodiagnostics system

If this comes on, it indicates
the occurrence of a fault in
the

engine

management

system.

If it ﬂ ashes, it indicates the oc-

currence of a fault in the emission
control system.

Central alert

punctured wheel,

braking,

coolant temperature,

stop the vehicle immediately and as
safely as possible.
Consult a CITROËN dealer.

Anti-lock braking system (ABS)

If this comes on, it indicates
the occurrence of a fault in
the anti-lock braking system.
However, this does not

prevent operation of the vehicle's
assisted braking.

* According to country.

I N S T R U M E N T S a n d C O N T R O L S

Airbags

If this comes on, it indicates
the occurrence of a fault in
one of the airbag or seat belt
pretensioner systems.

Maximum coolant temperature

  If this comes on, it indicates
that  the  temperature  in  the
cooling  system  is  too  high.
Stop the vehicle as soon as
it is safe to do so.

Low fuel level

When the tank is full, all the
bars are lit up.
If the fuel low warning lamp
comes on accompanied by

an audible signal and a message on
the multifunction screen, there are
approximately 7 litres of fuel remain-

ing in the tank and 2 or 3 bars ﬂ ash

in the instrument panel.
When the last bar goes out, there
are approximately 2 litres of fuel re-
maining in the tank.
Top up with fuel as soon as possible
to avoid running out.
This warning lamp comes on each
time the ignition is switched on, until

sufﬁ cient fuel is added.
A control located on the panel to the
left of the steering wheel allows you

to open the fuel ﬂ ap from inside the

vehicle.
Do not continue driving until you run
out of fuel as this may cause dam-
age to the emisions control and fuel
injection systems.

Battery charge

  If  this  comes  on,  it  indi-
cates  the  occurrence  of  a
fault  in  the  battery  charging
circuit  (dirty  or  loose  termi-
nals,  slack  or  cut  alternator
belt, ...).

Door open

A door, the boot or the rear
screen is open:

if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously,

if the speed is higher than 6 mph
(10 km/h), this warning lamp comes on
continuously, accompanied by an audi-
ble signal.

Seat belt not fastened/
unfastened

This  warning  lamp  informs
you  if  the  driver’s  or  front
passenger’s  seat  belt  is
not

fastened

(depending

on  model),  and  if  the  front
passenger’s  (depending  on
model)  or  the  second  row
passengers’  seat  belts  are

unfastened. The lit up positions repre-
sent those whose seat belts are not
fastened/unfastened.

Seat belts unfastened during the
journey:
-

the  point  corresponding  to  the
seat  position  with  seat  belt  un-
fastened lights up between 0 and
approximately12  mph  (20  km/h).

Above 12 mph (20 km/h), it ﬂ ash-

es  accompanied  by  an  audible
signal  for  around  120  seconds.
The  audible  signal  stops  when
the ignition is switched off or if a
door is opened.

Depending on model, the front pas-

senger seat may be ﬁ tted with a

presence  sensor;  the  correspond-
ing  warning  lamp  will  only  come  on
if the  seat  is  occupied  and  the  seat
belt not fastened.
Driver’s or front passenger’s seat belt
not fastened with presence sensor:
   -

the warning lamp lights up be-
tween

and

approximately

12 mph (20 km/h). Above 12 mph

(20 km/h), it ﬂ ashes accompa-

nied by a message on the mul-
tifunction screen and an audible
signal for around 120 seconds.

Second  row  rear  passengers’  or
front  passenger’s  seat  belt  not  fas-
tened without presence sensor:
   -

when the ignition is switched on, the
points corresponding to the seat po-
sitions with seat belts not fastened
remain lit up for 30 seconds.

I N S T R U M E N T S a n d C O N T R O L S

Service indicator

System  which  informs  the  driver
when the next service is due, in ac-
cordance  with  the  manufacturer's
servicing schedule.
The  point  at  which  the  service  is
due  is  calculated  from  the  last  indi-
cator zero reset. It is determined by
two parameters:
   -

the distance travelled,

the time elapsed since the last
service.

5 seconds after the ignition is switched
on,  the spanner is switched off ; the
distance recorder resumes its normal
operation. The display  then indicates
the total and trip distances.

  Less than 620 miles (1 000 km)
remain before the next service is
due
  Examples  :   400  miles  (900  km)  re-
main before the next service is due.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

  Service overdue
For  5  seconds      after  the  ignition  is
switched  on,

the spanner ﬂ ashes

to  indicate  that  the  service  must  be
carried out as soon as possible.
  Example:  the service is overdue by
300 miles/km.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

5  seconds  after  the  ignition  is
switched  on,  the  distance  recorder
resumes  its  normal  operation.   The
spanner remains on  to indicate that
a service must be carried out soon.

5  seconds  after  the  ignition  is
switched  on,  the  distance  recorder
resumes  its  normal  operation.   The
spanner remains lit .

  More than 620 miles (1 000 km)
remain before the next service
is due
For  5  seconds  after  the  ignition  is
switched  on,  the  spanner  symbol-
ising  the  service  operations  comes
on.  The  distance  recorder  display
line indicates the distance remaining
before the next service is due.
  Example:   4  800  miles/km  remain
before the next service is due.
For  5  seconds  after  the  ignition  is
switched on, the display indicates:

The  distance  remaining  may  be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore,  the  spanner  may  also
come  on  if  you  have  exceeded  the
two year service interval.

I N S T R U M E N T S a n d C O N T R O L S

Service indicator zero reset

Engine oil level indicator

After each service, the service indi-
cator must be reset to zero.
The  procedure  for  resetting  to  zero
is as follows:
      switch off the ignition,
     press  and  hold  the  trip  distance

recorder zero reset button,

 switch on the ignition; the distance

recorder display begins a count-
down,

 when the display indicates "=0" ,

release the button; the spanner
disappears.

System  which  informs  the  driver
whether  the  engine  oil  level  is  cor-
rect or not.
This  information  is  displayed  for  a
few  seconds  when  the  ignition  is
switched  on,  after  the  service  infor-
mation.
The level read will only be correct if
the  vehicle  is  on  level  ground  and
the  engine  has  been  off  for  more
than 15 minutes.

Oil level correct

Oil level low

This is indicated by the ﬂ ashing of

"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is conﬁ rmed by a

check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine.

Oil level gauge fault

This is indicated by the ﬂ ashing of

"OIL --" . Contact a CITROËN dealer.

Dipstick
Refer to the "Checks" section to lo-

cate the dipstick and the oil ﬁ ller cap

on your engine.

There are 2 marks on
the dipstick:
-

A = max; never ex-
ceed this level,

B = min; top up the

level via the oil ﬁ ller

cap,  using  the  type
of  oil  suited  to  your
engine.

Following this operation, if you wish
to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into ac-
count.

I N S T R U M E N T S a n d C O N T R O L S

Service indicator zero reset

Engine oil level indicator

recorder zero reset button,

 switch on the ignition; the distance

recorder display begins a count-
down,

 when the display indicates "=0" ,

release the button; the spanner
disappears.

Oil level correct

Oil level low

This is indicated by the ﬂ ashing of

"OIL" , accompanied by an audible
signal and a message on the multi-
function screen.
If the low oil level is conﬁ rmed by a

check using the dipstick, it is essential
that the level is topped up to prevent
damage to the engine.

Oil level gauge fault

This is indicated by the ﬂ ashing of

"OIL --" . Contact a CITROËN dealer.

Dipstick
Refer to the "Checks" section to lo-

cate the dipstick and the oil ﬁ ller cap

on your engine.

There are 2 marks on
the dipstick:
-

A = max; never ex-
ceed this level,

B = min; top up the

level via the oil ﬁ ller

cap,  using  the  type
of  oil  suited  to  your
engine.

Following this operation, if you wish
to disconnect the battery, lock the

vehicle and wait at least ﬁ ve minutes

for the zero reset to be taken into ac-
count.

Content .. 1 2 3 ..
