Citroen C3 Pluriel (2008 year). Instruction - part 7

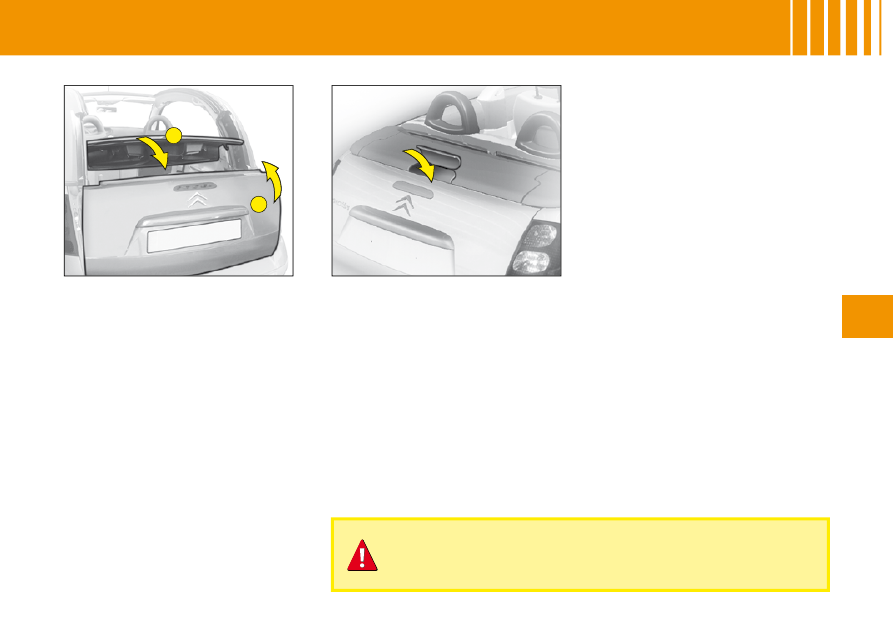

B O O T C O M PA R T M E N T C O V E R

D. To lock the boot compartment

cover: First close the tailgate 1
then the boot cover 2.

The tailgate opening control is

accessed via the mobile ﬂ ap in the

boot compartment cover.
To remove the boot compartment
cover, proceed in reverse order.

Do not place any object on the boot compartment cover.

100

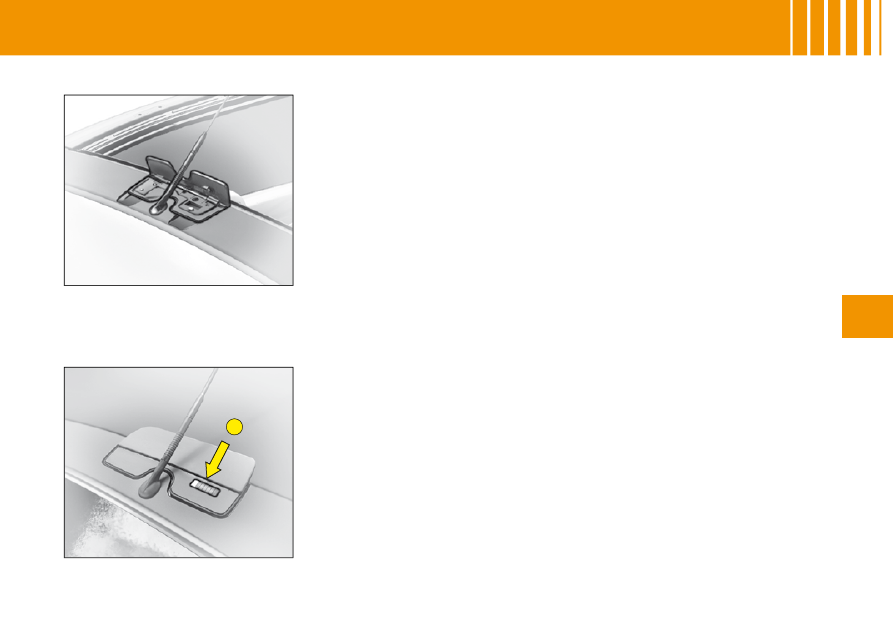

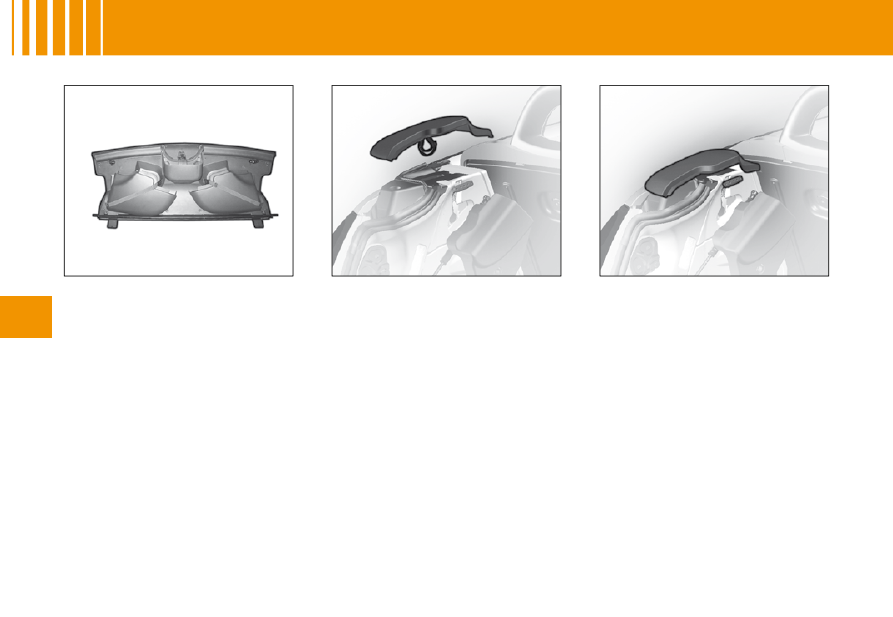

S I D E C O V E R S

The side covers are to be found on
the interior face of the boot com-
partment cover.

Positioning the side covers:
Deploy the ring located beneath
the cover.
Make sure that the telescopic han-
dles are in the fully up position
when placing the side covers.

Place  the  cover  in  the  location
vacated by the arch.
Lower  the  telescopic  handle  with
the  palm  of  your  hand  to  lock  the
cover in position.

101

A C O U S T I C C O M F O R T

Aero-acoustic deﬂ ector

Your vehicle is equipped with an aero-acoustic mobile deﬂ ector for sup-

pressing any air turbulence which may occur when driving in saloon conﬁ gu-

ration with the roof open.

Operation

The deﬂ ector deploys automatically when the roof is opened.
The latch A permits you to immobilise it.

Advice:

To improve your comfort when in cabriolet or spider conﬁ guration, it is rec-

ommended:

to have the front and rear windows up
to immobilise the acoustic deﬂ ector in the closed position.

In saloon conﬁ guration with the roof closed for driving at high speed, you

are recommended to immobilise the aero-acoustic deﬂ ector in the closed

position.

•
•

102

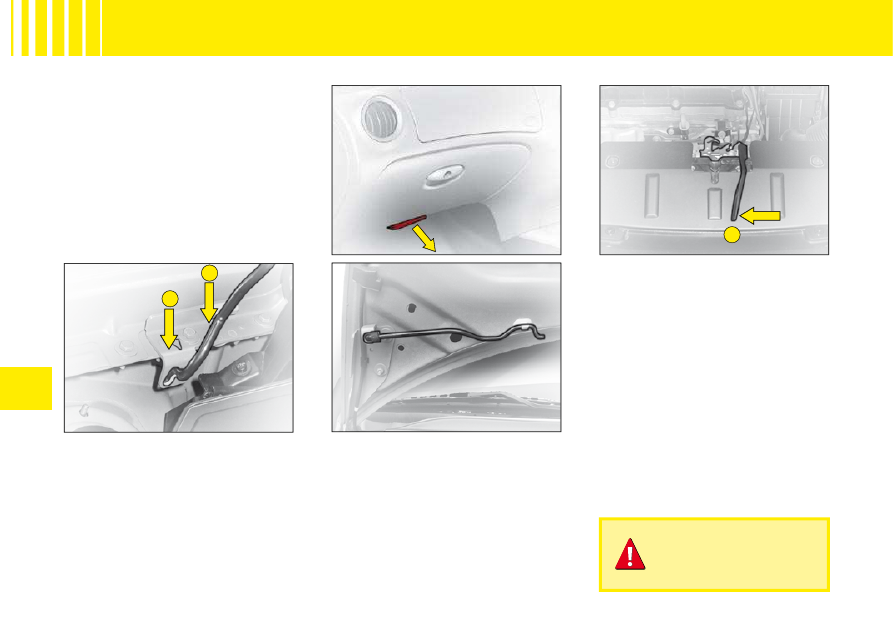

B O N N E T R E L E A S E

Bonnet release

This  operation  should  only  be
performed  while  the  vehicle  is
stationary.
To release the bonnet, pull the con-
trol  located  under  the  dashboard
towards you.

Bonnet stay: Unclip and swivel
the strut, to insert it in notch 1, then
in notch 2 (See arrow indication).
Warning: Do not pull the strut
towards the front.

To close

Fit the strut in its place.
Lower the bonnet carefully, then
let it drop shut. Avoid opening the
bonnet in high winds.

Action the control A situated below
the chevrons, then lift.
Note: The panel may be hot after
the vehicle has been in use.

Check that the bonnet is
properly secured.

103

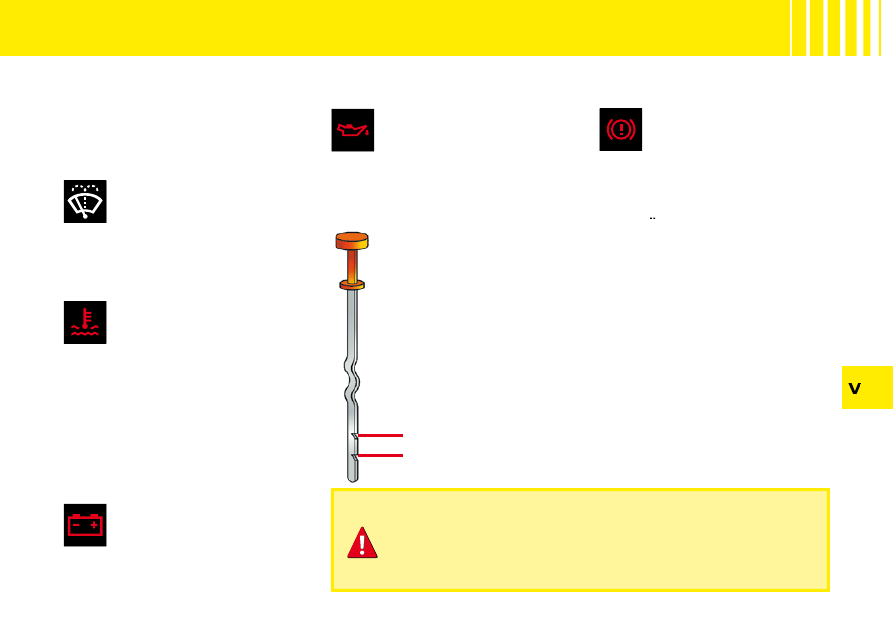

L E V E L S

Air ﬁ lter

Follow the requirements
set out in the Maintenance
Guide.

REFER TO THE CHAPTER: USER PRECAUTIONS.

Screen wash and head-

lamp wash ﬂ uid

Use

CITROËN-approved

products wherever possible.

Capacity: See “Capacities”.

Engine coolant

The ﬂ uid level should be

between the marks MIN. and
MAX. on the header tank.

Engine hot, wait at least 15 minutes.
Quality: See “Maintenance Guide”.
Never do anything relating to
the cooling system of an engine
that is hot.

12V battery

See “Starting with a slave
battery”.

Engine oil

Check  the  engine  oil  level
on  horizontal  ground  with
the  engine  having  been

switched off for at least 10 min-

utes.
Quality: See “Maintenance Guide”.

Pull  out  the  manual  dip-
stick.
The level should be between
the  marks  MIN.  and  MAX.
on the gauge.
It  must  never  exceed  the
maximum.

MAX.

MIN.

Brake ﬂ uid

The level of ﬂ uid should be

between the marks MIN.
and MAX. on the reservoir.

Quality: See “Maintenance Guide”.
If the warning lamp comes on
while you are driving, stop
immediately

and

contact

CITROËN dealer.

immediately

and

immediately

Cabin particle ﬁ lter/

Odour ﬁ lter

See “Maintenance Guide”.

If opening the bonnet when the engine is hot, even if it is
stopped and the ignition is switched off, remember that the
cooling fan may operate at any moment.
Consult “User Precautions” at the end of this handbook.

107

L E V E L S

Engine oil

Check the engine oil level on horizontal ground with the engine having been

switched off for at least 10 minutes.
Pull out the manual dipstick.
The level should be between the marks MIN. and MAX. on the gauge.

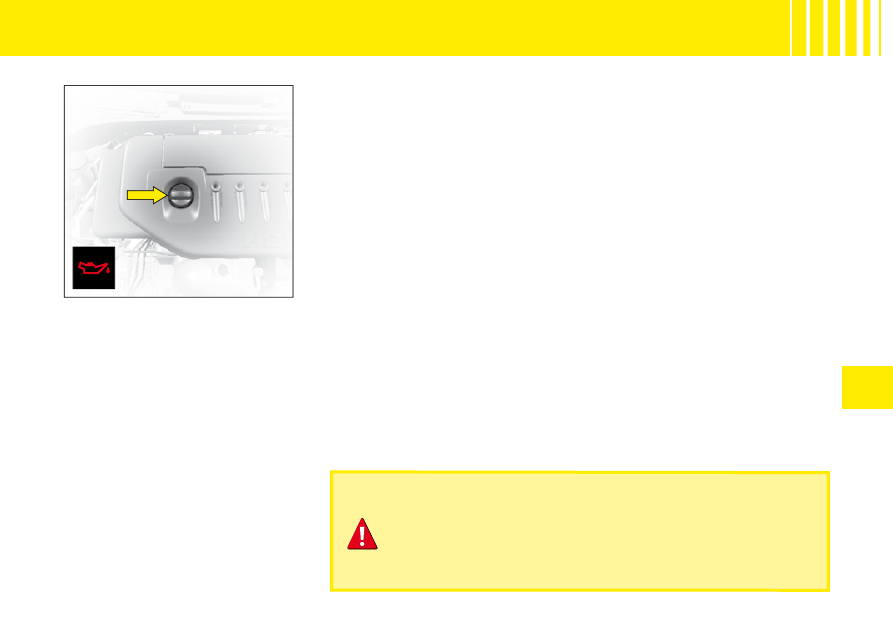

Topping up engine oil

Before ﬁ lling, pull out the dipstick.
Check the dipstick after ﬁ lling.
It must never exceed the maximum.
Screw the cap back on and close the bonnet.
Quality: See “Maintenance Guide”.

If opening the bonnet when the engine is hot, even if it is
stopped and the ignition is switched off, remember that the
cooling fan may operate at any moment.

108

Topping up the coolant

The ﬂ uid level should be between the marks MIN. and MAX.

on the header tank.
Top up the level. If you have to put in more than 1 litre, have
the cooling system checked by a CITROËN dealer.

Top up the level. If you have to put in more than 1 litre,

more than

Make sure that the cap is back on properly.
Note:

If you need to top up the ﬂ uid frequently, this indicates

a malfunction which you should get checked at the earliest
opportunity.
Quality: See “Maintenance Guide”.
Remark:

The cooling fan may operate for around 10 minutes after the

engine has stopped.

If opening the bonnet when the engine is hot, even if it is
stopped and the ignition is switched off, remember that the
cooling fan may operate at any moment.

L E V E L S

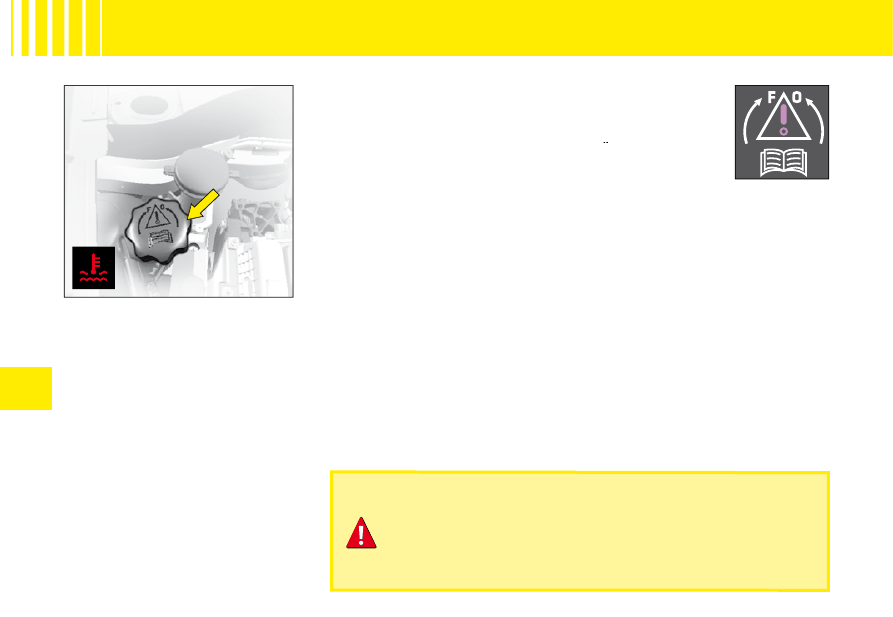

Radiator – coolant ﬂ uid

Checking the level and topping up

with ﬂ uid must always be done with

the engine cold.

Engine hot

Release the protection cover.
Wait 15 minutes or for the temper-

ature to be lower than 100°C and

then  carefully  unscrew  the  cap  so
as  to  allow  the  pressure  to  drop,
protecting  yourself  with,  say,  a
cloth.

104

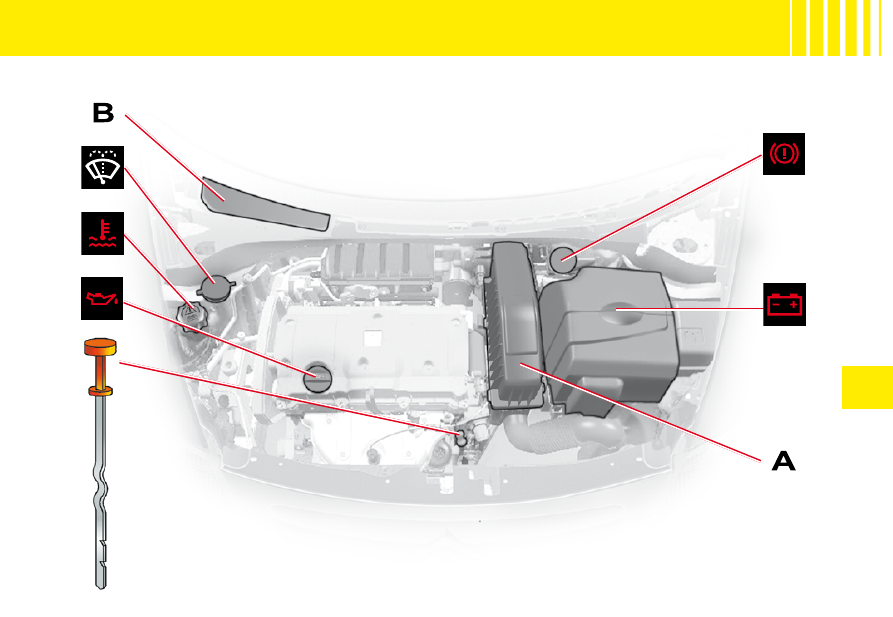

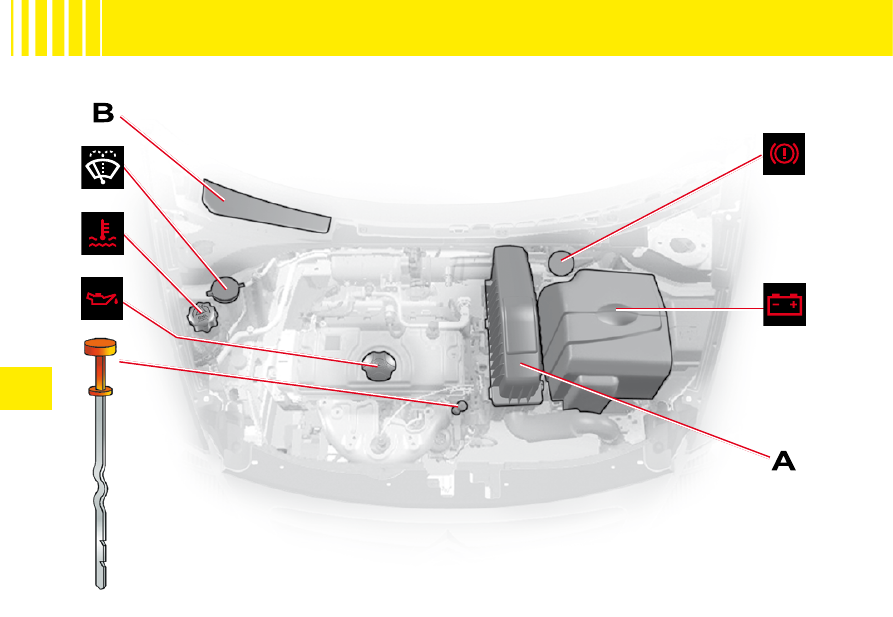

1 . 4 i E N G I N E

105

1 . 6 i 1 6 V E N G I N E

106

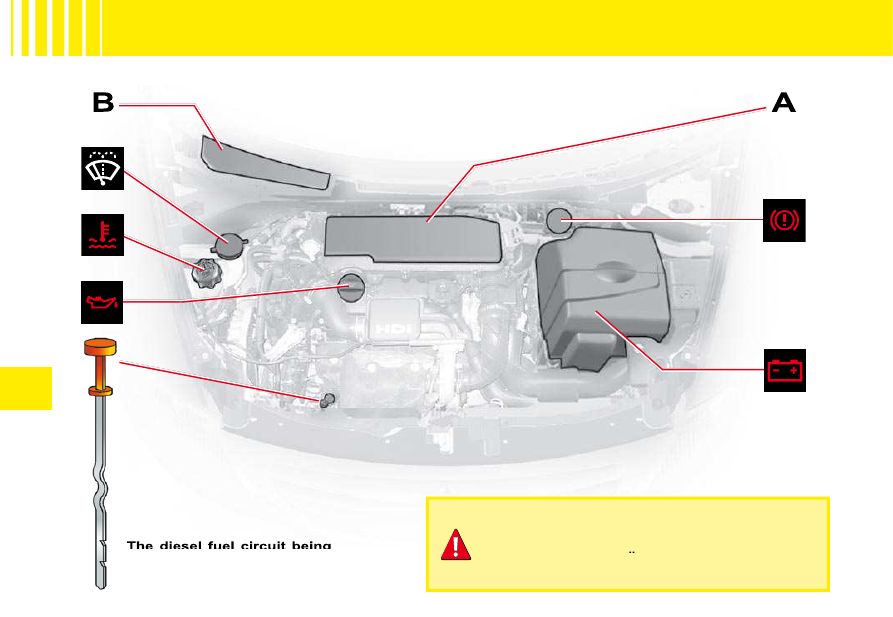

H D i

7 0 E N G I N E

The diesel fuel circuit being
under high pressure:
ANY INTERVENTION ON THE
CIRCUIT IS PROHIBITED.

HDi engines are the result of advanced technology.
Any intervention requires special qualiﬁ cations

which only a CITROËN dealer can guarantee.

Any intervention requires special qualiﬁ cations

109

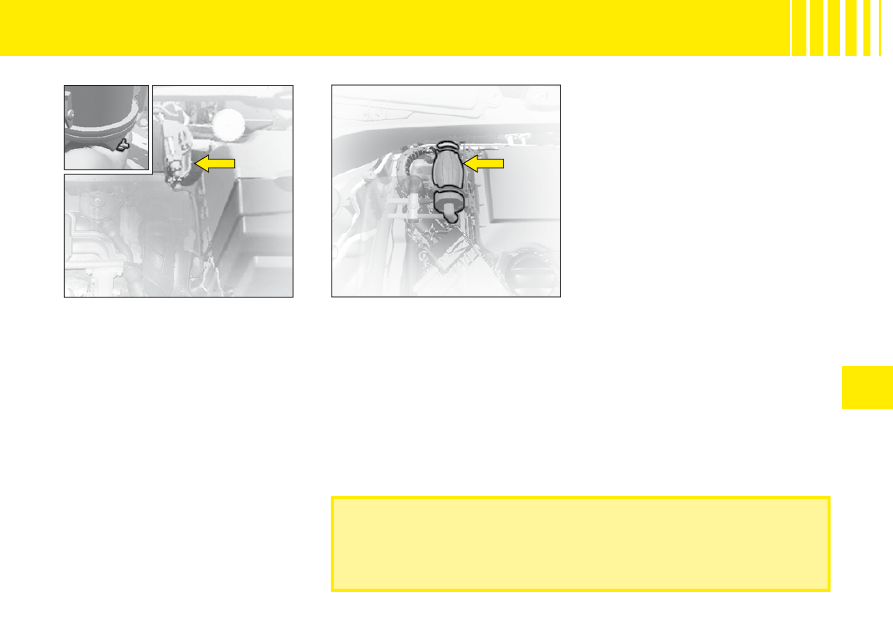

D I E S E L I N J E C T I O N E Q U I P M E N T

Priming the fuel system

Detach the protection cover to
access the priming pump.

HDi engines are the result of advanced technology.
Any intervention requires special qualiﬁ cations which only a CITROËN

dealer can guarantee.

Draining water from the fuel

ﬁ lter

Purge regularly (at each oil change).
To drain the water, slacken the
bleed screw or the water-in-diesel-
fuel sensor located at the base of

the ﬁ lter.
Operate until the water has com-
pletely drained away.
Then retighten the bleed screw or
the water in diesel fuel sensor.

In the event of running out of fuel:

After ﬁ lling (5 litres minimum),

operate the manual priming
pump until some resistance is
felt.
Operate the starter motor while
depressing

the

accelerator

pedal slightly until the engine
starts.

If the engine fails to start at the ﬁ rst

attempt, wait 15 seconds before

trying again.
If the engine fails to start after sev-
eral attempts, repeat the procedure
from the beginning.
When the engine is idling, acceler-
ate slightly to complete the bleed-
ing of the circuit.

•

110

C A P A C I T I E S

Engine type

Engine oil capacities (in litres)

(1)

1.4i engine

3.2

1.6i 16V engine

3.2

HDi 70 engine

3.8

(1)

Drain, reﬁ ll and replace oil ﬁ lter.

Screen wash ﬂ uid (in litres)

3.5

111

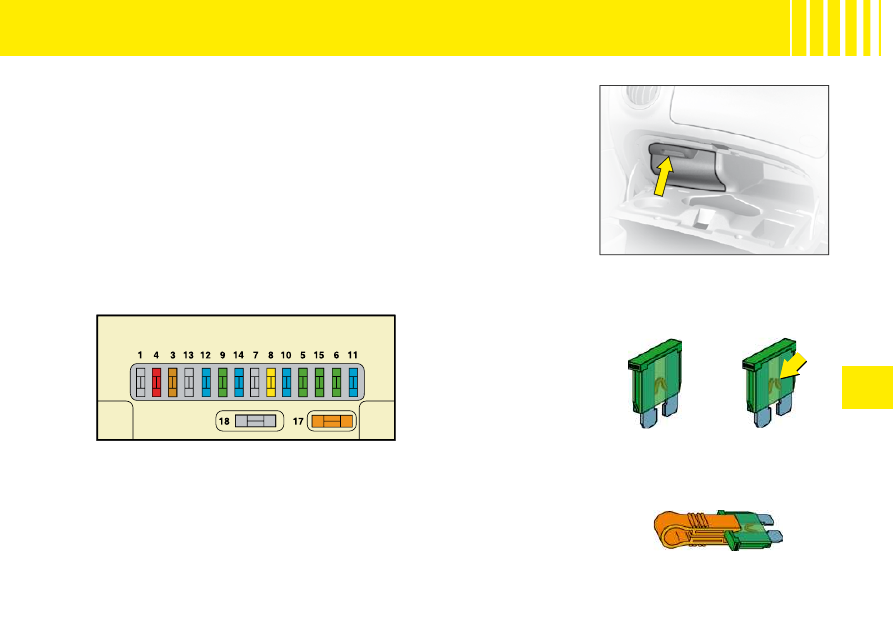

F U S E S

Fuseboxes

There are two fuse boxes, one below the dashboard and one under the
bonnet.

Dashboard fuses

The fuse box is located in the lower glovebox compartment.
To access the fuses, open the glove box, pull the handle on the fuse box
cover.

Replacing a fuse

Before replacing a fuse, you should ascertain the cause of the fault and
have it remedied. The numbers of the fuses are indicated on the fusebox.

Replace the fuse that has blown with one of the same rating (same
colour).
Use the special pliers A stowed on the cover close to the fuseboxes, this
includes a compartment for replacement fuses.

Good

Bad

Pliers A

112

T A B L E O F F U S E S

D A S H B O A R D F U S E S

Ref.

Rating

Function

5 A

Airbags

10 A

Diagnostic socket – Clutch switch – Steering angle sensor

30 A

Rear window – Sun roof

30 A

Screen wash

20 A

Digital clock – Controls at the steering wheel – Radio – Display

30 A

Cigar-lighter – Digital clock – Interior lamps – Vanity mirror

15 A

Alarm

15 A

Ignition switch – Diagnostic socket

15 A

Airbag ECU – Rain and brightness sensor

15 A

Parking assistance – Instrument panel – Air conditioning – Bluetooth

telephone

30 A

Central locking – Deadlocking

40 A

Heated rear screen

SHUNT

CUSTOMER PARK SHUNT

113

F U S E S

Any action on the MAXI fuses (that give extra protection) (in
grey in the diagrams), located in the fuseboxes, should be left
to a CITROËN dealer.

grey in the diagrams), l

the dia

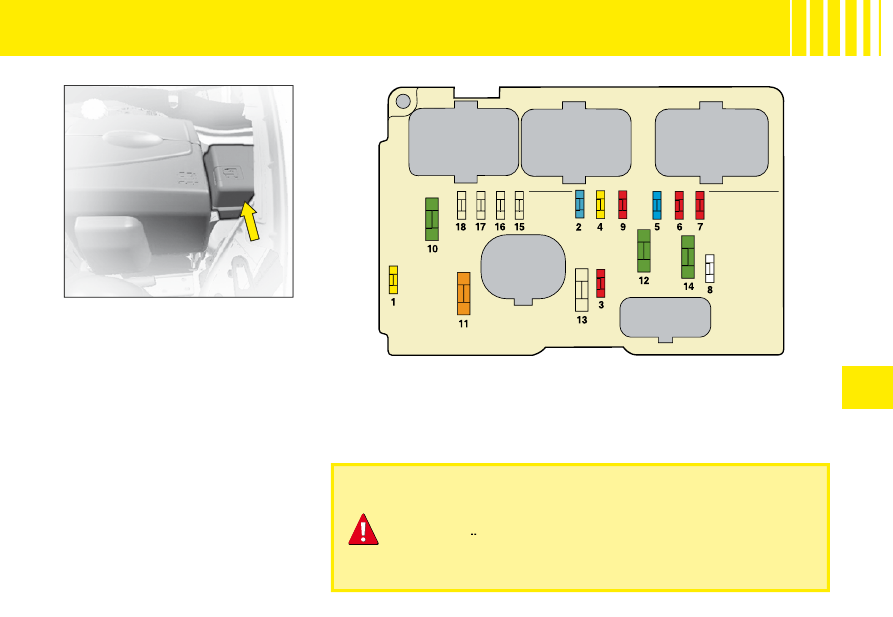

Fuses under the bonnet

Fusebox

To  access  the  fusebox  located  in
the  engine  compartment,  remove
the  battery  cover  and  detach  the
lid.
After  a  repair,  take  care  to
reclose the cover.

114

T A B L E O F F U S E S

F U S E S U N D E R T H E B O N N E T

Ref.

Rating

Function

20 A

Water-in-diesel-fuel sensor

15 A

Horn

10 A

Screen wash

20 A

Headlamp wash

15 A

Fuel pump

10 A

Power steering

10 A

Coolant level sensor

25 A

Starter

10 A

ECUs (ABS, ESP)

30 A

Engine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge

40 A

Air blower

30 A

Windscreen wiper

30 A

Air pump (petrol version) – Diesel fuel heater
