Citroen C3 Pluriel (2008 year). Instruction - part 3

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

The driver is recommended not to
concern himself with the display
controls while driving.

1. Time.
2. Date - Display zone.
3. Outside temperature.

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).
Note:  The  outside  temperature
displayed  may  be  higher  than  the
actual temperature if the vehicle is
stationary in bright sunlight.
Remark:  The  display  of  certain
types  of  information  is  sometimes
scrolled  and  sometimes  alter-
nated.

Controls

A. Access to the “Main menu” of

the display.

B. Scroll through display menus.
C.

Validation and Selection in the

menus, of the function chosen

or value modiﬁ ed.

D. Cancellation of the operation or

return to the previous display.

E. Selection of the type of infor-

mation displayed in zone 2
(date, radio/CD and trip com-
puter).

E. In the Menus, choice of acti-

vation/deactivation of your
functions and choice of your
adjustments.

Main Menu

By pressing control A then B, you
have access to the following func-
tions:

Radio-CD (See radio-CD hand-
book).
Vehicle conﬁ guration, to acti-

vate/deactivate:

The

automatic

guide-me-

home lighting.
Automatic lighting of head-
lamps.

Options, to display the alerts.
Display adjustments, to adjust
the  date  and  time  on  the  dis-
play.
Languages,  to  select  the  dis-
play language.
Units, to access the choices of
units  of  Temperature  and  Fuel
Consumption.

•

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

Personalisation/Conﬁ guration

To activate/deactivate the auto-
matic guide-me-home lighting:

Press button A.
Select, using B, the sub-menu

to personalise-conﬁ gure your

vehicle, then conﬁ rm your

choice with a press on C.
Select guide-me-home lighting,
using B.
The system tells you the status
(active or inactive) of the func-
tion. Modify this status with a
press on E.
Then please wait for the display
to disappear.

•
•

•

To activate/deactivate the auto-
matic lighting of headlamps:

Press button A.
Select, using B, the sub-menu

to personalise-conﬁ gure your

vehicle, then conﬁ rm your

choice with a press on C.
Select automatic lighting of
headlamps using B.
The system tells you the status
(active or inactive) of the func-
tion. Modify this status with a
press on E.
Then please wait for the display
to disappear.

Note: Activation of this function
is immediate while deactivation
requires the ignition to be switched
off.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

To choose the language:

Press button A.
Using B, select the sub-menu

for Languages. Conﬁ rm your

choice with a press on C.
By presses on E, select the lan-
guage of your choice.
Then please wait for the display
to disappear.

To choose units:

Press button A.
Using B, select the sub-menu

for Units. Conﬁ rm your choice

with a press on C.
Using B, select the unit you
wish to modify (Temperature or
Consumption).
Via presses on E, select the

unit of your choice.
Then please wait for the display
to disappear.

Note: This choice concerns all
the types of information (fuel con-
sumption, speed, etc.) that appear
on the displays.

•
•

•

•
•

•

To display the Log of Alerts:

Press button A.
Using B, select the sub-menu

for options. Conﬁ rm your choice

with a press on C.

Note: You can cancel the start of
the display by selecting E to aban-

don, validate with a press on C.
The  alerts  that  have  previously
been  signalled  to  you  but  not
resolved,  are  recalled  to  you  in  a
scroll.
To  delete  the  display  of  an  alert,
press D.

•
•

To adjust the date and the time:

Press button A.
Using B, select the sub-menu
for Display Adjustments, then

conﬁ rm with a press on C.
Using B, select what you wish to
modify: Day, month, year, hour,
minutes and display mode.
Make

your

adjustment

presses on E. You can continue
your adjustments, selecting fur-
ther parameters by pressing B.
When you have ﬁ nished your

adjustments, simply wait for the
display to disappear.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

The driver is recommended not to
concern himself with the display
controls while driving.

1. Time.
2. Outside temperature.
3. Date - Display zone.

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).

Controls

A. Access to the “Main menu” of

the display.

B. Scroll through display menus.
C.

Validation and Selection in the

menus, of the function chosen

or value modiﬁ ed.

D. Cancellation of the operation or

return to the previous display.

E. Selection of the type of infor-

mation you wish to see perma-
nently displayed (date, radio-
CD, trip computer) on the right
of the screen.

Main Menu

Press  on  button A  to  bring  up
the  “Main  menu”  of  the  multifunc-
tion  display.  This  menu  gives  you
access to the following functions:

Radio-CD
(See radio-CD handbook).

Trip computer, giving you:

Entering the distance to
the destination
Access to the log of

alerts  (recall  of  the  alerts  sig-
nalled previously.
Access  to  status  of  functions,
for  example  activation/deacti-
vation  of  automatic  lighting  of
headlamps,  ESP,  windscreen
wipers.

•

Personalisation - Conﬁ g-

uration, allowing you to
activate or deactivate:

The automatic guide-
me-home lighting.

Automatic lighting of headlamps.

And choosing:

The brightness, the time, the
date and the display units.
The display language.

•

Bluetooth

hands-free kit

(See radio-CD handbook).

Note: The outside tem-

perature displayed may be higher
than the actual temperature if the
vehicle is stationary in bright sun-
light.

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

Trip computer

To enter the distance to be trav-
elled on the trip computer:

Press button A.
Use B to select the icon “Trip

computer”, then conﬁ rm with a

press on C.
Select entry of distance using B.

Conﬁ rm your choice with a

press on C.
To choose the distance, select

the ﬁ gure you wish to modify

by using B

, then conﬁ rm with a

press on C.
Use B to adjust the value, then
validate by pressing C.
Validate “OK” on the screen.

To access the trip computer's
log of alerts:

Press button A.
Use B to select the icon “Trip

computer”, then conﬁ rm with a

press on C.
Select the log of alerts.
When the list displays, use B to
scroll through it.
Press D to return to the perma-
nent display.

To access the status of functions:
proceed in a similar manner.

•
•

•

•
•

•

Personalisation/Conﬁ guration

To activate/deactivate the auto-
matic guide-me-home lighting:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Then select the sub-menu for
the vehicle parameters. Con-

ﬁ rm your choice with a press

on C.
Using B, select lighting and

signalling. Conﬁ rm your choice

with a press on C.

•
•

•

Then press C to select/deselect
the  guide-me-home  lighting,
to  activate/ deactivate  it.  After
activation, choose the duration:
press C  then  use B  to  select
the duration, then press C.
Validate “OK” on the screen.

To activate/deactivate the auto-
matic lighting of headlamps:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Then select the sub-menu for
the vehicle parameters. Con-

ﬁ rm your choice with a press

on C.
Using B, select lighting and

signalling. Conﬁ rm your choice

with a press on C.
Next press on C to activate/
deactivate automatic lighting of
headlamps.
Press button C.

Note: Activation of this function is
immediate while deactivation requires
the ignition to be switched off.

•

•
•

•

To adjust the display brightness:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm your

choice with a press on C.
Select the brightness adjust-

ment. Conﬁ rm your choice with

a press on C.
Select with a press on B, then
validate by pressing C, the nor-
mal or alternative display mode.
To adjust the brightness, select
the symbols “+” or “–” and con-

ﬁ rm your adjustment by press-

ing C.
Validate “OK” on the screen.

•
•

•

To adjust the date and the time:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm your

choice with a press on C.
Select the adustment for the
date and the time, by press-
ing B

, then conﬁ rm with a press

on C.
Press B to select the values

you wish to modify. Conﬁ rm

your choice with a press on C.
Do your adjustments with B,
then validate each adjustment
choice with a press on C.
Validate “OK” on the screen.

To choose the language:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Use B to select the desired lan-
guage and validate your choice
by pressing C.
Validate “OK” on the screen.

•
•

•

•
•

•

To choose units:

Press button A.
Use B to select the icon “Per-
s o n a l i s a t i o n - C o n f i g u r a t i o n ”

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm your

choice with a press on C.
Then select the sub-menu for

Units. Conﬁ rm your choice with

a press on C.
Using B, select the unit to be

modiﬁ ed (Temperature or Con-

sumption) then validate with a
press on C.
Validate “OK” on the screen.

Note: This choice concerns all
the types of information (fuel con-
sumption, speed, etc.) that appear
on the displays.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

T R I P C O M P U T E R

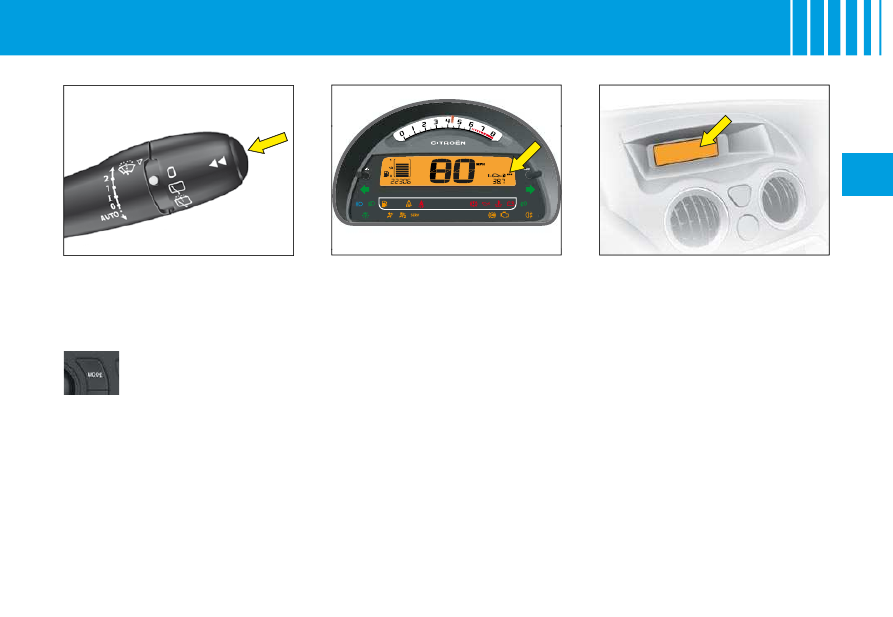

For  selection  and  display  of  the
various  types  of  information,  give
short  presses  on  the  end  of  the
windcsreen wiper stalk.

Instrument panel (For a ver-
sion with digital clock)

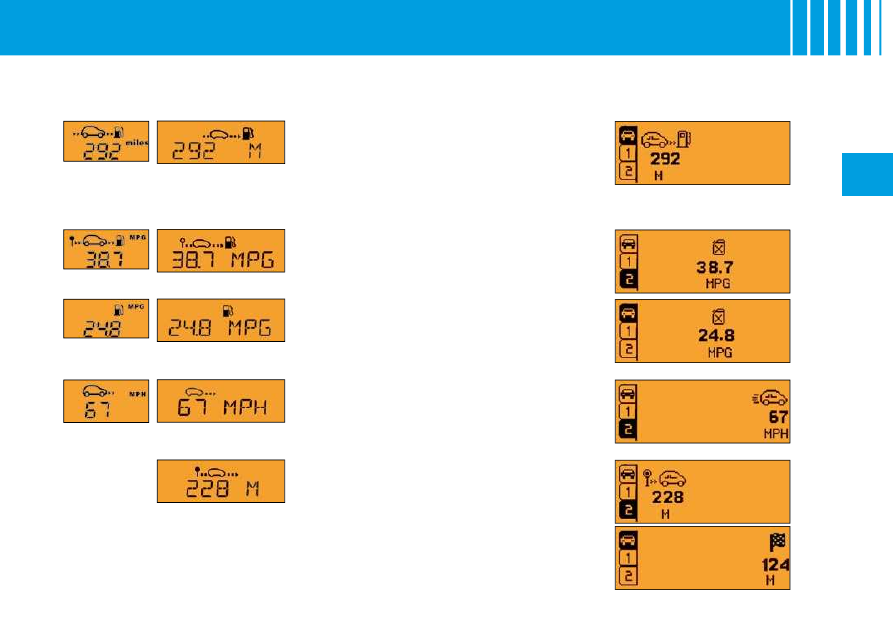

The trip computer provides 4 types

of information on the instrument
panel, following the display of trip
mileage:

Range.
Instantaneous consumption.
Average consumption.
Average speed.

Remark: If the cruise control /
speed limiter is in operation, the
display of trip computer information
disappears after a few seconds.

•
•
•
•

Display A

The trip computer provides 5 types

of information:

Range.
Average consumption.
Instantaneous consumption.
Distance travelled.
Average speed.

To cancel the display of the trip
computer information, press a sixth
time.

•
•
•
•
•

With  screen  C,  a  press
on  the  “Mode”  button
brings up permanent dis-
play  of  the  trip  computer
information.

To reset the trip computer infor-
mation to zero, keep the end of
the control stalk pressed for a few
seconds when you see the relevant
information displayed.

The trip computer gives access to 3 types of instantaneous information:

Range.
Instantaneous consumption.
Distance remaining to be travelled.

The trip computer also gives access to 3 types of information for 2 Journeys 1 and 2:

The distance travelled.
Average consumption.
Average speed.

The Journeys

Journeys 1 and 2 are independent of each other but identical in use. For example you can allocate Journey 1 to daily

calculations and Journey 2 to monthly calculations.

Resetting a Journey to zero

When the desired Journey is displayed, give a long press on the end of the wiper control stalk.
Remark:
After a re-initialisation of the trip computer, the indication of range only becomes signiﬁ cant after a certain period of use.

•
•
•

T R I P C O M P U T E R

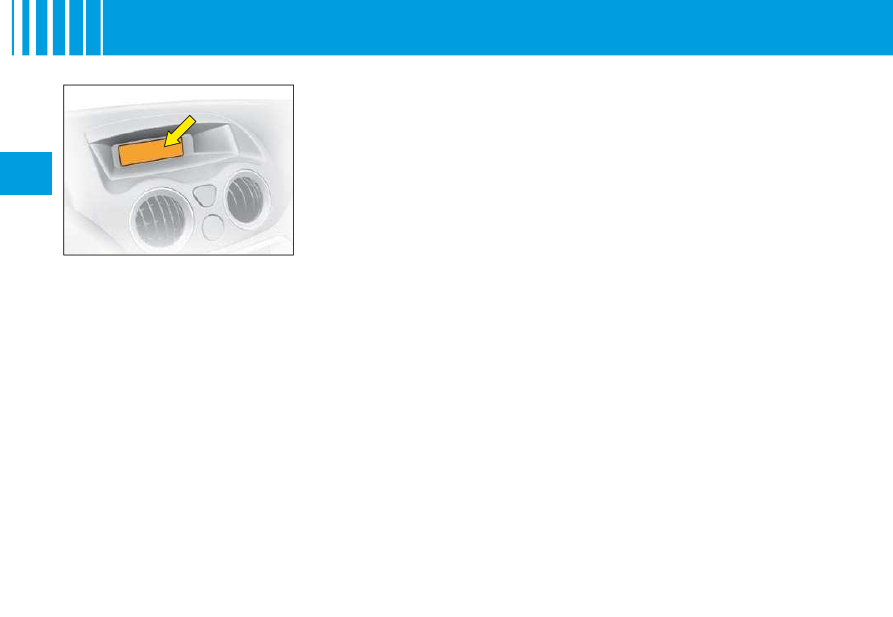

Display C

Range

This is the distance that can still be travelled
on the amount of fuel remaining in the tank.
When the distance remaining to be travelled is

less than approx. 25 km (16 miles), only three

dashes will be displayed.

Average consumption

This is the relationship between the fuel con-
sumed and the distance travelled since the last
reset to zero of the trip computer.

Instantaneous consumption

This is the result from the consumption

recorded within the last 2 seconds. This func-

tion is only available when travelling at over

30 km/h (approx. 20 mph).

Average speed

This is obtained, from the last reset to zero of the
trip computer, by dividing the distance travelled
by the time taken (with ignition switched on).

Distance travelled

This is the distance that has been travelled

since the last reset to zero of the Journey

selected.

Distance to be travelled

To enter it, see “Multifunction display”.

Instrument

panel

Display

version A

Display

version C

T R I P C O M P U T E R

S I G N A L L I N G

Direction indicators

Left, downwards.
Right, upwards.
For  a  change  of  direction,  move
the  control  stalk  beyond  the  tight
spot.  Stops  automatically  with  the
return of the steering wheel.

Visible alert / headlamp ﬂ ash

Pull the control towards you.
The headlamp ﬂ ash can be made

even with the ignition switched off.

Horn

Press at the centre of the steering
wheel.

Hazard warning lamps

This operates all the direction indi-
cators simultaneously.
Only  use  them  to  indicate  dan-
ger,  for  an  emergency  stop  or  for
driving in abnormal conditions.
The  hazard  lamps  can  also  be
used with the ignition switched off.

Sound signal for headlamps
left on

This  operates  when  the  driver's
door is opened, ignition off, to indi-
cate that the vehicle lamps are still
on.
It  stops  when  you  close  the  door,
switch  off  the  lamps  or  switch  on
the ignition.
This signal does not operate if the
automatic  lighting  of  headlamps
or  the  guide-me-home  lighting  are
active.

Emergency operation of haz-
ard warning lamps

A sudden deceleration of the vehi-
cle  causes  the  hazard  lamps  to
come on automatically.
They  will  cease  to  operate  auto-
matically,  or  manually  if  you  press
the  hazard  lamps  button  on  the
dashboard.

The direction indicators cannot operate if the hazard warning

lamps are on.

S I G N A L L I N G

Lighting control stalk

All vehicle lamps off

Sidelamps on

The instrument panel lights
up.

Dipped beams/main
beams on

Rotate the ring A forwards.

Sidelamps and dipped beams
come on automatically in poor
ambient light, or if the wipers are in
continuous operation. They go out
as soon as the ambient light again

become sufﬁ cient or when the wip-

ers cease to operate.

Guide-me-home lighting

This function switches on your
headlamps, to light your way when
you wish to walk from a carpark,
for example.
This function is activated:

Manually by pulling the lighting
stalk towards you, ignition off.
Automatically, provided:

The

automatic

lighting

headlamps is activated.
To  activate  the  guide-me-
home  lighting  function,  select
in  the  “Main  menu”,  then  in
“Personalisation/Configura-
tion”,  the  sub-menu  for  light-
ing  and  signalling,  then  acti-
vate the function.
See “Multifunction display”.

Note:

It is possible to modify the dura-
tion of the guide-me-home lighting
(approx. 60, 30 or 15 seconds) in
the menu “Personalisation/Con-

ﬁ guration”.
On screen A, the length is

ﬁ xed.

Note:  On  vehicles  equipped  with
daytime  running  lamps,  automatic
headlamp  lighting  and  guide-me-
home lighting are not available.

•

Rotate the ring A forwards.
Pull the control stalk towards you
to change between dipped beam
and main beam.

Rotate the ring A forwards.
Take care not to cover the bright-
ness sensor, which is visible from
outside the windscreen, behind
the interior rear view mirror.

Automatic lighting of
headlamps

S I G N A L L I N G

Rear foglamps on

Front foglamps and rear foglamps on

The warning lamp lights up.
The foglamps operate only with
either headlamp dipped beam or
headlamp main beam switched on.

Switching off

First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.
Note: the foglamps should be used only in fog or in other conditions of poor
visibility.

Front and rear foglamps
(ring C)

Switch on your dipped/main beams.

In foggy conditions, if the ambient light is not such that the

headlamps come on automatically, it is up to the driver to switch

on dipped beams, and/or foglamps, manually

Rear FOGLAMPS (Ring B)

Switch on your dipped/main beams.
Rotate the ring B forwards.

Front foglamps on

Rotate the ring C forwards.

Windscreen wiper

Control positions

2: Rapid wipe.
1: Normal wipe.

: Intermittent wipe.

0: Off.

One press downwards:

AUTO: Automatic wipe activated.
Single wipe.

•
•

For  safety,  the  wiper  system
is  deactivated  when  the  igni-
tion is switched off.
Automatic wipe must be reac-
tivated if the ignition has been
switched off for longer than 1
minute,  by  pressing  the  con-
trol stalk downwards.

Position

: The wipe speed adjusts automatically to the speed of the vehicle.

Positions 1 and 2: When the vehicle is stationary, the speed of the wipers
will reduce automatically.
For safety, the wiper system is deactivated when the ignition is
switched off.
When you switch the ignition on again, to reactivate the function:

Return to position 0.
Or go to the desired position.

Activation of the function is conﬁ rmed by one sweep of the wipers.

Vehicle with rain sensor

Activation of automatic wipe:

One touch downwards: “AUTO”. The wipe speed will adjust according to the
intensity of the rain.
Note: If automatic wipe is active, a touch downwards triggers a single wipe,
without deactivating automatic wipe.

Deactivation of automatic wipe:

Go to position

, then return to position 0.

Or stop the engine.

WARNING

Do not cover the rain detector which is located behind the interior rear

detector

view mirror and visible from outside the windscreen.
For washing the vehicle, switch off the ignition or deactivate the automatic
wipe.

-
-

•
•

W I P E R S

W I P E R S

In freezing weather, check that the wiper blades are not frozen on

the screen.

Remove any accumulation of snow at the base of the windscreen.

Changing the wiper blades

If  you  have  to  replace  them,  the
wiper blades have to be parked in
the  maintenance  position.  For
this, switch off the ignition and then
within  one  minute  move  the  wiper
control  stalk. The  wipers  stand  up
in a vertical position.
After  replacement,  switch  on  the
ignition  and  move  the  wiper
control  stalk  so  that  the  wipers
resume their normal position.

A. Windscreen wash

To  operate  the  windscreen  wash,
pull the wiper stalk towards you.
The  screen  wash  is  accompanied
by a timed wipe of the windscreen,
the headlamp  wash  also  activates
if the dipped beams are on.

D A S H B O A R D A D J U S T M E N T S

Headlamps adjustment

You are advised to adjust the aim
of the headlamps in accordance
with vehicle load.
In the dashboard on the right hand
side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.

As a metter of safety, these manœuvres should not be performed

while the vehicle is moving.

Steering column adjustment

The steering can be adjusted for
both height and reach.
With the vehicle stationary

, ﬁ rst

adjust  your  seat  to  the  most  suit-
able position, then adjust the posi-
tion  of  the  steering  wheel.  See
“Driving position”.
Unlock the steering wheel by pull-
ing the control upwards.
Adjust  the  position  of  the  steering
wheel  then  lock  by  pushing  the
control fully downwards.
Make  sure  that  you  have  a  good
view  of  the  instrument  panel  dis-
plays.

R E A R V I E W M I R R O R S

Electric exterior rear view
mirrors

Your vehicle is equipped with elec-
tric door mirrors.
Set the position of the selected
door mirror:

1. Left hand door mirror.
2. Right hand door mirror.

Move the control in the four direc-
tions to set the position.
The defrosting of the exterior rear
view mirrors is linked to the electri-
cal demisting of the rear window.

Fold-back of door mirrors

When  the  vehicle  is  parked,  the
door  mirrors  can  be  folded  back
either manually or electrically.
Turn  the  control  to  position  3  for
electric  foldback  of  the  rear  view
mirrors.
Quit  position  3  to  deploy  the  rear
view mirrors.
The  end  of  the  glass  in  the  exte-
rior rear view mirrors is aspherical,

so as to enlarge the lateral ﬁ eld of

vision.
Objects observed in the aspherical
part of the rear view mirrors are in
reality closer than they appear.
You must take this into account in
order to be properly aware of the
distances involved.

Interior rear view mirror

The lever on the lower edge ena-
bles you to place the rear view mir-
ror in either of two positions:
Day position: the lever is not vis-
ible.
Night position (anti-dazzle): the
lever is visible.

Content .. 1 2 3 4 ..
