Citroen C2 (2008 year). Instruction - part 7





A

V

113

C H A N G I N G   B U L B S

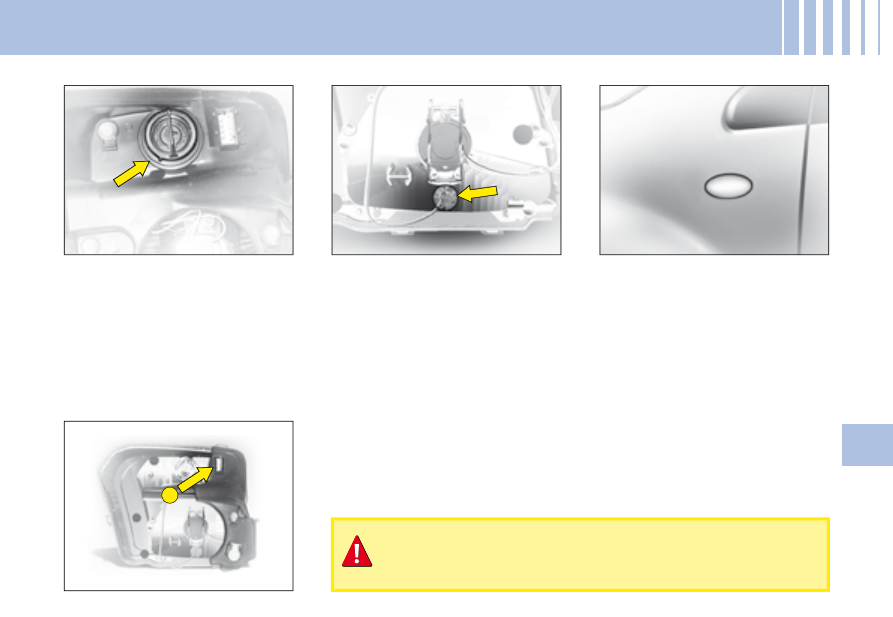

Front direction indicator

Rotate  the  bulb-  holder  a  quarter

turn and pull.
Take out the bulb.
Bulb: PY 21 W (yellow)

Sidelamp

Open the access fl ap.
Pull  on  the  bulb-  holder  to  disen-

gage the bulb.
Bulb: W 5

Side repeater direction

indicator

To  change  the  direction  indicator

side  repeater,  push  it  forwards  or

rearwards to detach it, then pull it

towards you.
Hold the cable and disconnect it.
Contact a CITROËN dealer.

Before touching, disconnect the supply connector A.

V

114

C H A N G I N G   B U L B S

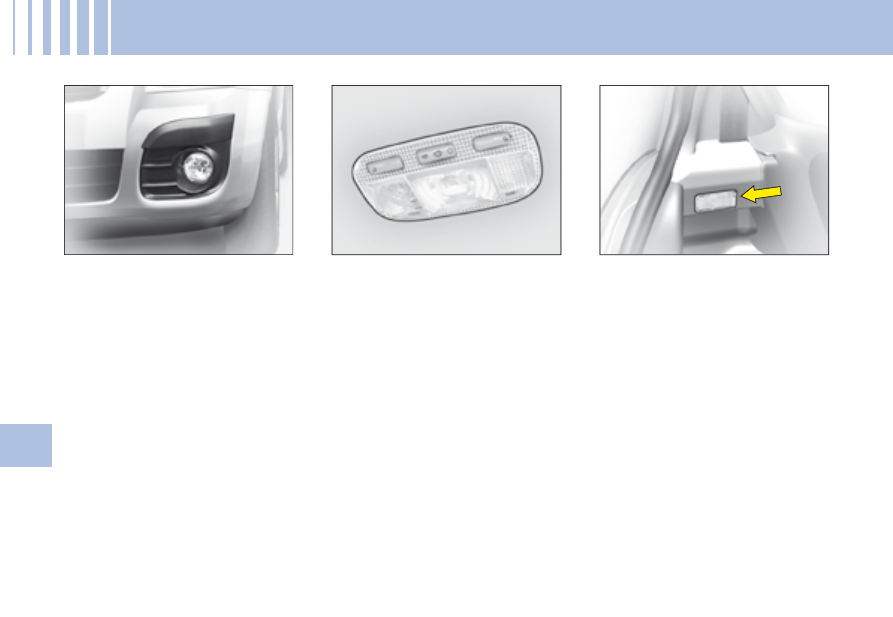

Interior lamp

Unclip the transparent cover of the

interior lamp to reach the bulb.
Bulb: W 5 W

Spotlamps

Unclip the transparent cover of the

interior lamp to reach the bulb.
Bulb: W 5 W

Boot lamp

Unclip  the  lens  unit  to  access  the

bulb.
Bulb: W 5 W

Front foglamps

Contact a CITROËN dealer.
Bulb: H1

V

114

C H A N G I N G   B U L B S

Interior lamp

Unclip the transparent cover of the

interior lamp to reach the bulb.
Bulb: W 5 W

Spotlamps

Unclip the transparent cover of the

interior lamp to reach the bulb.
Bulb: W 5 W

Boot lamp

Unclip  the  lens  unit  to  access  the

bulb.
Bulb: W 5 W

Front foglamps

Contact a CITROËN dealer.
Bulb: H1

A

1

2

3

4

V

115

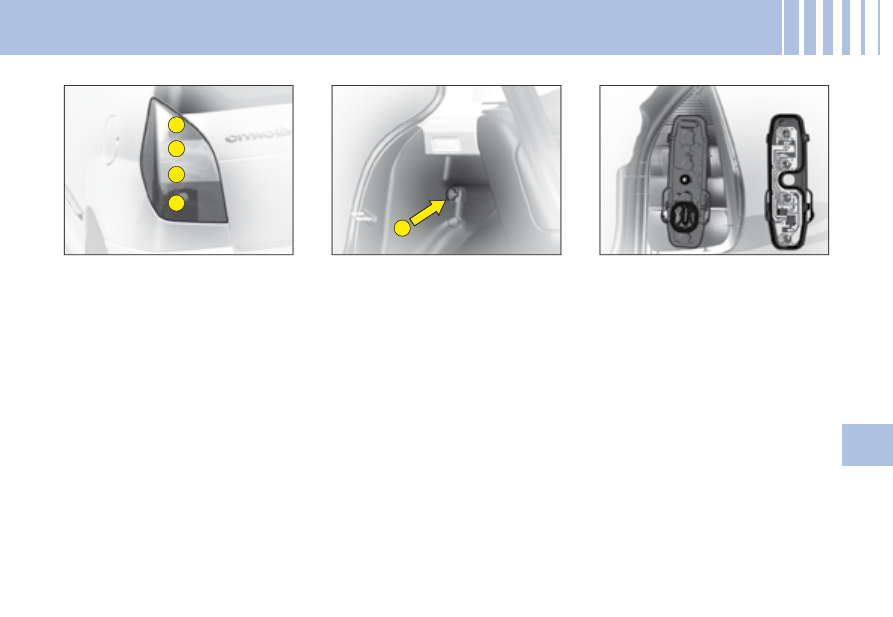

Rear lamp unit

Identify the failed bulb.

Bulbs:

1  Stop-lamps and sidelamps:

P21 W/5 W

2  Direction indicator: PY 21 W

3  Reversing lamp: P21 W

4  Foglamp: P21 W

Removal

From the inside, undo the nut A.
Disengage the lamp unit.
Disconnect the supply connector.
Unclip the bulb- holder.

C H A N G I N G   B U L B S

V

116

C H A N G I N G   B U L B S

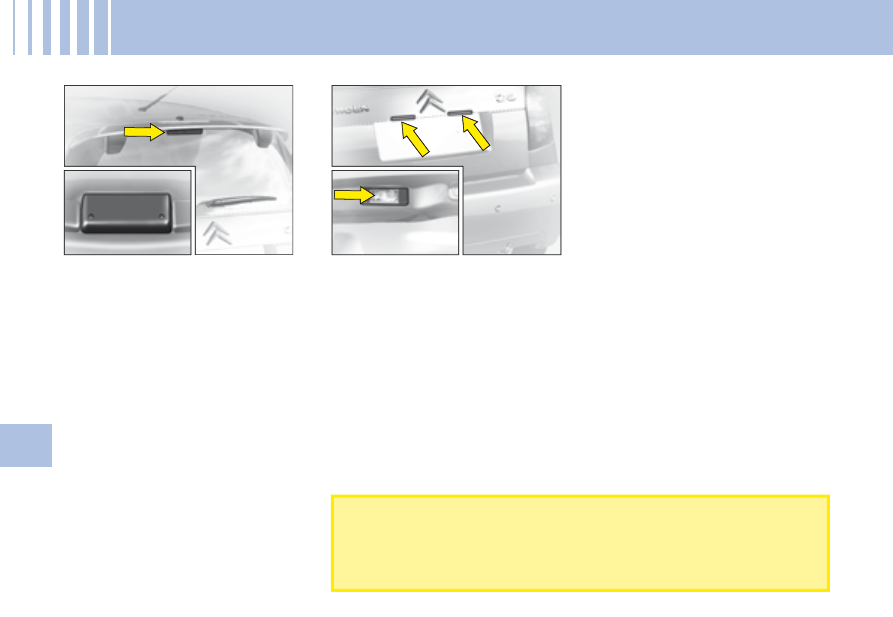

Third stoplamp

To access the bulb, open the upper

tailgate,  remove  the  parcel  shelf

and undo the lamp unit.
Disconnect the supply connector.
Remove  the  lens  and  disengage

the bulb.
Bulb: W 16 W

Number plate

Unclip the lens then pull the bulb-

holder.
Bulb: W 5 W

After each operation, check that the lamps work.

A

V

117

Roof bars

For  your  safety  and  to  avoid  damage  to  the  roof,  you  should  use  roof  bars  that  are  tested  and  approved  by

AUTOMOBILES CITROËN for the design of your particular vehicle.

For  your  safety  and  to  avoid  damage  to  the  roof,  you  should  use  roof  bars  that  are  tested  and  approved  by

For  your  safety  and  to  avoid  damage  to  the  roof,  you  should  use  roof  bars  that  are  tested  and  approved  by

Recommendations:

Spread the load evenly, avoiding overloading on one side.

Position the heaviest weight as low down as possible.

Tie the load down securely and add warning signs if it is protruding.

Drive conservatively, as the vehicle will be more vulnerable to side winds.

The stability of your vehicle may be altered.

Remove the roof rack or roof bars when you are not using them.

When you are using a towbar, remove the jack from its stowage in the spare wheel. Keep the jack to hand in the

passenger compartment.





S A F E T Y   R E C O M M E N D AT I O N S

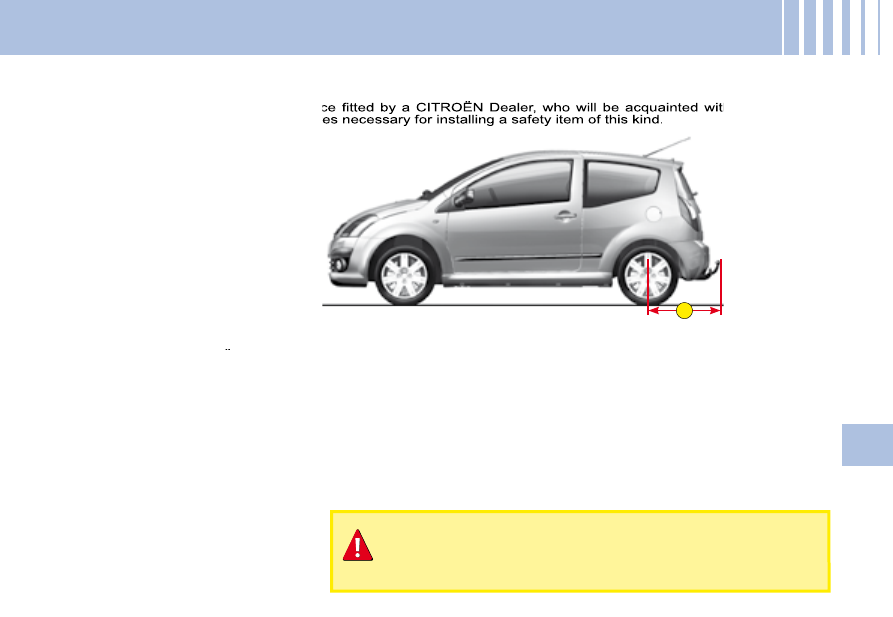

Towbar

We  recommend  you  to  have  this  device  fi tted  by  a  CITROËN  Dealer,  who  will  be  acquainted  with  your  vehicle’s

towing capability and with the procedures necessary for installing a safety item of this kind.

Dimensions (in metres)

A: 0.71

Do not exceed the maximum permitted load.

For the maximum distributed load on the roof bars: see the

chapter "General".

4

3

5

2

1

V

118

C H A N G I N G   A   W H E E L

Never get underneath the vehicle if it is supported only by

the jack.

When changing a wheel, it is essential to park the vehicle

safely on level and stable ground.

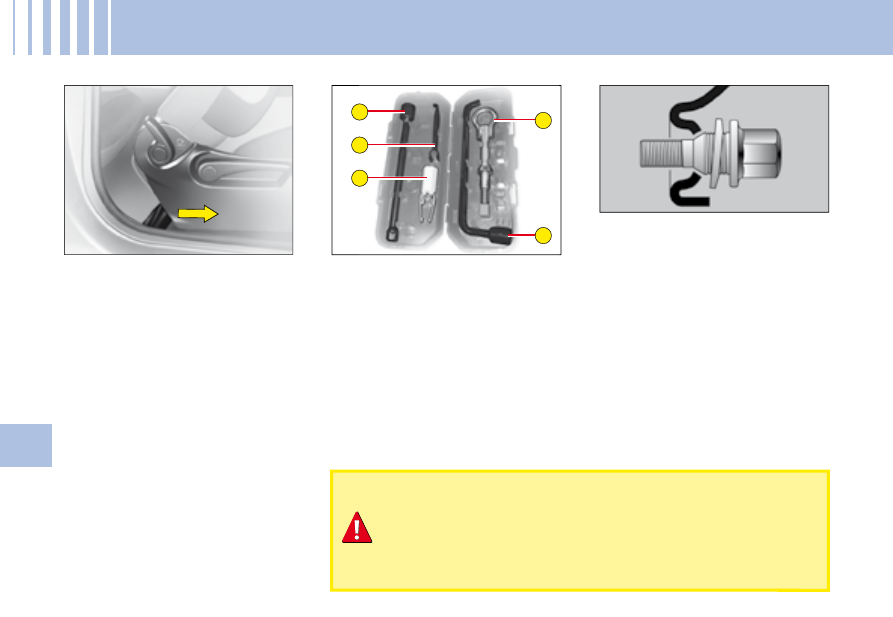

Access to the tools

To access the toolkit:

Tilt the RH seat as if to enter

the rear of the vehicle,.

Locate the kit under the seat

and pull it towards the rear of

the vehicle.

The jack is stowed in a protection

box inside the spare wheel under-

neath the boot.

Tools

1. Wheelbrace.

2. Movable towing eye.

3. Central embellisher removing

tool for accessing the wheel

bolts (For vehicles with

aluminium wheel rims).

4. Tool for removing wheel bolt

protectors (For vehicles with

aluminium wheel rims).

5. Extension.

The  alloy  wheel  anti-  theft  sockets

are to be found in the glovebox.

Light alloy wheels

If your vehicle has light alloy wheel

rims but a steel spare wheel, if you

fi t  the  latter  it  is  normal  to  notice

that the wheel bolts do not appear

to contact on the rim.
The spare wheel is secured by the

conical tapering of the wheel bolt’s

shaft (See illustration).
when refi tting the light alloy wheel,

make sure that the tapering contact

faces of the wheel bolts are clean

and in good condition.

A

V

119

C H A N G I N G   A   W H E E L

The jack is specifi c to your vehicle, do not use it for any other

purposes.

With a spare wheel, drive cautiously.

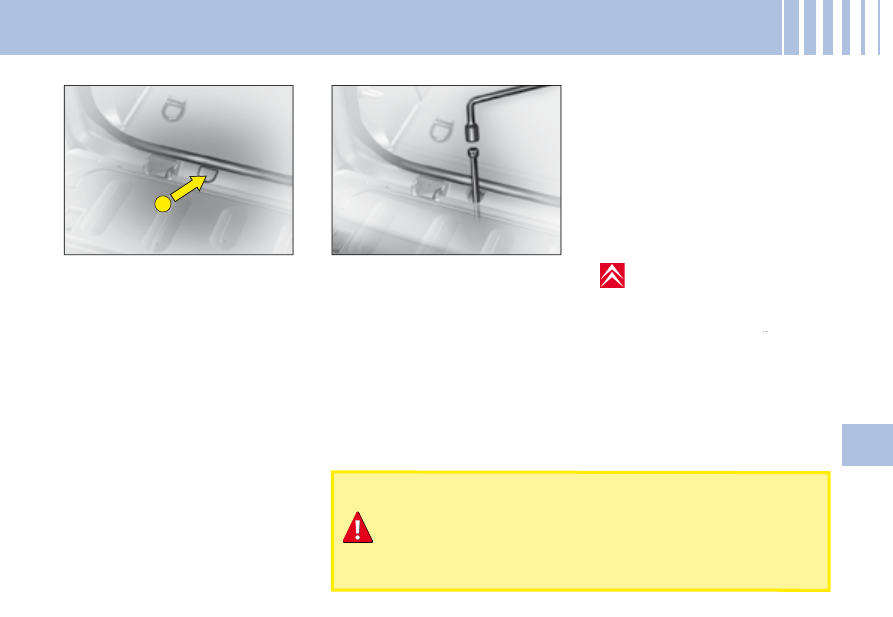

Access to the spare wheel

Open the lower tailgate.
Remove the blank A with the aid of

the ignition key, to insert the exten-

sion for the wheelbrace.
Slacken  the  spare  wheel  carrier

screw.
Lift  the  carrier  to  release  the

retaining hook, then disengage it.

To reposition the spare wheel

Having  repositioned  the  jack  and

its  handle  in  its  protection  box  in

the wheel, slide the wheel into the

carrier.
Lift  the  carrier  to  secure  it  in  the

safety hook.
Retighten  the  screw  from  inside

the boot compartment.
Stow  the  wheelbrace  and  exten-

sion.
Reposition the blank A.

Tyre pressures

This is indicated on the label on the

front door pillar. See "Vehicle iden-

tifi cation" and "User Precautions".

ADVICE

The wheel bolts are specifi c to the

type of wheel.
If  the  type  of  wheel  is  changed,

check  with  your  CITROËN  dealer

If  the  type  of  wheel  is  changed,

If  the  type  of  wheel  is  changed,

that the wheel bolts are compatible

with the new wheels.

V

120

C H A N G I N G   A   W H E E L

Removal

1. Park the vehicle on stable, fi rm ground that is not slippery. Apply the

parking brake.

Switch off the ignition and engage fi rst gear or reverse gear, depending

on any slope.

Ensure that all vehicle occupants have left the vehicle and are

positioned in a safe place.

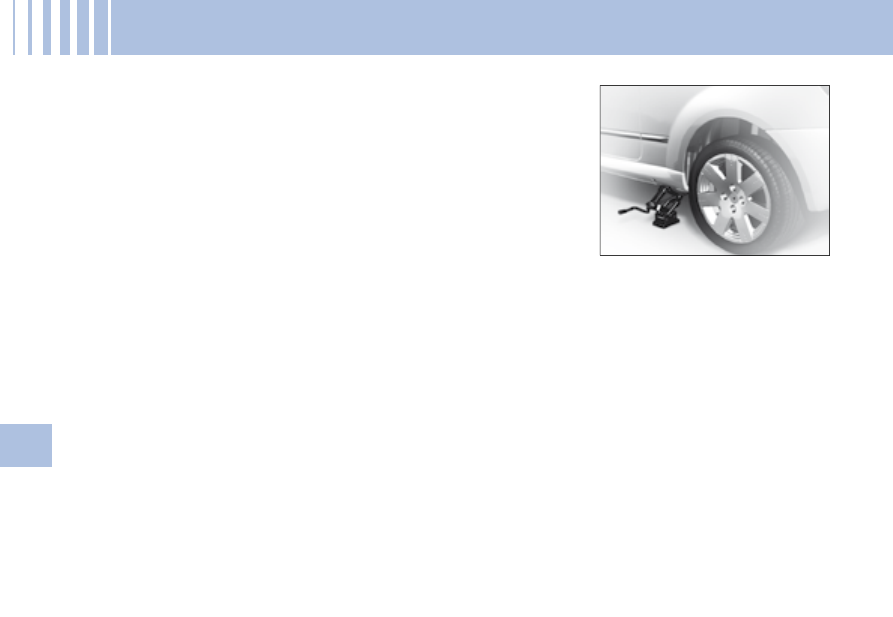

2. Position the jack at one of the four jacking-points provided on the

subframe close to the wheels. Using the handle, unwind the jack until it

reaches the ground.

3. To unclip the wheel embellisher, pull using the end of the wheelbrace as

a lever in one of the apertures.

For vehicles with aluminium wheel rims:

With a central embellisher, remove the embellisher, using the tool, to

access the bolts.

With visible wheel bolts, remove the chromed bolt protectors, using

the tool, before slackening the bolts.

4. Continue to extend the jack until the wheel is a few centimetres off the

ground.

5. Undo the other bolts, remove the wheel.

-

-

Refi tting

1. Fit the wheel on the hub, using the centring guide.

2. Screw in the bolts but do not fully tighten them, remove the wheel centring guide in order to screw in the last

bolt.

3. Lower the jack and remove it.

4. Tighten the wheel bolts, using the wheelbrace.

5. Refi t the embellisher, taking care to accommodate the tyre valve. Then pressing all round its circumference.

6. Have the original wheel repaired and refi tted as soon as possible.

7. Make sure that the tyre is at the correct pressure (see "Vehicle Identifi cation" and "User Precautions") and have

the wheel balancing checked.

Dimension of the spare wheel

If your spare wheel  has dimensions  different from those of the  normal  vehicle  wheels  (identifi ed by a label),  it is

imperative to use the spare wheel only temporarily, to drive with caution, not to exceed 80 km/h (50 mph) and to have

the tyre repaired and the normal wheel refi tted as soon as possible.

V

121

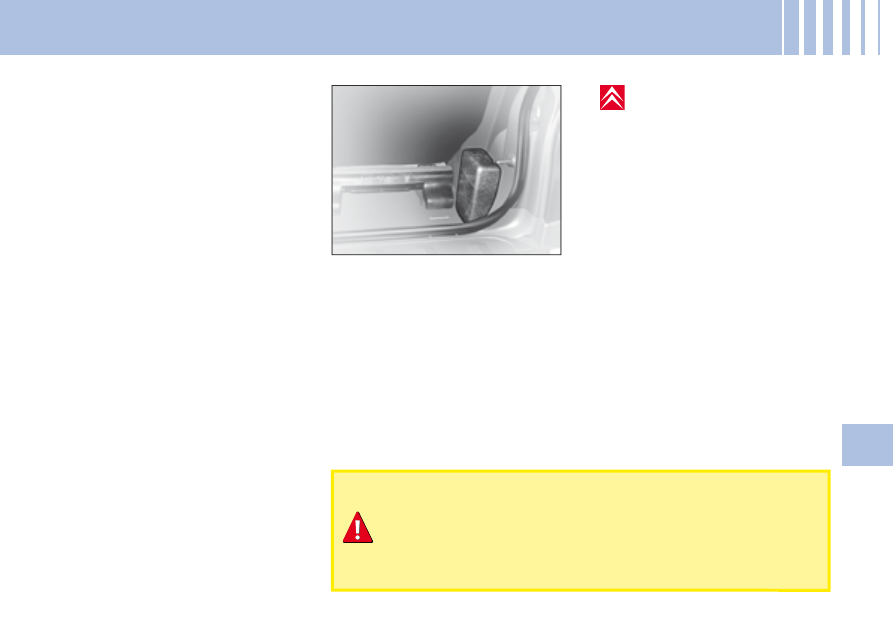

Because  the  aerosol  is  pressurised,  do  not  expose  it  to

temperatures higher than 50 °C.

After provisionally repairing a tyre using the repair aerosol,

you are advised not to drive at over 80 km/h.

If  your  vehicle  has  no  spare

wheel,  a  repair  aerosol  is  to  be

found in the boot.

Using the repair aerosol

See  also  the  user  instructions  on

the aerosol.

Remove, if possible, the object

which has caused the puncture.

Orient the wheel so that the

valve is at ten o’clock or two

o’clock.

Shake the aerosol vigorously

(in cold weather warm it in your

hands for a few minutes).

With one hand hold the valve

connector clear of the rim hole,

with the other hand press the

end of the aerosol nozzle fi rmly

onto the connector, keeping it

in the line of the valve.

Firmly maintain the pressure

for one minute.

Rapidly remove the aerosol

and immediately drive for

around six miles.

Reinfl ate the tyre and check its

condition after some ten hours.

After  using  the  repair  aerosol,

you  should  have  the  condition

of the tyre, as well as its infl ation

pressure, inspected.

P U N C T U R E

Advice - Recommendations

A  punctured  tyre  should  always

be  removed  from  the  rim  and

thoroughly  examined  for  damage

before  attempting  any  repair.

When a repair is possible, it should

be carried out as soon as possible

to  prevent  further  damage  to  the

tyre.
Tyre repair should be carried out by

a  tyre  specialist  who  will  assume

responsibility for the repair.
Note:

The towing eye is stowed
either in the repair aerosol box
or in the tool kit.
If there are two repair aerosols,
this means that you need
to use both of them for the
temporary repair of the tyre.

V

122

T O W I N G   –   L I F T I N G

Towing with wheels on the ground

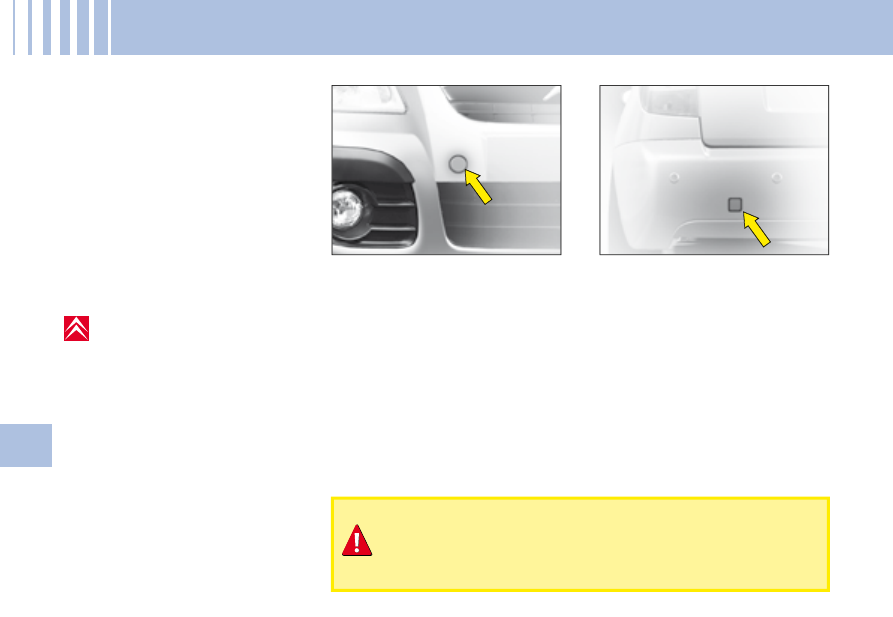

Towing eye fi xings are located at the front and at the rear of the vehicle.
To access them:

Carefully lift the access cover.

Release it by pressing on the lower part.

A lug keeps the cover attached to the bumper, so that it does not become

lost.
The ignition key must be in position M to retain steering.

Use a bar with attachments to the towing eyes as above.

Vehicles with manual gearbox (diesel models)

For  vehicles  with  a  manual  gearbox,  the  gear  lever  must  be  in  "neutral",

otherwise some components in the braking system could become damaged

and impair braking assistance the next time the engine is started.


Movable towing eye

The towing ring is detachable and

can be fi tted either at the front or at

the rear of the vehicle. It is stowed

in  the  toolkit  which  is  to  be  found

either under one of the front seats

or in the repair aerosol kit located

in the boot.

When the engine is not running, the steering and the braking

are no longer assisted.

If you are towing another vehicle, the latter must be free-

wheeling (gearbox in neutral).

ADVICE

Towing

at low speed over a very

short  distance  is  authorised  in

exceptional  cases  depending  on

the regulations in force.
Otherwise,  it  is  necessary  to

have  your  vehicle  transported

on a recovery truck.

TOWING REQUIREMENTS

Place the selector on position N

(neutral).

VI

123

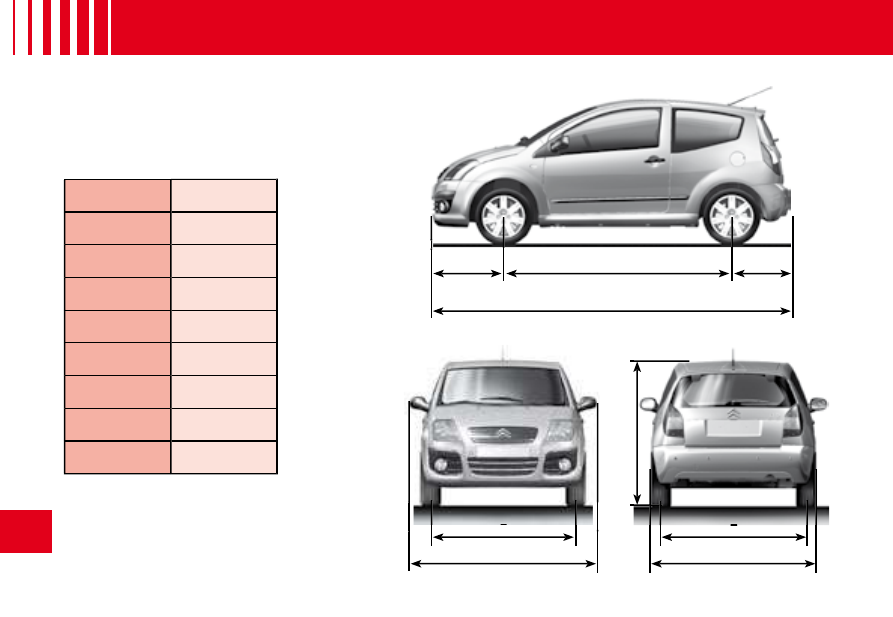

F U E L   C O N S U M P T I O N

( I N   L I T R E S / 1 0 0   K M   ( M I L E S   P E R   G A L L O N ) )

These  consumption  fi gures  are  established  according  to  Directive 80/1268/CEE.  Fuel  consumption  can  vary

depending  on  style  of  driving,  traffi c  conditions,  weather  conditions,  vehicle  load,  how  the  vehicle  has  been

maintained and on use of accessories.

Engine type

1.1i

61 hp

1.4i

75 hp

1.4i

75 hp

1.4i 16V

90 hp

1.6i 16V

110 hp

1.6i 16V

125 hp

HDi 70

HDi 70

1.6 HDi

110 hp

FAP

Saloon
Entreprise

BVM

BVM

BVMP

BVMP

Stop & Start

BVMP

BVM

BVM

BVMP

BVM

Urban

CO

2

 emissions (g/km)

7.5

(37.7)

178

7.9

(35.8)

190

7.5

(37.7)

181

6.8

(41.5)

162

8.3

(34.0)

199

9.3

(30.4)

223

5.3

(53.3)

141

4.9

(57.6)

130

5.7

(49.6)

151

Extra urban

CO

2

 emissions (g/km)

4.8

(58.9)

114

4.9

(57.6)

117

4.8

(58.9)

116

4.8

(58.9)

116

5.2

(54.3)

124

5.4

(52.3)

129

3.7

(76.3)

96

3.8

(74.3)

99

3.7

(76.3)

98

Combined

CO

2

 emissions (g/km)

5.8

(48.7)

138

6.0

(47.1)

143

5.8

(48.7)

138

5.6

(50.4)

133

6.3

(44.8)

151

6.9

(40.9)

163

4.3

(65.7)

113

4.2

(67.3)

111

4.4

(64.2)

119

The fuel consumption fi gures quoted are correct at time

of going to press.

BVM:

 Manual gearbox.

BVMP:

 Electronic Gearbox System.

FAP:

 Diesel particulate fi lter system.

VI

124

G E N E R A L

Saloon

Engine type

1.1i

BVM

1.4i

BVM

1.4i

BVMP

1.4i 16V

90 hp

BVMP

1.6i 16V

110 hp

BVMP

1.6i 16V

125 hp

BVM

Fuel tank capacity

Approximately 41 litres

Fuels to be used

Unleaded petrol RON 95 - RON 98

Turning circle between walls (in metres)

9.6

9.6  10.7 9.6  10.7

10.7

10.7

10.7

French fi scal rating

4

5

5

5

6

7

Calculated maximum speed in km/h (mph)

(In the highest gear)

158

(98)

169

(105)

169

(105)

181

(112)

195

(121)

202

(125)

Weights (kg)

Unladen weight (MAV)

956

990

995

1 013

1 071

1 084

Gross vehicle weight (MTAC)

1 336

1 362

1 391

1 410

1 425

1 415

Maximum weight on rear axle (CMAE AR)

710

Gross train weight (MTRA)

1 786

1 812

1 841

1 860

1 875

1 865

Gross trailer weight (with brakes)

(Within the Gross Train Weight limit)

520

530

530

540

560

620

Gross trailer weight (without brakes)

450

Trailer nose weight

25

Maximum roof rack load

60

Dimensions of chainable tyres

175/65 R14 - 185/55 R15 - 195/45 R16

VI

125

G E N E R A L

Saloon

Entreprise

HDi 70

BVM

HDi 70

BVMP

1.6 HDi

110 hp

BVM FAP

HDi 70

BVM

1.1i

BVM

Approximately 41 litres

Diesel fuel

Unleaded petrol

RON 95 - RON 98

9.6  10.7

9.6  10.7

10.7

9.6  10.7

9.6

4

4

6

4

4

166

(103)

167

(104)

193

(120)

166

(103)

158

(98)

1 003

1 041

1 130

978

939

1 391

1 421

1 475

1 374

1 340

710

1 841

1 871

1 925

1 824

1 790

540

540

625

540

520

450

25

60

175/65 R14 - 185/55 R15 - 195/45 R16

MAV:

 Unladen weight.

MTAC:

 Gross vehicle weight.

CMAE  AR:

  Maximum  weight  on

rear axle.
MTRA:

 Gross train weight.

Weights:

 Refer to the manufacturer's

plate.
BVM:

 Manual gearbox.

BVMP:

 Electronic Gearbox System.

FAP:

Diesel particulate fi lter systeme.

Observe  your  vehicle's  towing
limits.
It  is  essential  to  comply  with  the

max.  Gross  Trailer  Weights  and

speed limits as specifi ed by legis-

lation in each country.
For  further  information  about  the

towing  capacity  of  your  vehicle

and  its  max.  authorised  Gross

Train Weight, contact a CITROËN

dealer.

B

A

D

C

I

F

E

G

H

VI

126

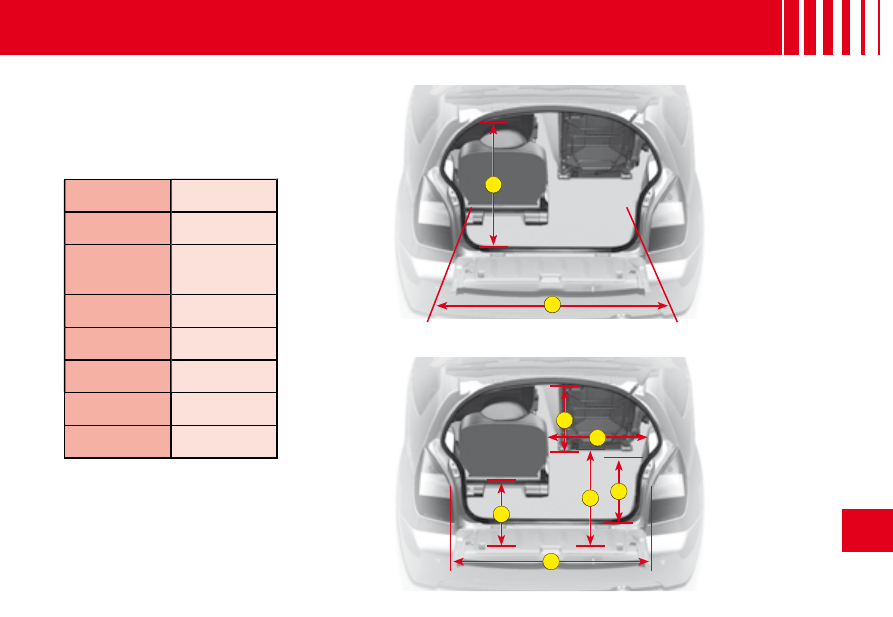

D I M E N S I O N S

( I N   M E T R E S )

A

2.315

B

3.666

C

0.760

D

0.591

E

1.439

F

1.439

G

1.659

H

1.461

I

1.898

A

H

D

C

G

E

F

B

VI

127

D I M E N S I O N S

( I N   M E T R E S )

A

0.892

B

0.606

C

0.334 MIN.

0.434 MAX.

D

1.033

E

0.990

F

0.993

G

0.530

H

0.678















Content   ..  5  6  7  8   ..
