Citroen C2 (2008 year). Instruction - part 5

III

F R O N T S E A T S

III

F R O N T S E A T S

Manual adjustments

Head restraint

To raise or lower the head restraint, pull it forwards at the same
time as sliding it.
The adjustment is correct when the top edge of the head
restraint is at the same height as the top of the head.

To remove it, bring it to the high position. Lift the tab with the aid of a coin
and pull.

Backrest angle

Action the control rearwards and adjust the angle of the
backrest.
It is possible to recline the backrest to an angle of 45° by
tilting it until it locks. Press the control to unlock.

Seat height and rake adjustment

Lift the control and use the weight of your body to move the
seat to the desired position.

Reach

Lift the control bar and adjust to the desired position.

Access to the rear seat positions

To access the rear seat positions, action the control forwards
to fold the backrest and slide the front seat.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is secured in place (particularly if the
rear seats are folded).

Heated seats

The front seats can be heated indi-
vidually. Use the controls located
at the side of the seats, and select
one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-
matically.
Note: The heated seats only oper-
ate when the engine is running.

III

R E A R S E A T S

For ease of handling from the boot, it is advised to close the lower tailgate.

III

R E A R S E A T S

The function 3 is available on all models. The other functions are available depending on the version of your vehicle.

Fore and aft adjustment

From the boot, it is possible to modify the loadspace by sliding the seats.
Push down control 2 and adjust to the desired position.
At the front of the seat, it is also possible to adjust knee room.
Raise the bar located under the seat and adjust to the desired position (several positions).

Rear head restraints

The rear head restraints have two positions:

A stowed position for when the seat is not occupied.
A deployed position to provide passenger safety, by raising them to their locking point.

To raise them, pull them upwards to their maximum height, pressing the unlocking button.

•
•

Foldable backrest

It can be folded either totally or partially.
Lower the head restraint against the backrest, then pivot control 3 towards the rear of the vehicle.
The backrest also has a vertical position to optimise the bootspace.
When you reposition the backrest, make sure that it locks in place.

Folded (fully-folded position)

To facilitate this manoeuvre, slide the front seat as far forward as possible, using the fore/aft slide
control.
Move the rear seat as far forward as possible using control 2, fold the backrest using control 3, then
lift control 4.

The seat goes automatically to the fully-folded position.
Reposition the front seat. The rear seat in the fully-folded position will adapt automatically to the position of the front
seat.
When restoring the seat to its original position, check that there is nothing obstructing the anchoring points to ensure
that it latches properly.

III

S E A T C O N F I G U R A T I O N

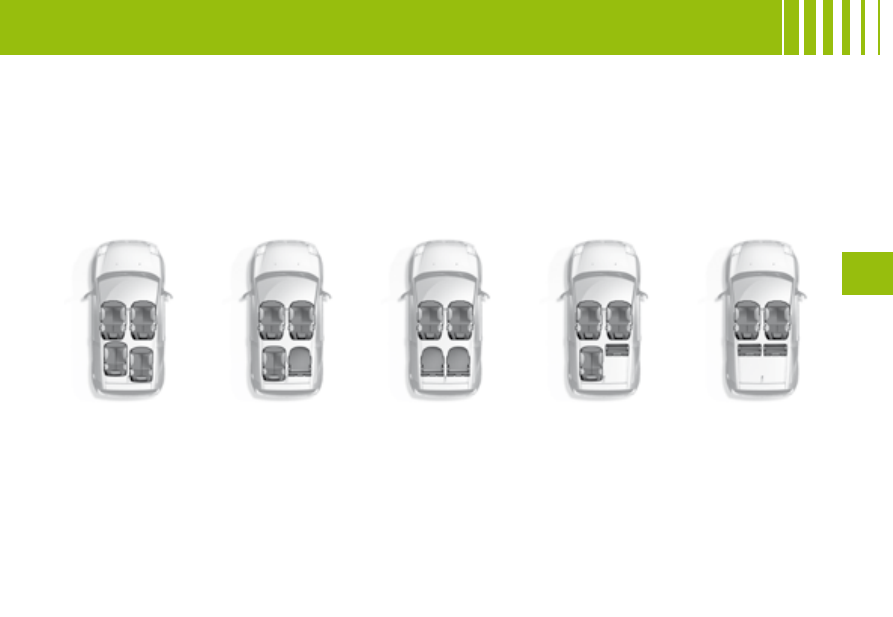

TRANSPORTING LONG OBJECTS
Rear seats

By conﬁ guring the rear seats, you can create space for a variety of objects.
As a safety measure, use the anchoring rings positioned on the boot ﬂ oor.

4-seater

versions

Versions with folding

backrests

Versions with

fully-folding seats

III

A I R B A G S

In the front passenger's seat position, it is imperative to deactivate the
front passenger's airbag if you are installing a "rear-facing" child seat

there. Otherwise the child risks being killed or seriously injured should

the airbag deploy.

Front passenger's airbag deactivation

In order to be able to use a rear-facing child seat in the front passenger's seat position, it is imperative to deactivate
the passenger's airbag.
For that:

With the ignition switched off, insert the key into the switch A.
Turn the key to the

"OFF" position, the passenger's airbag is deactivated.

The front passenger's airbag deactivation warning lamp, in the instrument panel, lights up when you switch on
the ignition.

Reactivating the front passenger's airbag

Do not forget to reactivate the function.
For that:

With the ignition switched off, insert the key into the switch A.
Turn the key to the

"ON" position, the airbag is activated.

The warning lamp in the instrument panel lights up for a few seconds when you switch on the ignition.

The airbags only function with the ignition switched on. A slight noise is emitted when they are triggered.
Note: the gas released from the airbags may be a mild irritant.

•
•
•

III

C H I L D R E S T R A I N T S

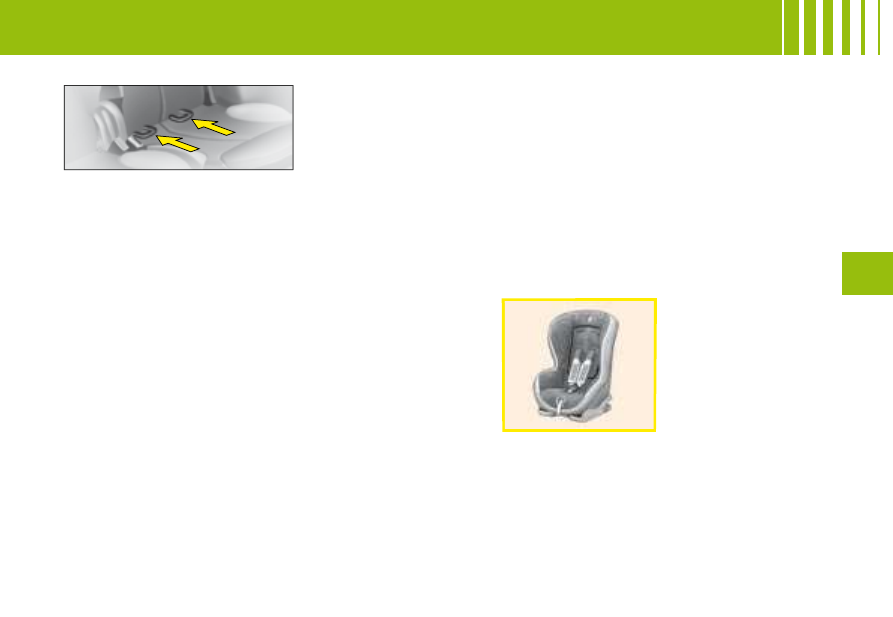

ISOFIX anchoring points and

the ISOFIX fastening system

The rear seats of your vehicle are
equipped  with  ISOFIX  anchoring
points.  These  consist  of  2 rings
located  between  the  backrest  and
the  vehicle  seat,  approx.  28 cm
apart.
ISOFIX  child  seats  are  equipped
with  2  latches  which  are  eay  to

attach to these rings. This ﬁ xing

system  is  intended  for  children
weighing up to 18 kg.
Incorrect  installation  of  a  child  seat
in a vehicle compromises protection
of the child in the event of a collision.
The  ISOFIX system enables you to
minimise the risks posed by incorrect

ﬁ tting. The ISOFIX fastening system

gives you a convenient, strong and

reliable ﬁ tting for a child seat in your

vehicle.

The recommended ISOFIX child seat (1) for your vehicle is:
The ISOFIX RÖMER Duo Plus (1):

This  child  seat  has  been  approved  for  children  between  9  –  18  kg.  It  can
only  be  installed  in  the  "forward-facing"  position.  The  front  seat  must  be
adjusted  so  that  the  child’s  feet  are  not  touching  the  backrest  of  the  front
seat (slide the rear seat back as far as possible). The use of a top belt is not
necessary.
This child seat can also be installed in seat positions not ﬁ tted with ISOFIX

anchoring points. In this case, it must be secured to the seat by means of
the vehicle seat belt.

(1): On the ISOFIX anchoring points of the vehicle, you can only attach the

ISOFIX child seat approved for this vehicle.

III

C H I L D R E S T R A I N T S

Child seats secured by
means of the vehicle seat
belt

In conformity with Directive 2003/20,
the  table  tells  you  to  what  extent
each  of  the  seat  positions  in  your
vehicle  may  take  a  child  seat
that  is  secured  by  means  of  the
vehicle  seat  belt  and  approved
as "Universal" as a function of the
weight of the child.
Consult

"User

Precautions",

chapter on "Child Safety" at the
end of this handbook, in order
to ensure that you are installing
your child in conditions of maxi-
mum safety.

Seat position(s)

Weight of child

Up to 10 kg

and up to 13 kg

Up to 10 kg

(groups 0 and 0+)

and up to 13 kg

9 - 18 kg

(group 1)

9 - 18 kg

15 - 25 kg

(group 2)

15 - 25 kg

22 - 36 kg

(group 3)

22 - 36 kg

Front

passenger’s (a)

Fixed seat

Height-

adjustable seat

U (R)

Rear passenger’s seat

KEY TO THE TABLE

U: Seat position suitable for the installation of a universal rear-facing child seat and a universal forward-facing child seat

position.

U(R): Seat position suitable for installation of a universal rear-facing child seat and of a forward-facing seat. The vehicle seat

should be adjusted to the highest position.

(a): In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a "rear-

facing" child seat there. Otherwise the child risks being killed or seriously injured should the airbag deploy. Before placing
your child in the front passenger’s seat position, consult the legislation currently in force in your country on the carrying of
children in this position.

Take care to comply with the ﬁ tting instructions given in the

child seat manufacturer’s installation guide.

III

I N T E R I O R L I G H T I N G

1. Interior lamps

Move the control 1 to the 3 following positions.

Automatic lighting of the interior lamps

On entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.
On vacating the vehicle:
They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.

2. Spotlamps

A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.

•

In this position, the interior lamp comes on when you open a door
or the boot.

In this position, it is deactivated and remains permanently off. The
spotlamps are deactivated.

In this position, lighting is permanent.

III

I N T E R I O R C O M F O R T

Lower glovebox

To open, pull the handle and lower
the lid.
It comprises a storage area for
vehicle documents.
The glove box permits access to
the fascia fuse box

Storage/CD changer

Oddments tray on front

central console

WARNING

As a safety measure, the glovebox must remain shut

when the vehicle is in motion.

III

I N T E R I O R C O M F O R T

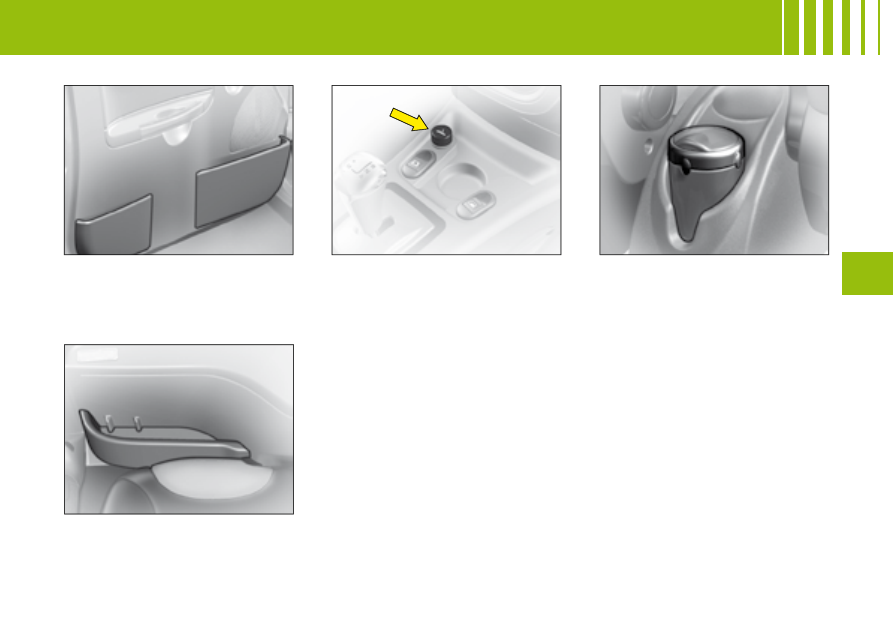

Cigar-lighter

Functions when the ignition is
switched on.
Push in and wait a few moments.
The cigar lighter will release auto-
matically.

Ashtray

A movable ashtray can be placed
in the cupholder locations on the
central console and in the storage
pockets of the rear panels.

Storage pockets in the front
doors

Storage pockets in the rear
panels

III

I N T E R I O R C O M F O R T

Sun visor

To prevent dazzle from ahead, fold
the visor downwards. They can
be disengaged from their central

ﬁ xing and pivoted over to the side

windows if required.
The passenger’s and driver’s sun
visors each have a mirror that can
be covered.

Sun visor with illuminated
mirror

Illuminates automatically on opening

the mirror cover ﬂ ap (ignition on).

Storage areas

Straps ﬁ xed to the bottom of the

boot enable you to secure objects
stowed there.

Grab handles/Coat hanger

hook

The lower tailgate can
support spread loads of
up to 100 kg.

Lower tailgate storage

Lift up the two levers located on
the lower tailgate to open the cover
and access the storage area.
Storage capacity: 5 litres.

III

R E A R P A R C E L S H E L F

Removal

Open the upper tailgate.
Detach the parcel shelf cords.
Pull ﬁ rmly downwards to

disengage the hinge pivots.

•
•
•

Reﬁ tting

Open the upper tailgate.
orient the underside of the shelf towards you.
introduce the two hinge pivots into the apertures located on the upper
tailgate trim.
attach the cords (on the right hand side: take care to pass the cord to
the outside of the upper tailgate strut, positioning the ball 1 of the cord
between the boot attachment 2 and the tailgate hinge 3).

•
•
•

•

Do not place any hard or heavy item on the shelf.

These could be dangerous if thrown around during harsh braking or, if

they touch the rear screen, could damage the heating elements.

Check that the bonnet is properly secured.

Avoid opening the bonnet in high winds.

Bonnet

This  operation  should  only  be
performed  while  the  vehicle  is
stationary.
To release the bonnet, pull the con-
trol  located  under  the  dashboard
towards you.

Operate the lever A, located above
the grille, to the right of the chev-
rons, then lift.
Note: The panel may be hot after
the vehicle has been in use.

Bonnet stay: Unclip the stay and
pivot to lodge it in the notch.

To close

Return the bonnet stay to its initial
position.
Check  that  nothing  has  been  left
on  top  of  the  engine  and  that  any
component  that  was  moved  has
been correctly repositioned.
Lower the bonnet carefully, then let
it drop shut.

B O N N E T R E L E A S E

L E V E L S

REFER TO THE CHAPTER: USER PRECAUTIONS

Air ﬁ lter

Follow the requirements
set out in the Maintenance
Guide.

Windscreen/rear
screen wash and

headlamp wash ﬂ uid

Use CITROËN-approved

products wherever possible.
Capacity: See "Capacities".

Characteristics of ﬂ uid

In order to ensure optimum cleaning
and to avoid freezing, you must

never top up or replace this ﬂ uid

with water.

Engine coolant

The ﬂ uid level should be

between the marks MIN. and
MAX. on the header tank.

Engine hot, wait at least 15 minutes.
Quality: See "Maintenance Guide".
Never do anything relating to
the cooling system of an engine
that is hot.

12 V battery

See "Starting with a slave
battery".

Engine oil

Check  the  engine  oil  level
on  horizontal  ground  with
the  engine  having  been

switched off for at least 10 minutes.
Quality: See "Maintenance Guide".

Pull out the manual dipstick.
The

level

should

between the marks MIN.
and MAX. on the gauge.
It must never exceed the
maximum.

MAX.

MIN.

Brake ﬂ uid

The level of ﬂ uid should be

between the marks MIN.
and MAX. on the reservoir.

Quality: See "Maintenance Guide".
If the warning lamp comes on
while you are driving, stop
immediately

and

contact

CITROËN dealer.

immediately

and

immediately

Cabin particle ﬁ lter/

Odour ﬁ lter

See "Maintenance Guide".

If opening the bonnet when the engine is hot, even if it is
stopped and the ignition is switched off, remember that the
cooling fan may operate at any moment.
Consult "User Precautions" at the end of this handbook.

101

L E V E L S

Engine oil

Check  the  engine  oil  level  on
horizontal  ground  with  the  engine
having  been  switched  off  for  at
least 10 minutes.
Pull out the manual dipstick.
The  level  should  be  between  the
marks  MIN.  and  MAX.  on  the
gauge.

Topping up engine oil

Before ﬁ lling, pull out the dipstick.
Check the dipstick after ﬁ lling.
It  must  never  exceed  the  maxi-
mum.
Screw  the  cap  back  on  and  close
the bonnet.
Quality:  See  the  Maintenance
Guide.

If opening the bonnet when the engine is hot, even if it is
stopped and the ignition is switched off, remember that the
cooling fan may operate at any moment.

Radiator – coolant ﬂ uid

Checking the level and topping up

with ﬂ uid must always be done with

the engine cold.

Engine hot

Release the protection cover.
Wait  15 minutes  or  for  the  tem-
perature  to  be  lower  than  100 °C
and  then  carefully  unscrew  the
cap so as to allow the pressure to
drop, protecting yourself with, say,
a cloth.

Topping up the coolant

The ﬂ uid level should be between

the  marks  MIN.  and  MAX.  on  the
header tank.
Top  up  the  level.  If  you  have  to
put  in  more  than  1 litre,  have  the
cooling  system  checked  by  a
CITROËN dealer.

cooling system checked

cooling system

Make sure that the cap is
back on properly.

Note:

If you need to top up the ﬂ uid

frequently, this indicates a malfunc-
tion which you should get checked
at the earliest opportunity.
Quality:  See  the  Maintenance
Guide.
Remark:  The  cooling  fan  may
operate  for  around  10  minutes
after the engine has stopped.

Content .. 3 4 5 6 ..
