RAM ProMaster City (2019 year). Manual - part 12





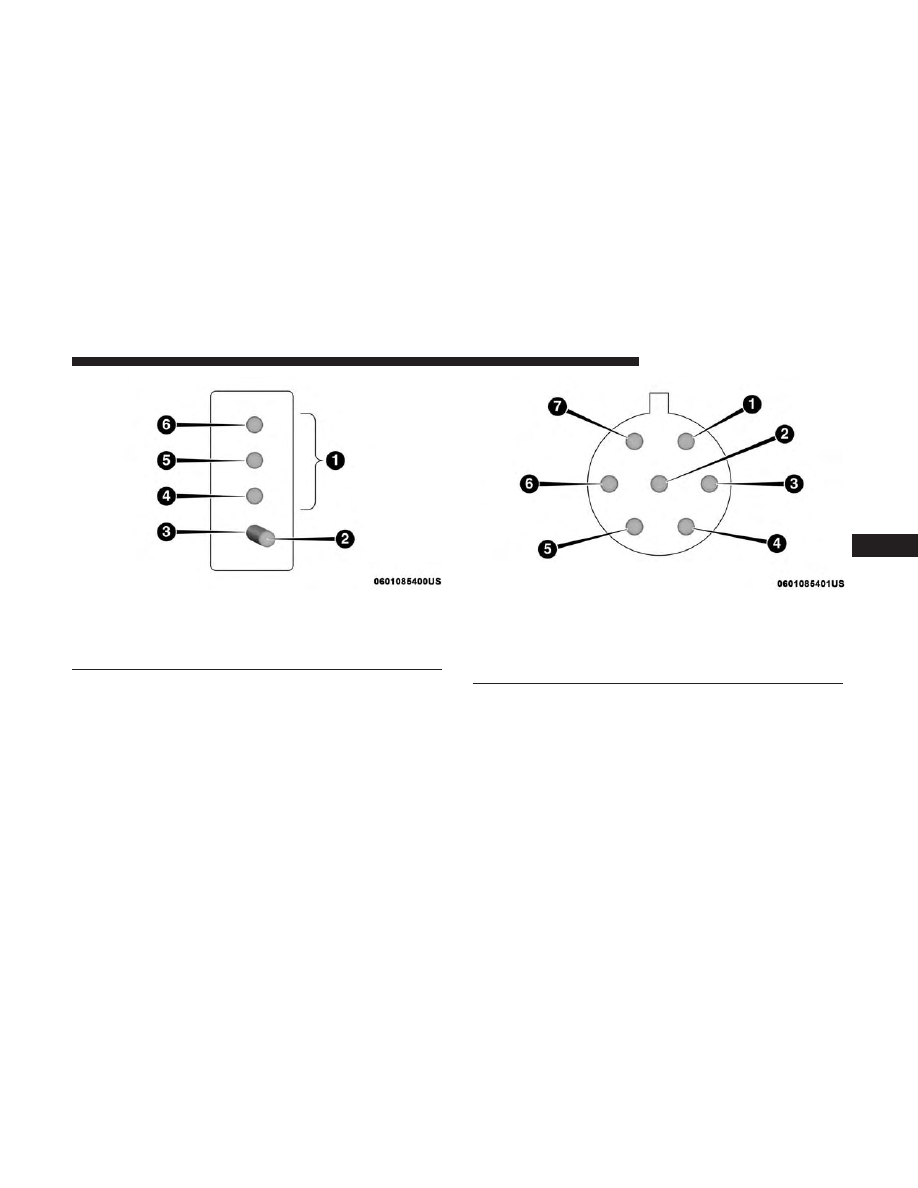

Four-Pin Connector

1 — Female Pins

4 — Park

2 — Male Pin

5 — Left Stop/Turn

3 — Ground

6 — Right Stop/Turn

Seven-Pin Connector

1 — Battery

5 — Ground

2 — Backup Lamps

6 — Left Stop/Turn

3 — Right Stop/Turn

7 — Running Lamps

4 — Electric Brakes

6

STARTING AND OPERATING

183

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Towing Tips

Before setting out on a trip, practice turning, stopping, and
backing up the trailer in an area located away from heavy
traffic.

Automatic Transmission

The DRIVE range can be selected when towing. The
transmission controls include a drive strategy to avoid
frequent shifting when towing. However, if frequent shift-
ing does occur while in DRIVE, use the Electronic Range
Select (ERS) shift control to select a lower gear range.

NOTE:

Using a lower gear range while operating the

vehicle under heavy loading conditions will improve per-
formance and extend transmission life by reducing exces-
sive shifting and heat build up. This action will also
provide better engine braking.

Electronic Range Select (ERS)
• When using the ERS shift control, select the highest gear

that allows for adequate performance and avoids fre-
quent downshifts. For example, choose “5” if the desired
speed can be maintained. Choose “4” or “3” if needed to
maintain the desired speed.

• To prevent excess heat generation, avoid continuous

driving at high RPM. Reduce vehicle speed as necessary
to avoid extended driving at high RPM. Return to a
higher gear range or vehicle speed when grade and road
conditions allow.

Speed Control — If Equipped
• Do not use on hilly terrain or with heavy loads.
• When using the speed control, if you experience speed

drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.

• Use speed control in flat terrain and with light loads to

maximize fuel efficiency.

Cooling System

To reduce potential for engine and transmission overheat-
ing, take the following actions:

City Driving
• In city traffic — while stopped, place the transmission in

NEUTRAL, but do not increase engine idle speed.

Highway Driving
• Reduce speed.
• Temporarily turn off air conditioning.

184

STARTING AND OPERATING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.)
Towing This Vehicle Behind Another Vehicle

Towing Condition

Wheels OFF The Ground

Automatic Transmission

Flat Tow

NONE

NOT ALLOWED

Dolly Tow

Front

OK

Rear

NOT ALLOWED

On Trailer

ALL

OK

NOTE:

When towing your vehicle, always follow appli-

cable state and provincial laws. Contact state and provin-
cial Highway Safety offices for additional details.

Recreational Towing — Automatic Transmission

Recreational towing is allowed ONLY if the front wheels
are OFF the ground. This may be accomplished using a tow
dolly or vehicle trailer. If using a tow dolly, follow this
procedure:

1. Properly secure the dolly to the tow vehicle, following

the dolly manufacturer’s instructions.

2. Drive the front wheels onto the tow dolly.

3. Firmly apply the parking brake. Place the transmission

in PARK.

4. Properly secure the front wheels to the dolly, following

the dolly manufacturer’s instructions.

5. Release the parking brake.

CAUTION!

• DO NOT flat tow this vehicle. Damage to the drive-

train will result. If this vehicle requires towing,
make sure the drive wheels are OFF the ground.

• Towing this vehicle in violation of the above require-

ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.

6

STARTING AND OPERATING

185

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVING TIPS

Driving On Slippery Surfaces

Acceleration

Rapid acceleration on snow covered, wet, or other slippery
surfaces may cause the driving wheels to pull erratically to
the right or left. This phenomenon occurs when there is a
difference in the surface traction under the front (driving)
wheels.

WARNING!

Rapid acceleration on slippery surfaces is dangerous.
Unequal traction can cause sudden pulling of the front
wheels. You could lose control of the vehicle and
possibly have a collision. Accelerate slowly and care-
fully whenever there is likely to be poor traction (ice,
snow, wet, mud, loose sand, etc.).

Traction

When driving on wet or slushy roads, it is possible for a
wedge of water to build up between the tire and road
surface. This is hydroplaning and may cause partial or
complete loss of vehicle control and stopping ability. To

reduce this possibility, the following precautions should be
observed:
• Slow down during rainstorms or when the roads are

slushy.

• Slow down if the road has standing water or puddles.
• Replace the tires when tread wear indicators first be-

come visible.

• Keep tires properly inflated.
• Maintain sufficient distance between your vehicle and

the vehicle in front of you to avoid a collision in a
sudden stop.

Driving Through Water

Driving through water more than a few inches/centimeters
deep will require extra caution to ensure safety and pre-
vent damage to your vehicle.

Flowing/Rising Water

WARNING!

Do not drive on or across a road or path where water is
flowing and/or rising (as in storm run-off). Flowing

(Continued)

186

STARTING AND OPERATING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING! (Continued)

water can wear away the road or path’s surface and
cause your vehicle to sink into deeper water. Further-
more, flowing and/or rising water can carry your ve-
hicle away swiftly. Failure to follow this warning may
result in injuries that are serious or fatal to you, your
passengers, and others around you.

Shallow Standing Water

Although your vehicle is capable of driving through shal-
low standing water, consider the following Cautions and
Warnings before doing so.

WARNING!

• Driving through standing water limits your vehicle’s

traction capabilities. Do not exceed 5 mph (8 km/h)
when driving through standing water.

• Driving through standing water limits your vehicle’s

braking capabilities, which increases stopping dis-
tances. Therefore, after driving through standing
water, drive slowly and lightly press on the brake
pedal several times to dry the brakes.

(Continued)

WARNING! (Continued)

• Failure to follow these warnings may result in inju-

ries that are serious or fatal to you, your passengers,
and others around you.

CAUTION!

• Always check the depth of the standing water before

driving through it. Never drive through standing
water that is deeper than the bottom of the tire rims
mounted on the vehicle.

• Determine the condition of the road or the path that

is under water and if there are any obstacles in the
way before driving through the standing water.

• Do not exceed 5 mph (8 km/h) when driving through

standing water. This will minimize wave effects.

• Driving through standing water may cause damage

to your vehicle’s drivetrain components. Always in-
spect your vehicle’s fluids (i.e., engine oil, transmis-
sion, axle, etc.) for signs of contamination (i.e., fluid
that is milky or foamy in appearance) after driving
through standing water. Do not continue to operate
the vehicle if any fluid appears contaminated, as this

(Continued)

6

STARTING AND OPERATING

187

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION! (Continued)

may result in further damage. Such damage is not
covered by the New Vehicle Limited Warranty.

• Getting water inside your vehicle’s engine can cause

it to lock up and stall out, and cause serious internal
damage to the engine. Such damage is not covered by
the New Vehicle Limited Warranty.

188

STARTING AND OPERATING

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

CONTENTS

䡵 HAZARD WARNING FLASHERS . . . . . . . . . . . .191
䡵 BULB REPLACEMENT . . . . . . . . . . . . . . . . . . . .191

▫ Replacement Bulbs . . . . . . . . . . . . . . . . . . . . .191
▫ Replacing Exterior Bulbs. . . . . . . . . . . . . . . . . .192
▫ Replacing Interior Bulbs . . . . . . . . . . . . . . . . . .194

䡵 FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197

▫ Underhood Fuses . . . . . . . . . . . . . . . . . . . . . . .197
▫ Interior Fuses. . . . . . . . . . . . . . . . . . . . . . . . . .200
▫ Central Unit Fuse Panel . . . . . . . . . . . . . . . . . .203

䡵 JACKING AND TIRE CHANGING . . . . . . . . . . .204

▫ Jack Location . . . . . . . . . . . . . . . . . . . . . . . . . .204
▫ Removing The Spare Tire . . . . . . . . . . . . . . . . .205
▫ Preparations For Jacking . . . . . . . . . . . . . . . . .208
▫ Jacking Instructions . . . . . . . . . . . . . . . . . . . . .209

▫ Vehicles With Alloy Wheels. . . . . . . . . . . . . . . .214
▫ Vehicles Equipped With Wheel Covers . . . . . . . .216

䡵 TIRE SERVICE KIT — IF EQUIPPED . . . . . . . . . .217

▫ Tire Service Kit Storage. . . . . . . . . . . . . . . . . . .217
▫ Tire Service Kit Usage. . . . . . . . . . . . . . . . . . . .217

䡵 JUMP STARTING . . . . . . . . . . . . . . . . . . . . . . . .220

▫ Preparations For Jump Starting . . . . . . . . . . . . .220
▫ Jump Starting Procedure . . . . . . . . . . . . . . . . . .222

䡵 IF YOUR ENGINE OVERHEATS . . . . . . . . . . . . .223
䡵 IGNITION KEY REMOVAL OVERRIDE . . . . . . . .224
䡵 GEAR SELECTOR OVERRIDE . . . . . . . . . . . . . .225
䡵 FREEING A STUCK VEHICLE . . . . . . . . . . . . . .226
䡵 TOWING A DISABLED VEHICLE . . . . . . . . . . . .228

7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HAZARD WARNING FLASHERS

The Hazard Warning flasher switch is located on the
instrument panel below the climate controls.

Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn
oncoming traffic of an emergency. Push the

switch a second time to turn off the Hazard Warning
flashers.

This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.

When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.

NOTE:

With extended use, the Hazard Warning flashers

may wear down your battery.

BULB REPLACEMENT
Replacement Bulbs

Interior Bulbs

Lamps

Bulb Number

Front Courtesy Lamps

C10W

Rear Courtesy Lamps

C10W

Luggage Lamp

C5W

Exterior Bulbs

Lamps

Bulb Number

Front Low Beam Headlamp

H11

Front High Beam Headlamps

HB3

Front Side Marker Lamps

LED (See an authorized dealer)

7

IN CASE OF EMERGENCY

191

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lamps

Bulb Number

Front Parking/Daytime Running Lamps

W21W

Front Turn Signal Lamps

WY21W

Rear Stop Lamp

P21W

Rear Turn Signal Lamps

PY21W

Rear Tail Lamps

P21/5W

Rear Side Marker Lamps

LED (See an authorized dealer)

Center Mount Brake Lamp

W5W

Reverse Light

W16W

Front Fog Lamps

H11

NOTE:

Numbers refer to commercial bulb types that can be purchased from your authorized dealer.

If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.

Replacing Exterior Bulbs

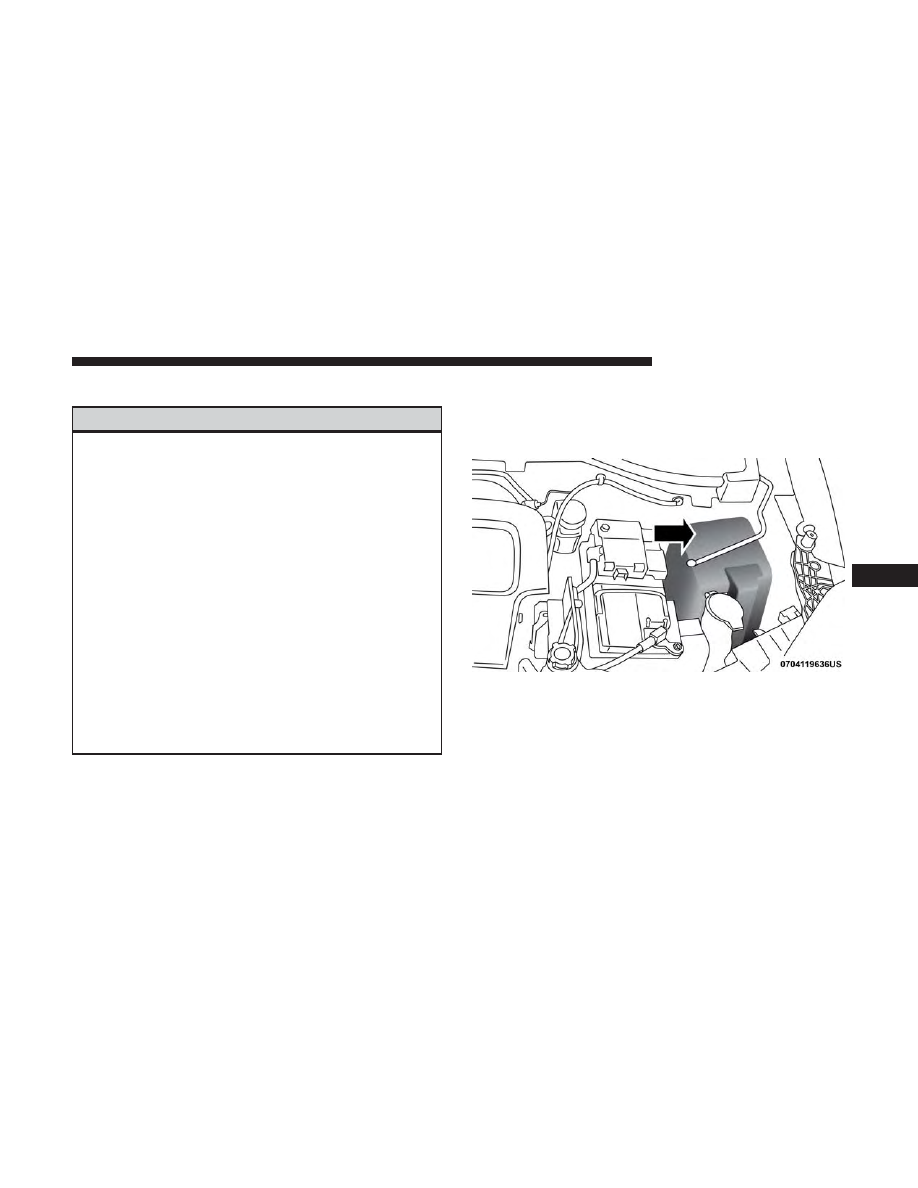

Headlamps

To change the bulb, proceed as follows:

1. Remove the plastic cap from the back of the headlamp

housing.

2. Rotate the bulb counter-clockwise.

3. Remove the bulb and replace as needed.

4. Install the bulb and rotate clockwise to lock in place.

5. Reinstall the plastic cap.

Front Turn Signal Lamps

Front

To change the bulb, proceed as follows:

1. Remove the cap from the back of the outer upper

headlamp housing.

192

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Rotate the bulb counter clockwise and remove.

3. Install the bulb into socket.

4. Rotate bulb/socket clockwise into lamp locking it in

place.

5. Reinstall the plastic cap.

Parking And Daytime Running Lights

To change the bulb, proceed as follows:

1. Remove the cap from the back of the outer lower

headlamp housing.

2. Rotate the bulb counter clockwise and remove.

3. Install the bulb into socket, and rotate bulb/socket

clockwise into lamp locking it in place.

4. Reinstall the plastic cap.

Front/Rear Side Marker Lamps

To change the bulb, proceed as follows:

The front/rear side marker lamps are LED and not ser-
viced separately. See your authorized dealer for replace-
ment of these lights.

Rear Tail, Stop, Backup And Turn Signal Lamps

The rear light clusters contain taillight, brake light, direc-
tion indicator and reverse/rear fog light bulbs. To access
the light clusters, proceed as follows:

1. Open the rear doors.

2. Remove the screws and remove the tail lamp assembly.

3. Remove the screws and separate the backplate from the

lamp housing.

4. Remove the tail, stop, or turn signal bulbs by pushing

them slightly and turning counter-clockwise.

5. Remove the backup lamp bulb by pulling straight out.

6. Replace lamps as required and reinstall lamp.

The bulbs are arranged inside the light cluster as follows:

Third Brake Light (Center Mount)

To change the bulb, proceed as follows:

1. For versions with tailgate, loosen the two fastening

screws and extract the cluster.

2. For versions with swing doors, remove rubber plugs,

remove retaining tabs and extract the cluster.

7

IN CASE OF EMERGENCY

193

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. For versions with high roof and swing doors, remove

the pressure-fit plastic guard and rubber cap using a
screwdriver, release the retaining tags as shown in the
figure and remove the unit.

4. Remove the appropriate tabs and remove the bulb

holder.

5. Remove the snap-fitted bulb and replace it.

License Plate Lights

Proceed as follows to replace the bulbs:

1. Disengage the holding tabs and remove the lens by

lifting to the left.

2. Remove the bulbs by releasing them from the side

contacts; insert the new bulbs and make sure they are
correctly clamped between these contacts.

Replacing Interior Bulbs

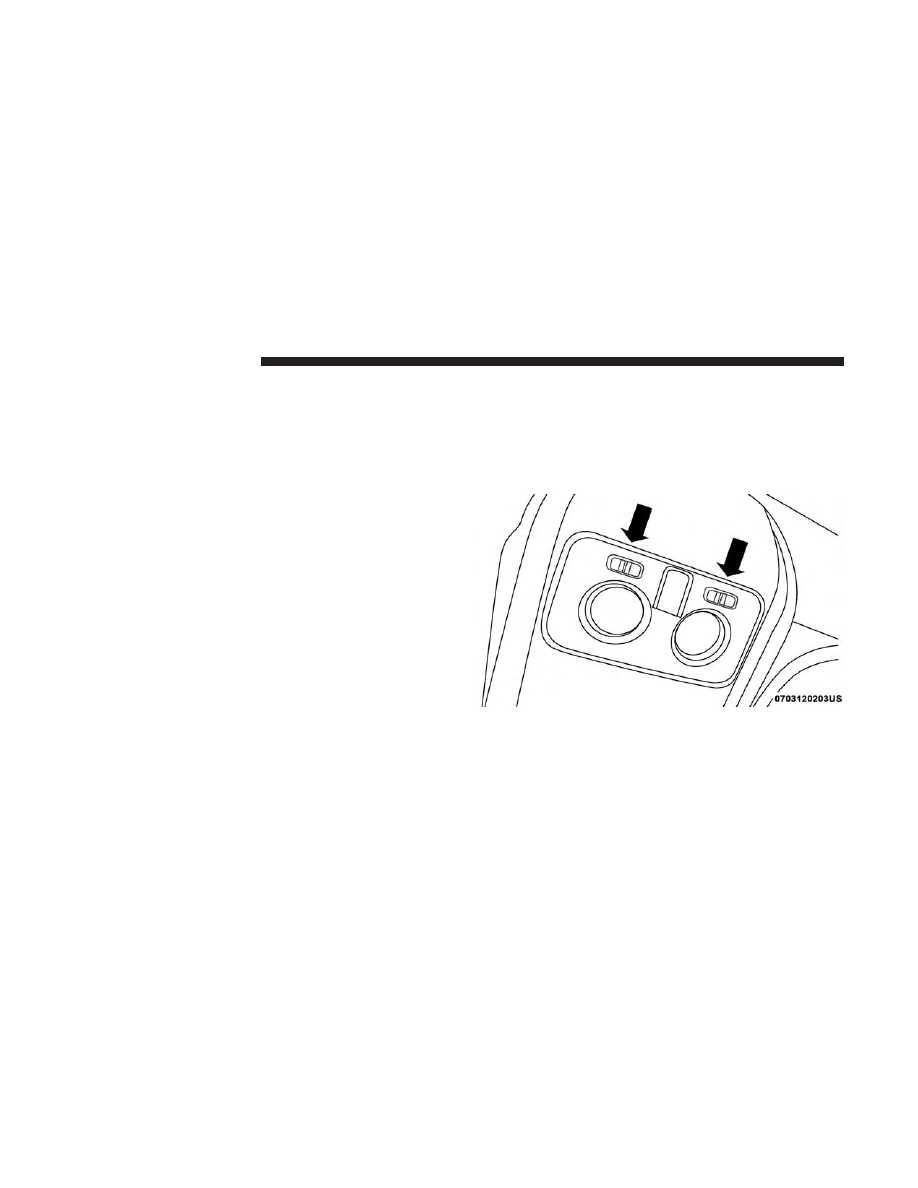

Dome Lamp With Spot Lights

To change the bulbs, proceed as follows:

1. Remove dome lamp by depressing the tabs located by

the arrows, using a suitable tool.

2. Open protective cover.

Dome Lamp Assembly

194

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Replace the bulbs releasing them from the side contacts

making sure that the new bulbs are correctly secured
between the contacts.

4. Close the protective cover and reposition it back into its

housing, making sure that it locks into place.

Rear Roof Lamp

To change the bulb, proceed as follows:

1. Remove roof lamp by depressing the tabs located by the

arrows, using a suitable tool.

2. Open the cover.

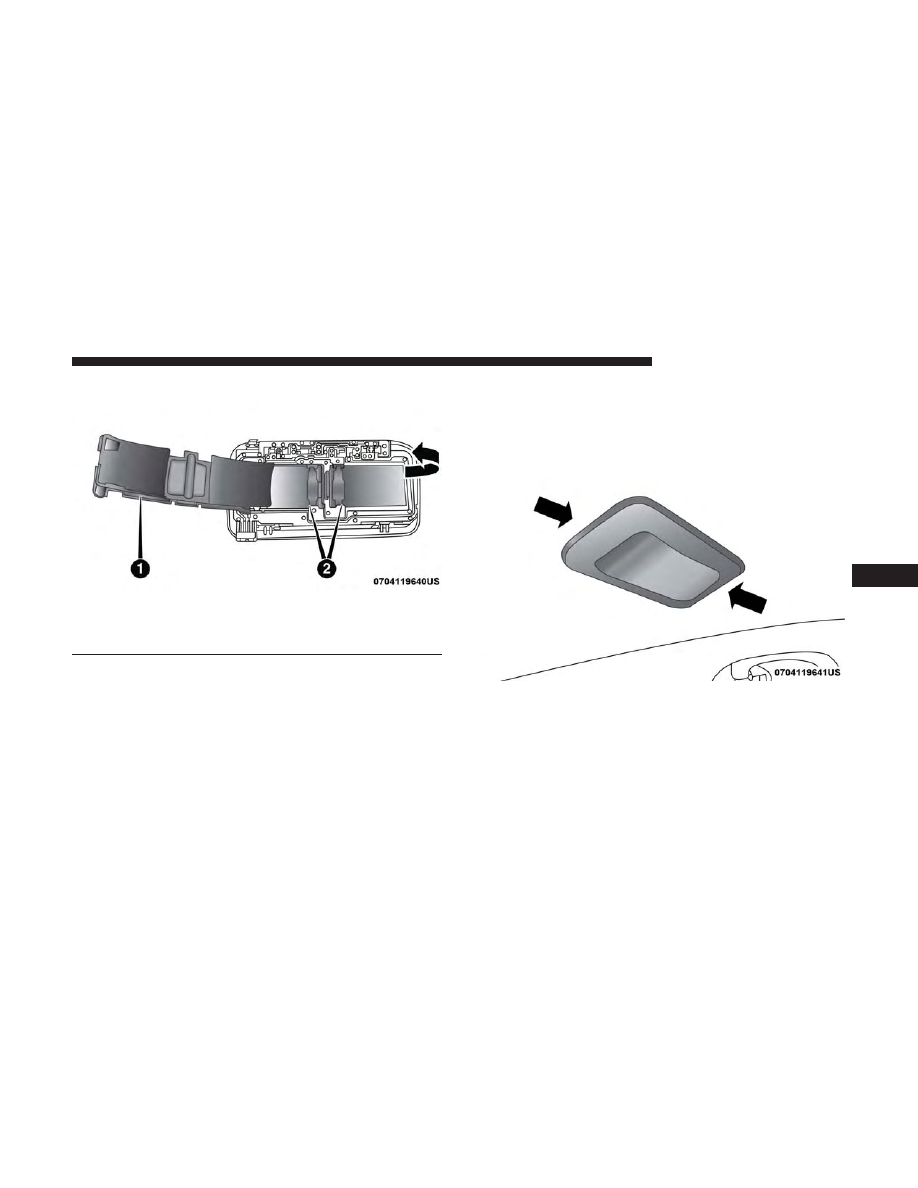

Dome Lamp

1 — Protective Cover
2 — Bulbs

Roof Lamp

7

IN CASE OF EMERGENCY

195

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Replace the bulb releasing them from the side contacts

making sure that the new bulbs are correctly secured
between the contacts.

4. Close the protective cover and reposition it back into its

housing, making sure that it locks into place.

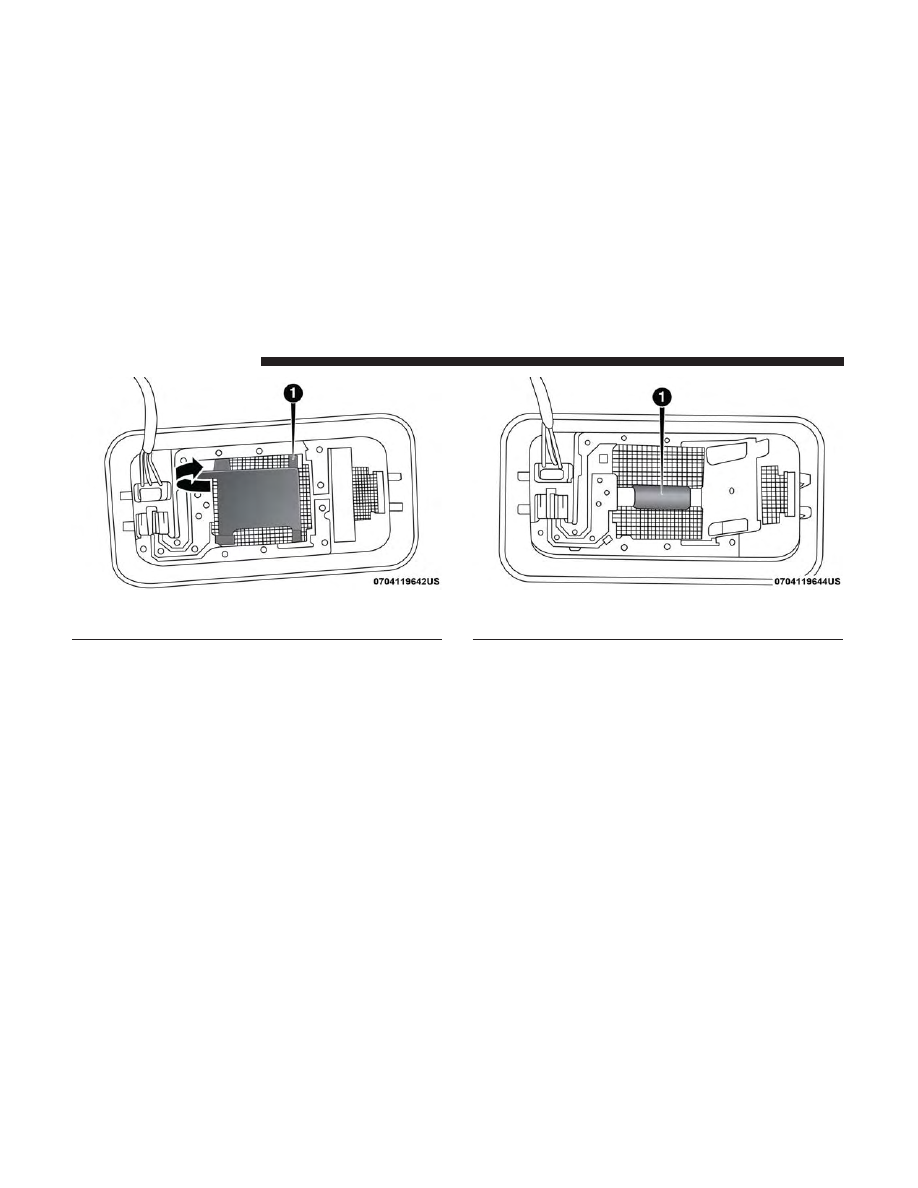

Roof Lamp (Reverse Side)

1 — Cover

Roof Lamp (Reverse Side)

1 — Bulb

196

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

Underhood Fuses

The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, remove fasteners and remove the cover.

The ID number of the electrical component corresponding
to each fuse can be found on the back of the cover.

Front Distribution Unit

7

IN CASE OF EMERGENCY

197

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cavity

Maxi Fuse

Mini Fuse

Description

F01

60 Amp Blue

Body Controller

F02

40 Amp Orange

Rear Power Windows, Fog Lamps, Front
Heated Seats (If Equipped)

F02

30 Amp Green

Rear Power Windows, Front Heated Seats (If
Equipped)

F02

30 Amp Green

Fog Lamps, Front Heated Seats (If Equipped)

F02

20 Amp Yellow

Front Heated Seats (If Equipped)

F03

20 Amp Yellow

Ignition Switch

F04

40 Amp Orange

BSM System Module

F06

20 Amp Yellow

Radiator Fan - Low Speed

F07

50 Amp Red

Radiator Fan - High Speed

F08

40 Amp Orange

Blower Motor

F10

15 Amp Blue

Horn

F11

10 Amp Red

Secondary Loads ECM

F14

15 Amp Blue

High Beam

F15

15 Amp Blue

IP Power Outlet 12V

F16

5 Amp Tan

ECM and Transmission Shifter

F17

25 Amp Clear

ECM Power Loads

F18

5 Amp Tan

ECM Load, Main Relay

F19

7.5 Amp Brown

Air Conditioning

198

IN CASE OF EMERGENCY

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
