(8) Verify liftgate alignment. Refer to Liftgate

Remove and Installation for proper gap measure-
ments.

LATCH

REMOVAL

(1) Remove liftgate trim panel.
(2) Disengage outside handle link from clip on

latch.

(3) Disconnect wire connector from liftgate latch

(Fig. 2).

(4) Remove screws attaching latch to liftgate.
(5) Remove latch from vehicle.

INSTALLATION

(1) Engage link and place latch in position on vehi-

cle.

(2) Install

screws

attaching

latch

to

liftgate.

Tighten to 10 N·m (95 lb.in.) torque.

(3) Connect wire connector to liftgate latch.
(4) Verify liftgate fit and operation. Adjust as nec-

essary.

(5) Install liftgate trim panel.

LATCH STRIKER

REMOVAL

(1) Open liftgate.
(2) Mark outline of striker on sill to aid installa-

tion.

(3) Remove screws attaching striker to sill (Fig. 3).
(4) Remove striker from vehicle.

INSTALLATION

(1) Place striker in position on vehicle.
(2) Align striker to outline mark on sill.
(3) Install screws attaching striker to sill. Tighten

screws to 28 N·m (21 ft. lbs.) torque.

(4) Verify liftgate alignment and operation.

Fig. 1 LIFTGATE HINGE

1 - LIFTGATE
2 - HINGE
3 - REAR ROOF HEADER

Fig. 2 LIFTGATE LATCH

1 - ELECTRICAL CONNECTOR
2 - LIFTGATE LATCH
3 - SCREW
4 - LIFTGATE
5 - LIFTGATE LOCK CYLINDER

Fig. 3 LIFTGATE LATCH STRIKER

1 - LIFTGATE SILL
2 - LIFTGATE STRIKER

23 - 40

DECKLID/HATCH/LIFTGATE/TAILGATE

RS

HINGE (Continued)

LIFTGATE

REMOVAL

(1) Release liftgate latch and open liftgate.
(2) Remove screws attaching liftgate wire connec-

tor to rear header.

(3) Disconnect liftgate wire harness from body

wire harness.

(4) Remove liftgate upper frame molding.
(5) Disconnect rear window washer hose from

spray nozzle.

(6) Support liftgate on a suitable lifting device.
(7) Remove screws attaching support cylinders to

liftgate.

(8) Remove bolts attaching liftgate hinge to roof

header (Fig. 4).

(9) With assistance, remove liftgate from vehicle.

INSTALLATION

(1) With assistance, place liftgate in position on

vehicle.

(2) Install bolts attaching liftgate hinge to roof

header. Tighten bolts to 33 N·m (24 ft. lbs.) torque.

(3) Install screws attaching support cylinders to

liftgate. Tighten bolts to 28 N·m (21 ft. lbs.) torque.

(4) Remove lifting device from under liftgate.
(5) Connect liftgate wire harness into body wire

harness.

(6) Install screws attaching wire connector to rear

header.

(7) Connect rear window washer hose onto spray

nozzle.

(8) Install liftgate upper frame molding.
(9) Verify liftgate alignment. The liftgate should

have a gap to adjacent panels and fit flush across the
gaps. The gap is;

• 7 mm (0.280 in.) to the fascia,

• 6 mm (0.240 in.) to the roof,

• 4 mm (0.160 in.) to the aperture.

LIFTGATE SPOILER

REMOVAL

(1) Remove nuts (Fig. 5).
(2) Remove spoiler from vehicle.

INSTALLATION

(1) Place liftgate spoiler in position and install

nuts.

(2) Tighten nuts to 9 N·m (80 in. lbs.) torque.

LOCK CYLINDER

REMOVAL

(1) Remove the liftgate trim panel. (Refer to 23 -

BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - REMOVAL)

(2) Disconnect the electrical connector.
(3) Disconnect the latch rod.
(4) Rotate plastic lock cylinder nut one quarter

turn and remove nut and spring washer.

(5) Remove the lock cylinder from the liftgate.

INSTALLATION

(1) Install lock cylinder into liftgate.
(2) Install the plastic lock cylinder lock nut, spring

washer and rotate one quarter turn.

(3) Connect the electrical connector.

Fig. 4 LIFTGATE

1 - HINGE
2 - ROOF
3 - NET HOLE OR SLOT

Fig. 5 LIFTGATE SPOILER

1 - RETAINER SEALER WASHER
2 - LIFT GATE SPOILER

RS

DECKLID/HATCH/LIFTGATE/TAILGATE

23 - 41

(4) Connect the latch rod.
(5) Install the trim panel. (Refer to 23 - BODY/

DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM
PANEL - INSTALLATION)

(6) Verify lock cylinder operation.

SUPPORT CYLINDER

REMOVAL

(1) Release liftgate latch and open liftgate.
(2) Support liftgate on a suitable lifting device in

the full open position.

(3) Pull liftgate opening weatherstrip from D-pillar

flange next to prop assembly end pivot.

(4) Remove bolt attaching end pivot to D-pillar

(Fig. 6).

(5) Remove bolt attaching prop assembly to lift-

gate.

(6) Remove prop assembly from vehicle.

INSTALLATION

Ensure that the cylinder end is attached to the

D-pillar and the shaft end is attached to the liftgate.

(1) Place prop assembly in position.
(2) Install bolt attaching prop assembly to liftgate.
(3) Install bolt attaching end pivot to D-pillar.

Tighten bolts to 28 N·m (21 ft. lbs.) torque.

(4) Install liftgate opening weatherstrip to D-pillar

flange next to prop assembly end pivot.

(5) Close liftgate. Check liftgate operation.

TRIM PANEL

REMOVAL

(1) Remove the bolt attaching the lift motor link, if

equipped (Fig. 7).

(2) Remove liftgate upper frame molding (Fig. 8).
(3) Remove assist handle screws.
(4) Disengage hidden clips holding trim panel to

liftgate from around perimeter or liftgate (Fig. 8).

(5) Disconnect wire connector from lamps.
(6) Remove liftgate trim panel from vehicle.

Fig. 6 LIFTGATE PROP ASSEMBLY

1 - LIFTGATE
2 - PROP ASSEMBLY

Fig. 7 LIFTGATE MOTOR

1 - LIFTGATE MOTOR LINK BOLT
2 - LIFTGATE MOTOR
3 - LIFTGATE

Fig. 8 LIFTGATE TRIM

1 - LIFTGATE
2 - LOWER TRIM PANEL
3 - ASSIST HANDLE SCREWS
4 - UPPER TRIM
5 - UPPER TRIM CLIPS

23 - 42

DECKLID/HATCH/LIFTGATE/TAILGATE

RS

LOCK CYLINDER (Continued)

INSTALLATION

(1) Place liftgate trim panel in position on vehicle.
(2) Engage hidden clips to hold trim panel to lift-

gate and fasteners around perimeter of liftgate (Fig.
8).

(3) Connect wire connector into lamp.
(4) Install courtesy lamps into liftgate trim.
(5) Install screws to hold assist handle to liftgate.
(6) Install upper frame side moldings.
(7) Install liftgate upper frame molding.
(8) Install the bolt attaching the lifgate motor link

and tighten to 28 N·m (21 ft. lbs.)

SLAM BUMPER

REMOVAL

REMOVAL

(1) Open liftgate.
(2) Remove liftgate stop bumper body side attach-

ing bolts (Fig. 9).

(3) Remove liftgate stop bumper.

REMOVAL - LIFTGATE SIDE

(1) Open liftgate.
(2) Remove

liftgate

stop

bumper

liftgate

side

attaching rivets by drilling out old rivets.

(3) Remove liftgate stop bumper.

INSTALLATION

INSTALLATION

(1) Place liftgate stop bumper into position.
(2) Install bolts attaching liftgate stop bumper to

body side (Fig. 9).

(3) Close liftgate.

INSTALLATION - LIFTGATE SIDE

(1) Place liftgate stop bumper into position.
(2) Install rivets attaching liftgate stop bumper to

liftgate.

(3) Close liftgate.

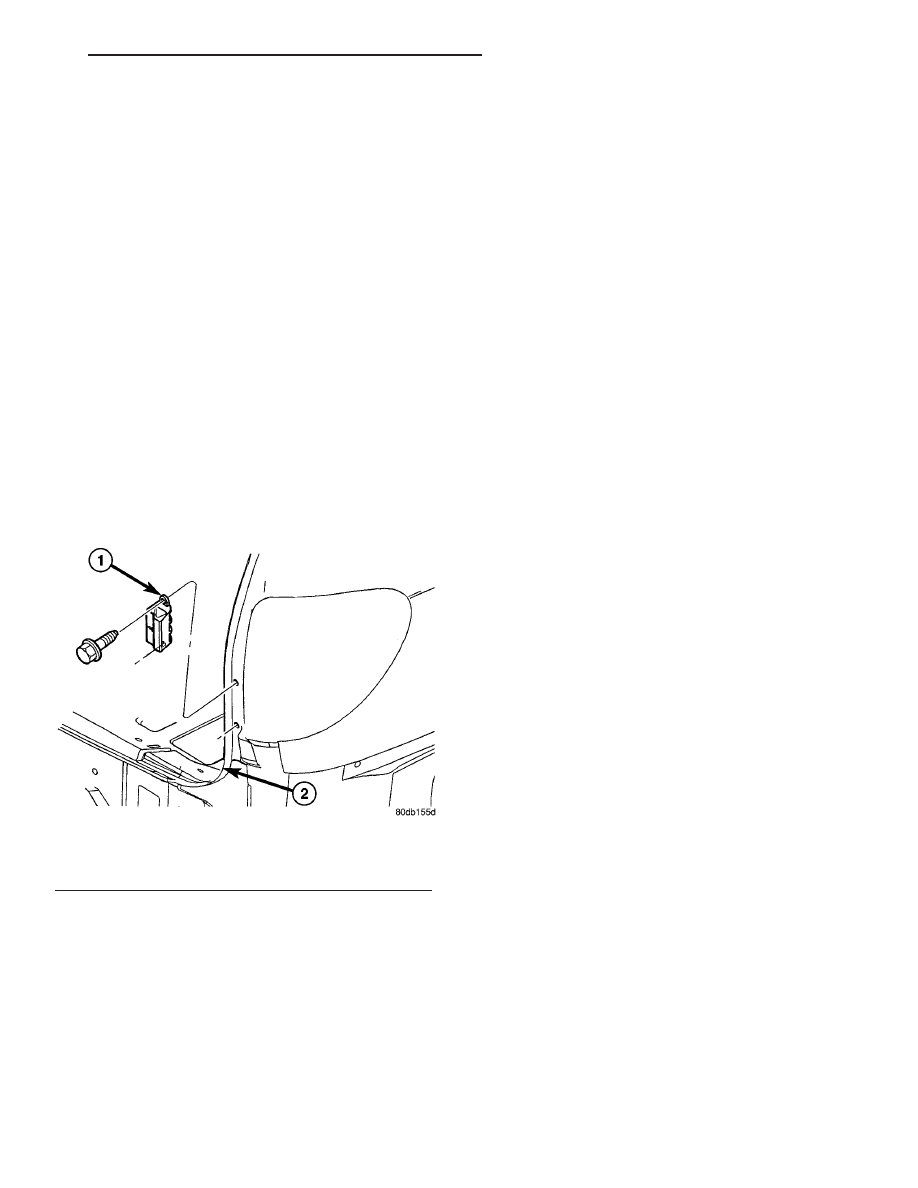

Fig. 9 LIFTGATE STOP BUMPER - BODY SIDE

1 - LIFTGATE STOP BUMPER
2 - LIFTGATE OPENING

RS

DECKLID/HATCH/LIFTGATE/TAILGATE

23 - 43

TRIM PANEL (Continued)
