9710 RIGHT ROTATION RELAY CONTROL CIRCUIT SHORT TO GROUND
•

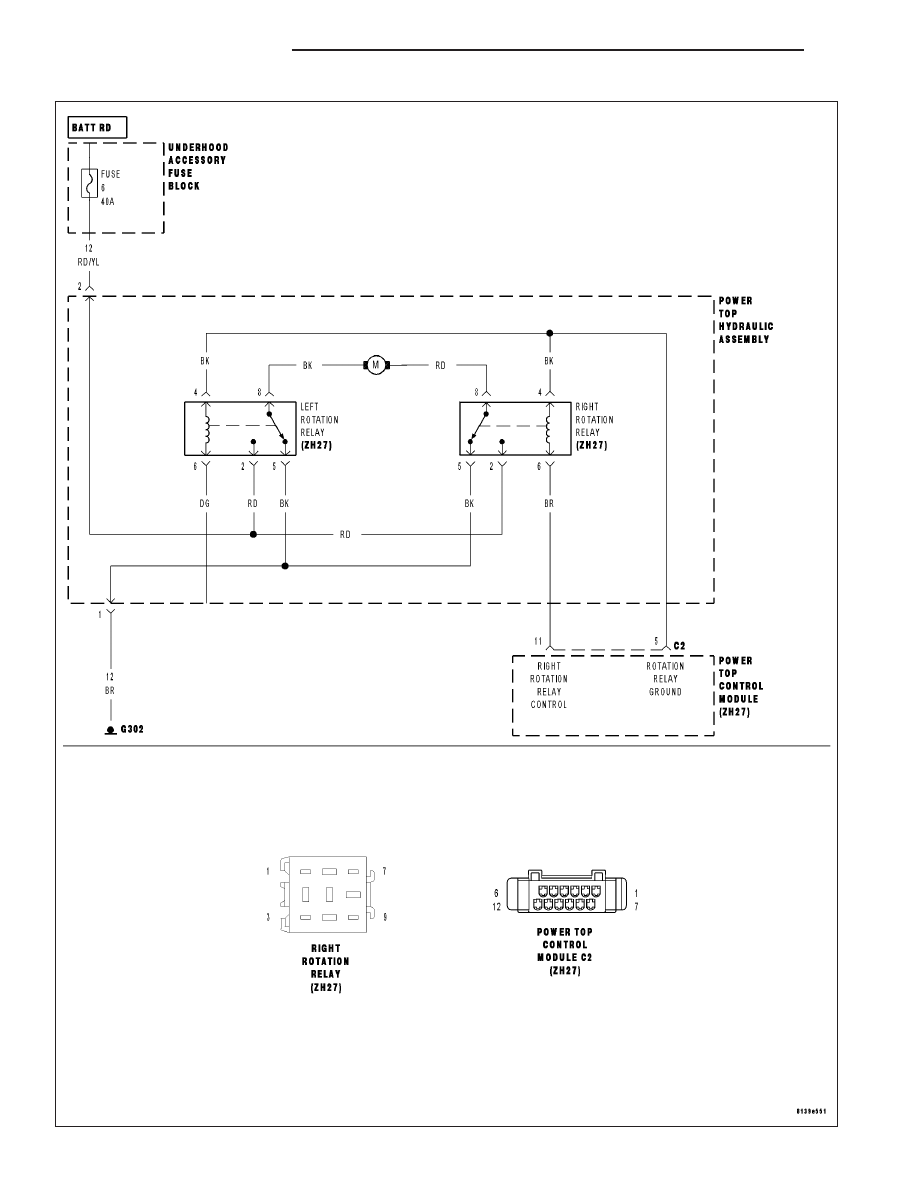

When Monitored: With the ignition on, the Power Top Control Module continuously senses the voltage
on the Right Rotation Relay Control circuit.
•
Set Condition: When the Power Top Control Module senses high current flow on the Right Rotation
Relay Control circuit when the Power Top Switch is pressed in the direction to lower the top.
Possible Causes
RIGHT ROTATION RELAY
RIGHT ROTATION RELAY CONTROL CIRCUIT SHORTED TO GROUND
POWER TOP CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.
Diagnostic Test
1.
Right Rotation Relay Control Circuit For Short To Ground

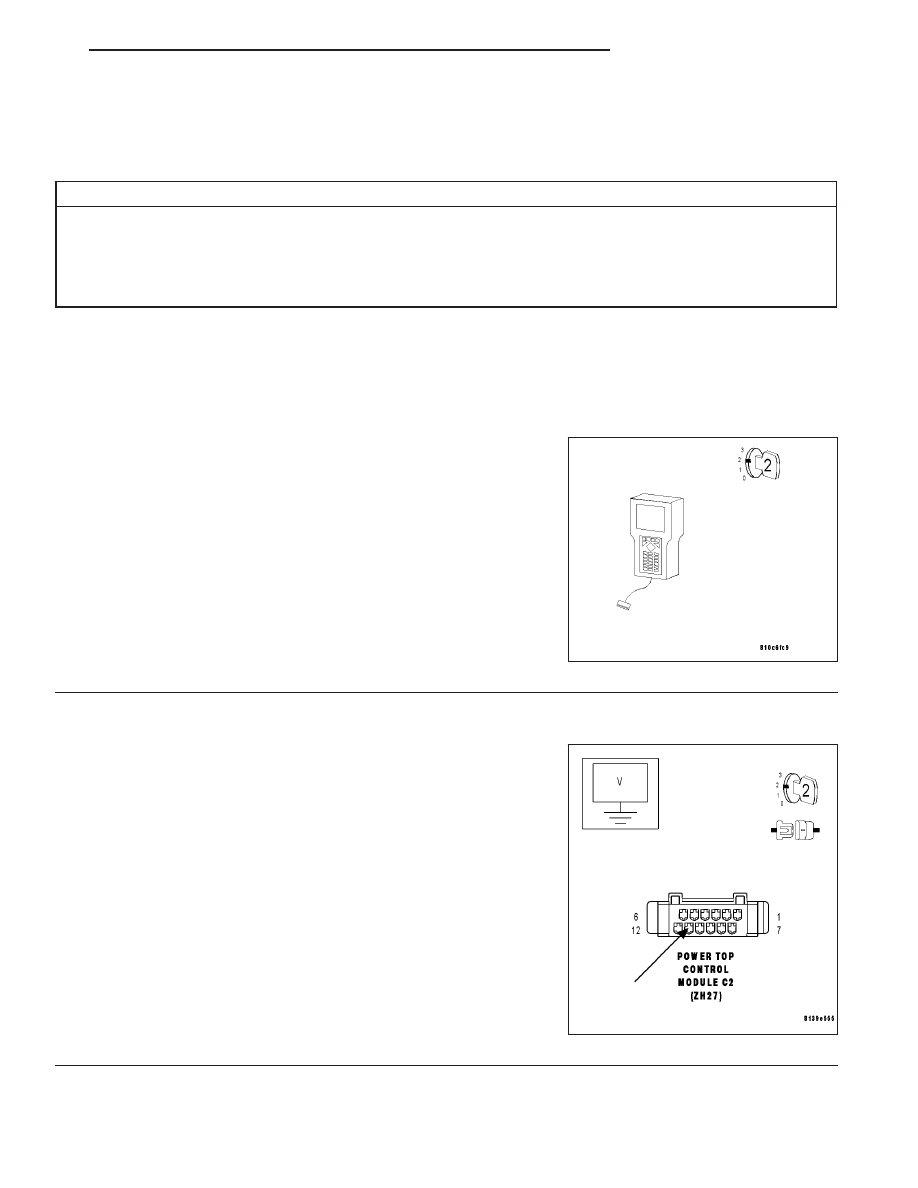

Turn the ignition off.
Disconnect the Power Top Control Module C2 harness connector.
Note: Check connectors — Clean/repair as necessary.
Measure the resistance between ground and the Right Rotation Relay Control circuit.
Is the resistance above 100 kohms?
Yes
>> Replace the Power Top Control Module.(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES/POWER TOP CONTROL MODULE - REMOVAL).
Perform POWER TOP CONTROL MODULE VERIFICATION TEST.
No
>> Go To 2
2.
Right Rotation Relay

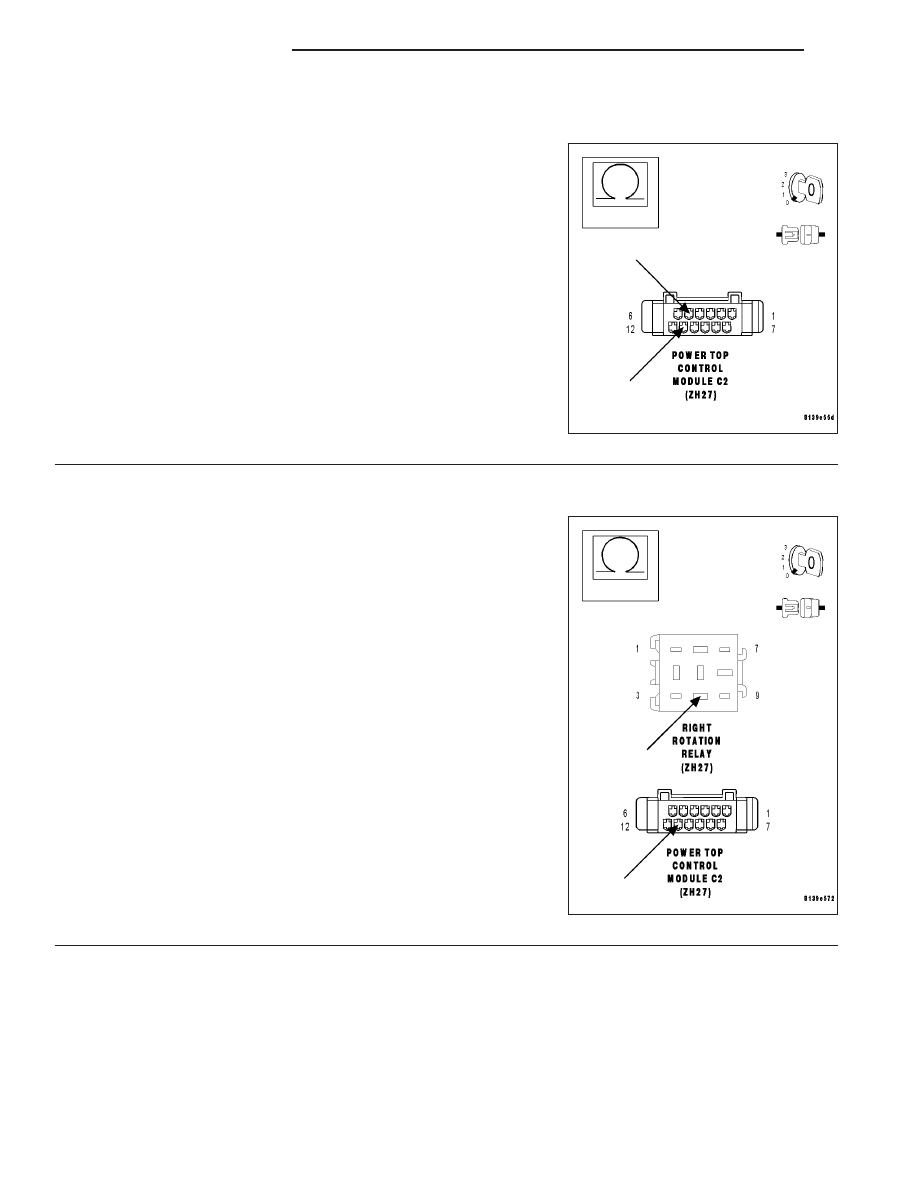

With the ignition off.
Disconnect the Right Rotation Relay harness connector.
Note: Check connectors — Clean/repair as necessary.
Measure the resistance between ground and the Right Rotation Relay Control circuit.
Is the resistance above 100 kohms?
Yes
>> Replace the Right Rotation Relay.
Perform POWER TOP CONTROL MODULE VERIFICATION TEST.
No
>> Repair the Right Rotation Relay Control circuit for a short to ground.
Perform POWER TOP CONTROL MODULE VERIFICATION TEST.
