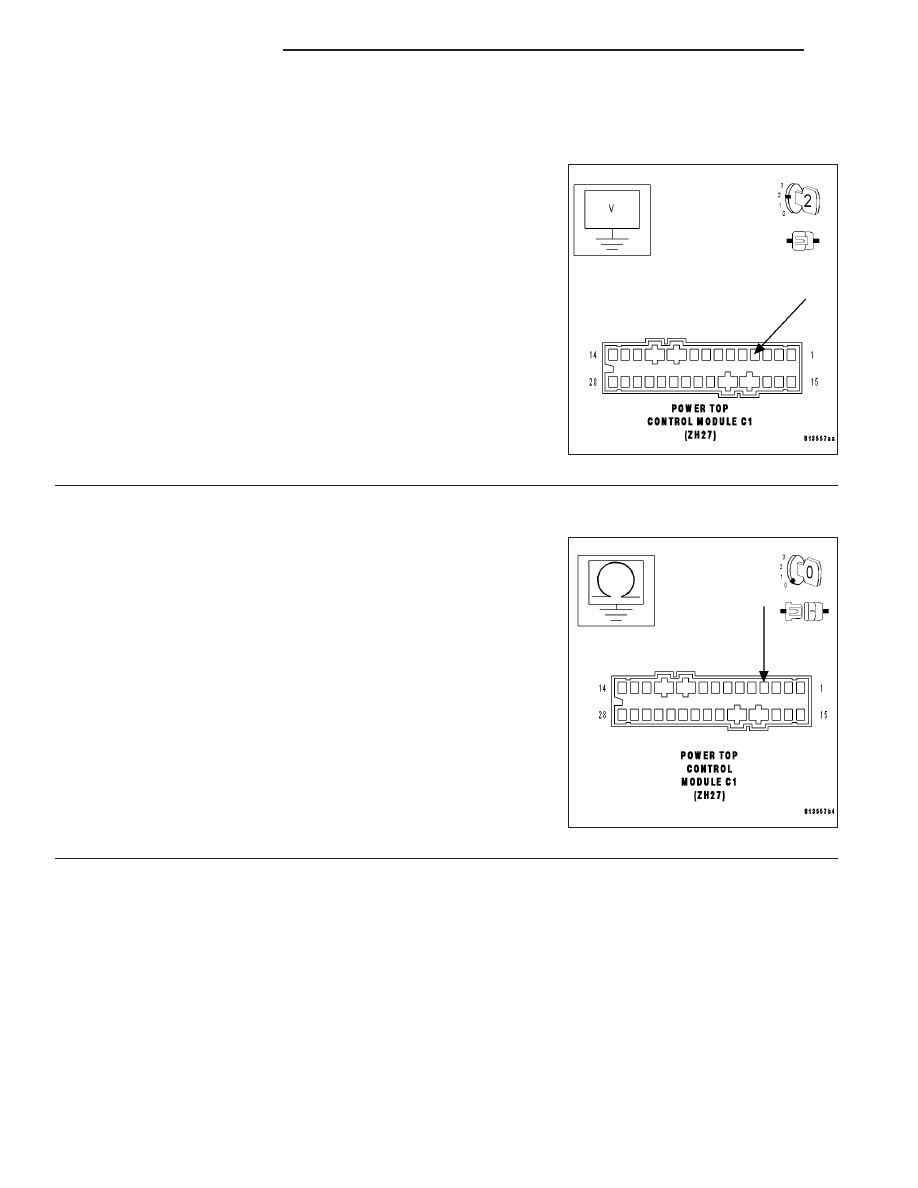

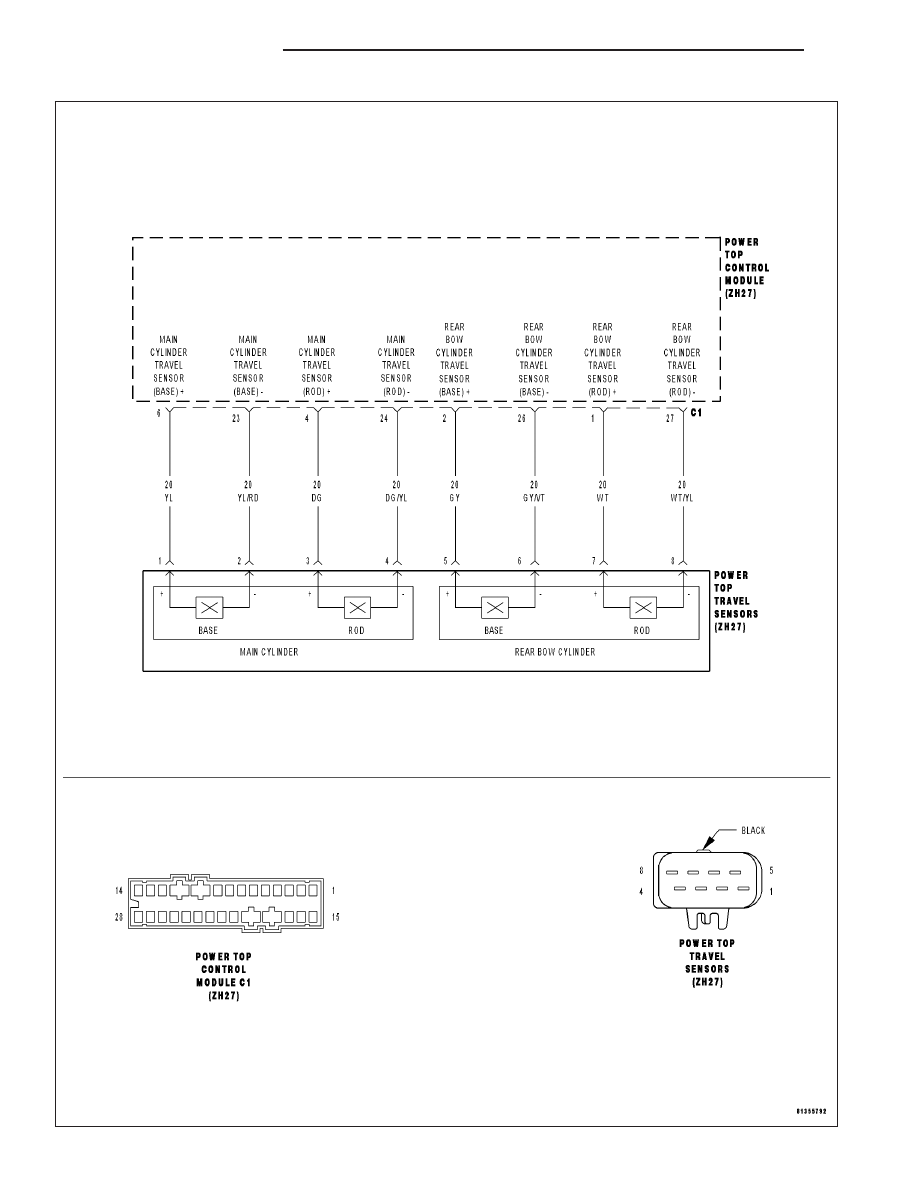

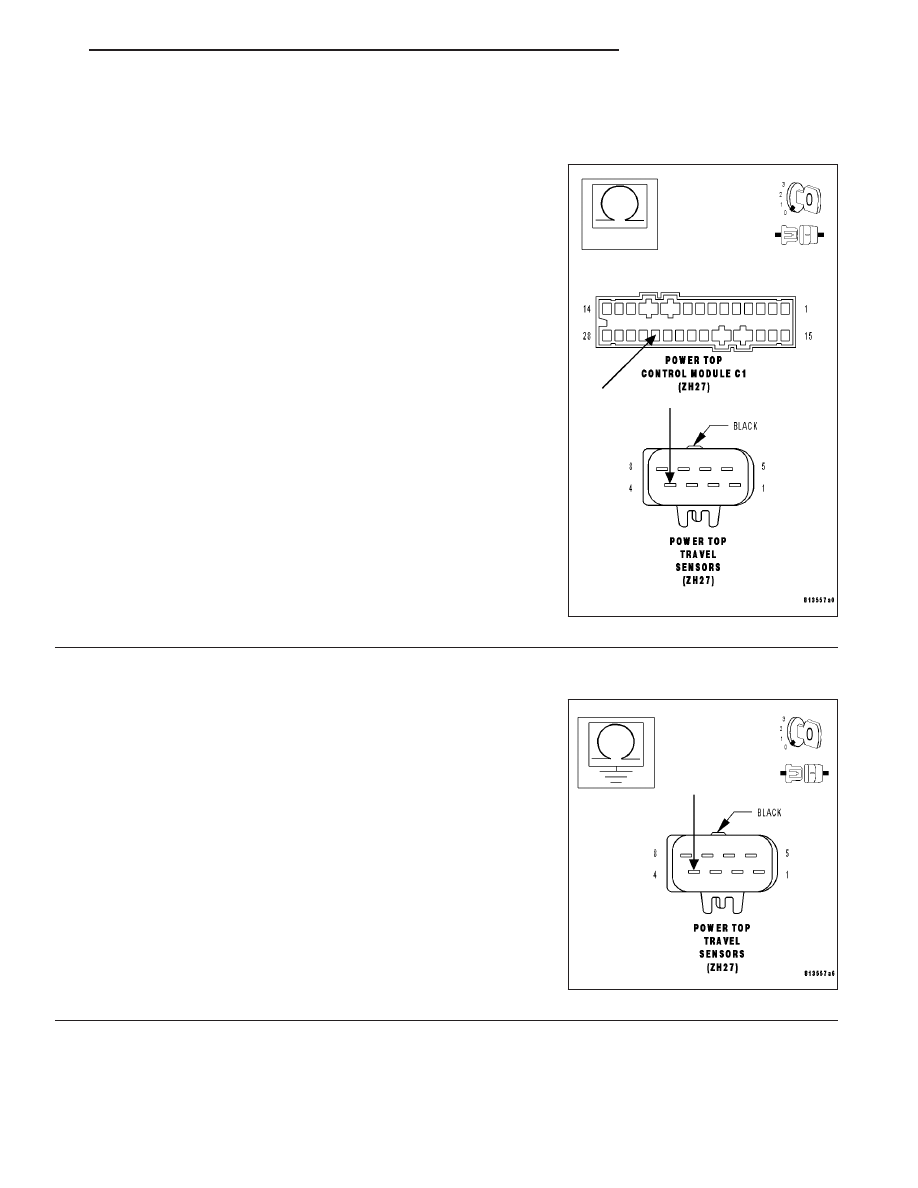

9610 MAIN CYLINDER TRAVEL SENSOR (ROD SIDE) +/- CIRCUITS OPEN/SHORT 4. Open Main Cylinder Travel Sensor (Rod Side) (-) Circuit Turn the ignition off. Disconnect the Power Top Control Module C1 harness connector. Measure the resistance of the Main Cylinder Travel Sensor (Rod Side) Is the resistance below 5.0 ohms? Yes >> Go To 5 No >> Repair the Main Cylinder Travel Sensor (Rod Side) (-) cir- cuit for an open. Perform POWER TOP CONTROL MODULE VERIFICA- 5. Main Cylinder Travel Sensor (Rod Side) (-) Circuit Shorted to Ground With the ignition off. Measure the resistance between ground and the Main Cylinder Travel Is resistance below 100 komhs? Yes >> Repair the Main Cylinder Travel Sensor (Rod Side) (-) cir- cuit for a short to ground. Perform POWER TOP CONTROL MODULE VERIFICA- No >> Replace the Power Top Control Module.(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/ POWER TOP CONTROL MODULE - REMOVAL) Perform POWER TOP CONTROL MODULE VERIFICA- ZH CONVERTIBLE TOP 23 - 51 |
