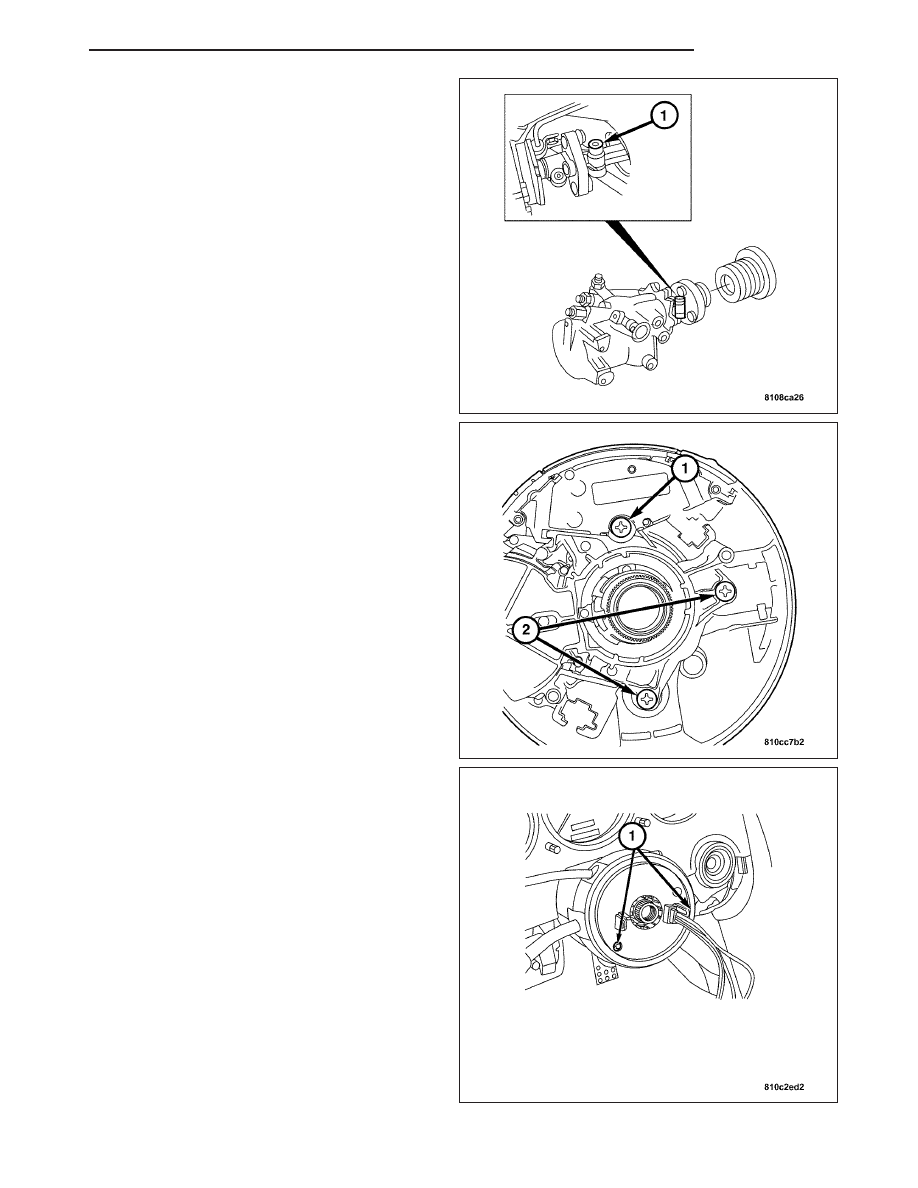

4. Install the pinch bolt (1) attaching the upper steer-

ing column to the steering gear. Tighten to 16-20
N·m (11-15 ft. lbs.).

5. Connect the clockspring harness connector.

6. Install the column trim ring.

7. Feed

the

clockspring

harness

connectors

up

through the column.

8. Install the speed control switch and retaining screw

(1).

9. Install the multifunction switch and retaining screws

(1-2).

10. Connect the ignition switch harness connector.

11. Install the instrument cluster (1). (Refer to 8 -

ELECTRICAL/INSTRUMENT

CLUSTER

-

INSTALLATION).

12. Install the clockspring and the retaining screws

(1). (Refer to 8 - ELECTRICAL/RESTRAINTS/
CLOCKSPRING - INSTALLATION).

ZH

COLUMN

19 - 23

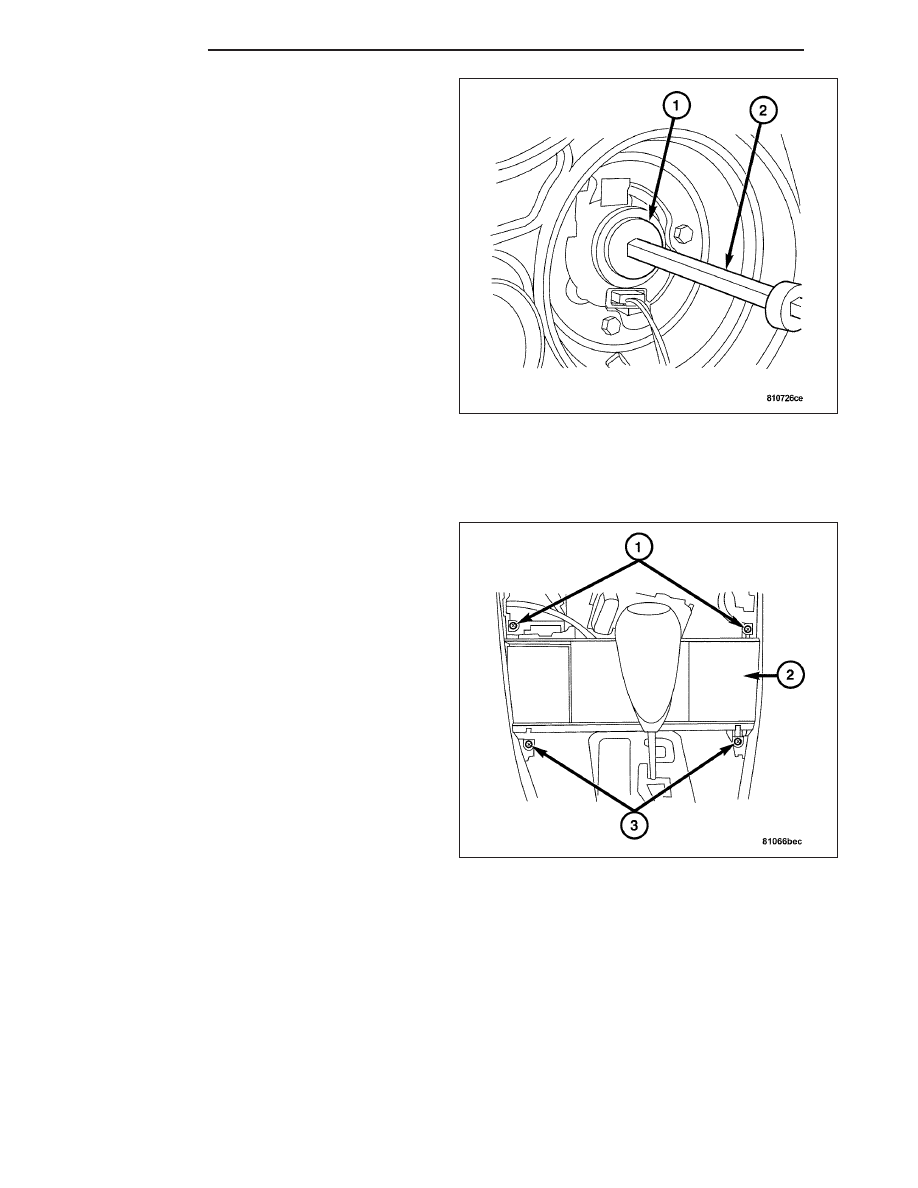

13. Install the steering wheel and the retaining bolt

(1). Tighten to 80 N·m (60 ft. lbs.)(Refer to 19 -
STEERING/COLUMN/STEERING

WHEEL

-

INSTALLATION).

14. Install the driver airbag. (Refer to 8 - ELECTRI-

CAL/RESTRAINTS/DRIVER AIRBAG - INSTALLA-
TION).

15. Install the right lower instrument panel (2) under

the steering column. (Refer to 23 - BODY/IN-
STRUMENT

PANEL/INSTRUMENT

PANEL

ASSEMBLY - REMOVAL).

16. Connect the negative battery cable.

IGNITION LOCK CABLE

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the ashtray (2) at front of center console.

(Refer to 23 - BODY/INTERIOR/CENTER CON-
SOLE - REMOVAL).

19 - 24

COLUMN

ZH

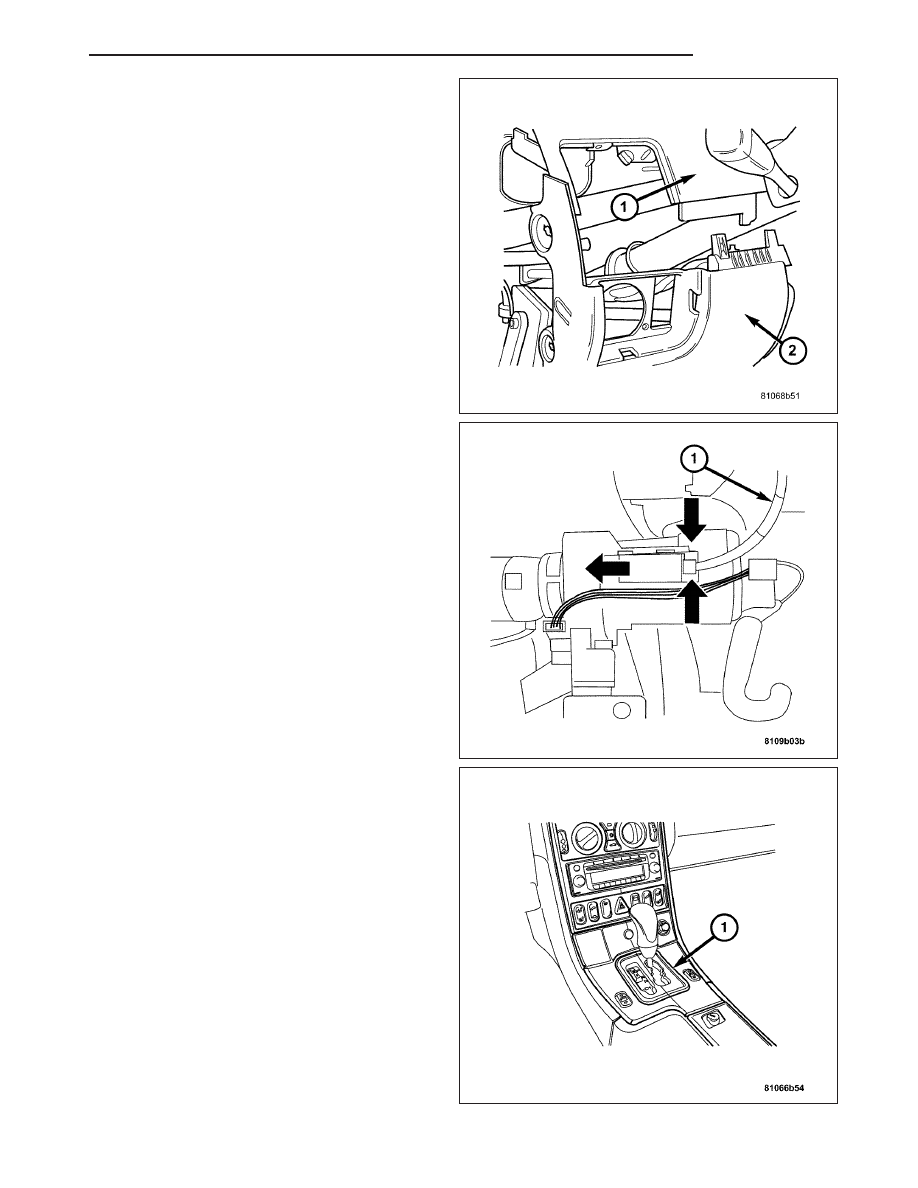

3. Remove the lower instrument panel (2). (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL ASSEMBLY - REMOVAL).

4. Press the locking tabs together and push the igni-

tion lock cable (1) out of ignition/starter switch in
the direction of the arrows.

5. Remove the shifter bezel (1). (Refer to 23 - BODY/

INTERIOR/CENTER CONSOLE - REMOVAL).

ZH

COLUMN

19 - 25

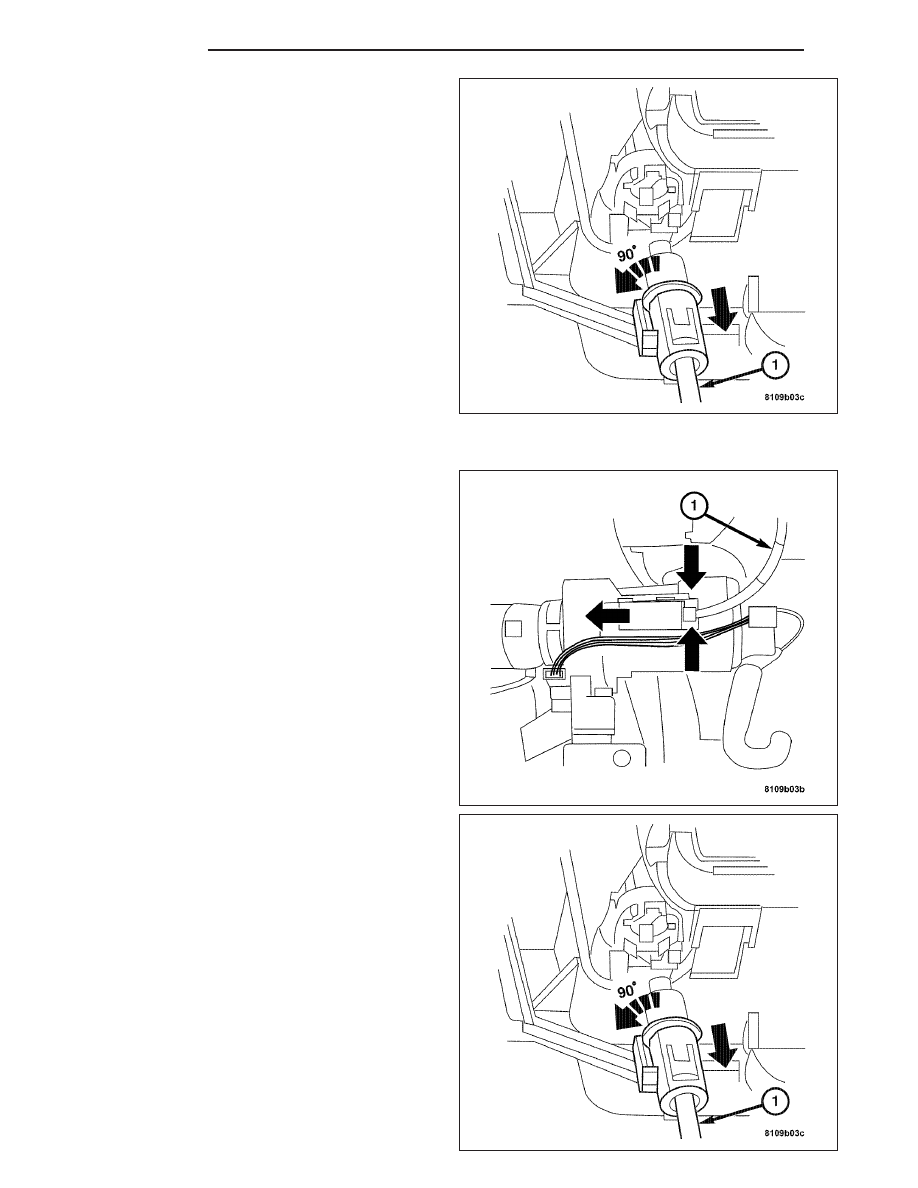

6. Remove the ignition lock cable (1) from electronic

selector lever module by turning it 90° to the left
and then pulling it straight out.

INSTALLATION

1. Install the ignition lock cable (1) to the ignition/

starter switch by sliding it into the retaining slot
until the tabs click.

2. Install the ignition lock cable (1) to the shift lever

assembly by inserting it into the mounting hole and
then turning it 90° to the right.

3. Turn the ignition switch to the OFF/LOCK position.

It should only be possible to move the shift lever
out of the Park position when the ignition switch is
in the ON/RUN position and the brake pedal is
depressed. It should only be possible to remove
the ignition key when the shift lever is in the Park
position and the ignition switch is in the OFF/LOCK
position.

19 - 26

COLUMN

ZH
