INSTALLATION

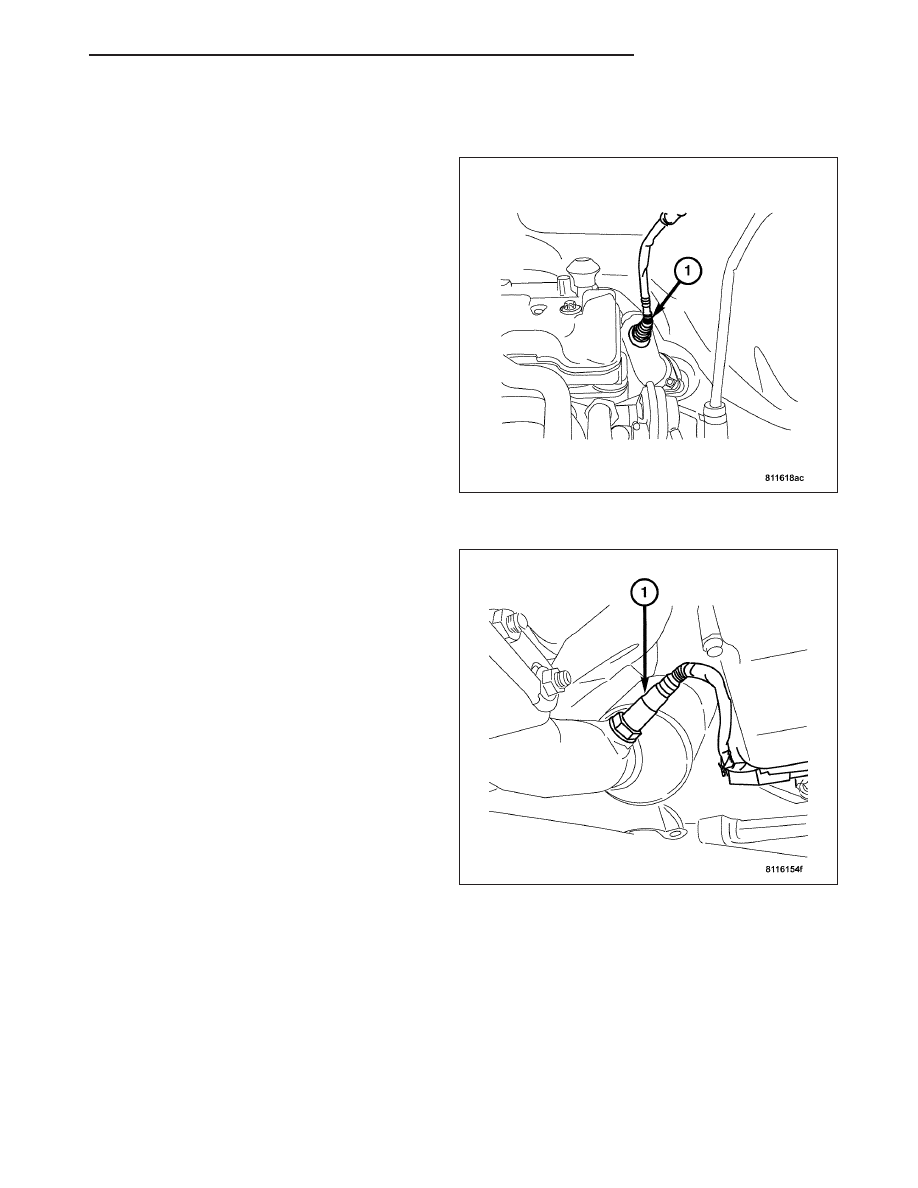

UPSTREAM O2

1. Apply anti-seize compound to the threaded portion

of the O2 sensor.

2. Install the O2 sensor (1). Tighten to 50 N·m (37 ft.

lbs.).

3. Connect the O2 sensor harness connector.

4. Install the engine cover. Align the engine cover

retaining clips to the rubber mounts, and push
down firmly to connect engine cover to rubber
mounts.

Note: To ease the installation of the engine cover,
apply a small amount of lubricant to the engine
cover rubber mounts.

5. Connect the negative battery cable.

INSTALLATION - DOWNSTREAM O2

1. Apply anti-seize compound to the threaded portion

of the O2 sensor.

2. Install the O2 sensor (1). Tighten to 50 N·m (37 ft.

lbs.).

3. Connect the O2 sensor harness connector.

4. Lower the vehicle.

5. Connect the negative battery cable.

ZH

FUEL INJECTION

14 - 57

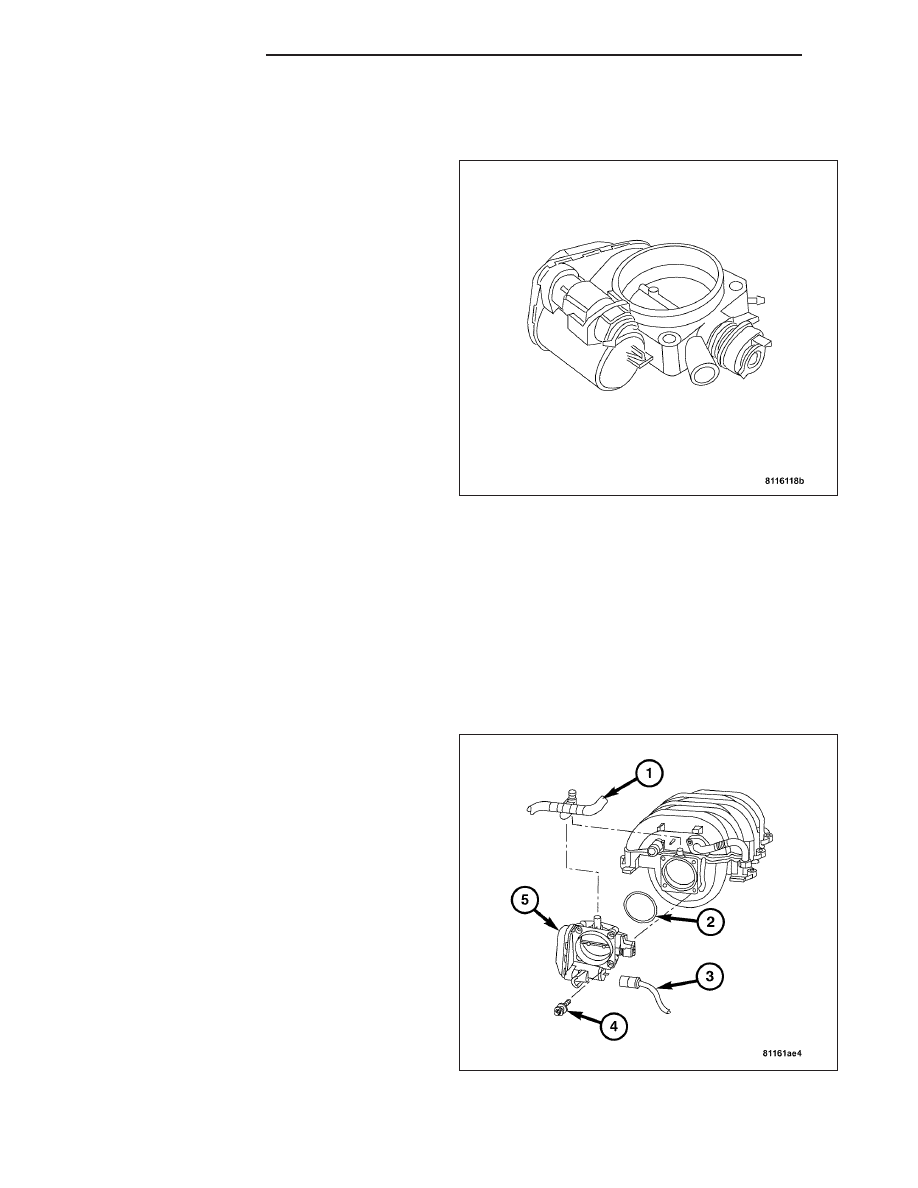

THROTTLE BODY

DESCRIPTION

The Throttle Body is located on the intake manifold.
The Throttle Body controls the amount of air that
enters the intake manifold. Fuel does not enter the
intake manifold through the Throttle Body. Fuel is
sprayed into the manifold by the fuel injectors.

OPERATION

Filtered air from the air cleaner enters the intake manifold through the Throttle Body. A throttle valve (plate) is used
to supply air for idle and driving conditions.

The Throttle Position Sensor is part the Throttle Body. The Throttle Position Sensor signal is used by the PCM to
determine throttle position. The PCM controls the Electronic Throttle Control of the Throttle Body. The PCM monitors
the Accelerator Pedal Position Sensor to determine the amount of throttle opening.

REMOVAL

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the engine cover. Grasp both corners of

the engine cover and pull up firmly.

3. Remove the throttle body inlet tube.

4. Disconnect the throttle body harness connector (3).

5. Disconnect the PCV hose (1) from the throttle

body.

6. Remove the throttle body retaining bolts and PCV

hose bracket.

7. Remove the throttle body (5) and gasket from

engine.

14 - 58

FUEL INJECTION

ZH

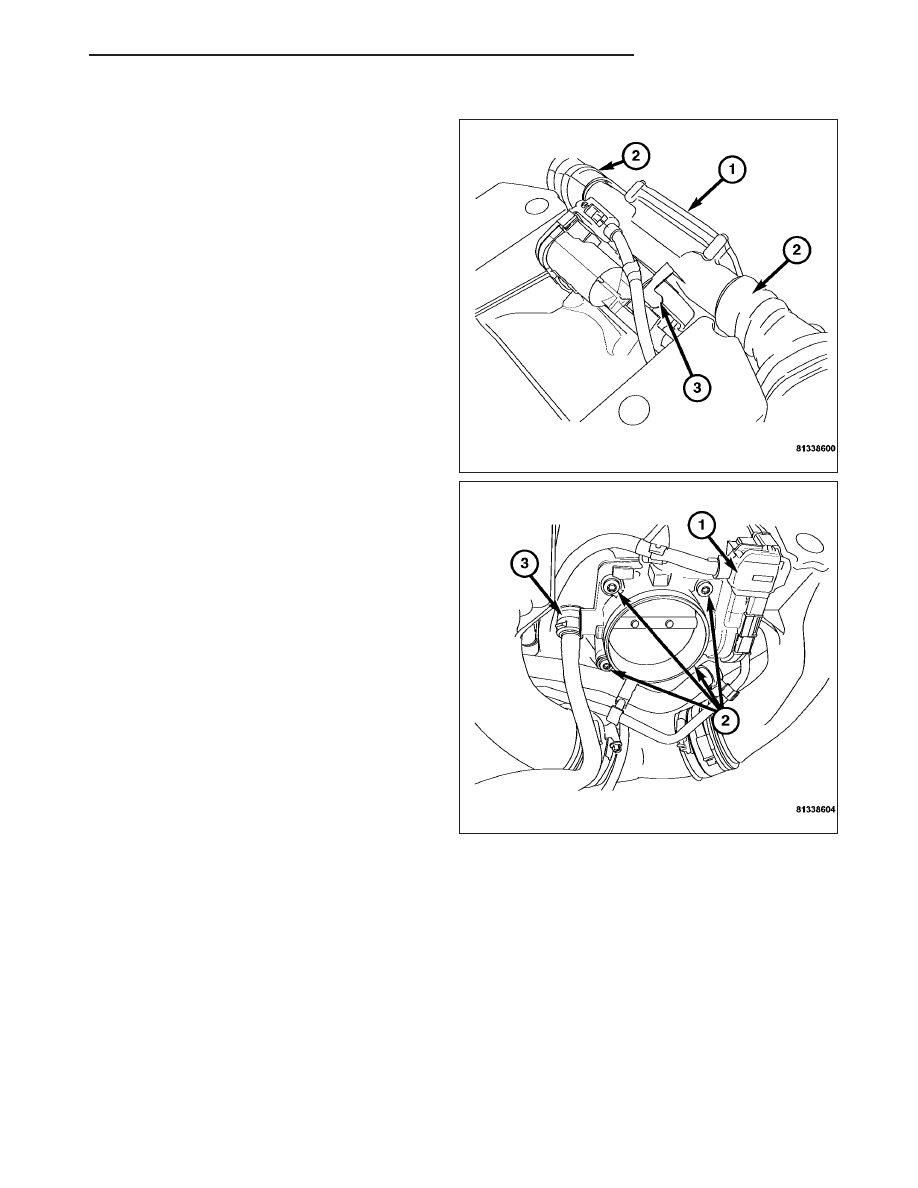

REMOVAL - SRT

1. Disconnect the negative battery cable.

2. Remove the throttle body inlet tube (1) by removing

the upper air cleaner housing and tubes (2), then
lifting up on the inlet tube lever (3) and removing
the inlet tube from the throttle body.

3. Disconnect the throttle body harness connector (1).

4. Disconnect the PCV hose (3) from the throttle

body.

5. Remove the throttle body retaining bolts (2) and

PCV hose bracket.

6. Remove the throttle body and the throttle body

gasket from engine.

ZH

FUEL INJECTION

14 - 59

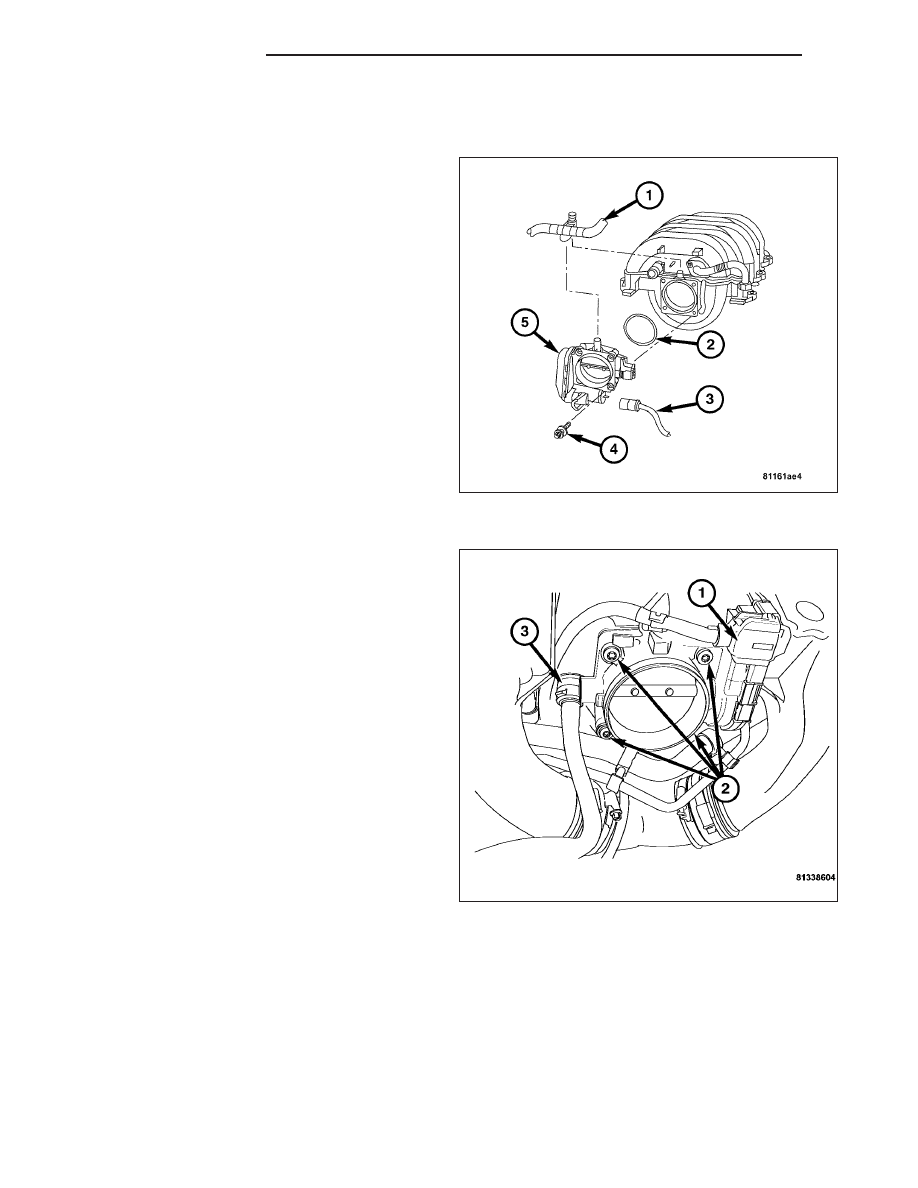

INSTALLATION

INSTALLATION

1. Connect the PCV hose (1) to the throttle body (5).

2. Install the throttle body (5) and gasket to engine.

3. Install the PCV hose bracket and throttle body

retaining bolts. Tighten to 20 N·m (15 ft. lbs.).

4. Connect the throttle body harness connector (3).

5. Install the throttle body inlet tube.

6. Install the engine cover. Align the engine cover

retaining clips to the rubber mounts, and push
down firmly to connect engine cover to rubber
mounts.

Note: To ease the installation of the engine cover,
apply a small amount of lubricant to the engine
cover rubber mounts.

7. Connect the negative battery cable.

INSTALLATION - SRT

1. Connect the PCV hose (3) to the throttle body.

2. Install the throttle body and gasket to engine.

3. Install the throttle body retaining bolts (2) and the

PCV hose bracket. Tighten to 20 N·m (15 ft. lbs.).

4. Connect the throttle body harness connector (1).

14 - 60

FUEL INJECTION

ZH
