DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Stage Two

90° Clockwise

Fuel Supply Line to Rail

38

28

336

Cylinder Head Bolts

Stage One

20

15

177

Stage Two

50

37

443

Stage Three

60° - 70° Clockwise

Stage Four

60° - 70° Clockwise

Intake Manifold Bolts

20

15

177

Lower Splash Shield

Screws

-

5

44

Main Bearing Journal Cap

Bolts

Stage One M8

20

15

177

Stage Two M8

90° Clockwise

Stage One M10

30

22

266

Stage Two M10

90° Clockwise

Manifold Bolts

16

12

142

Oil Cooler Bolts

11

8

97

Oil Filter Adaptor Center

Bolt

70

52

620

Oil Filter Cap

25

18

97

Oil Indicator Tube Bolt

10

7

89

Oil Pan Bolts Lower

14

10

124

Oil Pan Bolts Upper

M6

10

7

89

M8

20

15

177

Oil Pan Drain Plug

30

22

266

Oil Pressure/Level Sensor

Screws

10

7

89

Oil Spray Nozzle Bolts

15

11

133

Power Steering Pump

Ground Bolt

25

18

97

Power Steering Pump

High Pressure Line

45

33

398

Timing Chain Cover Bolts

20

15

177

Timing Chain Tensioner

Bolt

80

59

708

Transmission Mount Bolts

40

30

354

ZH

ENGINE - 3.2L SERVICE INFORMATION

9 - 729

SPECIAL TOOLS

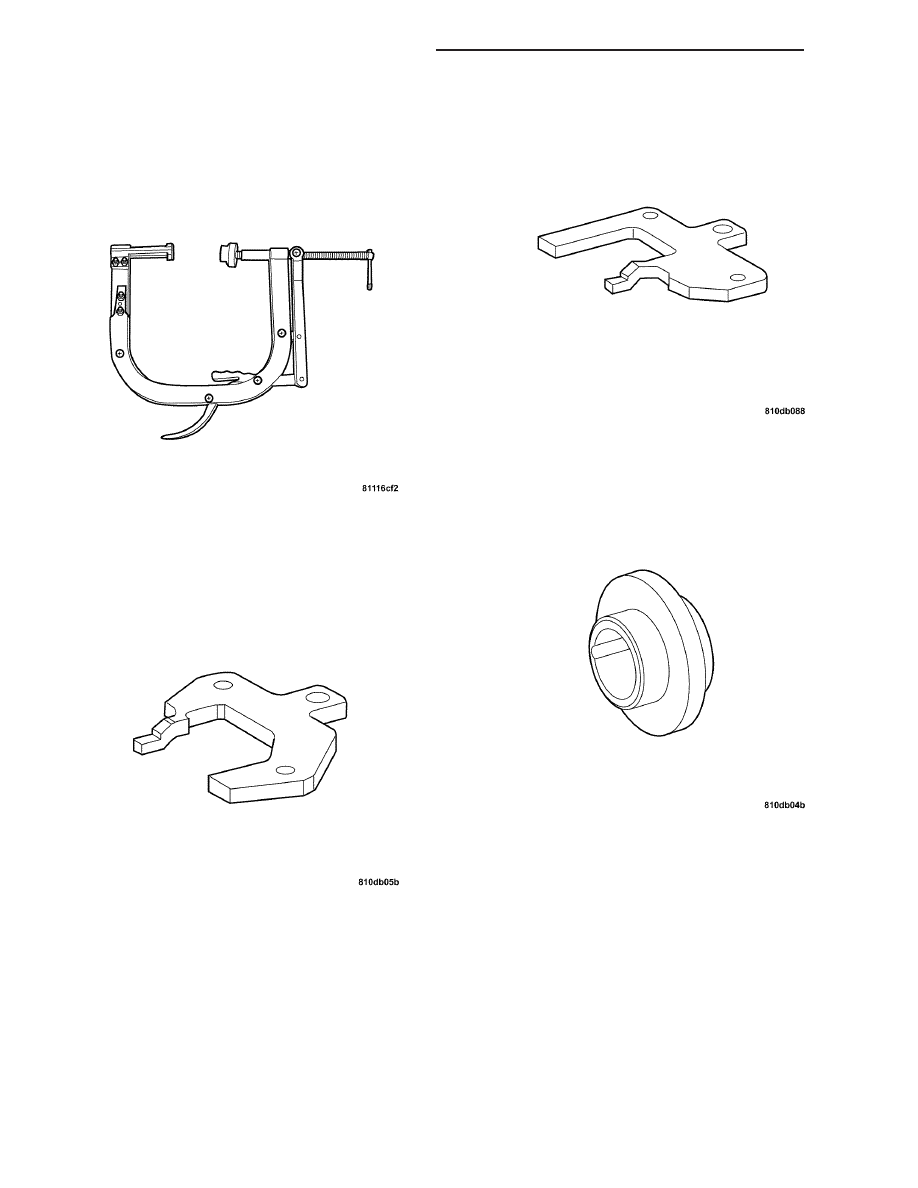

VALVE SPRING COMPRESSOR C-3422-CF

RIGHT CAMSHAFT LOCATING PLATE 9104

LEFT CAMSHAFT LOCATING PLATE 9105

INSERTION TOOL 9103

9 - 730

ENGINE - 3.2L SERVICE INFORMATION

ZH

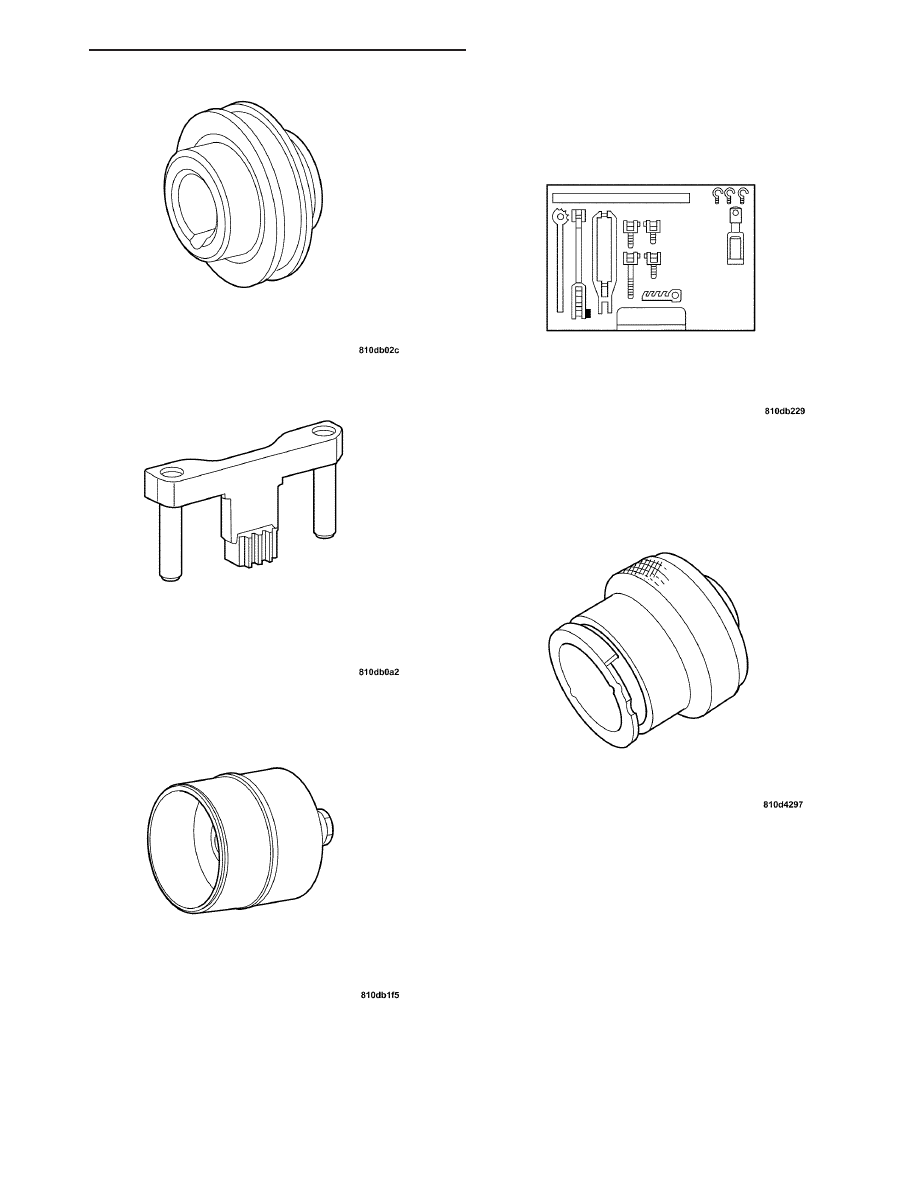

SLEEVE 9101

FLYWHEEL LOCKING TOOL 9102

REAR SEAL INSTALLER 9100

VALVE ASSEMBLY TOOL CASE 9106

PRESSURE TESTER ADAPTOR 9107

ZH

ENGINE - 3.2L SERVICE INFORMATION

9 - 731

AIR CLEANER HOUSING

REMOVAL

Note: The engine cover is held in place by four
rubber grommets and four spring clips.

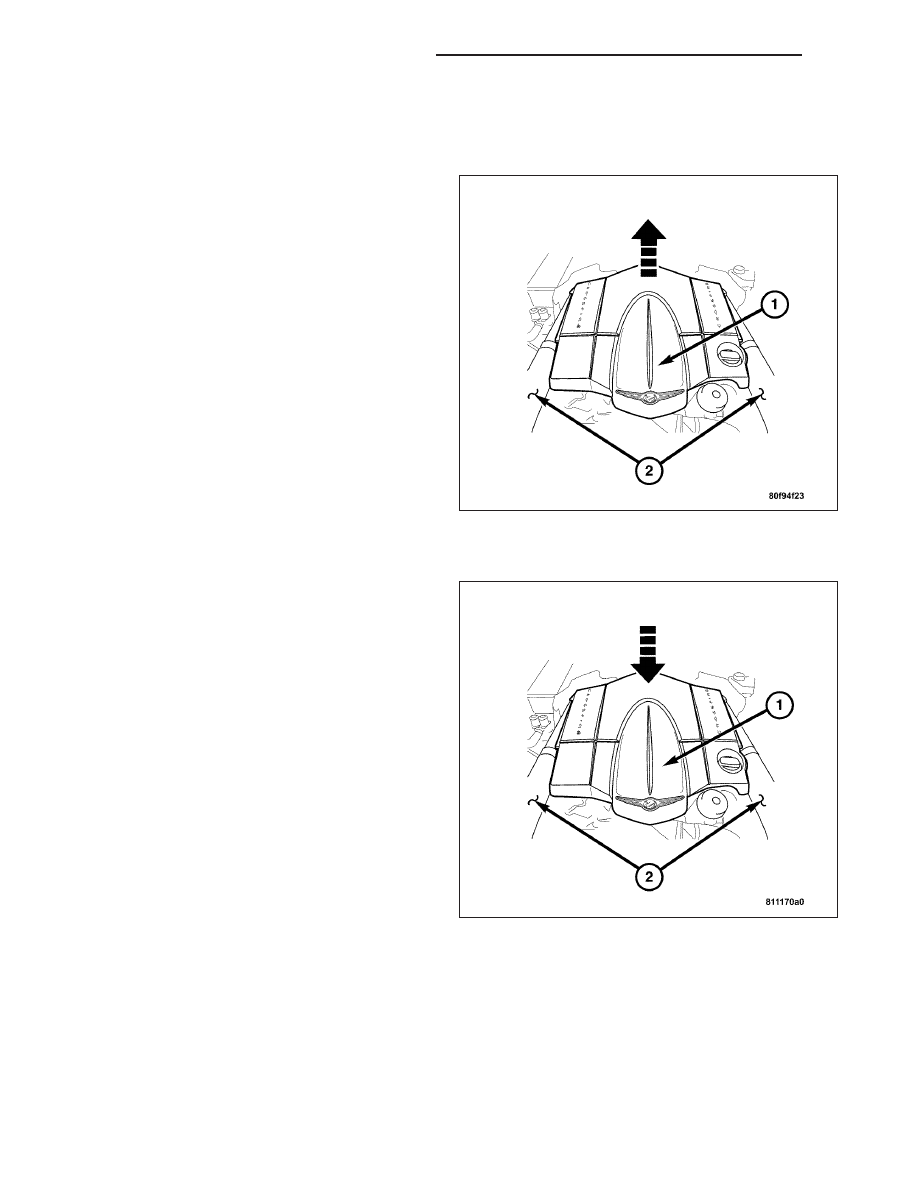

1. Remove the air inlet tubes (2).

2. Grasp both rear corners of the engine cover, and

pull up firmly. Lift the engine cover (1) from the rear
first, then from the front.

INSTALLATION

1. Install the engine cover (1). Align the engine cover

retaining clips to the rubber mounts, and push
down firmly to connect engine cover to rubber
mounts.

Note: To ease the installation of the engine cover,
apply a small amount of lubricant to the engine
cover rubber mounts.

2. Install the air inlet tubes (2).
