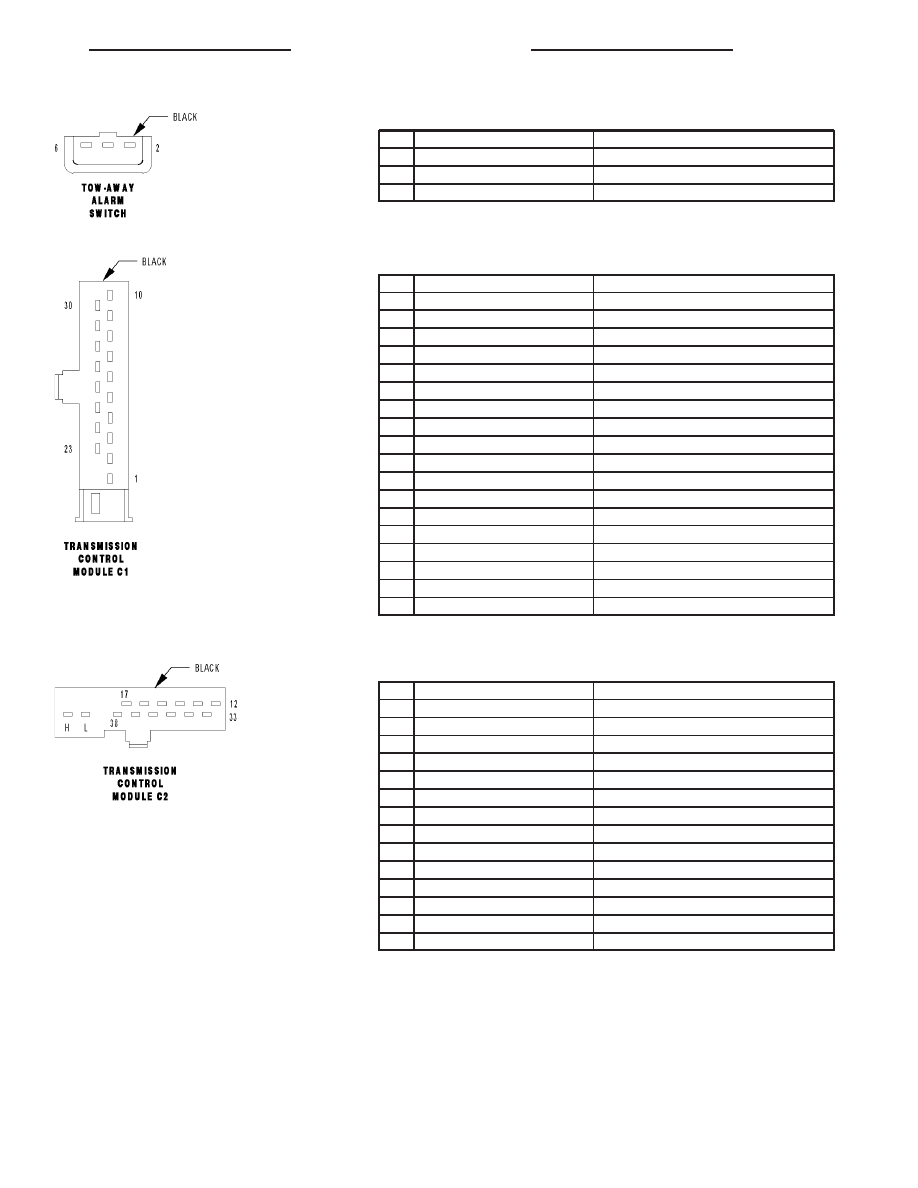

TOW-AWAY ALARM SWITCH - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

2

22RD/DG

TOW-AWAY ALARM SWITCH LED CONTROL

4

-

-

6

20WT/DG

TOW-AWAY ALARM SWITCH SENSE

TRANSMISSION CONTROL MODULE C1 - BLACK 18 WAY

CAV

CIRCUIT

FUNCTION

1

22DG

SCI TRANSMIT

2

-

-

3

-

-

4

-

-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

10

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

18RD/DG

TRACTION SYSTEM RELAY OUTPUT

30

18BR

GROUND

TRANSMISSION CONTROL MODULE C2 - BLACK 12 WAY

CAV

CIRCUIT

FUNCTION

12

20WT

N2 INPUT SPEED SENSOR

13

20BL/DG

SENSOR SUPPLY VOLTAGE

14

20GY/RD

1-2/4-5 SOLENOID CONTROL

15

20GY/VT

3-4 SOLENOID CONTROL

16

20GY/DG

2-3 SOLENOID CONTROL

17

20GY/BK

TCC SOLENOID CONTROL

33

20BR

SENSOR GROUND

34

20BL/YL

TEMP SENSOR P/N SWITCH

35

20BK

N3 INPUT SPEED SENSOR

36

20DG/YL

MODULATION PRESSURE SOLENOID CONTROL

37

20DG

SHIFT PRESSURE SOLENOID CONTROL

38

18RD

SOLENOID SUPPLY VOLTAGE

H

-

-

L

-

-

ZH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 73

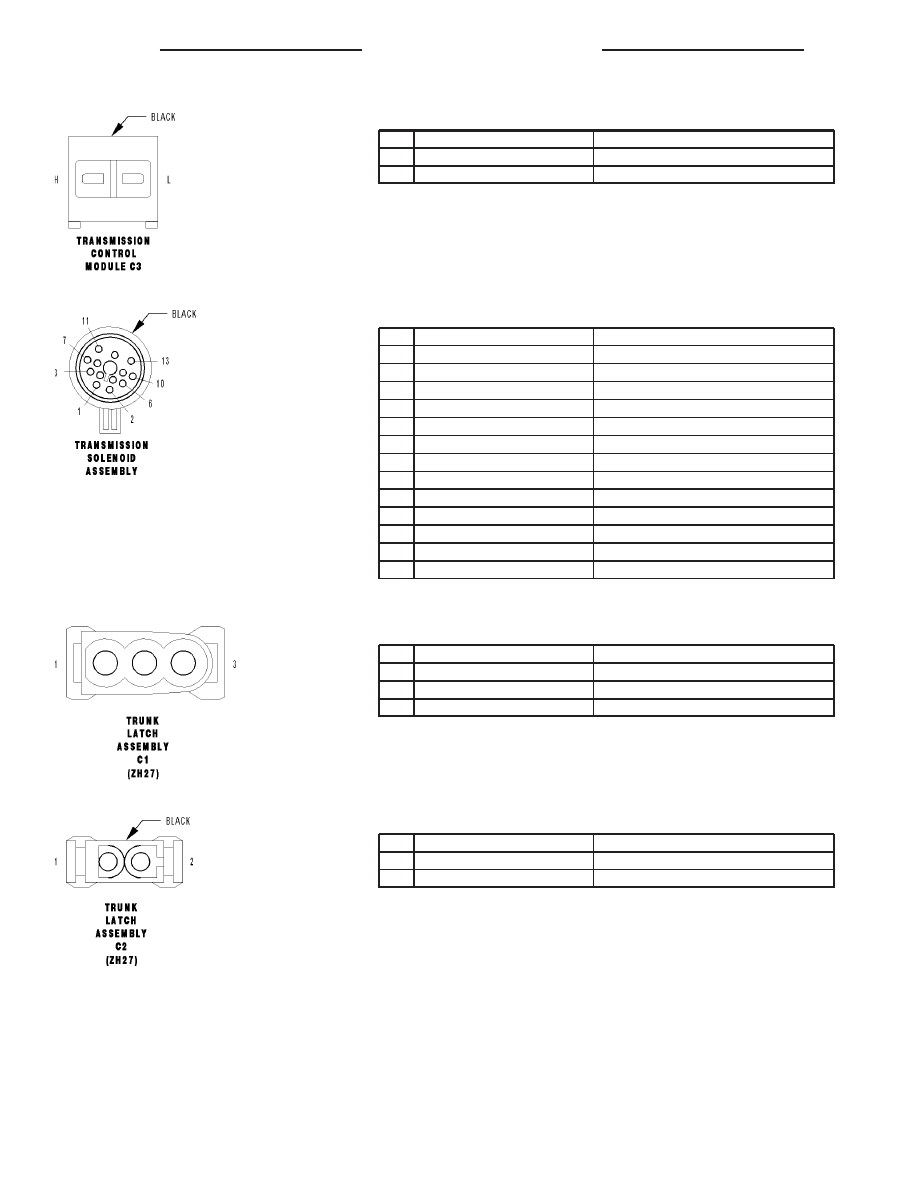

TRANSMISSION CONTROL MODULE C3 - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

H

22WT

CAN C BUS (+)

L

22DG

CAN C BUS (-)

TRANSMISSION SOLENOID ASSEMBLY - BLACK 13 WAY

CAV

CIRCUIT

FUNCTION

1

20BK

N3 INPUT SPEED SENSOR

2

20DG/YL

MODULATION PRESSURE SOLENOID CONTROL

3

20WT

N2 INPUT SPEED SENSOR

4

20BL/YL

TEMP SENSOR P/N SWITCH

5

-

-

6

18RD

SOLENOID SUPPLY VOLTAGE

7

20BL/DG

SENSOR SUPPLY VOLTAGE

8

20GY/DG

2-3 SOLENOID CONTROL

9

20GY/VT

3-4 SOLENOID CONTROL

10

20DG

SHIFT PRESSURE SOLENOID CONTROL

11

20GY/BK

TCC SOLENOID CONTROL

12

20BR

SENSOR GROUND

13

20GY/RD

1-2/4-5 SOLENOID CONTROL

TRUNK LATCH ASSEMBLY C1 (ZH27) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

20BR

GROUND

2

20BK/VT

TRUNK LATCH UNLOCKED SIGNAL

3

20BR/VT

TRUNK LATCH LOCKED SIGNAL

TRUNK LATCH ASSEMBLY C2 (ZH27) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

16RD/DG

TRUNK LATCH ACTUATOR UNLOCK CONTROL

2

16BK/DG

TRUNK LATCH ACTUATOR LOCK CONTROL

8W - 80 - 74

8W-80 CONNECTOR PIN-OUTS

ZH

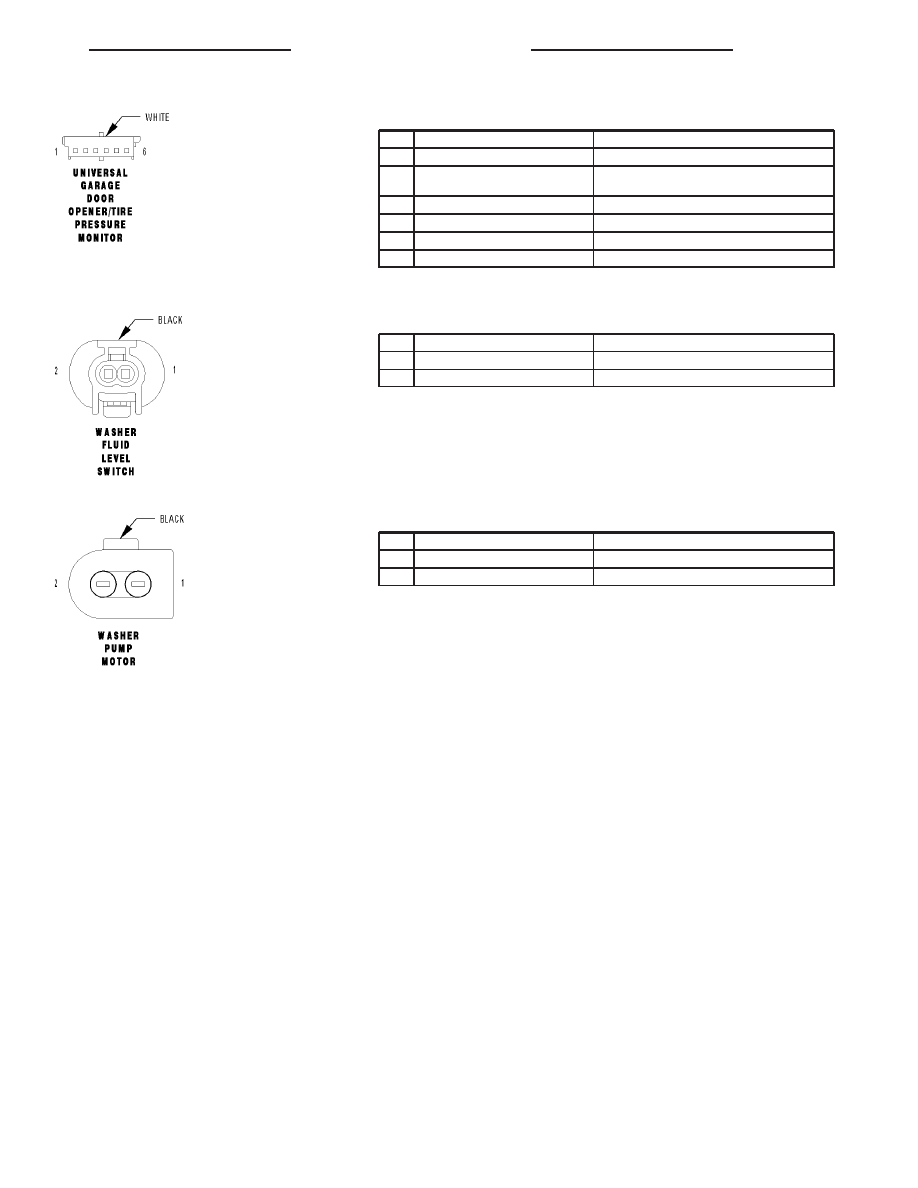

UNIVERSAL GARAGE DOOR OPENER/TIRE PRESSURE MONITOR - WHITE 6 WAY

CAV

CIRCUIT

FUNCTION

1

20PK/YL/DG

FUSED IGNITION SWITCH OUTPUT

2

20GY/YL

LOW TIRE PRESSURE WARNING INDICATOR CON-
TROL

3

20BR

GROUND

4

20BK/BL

SCI TRANSMIT

5

20RD/GY

FUSED B(+)

6

-

-

WASHER FLUID LEVEL SWITCH - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

20BR

COOLANT/WASHER LEVEL RETURN

2

20BR/BL

COOLANT/WASHER LEVEL COMBINATION

WASHER PUMP MOTOR - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

18GY

WASHER PUMP MOTOR CONTROL

2

18BR

GROUND

ZH

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 75
