PASSENGER AIRBAG

DESCRIPTION

The surface of the instrument panel top pad above the glove box is the most visible part of the passenger airbag.
The passenger airbag door is concealed behind the instrument panel top pad and above the glove box opening on
the instrument panel in front of the front seat passenger seating position.

The passenger airbag unit used in this model is a mul-
tistage,

Next

Generation-type

that

complies

with

revised federal airbag standards to deploy with less
force than those used in some prior models. The pas-
senger airbag unit consists of an extruded aluminum
housing, two stamped steel end brackets, a molded
plastic inner airbag cushion cover, the rectangular fab-
ric airbag cushion, and the airbag inflator. The airbag
housing contains the airbag inflator, while the inner
cover contains the folded airbag cushion. The inner
cover completely encloses the airbag cushion and is
permanently retained to the housing. The airbag cush-
ion is constructed of a coated nylon fabric. The airbag
inflator is a dual-initiator, hybrid-type unit that is
secured to and sealed within the airbag housing.

Note: The passenger airbag cannot be repaired,
and must be replaced if deployed, faulty, or in any
way damaged. The passenger airbag door is ser-
viced only as a unit with the instrument panel top
pad. If the passenger airbag is deployed, the instrument panel top pad must also be replaced. If inspection
reveals that the passenger airbag mounting points on the instrument panel structural duct have been
cracked or damaged by the deployment event, the instrument panel structural duct assembly must also be
replaced.

OPERATION

The multistage passenger airbag is deployed by electrical signals generated by the Occupant Restraint Controller
(ORC) through the passenger airbag squib 1 and squib 2 circuits to the two initiators in the airbag inflator. By using
two initiators, the airbag can be deployed at multiple levels of force. The force level is controlled by the ORC to suit
the monitored impact conditions by providing one of four delay intervals between the electrical signals provided to
the two initiators. The longer the delay between these signals, the less forcefully the airbag will deploy.

AIRBAG DEPLOYMENT SEQUENCE

1. When the impact threshold for the passenger airbag is exceeded an electric pulse (firing pulse) is sent from the

ORC to the squib in the initiator.

2. The squib ignites the solid propellant in the initiator. The solid propellant burns, developing a gas which flows

explosively under high pressure into the airbag.

3. Under the pressure of the gas, the airbag rips open the airbag housing, blows the airbag flap out of the instru-

ment panel and inflates in the passenger compartment.

4. After approximately 50 ms. the airbag reaches its maximum volume.

5. After reaching the maximum volume, the pressure in the airbag starts decreasing. The gas escapes from the

airbag through a filter and the airbag deflates.

ZH

RESTRAINTS - SERVICE INFORMATION

8O - 103

Note: Typically, both initiators are used during an airbag deployment event. However, it is possible for only
one initiator to be used during a deployment due to an airbag system fault; therefore, it is necessary to
always confirm that both initiators have been used in order to avoid the improper disposal of potentially live
pyrotechnic materials.

REMOVAL

1. Before attempting any service to the airbag system, refer to the warnings in this section. (Refer to 8 - ELEC-

TRICAL/RESTRAINTS - WARNING).

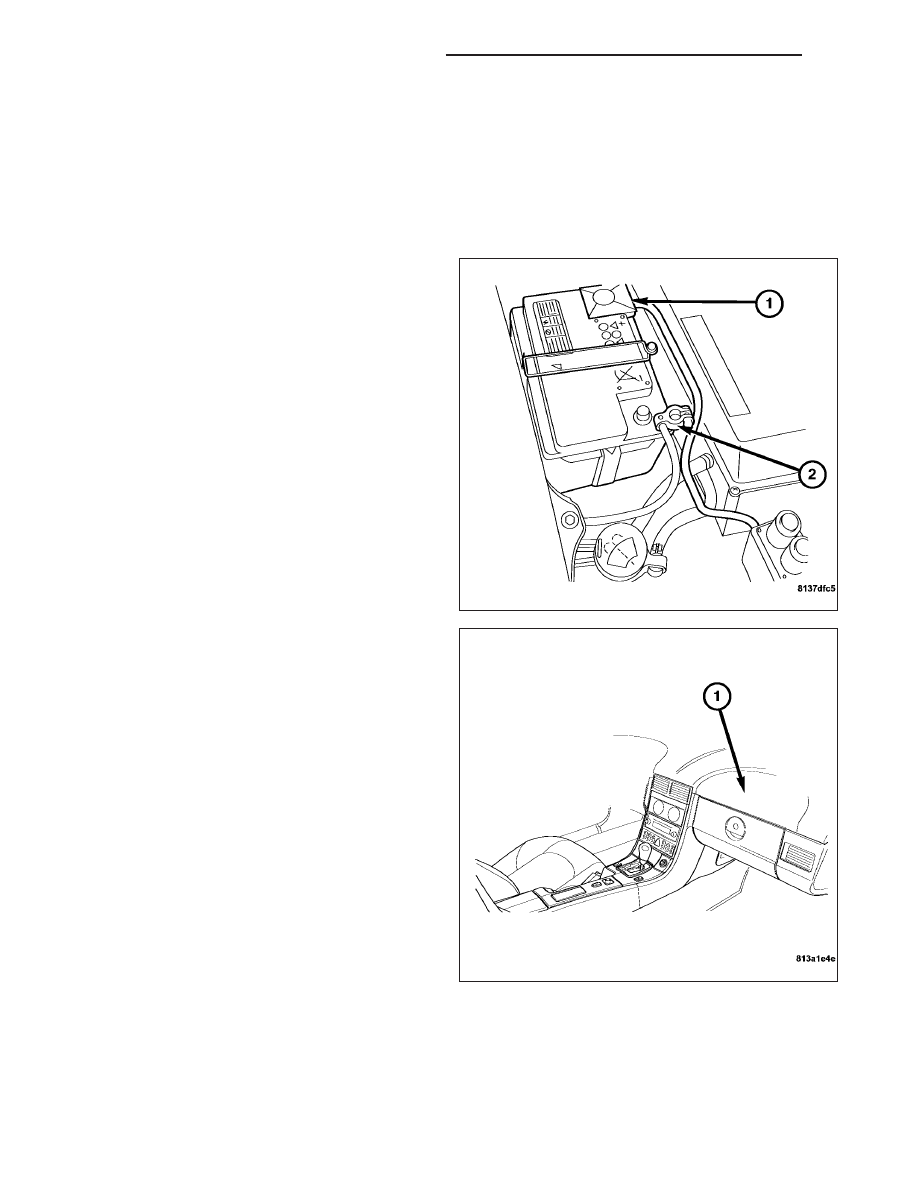

2. Disconnect the negative battery cable (2). Wait two

minutes for the system capacitor to discharge
before further service.

3. Remove the upper section (1) of instrument panel-

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL ASSEMBLY - REMOVAL).

8O - 104

RESTRAINTS - SERVICE INFORMATION

ZH

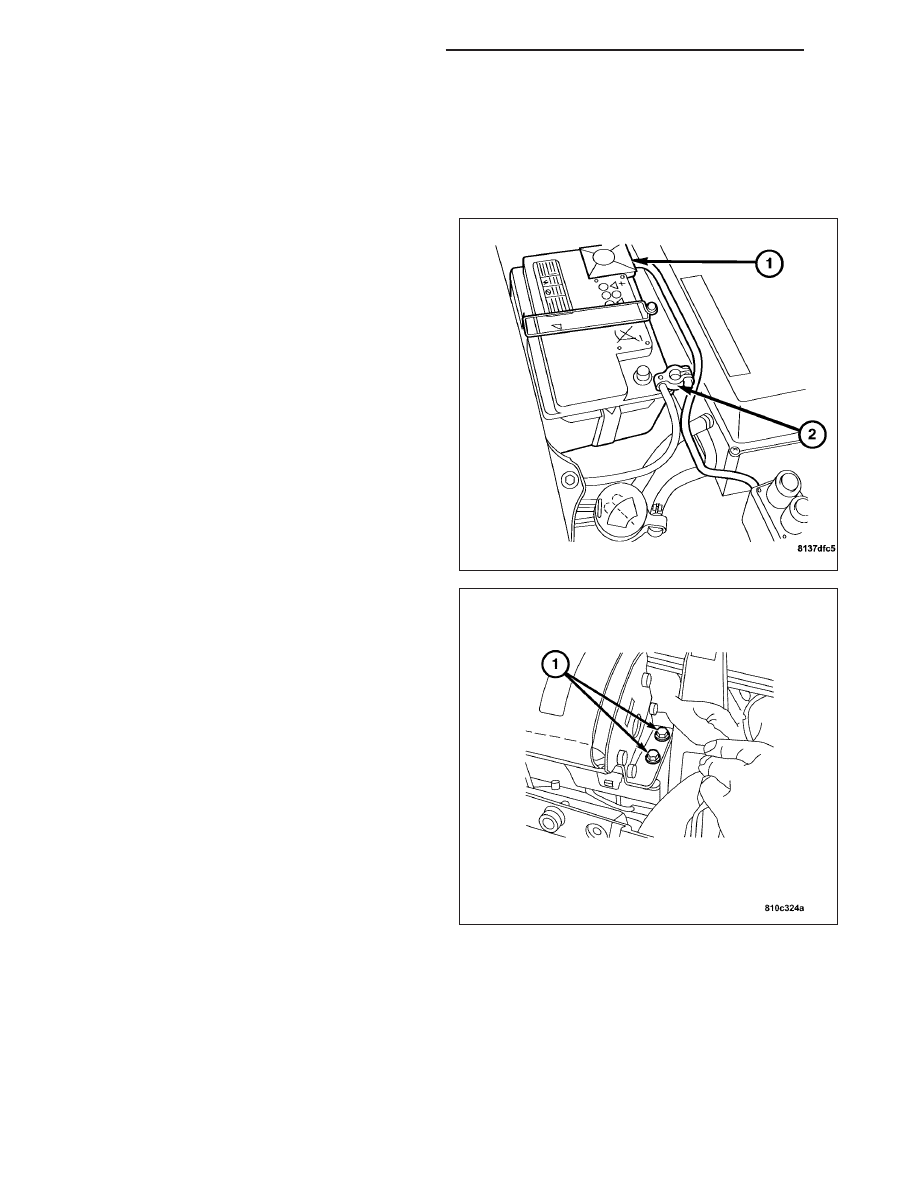

4. Disconnect the passenger airbag squib harness

connector (1) from the passenger side airbag.

CAUTION: Do not pull on the squib connector
wires or pry on the connector insulator to disen-
gage the connector from the passenger airbag
inflator connector receptacle. Improper removal of
the squib wires and their connector insulators can
result in damage to the airbag circuits or connec-
tor insulators.

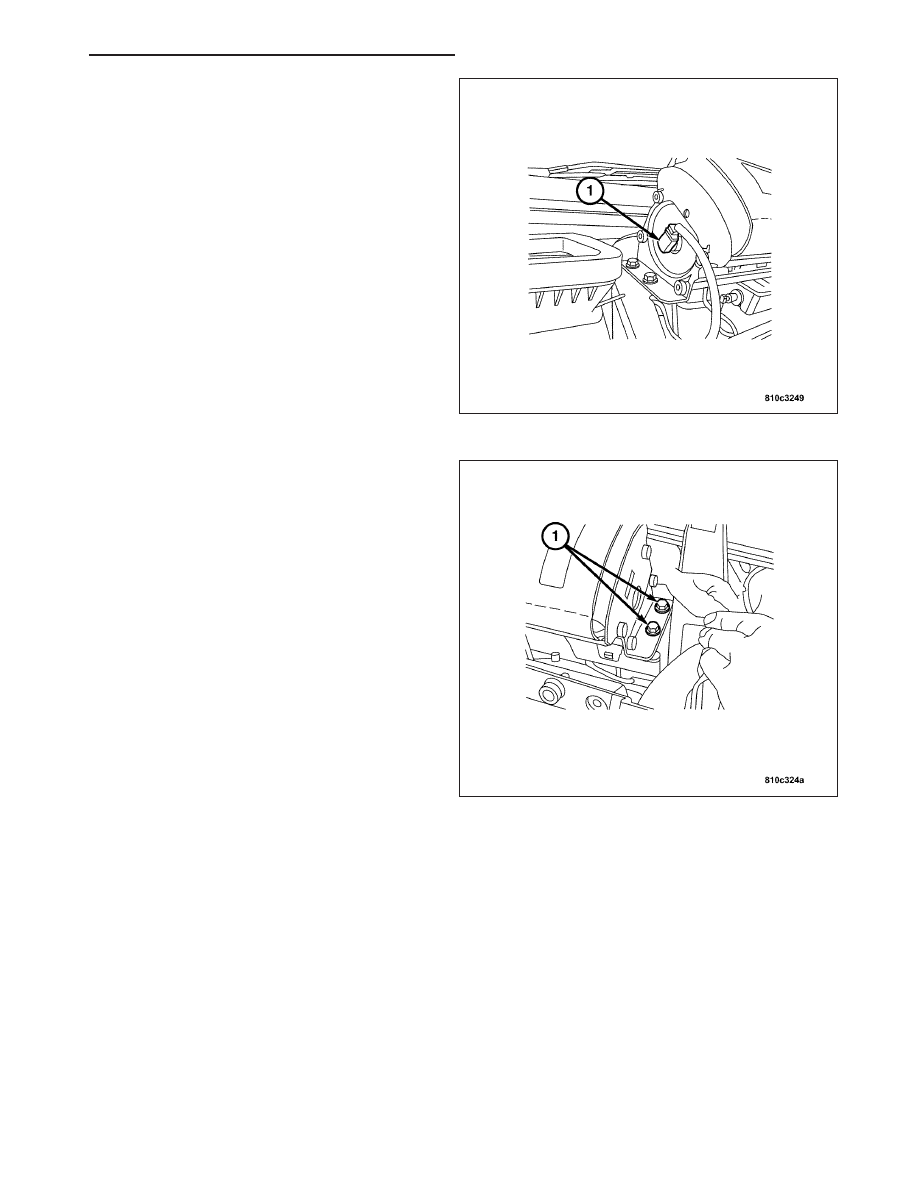

5. Remove the four bolts (1) that secure the airbag to

the instrument panel.

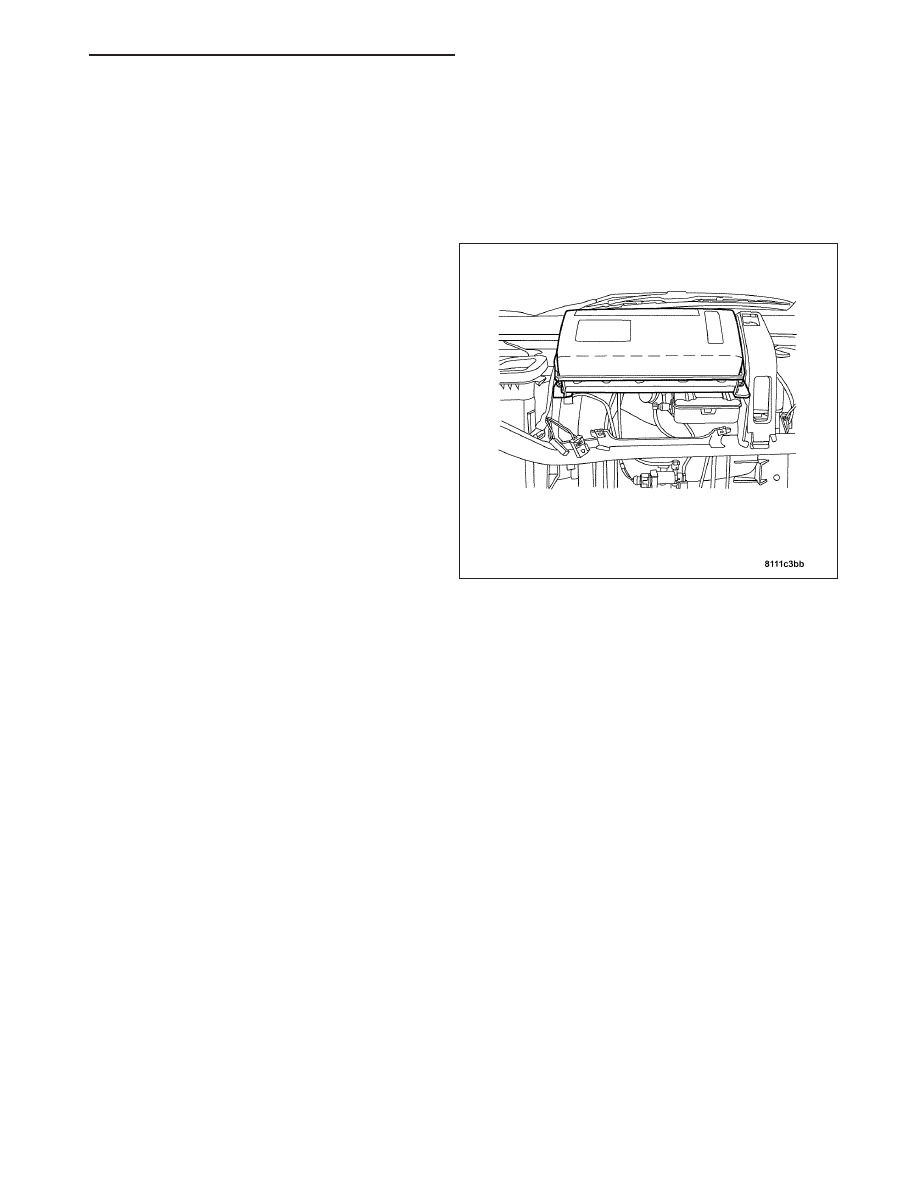

6. Remove the passenger airbag as a unit.

WARNING: DO NOT PLACE AN INTACT UNDE-
PLOYED AIRBAG FACE DOWN ON A HARD SUR-
FACE, THE AIRBAG WILL PROPEL INTO THE AIR
IF ACCIDENTALLY DEPLOYED.

ZH

RESTRAINTS - SERVICE INFORMATION

8O - 105

Note: If the passenger airbag has been deployed, carefully inspect the airbag mounting points on the instru-
ment panel. If the airbag mounting points have been damaged or deformed, the instrument panel structural
duct must be replaced.

INSTALLATION

1. Verify the negative battery cable (2) is discon-

nected before proceeding. Wait two minutes for
the system capacitor to discharge before fur-
ther service.

2. Carefully position the passenger airbag unit onto

the instrument panel.

3. Install the four bolts (1) that secure the passenger

airbag to the instrument panel. Tighten to 35 N·m
(26 ft. lbs.).
