INSTALLATION - REARVIEW MIRROR

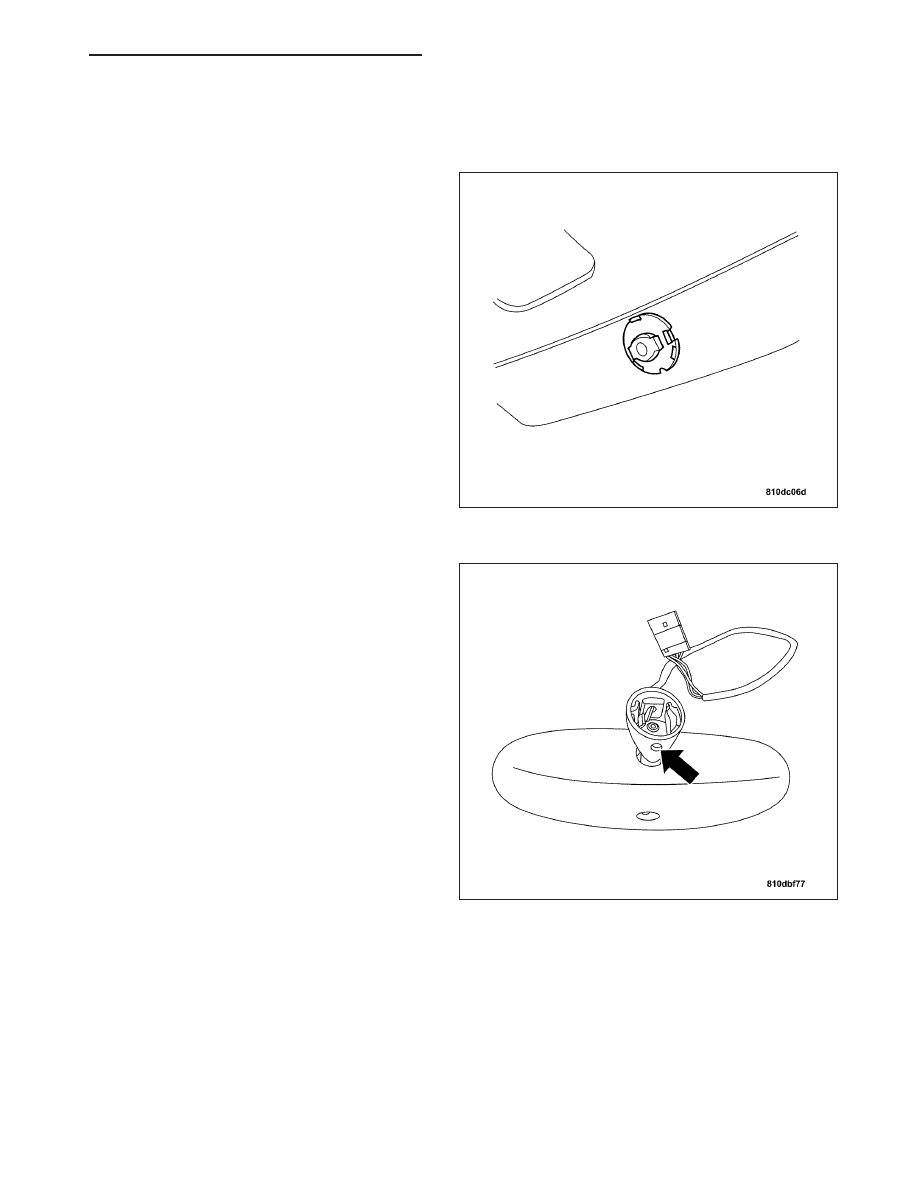

1. Feed the mirror harness connector into the head-

liner and connect.

2. Install the courtesy lamp. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - INTERIOR/COURTESY
LAMP SWITCH - INSTALLATION).

3. Position the mirror base over the mounting plate so

that it is flush with the windshield surface.

4. Rotate the mirror base approximately 90 degrees

until the hole is positioned downward.

5. Connect the negative battery cable.

POWER MIRRORS - SERVICE INFORMATION

8N - 69

INSTALLATION - WINDSHIELD MOUNTING BRACKET

1. Mark the position for the mirror bracket on the out-

side of the windshield glass with a wax pencil.

2. Clean the bracket contact area on the glass. Use a

mild powdered cleanser on a cloth saturated with
isopropyl (rubbing) alcohol. Finally, clean the glass
with a paper towel dampened with alcohol.

3. Sand the surface on the mounting bracket with fine

grit-sandpaper. Wipe the bracket surface clean with
a paper towel.

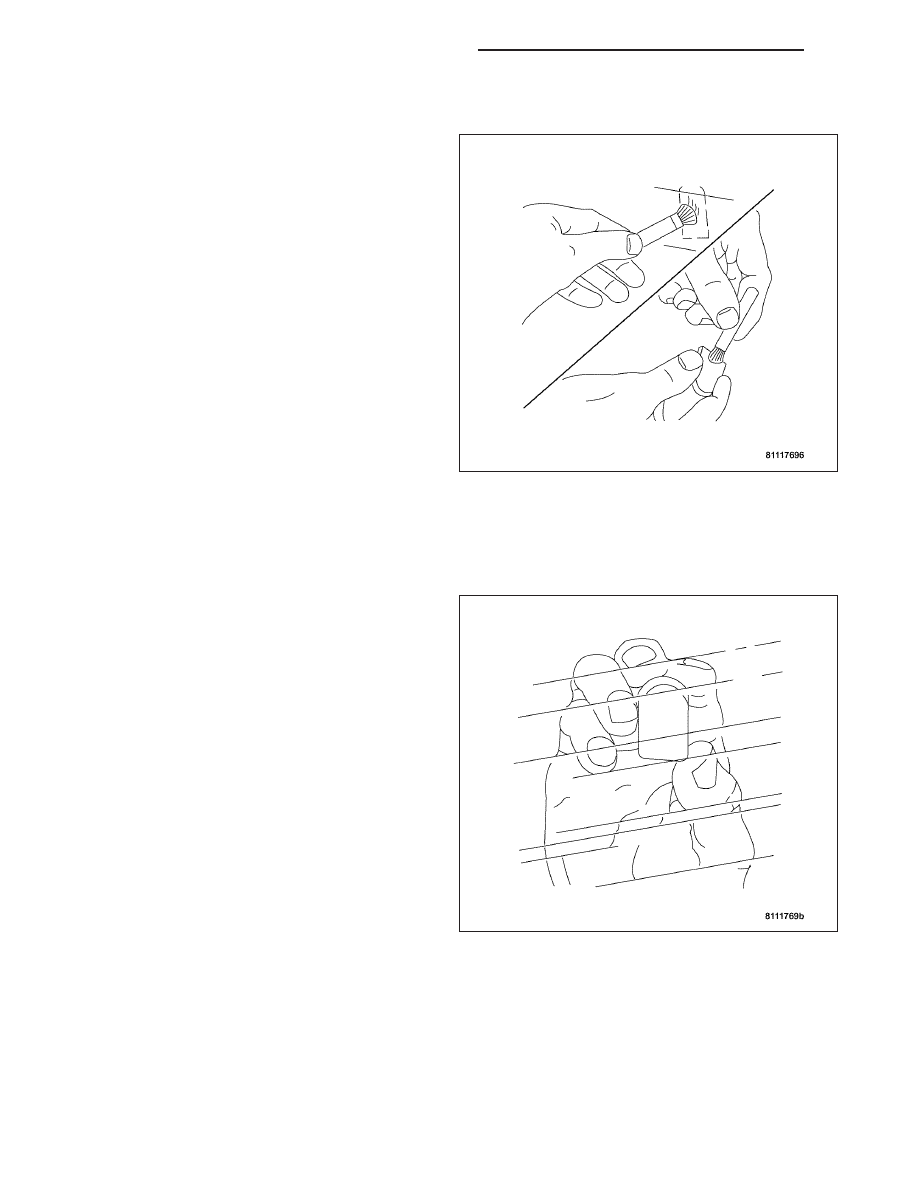

4. Apply adhesive accelerator to the surface on the

bracket according to the following instructions:

a. Crush the vial to saturate the felt applicator.

b. Remove the paper sleeve.

c. Apply adhesive accelerator to the contact sur-

face on the bracket.

d. Allow the adhesive accelerator to dry for five

minutes.

e. Do not touch the bracket contact surface after the adhesive accelerator has been applied.

5. Apply adhesive accelerator to the bracket contact surface on the windshield glass. Allow the adhesive accelerator

to dry for one minute. Do not touch the glass contact surface after the adhesive accelerator has been applied.

Note: The adhesive will cure very rapidly. Insure
the mirror mounting bracket is correctly aligned
before applying to windshield.

6. Install the bracket according to the following

instructions:

a. Apply one drop of adhesive at the center of the

bracket

contact-surface

the

windshield

glass.

b. Apply an even coat of adhesive to the contact

surface on the bracket.

c. Align the bracket with the marked position on

the windshield glass.

d. Press and hold the bracket in place for at least

one minute.

7. Allow the adhesive to cure for 8-10 minutes.

Remove any excess adhesive with an alcohol-
dampened cloth.

8. Allow the adhesive to cure for an additional 8-10 minutes before installing the mirror.

8N - 70

POWER MIRRORS - SERVICE INFORMATION

POWER MIRROR SWITCH

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEER-
ING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE
PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PER-
SONAL INJURY.

1. Disconnect the negative battery cable.

2. Remove the center console. (Refer to 23 - BODY/

INTERIOR/CENTER CONSOLE - REMOVAL).

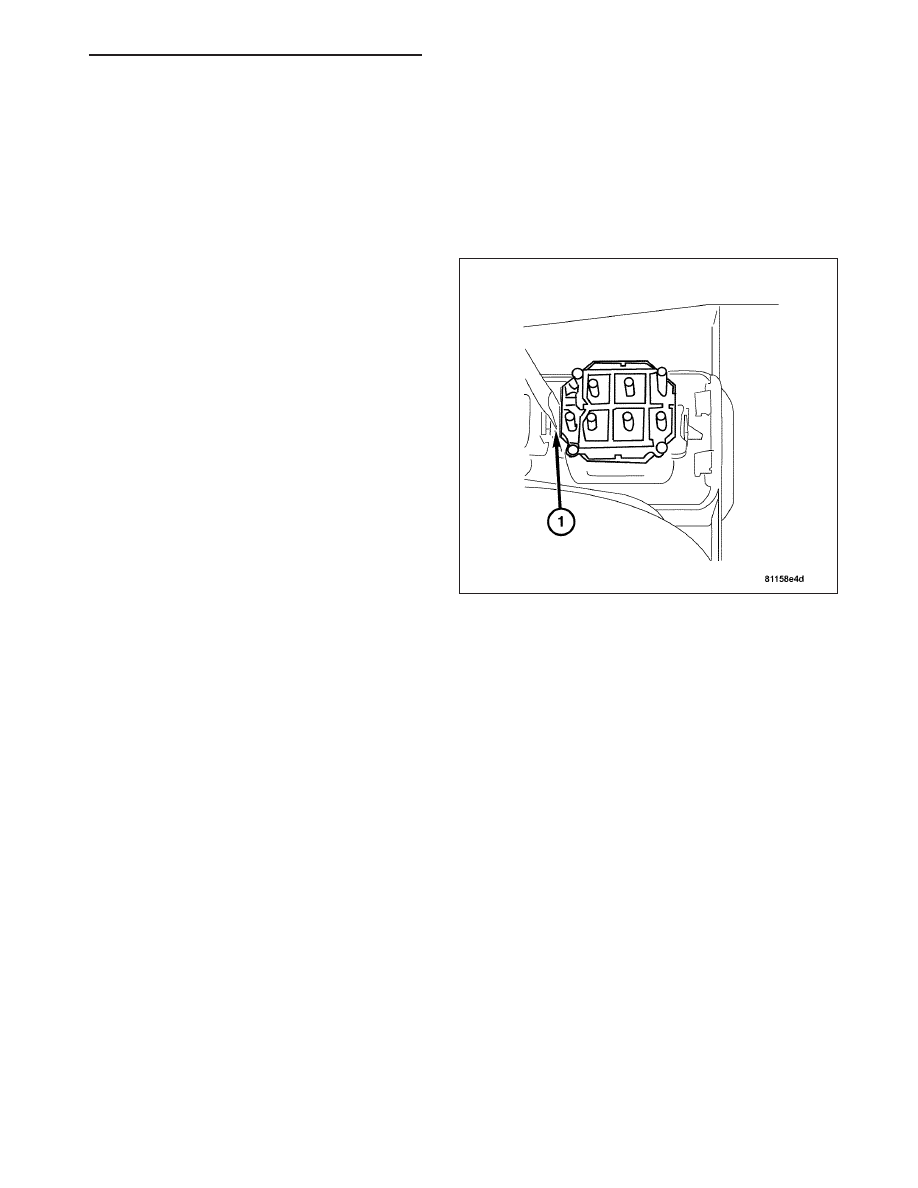

3. Release the retaining clip using a suitable tool (1)

and remove the power mirror switch from the cen-
ter console.

INSTALLATION

1. Install the power mirror switch into the center console.

2. Install the center console. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).

3. Connect the negative battery cable.

SIDEVIEW MIRROR

REMOVAL

POWER MIRRORS - SERVICE INFORMATION

8N - 71

1. Disconnect the negative battery cable.

2. Remove the door interior trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - REMOVAL).

3. Disconnect the sideview mirror harness connector.

4. Rotate the sideview mirror upward in order to

expose the attaching screws.

5. Remove the two screws attaching the mirror to the

door and remove the mirror.

INSTALLATION

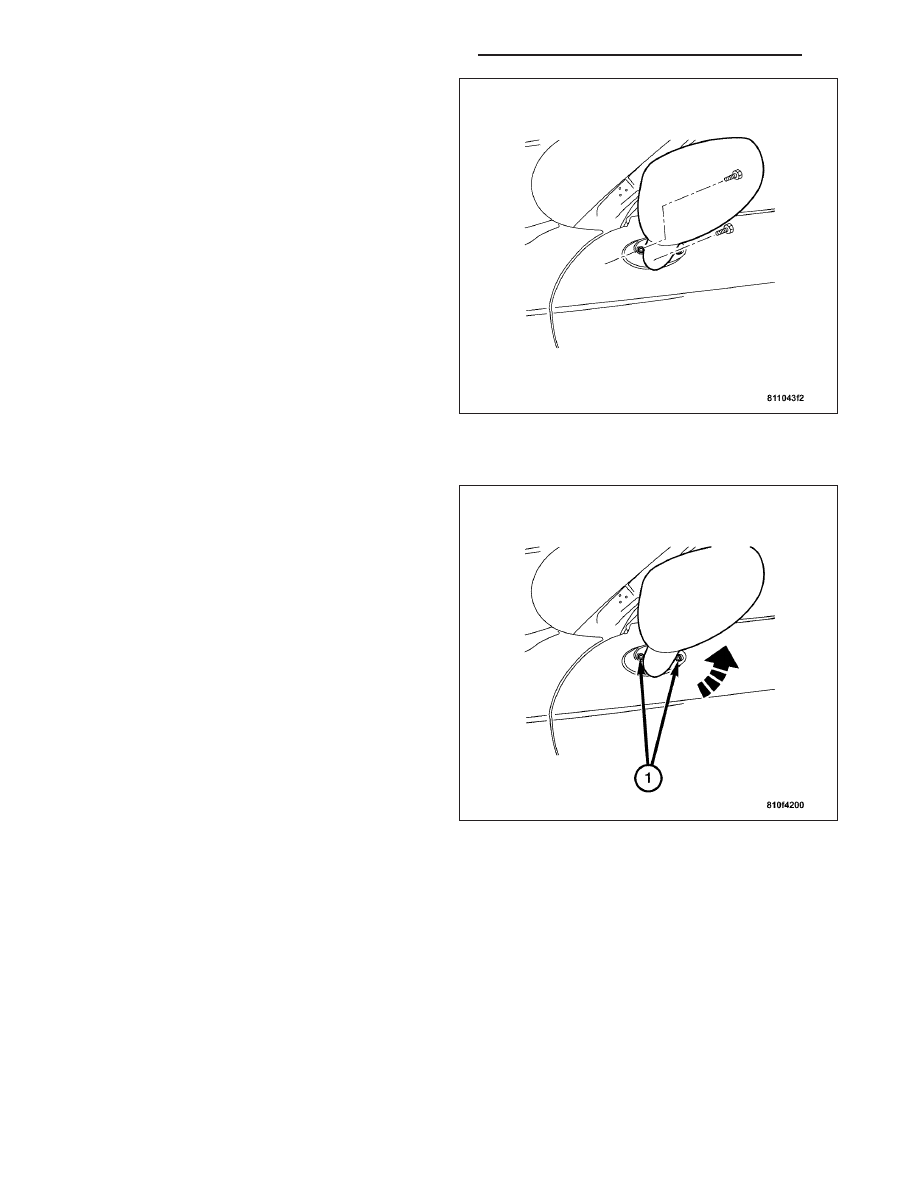

1. Install the two screws (1) attaching the mirror to the

door.

2. Connect the sideview mirror harness connector.

3. Install the door interior trim panel. (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - INSTALLA-
TION).

4. Rotate the mirror back to its rest position.

5. Connect the negative battery cable.

8N - 72
