Driver and passenger power operated sideview mirrors are standard equipment. The Power Mirror System allows
the driver to adjust both sideview mirrors electrically from the driver seat by operating a four position switch located
in the Center Console.

An inside Automatic Day/Night Rear View Mirror is also standard equipment. It is located in the traditional location
at the top and center of the windshield. The automatic day/night mirror position is manually adjustable, however the
automatic dimming feature of the mirror is not.

OPERATION

Both Sideview Mirrors are heated and each housing can manually fold in for protection. Mirror selection and move-
ment direction is controlled by a 4-way double-pole switch. Two electric motors inside each Sideview Mirror housing
actuate the glass surface in the corresponding direction that the switch is moved. The inside rear view mirror is fully
automatic and darkens to prevent glare during night driving. It operates when the following conditions are simulta-
neously met:

•

The ignition switch is in the ON position

•

Reverse gear is not selected

•

The interior lights are switched off

•

Light sensor on mirror senses headlamp glare

8N - 66

POWER MIRRORS - SERVICE INFORMATION

DIAGNOSIS AND TESTING

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEER-
ING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE
PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PER-
SONAL INJURY.

CONDITION

POSSIBLE CAUSES

CORRECTION

BOTH SIDEVIEW
MIRRORS INOPERATIVE

1. Faulty fuse.

1. Replace fuse.

2. Poor connection at switch harness
connector.

2. Secure harness connector.

3. No voltage to adjustment motors.

3. Refer to Power Mirrors
Electrical Diagnostics in this
section.

4. Mirror ground circuit fault.

4. Repair ground circuit.

ONE SIDEVIEW MIRROR
INOPERATIVE

1. Faulty switch assembly

1. Refer to Power Mirrors
Electrical Diagnostics in this
section.

2. Poor connection at mirror harness
connector.

2. Secure connector

3. No voltage to adjustment motor.

3. Refer to Power Mirrors
Electrical Diagnostics in this
section.

4. Mirror ground circuit fault.

4. Repair ground circuit.

SIDEVIEW MIRROR(S)
VERTICAL OR
HORIZONTAL MOVEMENT
SLUGGISH OR
INOPERATIVE

1. Faulty or worn motor

1. Replace Mirror Assembly.

2. Poor connection at mirror harness
connector.

2. Secure connector.

3. Faulty switch assembly.

3. Refer to Power Mirrors
Electrical Diagnostics in this
section.

4. Mirror ground circuit fault.

4. Repair ground circuit.

SIDEVIEW MIRROR(S) DO
NOT CLEAR IN COLD
WEATHER

1. Faulty fuse.

1. Replace fuse.

2. Poor connection at mirror harness
connector.

2. Secure connector.

3. Open ground circuit.

3. Repair ground circuit.

4. No voltage to heater grid.

4. Refer to Heated Mirrors
Electrical Diagnostics.

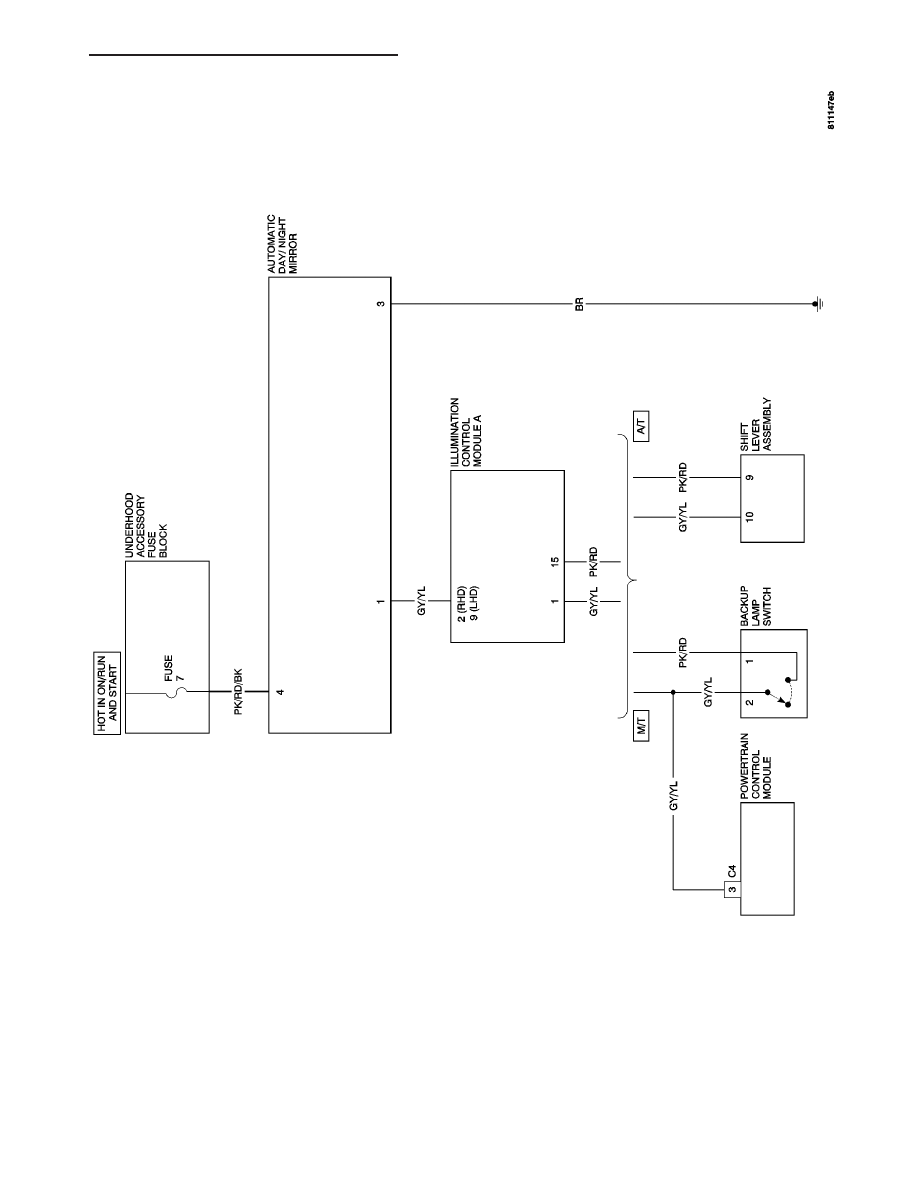

AUTOMATIC DAY/NIGHT
MIRROR DOES NOT
DARKEN

1. Faulty fuse.

1. Replace fuse.

2. Interior lighting system faulty.

2. Refer to Lamps /Lighting-
interior Electrical Diagnositics.

3. Open ground circuit.

Repair ground circuit.

4. Reverse lamp circuit fault.
(manual transmission)

4. Repair circuit.

5. Shifter assembly fault. (automatic
transmission)

5. Refer to Transmission
Electrical Diagnostics.

AUTOMATIC DAY/NIGHT
MIRROR CONTINUALLY
DARKENED

1. Short to voltage.

1. Refer to Power Mirrors
Electrical Diagnostics in this
section.

POWER MIRRORS - SERVICE INFORMATION

8N - 67

AUTOMATIC DAY / NIGHT MIRROR

DESCRIPTION

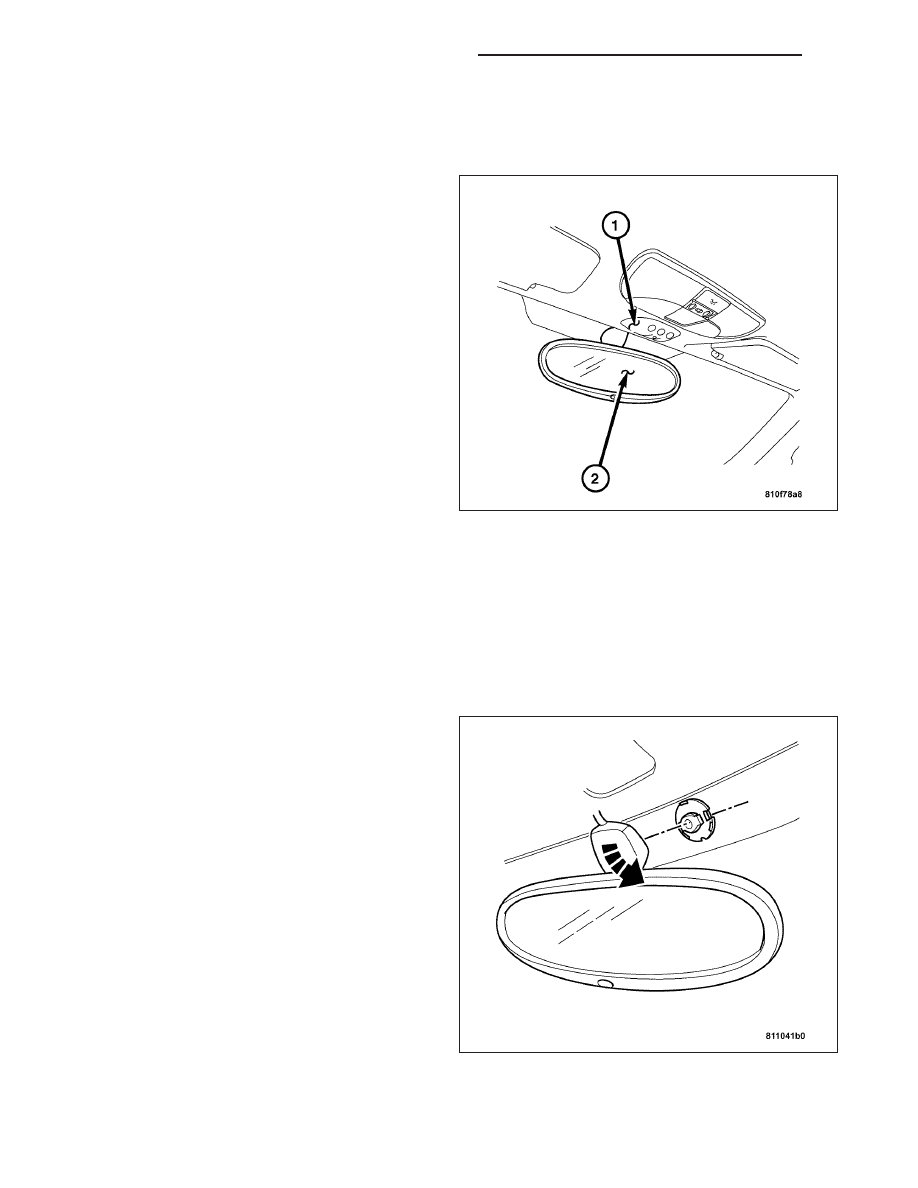

An Automatic Day/Night Rear View Mirror System is
standard on this model. It is a completely self-con-
tained unit (2) which is located at the top and center
of the windshield. The mirror sensitivity cannot be
repaired or adjusted; if any components of the mirror
unit itself are faulty or damaged, the entire automatic
day/night inside rear view mirror assembly must be
replaced.

OPERATION

A thin layer of electrochromatic material between two pieces of conductive glass make up the face of the mirror. The
system will automatically change the reflectance of the inside rear view mirror to protect the driver from the
unwanted headlight glare of trailing vehicles while driving at night. The self-dimming feature is defeated if the interior
lights are switched on, or the system senses the backup light circuit is energized whenever the transmission is
shifted into reverse.

REMOVAL

1. Disconnect the negative battery cable.

2. Insert a 5 mm metal dowel into the hole on the

windshield side of the mirror base.

3. Rotate the mirror base approximately 90 degrees

to the left or right.

4. Remove the courtesy lamp. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - INTERIOR/COURTESY
LAMP SWITCH - REMOVAL).

5. Disconnect the mirror harness connector.

6. Feed the harness connector and harness past the

opening in the headliner and remove the mirror
assembly.

8N - 68

POWER MIRRORS - SERVICE INFORMATION
