INSTALLATION

DOOR AJAR SWITCH

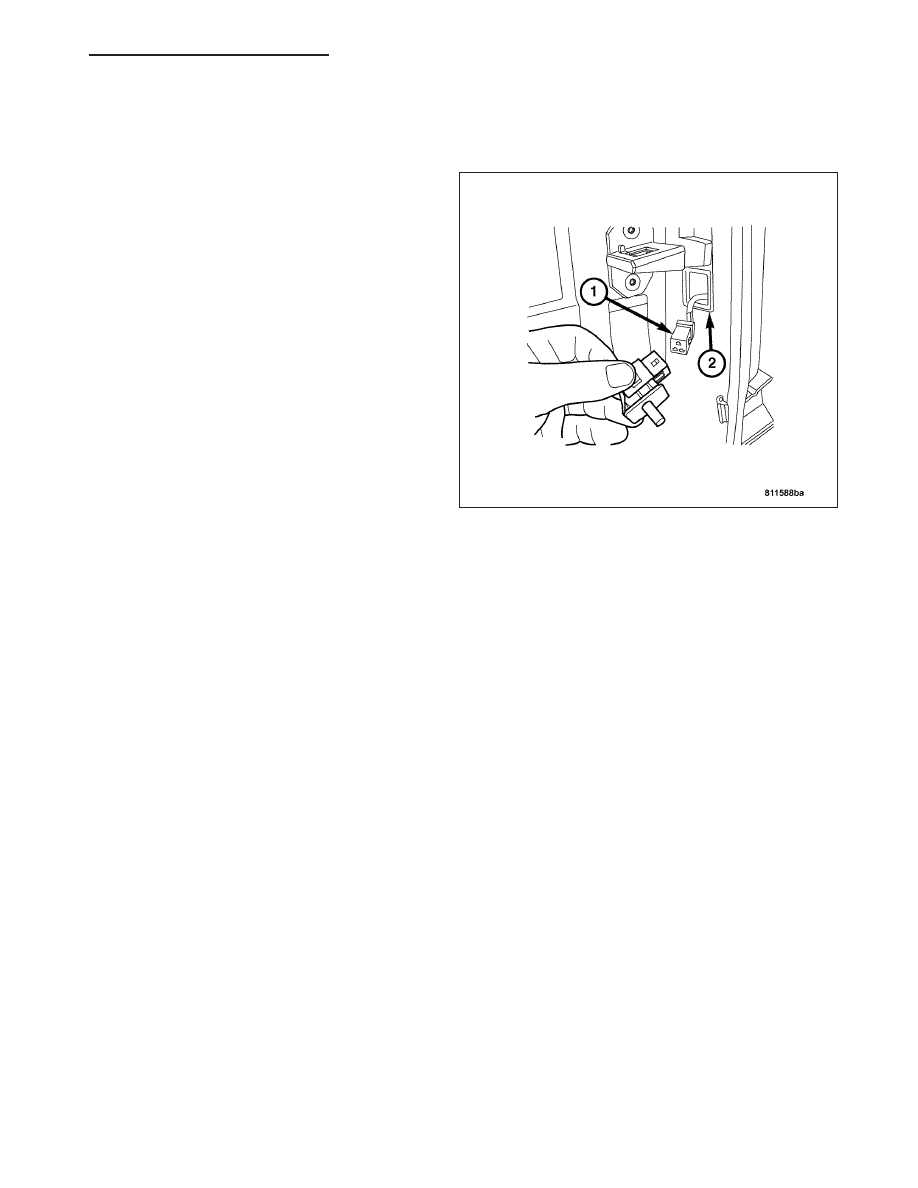

1. Connect the door ajar switch harness connector

(1).

2. Install the lower edge of the door ajar switch into

the B-pillar opening (2) first, then rotate upward
until fully seated.

3. Connect the negative battery cable.

INSTALLATION - LIFTGATE AJAR SWITCH

The liftgate ajar switch is an integral part of the liftgate handle assembly. For complete liftgate handle installation
procedures, see liftgate handle installation in the body section of this manual. (Refer to 23 - BODY/DECKLID/
HATCH/LIFTGATE/TAILGATE/EXTERIOR HANDLE - INSTALLATION).

GLOVE BOX LAMP

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEER-
ING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE
PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PER-
SONAL INJURY.

1. Remove the glove box lamp/switch assembly. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERIOR/

GLOVE BOX LAMP/SWITCH - REMOVAL).

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 153

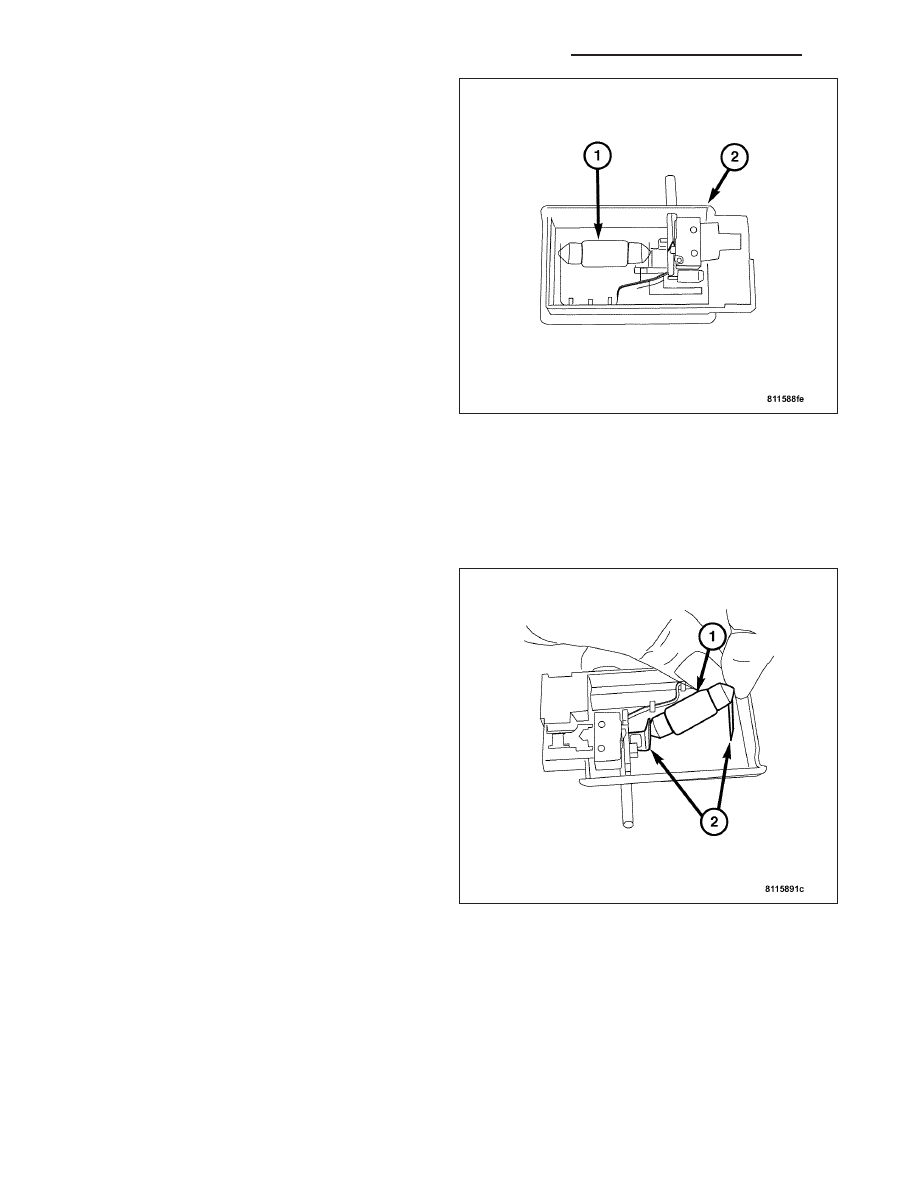

2. Press the bulb retaining arm aside and remove the

bulb (1) from the glove box lamp/switch (2).

INSTALLATION

1. Press the bulb retaining arm (2) aside and install

the bulb (1) into the glove box lamp/switch assem-
bly.

2. Install the glove box lamp/switch assembly. (Refer

to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERI-
OR/GLOVE BOX LAMP/SWITCH - INSTALLA-
TION).

8L - 154

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

GLOVE BOX LAMP/SWITCH

DESCRIPTION

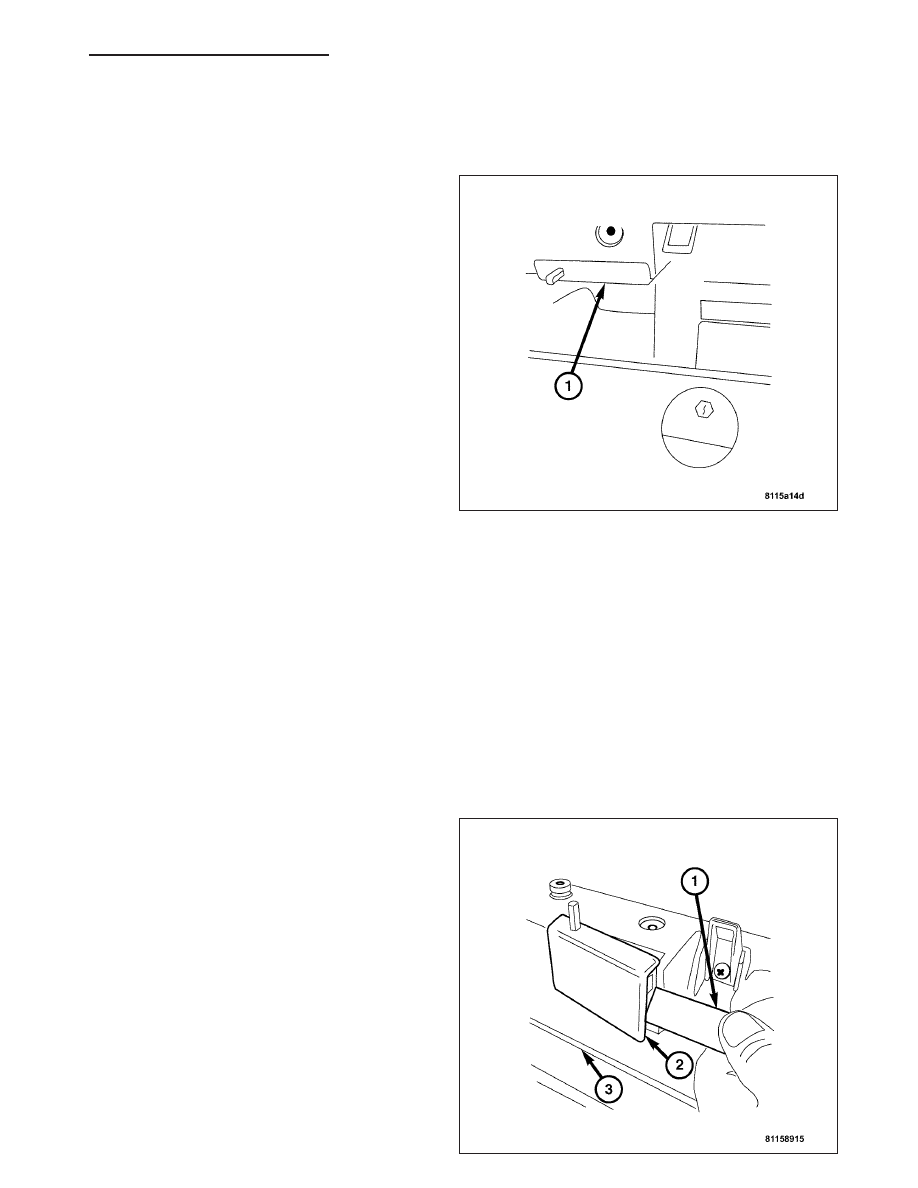

The glove box lamp/switch (1) is a self-contained set
of switches, lamp, and housing assembly that provides
illumination into the glove box compartment whenever
the glove box door is opened. It is located behind the
glove box door at the top of the liner, just to the left of
the latch striker.

OPERATION

The Glove Box Lamp/Switch contains two separate switches; one for control of the illumination, and the other to
sense the glove box door position. Power is supplied through Fuse 31 in the Underhood Accessory Fuse Block for
the lamp illumination switch. The Central Locking Pump/Security System Module receives a ground signal from the
second switch when the glove box is opened. Neither of these switches can be adjusted or repaired. If faulty, worn,
or damaged, the entire Glove Box Lamp/Switch assembly must be replaced. For complete Glove Box Lamp/Switch
removal procedures, refer to the Glove Box Lamp/Switch removal procedure in this section.

REMOVAL

1. Disconnect the negative battery cable.

2. Open the glove box door and depress the lens

retaining clips with a trim stick (1). Gently pry the
glove box lamp/switch (2) from the glove box liner
(3).

3. Disconnect the glove box lamp/switch harness con-

nector and remove the glove box lamp/switch (2)
from the vehicle.

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 155

INSTALLATION

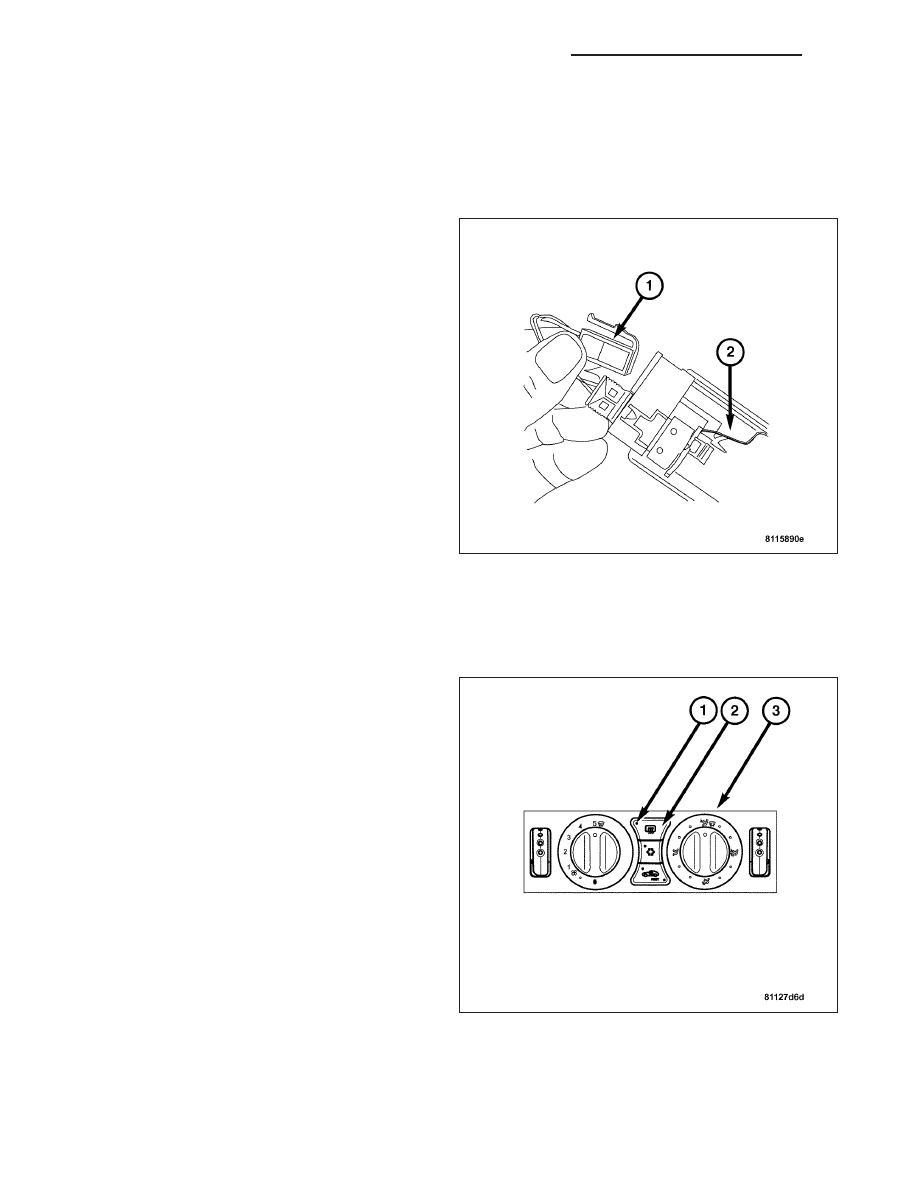

1. Connect the glove box lamp/switch harness con-

nector (1).

2. Insert the glove box lamp/switch (2) into the open-

ing in the glove box liner and close the glove box
door.

3. Connect the negative battery cable.

HEATER SWITCH ILLUMINATION

DESCRIPTION

The Heater Switch (3) is illuminated with LEDs when-
ever the headlamps or marker lamps are on. The lamp
brightness is adjustable with the dimmer switch
located in the Instrument Cluster. The heater switch
LEDs cannot be adjusted or repaired. If faulty or dam-
aged, the entire Heater Switch Assembly must be
replaced as a unit. For complete Heater Switch
removal procedures, refer to the Heater Control
removal in the Heating and Air Conditioning section.
(Refer to 24 - HEATING & AIR CONDITIONING/CON-
TROLS/HEATER CONTROL - REMOVAL).

8L - 156

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION
