COURTESY LAMP SWITCH/UNIT

DESCRIPTION

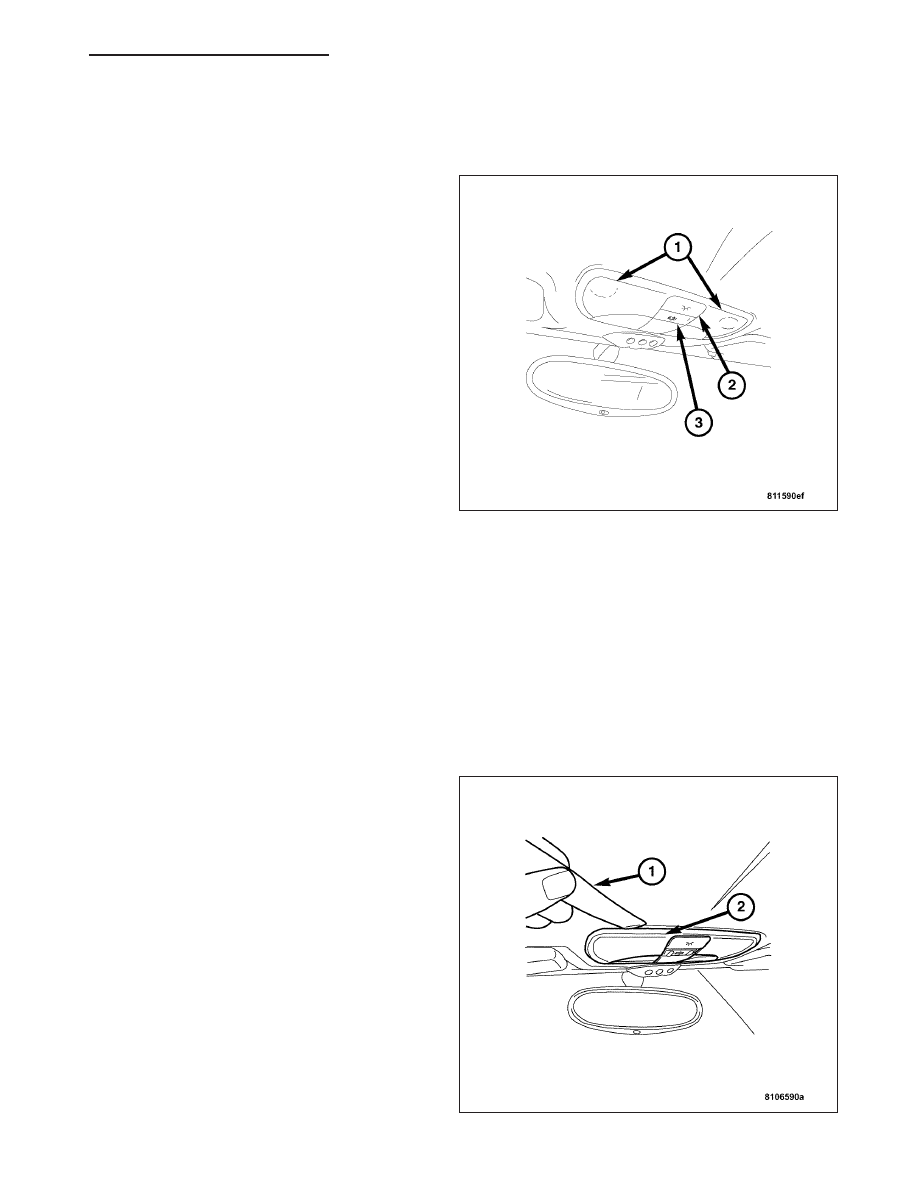

The courtesy lamps (1) provide overhead interior illu-
mination when the doors are opened and the courtesy
lamp defeat switch (3) is in the “—” position, or when
the courtesy lamp switch (2) is pressed. The courtesy
lamp defeat switch (3) can prevent the courtesy lamps
operation when the doors are opened if the “O” posi-
tion is selected. The courtesy lamp switch/unit cannot
be adjusted or repaired. If faulty, worn, or damaged,
the entire assembly must be replaced. For complete
courtesy lamp switch/unit removal procedures, refer to
Courtesy Lamp Switch/Unit removal in this section.

OPERATION

Non-switched power is supplied through Fuse 9 in the Underhood Accessory Fuse Block, and ground is provided by
the Body Control Module. Regardless of the ignition switch position, the courtesy lamps illuminate when either door
is opened if the courtesy lamp defeat switch is in the “—” position; or the courtesy lamp switch is pressed. The
courtesy lamps will fade off approximately 8 seconds after the last door is closed. If a door remains unclosed, the
lamps will remain on for approximately 5 minutes. At this time the Body Control Module will interrupt the ground path
to conserve battery power.

When the courtesy lamp switch is pressed, the courtesy lamps are provided a direct path to ground and will remain
illuminated until the switch is pressed again.

REMOVAL

1. Disconnect the negative battery cable.

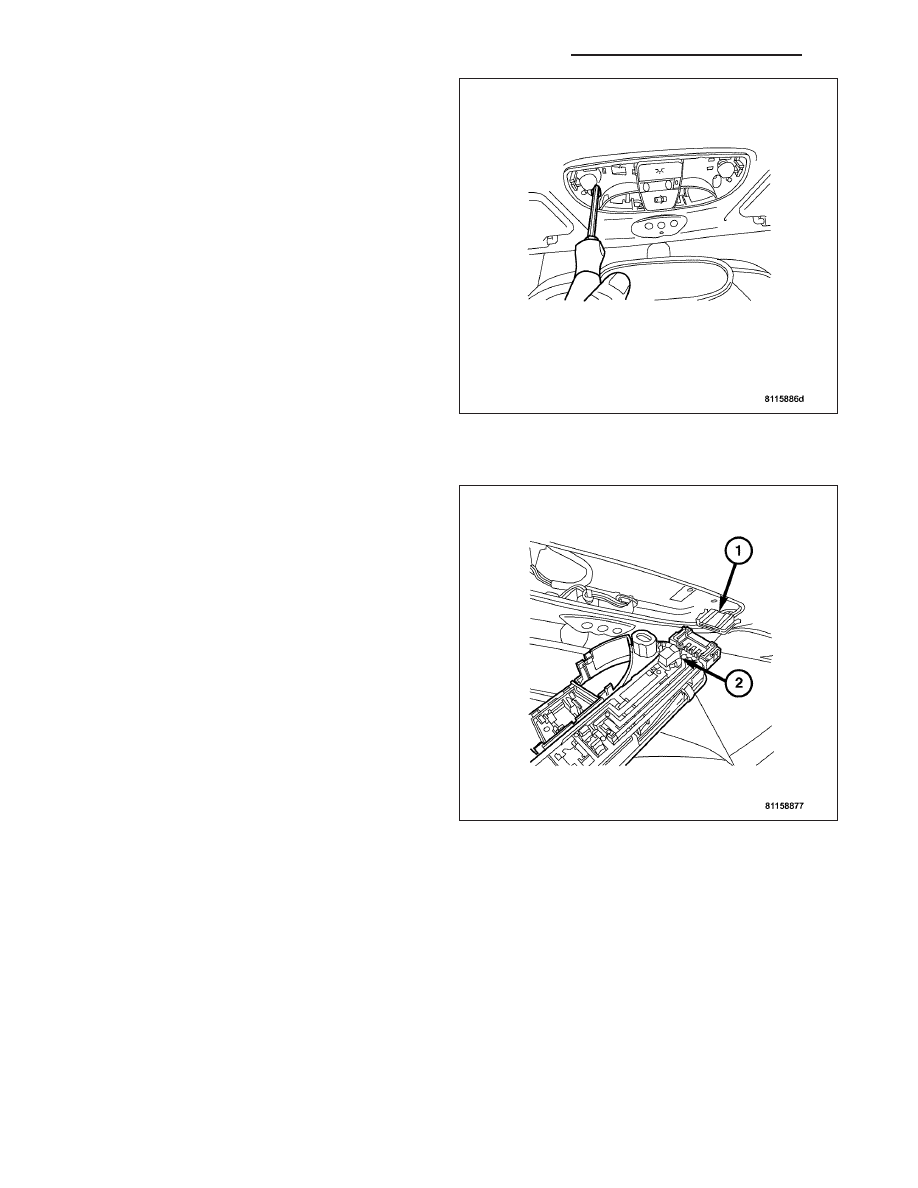

2. Using a trim stick (1), gently pry down and away

from the courtesy lamp switch/unit body (2) to
release the lens cover.

ZH

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 149

3. Remove the retaining screws.

4. Using a trim stick, gently pry and lower the cour-

tesy lamp switch/unit from the headliner opening.

5. Disconnect the courtesy lamp switch/unit harness

connector and remove from the vehicle.

INSTALLATION

1. Connect the courtesy lamp switch/unit harness

connector (1) and align into the headliner opening.

2. Install the retaining screws and secure.

3. Install the lens cover into the courtesy lamp switch/

unit body.

4. Connect the negative battery cable.

8L - 150

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

ZH

DIMMER SWITCH

DESCRIPTION

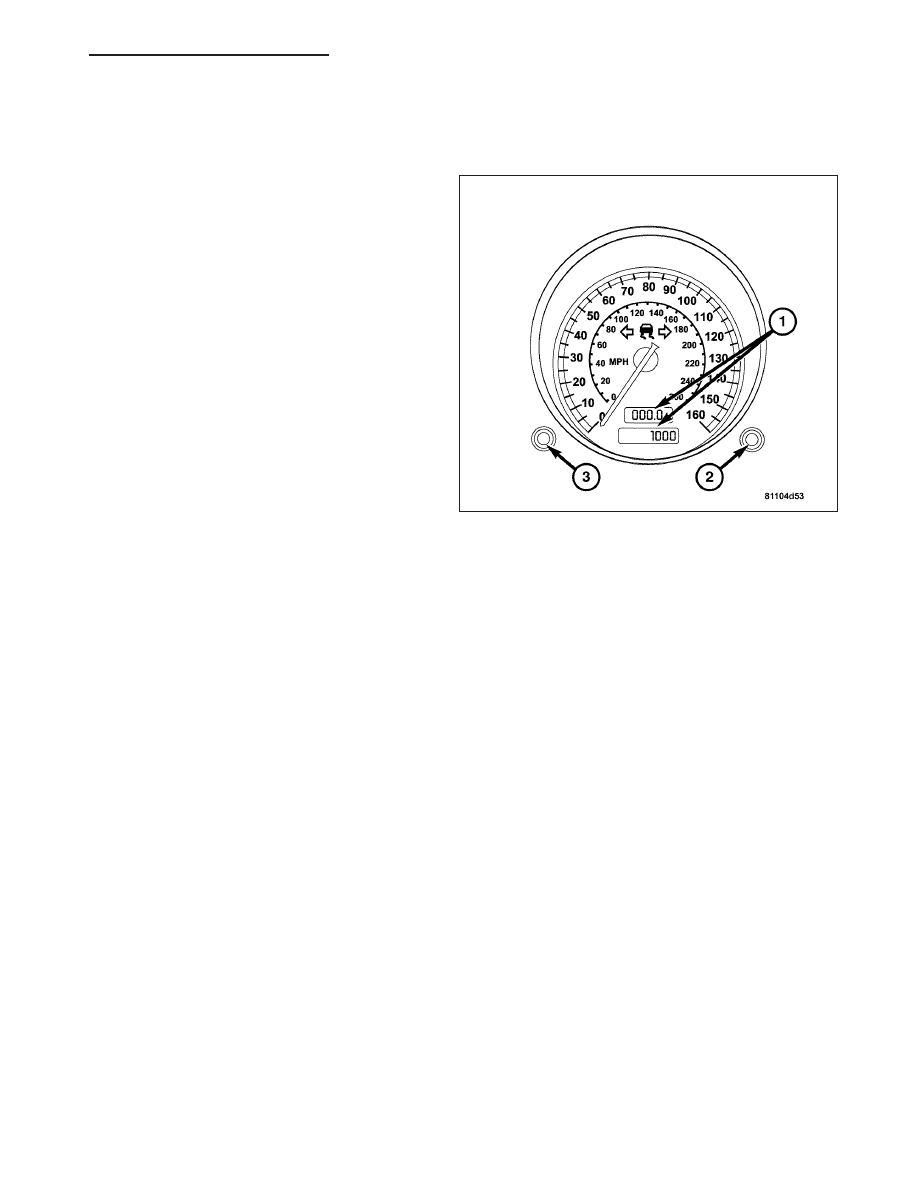

The dimmer switch (3) is an integrated part of the
Instrument Cluster and is located at the left side of the
speedometer. It controls the brightness of the adjust-
able interior illumination when rotated to the left or
right. The dimmer switch cannot be repaired. If it is
found faulty or damaged, the entire Instrument Cluster
must be replaced. For complete Instrument Cluster
removal

procedures,

refer

to

Instrument

Cluster

removal in the Instrument Cluster section.

DOOR AJAR SWITCH

DESCRIPTION

There are three door ajar switches, one at each door and one in the liftgate latch. The door switches are located in
the B-pillar directly below the latch striker plate, and the liftgate switch is integral to the liftgate latch assembly. A
door or body harness connector with a service loop connects each switch to the vehicle electrical system. The door
ajar switches cannot be adjusted or repaired, and if faulty or damaged, the switch itself or the liftgate latch must be
replaced as an assembly. For complete door ajar switch removal procedures, see the appropriate removal proce-
dure in this section.

OPERATION

The door ajar switches are actuated by either door, or the liftgate being opened. When either door or the liftgate is
closed and properly latched, its ajar switch is open. When either door or the liftgate is partially latched, its ajar
switch is closed. The ajar switches are connected via a harness connector to a body ground and the Central Lock-
ing Pump/Security System Module.

ZH

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 151

REMOVAL

DOOR AJAR SWITCH

1. Disconnect the negative battery cable.

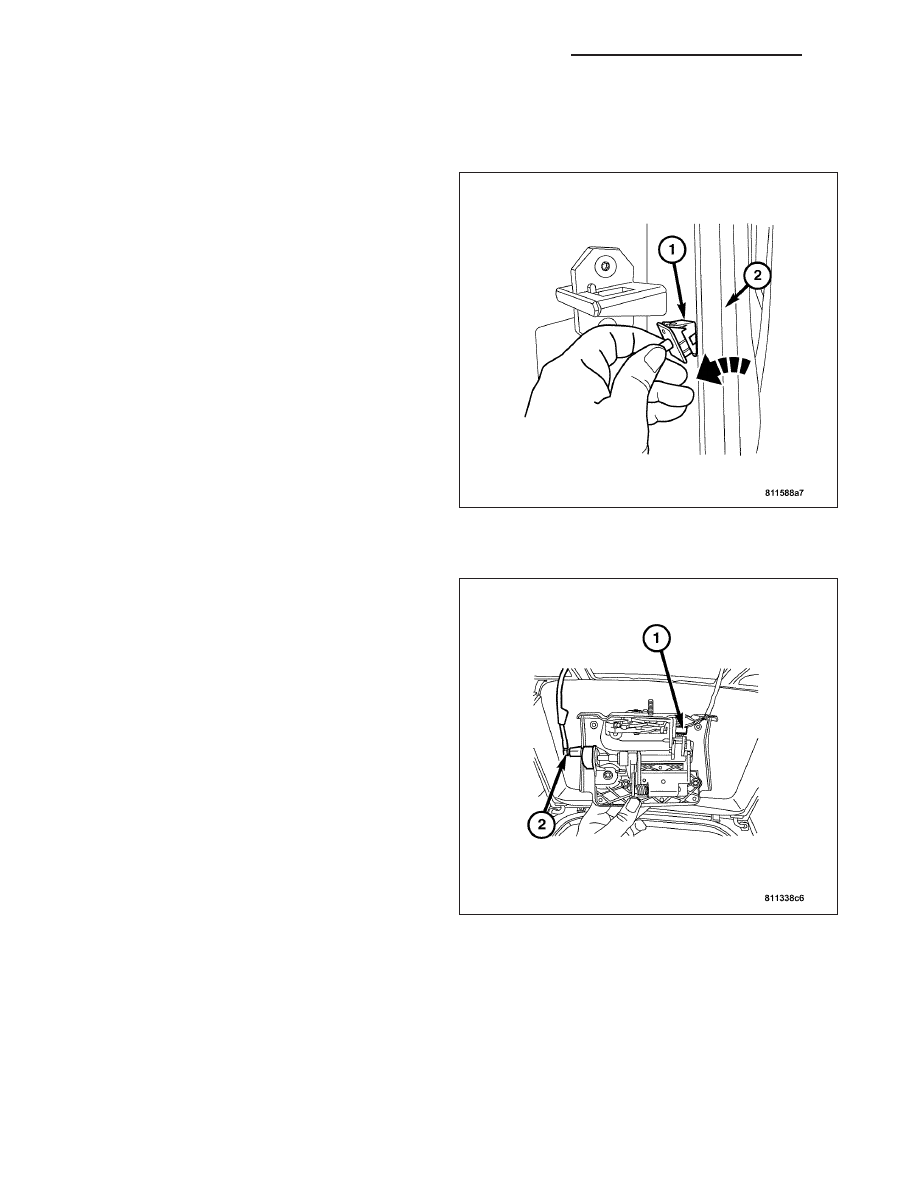

2. Using a trim stick, press and release the retaining

tab (1) at the top of the door ajar switch.

3. Pull the top of the door ajar switch out and down-

ward away from the B-pillar (2), then disconnect
the door ajar switch harness connector.

REMOVAL - LIFTGATE AJAR SWITCH

The liftgate ajar switch (1) is an integral part of the lift-
gate handle assembly and cannot be adjusted or
repaired. If faulty, worn, or damaged, the entire liftgate
handle assembly must be replaced. For complete lift-
gate handle removal procedures, see liftgate handle
removal in the body section. (Refer to 23 - BODY/
DECKLID/HATCH/LIFTGATE/TAILGATE/EXTERIOR
HANDLE - REMOVAL).

8L - 152

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION
