CAUTION: Do not use bulbs other than those indicated in the Bulb Application table. Damage to lamp
and/or Illumination Control Module can result. Do not use fuses, circuit breakers or relays having greater
amperage value than indicated on the fuse panel or in the Owner’s Manual.

If a vehicle experiences problems with the interior lighting system, verify the following are in proper operating con-
dition:

•

Battery connections

•

Charging system

•

Interior lamp bulbs

•

Illumination Control Module/Headlamp switch

•

Wiring harness connectors

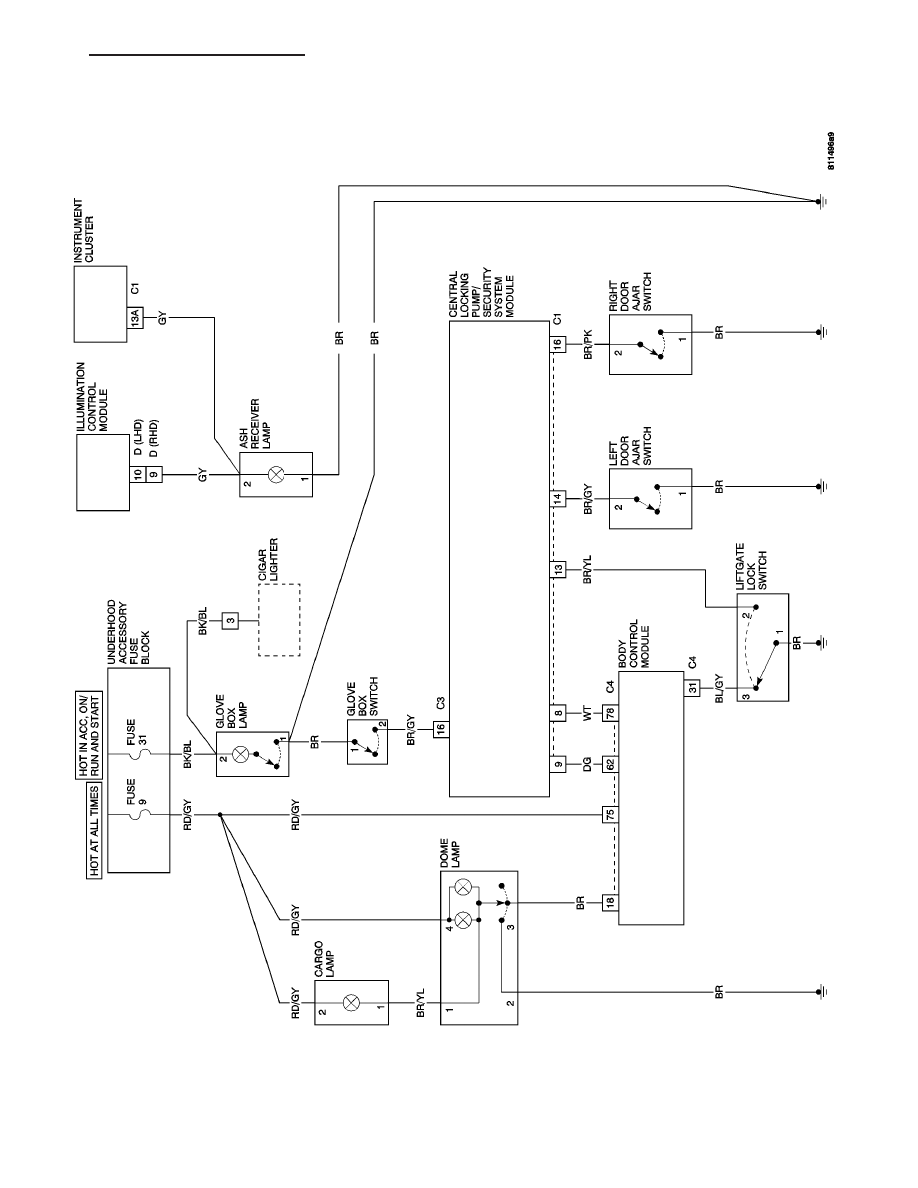

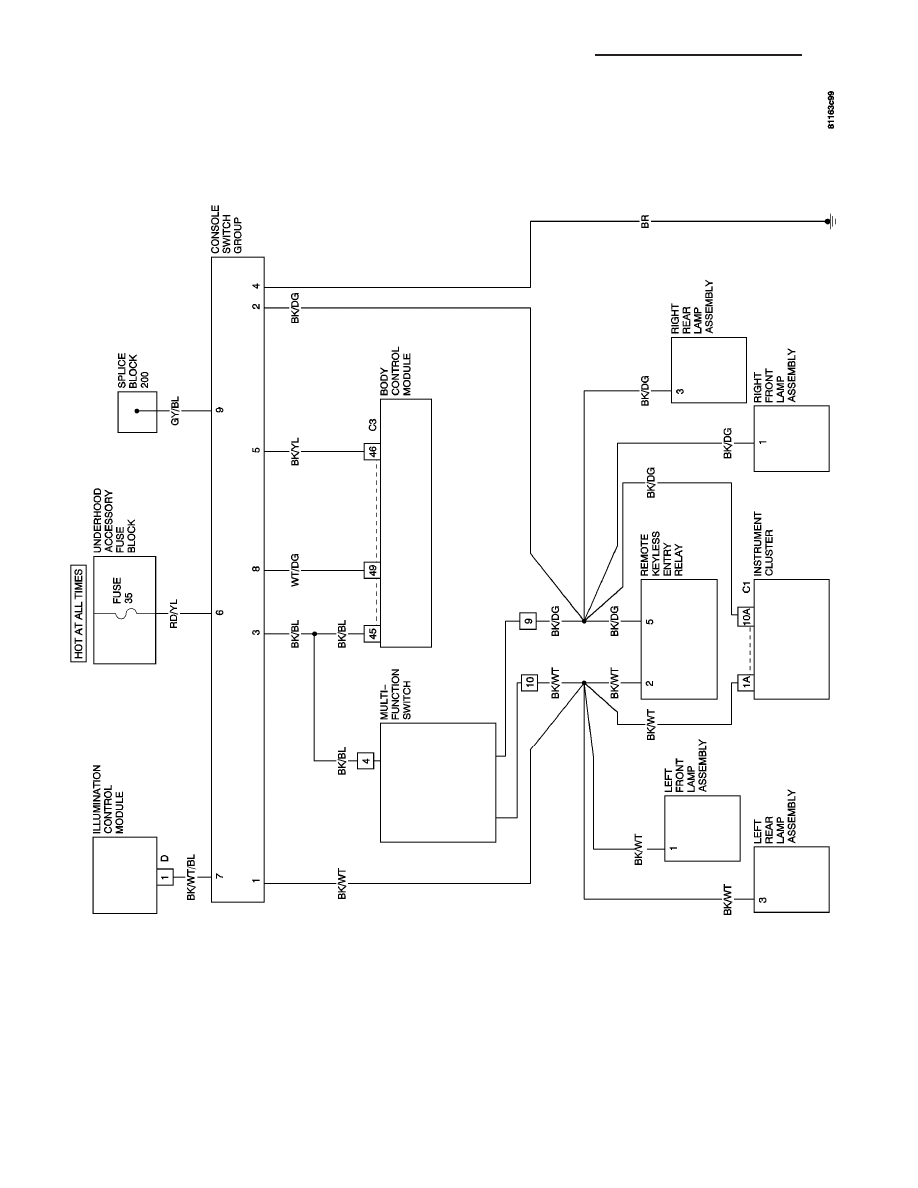

For complete interior lamp system schematics and diagrams, see interior lamps/lighting schematics and diagrams in
this section. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - INTERIOR - SCHEMATICS AND DIAGRAMS).

Each vehicle is equipped with various lamp assemblies. A good ground is necessary for proper lighting operation.
Grounding is provided by the lamp socket when it comes in contact with the metal body, or through a separate
ground wire.

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 143

When diagnosing the interior lighting circuits, remember that high generator output can burn out bulbs rapidly, and
that dim or flickering bulbs can be caused by low generator output or a poor battery condition.

When changing lamp bulbs, check the socket for loose pin connections and/or evidence of corrosion. Repair as
necessary.

When it is necessary to remove a component to service another, it should not be necessary to apply excessive
force to bend a component to remove it. Before damaging a trim component, verify hidden fasteners or captured
edges are not holding the component in place.

For additional interior lamp diagnosis, refer to Interior Lamp Diagnostics in this section.

SPECIFICATIONS - INTERIOR LAMPS

CAUTION: Do not use bulbs other than those listed in the Bulb Application Table. Damage to lamp can
result.

BULB APPLICATION TABLE

LAMP

BULB

Cargo Lamp

C5W

Cluster Illumination

12/2W 1K

12/1.5W

Courtesy Lamp

C5W

Glove Box Lamp

C5W

Heater Switch Illumination

LED

Shift Lever Assembly Switch Illumination

LED

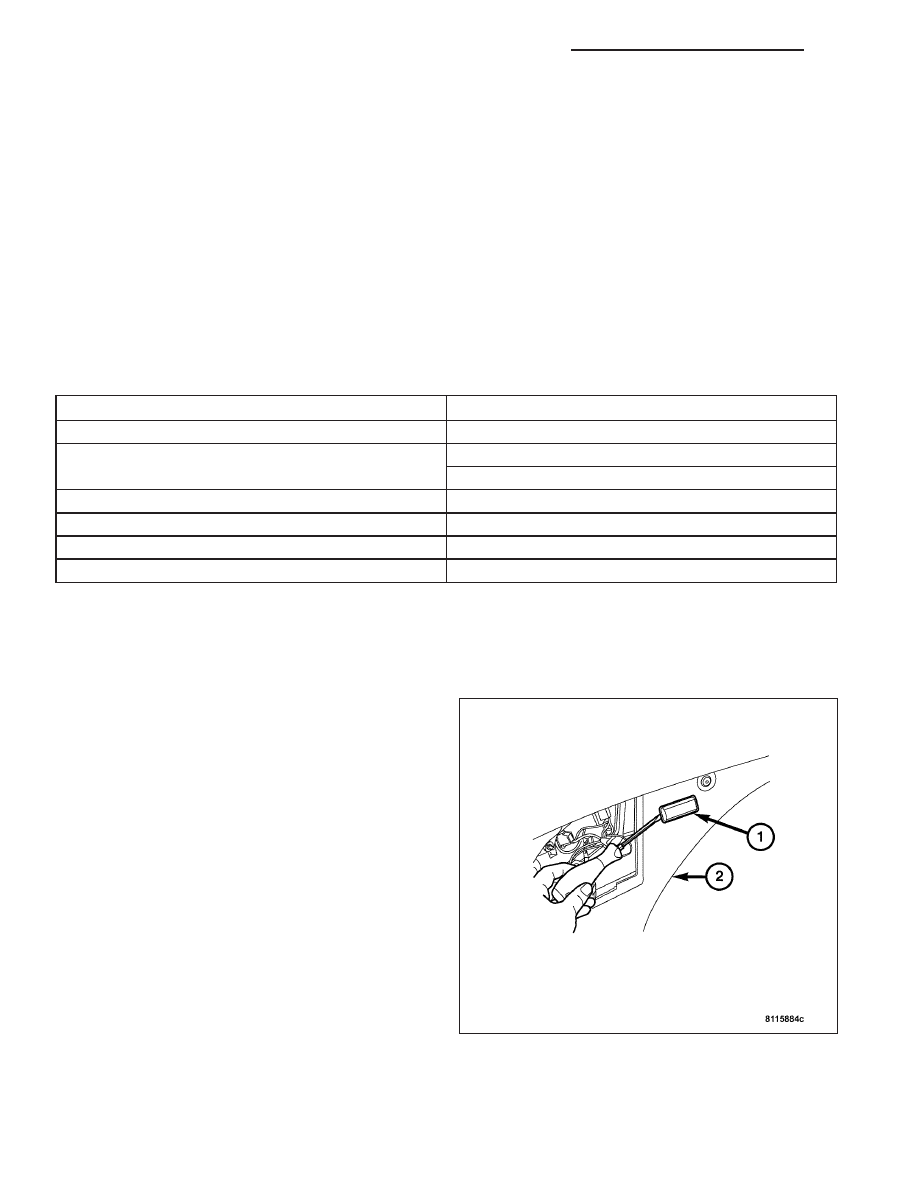

CARGO LAMP

REMOVAL

1. Disconnect the negative battery cable.

2. Remove the cargo lamp unit (1) from the interior

trim panel. (Refer to 8 - ELECTRICAL/LAMPS/
LIGHTING - INTERIOR/CARGO LAMP UNIT -
REMOVAL).

8L - 144

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION
