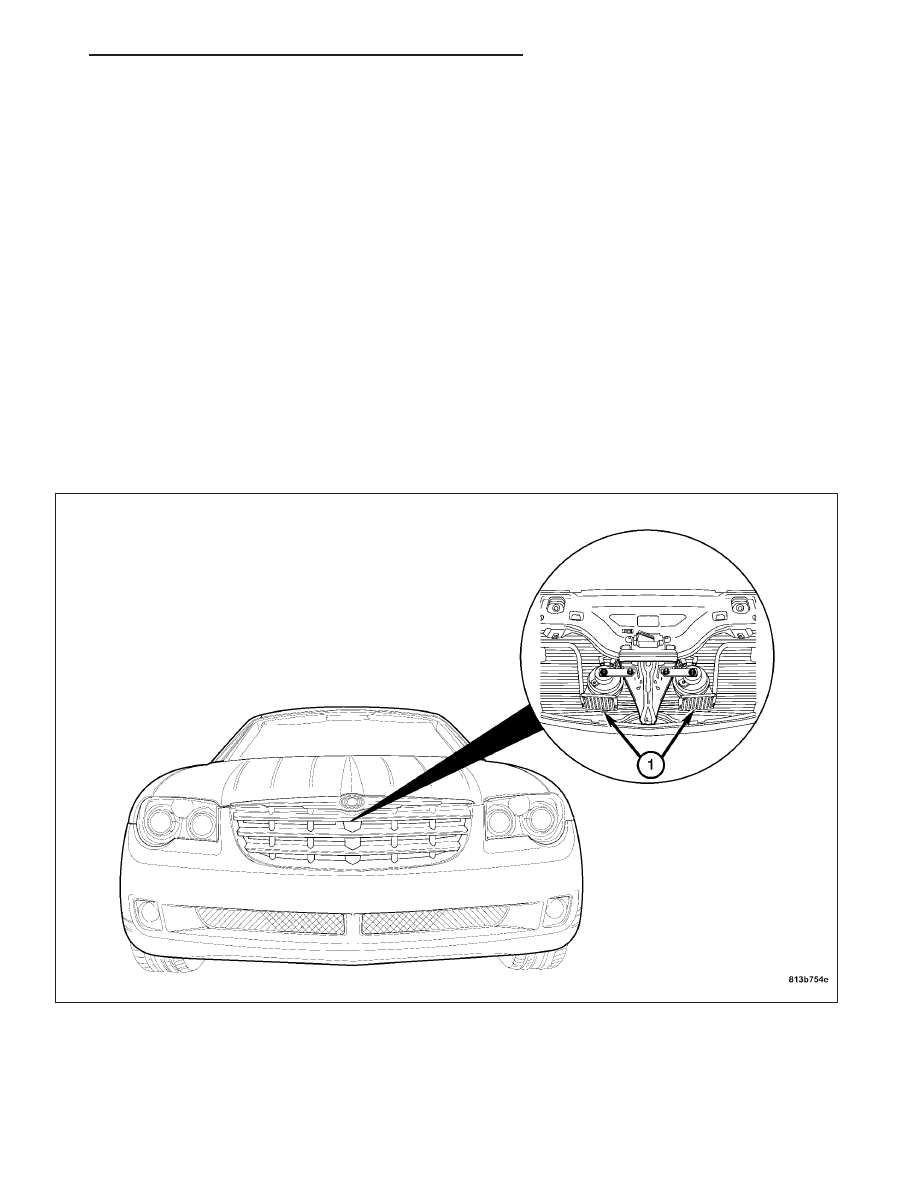

A dual-note electro-magnetic Horn System is standard equipment on this model. The horn circuit consists of a Horn
Switch, Fuse, Horn Relay, and Horns. Both high and low note horn units are located behind the front grille.

HORN - SERVICE INFORMATION

8H - 9

OPERATION

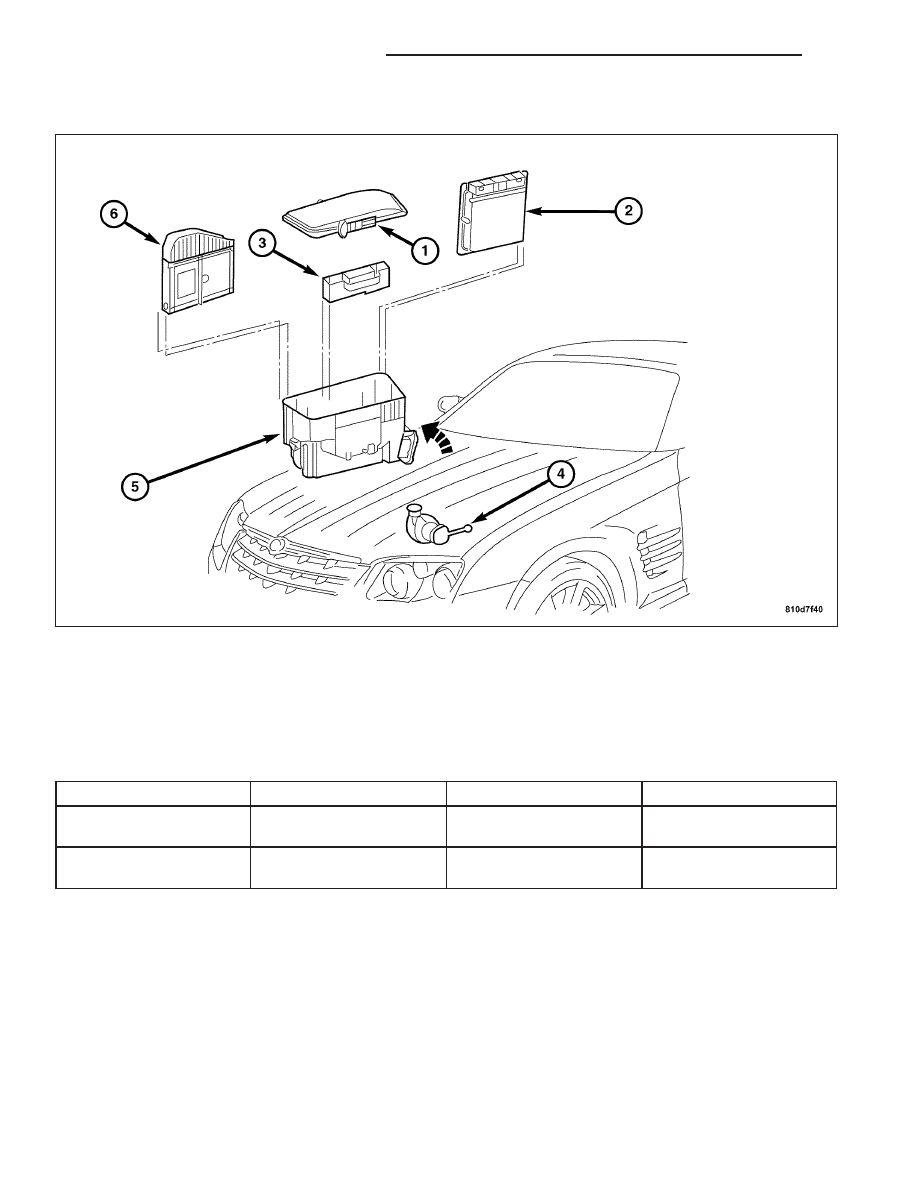

The Horn circuit feed is from the fuse to the horn relay within the Relay Control Module (3), both of which are
located inside the Control Module Box (5). When the Horn Switch is depressed, it completes the ground circuit to
the horn relay. The horn relay coil closes a set of contacts which allows current to flow to the Horns.

SPECIFICATIONS - HORN

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

HORN MOUNTING

BRACKET BOLT

100

HORN SWITCH

RETAINING NUTS

–

8H - 10

HORN - SERVICE INFORMATION

HORN

REMOVAL

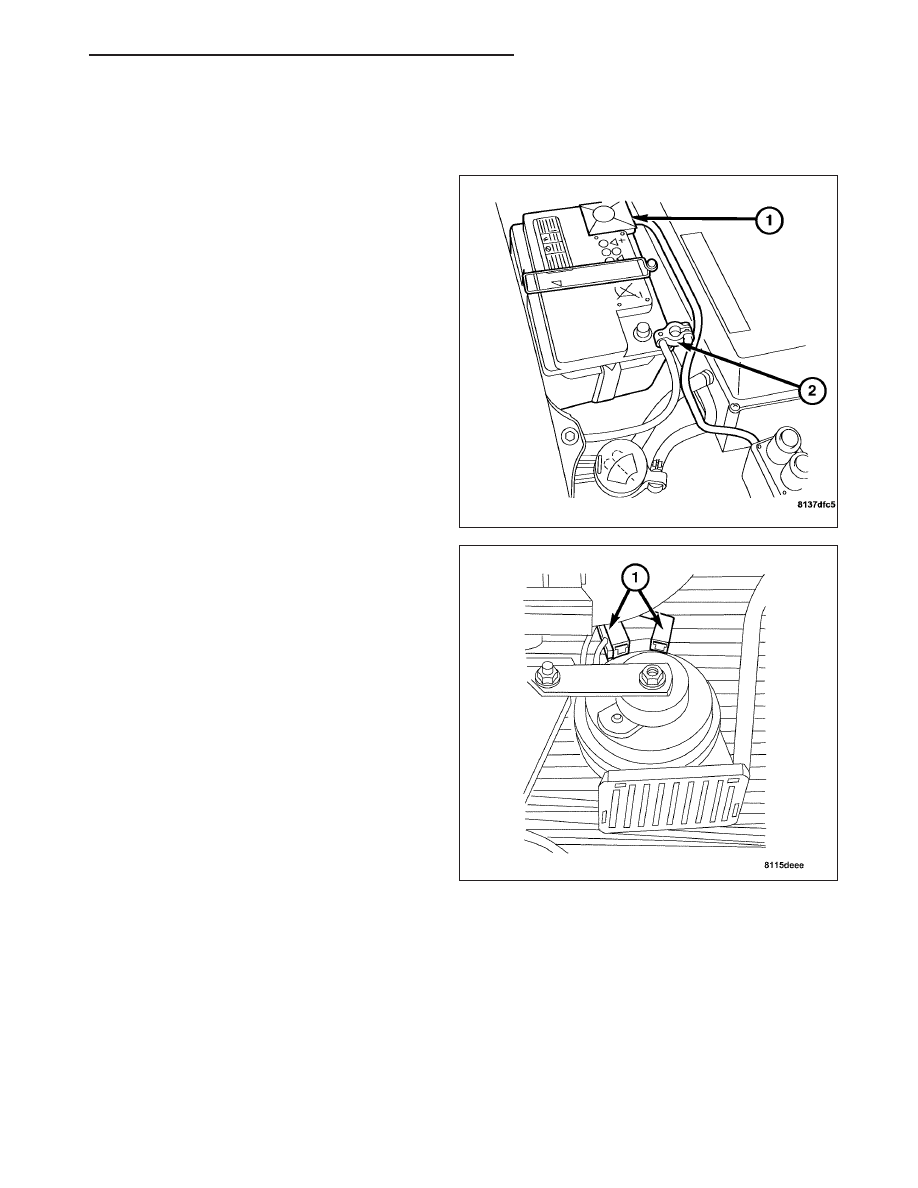

1. Disconnect the negative battery cable.

2. Remove the front grille. (Refer to 23 - BODY/EX-

TERIOR/GRILLE - REMOVAL).

3. Disconnect the horn harness connector (1).

HORN - SERVICE INFORMATION

8H - 11

Note: Do not disconnect the horn from the horn
mounting bracket.

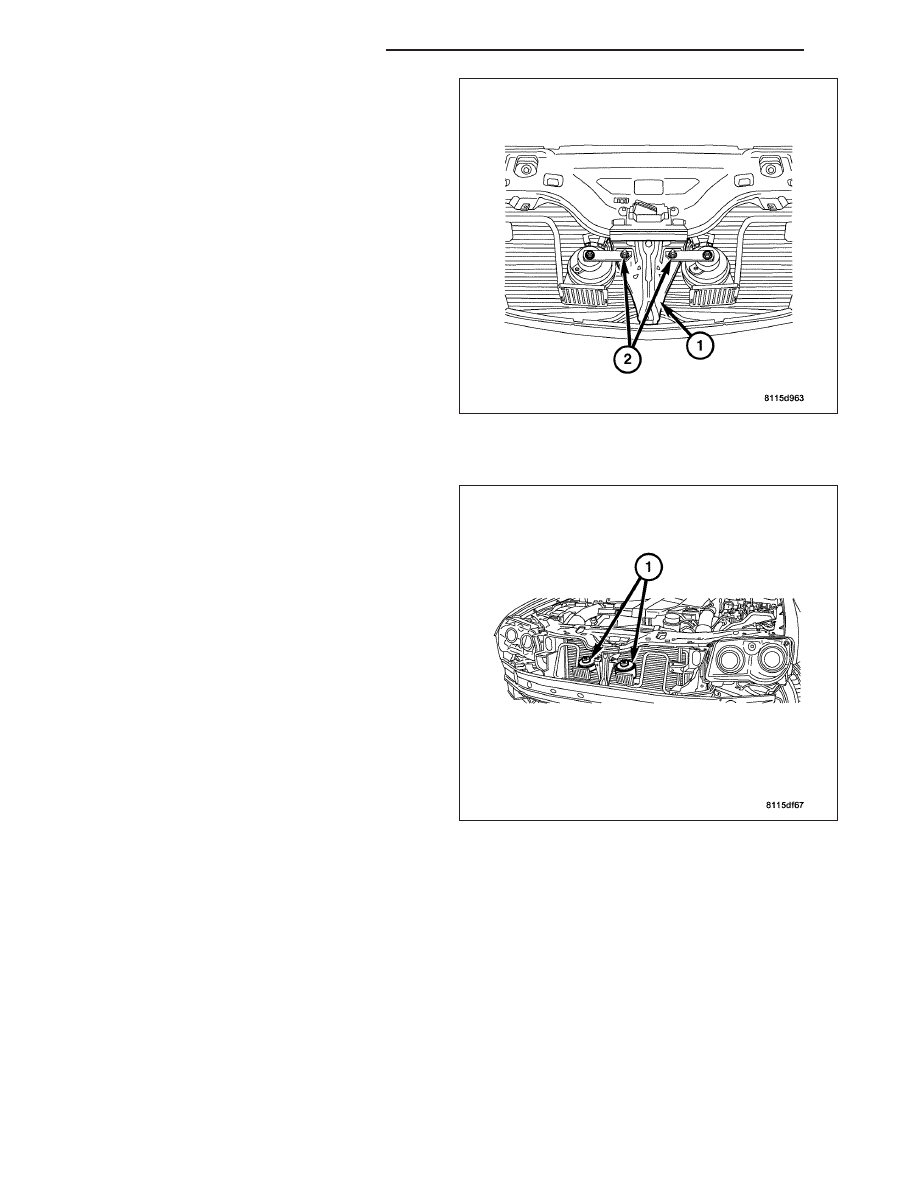

4. Remove the horn bracket mounting bolt (2) from

the core support brace (1).

5. Remove the horn from the vehicle.

INSTALLATION

1. Position the horn(s) (1) onto the vehicle core sup-

port and install the horn bracket mounting bolt.
Tighten the bolt to 11 N·m (100 in. lbs.).

2. Connect the horn harness connector.

3. Install the front grille. (Refer to 23 - BODY/EXTE-

RIOR/GRILLE - INSTALLATION).
