The shift lever position must stay in Drive after the Shift to Drive prompt until the DRB III

T

indicates the pro-

cedure is complete

The calculated oil temperature must be above 15.6°C (60°F) and below 93.3°C (200°F)

REMOVAL

REMOVAL

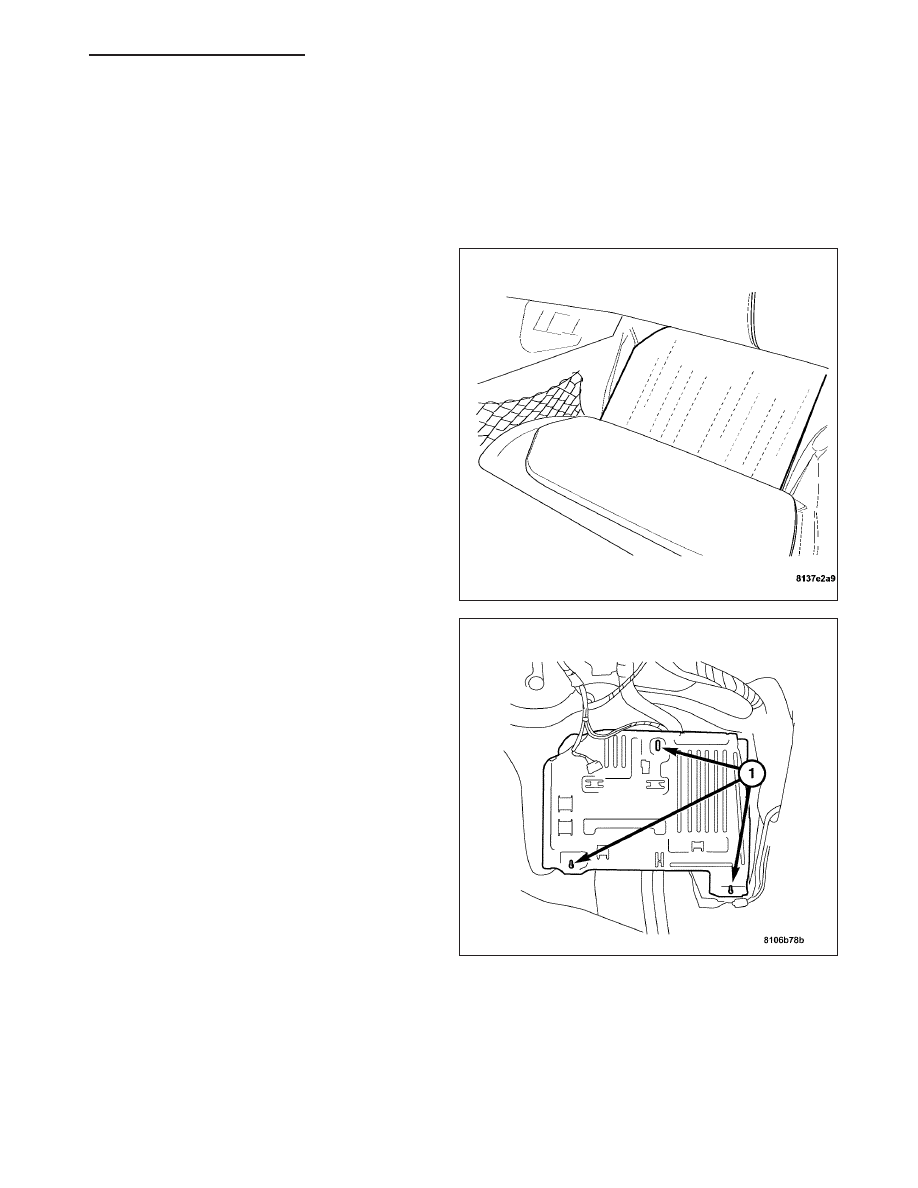

1. Un-snap and remove the carpet floor mat.

2. Fold back the carpeting in the passenger footwell

to expose the foam insulation panel.

3. Remove the foam insulation panel.

Note: It is not necessary to remove the electrical
connectors to rotate the base plate in the passen-
ger footwell.

4. Remove the three plastic retaining nuts (1) from

the floor panel studs.

5. Lift the base plate and rotate the top of the base

plate toward the rear of the vehicle to expose the
TCM.

ZH

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

8E - 85

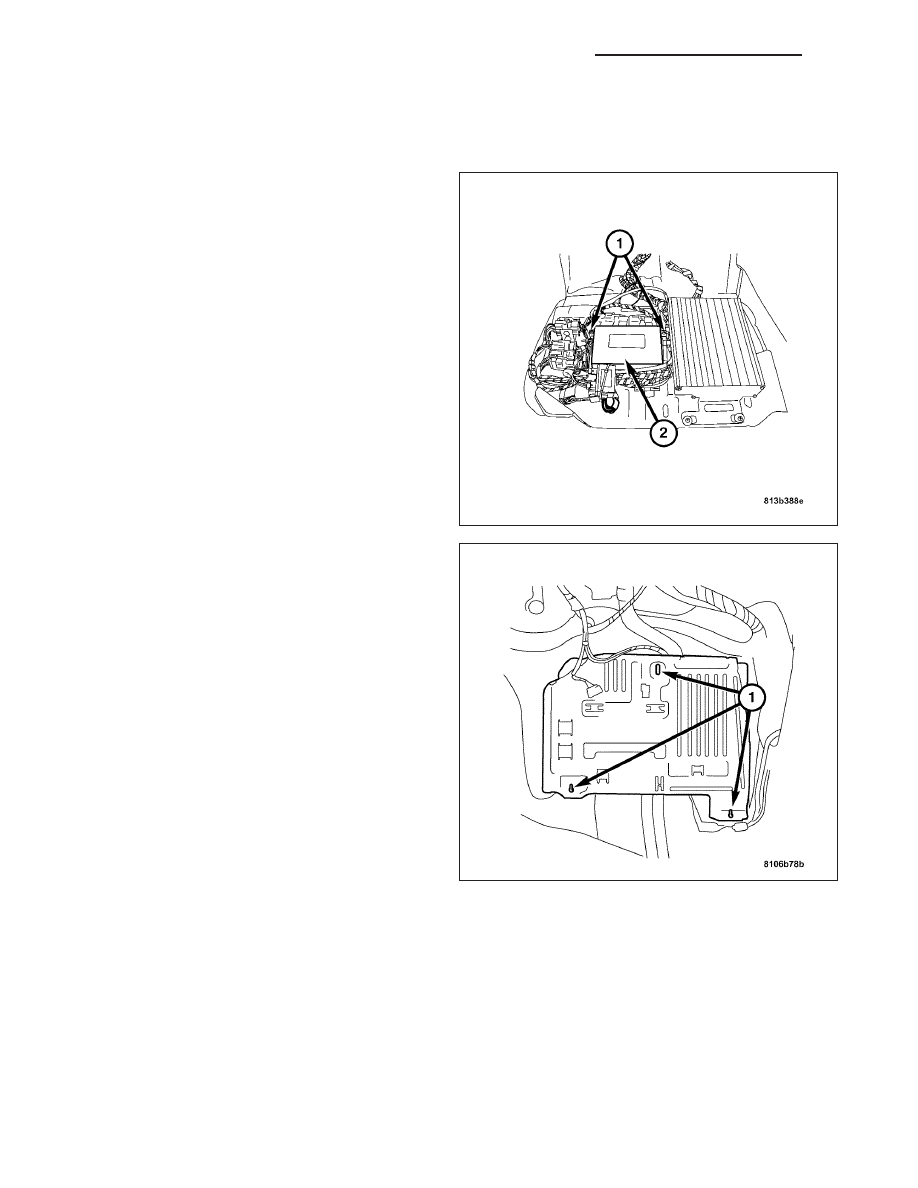

6. Remove the two retaining screws (1) from the base

plate, and disconnect the TCM harness connectors.

7. Remove the TCM (2) from the base plate.

REMOVAL

1. Un-snap and remove the carpet floor mat.

2. Fold back the carpeting in the passenger footwell

to expose the foam insulation panel.

3. Remove the foam insulation panel.

8E - 86

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

ZH

Note: It is not necessary to remove the electrical
connectors to rotate the base plate in the passen-
ger footwell.

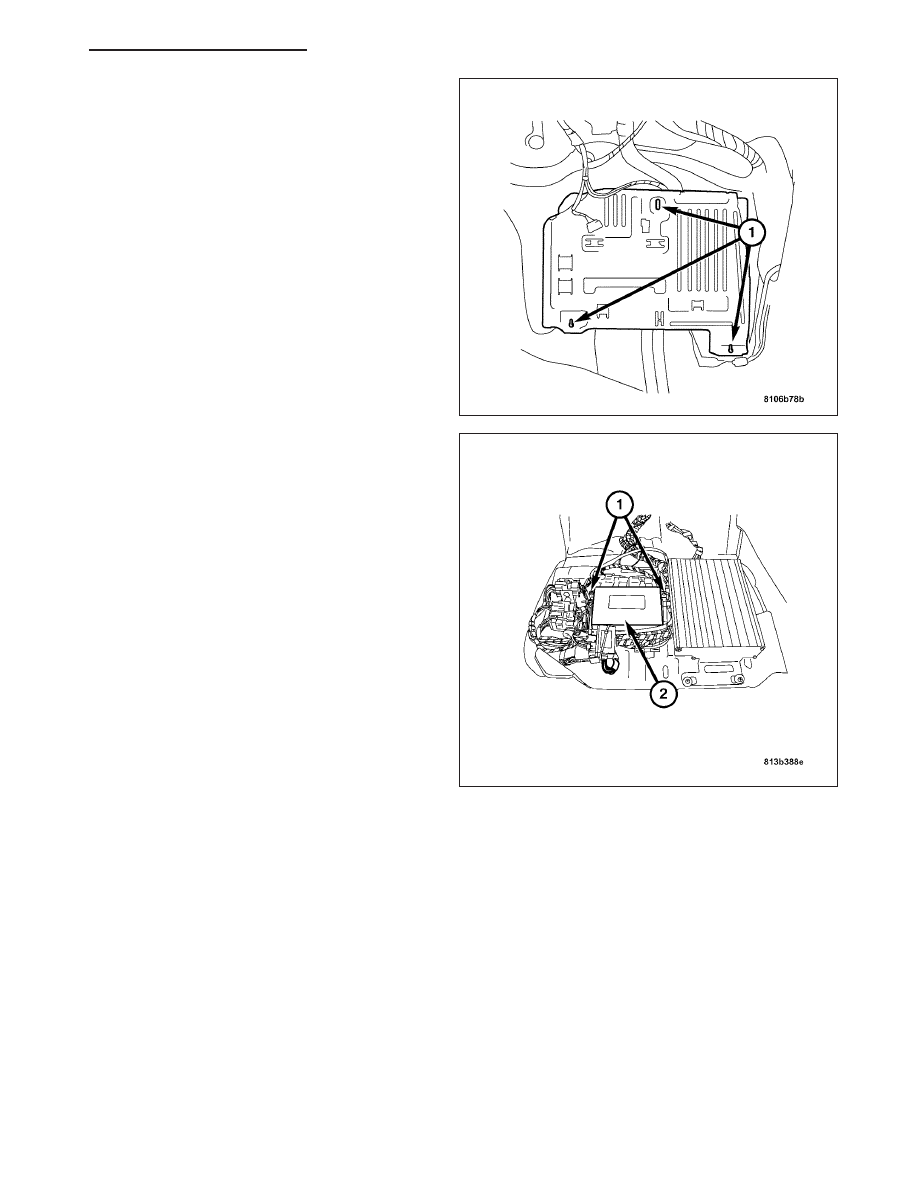

4. Remove the three plastic retaining nuts (1) from

the floor panel studs.

5. Lift the base plate and rotate the top of the base

plate toward the rear of the vehicle to expose the
TCM.

6. Remove the two retaining screws (2) from the base

plate, and disconnect the TCM harness connectors.

7. Remove the TCM (1) from the base plate.

ZH

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

8E - 87

INSTALLATION

INSTALLATION

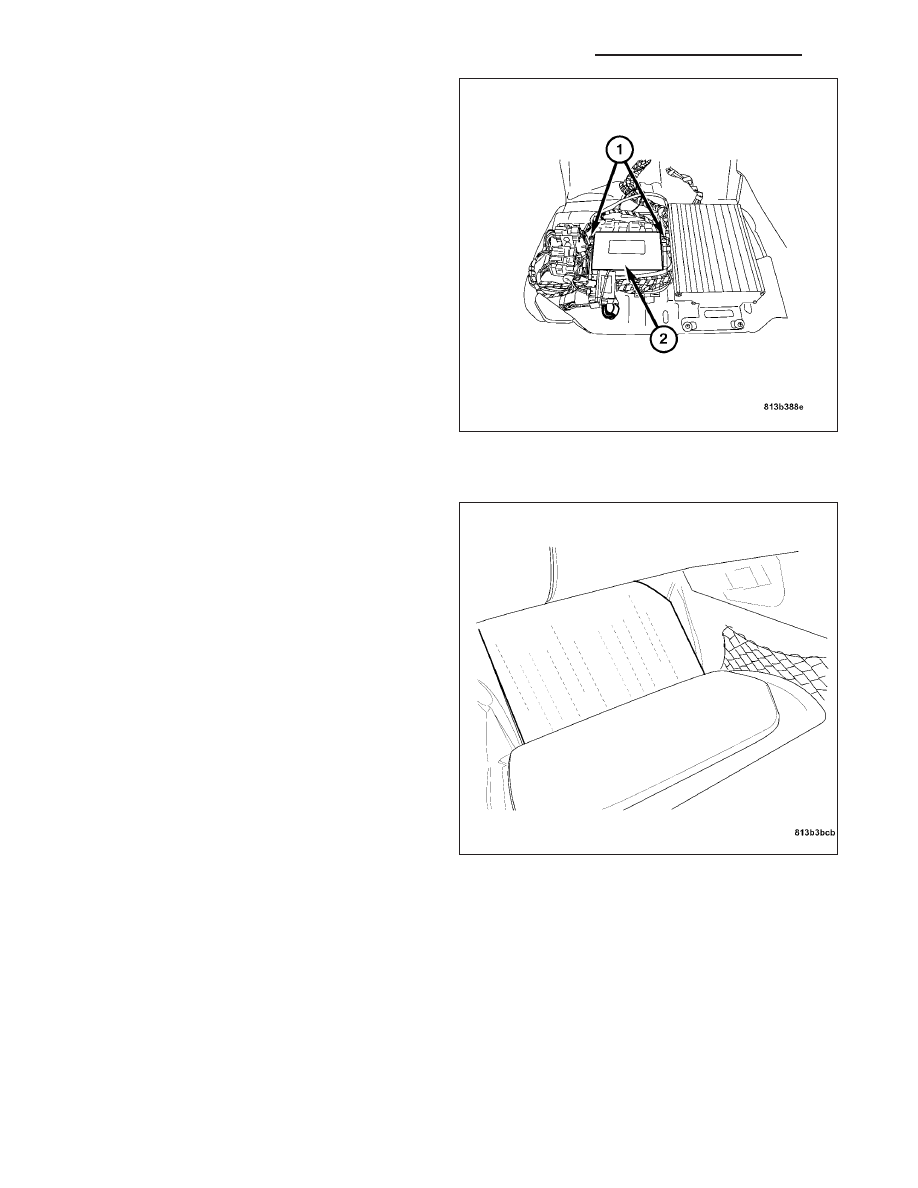

1. Connect the TCM harness connectors and attach

the TCM (2) to the base plate with the two retaining
screws (1).

2. Rotate the base plate and install it over the mount-

ing studs on the floor panel.

Note: Be sure not to pinch or cause interference
with the wiring harnesses while locating the base
plate to the floor mounting studs.

3. Install the three plastic retaining nuts (1) and

secure the base plate to the vehicle floor.

8E - 88

ELECTRONIC CONTROL MODULES - SERVICE INFORMATION

ZH
