*NO RESPONSE FROM SHIFT LEVER ASSEMBLY (CONTINUED)

8.

SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the harness connectors for the Controller Antilock Brake
and Shift Lever Assembly.

Turn the ignition on.

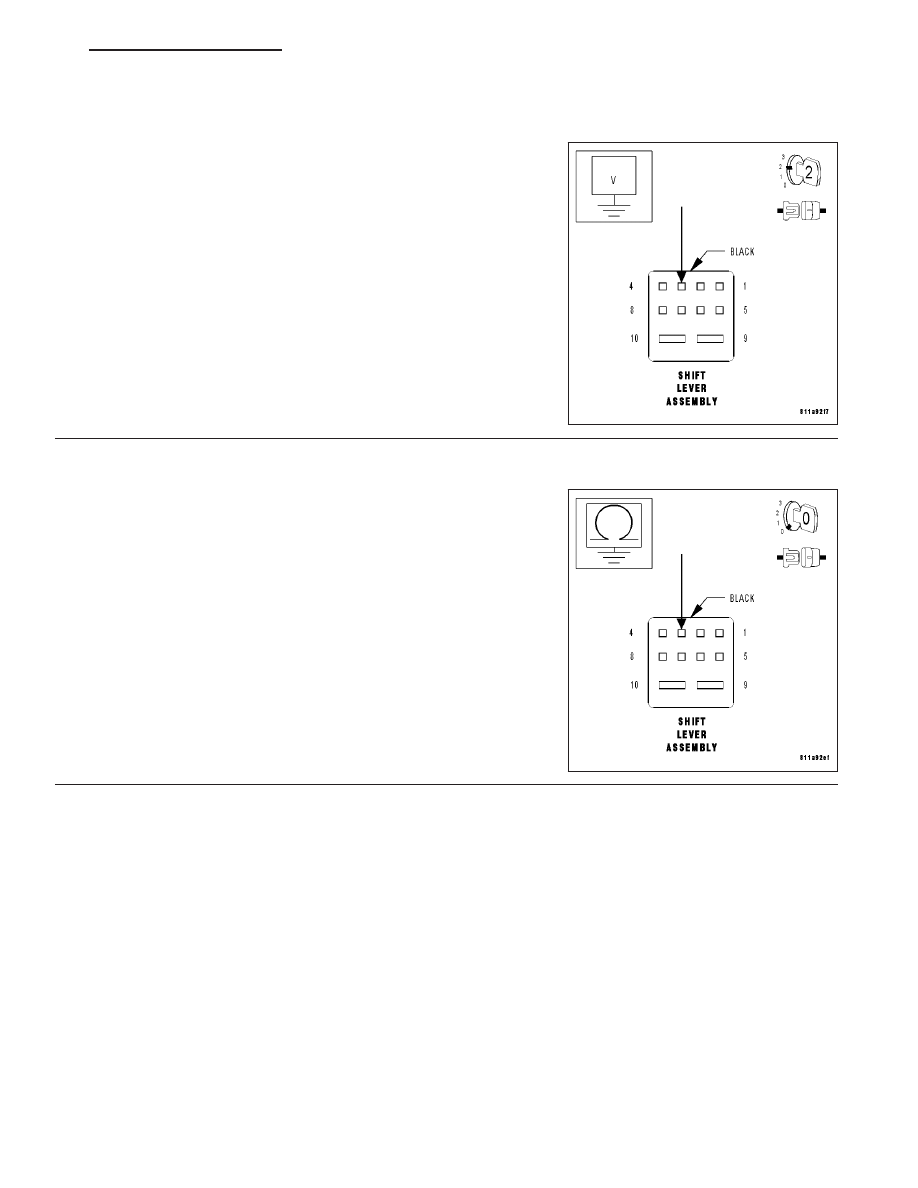

Measure the voltage of the SCI Transmit circuit at the SLA harness
connector.

Is the voltage below 0.5 volt?

Yes

>>

Go to 9

No

>> Repair the SCI Transmit circuit for a short to voltage.

Perform BODY VERIFICATION TEST.

9.

SCI TRANSMIT CIRCUIT SHORTED TO GROUND OR OPEN

Turn the ignition off.

Measure the resistance between ground and the SCI Transmit circuit.

Is the resistance above 100 kohms?

Yes

>> Repair the SCI Transmit circuit for an open.

Perform BODY VERIFICATION TEST.

No

>> Repair the SCI Transmit circuit for a short to ground.

Perform BODY VERIFICATION TEST.

ZH

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 49

*NO RESPONSE FROM TRANSMISSION CONTROL MODULE

8E - 50

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

ZH

*NO RESPONSE FROM TRANSMISSION CONTROL MODULE (CONTINUED)

POSSIBLE CAUSES

TRACTION SYSTEM RELAY OUTPUT CIRCUIT OPEN

GROUND CIRCUIT OPEN

SCI TRANSMIT CIRCUIT OPEN

SCI TRANSMIT CIRCUIT SHORTED TO GROUND

SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE

TRANSMISSION CONTROL MODULE

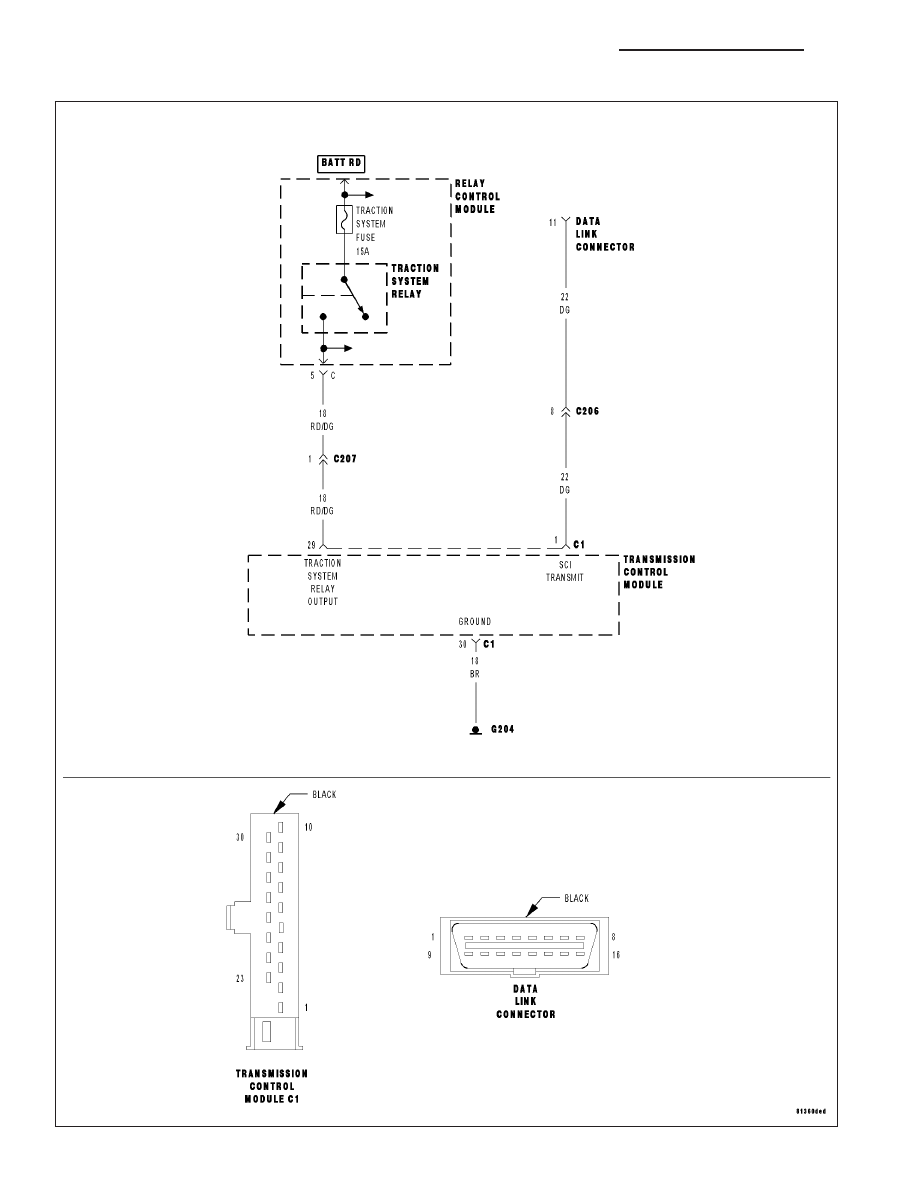

For a complete Data Link Connector Circuit Diagram, (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

CHECK COMMUNICATION WITH OTHER MODULES

Turn the ignition on.

Using the DRB III

T

, attempt to communicate with any other module.

Is the DRB III

T

able to communicate with the module selected?

Yes

>> Go to 2

No

>> Perform Symptom *No Response From All Modules.

2.

TRACTION SYSTEM RELAY OUTPUT CIRCUIT OPEN

Turn the ignition off.

Disconnect the TCM harness connector.

Note: Check connector — Clean/repair as necessary.
Turn the ignition on.

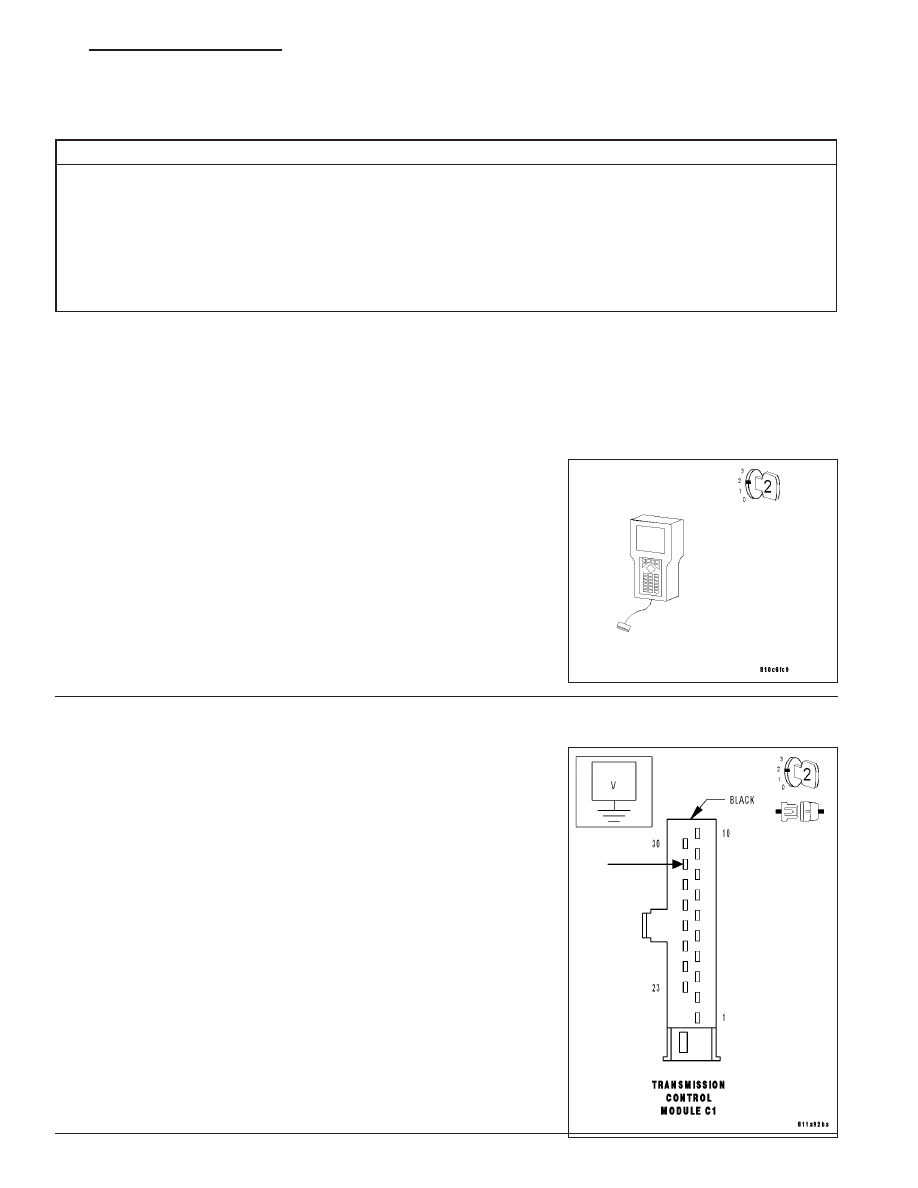

Measure the voltage of the Traction System Relay Output circuit at the
TCM harness connector.

Is the voltage above 10 volts?

Yes

>> Go to 3

No

>> Repair the Traction System Relay Output circuit for an

open.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

ZH

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 51

*NO RESPONSE FROM TRANSMISSION CONTROL MODULE (CONTINUED)

3.

GROUND CIRCUIT OPEN

Turn the ignition off.

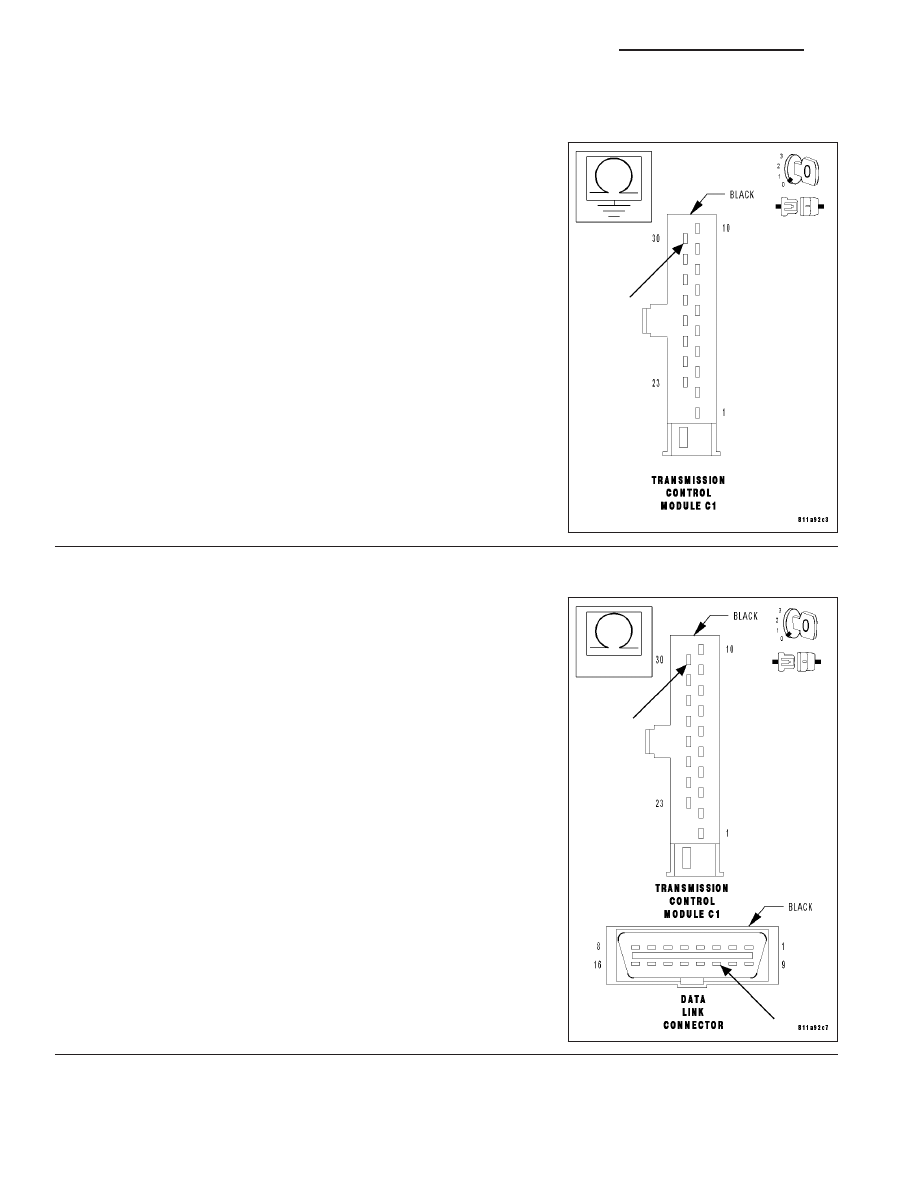

Measure the resistance of the Ground circuit from the TCM harness
connector to ground.

Is the resistance below 5.0 ohms?

Yes

>> Go to 4

No

>> Repair the Ground circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

4.

SCI TRANSMIT CIRCUIT OPEN

With the ignition off.

Measure the resistance of the SCI Transmit circuit from the TCM har-
ness connector to the DLC.

Is the resistance below 5.0 ohms?

Yes

>>

Go to 5

No

>> Repair the SCI Transmit circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

8E - 52

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

ZH
