Chrysler Crossfire. Manual - part 115





DIAGNOSIS AND TESTING

Check flywheel runout whenever misalignment is suspected. Flywheel runout should not exceed 0.08 mm (0.003
in.). Measure runout at the outer edge of the flywheel face with a dial indicator.

Common causes of runout are:

Heat warpage

Improper machining

Incorrect bolt tightening

Improper seating on crankshaft flange shoulder

Foreign material on crankshaft flange

REMOVAL

1. Remove the clutch (Refer to 6 - CLUTCH/CLUTCH

DISC - REMOVAL).

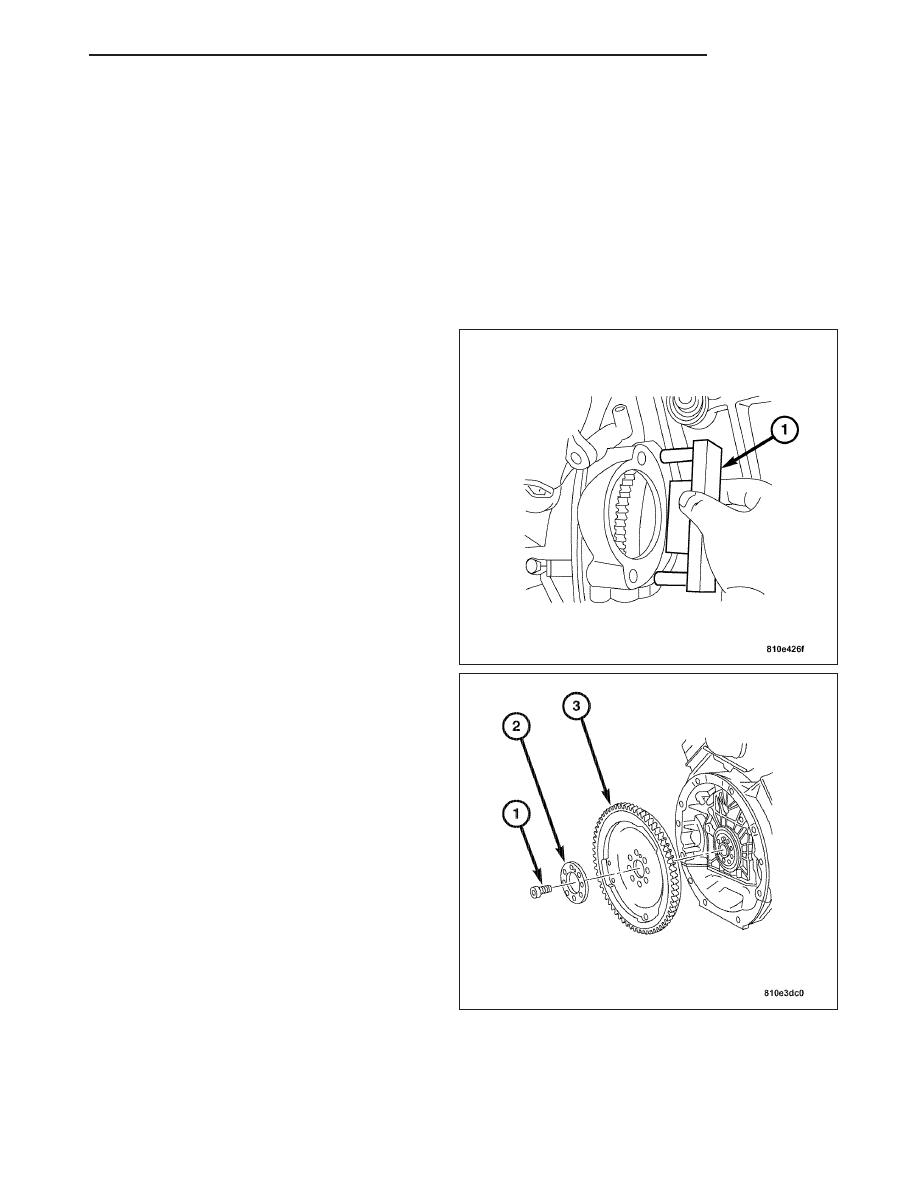

2. Install Special Tool 9102 (1) Flywheel Locking Tool.

3. Remove and discard the flywheel bolts (1).

4. Remove the flywheel spacer (2) and the flywheel

(3).

5. Inspect the flywheel for wear or cracking.

6. Inspect the starter ring gear for wear and missing

teeth.

ZH

CLUTCH

6 - 21

INSTALLATION

Note: If a new flywheel is installed, perform the
First Initialization Reset function in the Powertrain
Control Module with the DRB III

T

. Refer to the

(

Reset Adaptives

(

menu selection on the DRB III

T

.

Note: Align flywheel on straight pin in crankshaft.

Note: New bolts must always be used when
installing the flywheel.

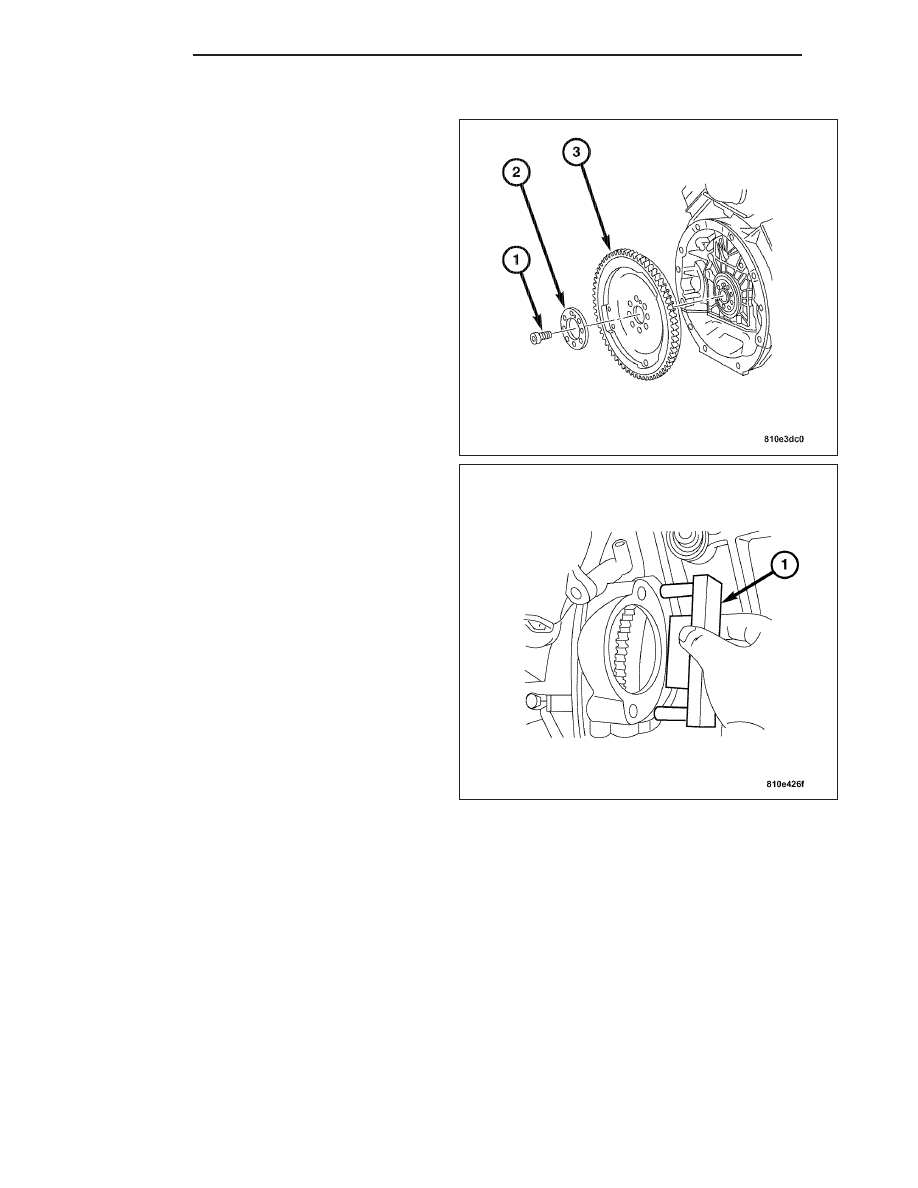

1. Position the flywheel (3) on the crankshaft.

2. Install the spacer (2) and new flywheel bolts (1).

3. Install Special Tool 9102 (1) Flywheel Locking Tool.

4. Initially tighten the flywheel bolts to 45 N·m (33 ft.

lbs.). For final torque, rotate the flywheel bolts an
additional 45° clockwise using a torque angle
gauge.

5. Install the clutch (Refer to 6 - CLUTCH/CLUTCH

DISC - INSTALLATION).

6. Remove Special Tool 9102 Flywheel Locking Tool.

7. Install the transmission (Refer to 21 - TRANSMIS-

SION/TRANSAXLE/MANUAL - INSTALLATION).

PILOT BEARING

REMOVAL

1. Remove the transmission (Refer to 21 - TRANSMISSION/TRANSAXLE/MANUAL - REMOVAL).

2. Remove the clutch cover and clutch disc (Refer to 6 - CLUTCH/PRESSURE PLATE - REMOVAL).

3. Remove the pilot bearing with an internal (blind hole) puller.

INSTALLATION

1. Lubricate new bearing with Mopar high temperature bearing grease or equivalent.

2. Start new bearing into crankshaft by hand, then seat bearing with clutch alignment tool.

3. Lightly scuff sand flywheel surface with 180 grit emery cloth. Then clean surface with wax and grease remover.

4. Install clutch disc and clutch cover (Refer to 6 - CLUTCH/CLUTCH DISC - INSTALLATION).

5. Install the transmission (Refer to 21 - TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION).

6 - 22

CLUTCH

ZH

CLUTCH PEDAL

REMOVAL

1. Remove the driver side lower instrument panel

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL ASSEMBLY - REMOVAL).

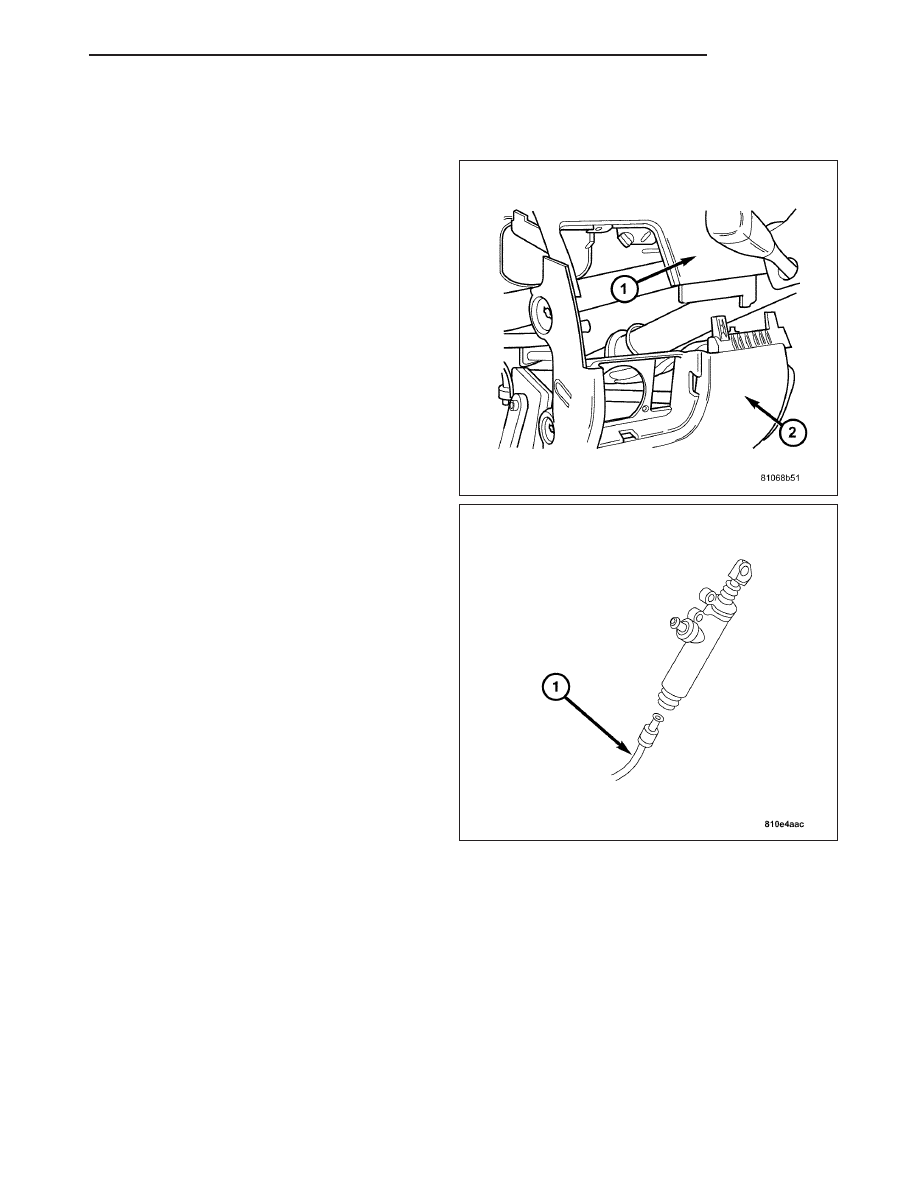

2. Remove the driver side upper instrument panel (1)

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT PANEL ASSEMBLY - REMOVAL).

3. Disconnect the clutch master cylinder fluid pressure

line (1) (Refer to 6 - CLUTCH/MASTER CYLINDER
- REMOVAL).

ZH

CLUTCH

6 - 23

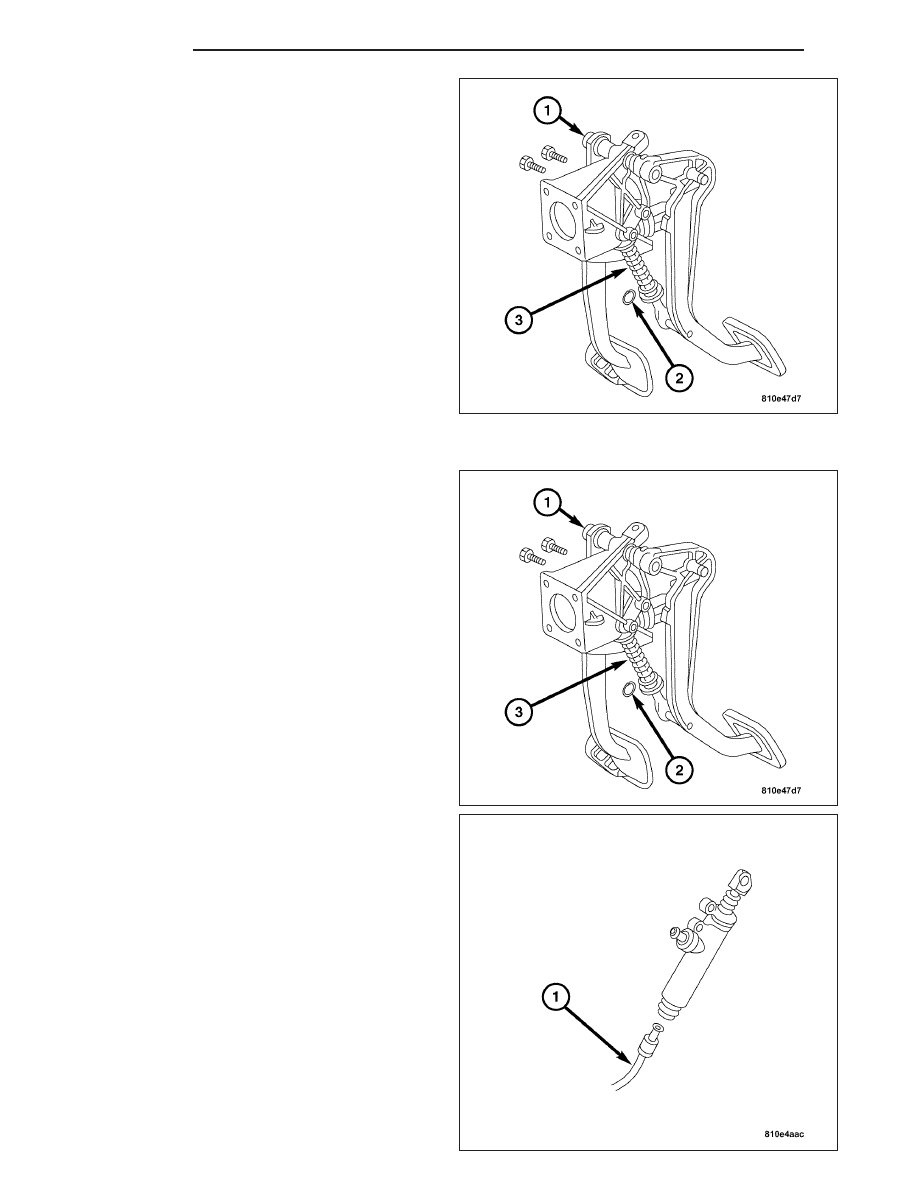

4. Disconnect the clutch pedal position switch.

5. Remove the circlip (2) and the return spring (3).

6. Remove the clutch pedal from the pivot (1).

INSTALLATION

1. Install the clutch pedal on the pivot (1).

2. Install the return spring (3) and the circlip (2).

3. Install the clutch master cylinder fluid pressure line

(1) (Refer to 6 - CLUTCH/MASTER CYLINDER -
INSTALLATION).

6 - 24

CLUTCH

ZH
