LIQUID LINE

REMOVAL

WARNING: REVIEW THE WARNINGS AND CAUTIONS IN THE FRONT OF THIS SECTION BEFORE PER-
FORMING THE FOLLOWING OPERATION.

1. Evacuate the A/C system. (Refer to 24 - HEATING

& AIR CONDITIONING/PLUMBING - STANDARD
PROCEDURE).

2. Raise and support the vehicle.

3. Remove the left front wheel and tire assembly.

4. Remove the front inner wheel well panel.

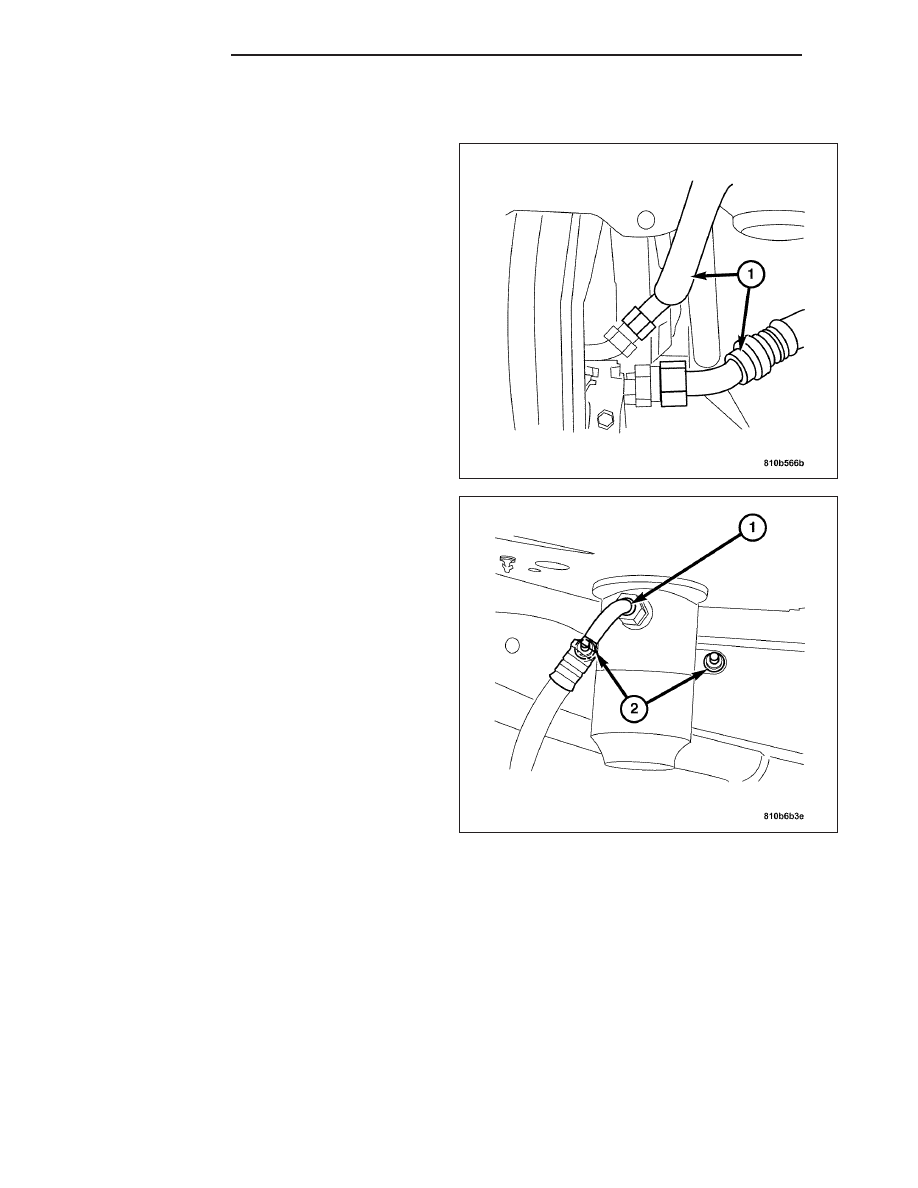

5. Remove the liquid line (1) from the receiver/dryer.

6. Remove the liquid line (1) from the condenser.

INSTALLATION

WARNING: REVIEW THE WARNINGS AND CAUTIONS IN THE FRONT OF THIS SECTION BEFORE PER-
FORMING THE FOLLOWING OPERATION.

Any kinks or sharp bends in the refrigerant plumbing will reduce the capacity of the entire air conditioning system.
Kinks and sharp bends reduce the flow of refrigerant in the system. A good rule for the flexible hose refrigerant lines
is to keep the radius of all bends at least ten times the diameter of the hose. In addition, the flexible hose refrigerant
lines should be routed so they are at least 80 millimeters (3 inches) from the exhaust manifold.

High pressures are produced in the refrigerant system when the air conditioning compressor is operating. Extreme
care must be exercised to make sure that each of the refrigerant system connections is pressure-tight and leak free.

ZH

PLUMBING

24 - 147

It is a good practice to inspect all flexible hose refrigerant lines at least once a year to make sure they are in good
condition and properly routed.

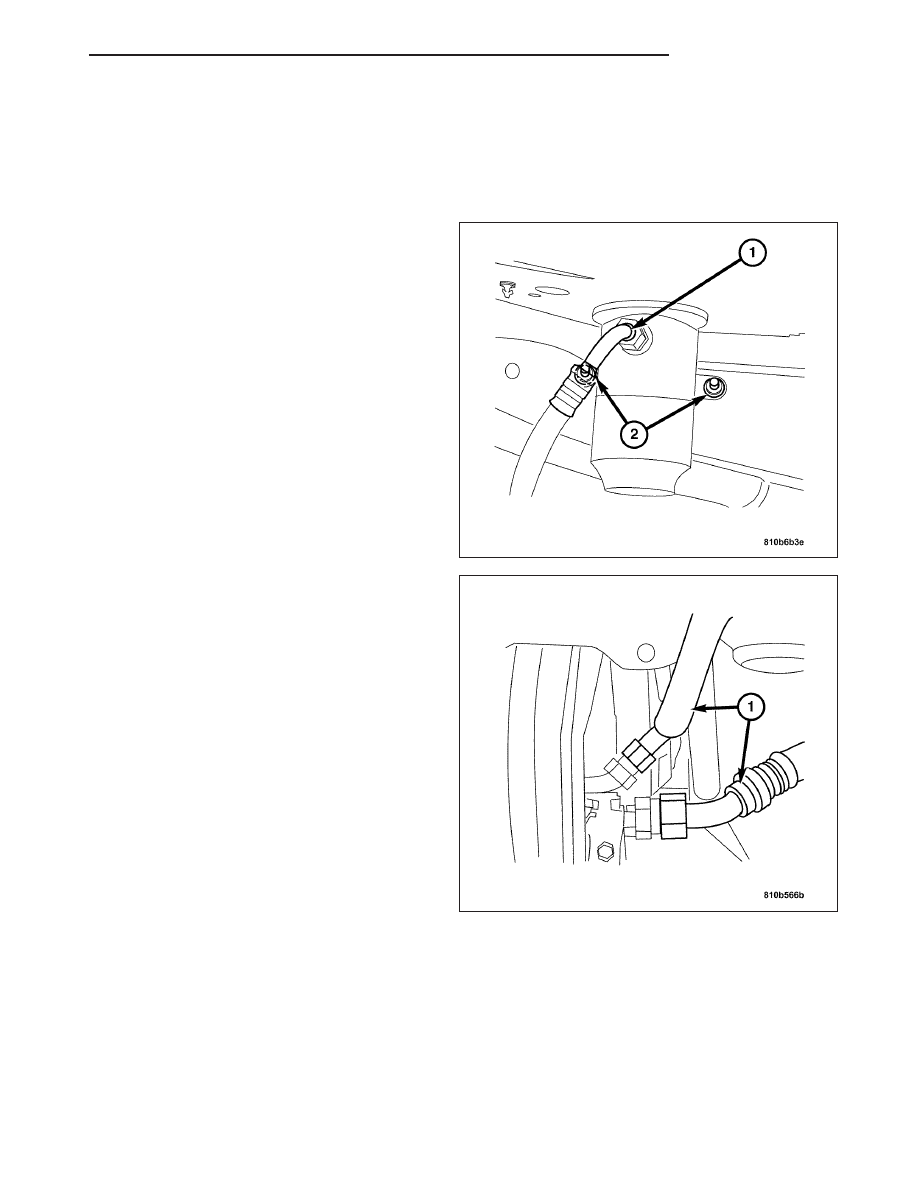

1. Install the liquid line (1) to the condenser. Tighten

to 24 N·m (18 ft. lbs.).

2. Install the liquid line (1) to the receiver/dryer.

Tighten to 17 N·m (12 ft. lbs.).

3. Install the front inner wheel well panel.

4. Install the left front wheel and tire assembly.

5. Charge the A/C system.(Refer to 24 - HEATING &

AIR

CONDITIONING/PLUMBING

-

STANDARD

PROCEDURE).

SUCTION LINE

REMOVAL

WARNING: REVIEW THE WARNINGS AND CAUTIONS IN THE FRONT OF THIS SECTION BEFORE PER-
FORMING THE FOLLOWING OPERATION.

24 - 148

PLUMBING

ZH

1. Disconnect the negative battery cable.

2. Recover the refrigerant from the refrigerant system.

(Refer to 24 - HEATING & AIR CONDITIONING/
PLUMBING - STANDARD PROCEDURE).

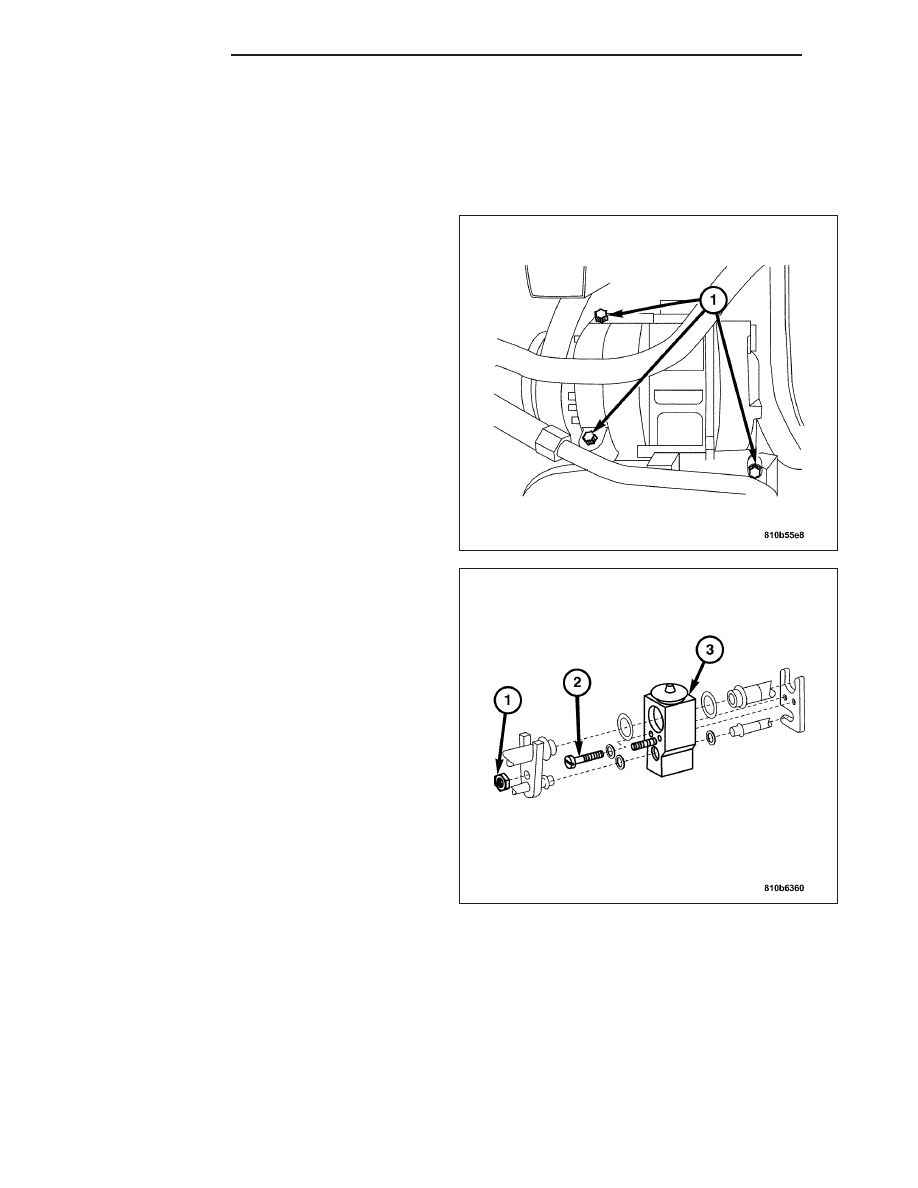

3. Remove the retainer nut (1) from the expansion

valve (3).

4. Slide the suction line off the stud and liquid line.

Remove the lines from the clip.

5. Raise and support the vehicle.

6. Remove the A/C compressor bolts (1).

7. Remove the suction line from the compressor.

8. Remove the suction line assembly from the vehicle.

INSTALLATION

WARNING: REVIEW THE WARNINGS AND CAUTIONS IN THE FRONT OF THIS SECTION BEFORE PER-
FORMING THE FOLLOWING OPERATION.

WARNING:
ANY KINKS OR SHARP BENDS IN THE REFRIGERANT PLUMBING WILL REDUCE THE CAPACITY OF THE
ENTIRE AIR CONDITIONING SYSTEM. KINKS AND SHARP BENDS REDUCE THE FLOW OF REFRIGERANT
IN THE SYSTEM. A GOOD RULE FOR THE FLEXIBLE HOSE REFRIGERANT LINES IS TO KEEP THE RADIUS
OF ALL BENDS AT LEAST TEN TIMES THE DIAMETER OF THE HOSE. IN ADDITION, THE FLEXIBLE HOSE
REFRIGERANT LINES SHOULD BE ROUTED SO THEY ARE AT LEAST 80 MILLIMETERS (3 INCHES) FROM
THE EXHAUST MANIFOLD.

ZH

PLUMBING

24 - 149

WARNING:
HIGH PRESSURES ARE PRODUCED IN THE REFRIGERANT SYSTEM WHEN THE AIR CONDITIONING COM-
PRESSOR IS OPERATING. EXTREME CARE MUST BE EXERCISED TO MAKE SURE THAT EACH OF THE
REFRIGERANT SYSTEM CONNECTIONS IS PRESSURE-TIGHT AND LEAK FREE. IT IS A GOOD PRACTICE
TO INSPECT ALL FLEXIBLE HOSE REFRIGERANT LINES AT LEAST ONCE A YEAR TO MAKE SURE THEY
ARE IN GOOD CONDITION AND PROPERLY ROUTED.

1. Install the suction line to the compressor. Tighten

the mounting bolt to 23 N·m (18 ft. lbs.).

2. Install the A/C compressor bolts (1).(Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING/A/C
COMPRESSOR - INSTALLATION).

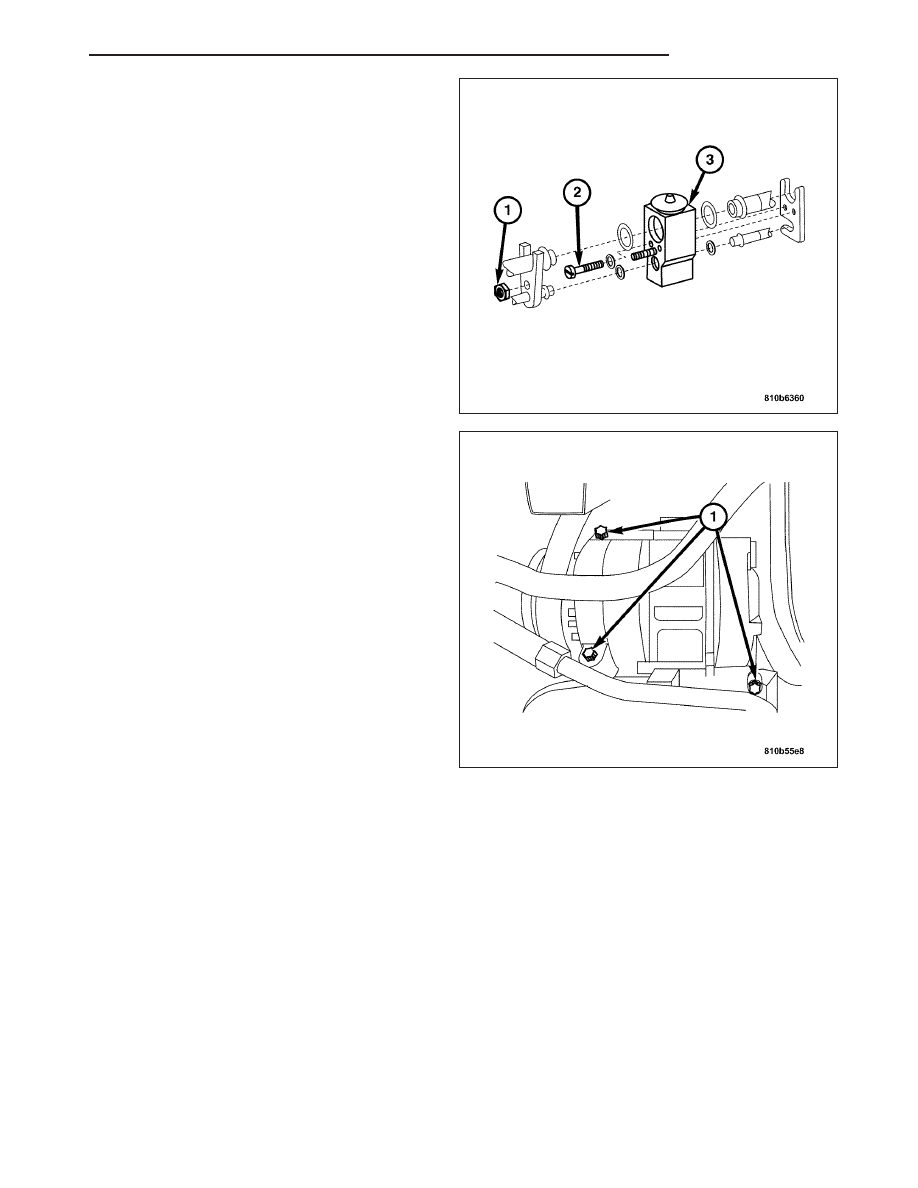

3. Slide the suction line and the liquid line over the

expansion valve stud. Tighten the nut (1) to 10 N·m
(88 in. lbs.).

4. Connect the negative battery cable.

5. Evacuate the refrigerant system. (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE).

6. Charge the refrigerant system. (Refer to 24 -

HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE).
