Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 948

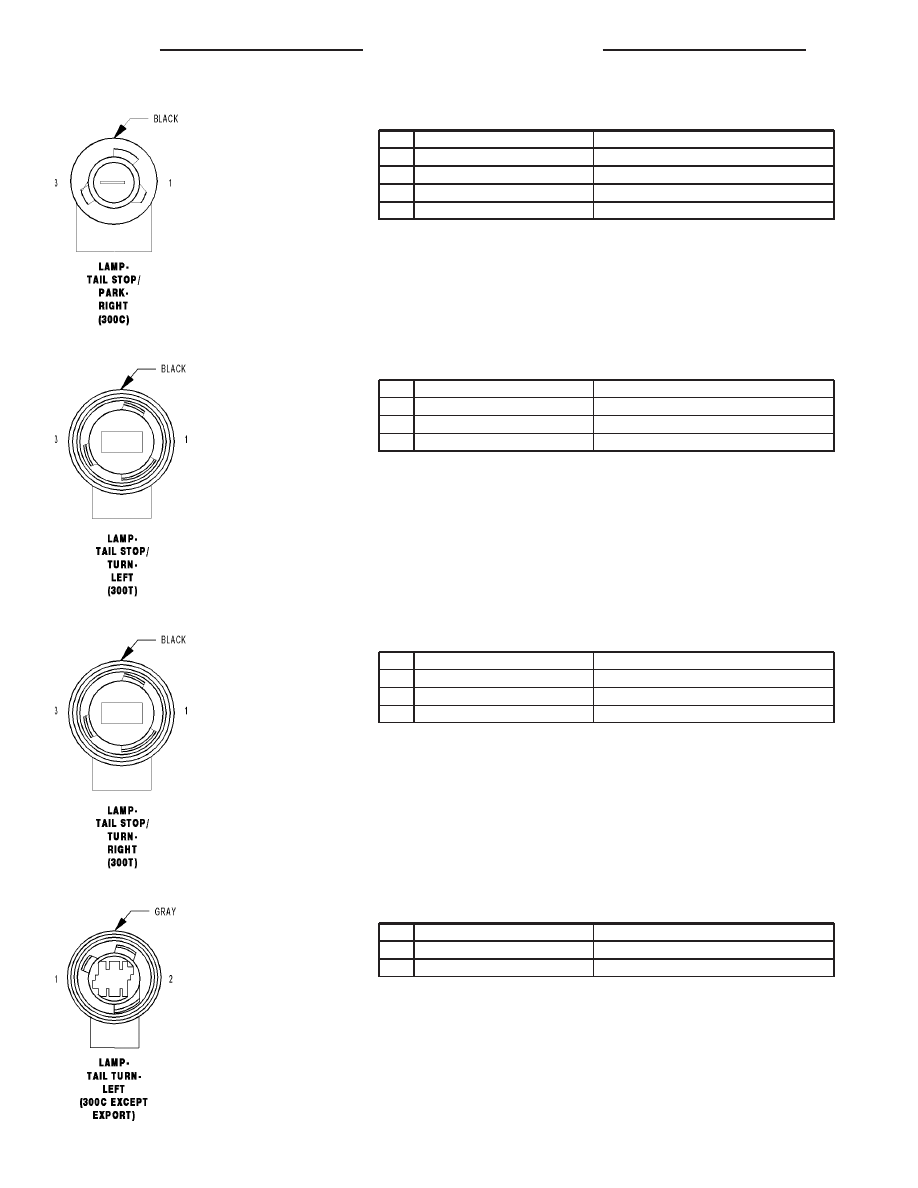

LAMP-TAIL STOP/PARK-RIGHT (300C) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L777 18WT/VT

PARK LAMP RELAY OUTPUT

3

L53 18DG/WT (MK25)

STOP LAMP INHIBIT RELAY OUTPUT

3

B29 18DG/WT (MK25E)

BRAKE SWITCH SIGNAL

LAMP-TAIL STOP/TURN-LEFT (300T) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L777 18WT/VT

PARK LAMP RELAY OUTPUT

3

L63 18WT/DG

LEFT REAR TURN SIGNAL CONTROL

LAMP-TAIL STOP/TURN-RIGHT (300T) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L777 18WT/VT

PARK LAMP RELAY OUTPUT

3

L62 18WT/YL

RIGHT REAR TURN SIGNAL CONTROL

LAMP-TAIL TURN-LEFT (300C EXCEPT EXPORT) - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L63 18WT/DG

LEFT REAR TURN SIGNAL CONTROL

8W - 80 - 82

8W-80 CONNECTOR PIN-OUTS

LX

LAMP-TAIL TURN-LEFT (300C EXPORT) - NATURAL 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L63 18WT/DG

LEFT REAR TURN SIGNAL CONTROL

LAMP-TAIL TURN-RIGHT (300C EXCEPT EXPORT) - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L62 18WT/YL

RIGHT REAR TURN SIGNAL CONTROL

LAMP-TAIL TURN-RIGHT (300C EXPORT) - NATURAL 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z914 18BK/GY

GROUND

2

L62 18WT/YL

RIGHT REAR TURN SIGNAL CONTROL

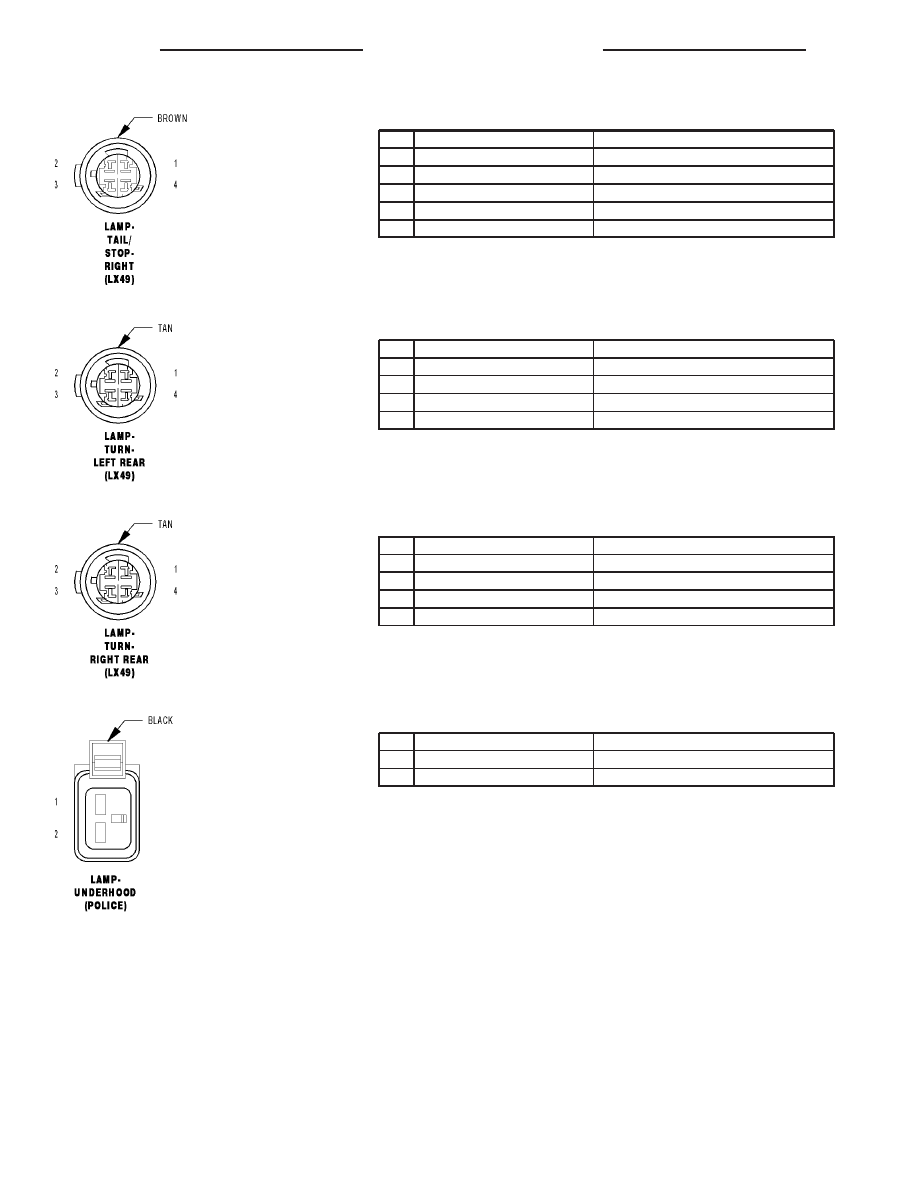

LAMP-TAIL/STOP-LEFT (LX49) - BROWN 4 WAY

CAV

CIRCUIT

FUNCTION

1

L777 20BR

PARK LAMP RELAY OUTPUT

2

Z914 20BK

GROUND

3

Z914 20BK

GROUND

4

L53 20BR/VT (MK25)

STOP LAMP INHIBIT RELAY OUTPUT

4

B29 20BR/VT (MK25E)

BRAKE SWITCH SIGNAL

LX

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 83

LAMP-TAIL/STOP-RIGHT (LX49) - BROWN 4 WAY

CAV

CIRCUIT

FUNCTION

1

L777 20BR

PARK LAMP RELAY OUTPUT

2

Z914 20BK

GROUND

3

Z914 20BK

GROUND

4

L53 20BR/VT (MK25)

STOP LAMP INHIBIT RELAY OUTPUT

4

B29 20BR/VT (MK25E)

BRAKE SWITCH SIGNAL

LAMP-TURN-LEFT REAR (LX49) - TAN 4 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

Z914 20BK

GROUND

3

Z914 20BK

GROUND

4

L63 18RD/OR

LEFT REAR TURN SIGNAL CONTROL

LAMP-TURN-RIGHT REAR (LX49) - TAN 4 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

Z914 20BK

GROUND

3

Z914 20BK

GROUND

4

L62 18RD/OR

RIGHT REAR TURN SIGNAL CONTROL

LAMP-UNDERHOOD (POLICE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

A904 16RD

FUSED B(+)

2

Z904 20BK/BR

GROUND

8W - 80 - 84

8W-80 CONNECTOR PIN-OUTS

LX

LAMP-VANITY-LEFT (EXCEPT POLICE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

M27 20YL/LB

READING/RAIL LAMPS DRIVER

2

Z909 20BK/LG

GROUND

LAMP-VANITY-RIGHT (EXCEPT POLICE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

M27 20YL/LB

READING/RAIL LAMPS DRIVER

2

Z909 20BK/LG

GROUND

LATCH-DOOR-DECKLID (LX48) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z911 18BK/WT

GROUND

1

Z911 20BK/WT (LHD EXCEPT POLICE)

GROUND

1

Z911 20BK (RHD/POLICE)

GROUND

2

G78 20VT/OR (LHD EXCEPT POLICE)

DECKLID/LIFTGATE AJAR SWITCH SENSE

2

G78 20BK (RHD/POLICE)

DECKLID/LIFTGATE AJAR SWITCH SENSE

3

P31 20TN/YL (LHD EXCEPT POLICE)

DECKLID/LIFTGATE RELEASE DRIVER

3

P31 20BK (RHD/POLICE)

DECKLID/LIFTGATE RELEASE DRIVER

LATCH-DOOR-DRIVER - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

G75 20VT

DRIVER DOOR AJAR SWITCH SENSE

2

Z912 20BK/OR

GROUND

3

P1 20TN/LG

DRIVER DOOR UNLOCK DRIVER

4

P393 20LG

DOOR LOCK DRIVER

LX

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 85
