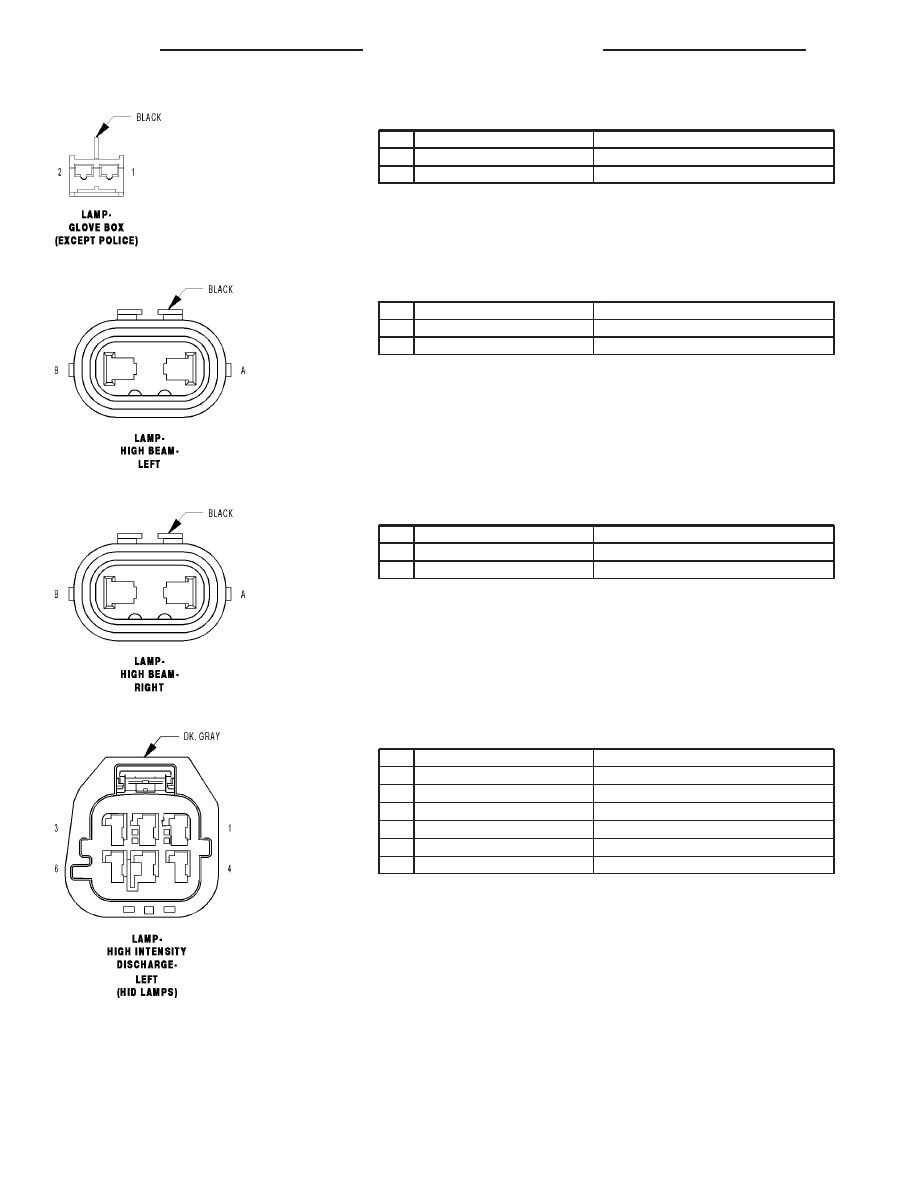

LAMP-GLOVE BOX (EXCEPT POLICE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z909 20BK/LG

GROUND

2

M27 20YL/LB

READING/RAIL LAMPS DRIVER

LAMP-HIGH BEAM-LEFT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

A

L33 18WT/LG

LEFT HIGH BEAM DRIVER

B

Z902 18BK/LB

GROUND

LAMP-HIGH BEAM-RIGHT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

A

L34 18WT/GY

RIGHT HIGH BEAM DRIVER

B

Z901 18BK/DG

GROUND

LAMP-HIGH INTENSITY DISCHARGE-LEFT (HID LAMPS) - DK. GRAY 6 WAY

CAV

CIRCUIT

FUNCTION

1

L303 18WT/OR

LEFT HID LAMP DRIVER

2

D205 20WT/DB (EXPORT)

SCI RECEIVE (LEFT HID LAMP)

3

Z902 18BK/LB

GROUND

4

F500 20DG/PK (EXPORT)

FUSED RUN RELAY OUTPUT

5

-

-

6

L13 20WT/YL (EXPORT)

HEADLAMP LEVEL SENSOR SIGNAL

8W - 80 - 74

8W-80 CONNECTOR PIN-OUTS

LX

LAMP-HIGH INTENSITY DISCHARGE-RIGHT (HID LAMPS) - DK. GRAY 6 WAY

CAV

CIRCUIT

FUNCTION

1

L304 18OR/WT

RIGHT HID LAMP DRIVER

2

D211 20WT/RD (EXPORT)

SCI RECEIVE (RIGHT HID LAMP)

3

Z901 18BK/DG

GROUND

4

F500 20DG/PK (EXPORT)

FUSED RUN RELAY OUTPUT

5

-

-

6

L13 20WT/YL (EXPORT)

HEADLAMP LEVEL SENSOR SIGNAL

LAMP-LICENSE (EXCEPT 300C/EXPORT) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L777 20WT/VT

PARK LAMP RELAY OUTPUT

2

Z914 20BK/BR

GROUND

LAMP-LICENSE-LEFT (300C/EXPORT) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L777 20WT/VT

PARK LAMP RELAY OUTPUT

2

Z914 20BK/BR

GROUND

LX

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 75

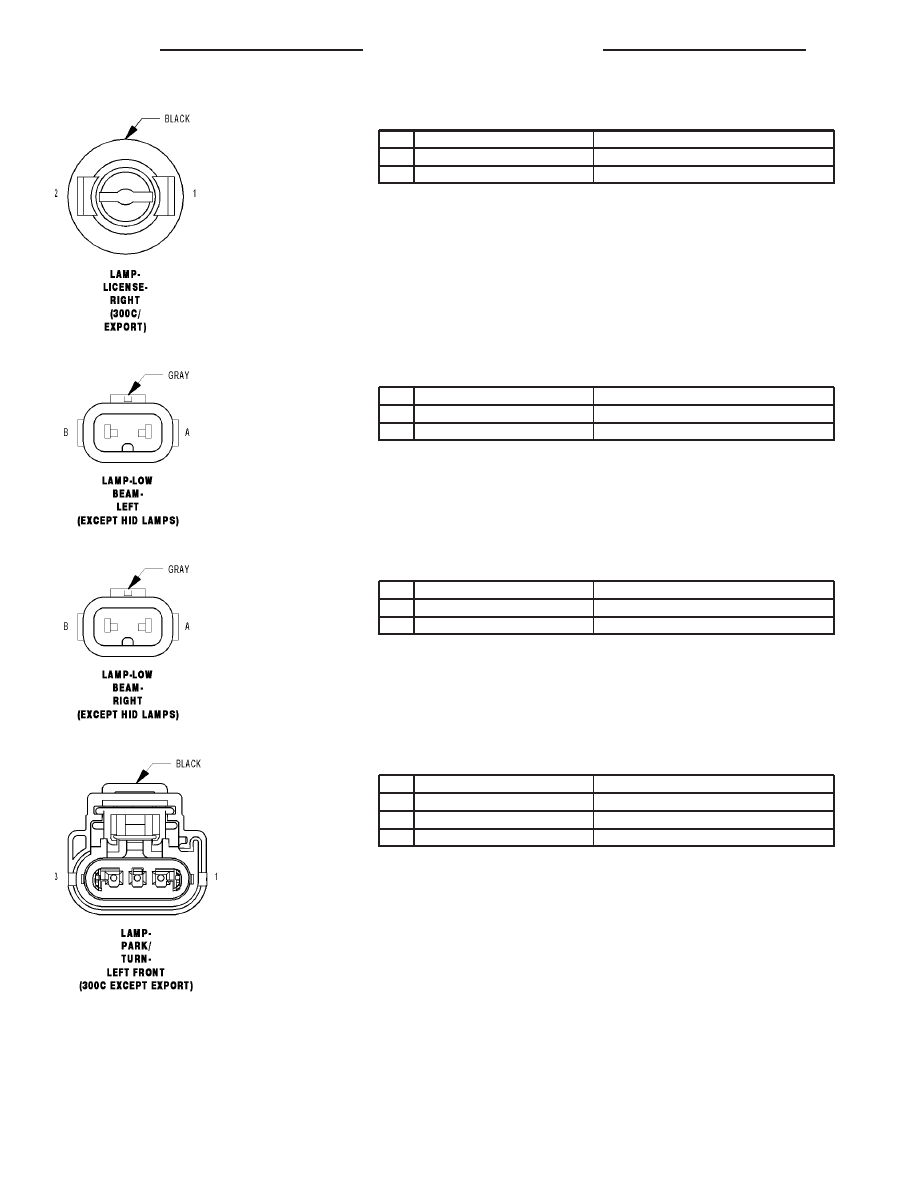

LAMP-LICENSE-RIGHT (300C/EXPORT) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L777 20WT/VT

PARK LAMP RELAY OUTPUT

2

Z914 20BK/BR

GROUND

LAMP-LOW BEAM-LEFT (EXCEPT HID LAMPS) - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

A

L43 18WT/DB

LEFT LOW BEAM DRIVER

B

Z902 18BK/LB

GROUND

LAMP-LOW BEAM-RIGHT (EXCEPT HID LAMPS) - GRAY 2 WAY

CAV

CIRCUIT

FUNCTION

A

L44 18WT/TN

RIGHT LOW BEAM DRIVER

B

Z901 18BK/DG

GROUND

LAMP-PARK/TURN-LEFT FRONT (300C EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z902 18BK/LB

GROUND

2

L777 20WT/VT

PARK LAMP RELAY OUTPUT

3

L61 18WT/LG

LEFT FRONT TURN SIGNAL CONTROL

8W - 80 - 76

8W-80 CONNECTOR PIN-OUTS

LX

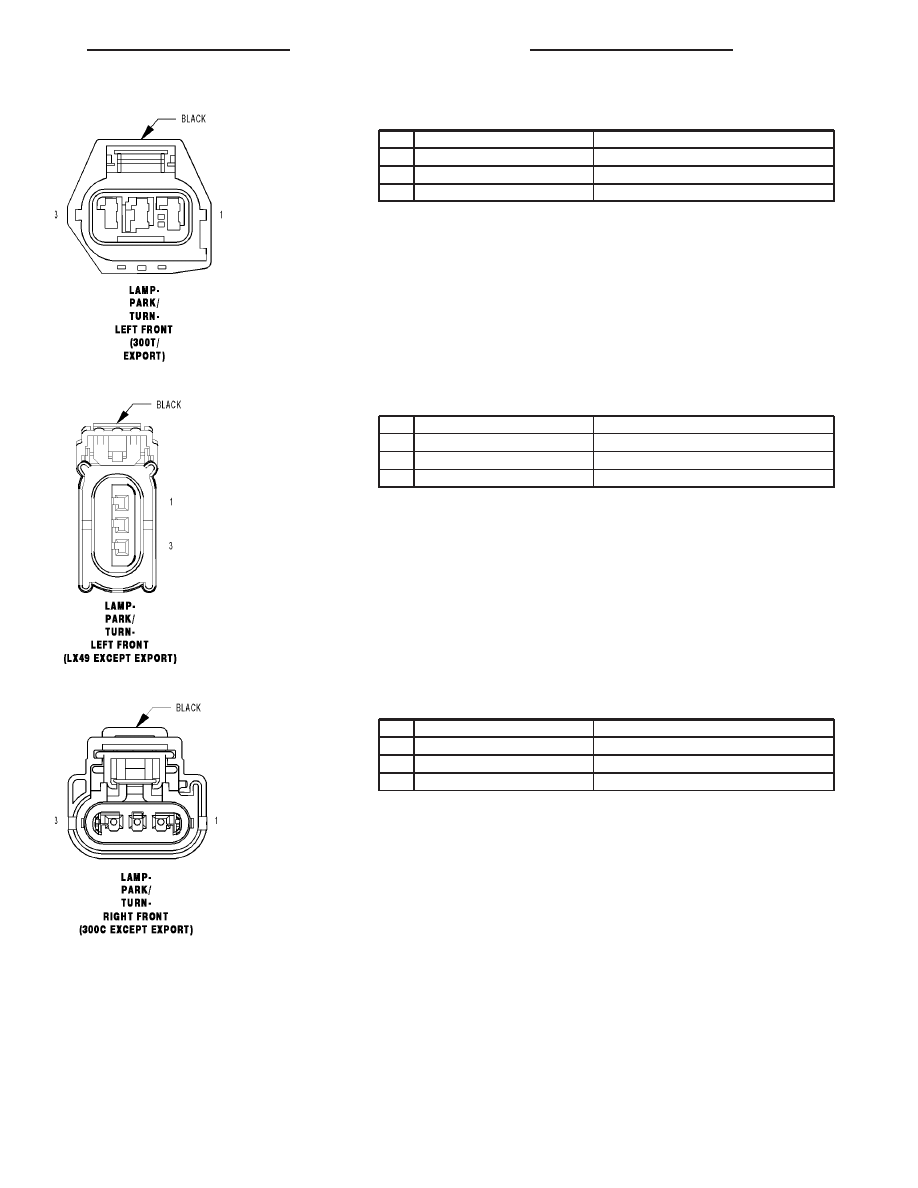

LAMP-PARK/TURN-LEFT FRONT (300T/EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z902 18BK/LB

GROUND

2

L777 20WT/VT

PARK LAMP RELAY OUTPUT

3

L61 18WT/LG

LEFT FRONT TURN SIGNAL CONTROL

LAMP-PARK/TURN-LEFT FRONT (LX49 EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

L61 18WT/LG

LEFT FRONT TURN SIGNAL CONTROL

2

L777 20WT/VT

PARK LAMP RELAY OUTPUT

3

Z902 18BK/LB

GROUND

LAMP-PARK/TURN-RIGHT FRONT (300C EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z901 18BK/DG

GROUND

2

L777 20WT/VT

PARK LAMP RELAY OUTPUT

3

L60 18WT/TN

RIGHT FRONT TURN SIGNAL CONTROL

LX

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 77
