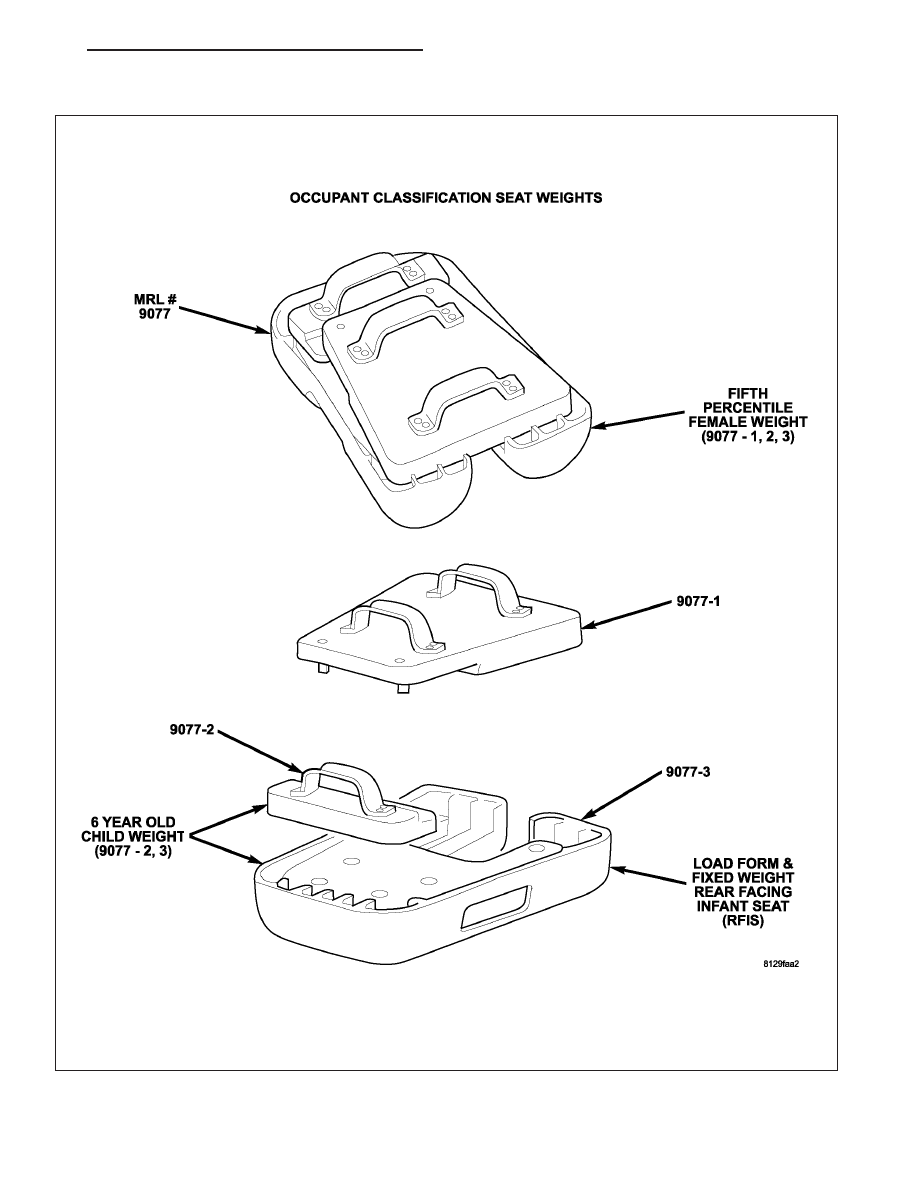

B2205-ORIGINAL VIN MISSING/MISMATCH For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes INCORRECT VIN PROGRAMMED IN PCM OCCUPANT RESTRAINT CONTROLLER Diagnostic Test 1. VERIFY THAT DTC B2205-ORIGINAL VIN MISSING/MISMATCH Turn the ignition on. With the scan tool, read ORC DTCs. NOTE: Ensure the battery is fully charged. NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must Does the scan tool display active : B2205-ORIGINAL VIN MISSING/MISMATCH? Yes >> Go To 2 No >> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con- nectors. Look for broken, bent, pushed out, or corroded terminals. 2. CHECK VIN IN PCM With the scan tool compare the VIN that is programmed into the PCM to the VIN on the vehicle. Does the VIN programmed into the PCM match the vehicles VIN? Yes >> Go To 3 No >> Replace the Powertrain Control Module in accordance with Service Information. Perform the (NGC) POWERTRAIN VERIFICATION TEST-VER. 1 3. REPLACE THE OCCUPANT RESTRAINT CONTROLLER WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min- WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the View repair. Repair Replace the Occupant Restraint Controller in accordance with the service information. Perform the ORC VERIFICATION TEST-VER 1. 8O - 298 RESTRAINTS - ELECTRICAL DIAGNOSTICS LX |
